At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features
Engineered for Heavy Loads
A 12" I-beam main frame (19 lbs/ft) and 4.5" torque tube on 30'+ models give the FHZ SS the backbone to handle serious commercial loads while maintaining excellent stability on long hauls.
Powerful Axle Package
Choose between dual 10K or 12K Dexter-style oil bath axles for exceptional strength and performance. Both setups feature electric brakes, spring suspension, and a 5-year axle warranty for peace of mind.
Premium Powdercoat Protection
Every Horizon trailer is steel grit blasted, zinc primed, and powder coated for long-lasting corrosion resistance. With 12 color options — from Military Green to Spectra Yellow — the FHZ SS looks as tough as it performs.

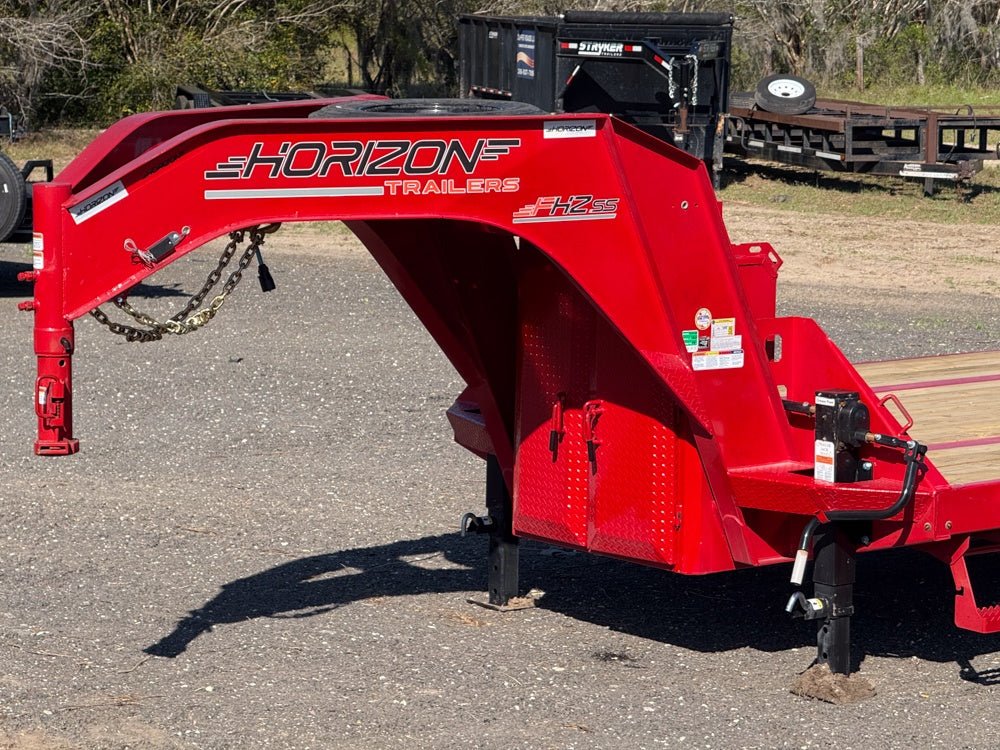

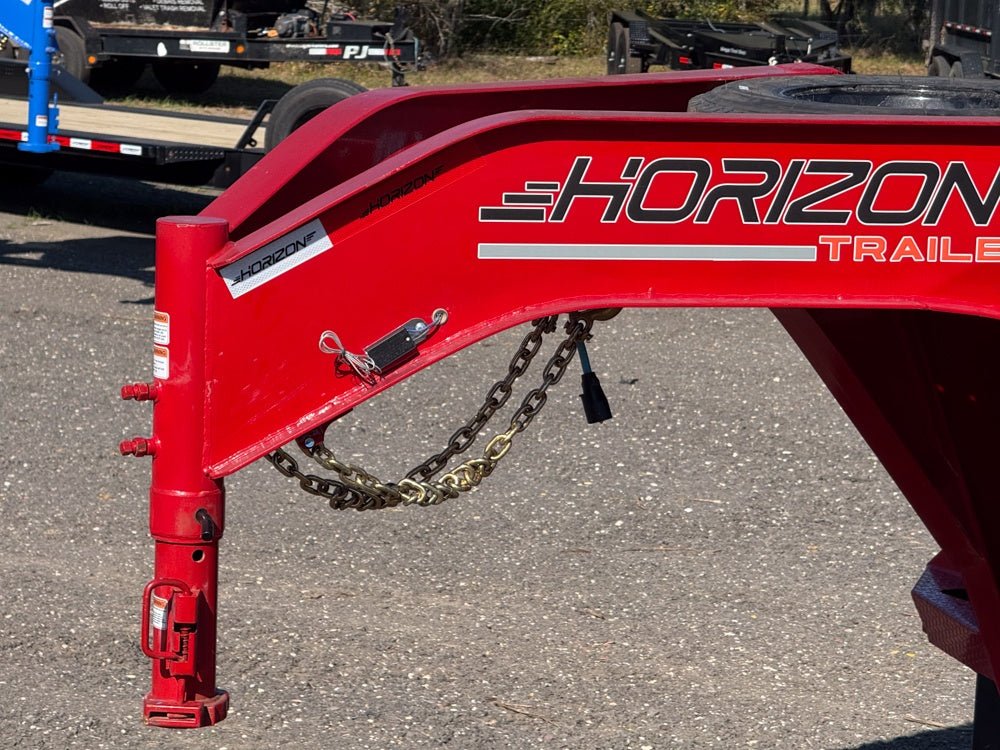

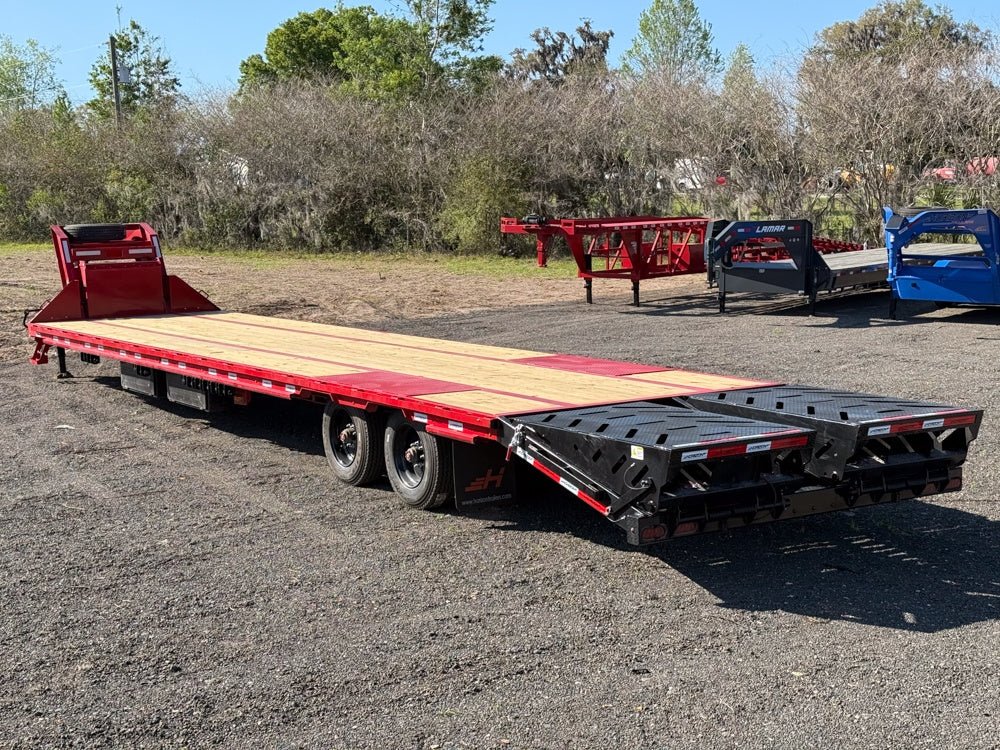

Gooseneck Confidence
The engineered gooseneck design (98" long, 70" tall) delivers balanced towing and superior strength. A 30K adjustable 2-5/16" coupler and dual 12K side-wind jacks make setup secure and efficient.

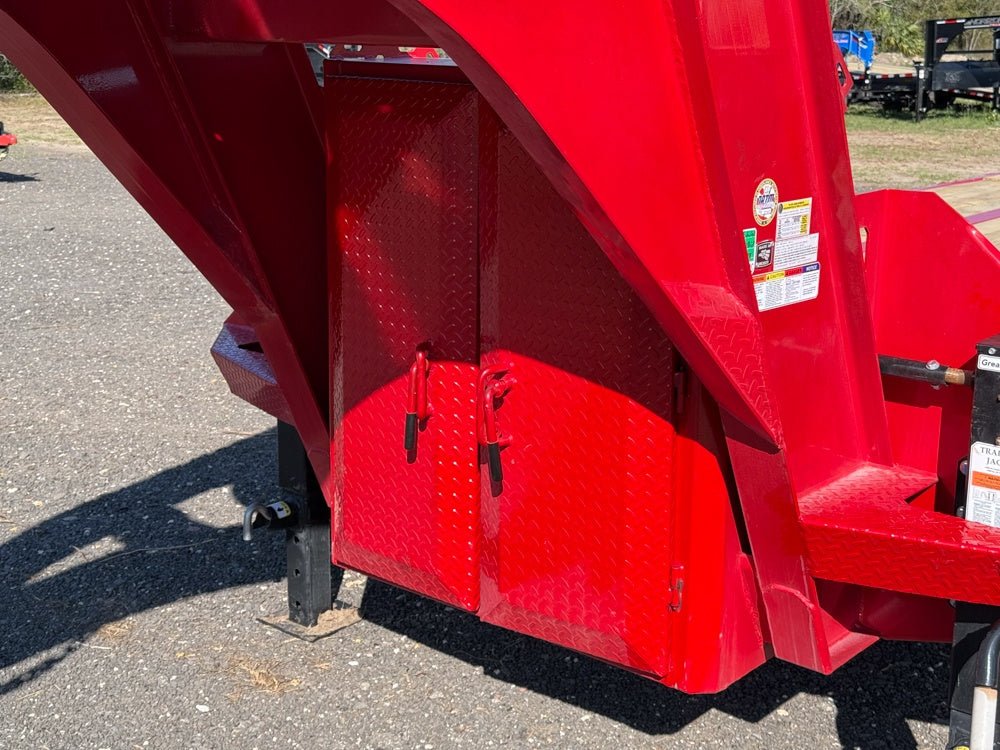

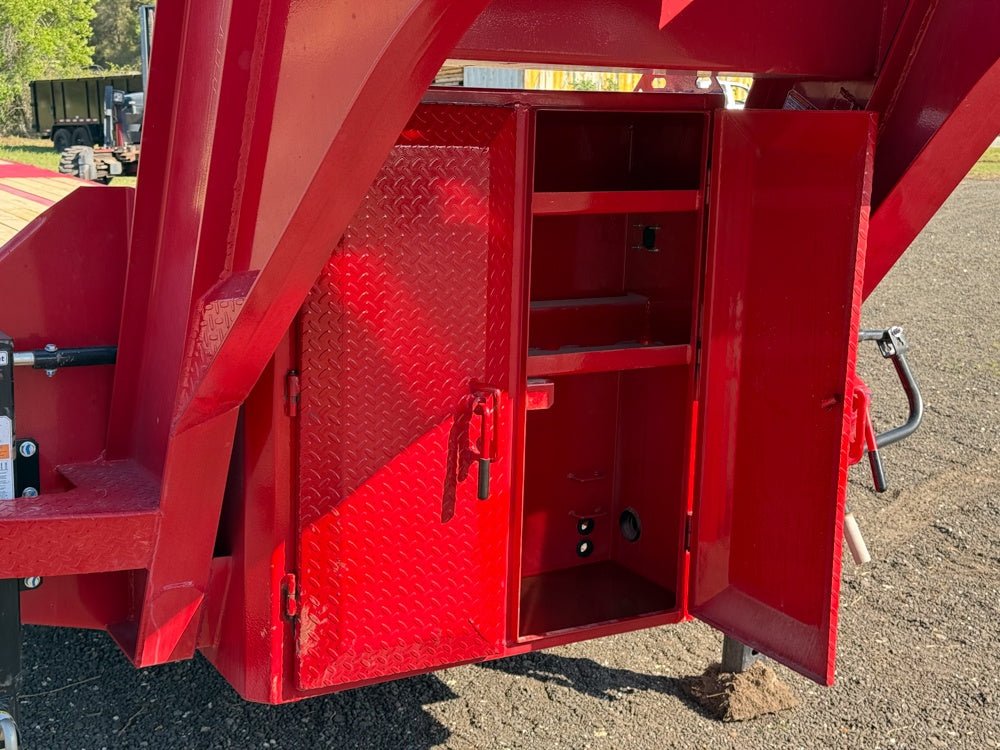

Work-Ready Storage

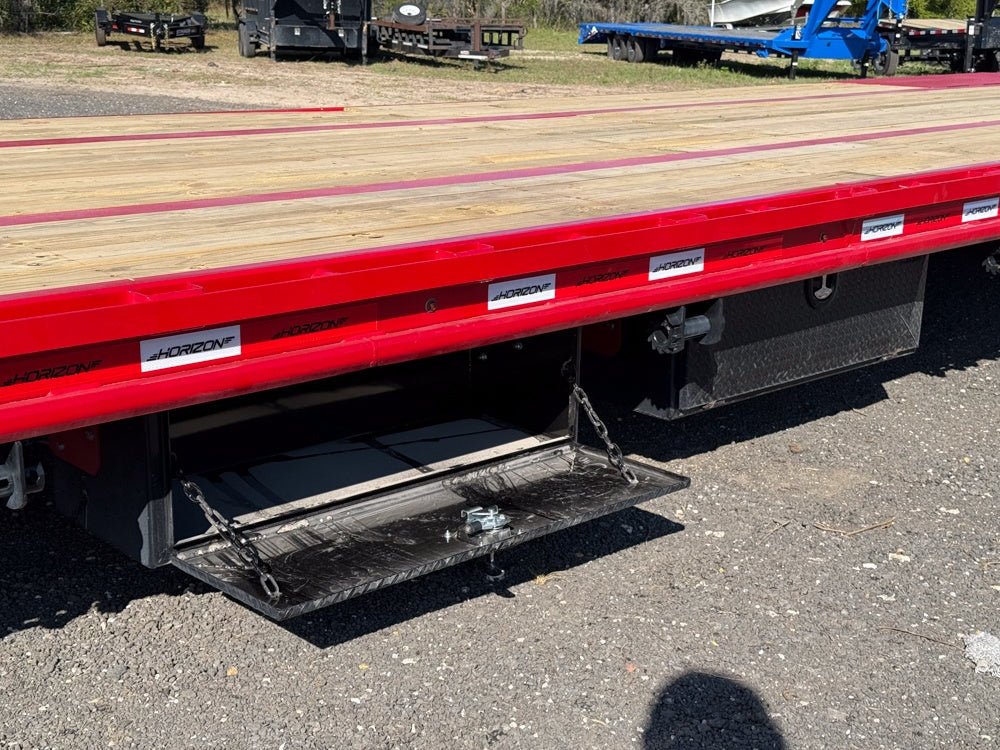

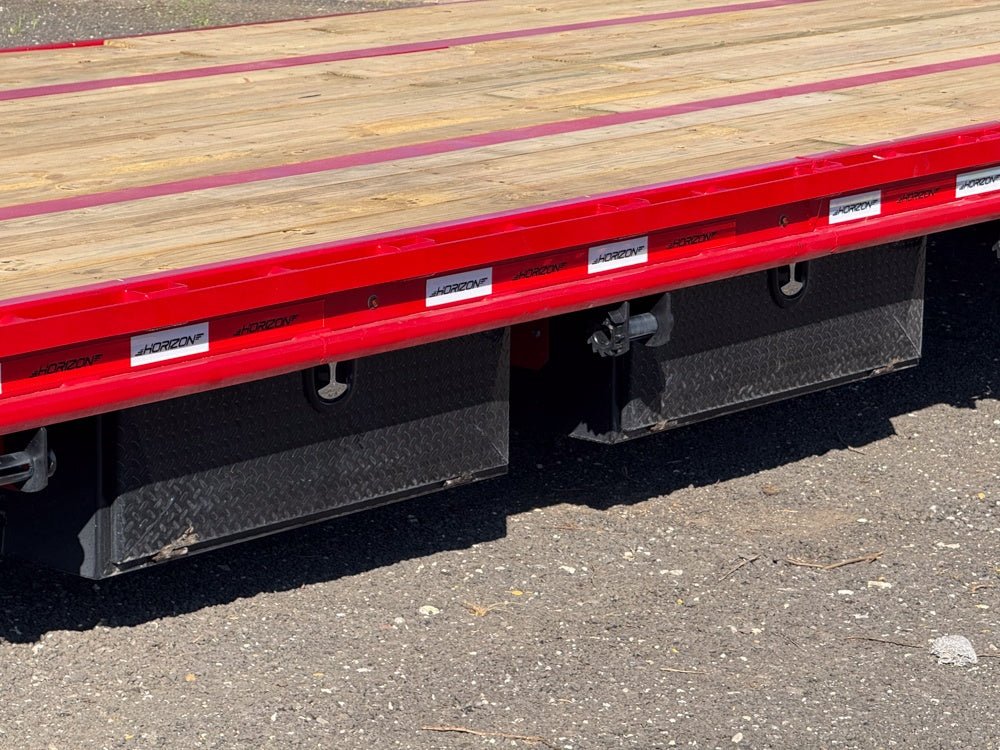

The large lockable front toolbox keeps chains, straps, and tools protected and easily accessible. Optional locker-style side boxes add even more storage for serious operators.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
WEIGHT RATINGS
- GAWR:
- 10k, 12k
- GVWR:
- 25k - 25.9k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 98" Long
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs)
- TOOLBOX GN:
- Mega Lockable Toolbox
DECK & LOADING
- DECK TYPE:
- Wood

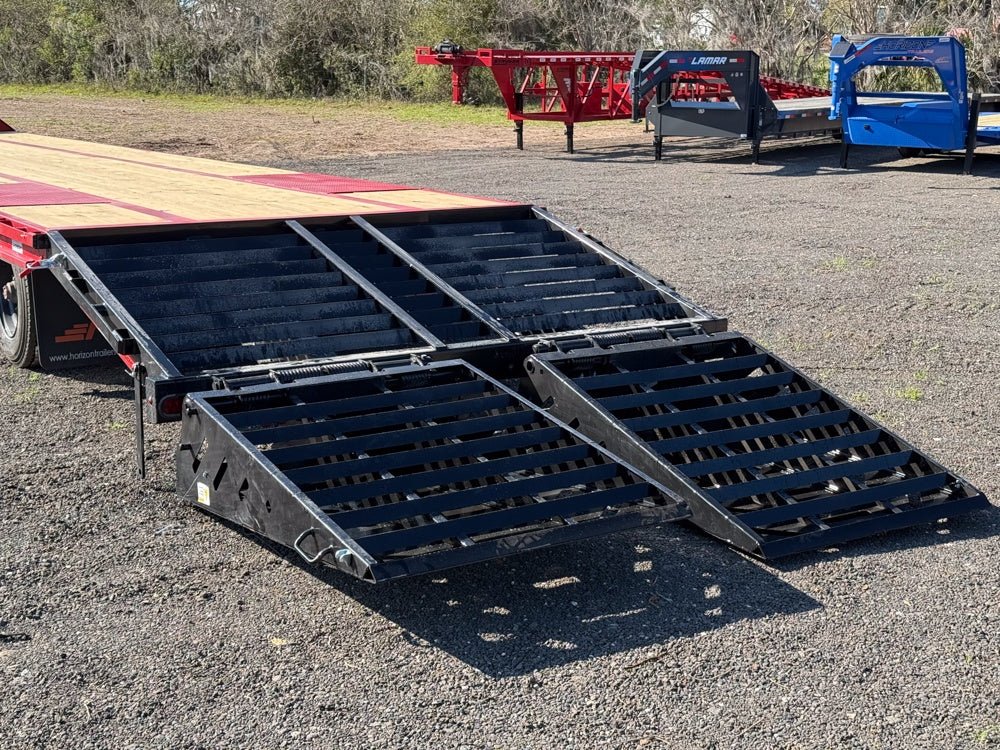

- RAMPS:
- 8' Slide In Ramps
- SWAY CONTROL:
- 4 1/2" Torque Tube (30'+)
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting

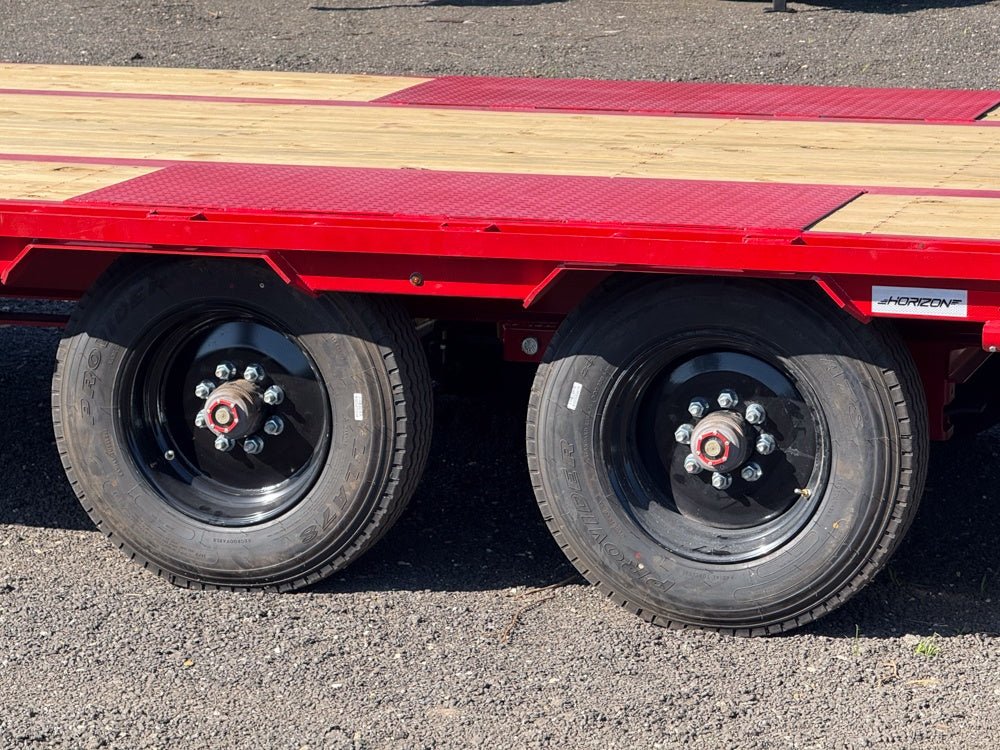

RUNNING GEAR
- TIRES:
- Radial Tires, ST235/75R17.5, 18 Ply
- RIMS:
- 17.5" Black Mod Wheels
- AXLE TYPE:
- 2 - Single 10k Electric Brake Oil Bath Axles
2 - Single 12k Electric Brake Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19 lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
