At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Featured Video
Product Features
10" Heavy-Duty I-Beam Main Frame
Built with a heavy-duty 10-inch (17 lbs/ft) I-beam main frame. This robust frame provides the foundational strength required for the trailer's 22,400 lb GVWR capacity.

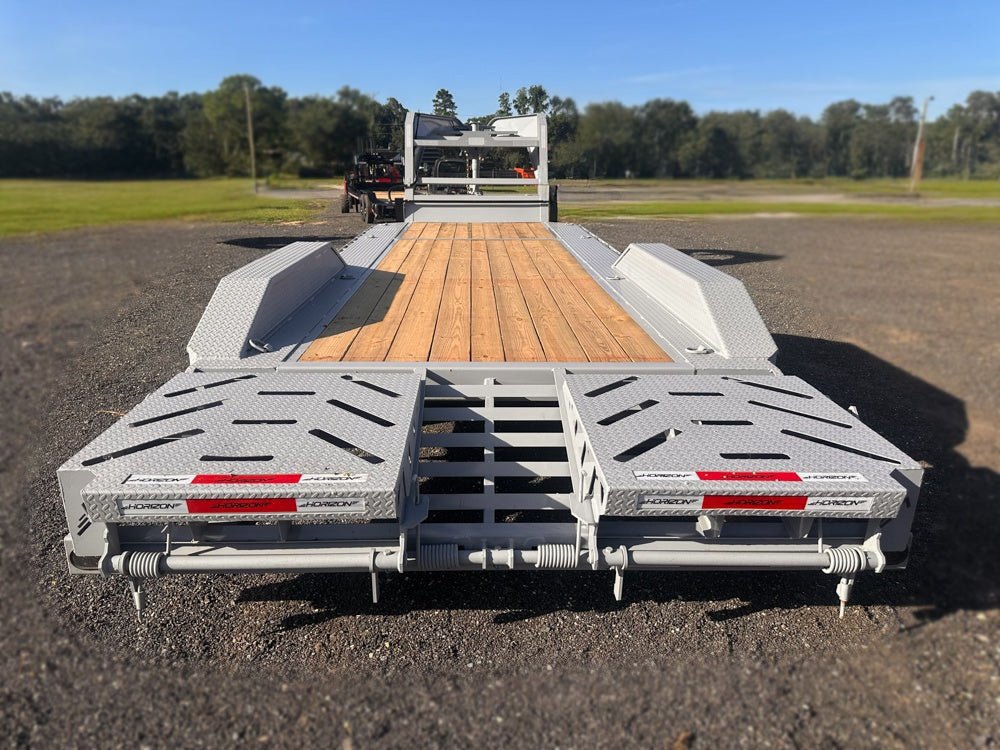

25" Low Profile Deck Height
Features a low 25-inch deck height for optimal loading ease. The low profile design allows for easier, safer drive-on loading of equipment compared to standard-height trailers.

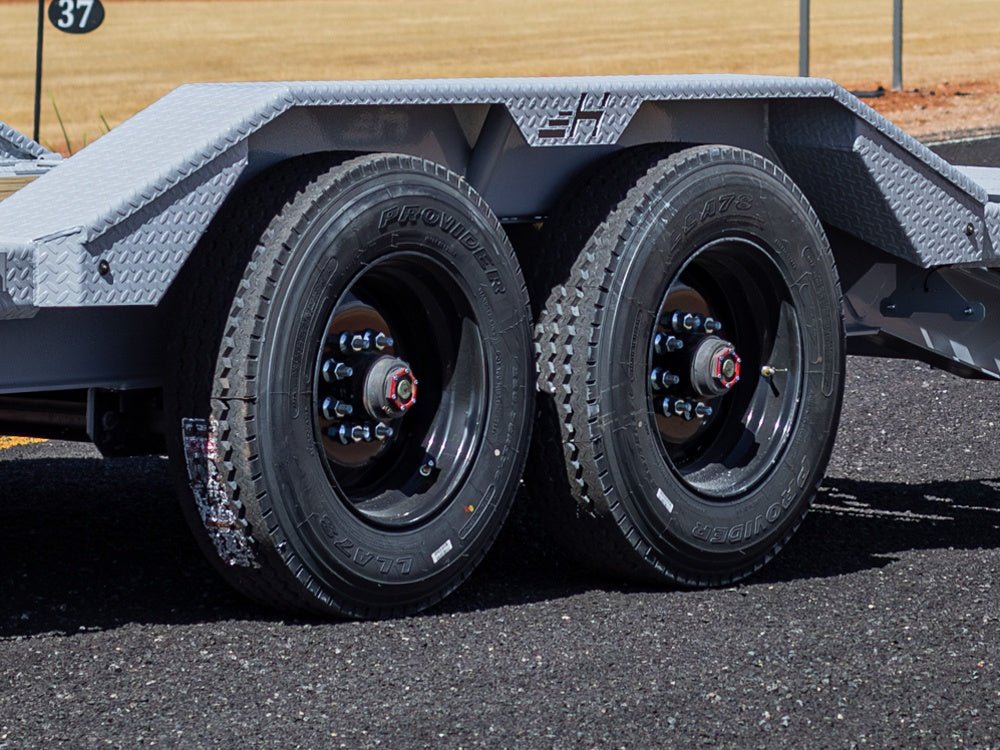

10k Dexter Oil Bath Axles & 17.5" Tires
Equipped with two 10,000 lb Dexter oil bath axles with electric brakes. The running gear uses high-capacity ST235/75R17.5 (18-ply) radial tires mounted on 17.5" black mod wheels.

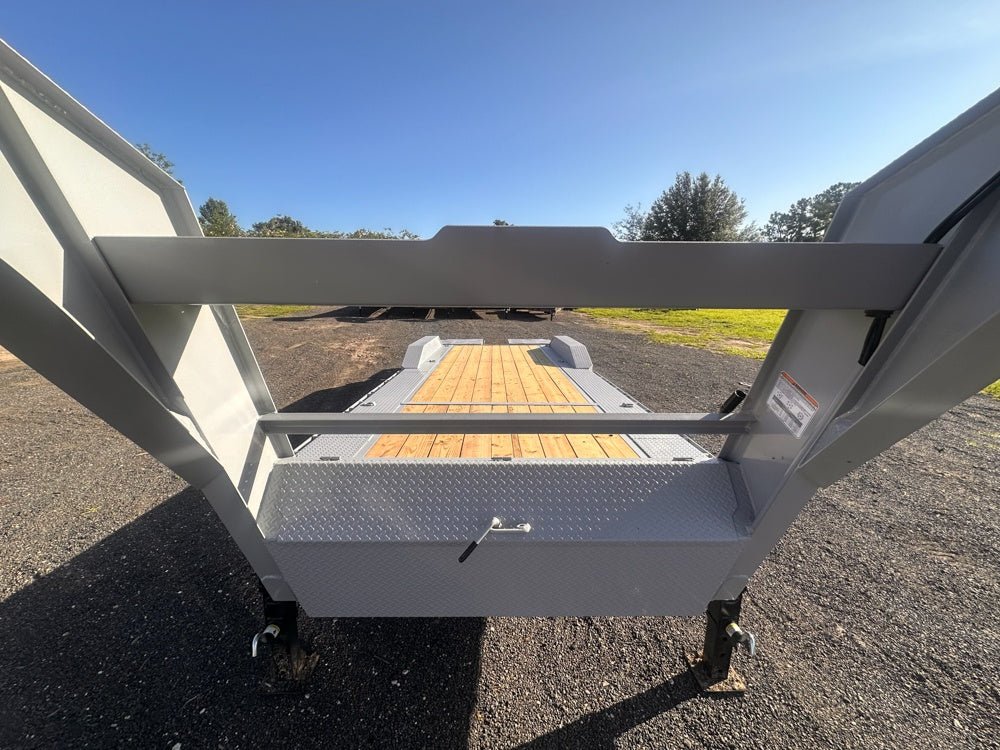

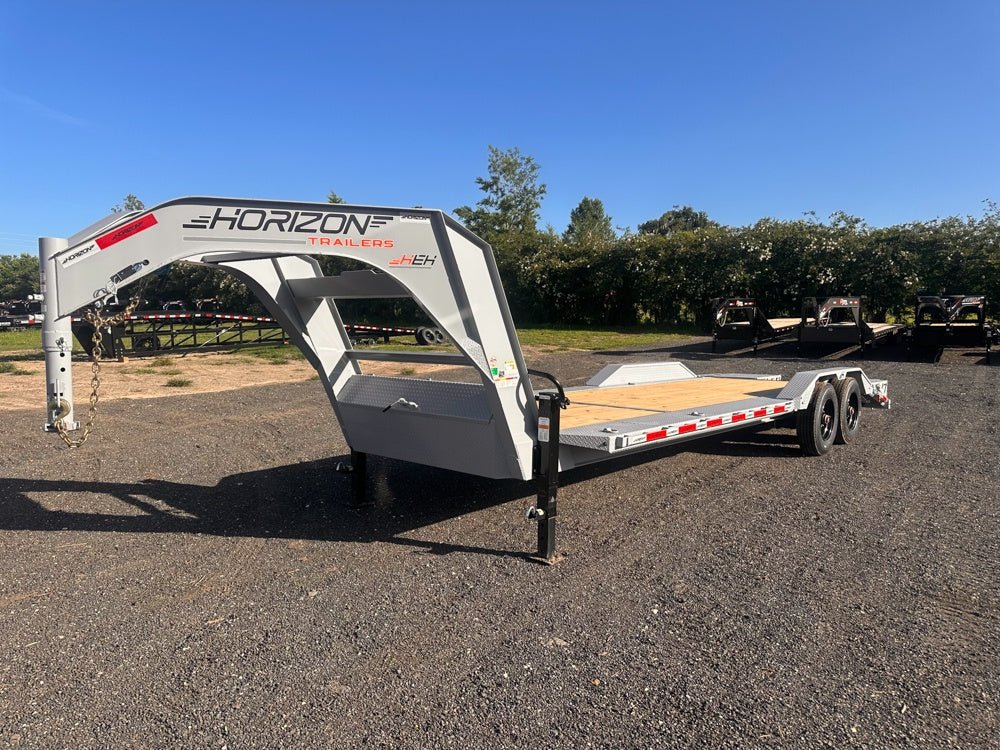

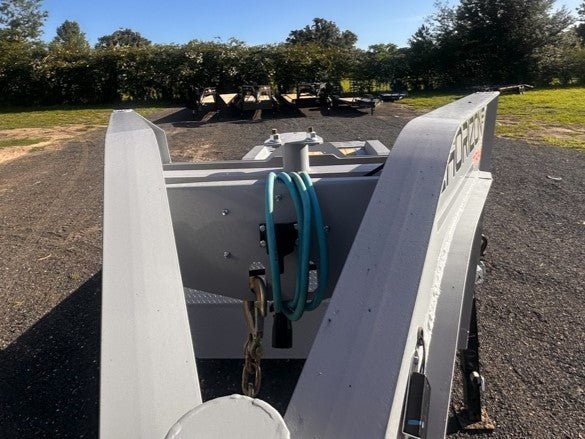

98" Engineered Gooseneck & Mega Toolbox
Features a long 98-inch engineered 10-inch I-beam gooseneck neck for improved approach angles. The neck is topped with a large, lockable mega toolbox for significant secure storage.

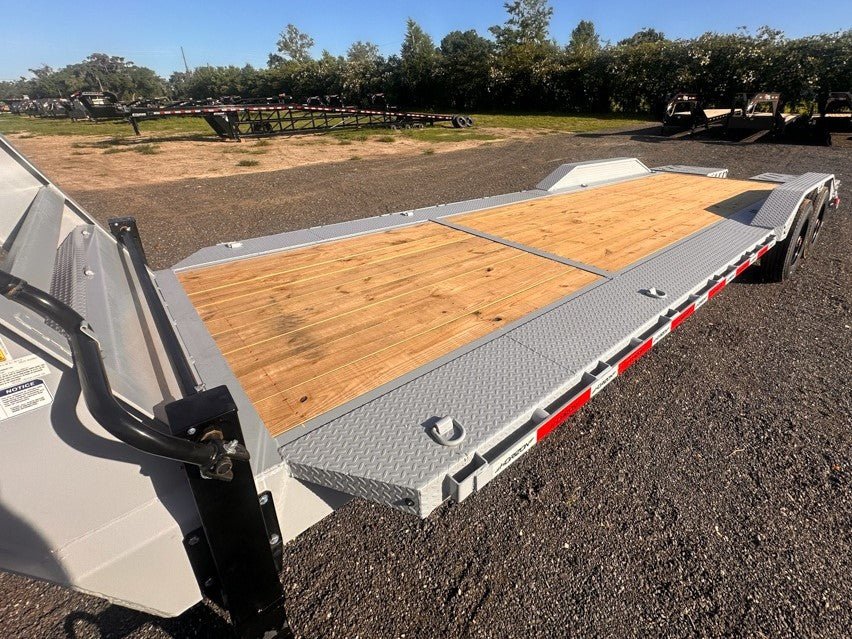

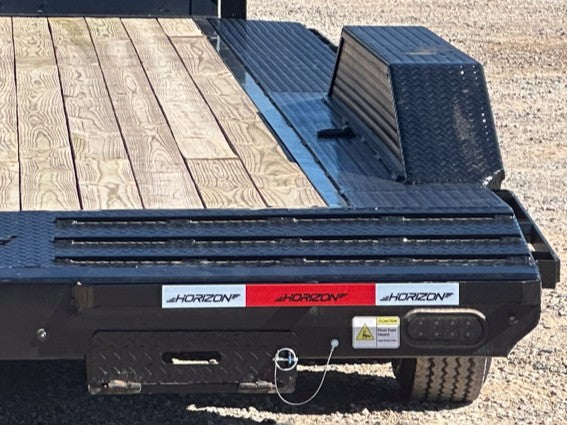

1/4" Diamond Plate Deck-Over Fenders
Includes heavy-duty 1/4-inch thick diamond plate steel deck-over fenders (DOF). This provides a superior load surface over the wheel wells compared to standard gauge materials.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 26'
- WIDTH:
- 82" - 102"
- DECK HEIGHT:
- 25"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k SS
- GVWR:
- 22.4k
RUNNING GEAR
- TIRES:
- ST235/75R17.5
- TIRE PLY:
- 18 Ply
- TIRE RATING:
- 6005 lbs
- RIMS:
- 17.5" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k SS Oil Bath Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brake
- SUSPENSION:
- Spring
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I-Beam
- LENGTH:
- 98" Long (From Behind Riser)
- HEIGHT:
- 70" High (From Underneath Neck)
- JACKS:
- 2 - Dual Side 12,000 lb Drop-Leg Jacks
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 10" (17lbs/ft) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 12 Ga. Removable Fenders
1/4" Diamond Plate DOF

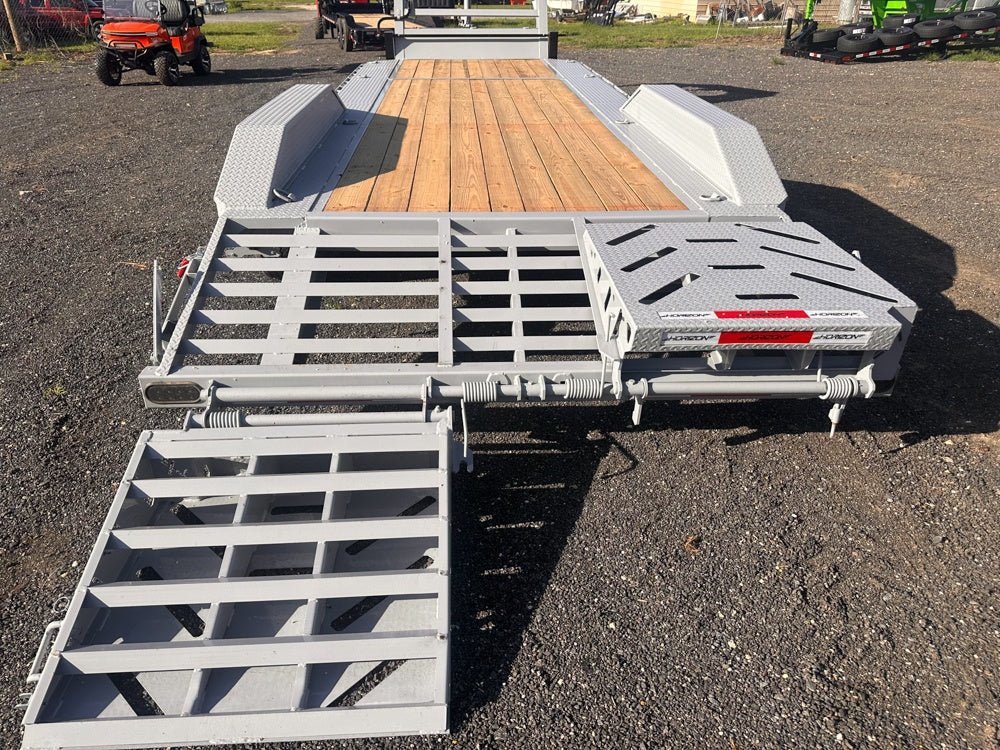

- RAMPS:
- 5'6" HD Slide In Ramps
SAFETY SYSTEM

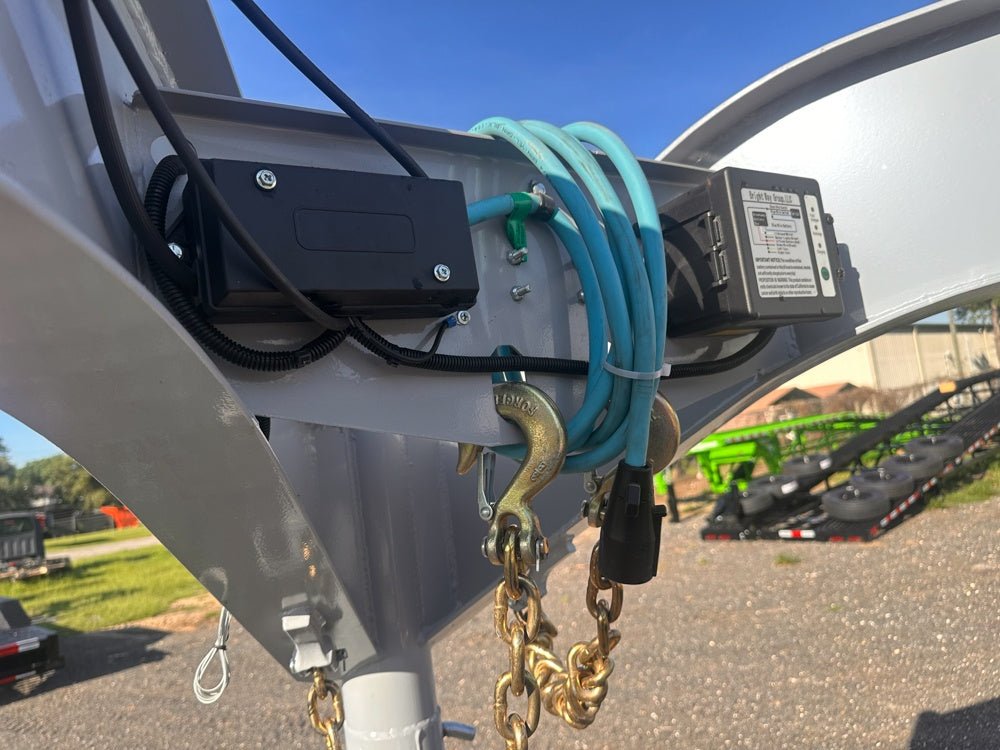

- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- All-Weather Wiring Harness (7-Way RV)
Double Insulated Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- D-RINGS:
- Additional D-Rings
- RATCHETS:
- Weld On Ratchets
Sliding Ratchets
- TOOLBOX:
- Integrated Storage Box In Deck
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green(#949C78), Desert Tan(#D0BCA8), Flame Orange(#DD4B31), Midnight Black(#0B050D), Spectra Yellow(#C0973B), Blue Horizon(#1C4B92), Lime Green(#01A154), Ash Grey(#4F5154), True Red(#C03534), Pearl White(#C4CBCE), Cloud Grey(#ADADAC), Navy Blue(#26245B)
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
