At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features

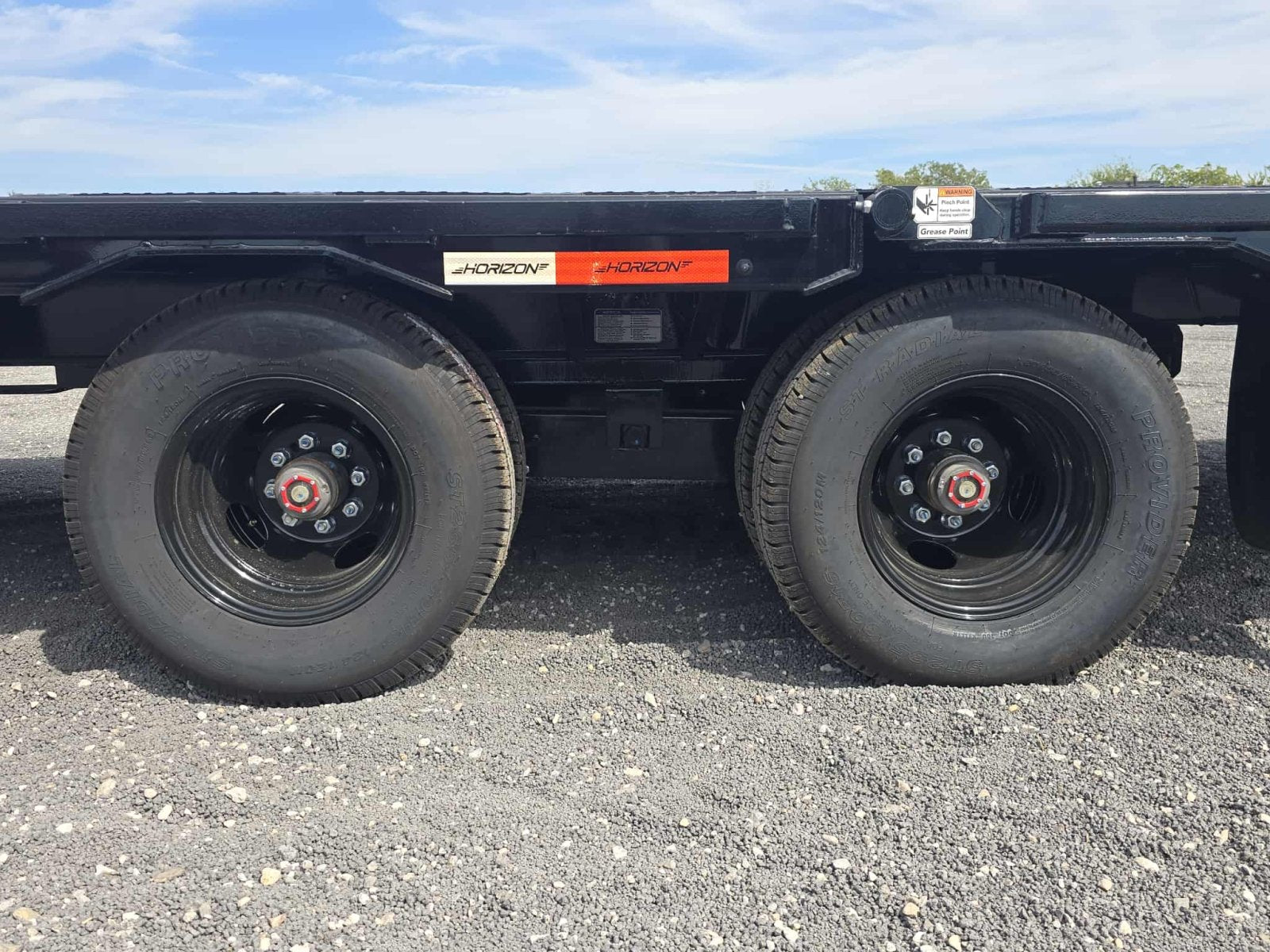

Running Gear
The dual-wheel setup features 10k or 12k electric brake axles with oil bath hubs, spring suspension, and ST235/80R16 radial tires on black mod wheels. A 16k axle upgrade is available for higher-capacity applications.
Frame & Construction
Built on a 12" I-beam main frame with 3" I-beam crossmembers spaced 16" apart, the FYZ offers exceptional strength and rigidity. A 4½" torque tube adds sway control on models 30' and longer, ensuring smooth towing under heavy loads.

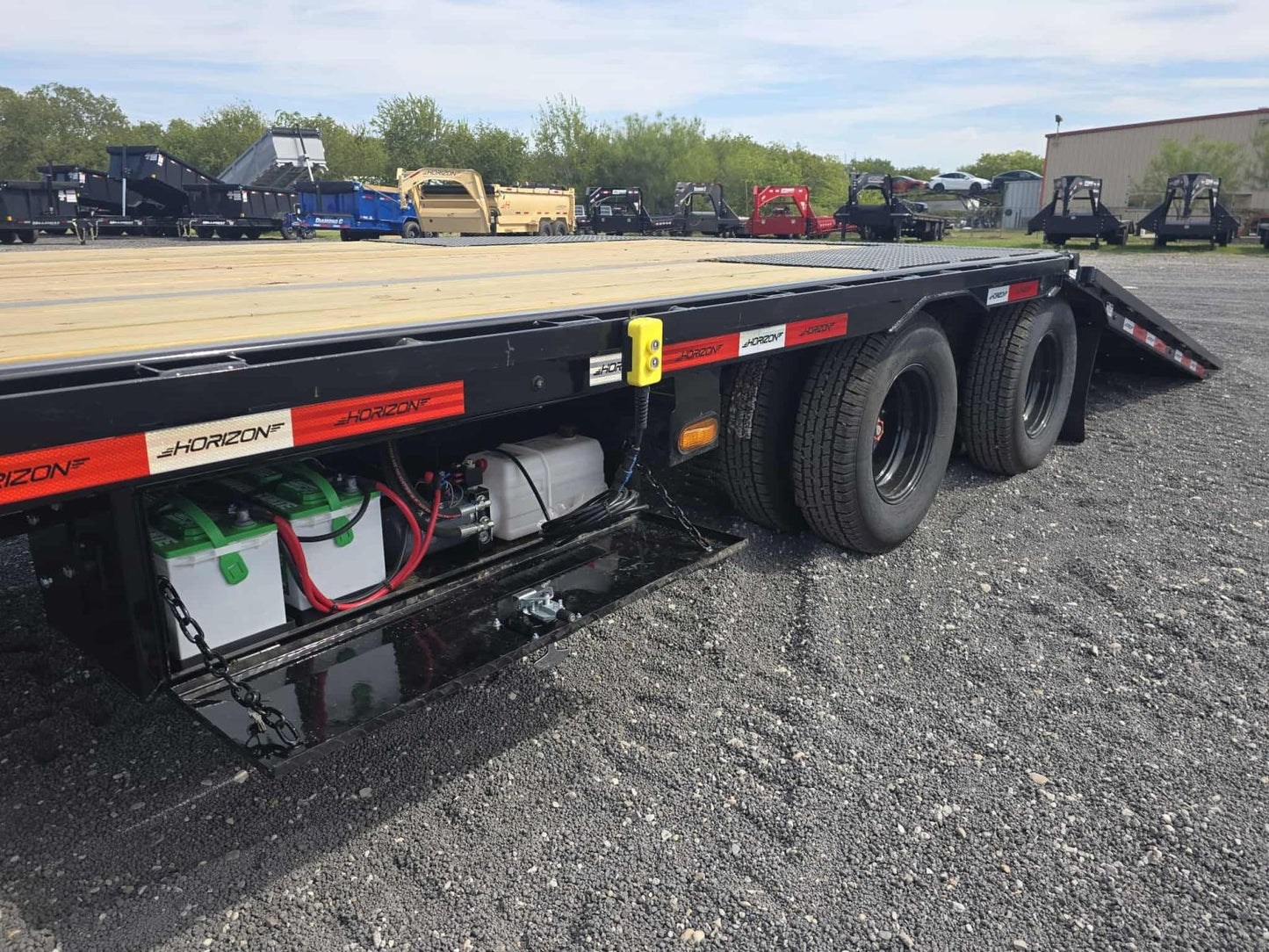

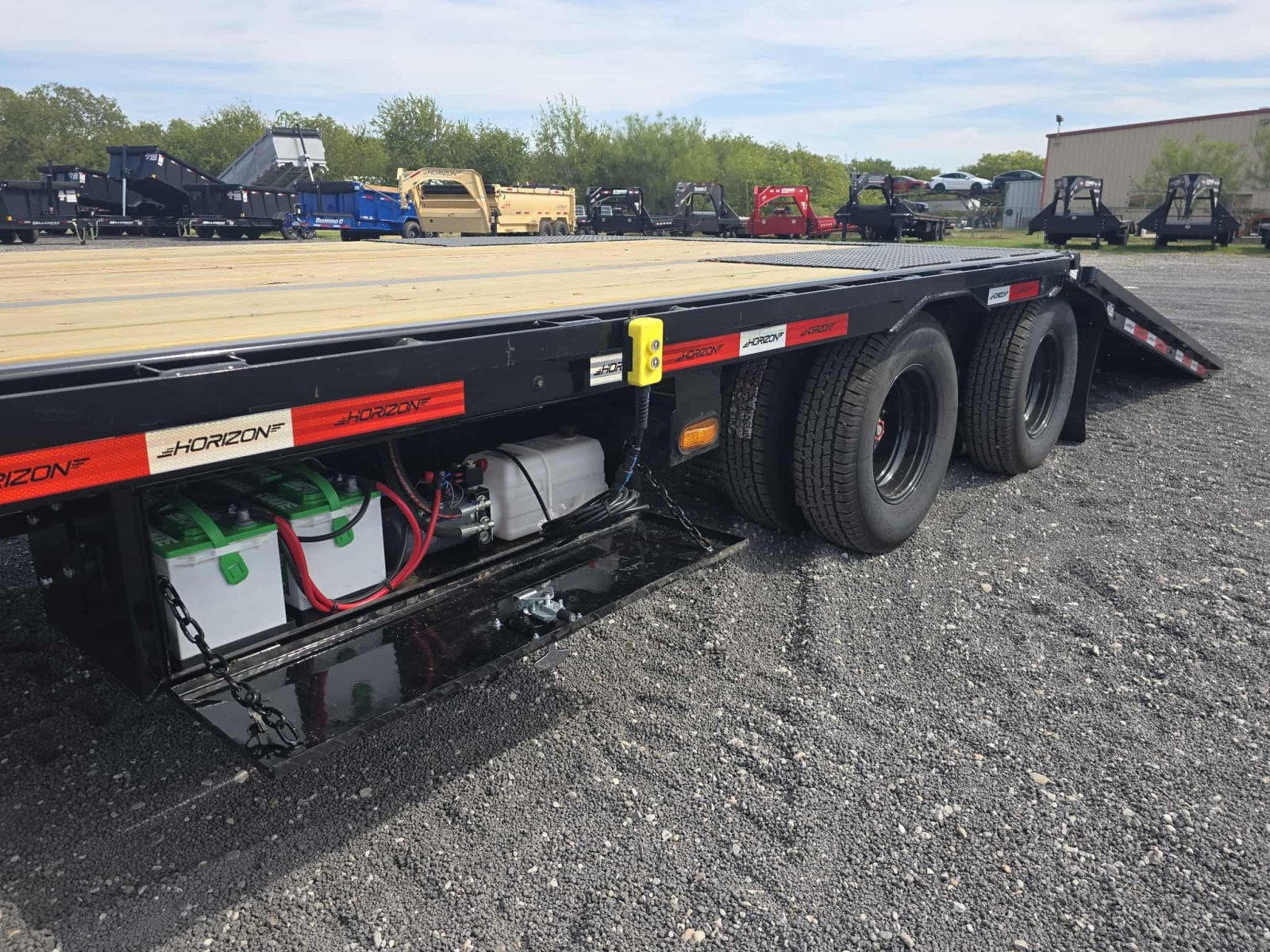

Hydraulic System
Equipped with a KTI 12V hydraulic pump and dual 4" x 16" single push cylinders, the FYZ delivers reliable power-up, power-down operation for its 12' hydraulic dovetail. The system provides a 10,000 lb lift capacity for efficient loading and unloading.

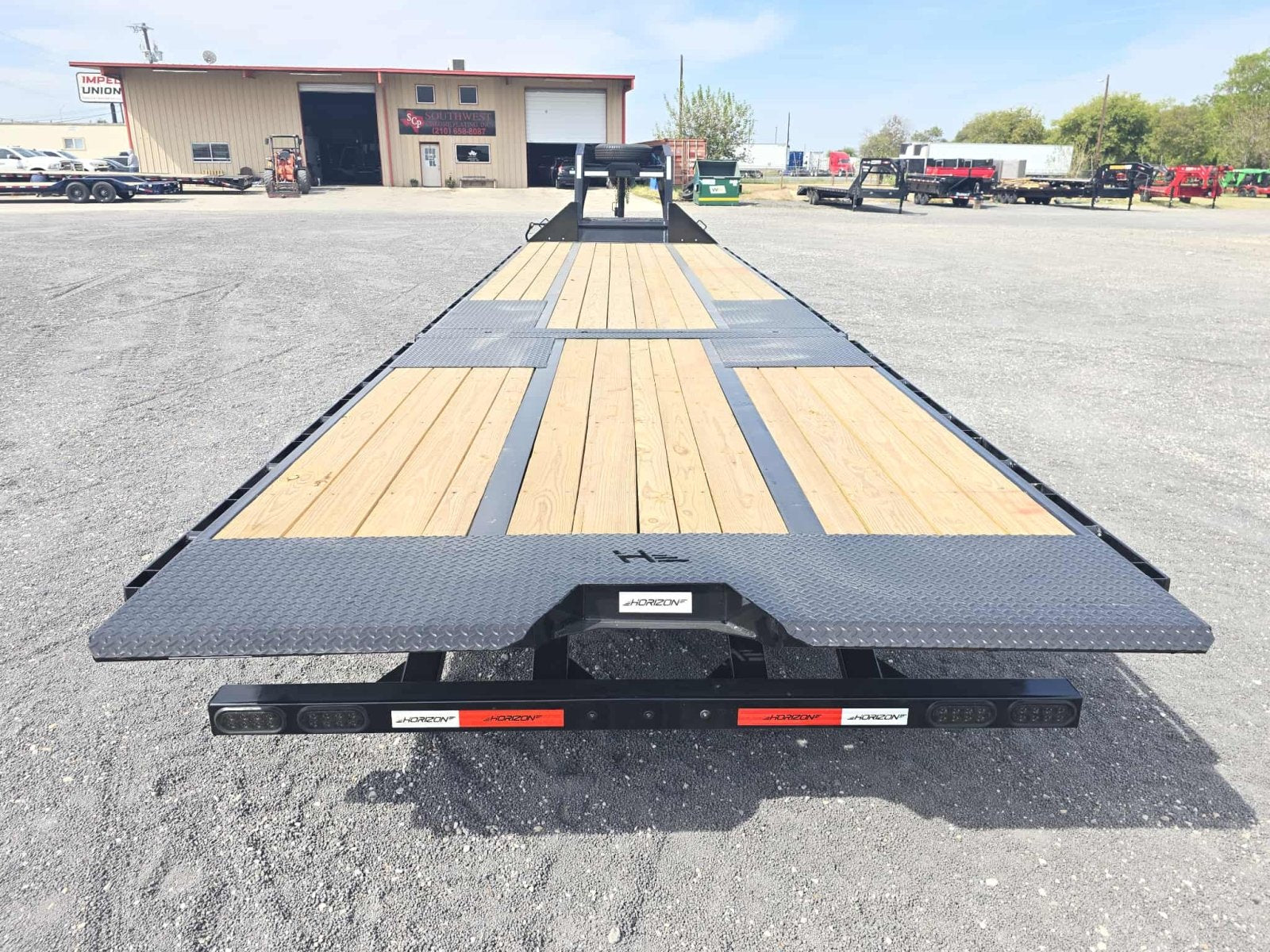

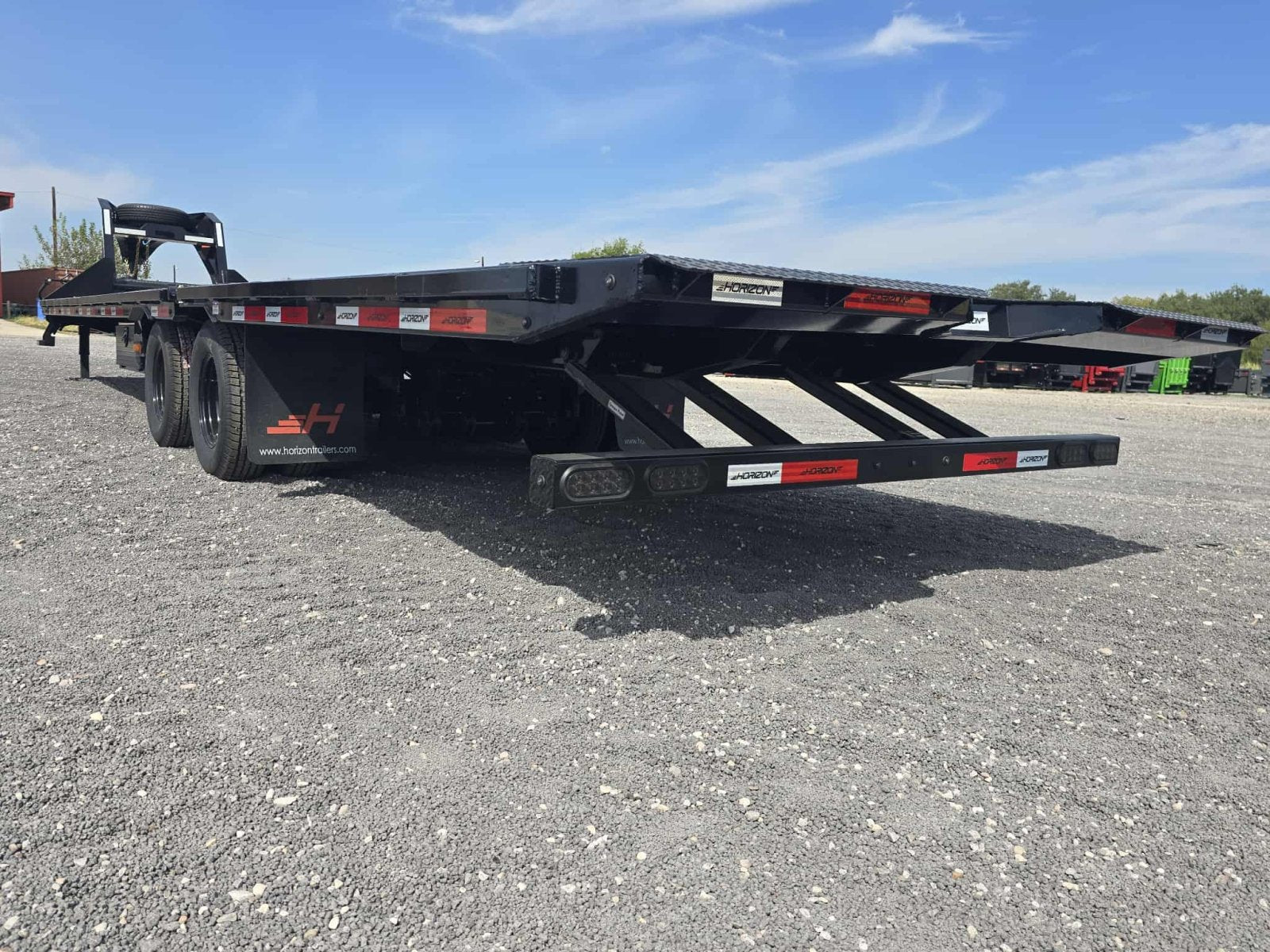

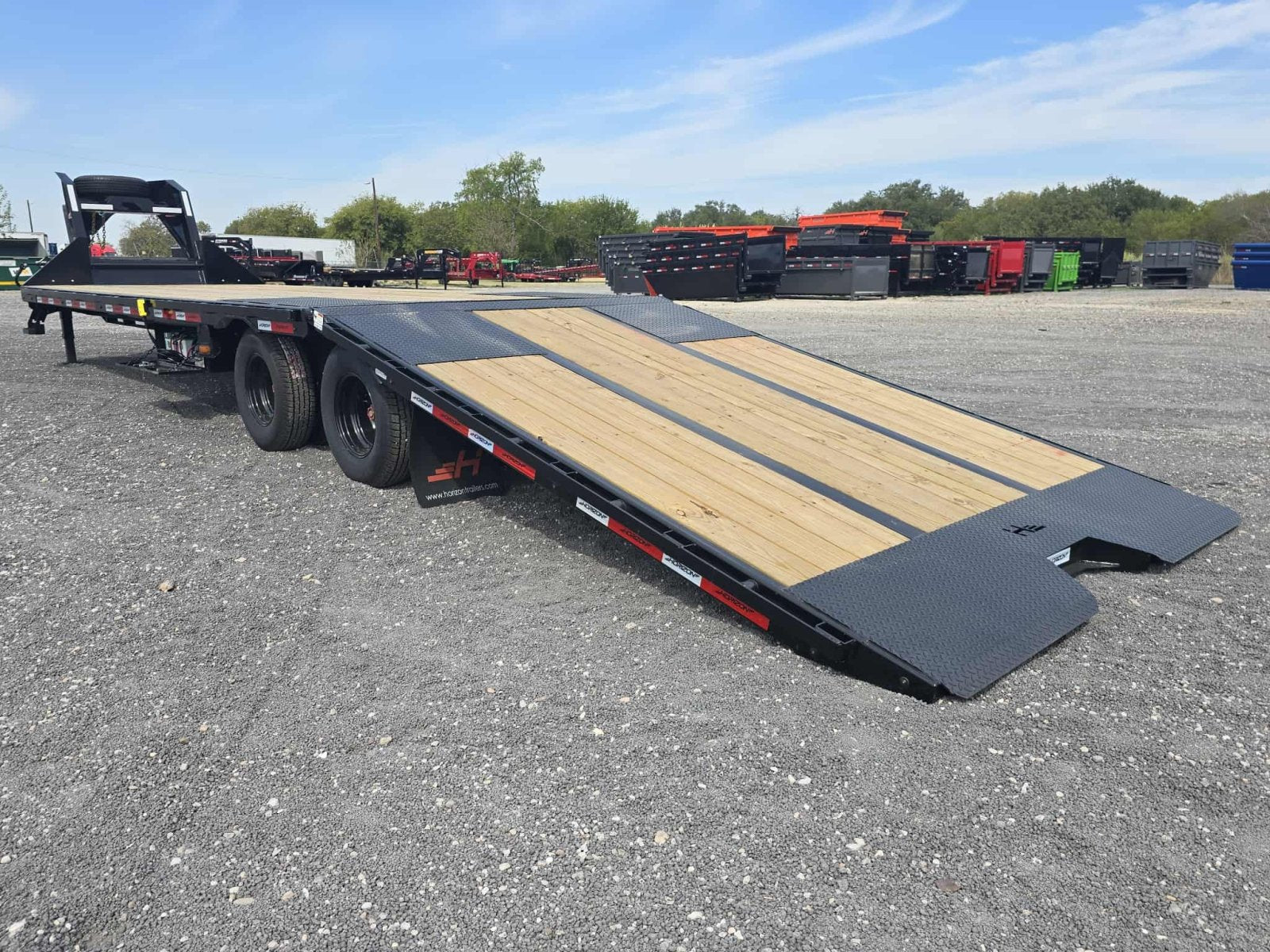

Deck & Loading

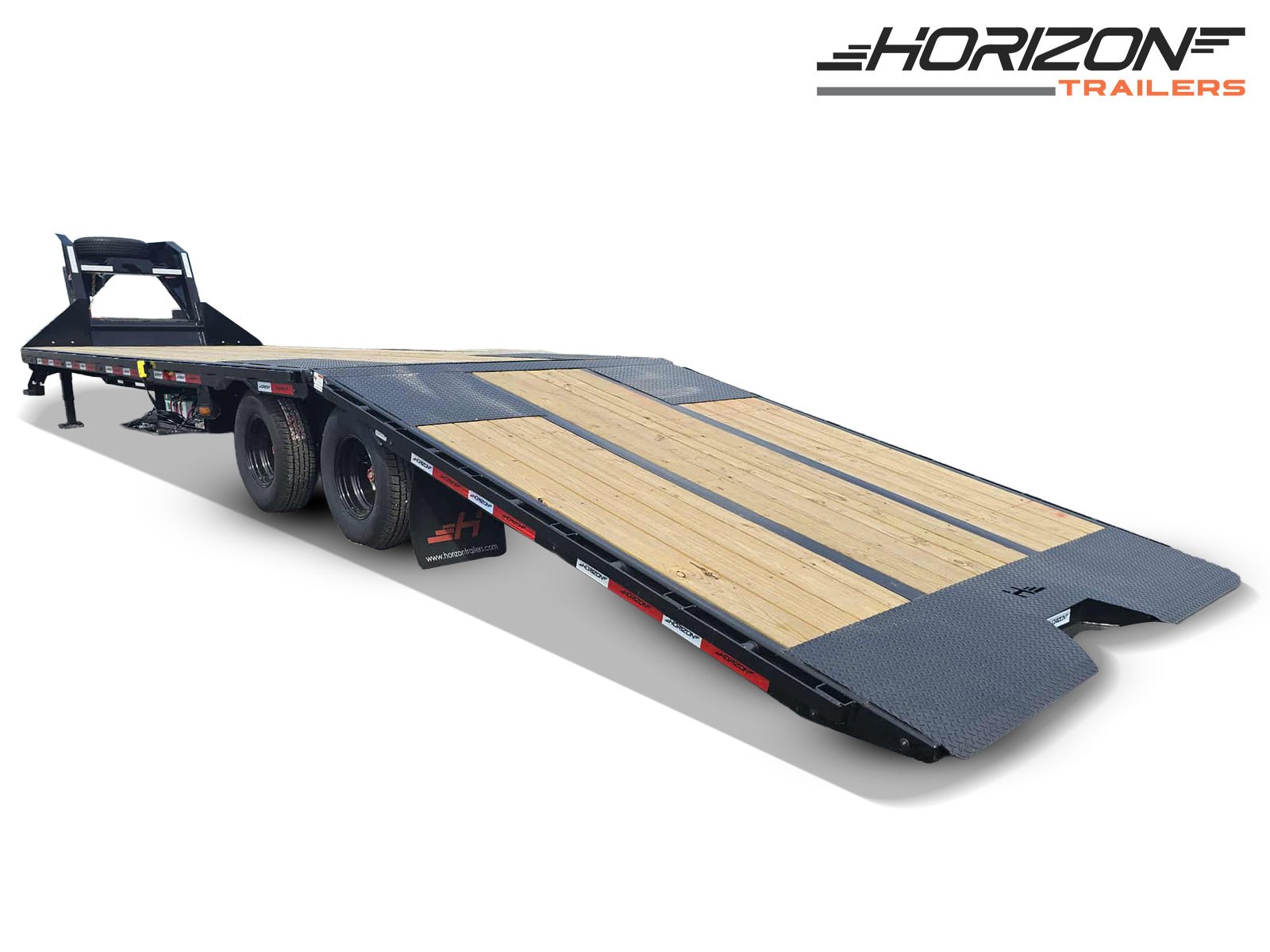

A durable wood deck paired with a 12' hydraulic dovetail provides a smooth transition for equipment loading. Optional 5' dovetail with Mega Ramps is available for users who prefer a manual system.

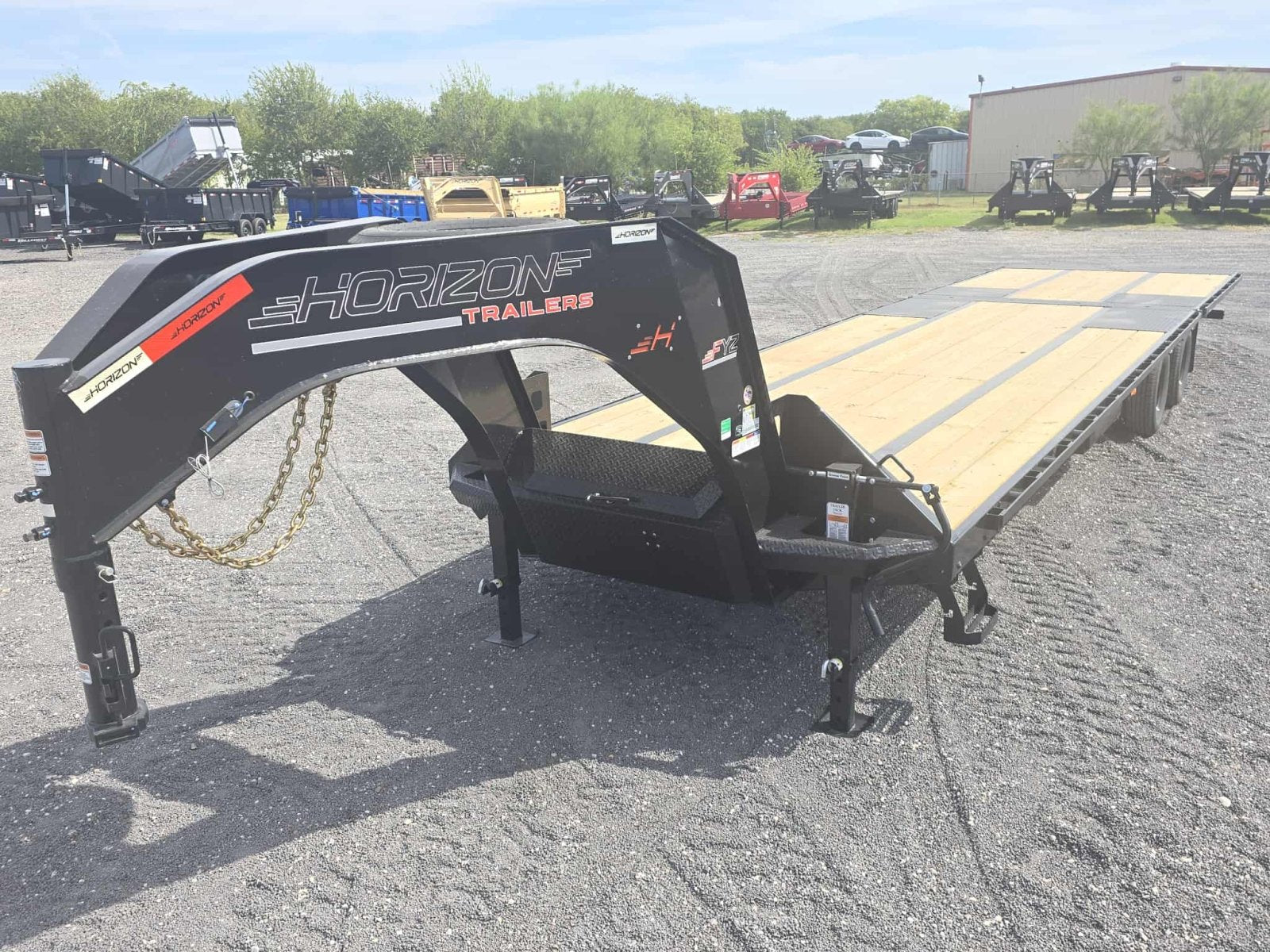

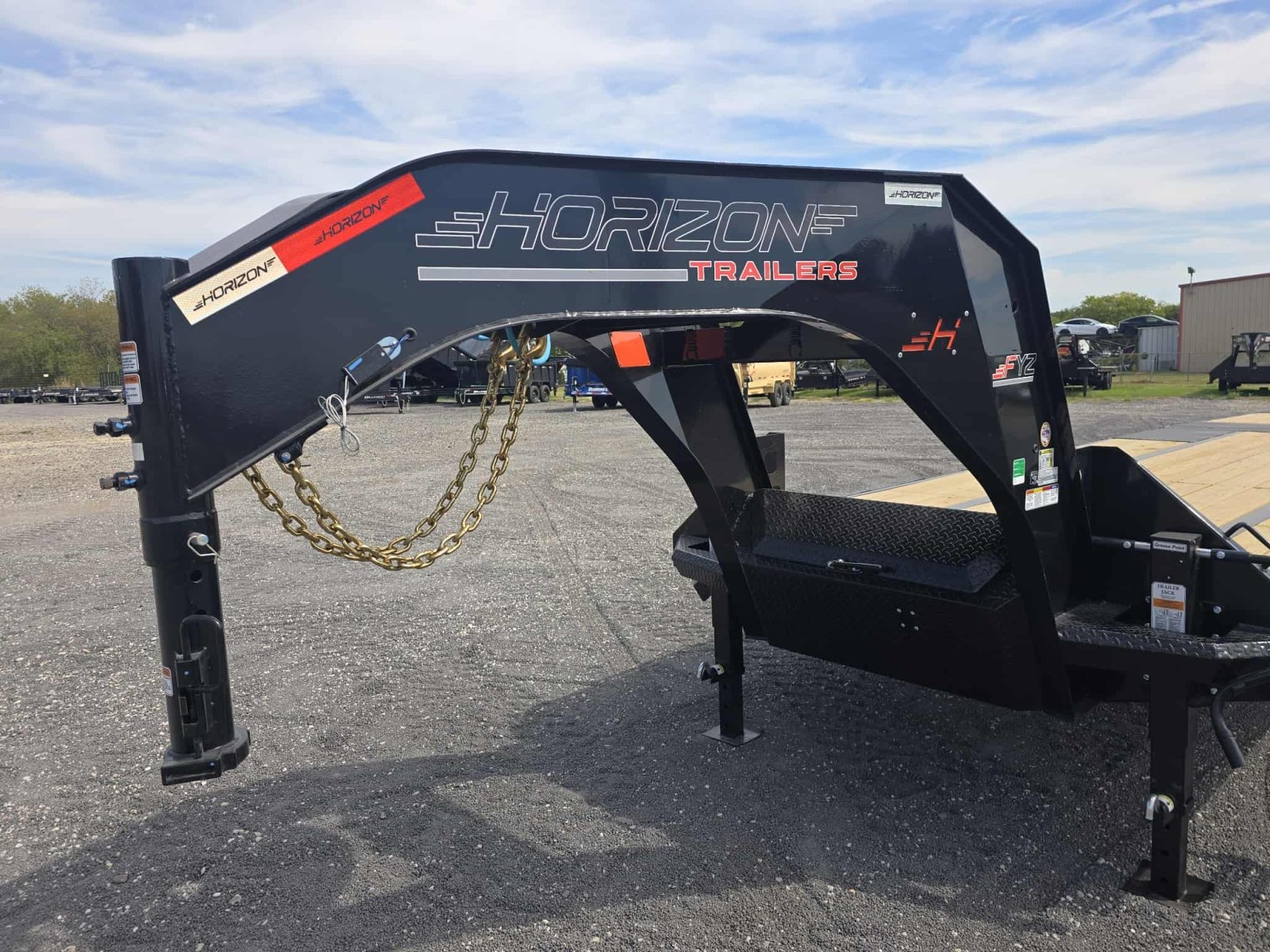

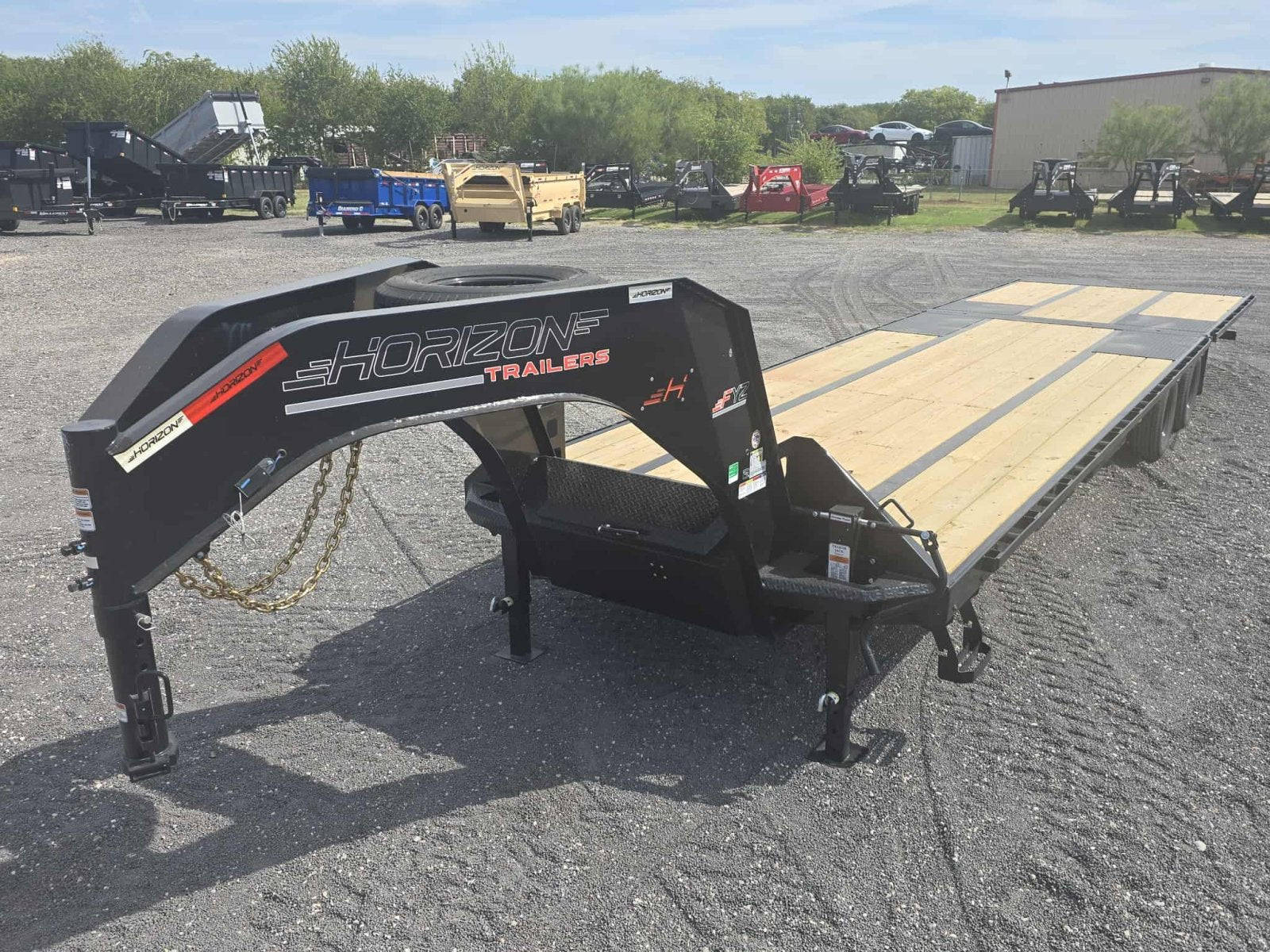

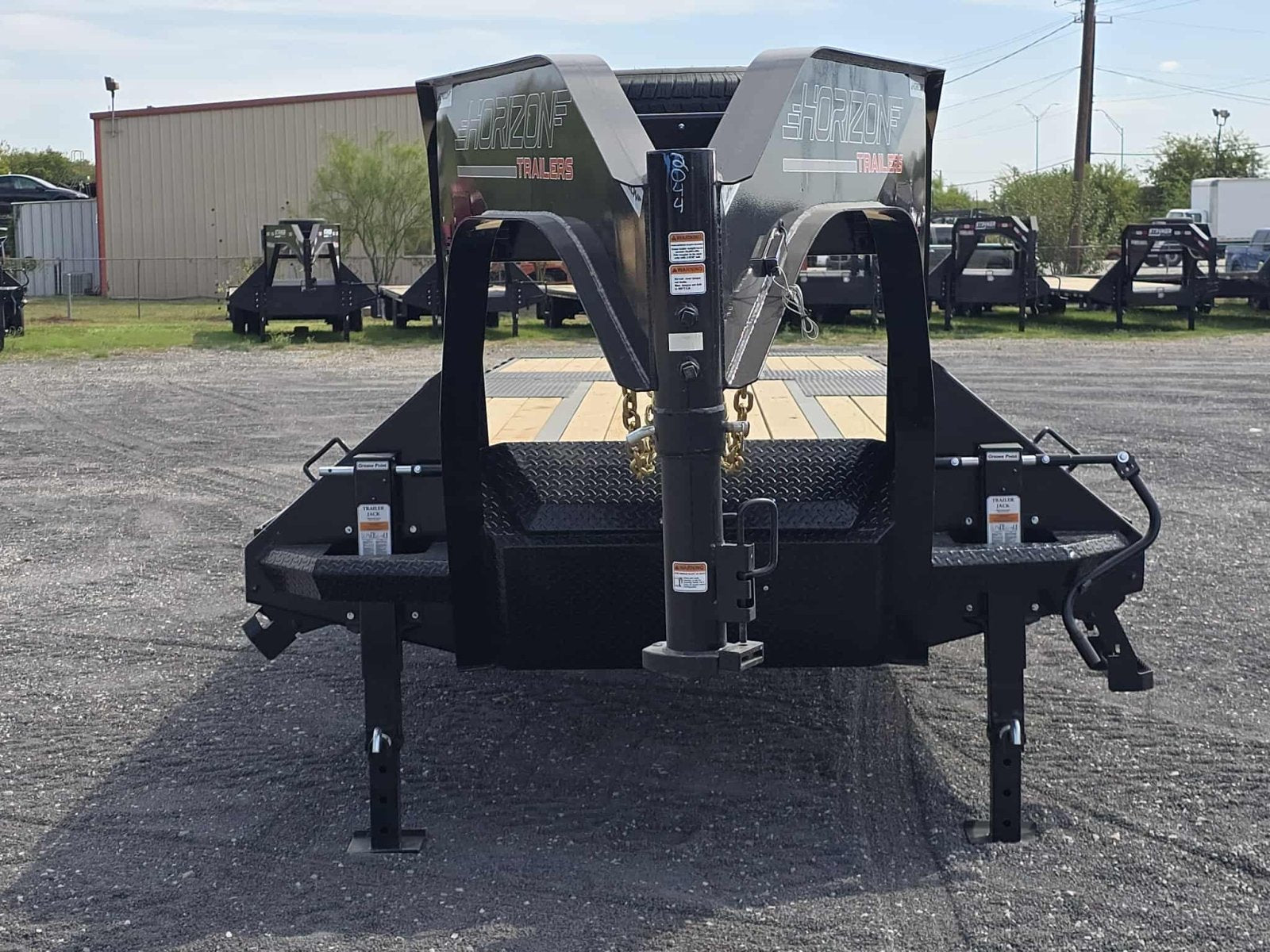

Gooseneck & Storage
The engineered I-beam gooseneck includes an adjustable 30k coupler, dual 12k drop-leg jacks, and a Mega lockable toolbox for added storage. Optional deck-on-neck and side-mount toolboxes expand utility even further.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 30' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
WEIGHT RATINGS
- GAWR:
- 10k, 12k, 16k
- GVWR:
- 25k - 30k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 98" Long
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)

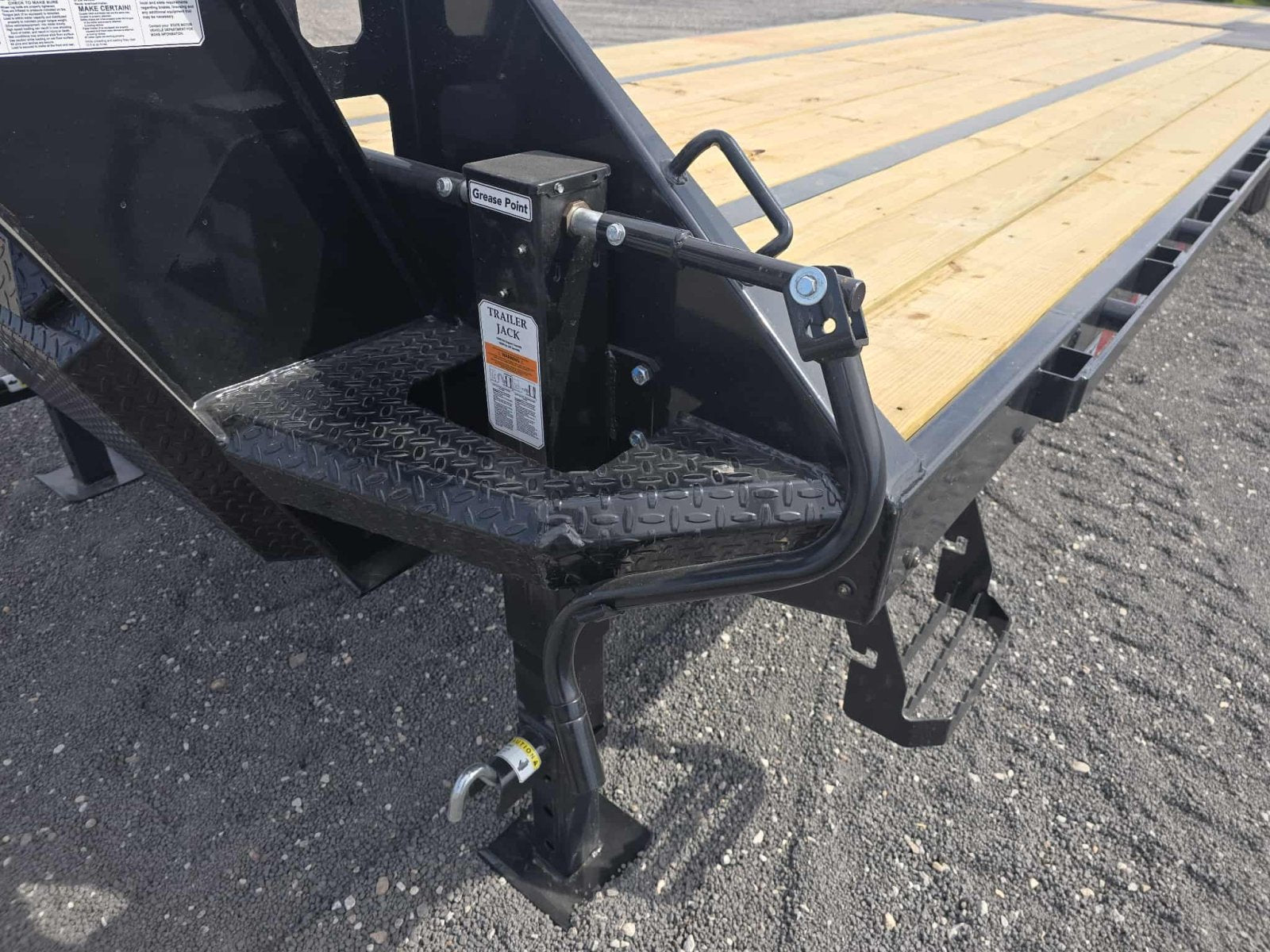

- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs)
- TOOLBOX GN:
- Mega Lockable Toolbox
DECK & LOADING
- DECK TYPE:
- Wood
- RAMPS:
- 12' Hydraulic Dovetail
- SWAY CONTROL:
- 4 1/2" Torque Tube (30'+)
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR
- TIRES:
- Radial Tires, ST235/80R16, 10 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k Electric Brake Dual Oil Bath Axles
2 - 12k Electric Brake Dual Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
HYDRAULIC SYSTEM
- SYSTEM:
- 2 Button - Power Up/Power Down
- PUMP:
- KTI 12V Hydraulic Pump
- CYLINDERS:
- 2 - 4x16" Single Push Cylinders
- LIFT CAPACITY:
- 10,000 lbs
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft)
- CROSSMEMBERS:
- 3" I-Beam, 16" Spacing
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
