At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Product Features

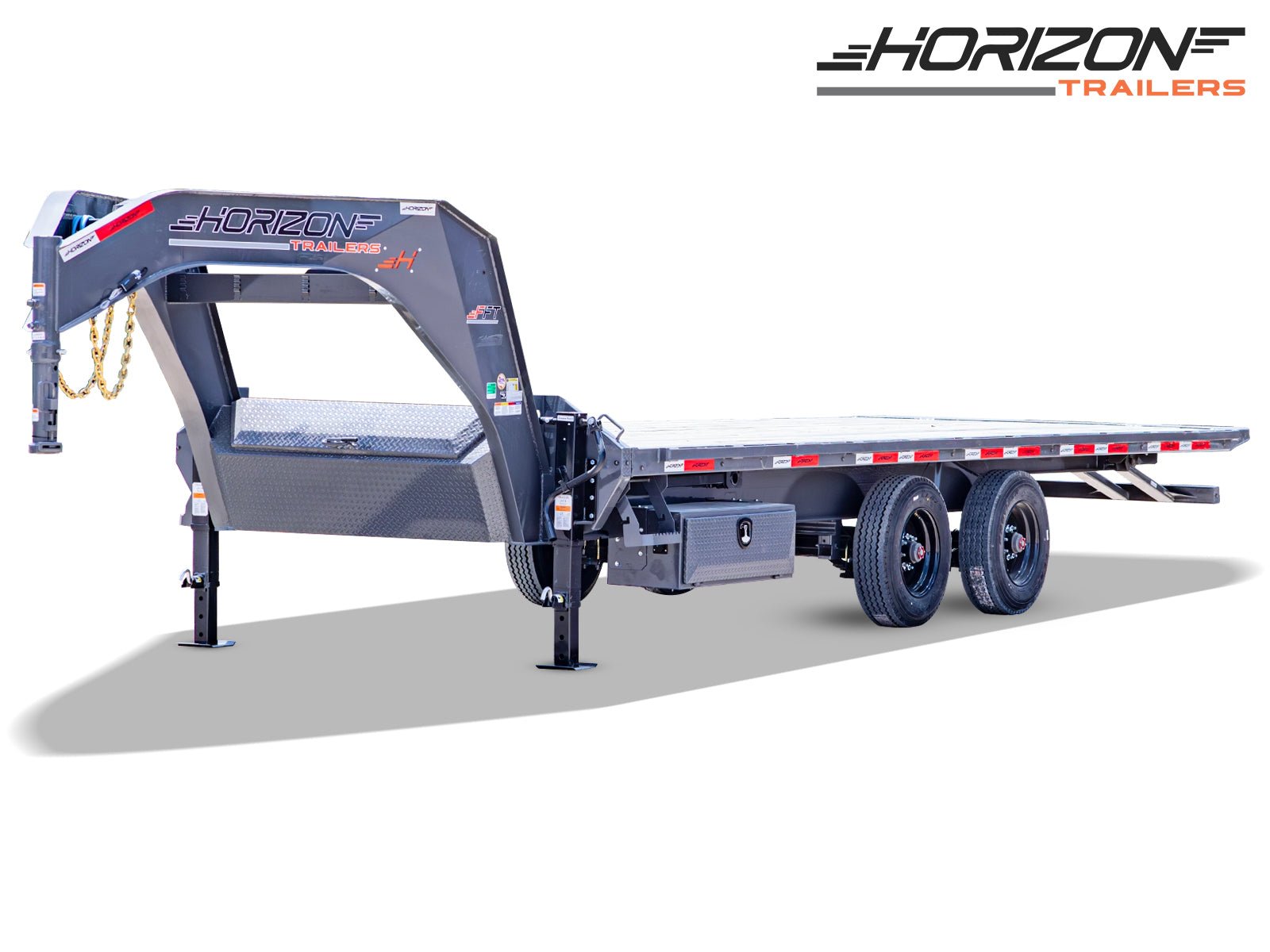

24' Hydraulic Tilt Deck with Power Control
Features a full hydraulic 24-foot tilt deck. The system uses a KTI 12V pump and a 6"x21" cylinder (20,000 lb capacity) for controlled power-up and power-down operation.

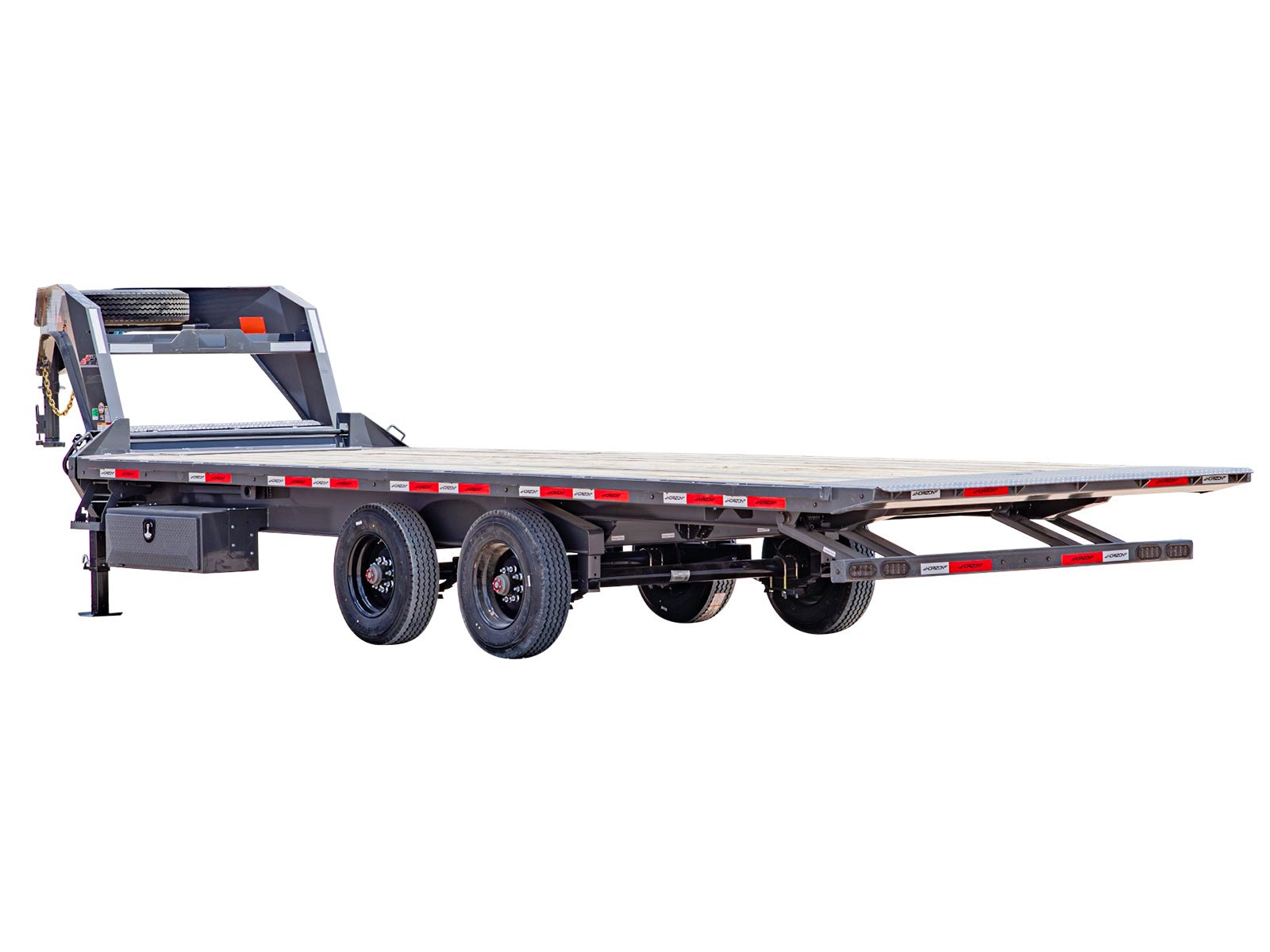

36" Deckover Height & 102" Width
Designed as a true deckover with a 36-inch deck height. The 102-inch wide deck provides a full-width load surface without wheel well obstructions.
12" I-Beam Main Frame & 4.5" Torque Tube
Built on a 12-inch I-beam main frame (14-19 lbs/ft, depending on axle option). Trailers 30 feet and longer include a 4.5-inch torque tube for enhanced frame rigidity.

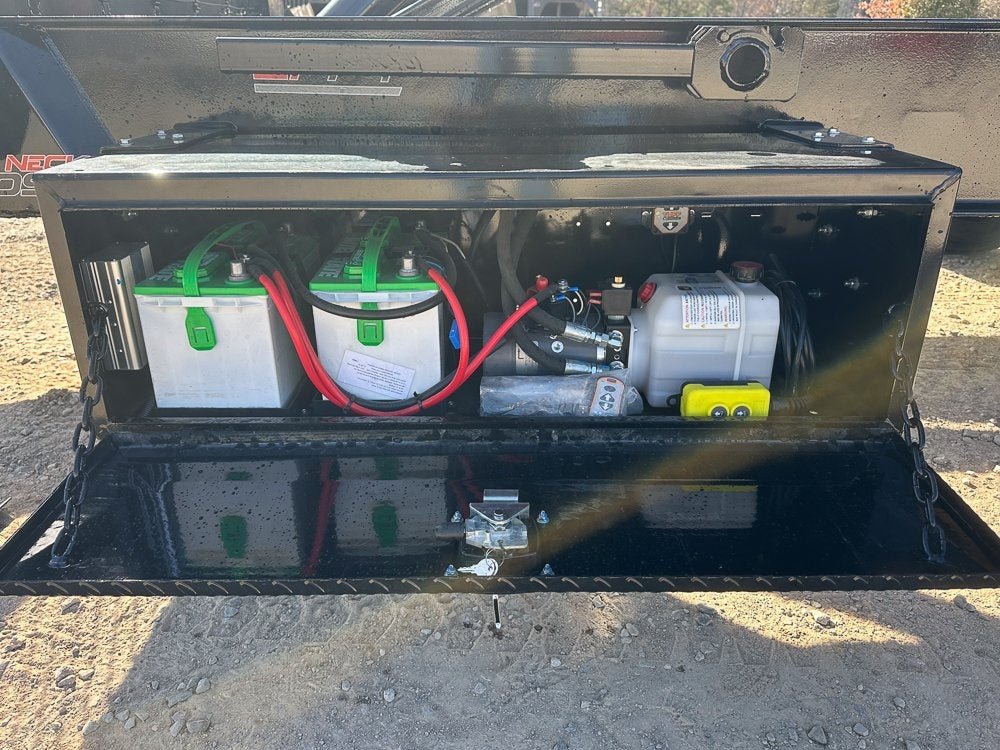

98" Engineered Gooseneck & Dual Battery System
Features a 98-inch long engineered I-beam gooseneck. The trailer includes two Interstate 27 deep cycle batteries to power the hydraulic and electrical systems.
Axle Options from 7k to 10k Oil Bath
Configurable with axles from 7k EZ Lube to 10k oil bath capacities. The 10k SS oil bath upgrade uses 17.5" wheels with 18-ply tires.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 22' - 28'
- WIDTH:
- 102"
- DECK HEIGHT:
- 36"
WEIGHT RATINGS
- GAWR:
- 7k, 8k, 10k SS
- GVWR:
- 15.7k - 22.4k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
- TORQUE TUBE:
- 4 1/2" Tube (30'+)
TONGUE

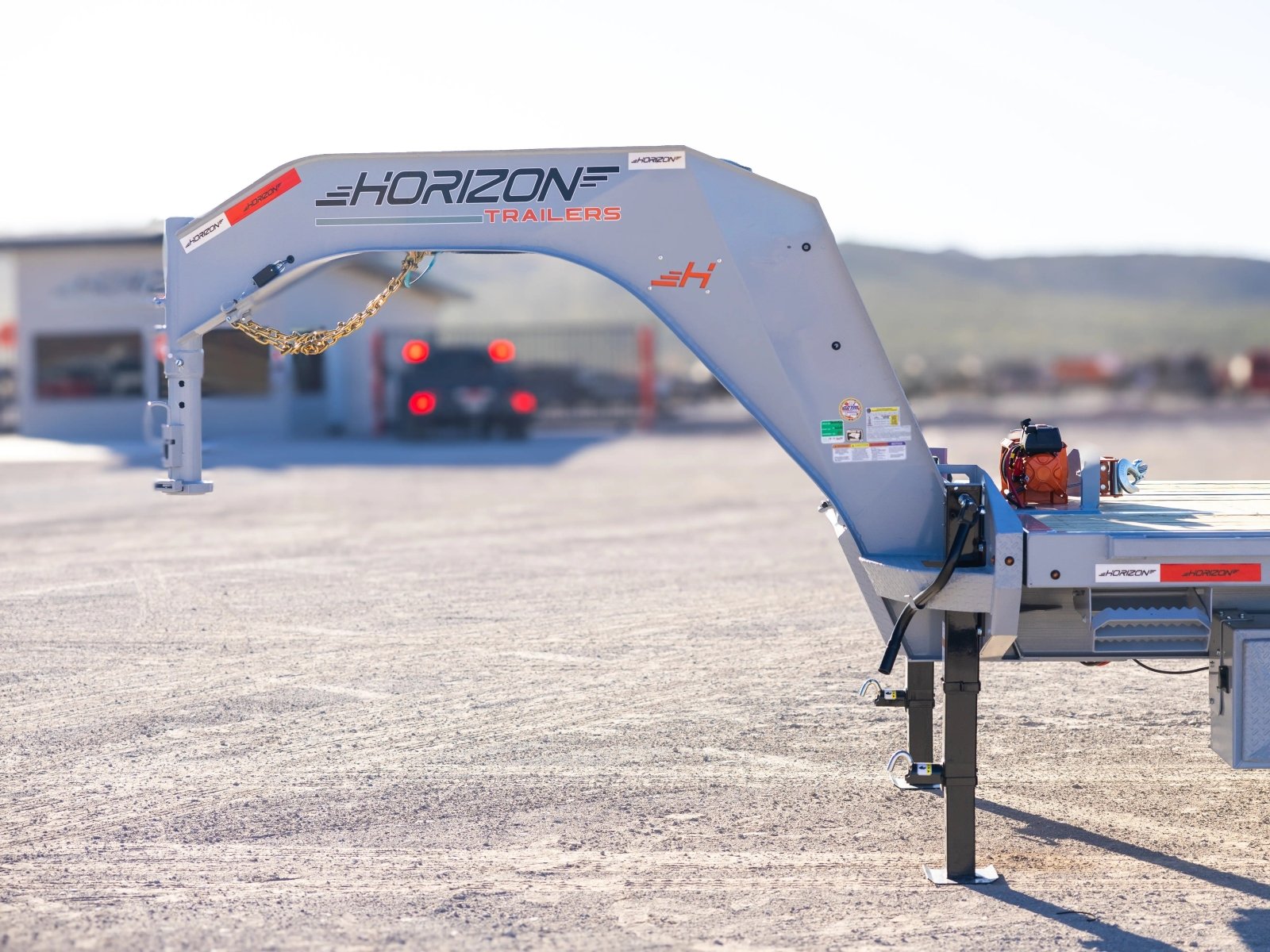

- TONGUE GOOSENECK:
- Engineered I-Beam, 98" Long
- HEIGHT:
- 70" (From Underneath Neck)
- STANDARD COUPLER GN:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- FRONT JACKS GN:
- 2 Side Wind Drop Jack Legs (12,000 lbs)

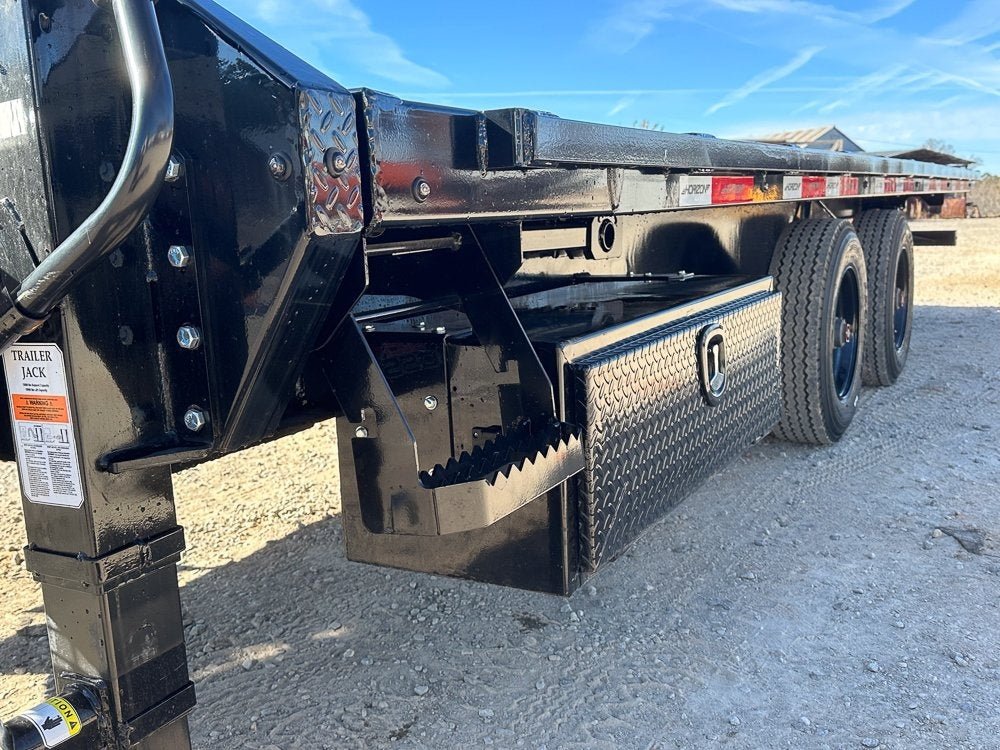

- TOOLBOX GN:
- Mega Lockable Toolbox
ELECTRICAL & LIGHTING
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
TILT FUNCTIONS
- TILT METHOD:
- Power Up & Power Down
- TILT DECK:
- 24' Tilt Deck

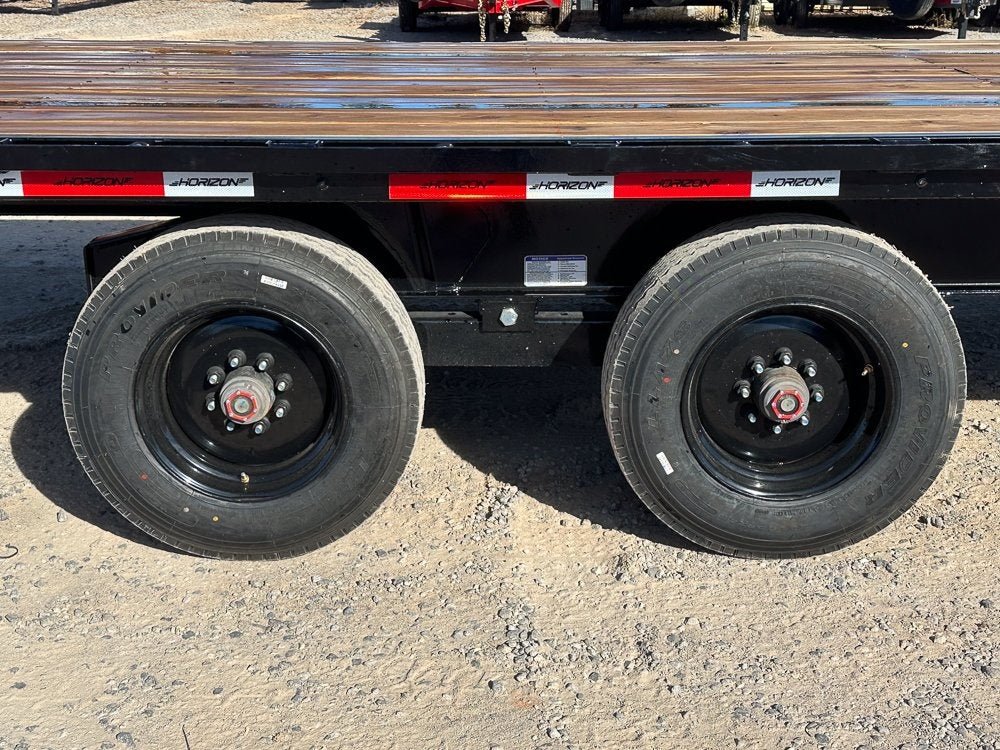

RUNNING GEAR
- TIRES:
- Radial Tires, 235/80R16, 10 Ply
- RIMS:
- 16" Black Mod Wheels
- BRAKES:
- Electric Brakes
- AXLE TYPE:
- 2 - 7k Electric Brake EZ Lube Axles
2 - 8k Electric Brake Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring

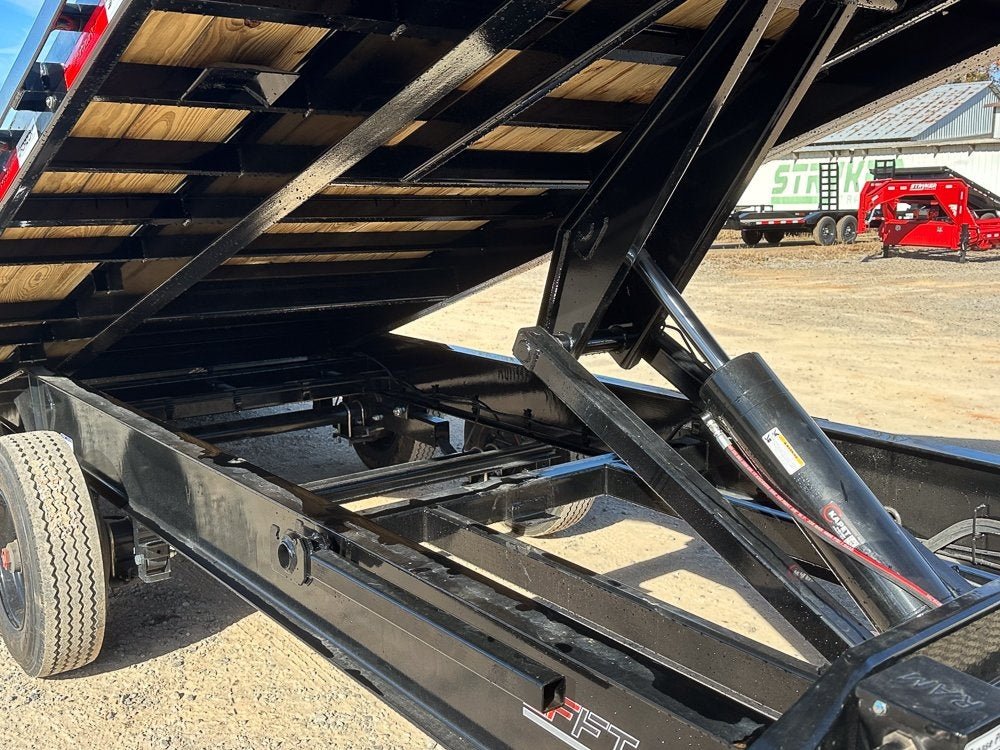

HYDRAULIC SYSTEM
- PUMP:
- KTI 12V Hydraulic Pump
- LIFT CYLINDER:
- Hoist w/ 6"x21" Single Cylinder (20,000 lbs)
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (14-16lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing

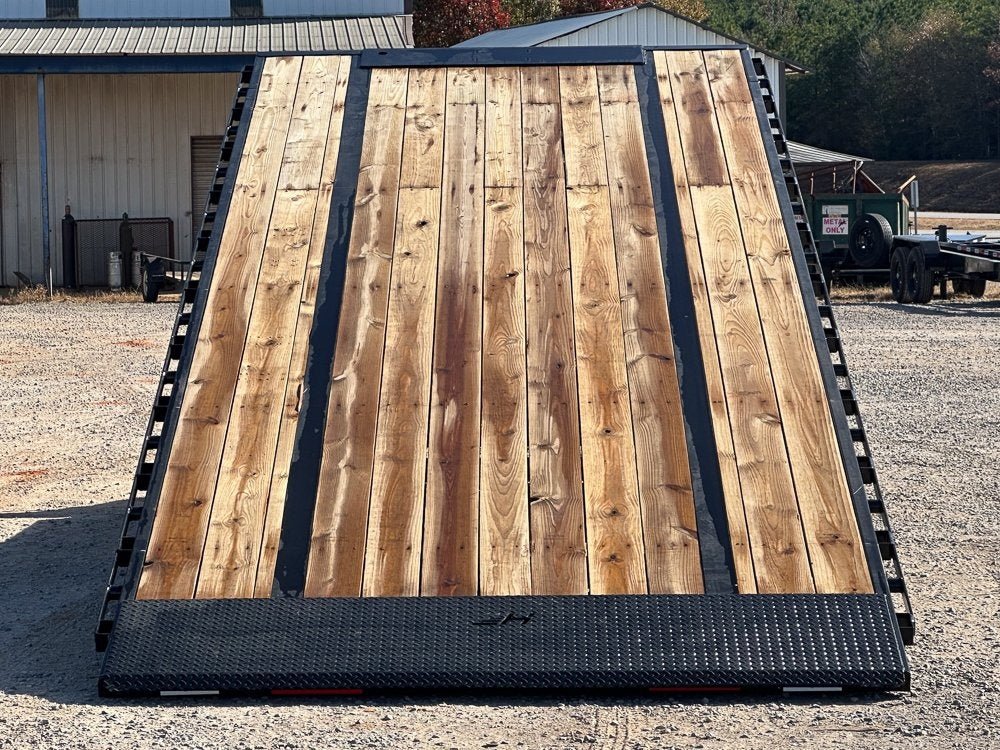

- DECK TYPE:
- Wood
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
