At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
8' - 10'
Inquire About This Trailer
Product Features
Heavy-Duty Frame Construction

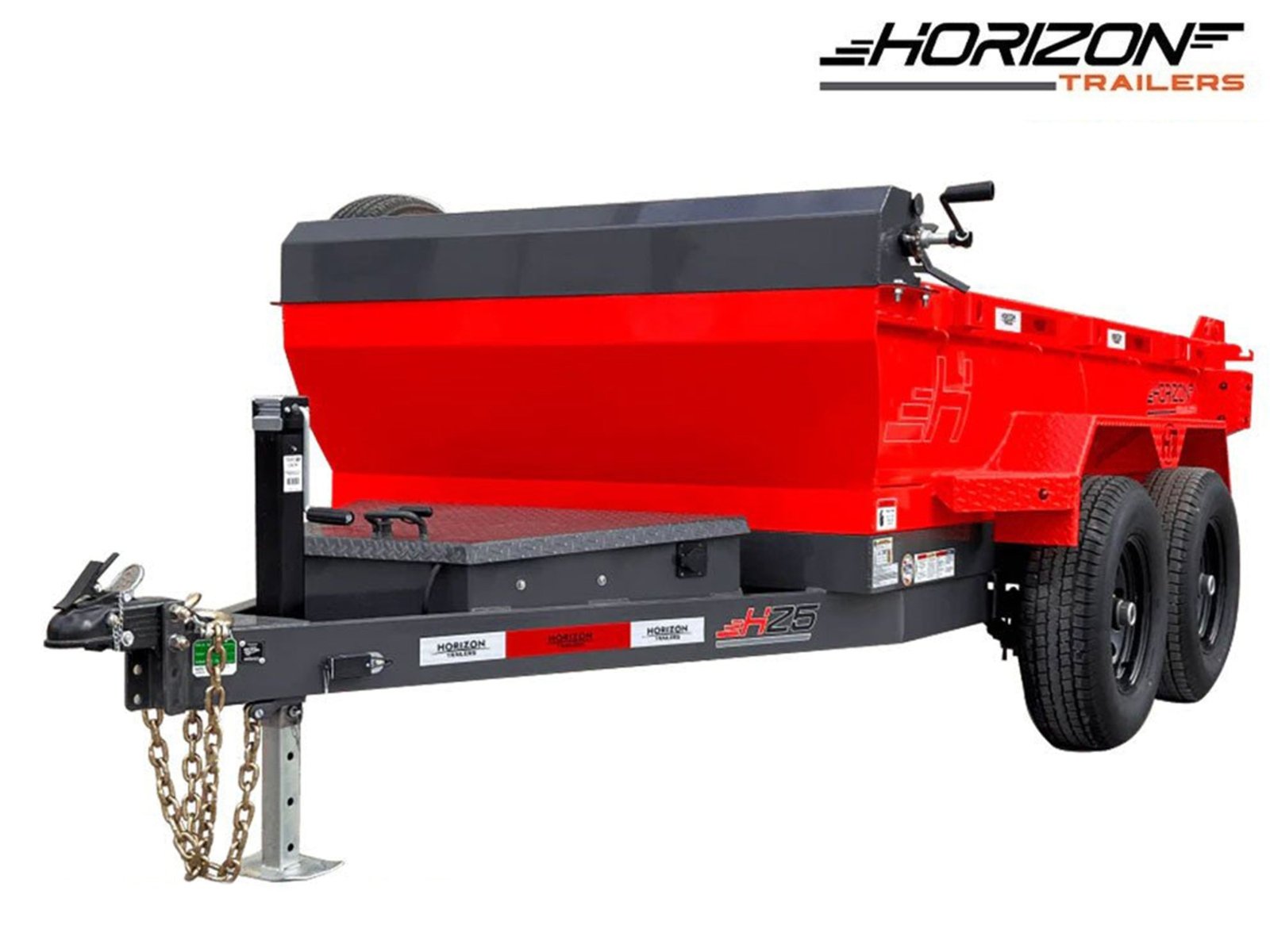

The HZ5 trailer features a robust, heavy-duty steel frame that ensures maximum durability and longevity, making it ideal for transporting heavy loads. Precision-welded joints and reinforced stress points provide exceptional structural integrity, reducing the risk of damage even on rough terrains. Additionally, the corrosion-resistant coating on the frame protects against rust and wear, ensuring the trailer maintains its strength and appearance over time.
Versatile Loading Ramp
Equipped with a versatile loading ramp, the HZ5 allows for easy and efficient loading and unloading of various types of cargo, from ATVs to construction equipment. The ramp features a non-slip surface to ensure safety during loading operations, even in wet or muddy conditions. Moreover, adjustable ramp positions cater to different loading needs, providing flexibility whether you’re hauling tall or flat items.
Hydraulic Dump System

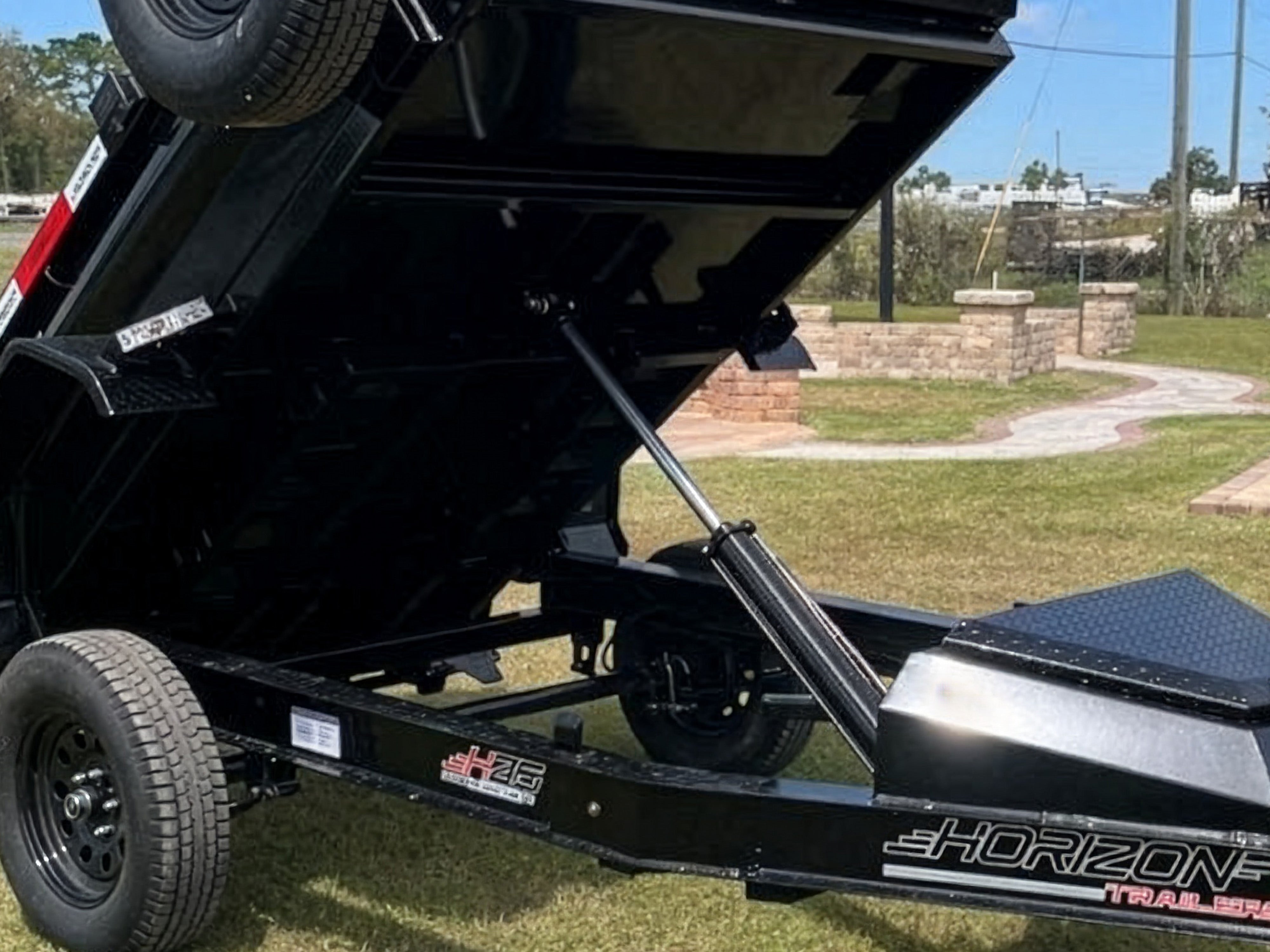

The HZ5 Dump Trailer features a powerful hydraulic dump system with a 5" x 15" single push cylinder and a 10K hydraulic pump. This efficient system allows for easy unloading of materials, making it perfect for construction and landscaping tasks. The gravity-down function ensures smooth and controlled dumping.
Spacious and Durable Dump Bed
The dump bed measures 60 inches wide and 26 inches high, providing ample space for large loads. Constructed with a 10ga steel bed and reinforced with 2" x 3" tubing crossmembers and 3" channel, it is built for heavy-duty use and can handle demanding tasks without compromising performance.
Enhanced Running Gear
The trailer is equipped with radial tires (ST205/75R15), 15" Black Mod Wheels, and a robust axle system. It features a 2.5K Lippert Electric Brake EZ Lube Spring Axle for improved stability and control, and a 4-leaf slipper spring suspension system for enhanced handling and ride comfort.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Product Details
DIMENSIONS & CAPACITY
- AVAILABLE LENGTHS:
- 8', 10'
- SIDE HEIGHTS:
- 18", 24", 36", 48"
- BED WIDTH:
- 60"
- BED HEIGHT:
- 24"
- GVWR RANGE:
- 3,800 – 11,300 lbs
- AXLE RATING:
- 3,500 lbs or 5,200 lbs
FRAME & STRUCTURE
- MAIN FRAME:
- 6" I-Beam (8.5 lbs/ft)
- FLOOR:
- 9ga. Steel
- CROSSMEMBERS:
- 3" Channel @ 16" OC
- D-RINGS:
- 4 Welded Inside Bed
COUPLER & ACCESSORIES
COUPLER:
- TYPE:
- Adjustable Auto Latch 2-5/16" Bumper Pull Coupler (17,000 lbs)
JACKS:
- TYPE:
- 1 Side Wind Drop-Leg Jack (7,000 lbs)
ACCESSORIES:
- TOOLBOX:
- Lockable Toolbox (Houses Battery & Pump)
- TARP KIT:
- Manual Tarp Kit
- SAFETY CHAINS:
- 1/4" Grade 70 with Clevis Hooks
- SPARE MOUNT:
- Weld-On Mount
- MARKER LIGHTS:
- Extra Marker Lights for Visibility
RUNNING GEAR & SUSPENSION
AXLES:
- 3.5K:
- Lippert Electric Brake, EZ Lube, Auto Adjust – 5 on 5"
- 5.2K:
- Lippert Electric Brake, EZ Lube, Auto Adjust – 6 on 5.5"
- AXLE COUNT:
- 1 Axle (8'), 2 Axles (10')
- AXLE WARRANTY:
- 6-Year Lippert Spring Axle Warranty
SUSPENSION:
- TYPE:
- Leaf Spring
HYDRAULICS
- DUMP SYSTEM:
- Single Push Cylinder or Telescopic
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 2-Button Remote – Power Up / Power Down
HYDRAULIC OPTIONS:
- SINGLE CYLINDER:
- 3" x 24" or 5" x 10" Push Cylinder (7K–10K)
- TELESCOPIC SYSTEM:
- 7 Ton Telescopic Cylinder
- CONTROLLER:
- Gravity Down Option
BATTERY & ELECTRICAL
- BATTERY:
- Interstate 27 Deep Cycle
- CHARGER:
- 110V Integrated Trickle Charger
- WIRING:
- 7-Way RV, All-Weather, Double Insulated Harness

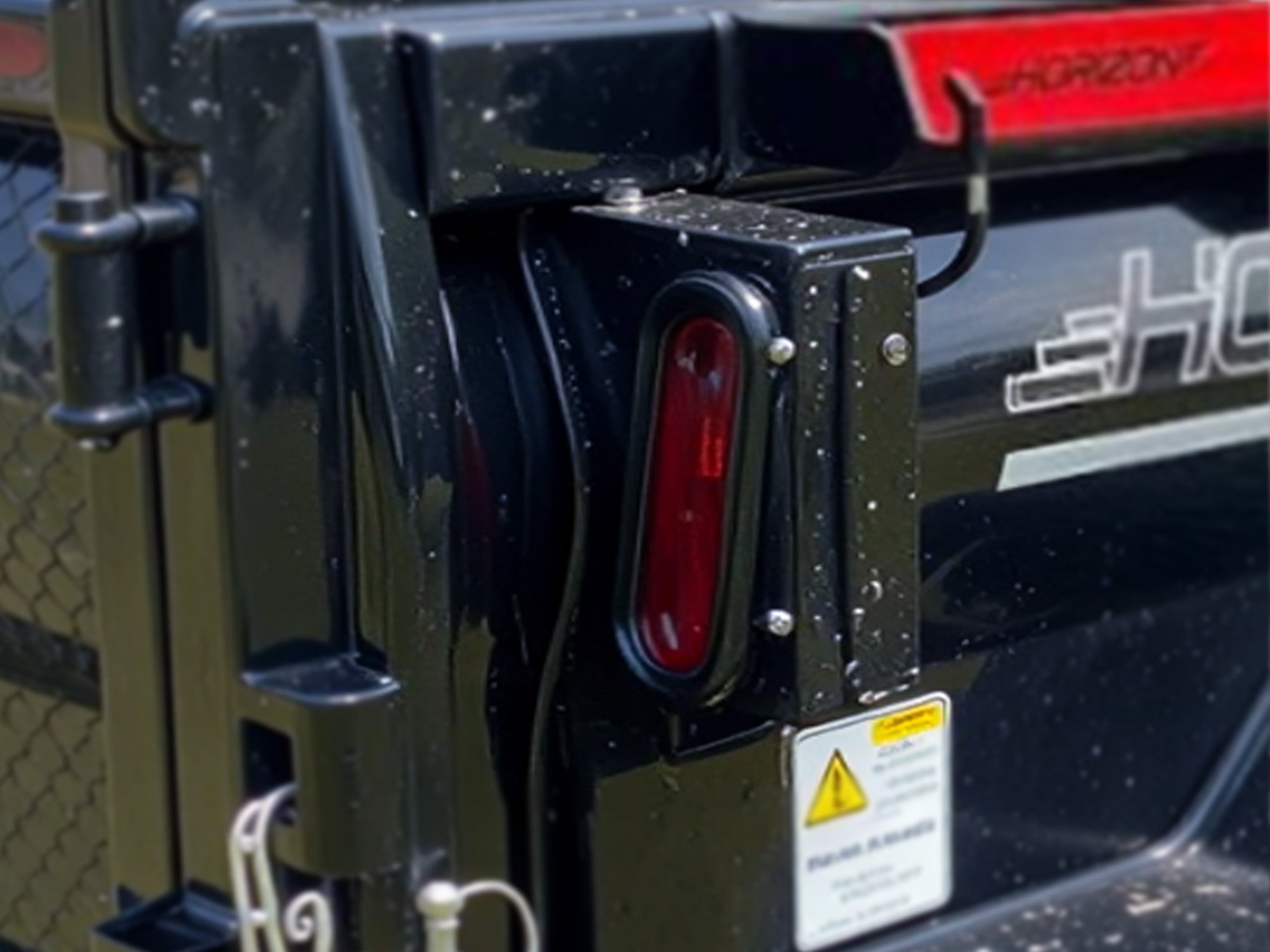

- LIGHTING:
- DOT-Approved Tecniq LED
- REFLECTIVE TAPE:
- 3M DOT Compliant
TIRES & RAMPS
- 3.5K TIRES:
- ST205/75R15 8PR Radial (2,150 lbs)
- 5.2K TIRES:
- ST225/75R15 10PR Radial (2,830 lbs)
- WHEELS:
- 15" Black Mod Steel
- RAMPS:
- 5' Slide-In 3" Channel (4,000 lbs rating per ramp)
RAMP CONFIGURATIONS:
- STANDARD:
- Ramp Pockets, Slide-In from Rear
- HOIST MODELS:
- Side Mount Slide-In Ramps
SIDES & BODY
- SIDE MATERIAL:
- 12ga. Rounded Steel
- TOP RAIL:
- 2" × 3" × 11ga. Tubing
- STAKE POCKETS:
- 1-5/8" × 3-5/8" (ID)
- HOOKS:
- 3/8" Round "J" Hooks
- FENDERS:
- 14ga. Diamond Plate Steel
- REAR GATE:
- 3-Way Spreader Gate
FINISH & WARRANTY
- PREP:
- Steel Grit Blasted
- PAINT:
- Powdercoat
- COLOR OPTIONS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
- 2-TONE OPTION:
- Available – Chassis / Dump Split
- FRAME WARRANTY:
- 3-Year
- PARTS WARRANTY:
- 1-Year
AXLE WARRANTY:
- LIPPERT:
- 6-Year Spring Axle Warranty
