At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Featured Video
Product Features

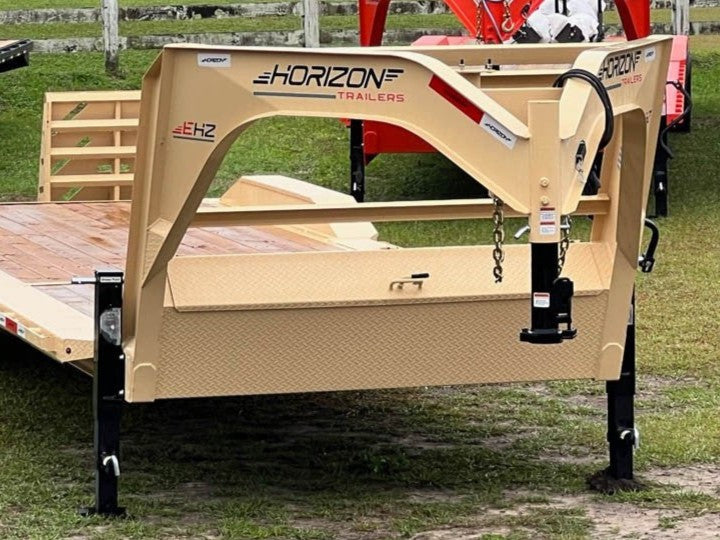

10" Engineered Gooseneck with Mega Toolbox
Features a 10-inch engineered I-beam gooseneck neck that is 94 inches long. The neck is equipped with a large, lockable mega toolbox mounted on top for significant secure storage.
Low 27" Deck Height & Wide Deck Options
Built with a low 27-inch deck height for easier equipment loading. The trailer is available in standard 83-inch width or an optional 102-inch wide deck for maximum load space.

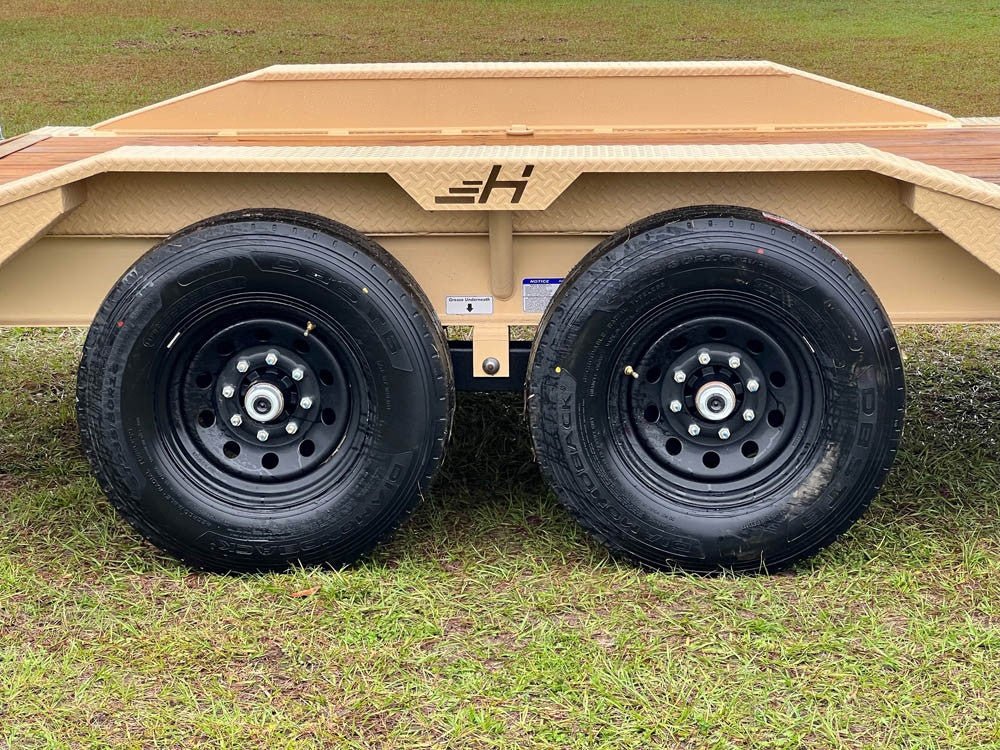

7k or 8k Dexter Spring Axles
Available with either 7k or 8k Dexter electric brake axles. Both options use a traditional spring suspension system and feature an 8 on 6.5" bolt pattern.

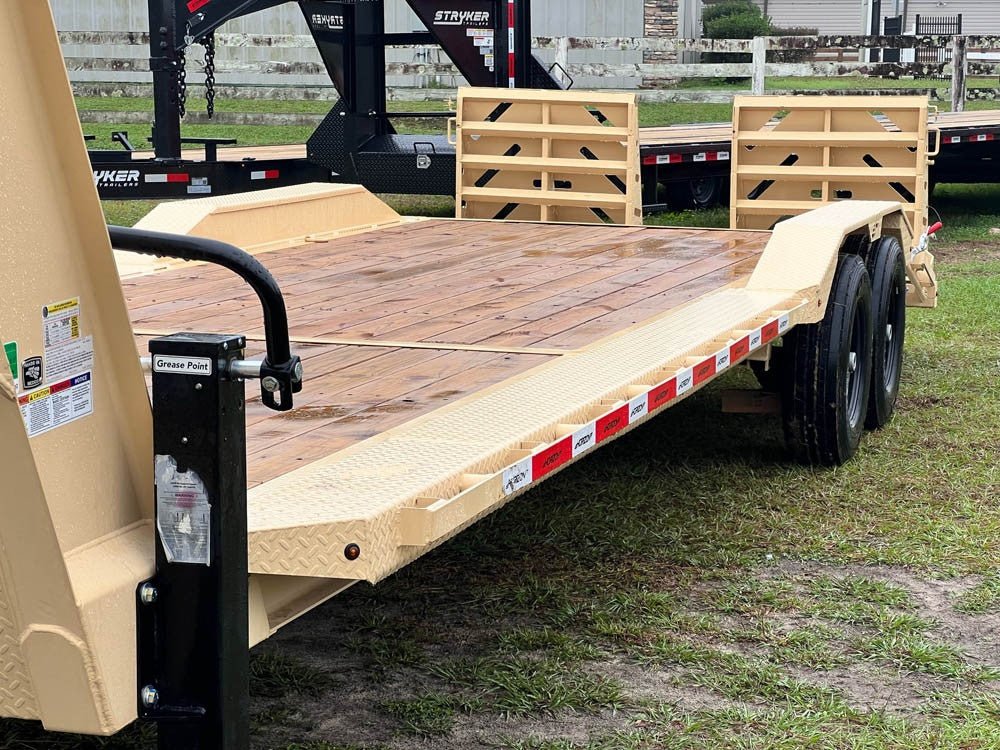

Wood Deck Surface
Features a standard wood deck for a durable, non-slip load surface. The wood construction provides excellent traction for equipment and is resistant to impacts and weather.

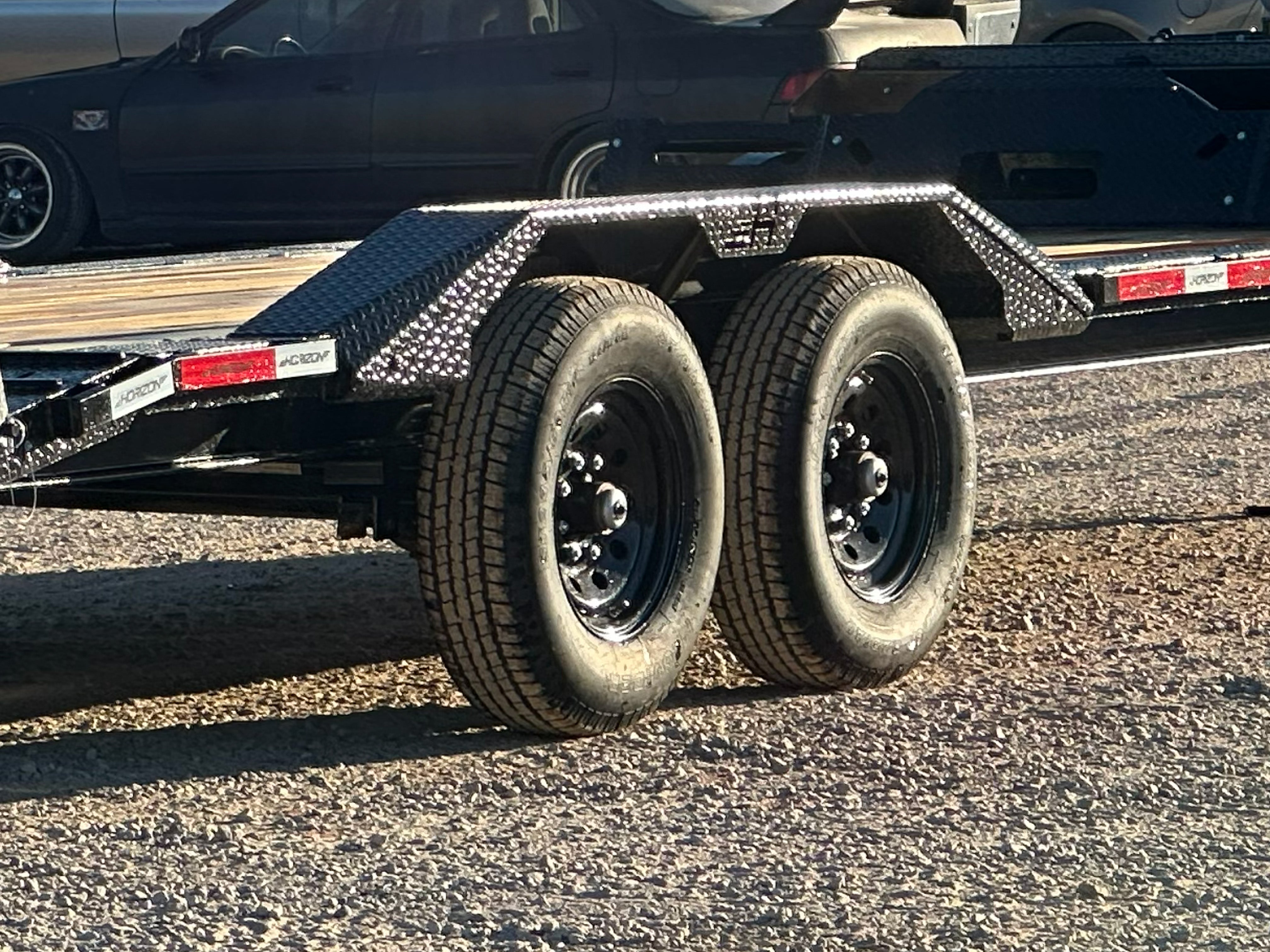

12-Gauge Removable Fenders & 3/16" DOF
Includes 12-gauge removable bolt-on fenders for easy access and maintenance. The deck over fenders (DOF) are constructed from heavy-duty 3/16" diamond plate steel.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 26'
- WIDTH:
- 83" - 102"
- DECK HEIGHT:
- 27"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 15.7k - 17.9k
RUNNING GEAR
- TIRES:
- ST235/80R16
- TIRE PLY:
- 10 Ply
- TIRE RATING:
- 3,520 lbs
- RIMS:
- 16" Black Wheels
- AXLE TYPE:
- 2 - 7k Electric Brake Dexter Axles
2 - 8k Electric Brake Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brake
- SUSPENSION:
- Spring
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I-Beam
- LENGTH:
- 94" Long (From Behind Riser)
- HEIGHT:
- 70" High (From Underneath Neck)
- JACKS:
- 2 - Dual Side 12,000 lb Drop-Leg Jacks
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" (13lbs - 15lbs/ft on 8ks) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 12 Ga. Removable Fenders
3/16" Diamond Plate DOF

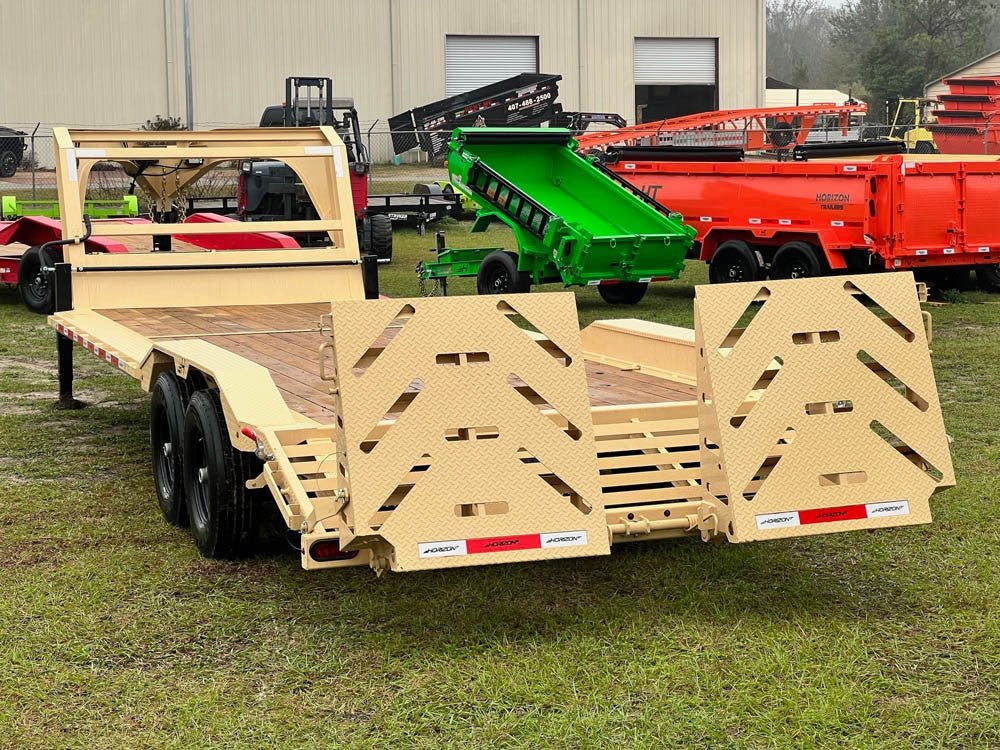

- RAMPS:
- 5'6" HD Slide In Ramps
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- All-Weather Wiring Harness (7-Way RV)
Double Insulated Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- D-RINGS:
- Additional D-Rings
- RATCHETS:
- Weld On Ratchets
Sliding Ratchets
- TOOLBOX:
- Integrated Storage Box In Deck
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green(#949C78), Desert Tan(#D0BCA8), Flame Orange(#DD4B31), Midnight Black(#0B050D), Spectra Yellow(#C0973B), Blue Horizon(#1C4B92), Lime Green(#01A154), Ash Grey(#4F5154), True Red(#C03534), Pearl White(#C4CBCE), Cloud Grey(#ADADAC), Navy Blue(#26245B)
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
