Build & price yours
Pick a deck length, color and the options you need. Your list price updates as you go.
Deck length
List price includes all standard featuresColor
Powder coat color is included. Swatches are approximate; ask to see a sample.
Options
Loading options…
Featured Video
Product Features
Maximum Deck Space, Bumper-Pull Convenience
Get a full 102" of clear deck space with the easy hookup of a bumper-pull. The long 83" tongue and heavy-duty coupler provide confident towing for loads up to 31,000 lbs GVWR.
Matched Frame & Axle Strength
We pair your axle choice with the appropriate frame strength: 14lb I-beam for 7k axles, 16lb for 8k, and heavy 19lb I-beam for 10k Super Singles. This engineered matching ensures optimal performance and durability across all configurations.

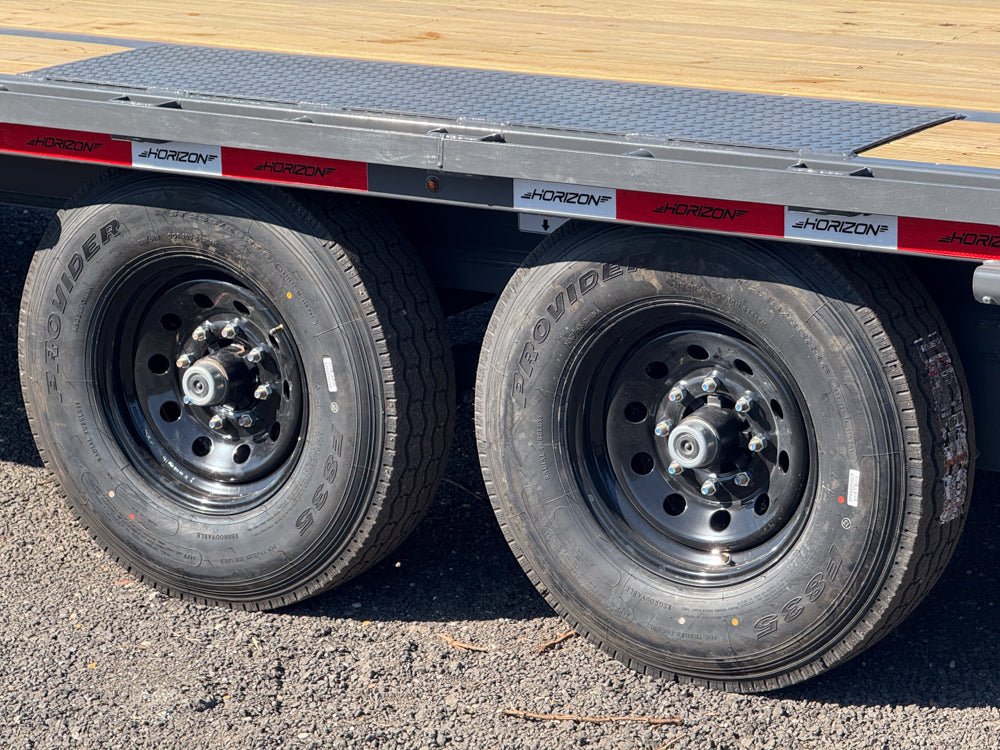

Heavy-Duty Axle Options
Choose from 7k or 8k EZ Lube axles, or upgrade to 10k Oil Bath Super Singles. All axles feature spring suspension and carry a 5-year warranty, providing reliable performance whether you need basic hauling or maximum capacity.

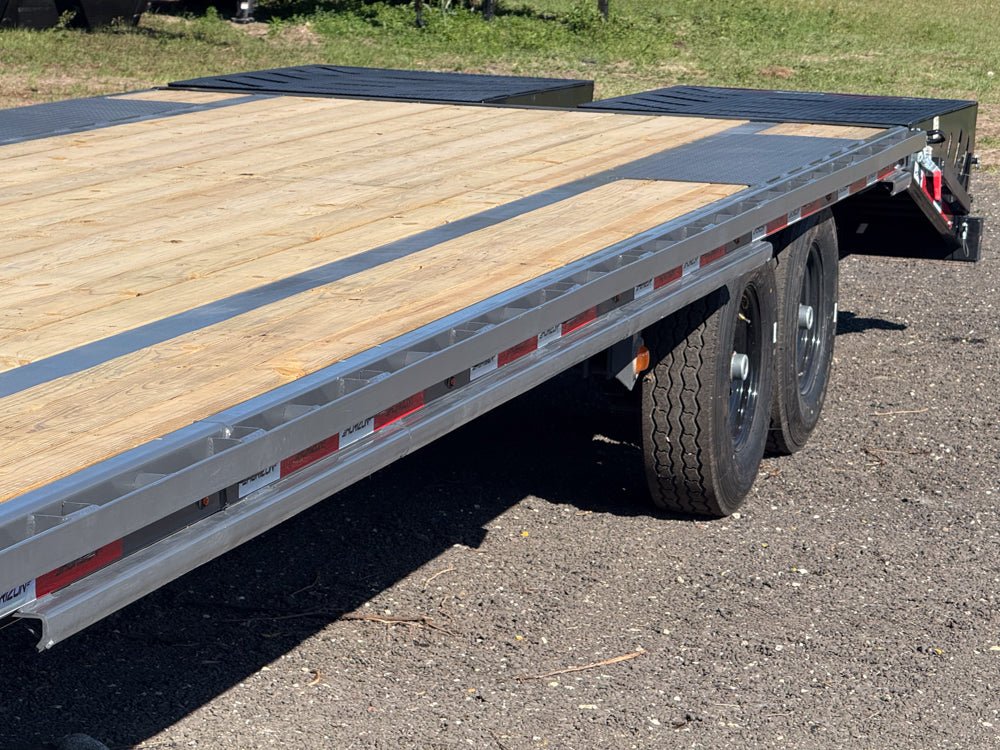

Rigid Deck Platform
The wood deck is supported by 3" channel crossmembers on tight 16" centers, creating a solid, no-flex loading surface. On 30'+ models, a 4½" torque tube adds critical stiffness for enhanced towing stability with heavy loads.

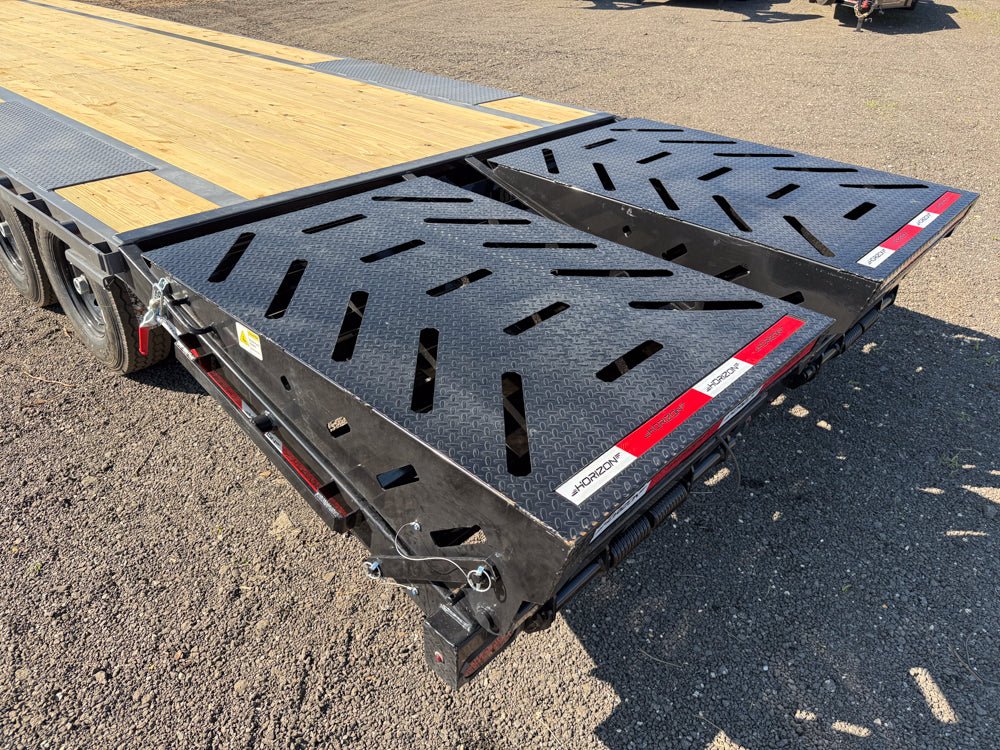

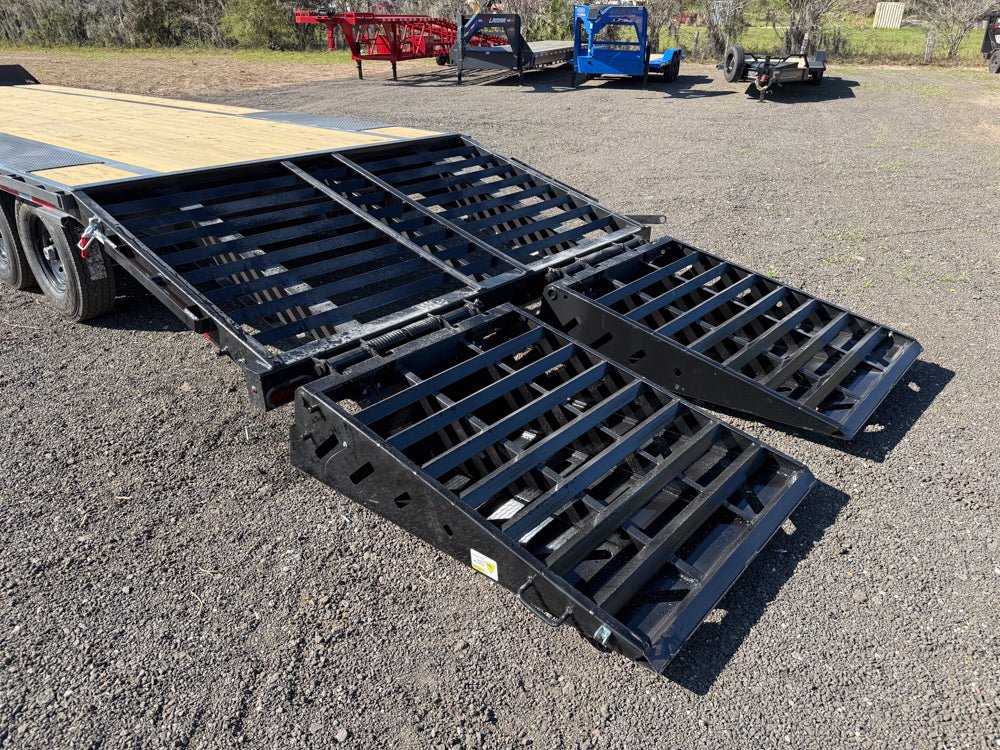

Mega Ramps
Tackle your toughest loads with confidence. The Mega Ramps' wide, reinforced design provides a stable bridge to the deck, effortlessly handling heavy machinery and minimizing the risk of hang-ups.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 32'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
WEIGHT RATINGS
- GAWR:
- 7k, 8k, 10k SS
- GVWR:
- 15.2k - 31k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
TONGUE
- PULL TYPE:
- Bumper Pull
- LENGTH:
- 83" Long
- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler (17,000 lbs)
- FRONT JACK BP:
- 2 - Side Wind Spring Loaded 12k Drop-Leg Jacks
- TOOLBOX BP:
- Diamond Mesh Wire Floor Storage
DECK & LOADING
- RAMPS:
- 8' Slide In Ramps
- RAMP TYPE:
- 5' Dovetail w/ 2 Mega Ramps
- DECK TYPE:
- Wood
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (14-19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- TORQUE TUBE:
- 4 1/2" Tube (30'+)
RUNNING GEAR
- TIRES:
- ST235/80R16 (7k), ST235/85R16 (8k), ST235/75R17.5 (10k)
- PLY:
- 10 Ply (7k), 14 Ply (8k), 18 Ply (10k SS)
- RIMS:
- 16" Black Mod Wheels (17.5" Black Mod Wheels on 10k)
- BRAKES:
- Electric Brake
- AXLE TYPE:
- 2 - 7k EZ Lube Axles
2 - 8k EZ Lube Axles
2 - 10k Oil Bath Super Single Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
