At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Featured Video
Product Features

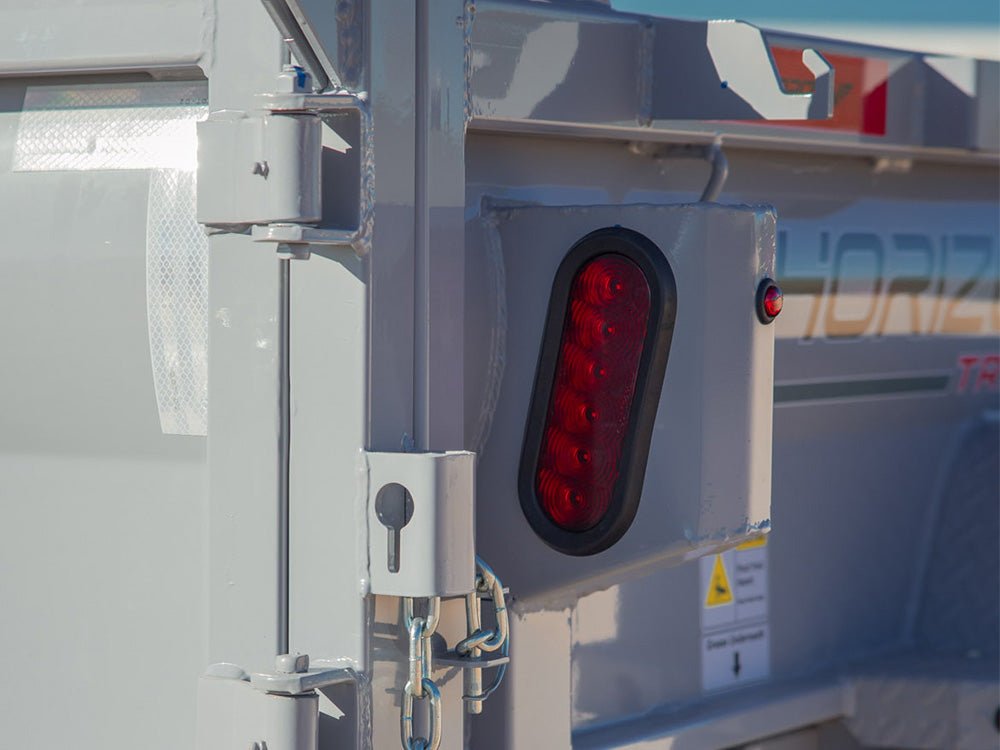

Side-Mounted LED Light Boxes
Features welded, side-mounted light boxes on the dump bed. This placement protects the DOT-approved LED lights from damage during loading and provides optimal rearward visibility, unlike traditional lights mounted low near the ramps.

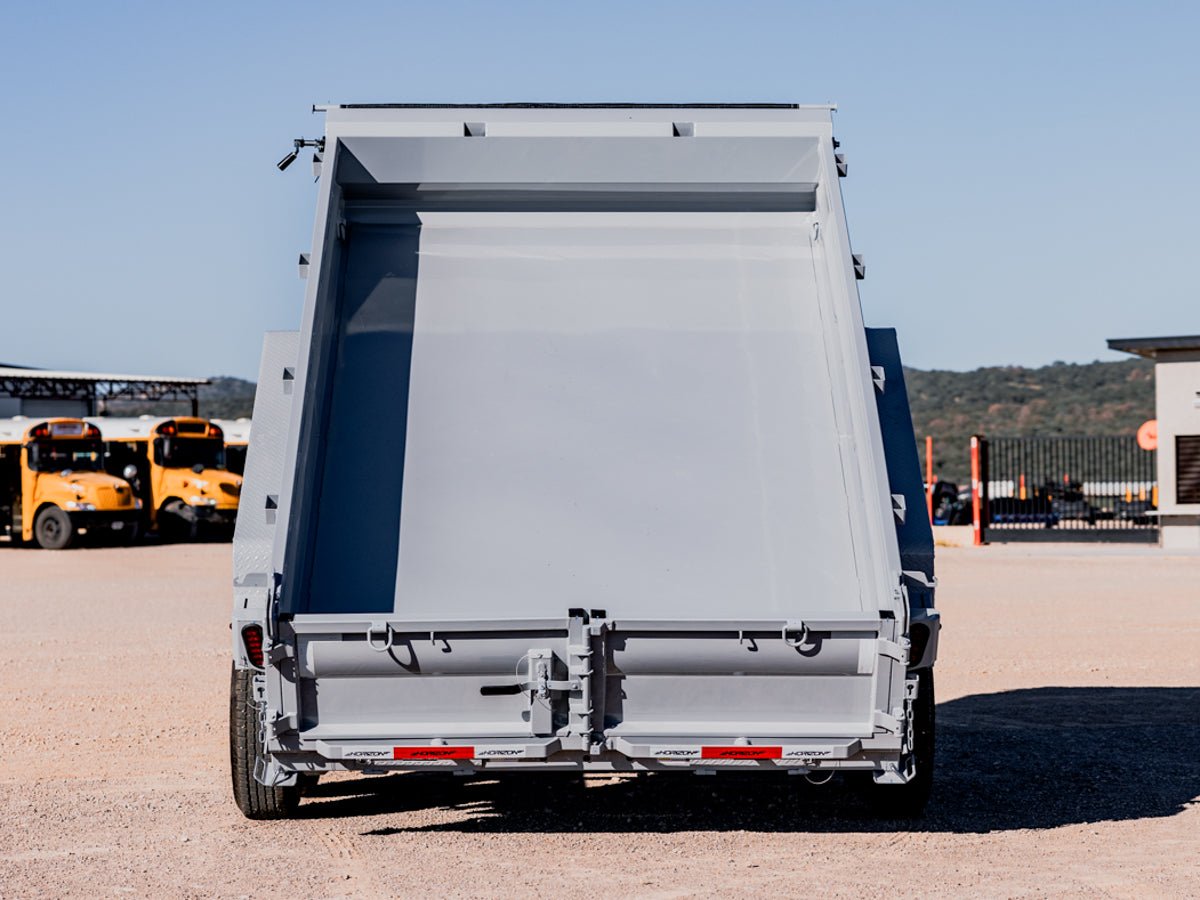

Low-Profile Rounded Steel Bed
Features a low 19-inch side height with rounded 12-gauge steel construction. The design is optimized for heavy materials like gravel and dirt, maximizing legal payload while using the rounded corners for clean dumping.

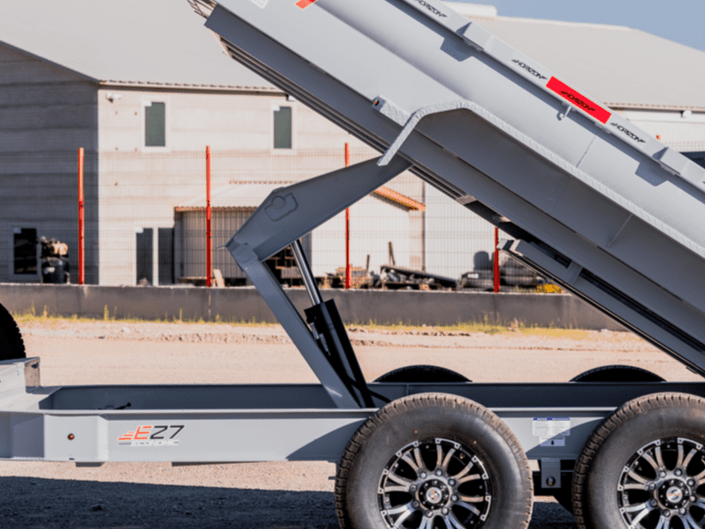

Single Push Cylinder Hoist
Equipped with a 5" x 16" or 5" x 21" single push cylinder providing 15,000 lbs of lift. This hoist lift system is designed for reliable, powerful dumping of dense materials.

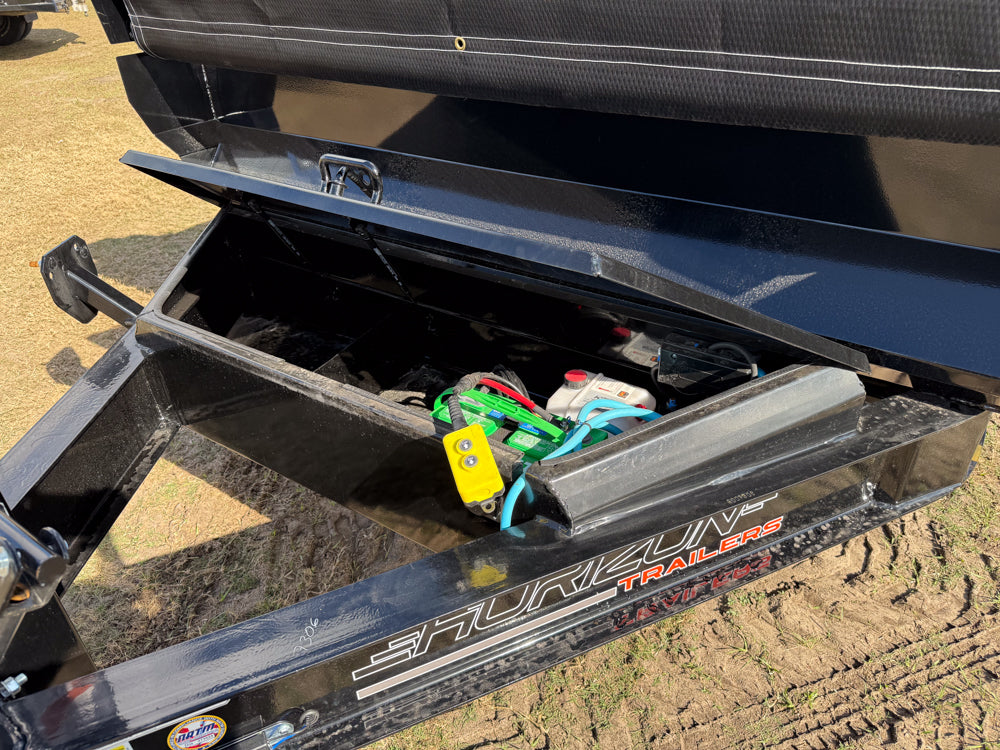

Mega Lockable Front Toolbox
Includes a large, lockable "Mega" toolbox mounted on the tongue. The new design provides significant secure storage for straps, chains, tools, and the hydraulic controller, keeping them organized and protected.

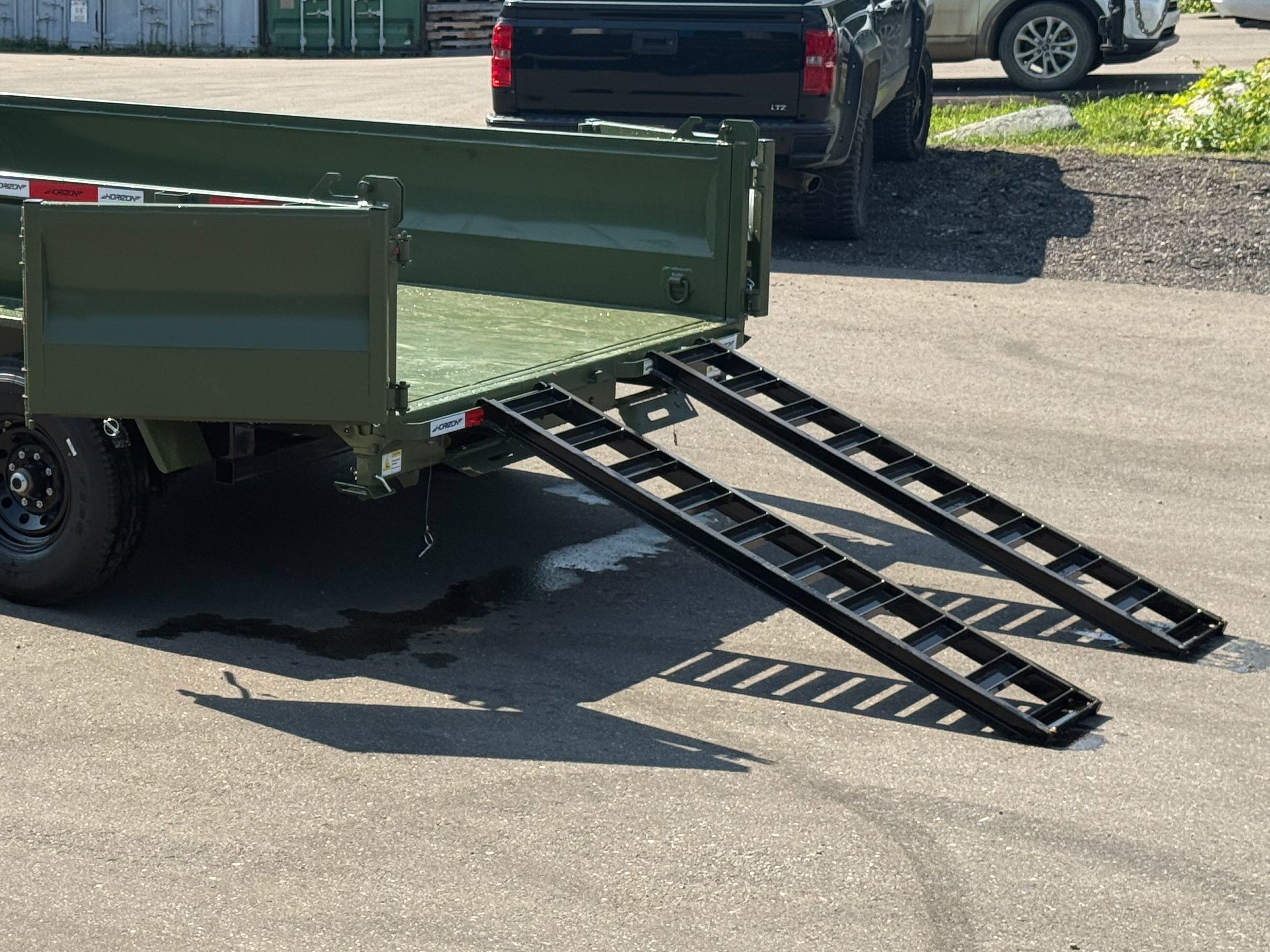

6-Foot 4-Inch Slide-In Ramps
Utilizes 6-foot 4-inch slide-in ramps rated for a 4,000 lb transfer weight. The ramps store under the bed and provide a sturdy, reliable loading path for equipment.

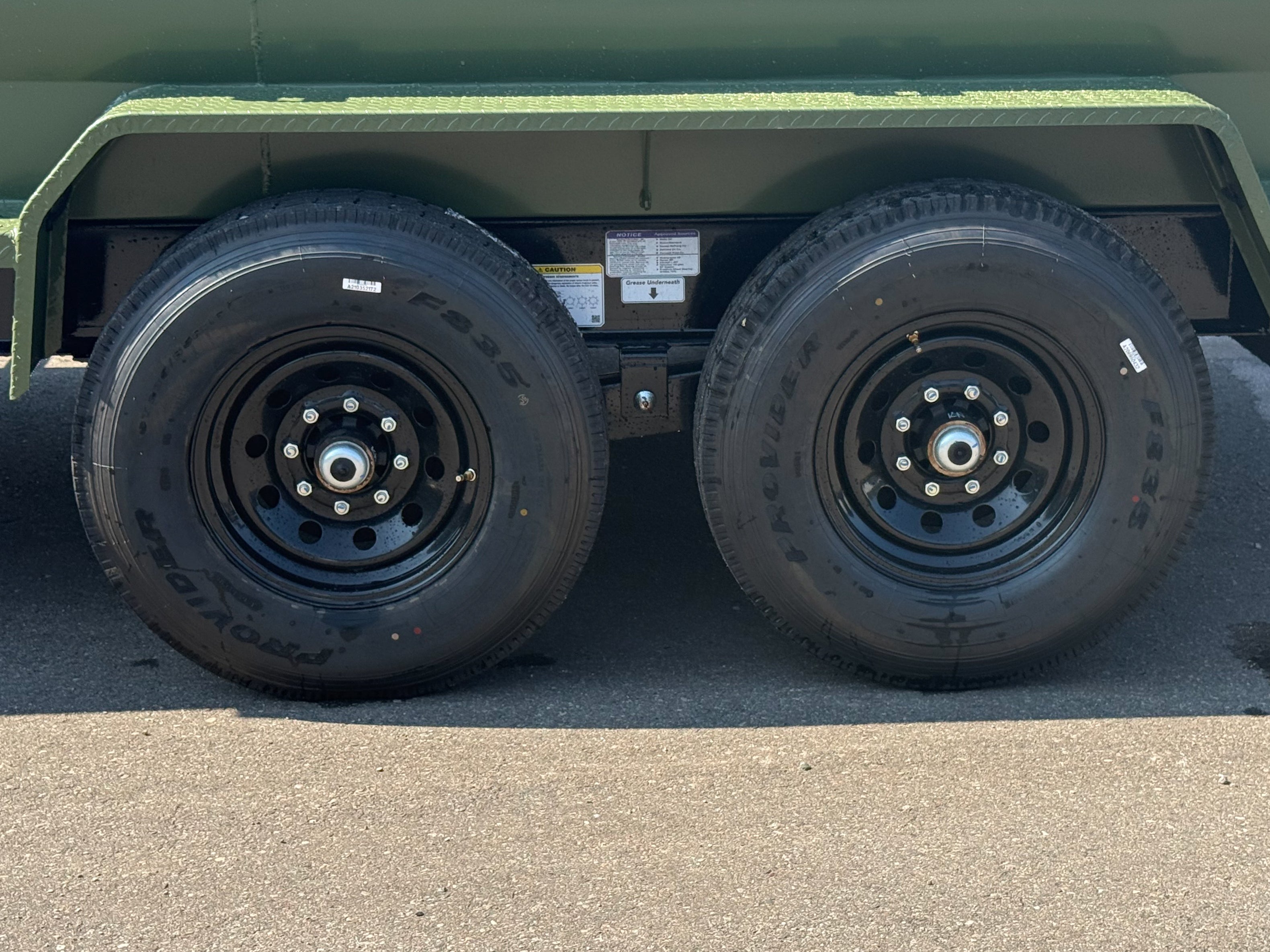

Tandem Dexter Axle and Frame Warranty
Built with tandem 7k Dexter EZ Lube axles, backed by a 5-year warranty. The trailer frame itself is protected by a 3-year structural and 1-year parts warranty.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 19"
- DECK HEIGHT:
- 20"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k
- GVWR:
- 14k
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial
- TIRE PLY:
- 10 Ply
- RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter EZ Lube Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION:
- Spring

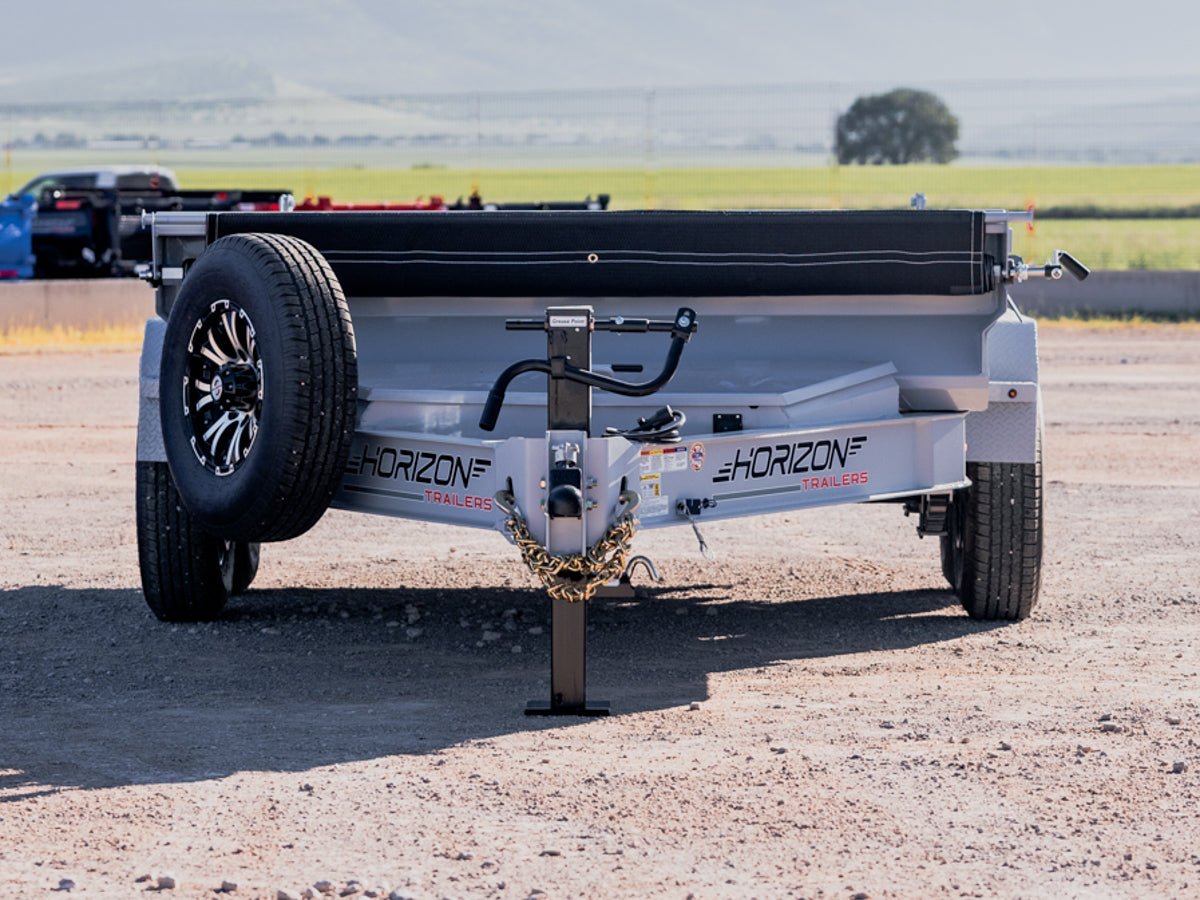

BUMPER PULL
- PULL TYPE:
- Bumper Pull
- TYPE:
- 8" Engineered I Beam
- LENGTH:
- 60"
- JACK:
- Single 12k Drop-Leg Jack
- COUPLER:
- Adjustable 2 5/16" (17,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam (13lb/ft)
- BED FRAME:
- 3" x 5" x 1/4" Angle Iron
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- FLOORING:
- 9ga. Steel Bed
- SIDES:
- 12 Ga. Rounded Steel

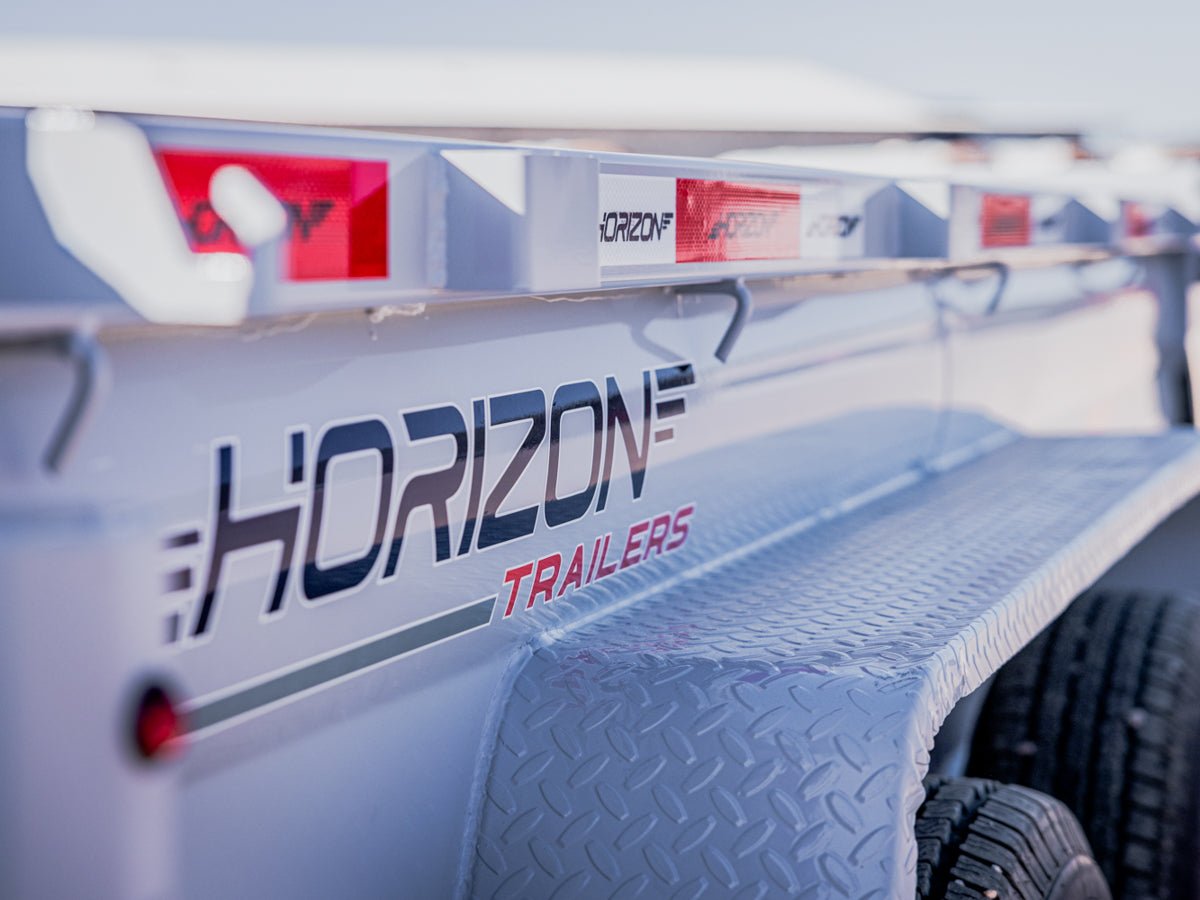

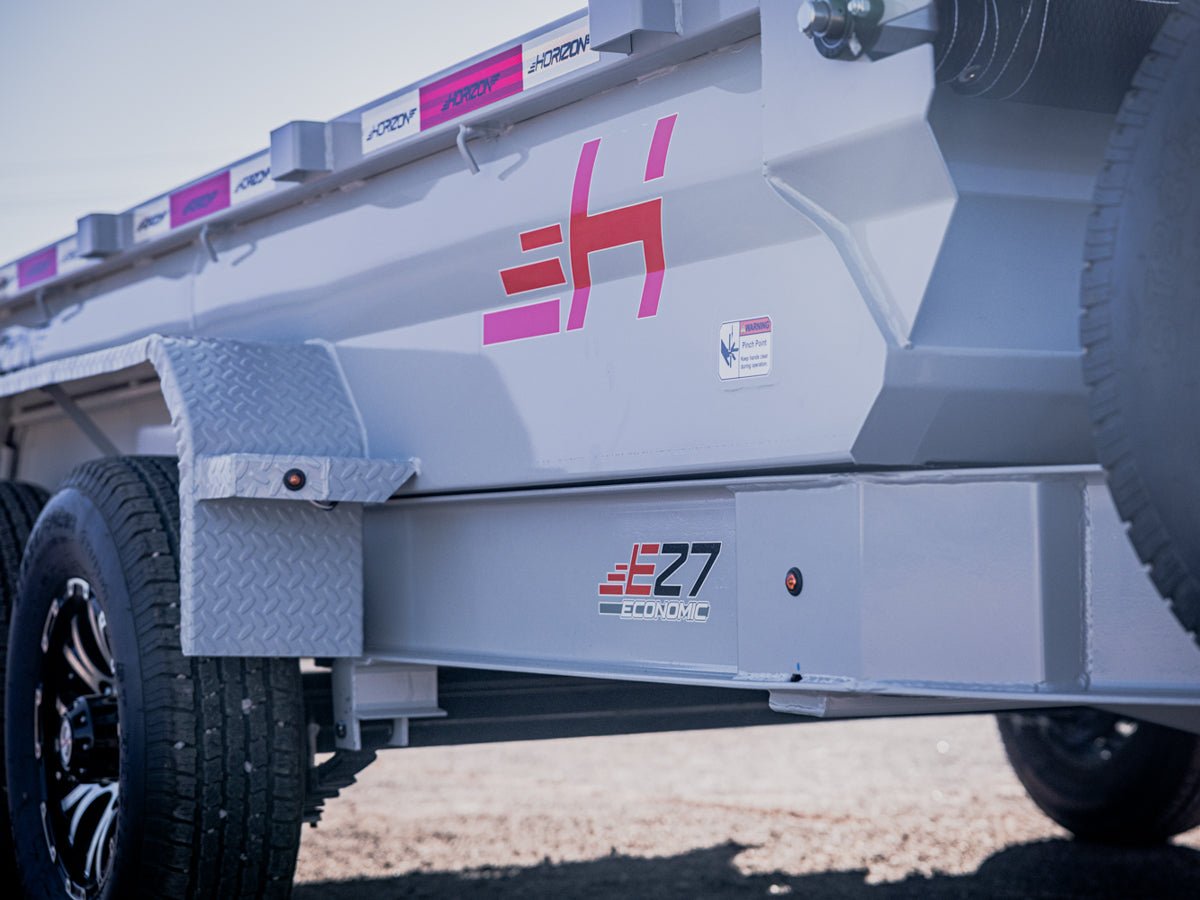

- FENDERS:
- 14 Ga. Diamond Plate
- STAKE POCKETS:
- 1 5/8" x 3 5/8"
- D-RINGS:
- 4 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- 12' CYLINDER:
- 5" x 16" Single Push
- 12' CAPACITY:
- 15,000 lbs
- 14', 16'+ CYLINDER:
- 5" x 21" Single Push
- 14', 16'+ CAPACITY:
- 15,000 lbs
- DUMP ANGLE:
- 40 - 48 Degrees
CARGO & BODY

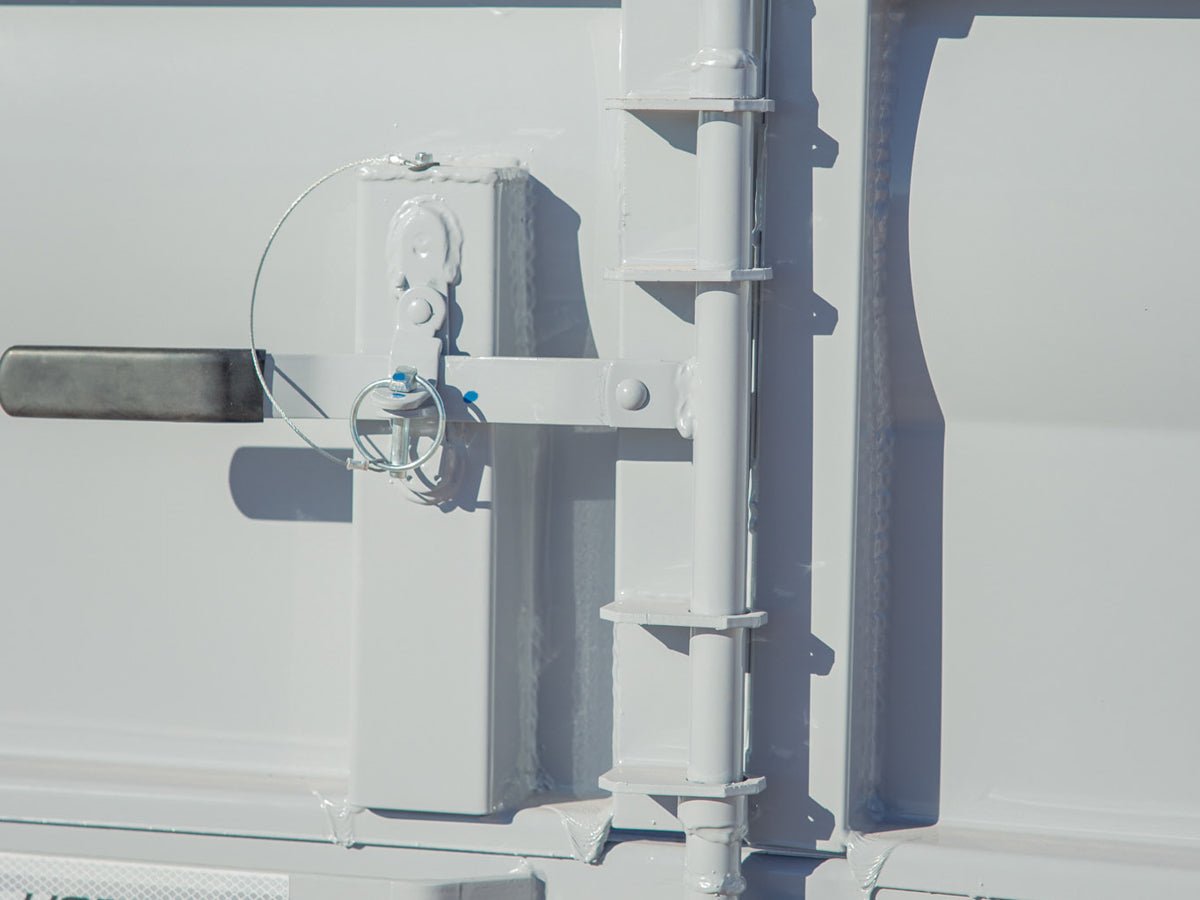

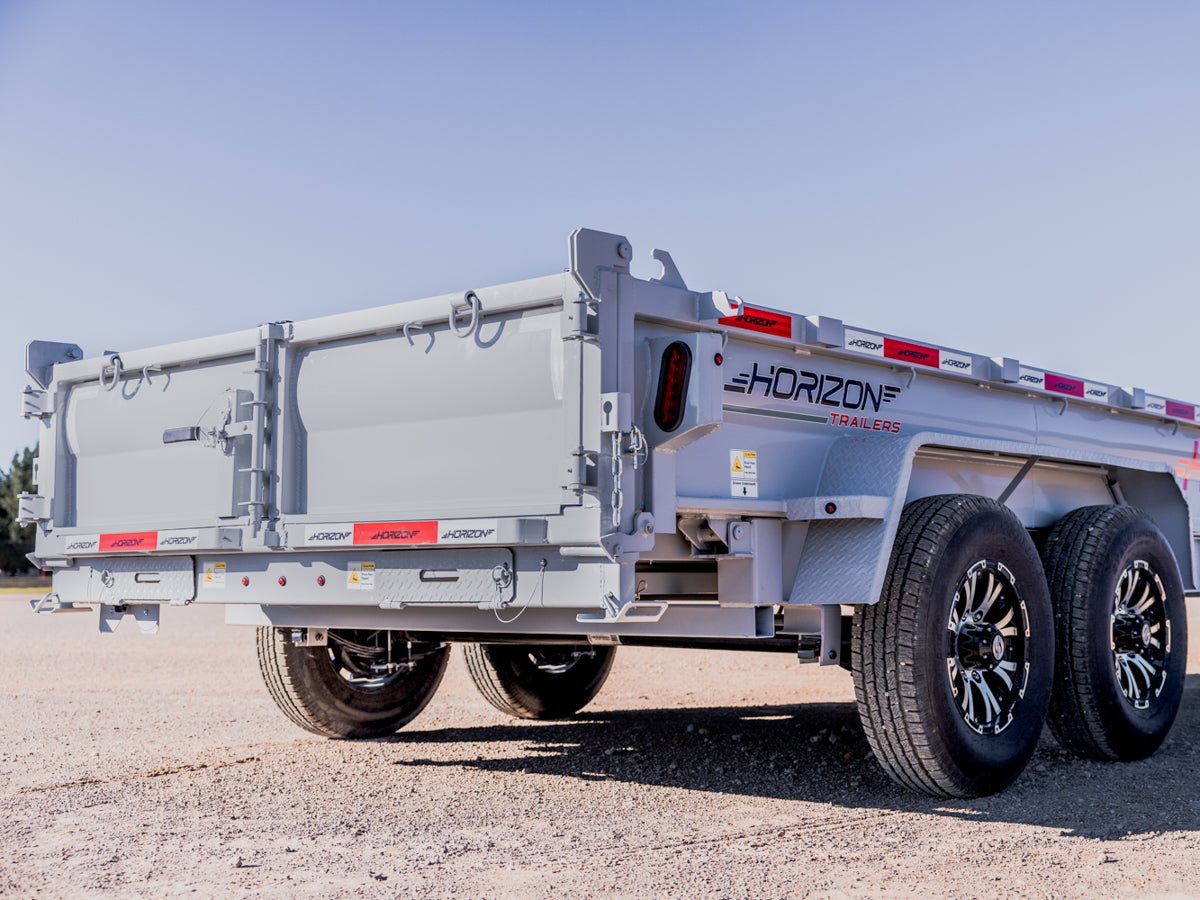

- GATE:
- 3 Way Spreader Gate
- RAMPS:
- 6'4" Slide In Ramps

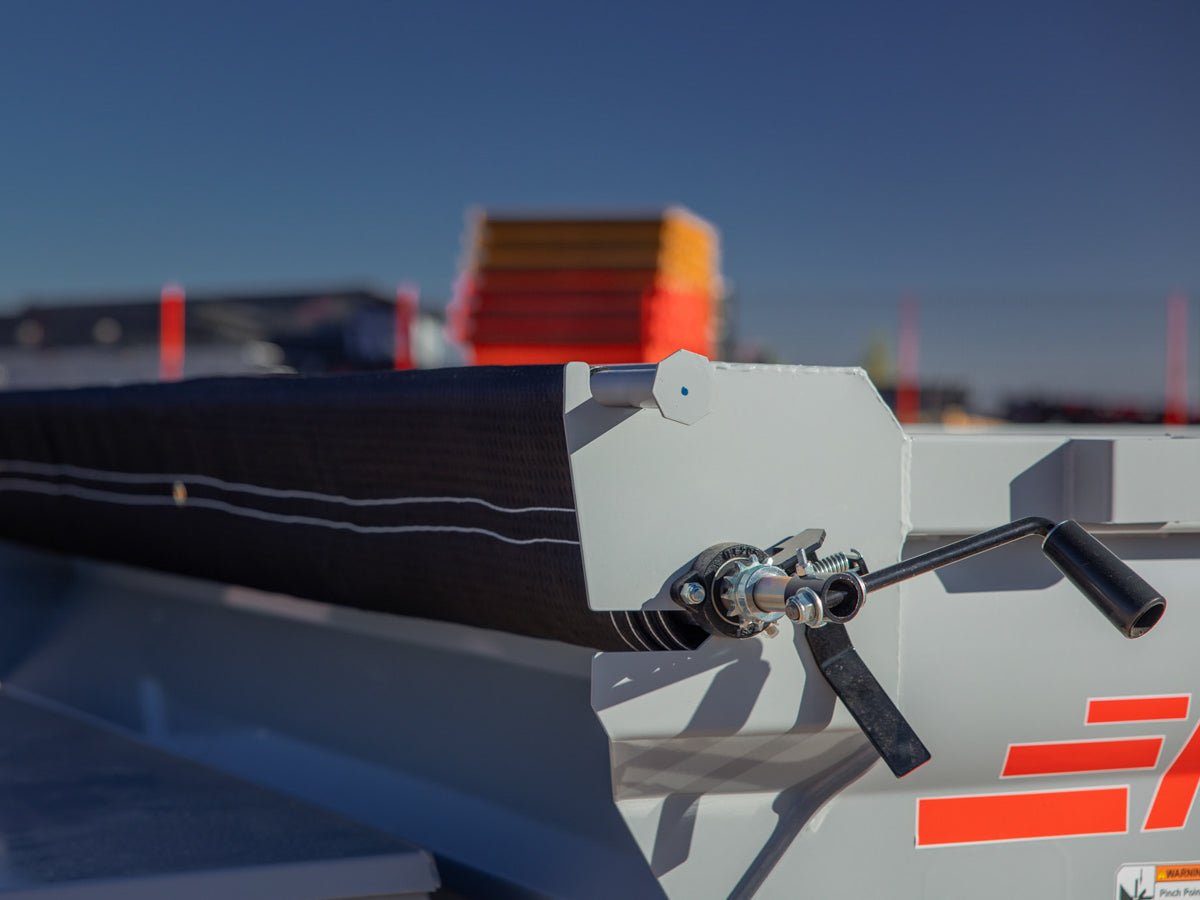

- TARP:
- Crank Style Roll-Up Tarp
- HOOKS:
- 3/8" Round J Hooks
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 110V Trickle Charger
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts
OPTIONS
