At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features

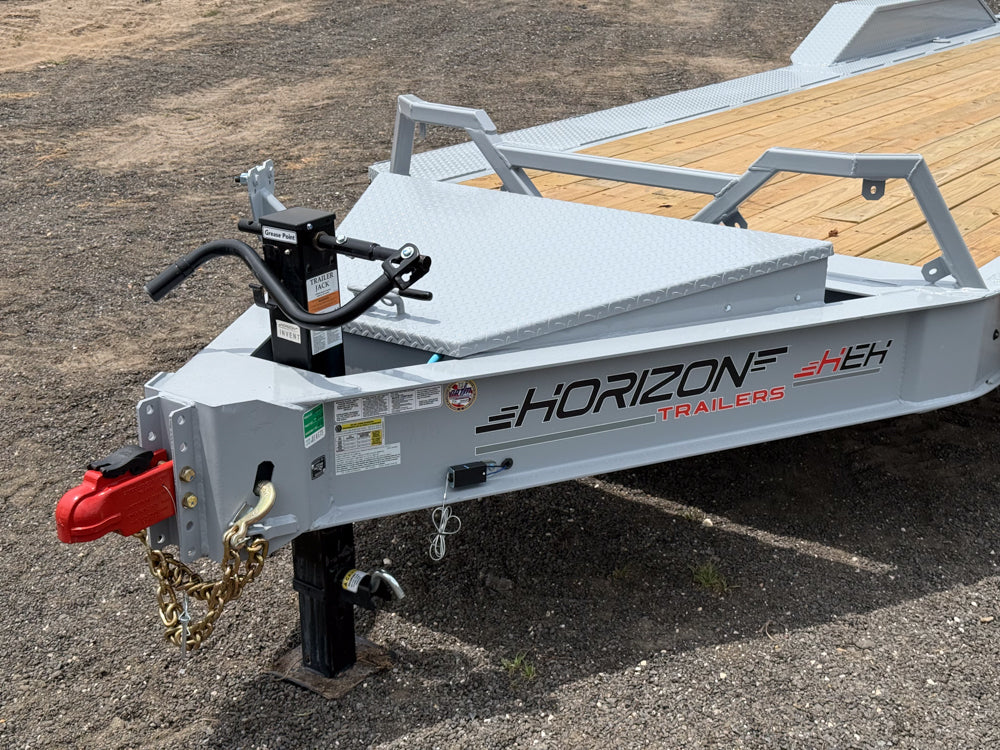

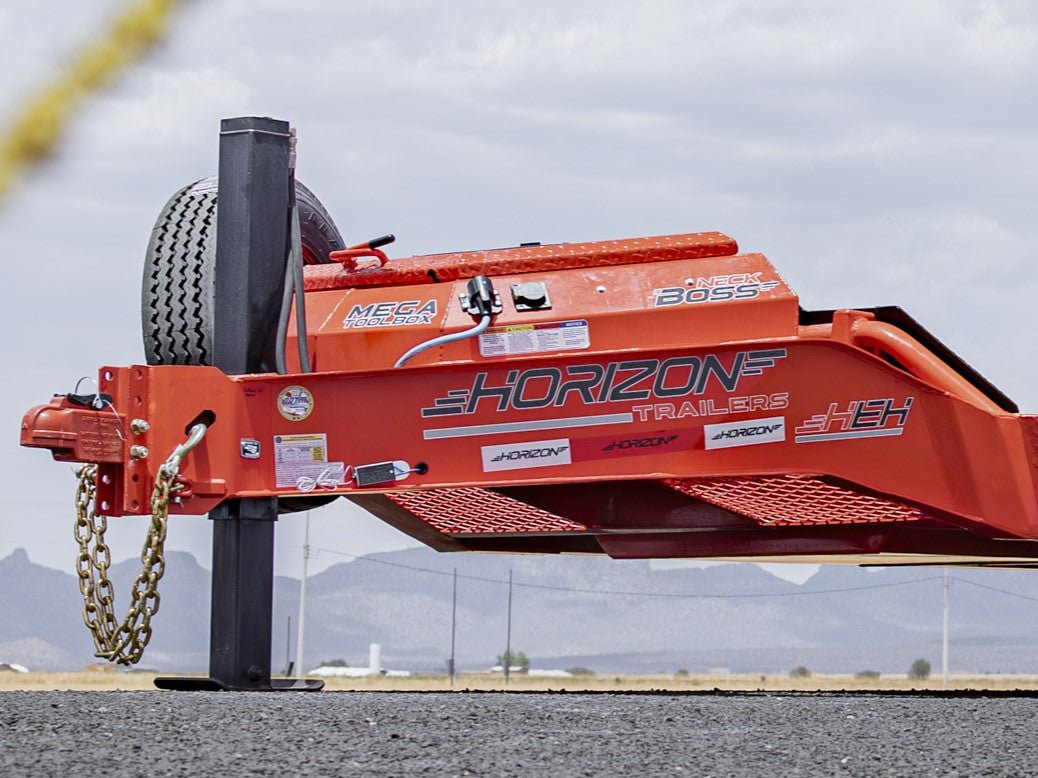

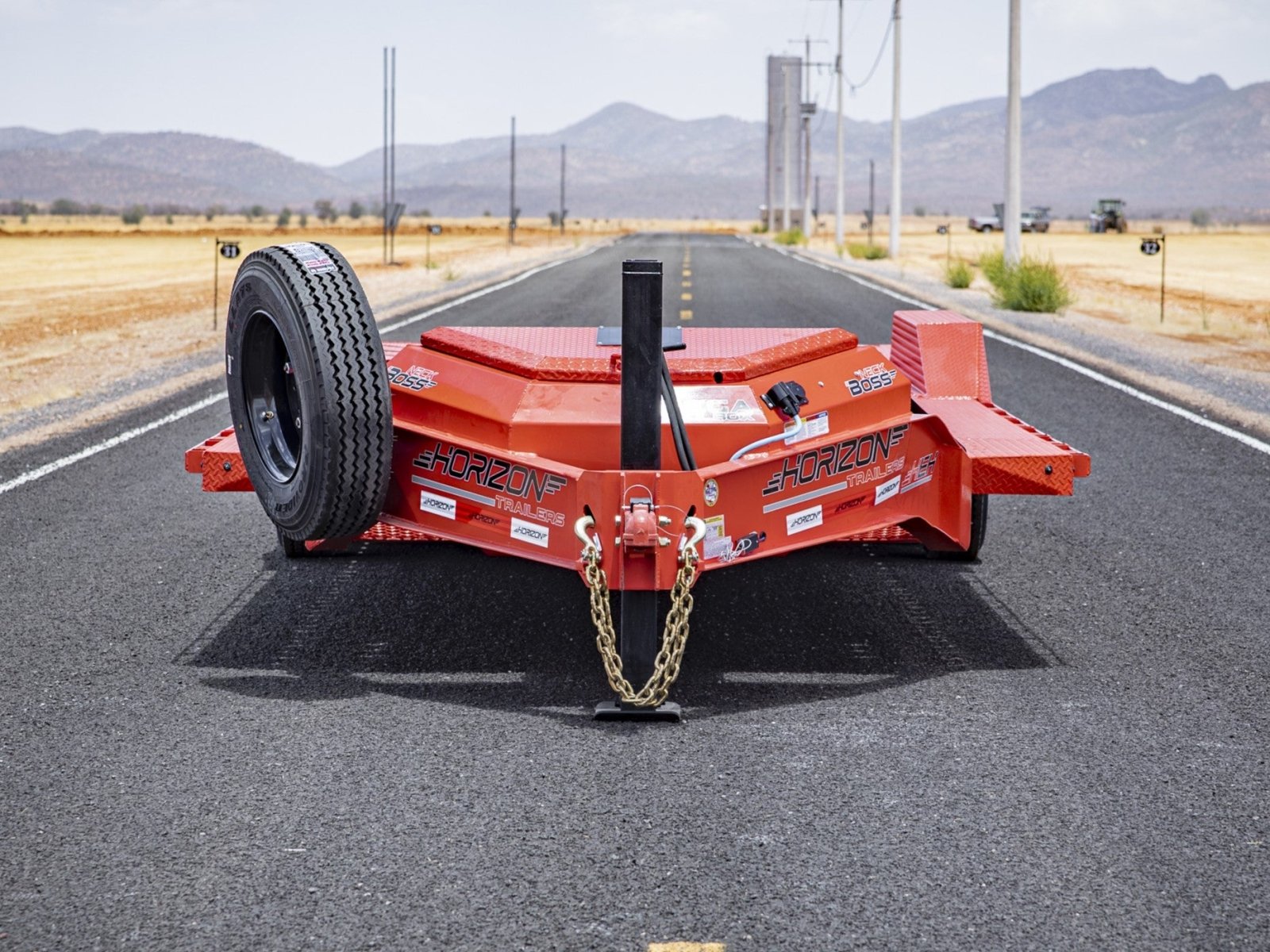

Heavy-Duty 10" Tongue Construction
Uses a 10-inch I-beam tongue rather than the standard 8-inch. The larger tongue provides the structural strength needed for the 21k bumper pull rating.

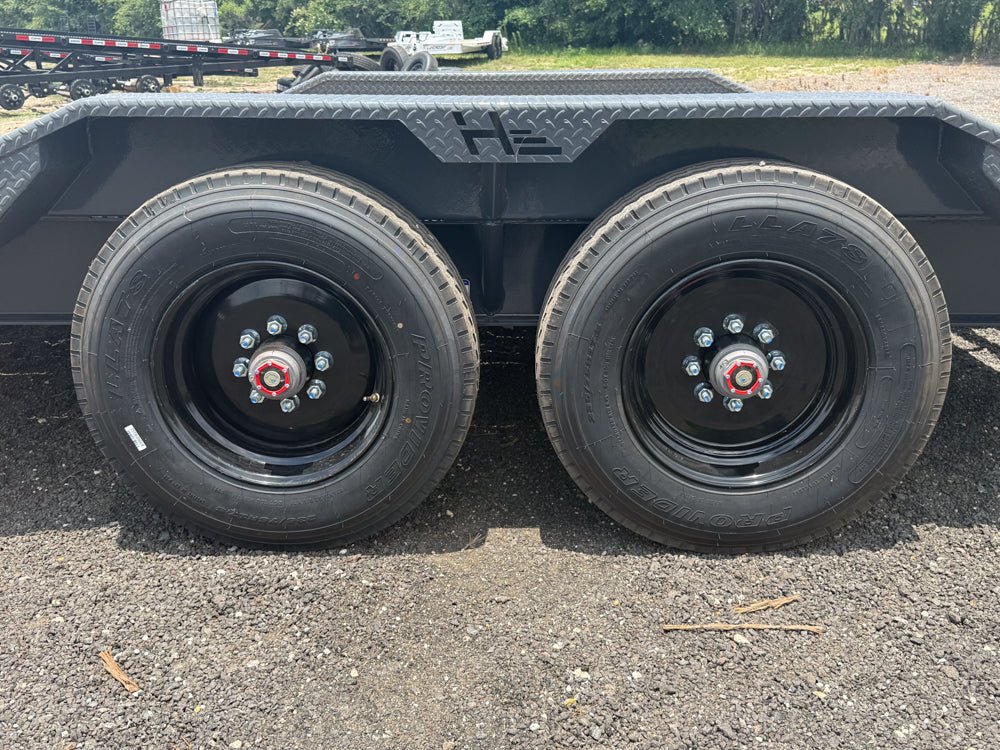

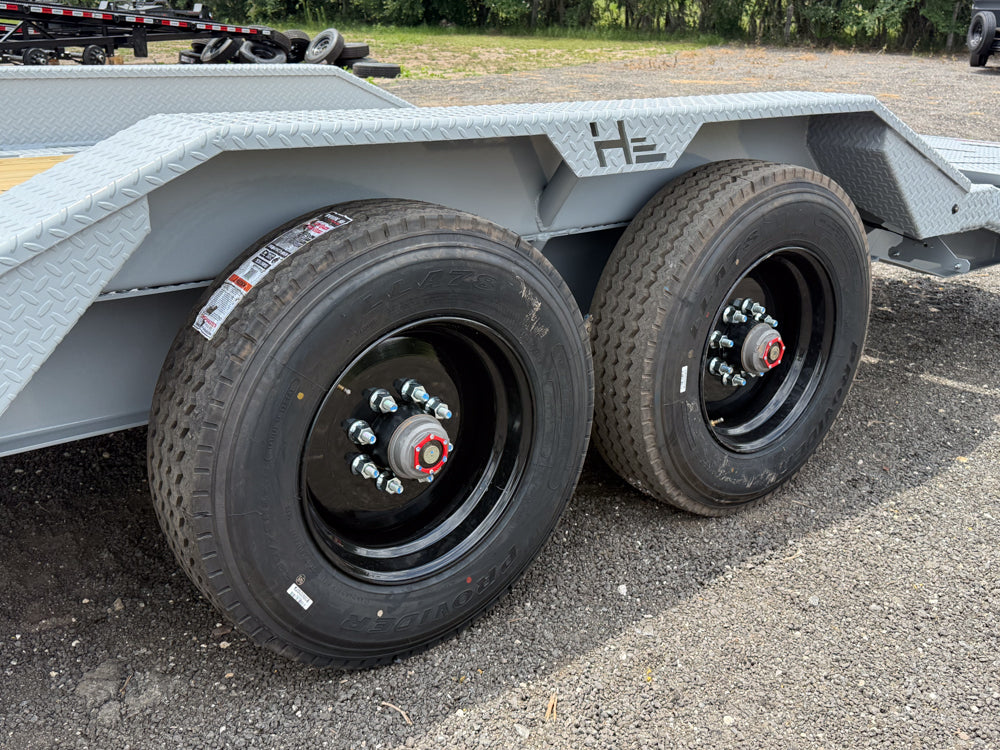

10k Super Single Axle System
Uses two 10k oil bath super single axles with 18-ply tires. The super single setup provides greater stability and weight distribution than standard dual wheel axles.

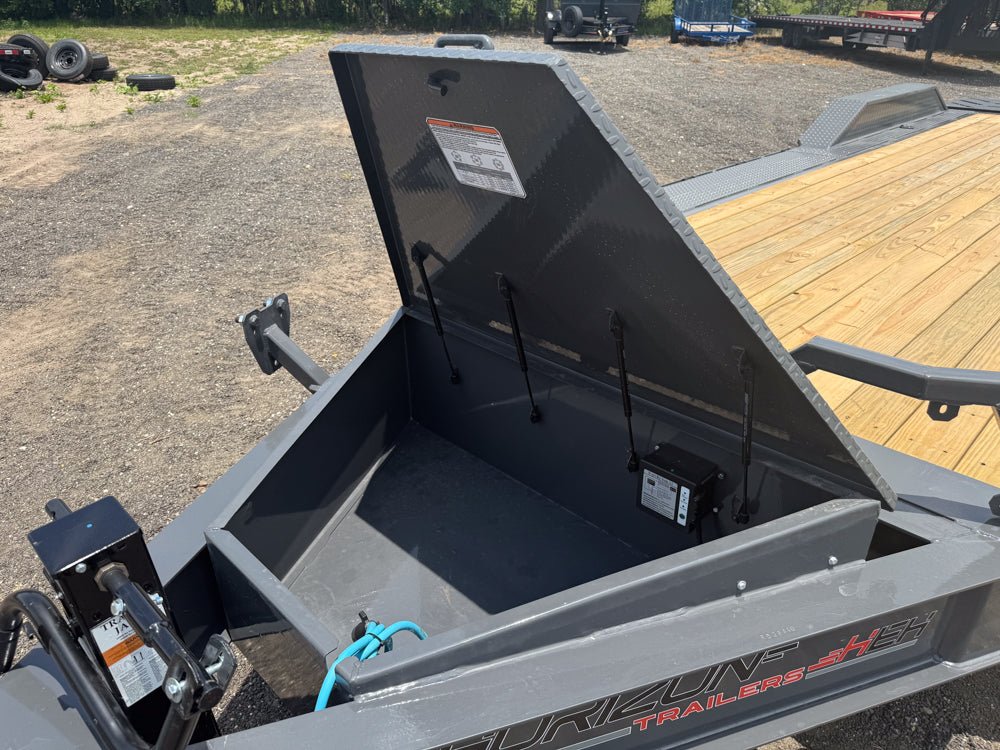

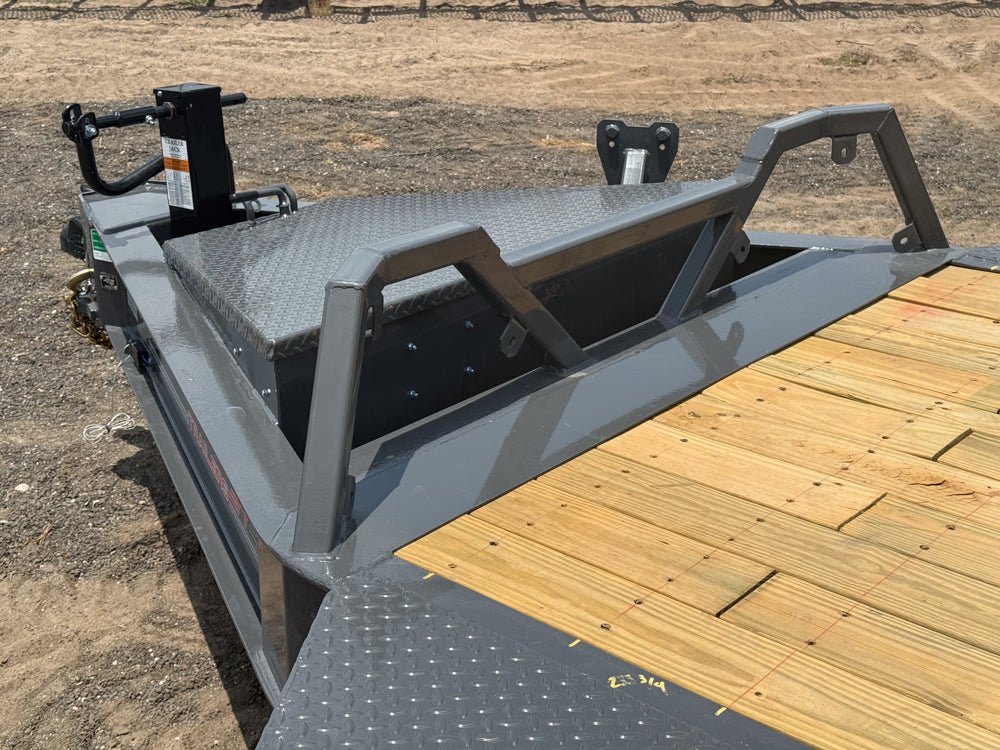

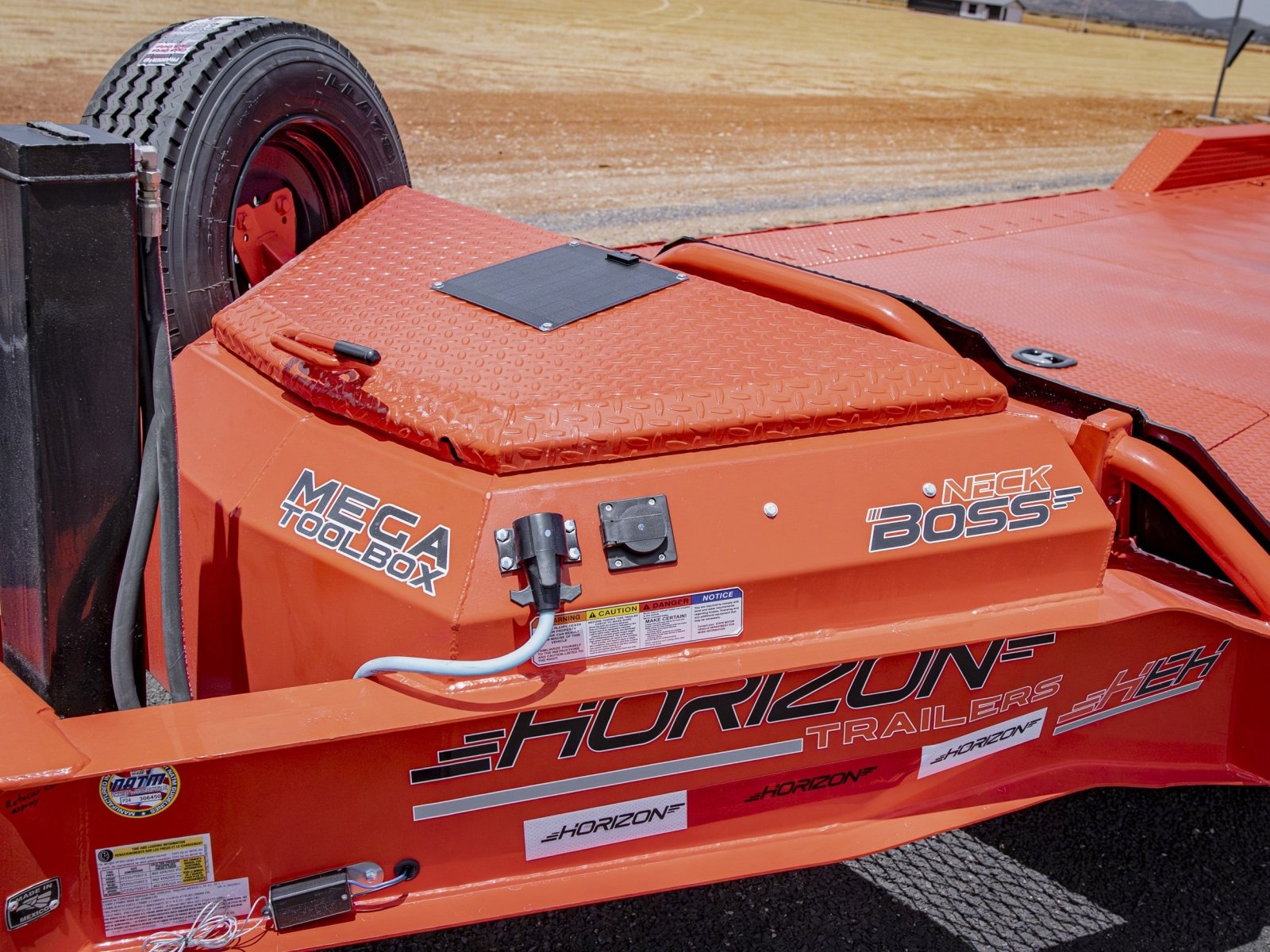

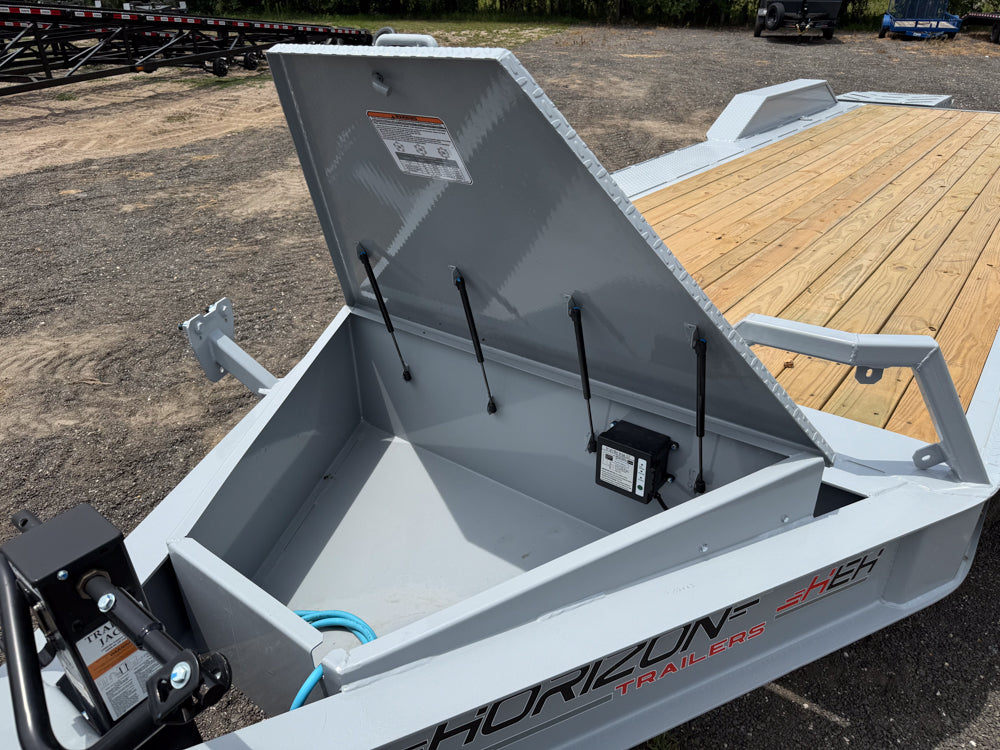

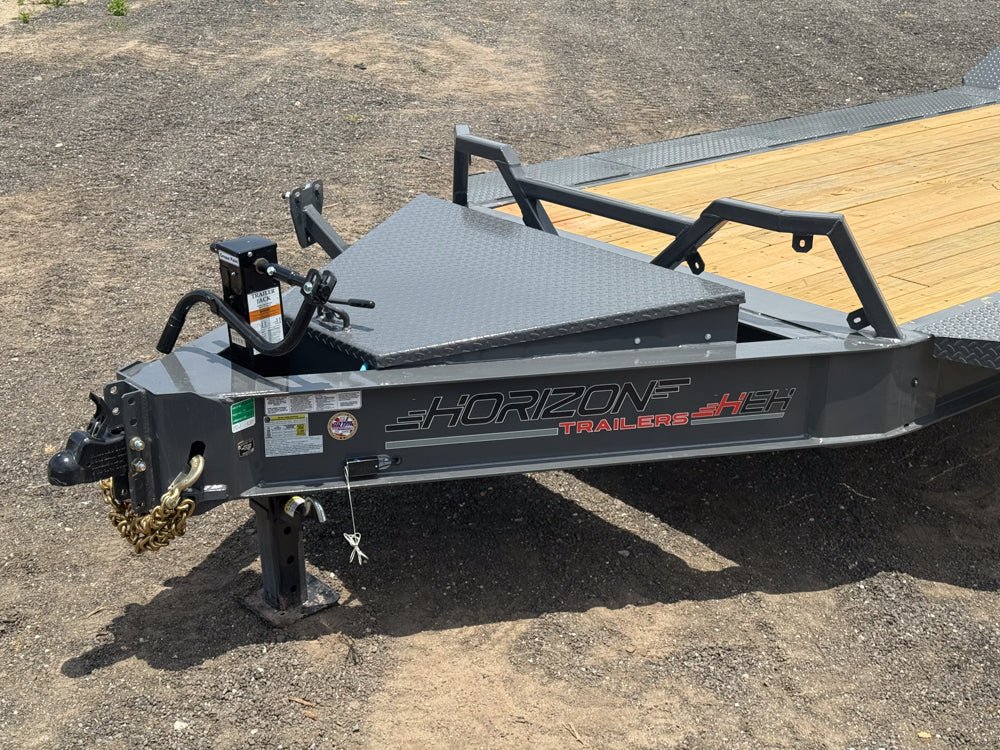

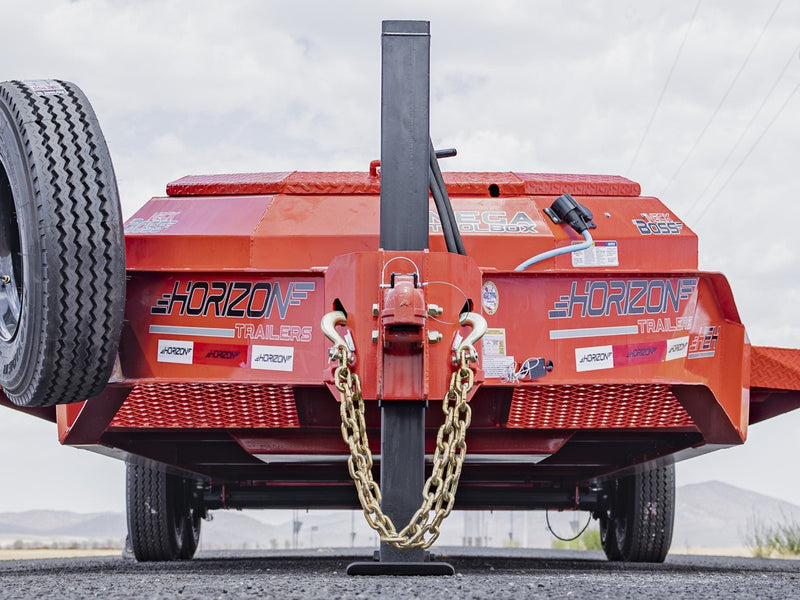

Mega Lockable Tongue Toolbox
Includes a large, lockable toolbox mounted on the tongue. Provides secure storage for equipment and tools while keeping the deck clear for cargo.

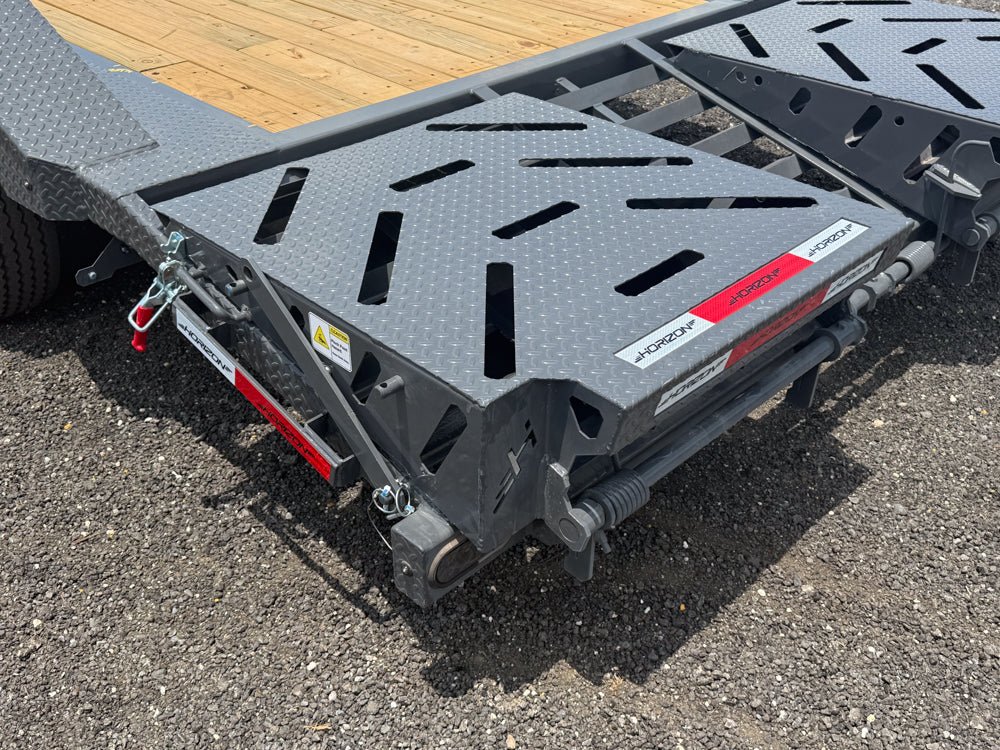

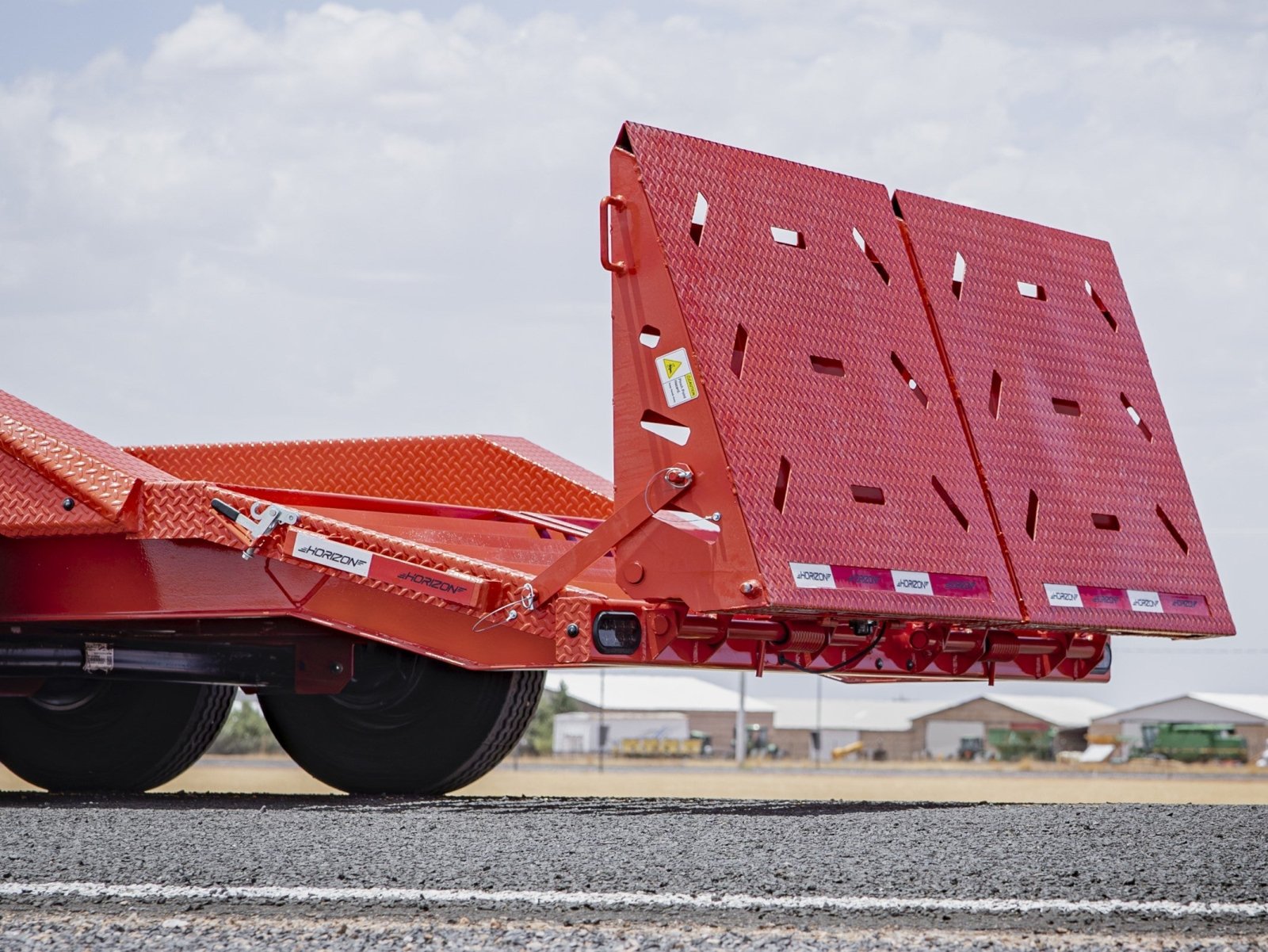

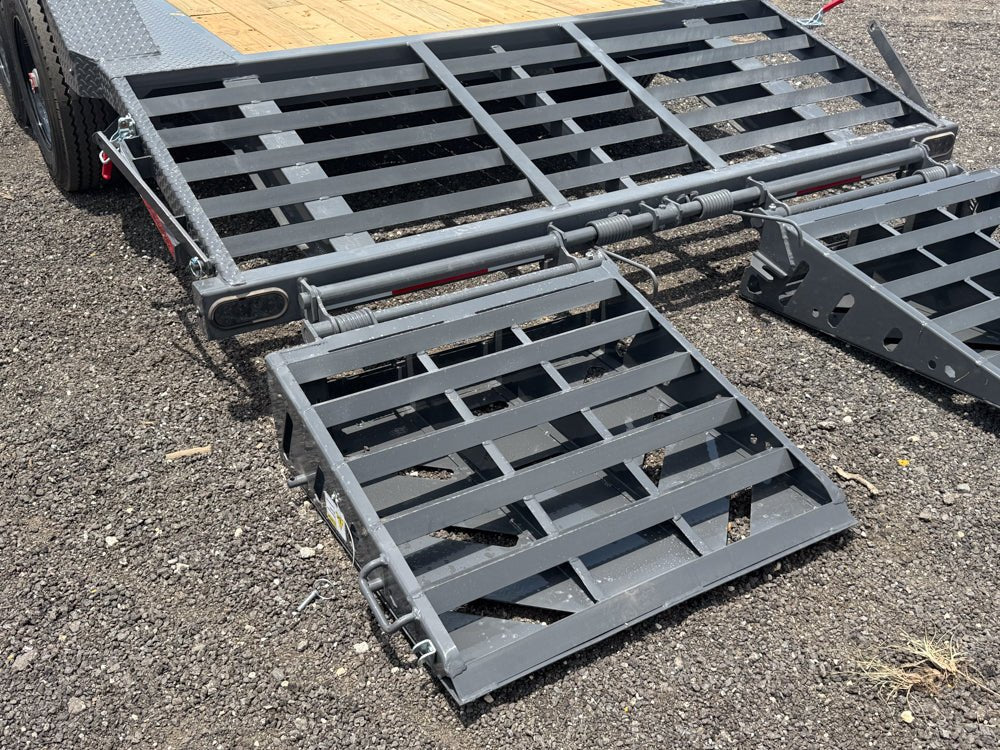

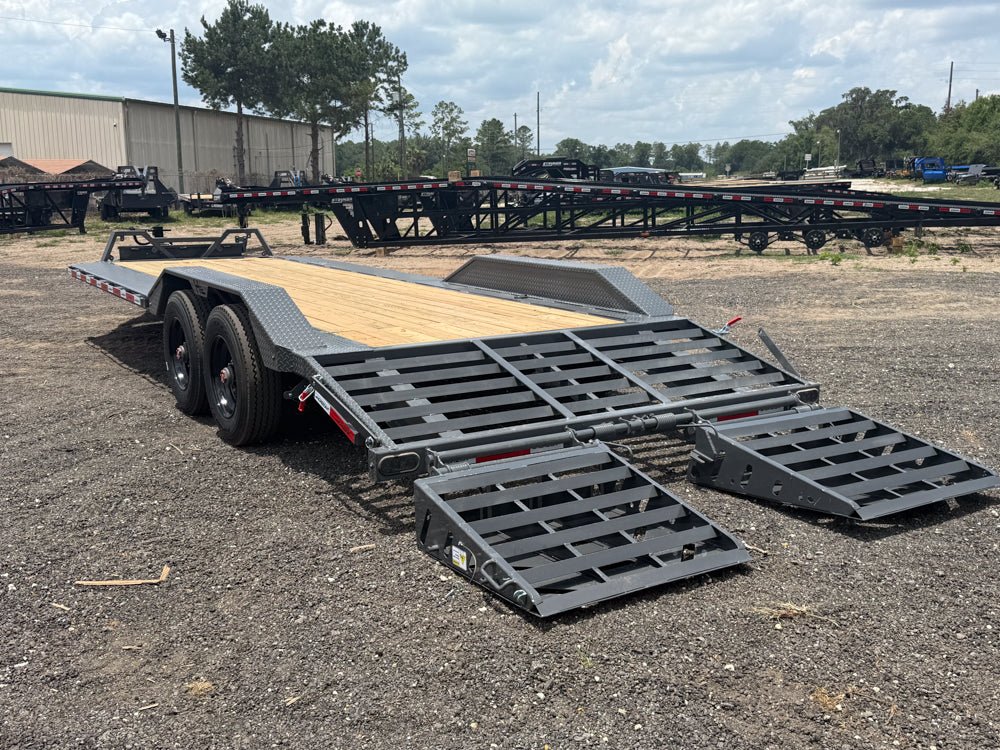

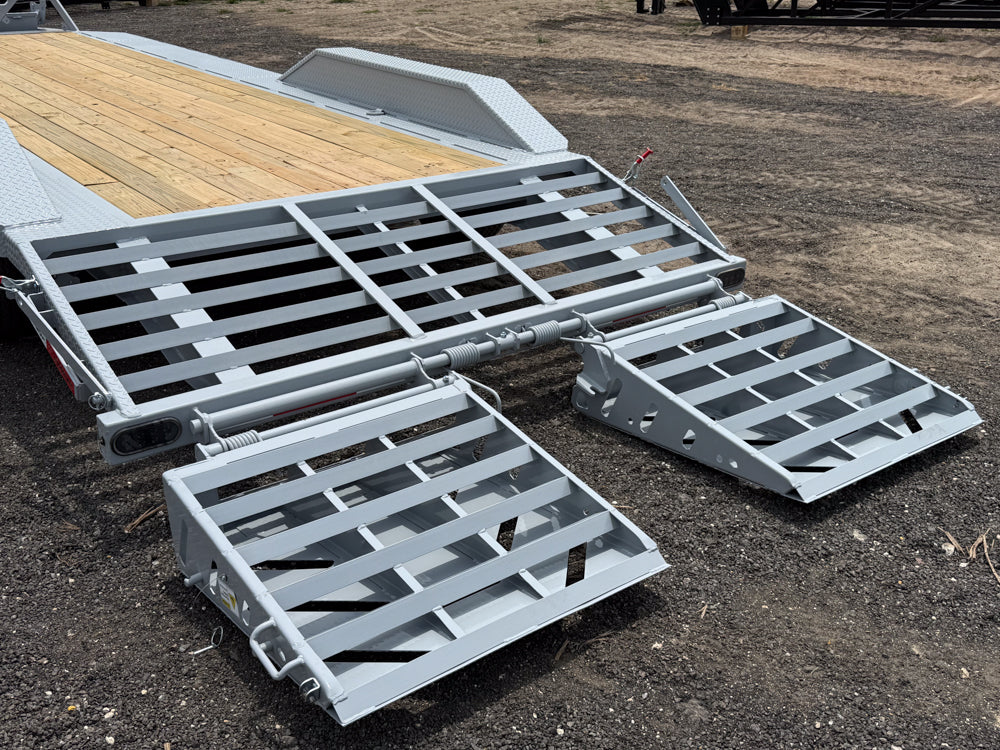

Mountain Ramp Configuration
Available with mountain ramps on a 3-foot dovetail. The configuration is designed for loading equipment with low ground clearance or uneven track/wheel bases.

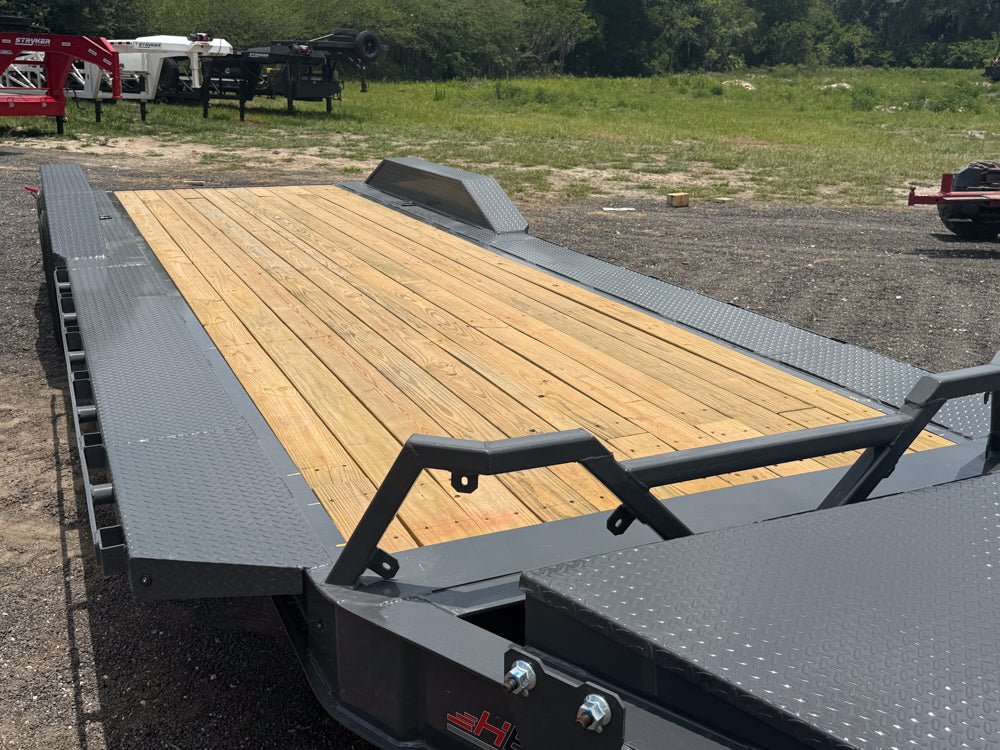

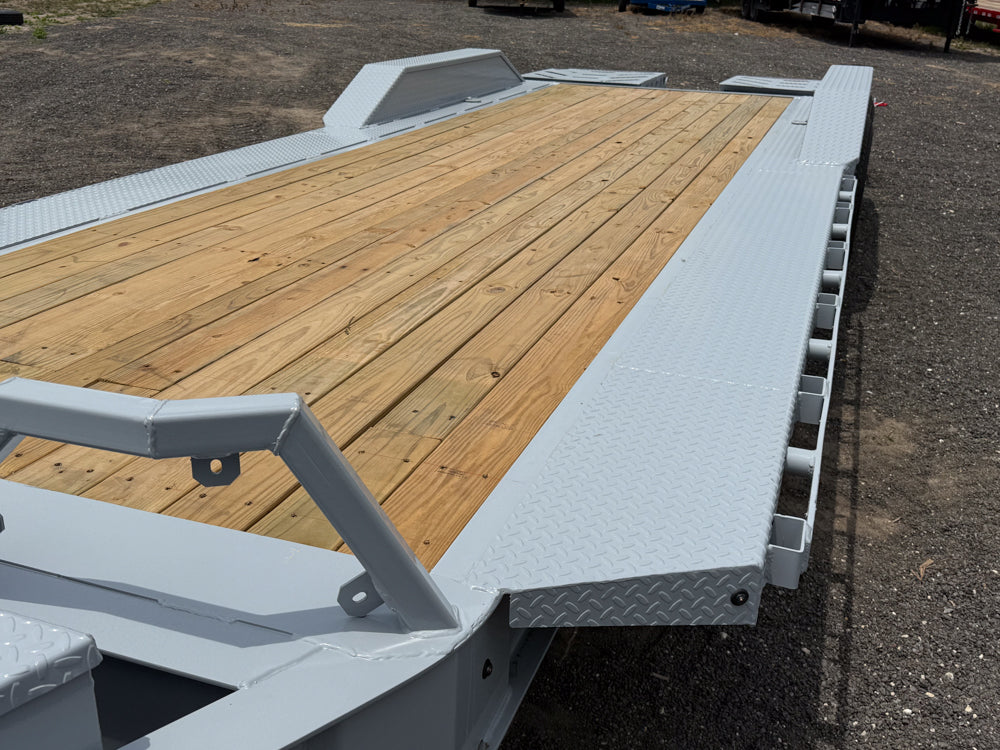

Full-Width Wood Deck
Features a full-width wood deck measuring 82 to 102 inches wide. The deck surface provides consistent traction and load distribution for heavy equipment.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 24'
- WIDTH:
- 82" - 102"
- DECK HEIGHT:
- 25"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k SS
- GVWR:
- 21k
SAFETY & FEATURES
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
- FENDERS:
- 12 Ga. Removable Fenders
1/4" Diamond Plate DOF
TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- 10" Engineered I-Beam
- LENGTH:
- 60"
- STANDARD COUPLER BP:
- Adjustable 2 5/16" (21,000 lbs) Coupler
- FRONT JACK BP:
- Single 12k Drop-Leg Jack
- TOOLBOX BP:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- FRAME:
- 10" (17lbs/ft) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- RAMPS:
- 5'6" HD Slide In Ramps
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
RUNNING GEAR
- TIRES:
- ST235/75R17.5
- TIRE PLY:
- 18 Ply
- TIRE RATING:
- 6005 lbs
- RIMS:
- 17.5" Black Mod Wheels
- BRAKES:
- Electric Brake
- AXLE TYPE:
- 2 - 10k SS Oil Bath Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
OPTIONS
