At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
12'
Inquire About This Trailer
Product Features
Advanced Hydraulic System

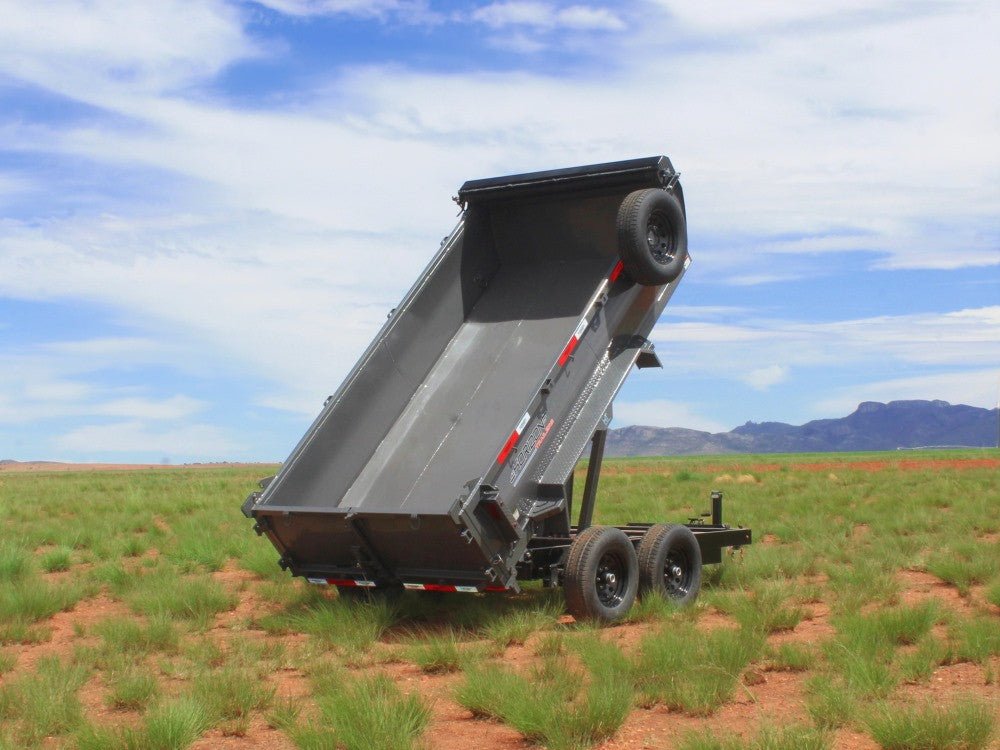

Powered by a high-performance 12-volt hydraulic system with a lifting capacity of 12,000 lbs., the HZ6 dump trailer delivers smooth and efficient operation. Whether dumping gravel, mulch, or construction debris, its advanced hydraulic system provides precise control and reliable performance, enhancing productivity on the job site.

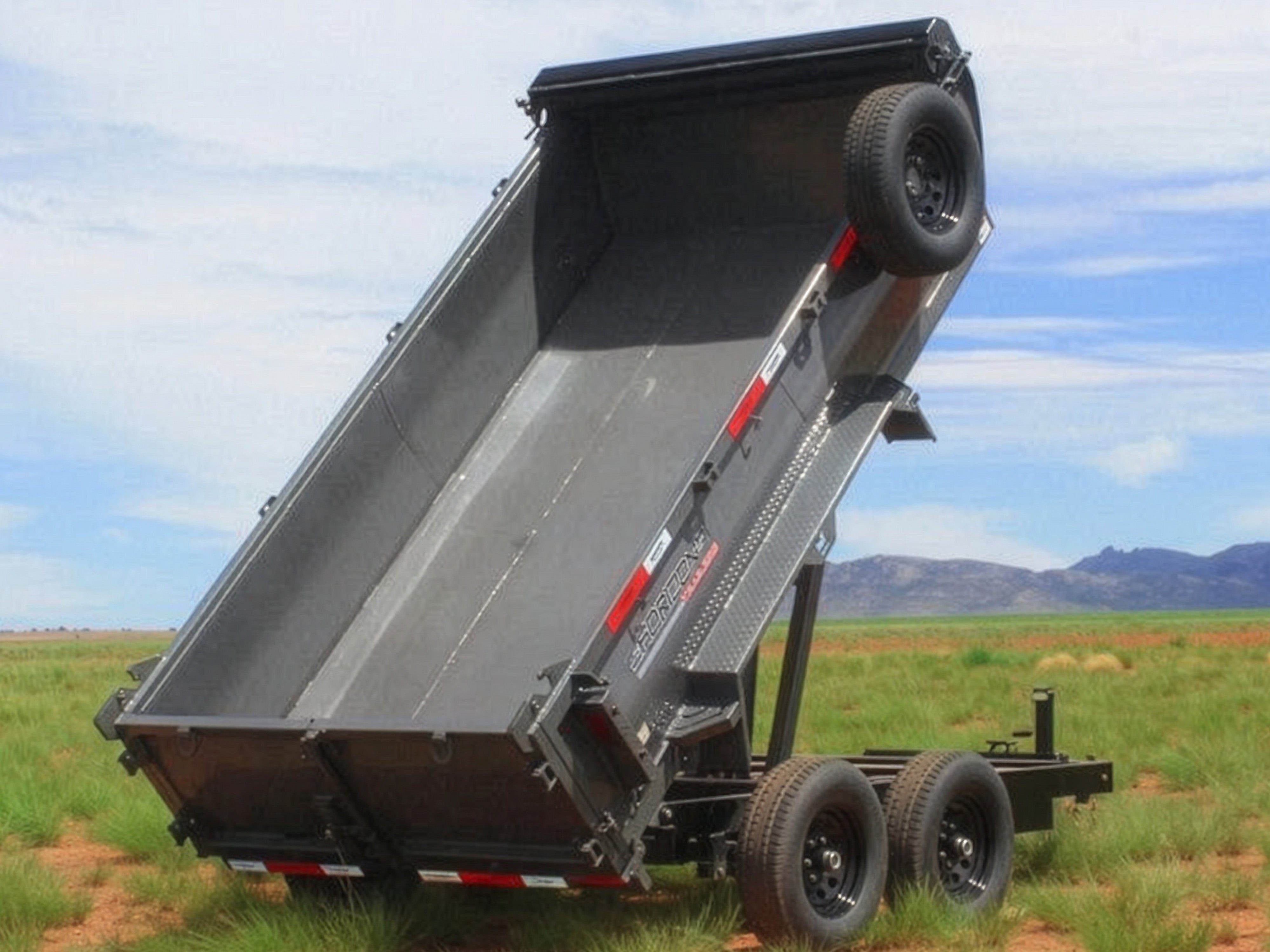

Effortless Loading and Unloading
With a spacious 6-foot wide bed and 26-inch sides, the HZ6 dump trailer facilitates effortless loading and unloading of bulky items. Integrated ramps and a low-profile design ensure smooth ingress and egress of heavy equipment, machinery, and bulk cargo, streamlining operations and minimizing downtime.
DURABLE FINISH AND CORROSION RESISTANCE
Finished with a premium powder coat for superior durability and corrosion resistance, the HZ6 dump trailer withstands the elements with ease. Its rugged construction and weather-resistant finish ensure long-lasting performance, even in harsh environmental conditions, making it a reliable asset for years to come.

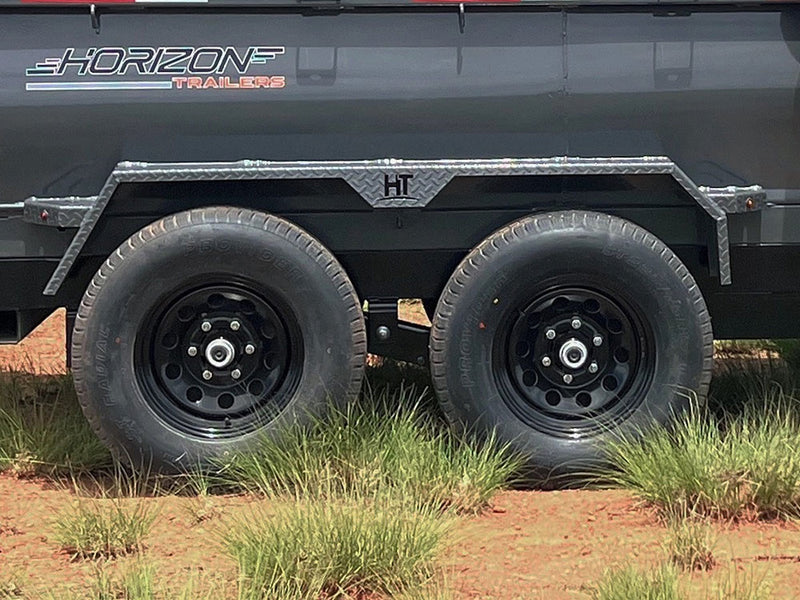

Axles and Running Gear
Engineered for reliable towing performance, the HZ6 dump trailer features a tandem axle system with electric brakes and sturdy 16-inch radial tires. With a GVWR of 16,000 lbs., it offers exceptional towing capacity and stability on highways, job sites, and rough terrain, ensuring smooth and safe operation in any situation.
HEAVY-DUTY CONSTRUCTION
Crafted from heavy-duty 10-gauge steel and reinforced with a robust frame, the HZ6 dump trailer is engineered to handle heavy loads of up to 16,000 lbs. Its sturdy construction ensures durability and resilience, making it an ideal choice for demanding hauling tasks in construction, agriculture, and landscaping.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Product Details
DIMENSIONS & CAPACITY
- AVAILABLE LENGTHS:
- 12'
- SIDE HEIGHTS:
- 2', 3', 4'
- BED WIDTH:
- 77"
- GVWR:
- 11,300 lbs
- AXLE RATING:
- 5,200 lbs
- AXLE COUNT:
- 2
FRAME & STRUCTURE
- MAIN FRAME:
- 6" I-Beam (8.5 lbs/ft)
- FLOOR:
- 9ga. Steel
- TOP RAIL:
- 1-1/2" × 3" × 11ga. Tubing
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) @ 16" OC
- D-RINGS:
- 4 Welded Inside Box

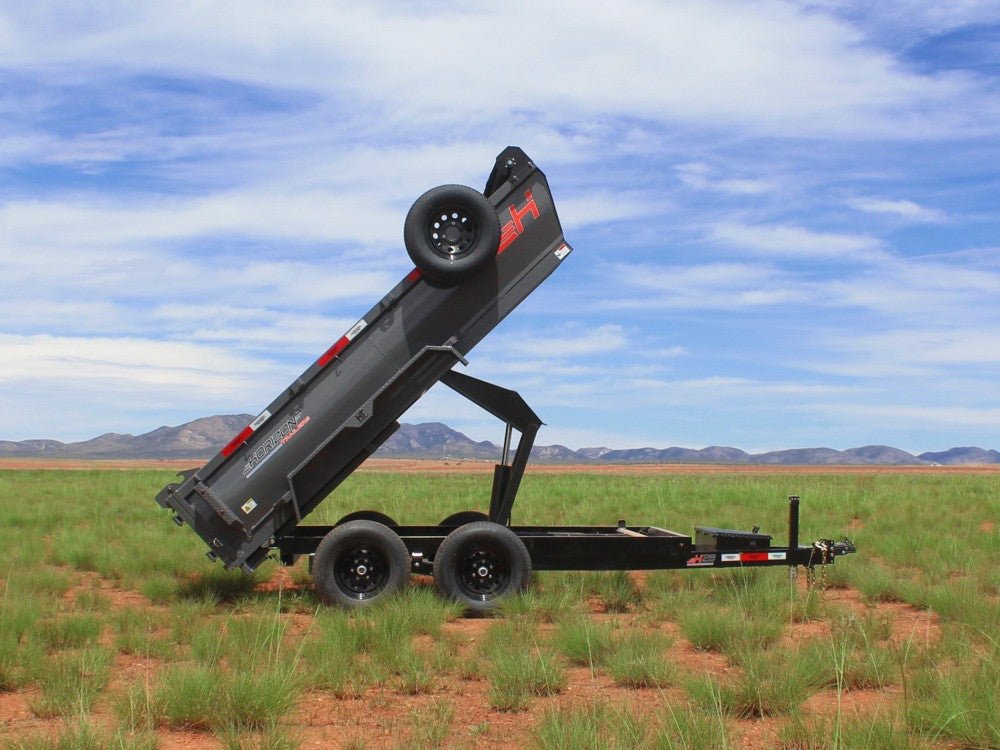

- DUMP ANGLE:
- 38°
COUPLER & ACCESSORIES

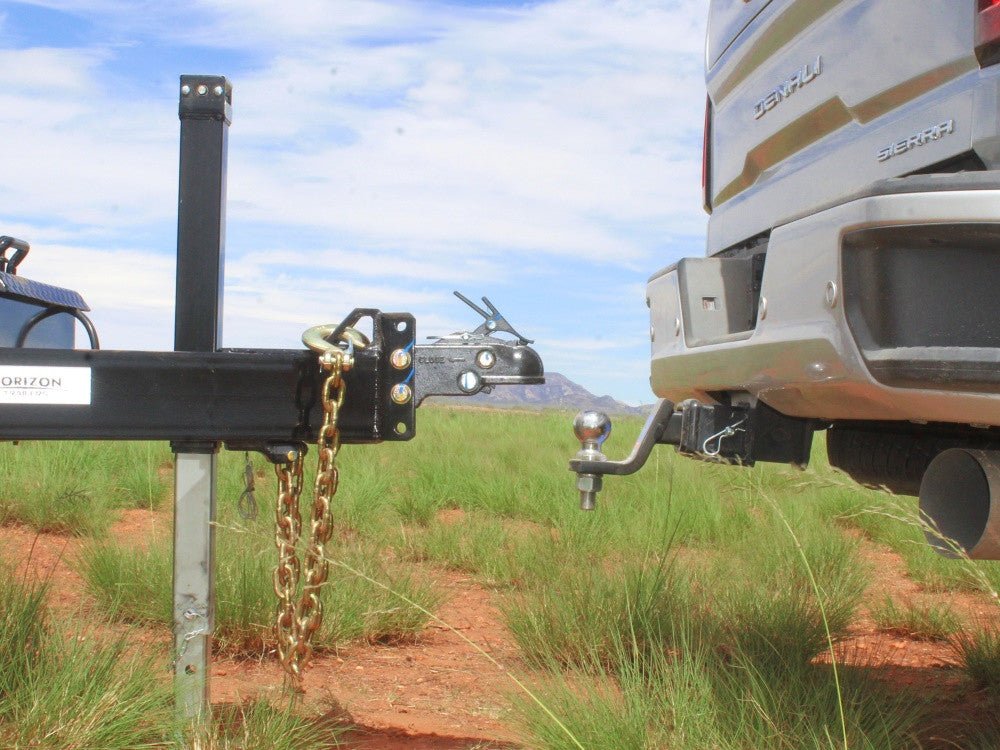

- COUPLER:
- Adjustable Auto Latch 2-5/16" BP (17,000 lbs)
- JACK:
- 1 Side Wind Drop Leg Jack (7,000 lbs)

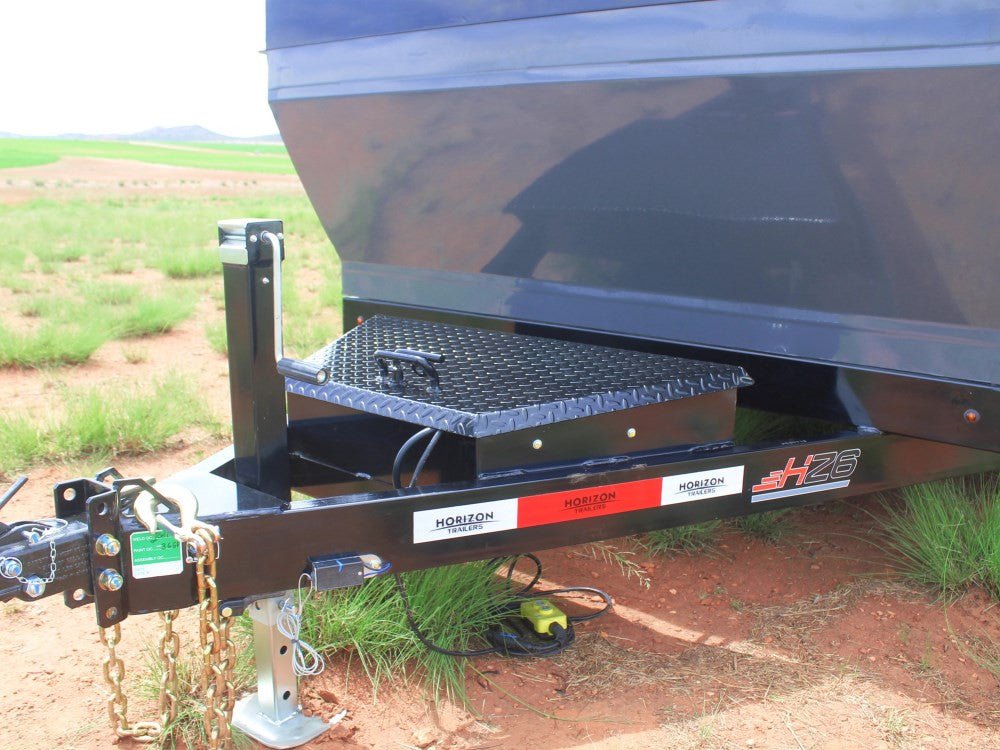

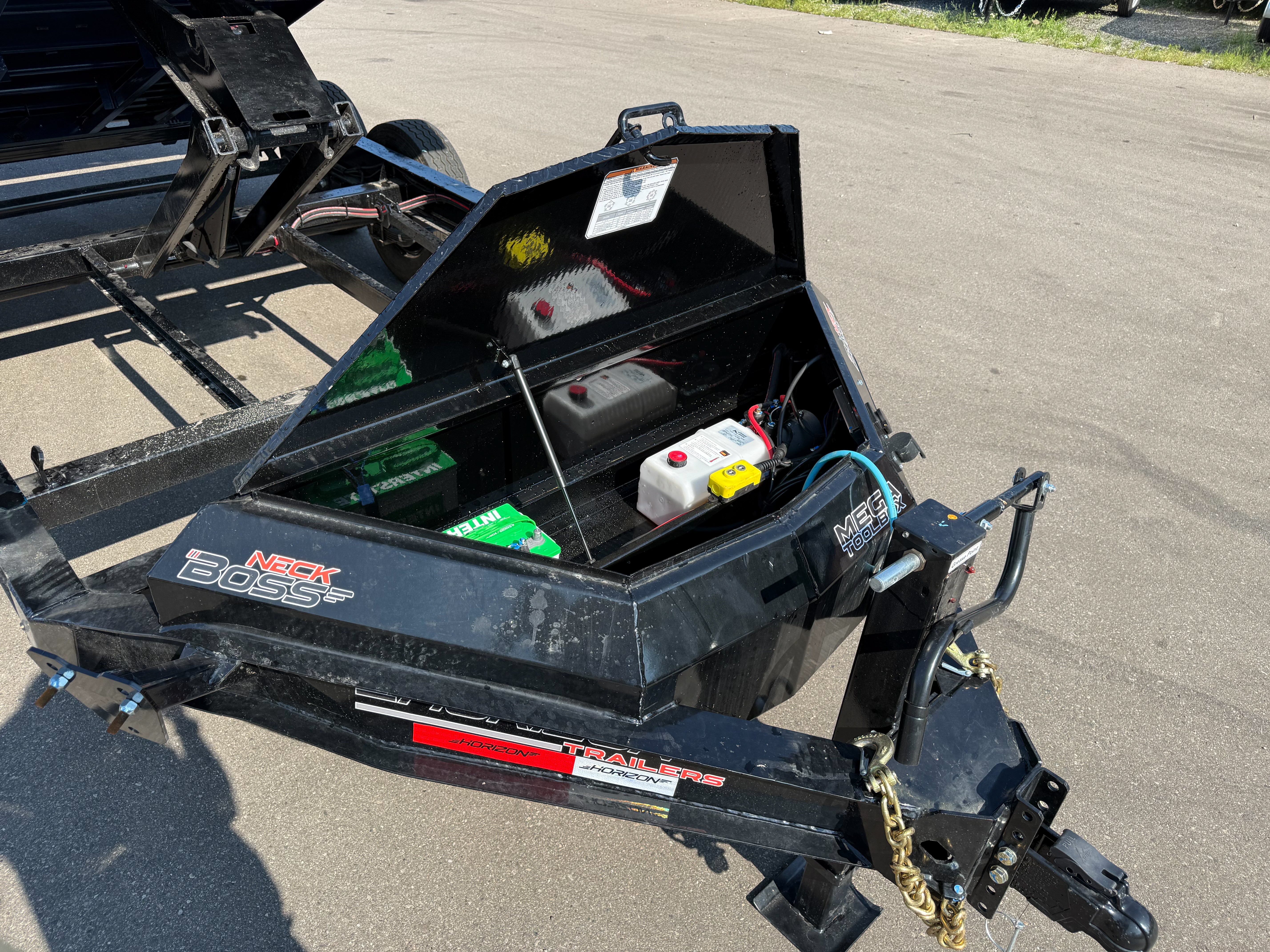

- TOOLBOX:
- Lockable – Houses Battery & Pump
- SAFETY CHAINS:
- 1/4" Grade 70 with Clevis Hooks (2)
- SPARE MOUNT:
- Weld-On

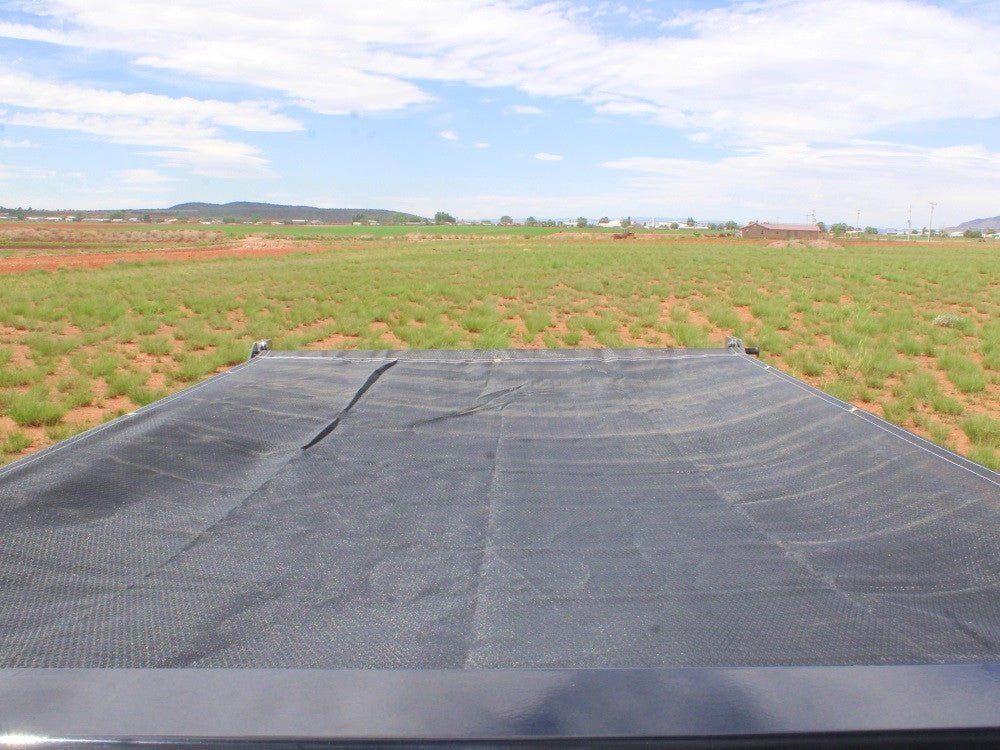

- TARP:
- Manual Tarp Kit
- MARKER LIGHTS:
- Extra for Added Visibility
RUNNING GEAR & SUSPENSION
- AXLES:
- 5.2K Lippert Electric Brake, Auto Adjust, EZ Lube Spring, 6 on 5.5" Bolt Pattern
- SUSPENSION:
- Spring
- TIRES:
- ST225/75R15 Radial 10PR (2,830 lbs each)
- WHEELS:
- 15" Black Mod Steel
HYDRAULICS

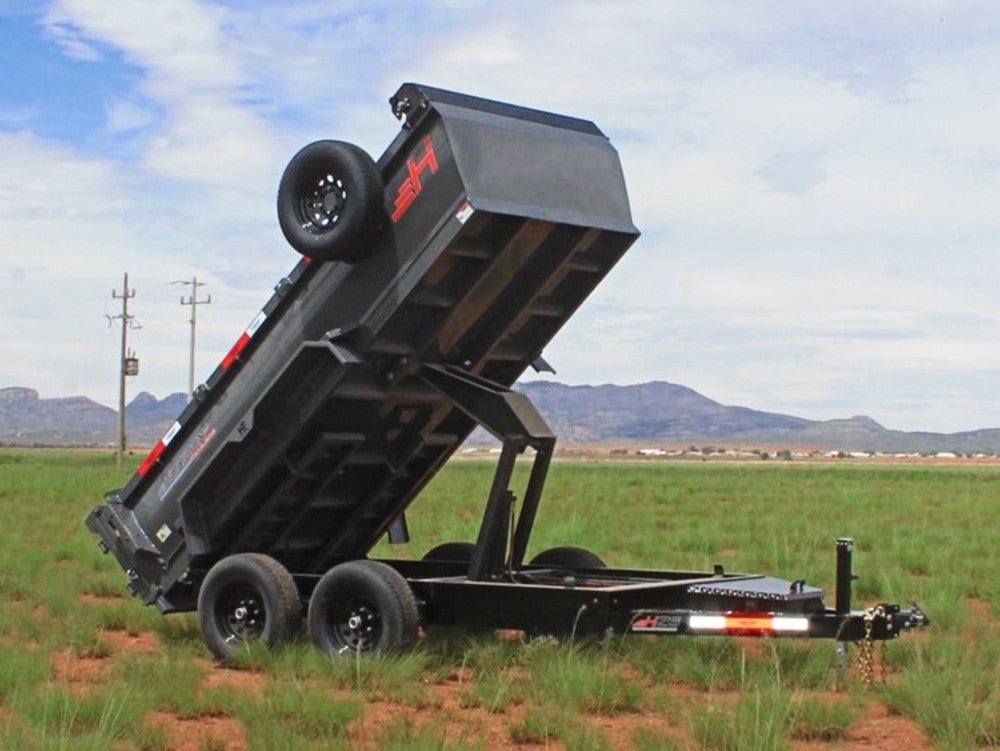

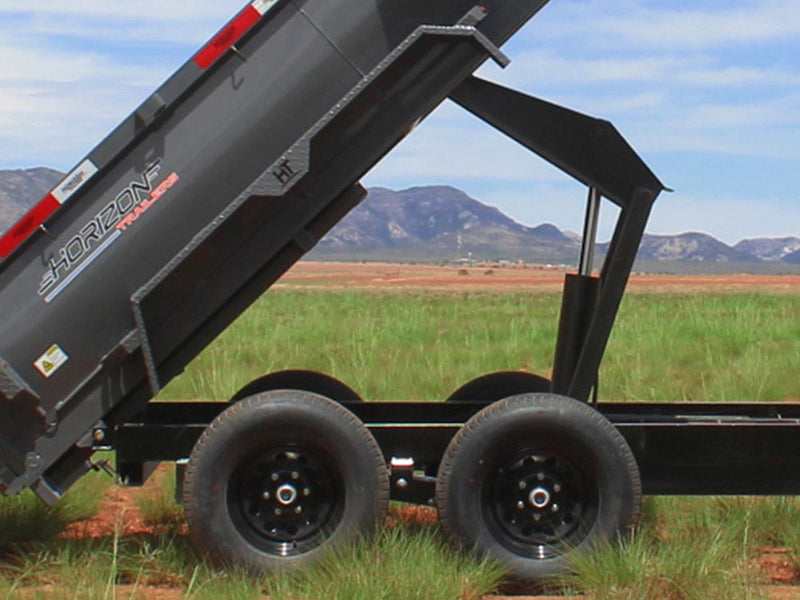

HOIST DUMP SYSTEM:
- Cylinder:
- 5" × 16" Single Push (15,000 lbs)
- Pump:
- KTI 12V Hydraulic Pump
- Controller:
- 2-Button – Power Up / Power Down, 14' Control Cable
TELESCOPIC DUMP SYSTEM OPTION:
- Cylinder:
- 7 Ton Telescopic
- Pump:
- KTI 12V Hydraulic Pump
- Controller:
- 2-Button – Power Up / Gravity Down, 14' Control Cable
BATTERY & ELECTRICAL
- BATTERY:
- Interstate 27 Deep Cycle
- CHARGER:
- 110V Integrated Trickle Charger
- WIRING:
- All-Weather 7-Way RV, Double Insulated

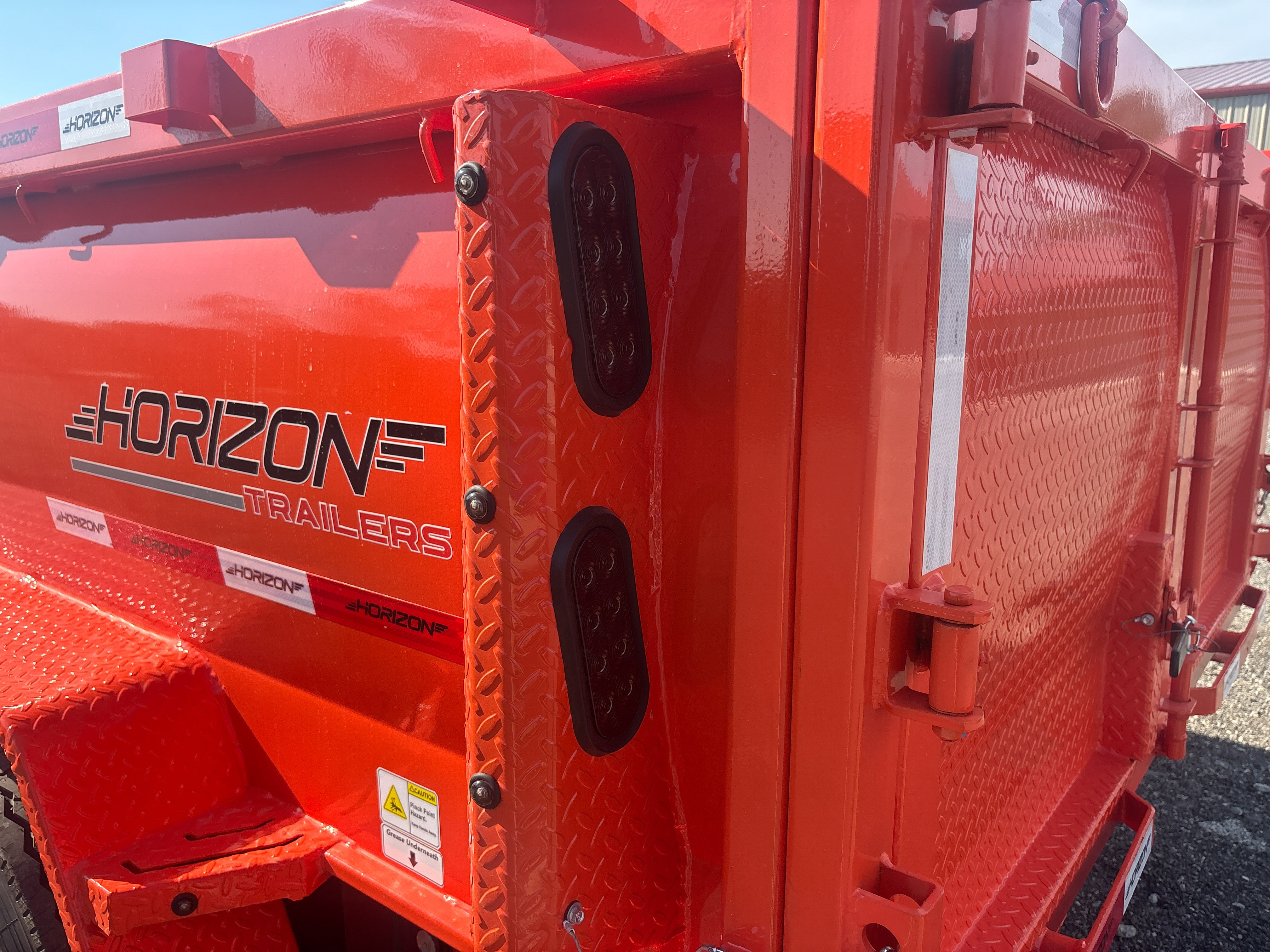

- LIGHTS:
- DOT Approved Tecniq LED
- REFLECTIVE TAPE:
- 3M DOT Compliant
SIDES & BODY
- SIDE HEIGHTS:
- 2', 3', 4'
- SIDE MATERIAL:
- 12ga. Rounded Steel
- TOP RAIL:
- 2" × 3" × 11ga. Tubing
- STAKE POCKETS:
- 1-5/8" × 3-5/8" (ID)
- HOOKS:
- 3/8" Round "J" Hooks
- FENDERS:
- 14ga. Diamond Plate Steel

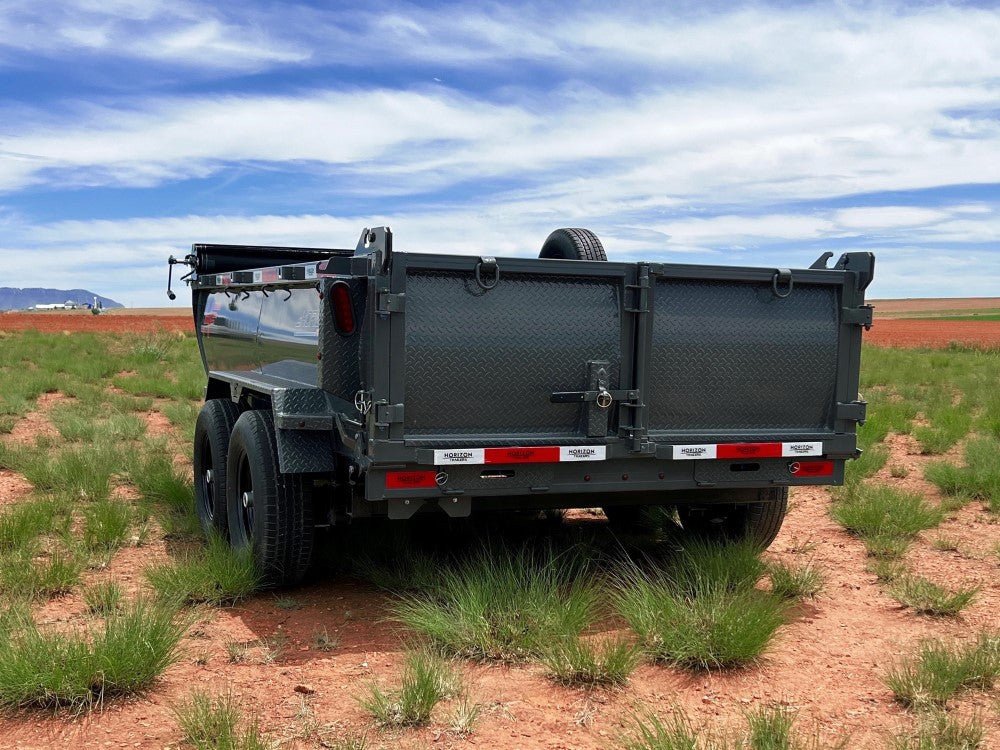

- REAR GATE:
- 3-Way Door – Spreader Gate
- RAMPS:
- Ramp Pockets with 5' Slide-In 3" Channel Ramps (4,000 lbs wheel rating each over 12" or more)
FINISH & WARRANTY
- PREP:
- Steel Grit Blasted
- PAINT:
- Powdercoat
- COLOR OPTIONS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
- 2-Tone Option:
- Available – Chassis / Dump
- FRAME WARRANTY:
- 3-Year
- PARTS WARRANTY:
- 1-Year
- AXLE WARRANTY:
- 6-Year Lippert Spring Axle
