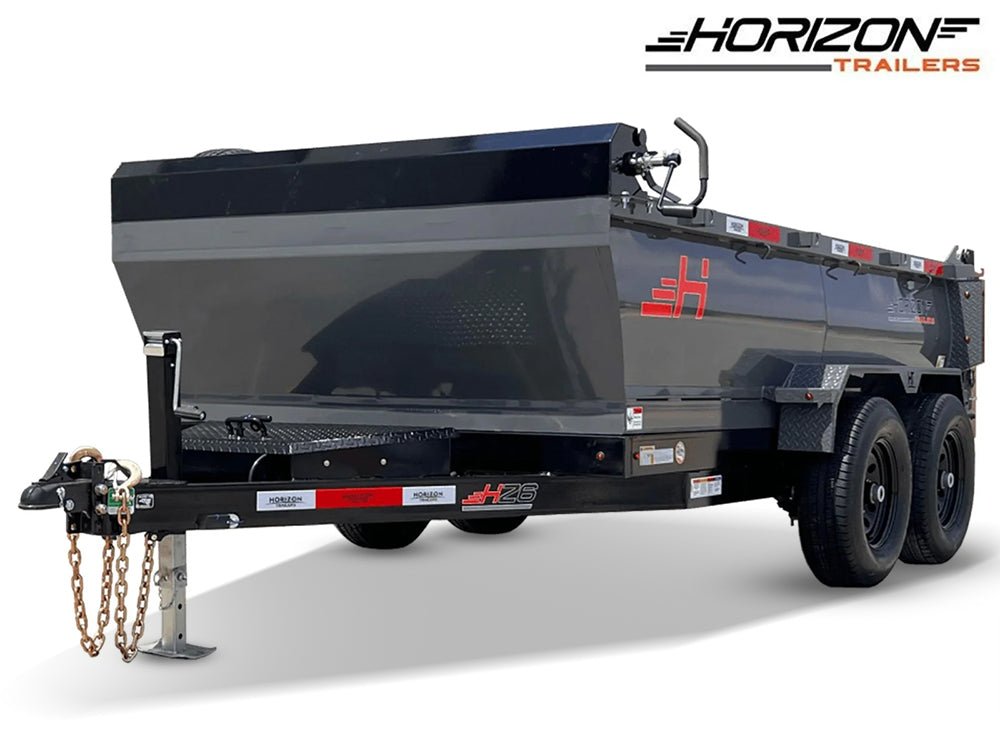

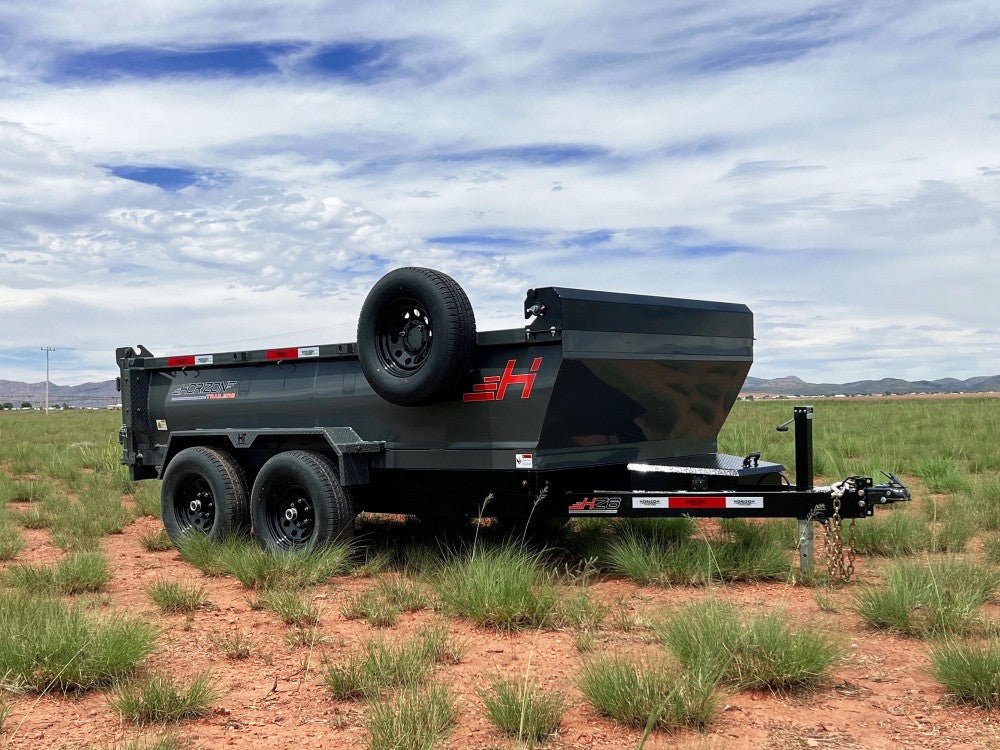

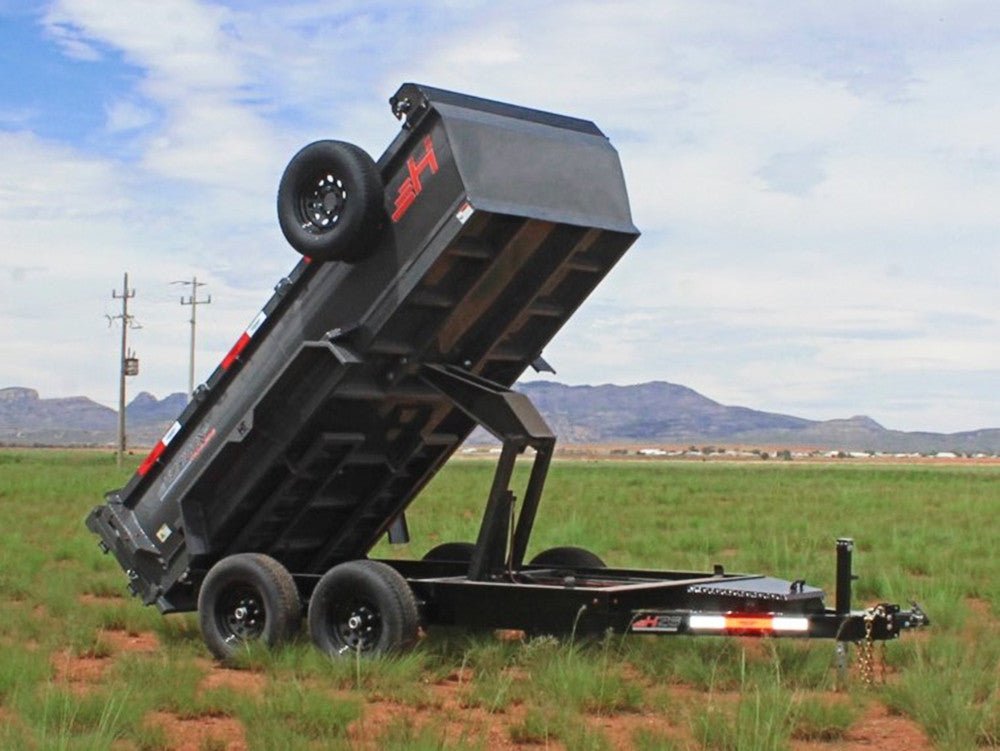

Horizon HZ6 Dump Trailer

Featured Video

Loading title... --:--

Product Features

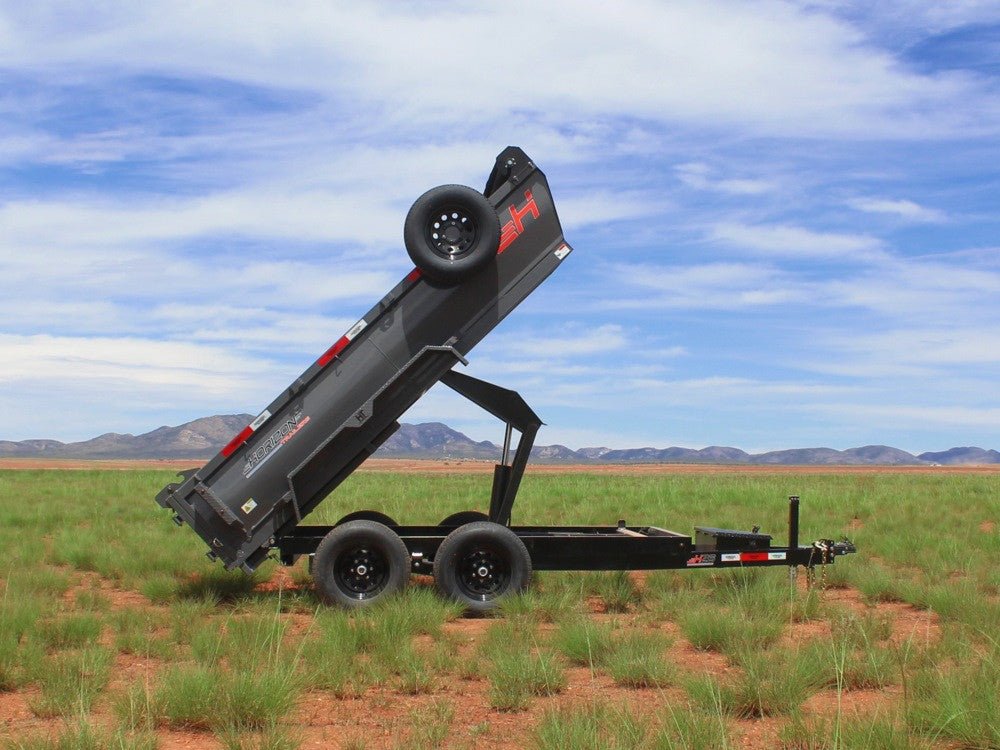

5x16 Single Push Cylinder Hoist

Equipped with a 5" x 16" single push cylinder providing 15,000 lbs of lift. An optional telescopic cylinder is available for increased dump height and lifting power.

Side-Mounted LED Light Boxes

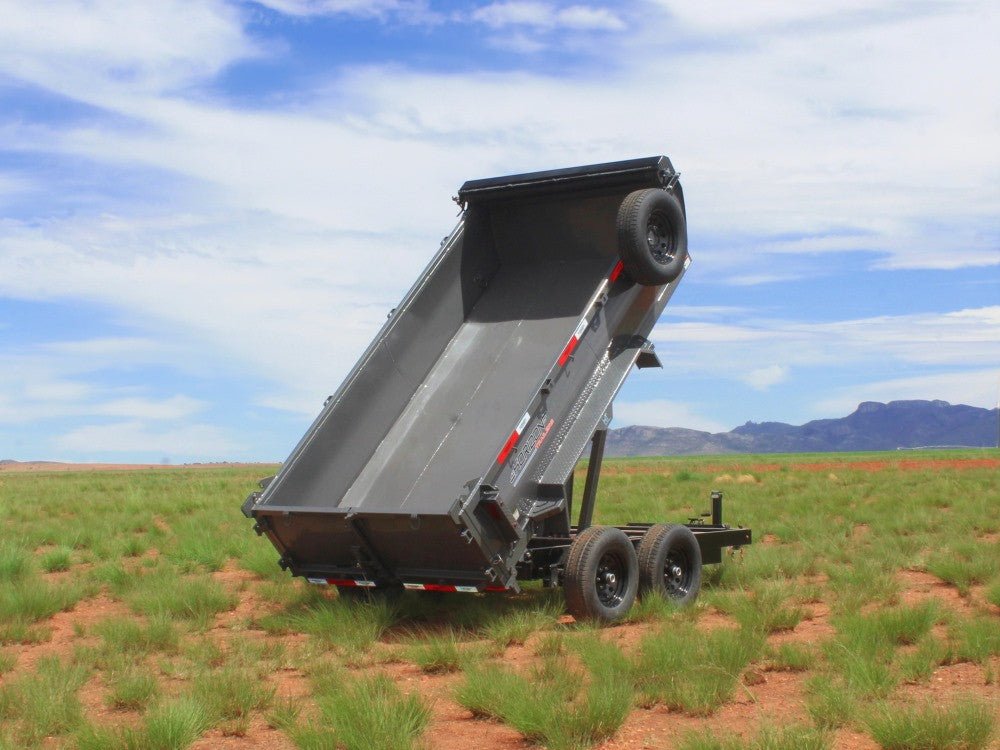

Features a 27-inch deck height for a low, gradual loading angle. The bed tilts to a 45-degree dump angle for efficient and complete material discharge.

Tandem Dexter Axle and Frame Warranty

Built with tandem 5.2k Dexter EZ Lube axles, backed by a 5-year warranty. The trailer frame itself is protected by a 3-year structural and 1-year parts warranty.

5-Foot Slide-In Ramps

Utilizes 5-foot slide-in ramps rated for a 4,000 lb transfer weight. The ramps store neatly under the bed and provide a stable path for loading equipment.

77-Inch Wide Rounded Steel Bed

Features a 77-inch wide dump bed with strong, rounded 12-gauge steel sides. The increased width provides a more stable footprint for loading, while the rounded corners promote cleaner material discharge.

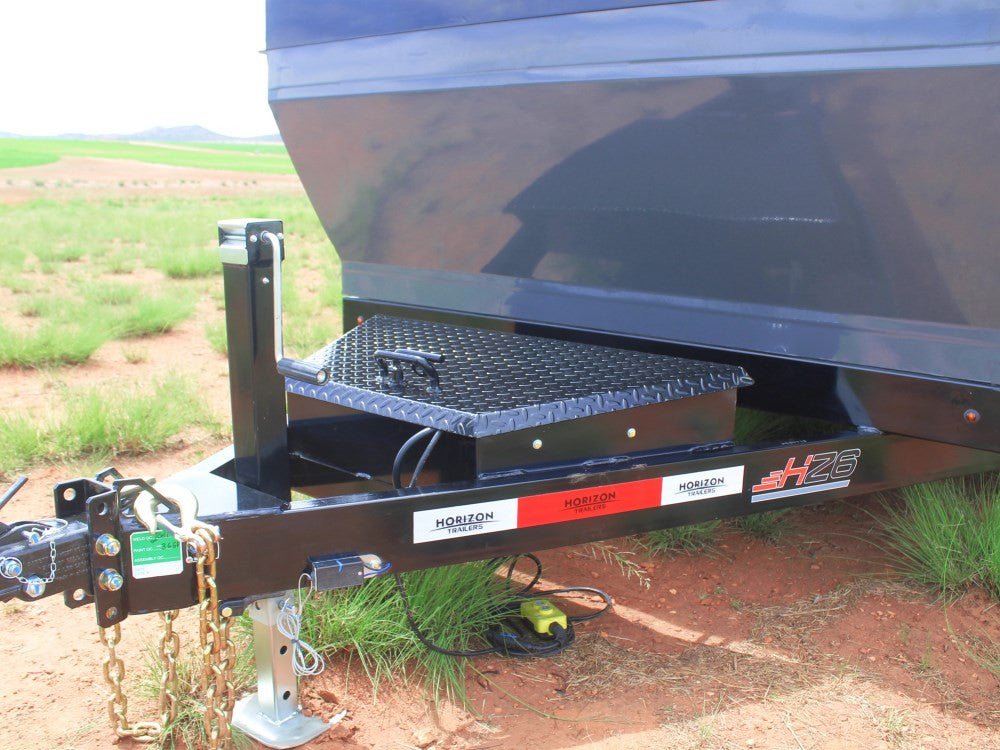

Lockable Front Tongue Toolbox

Includes a lockable toolbox mounted on the tongue. This secure storage compartment keeps the battery, hydraulic controller, and smaller tools organized and protected from the elements.

Product Details

DIMENSIONS

LENGTH:

12'

BED WIDTH:

77"

SIDE HEIGHT:

2' - 4'

DECK HEIGHT:

27"

WEIGHT RATINGS

AXLE OPTIONS:

5.2k

GVWR:

11.3k

SAFETY & FEATURES

BREAKAWAY SYSTEM:

Safety Breakaway System w/ Cable

REFLECTIVE TAPE:

DOT Approved Safety Tape

SAFETY CHAINS:

2 Safety Chains

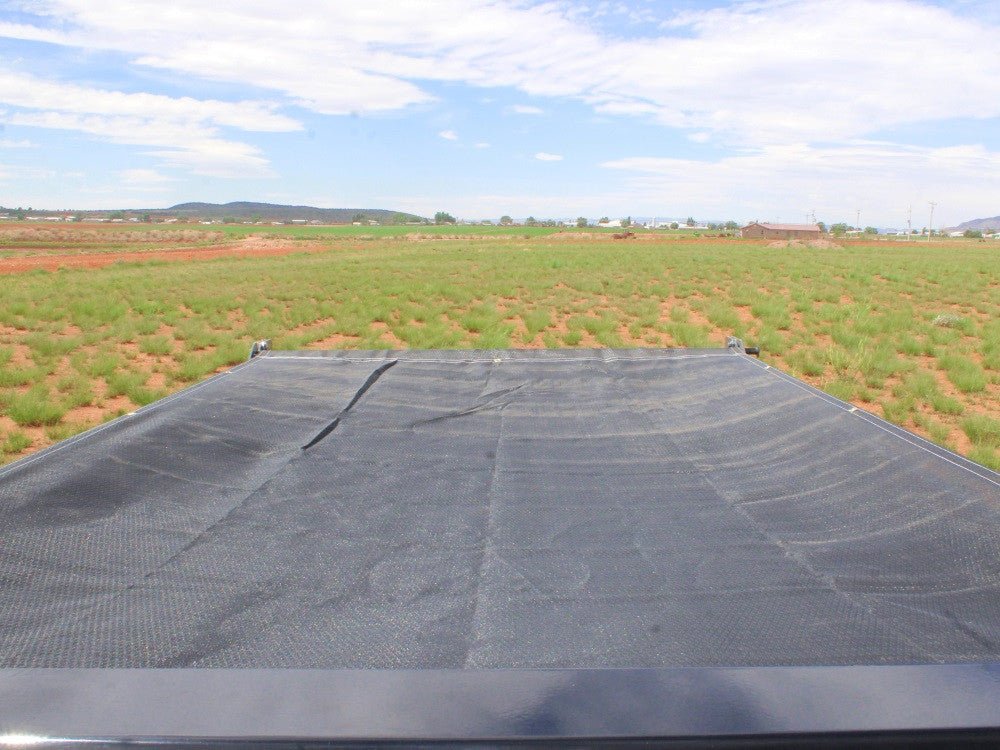

TARP:

Crank Style Roll-Up Tarp

TONGUE

PULL TYPE:

Bumper Pull

TYPE:

Bumper Pull

LENGTH:

50"

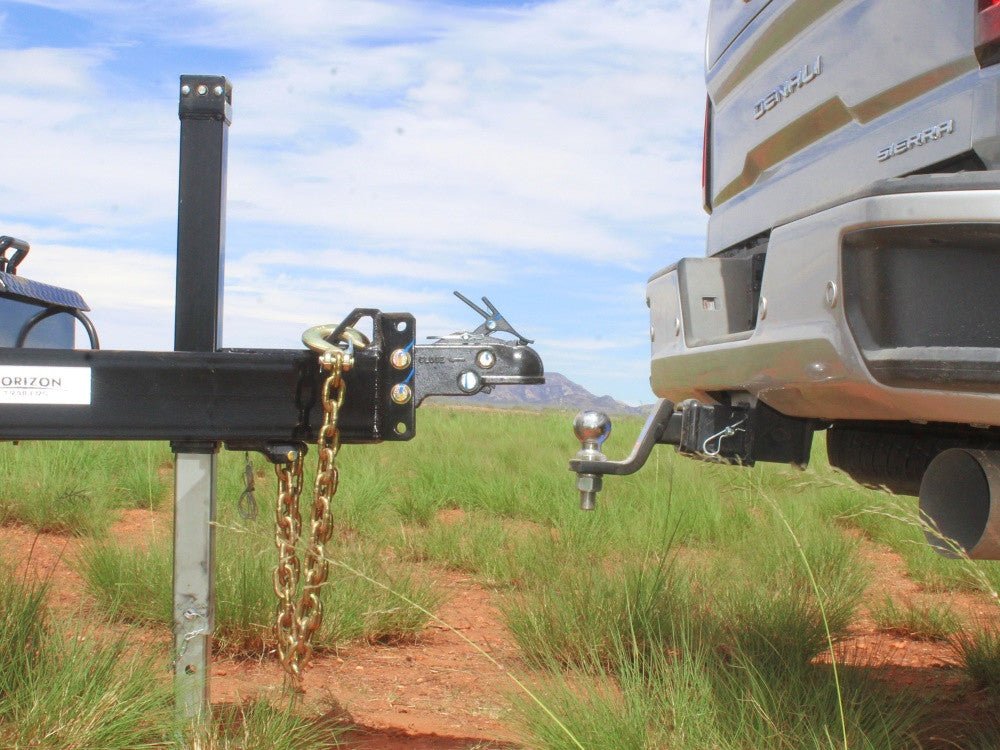

STANDARD COUPLER BP:

Adjustable 2" Coupler (10,000 lbs)

FRONT JACK BP:

Single 7k Drop-Leg Jack

TOOLBOX BP:

Lockable Toolbox

CARGO AREA

FLOORING:

9ga. Steel Bed

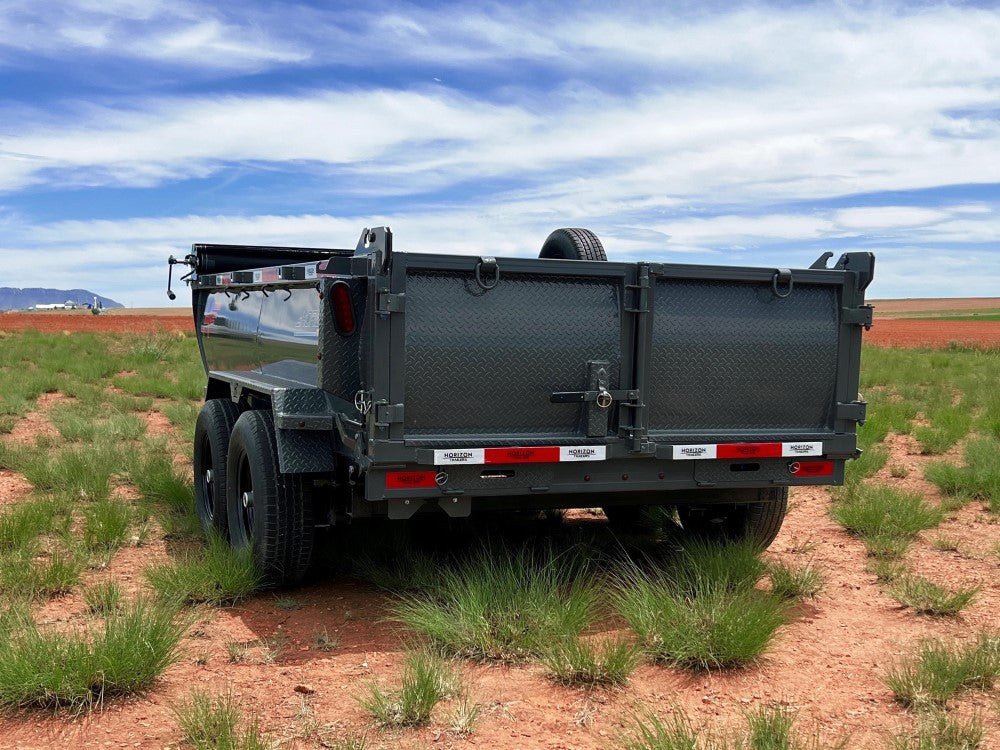

GATE:

3 Way Spreader Gate

D-RINGS:

4 D-Rings

STAKE POCKETS:

1 5/8" x 3 5/8"

RAMPS:

5' Slide In Ramps

HOOKS:

3/8" Round J Hooks

FENDERS:

14 Ga. Diamond Plate Fenders

FINISH

PAINT TYPE:

Powdercoat

PREP:

Steel Grit Blasted

COLORS:

Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue

LIFT SYSTEM

SYSTEM:

Hydraulic

PUMP:

KTI Hydraulic Pump

CYLINDER:

Hoist w/ 5" x 16" Single Push Cylinder

CONTROLLER:

Wired

HOIST CAPACITY:

15,000 lbs

DUMP ANGLE:

45 Degrees

RUNNING GEAR

TIRES:

ST225/75R15

TIRE PLY:

10

TIRE RATING:

2,830 lbs

RIMS:

15" Black Mod Wheels

AXLE TYPE:

2 - 5.2k Dexter EZ Lube Axles

AXLE COUNT:

2

BRAKES:

Electric

BOLT PATTERN:

6 on 5.5"

SUSPENSION TYPE:

Spring

ELECTRICAL & LIGHTING

BATTERY:

27M Deep-Cycle Marine Battery

CHARGING SYSTEM:

110V Trickle Charger

WIRING HARNESS:

Sealed Wiring Harness

FRAME WIRING:

Double Insulated Wiring Harness

REAR LIGHTS:

DOT Approved LED Lights

WARRANTY

TRAILER WARRANTY:

3 Year Frame / 1 Year Parts Warranty

AXLE WARRANTY:

5 Year Dexter Axle Warranty

OPTIONS

LIFT SYSTEM

CONTROLLER:

Wireless Remote

RUNNING GEAR

TIRE MOUNT:

Tire Mount

ELECTRICAL & LIGHTING

CHARGING:

10 Watt Solar Panel

FINISH

UNDERCOAT:

Zinc Primer Undercoat
