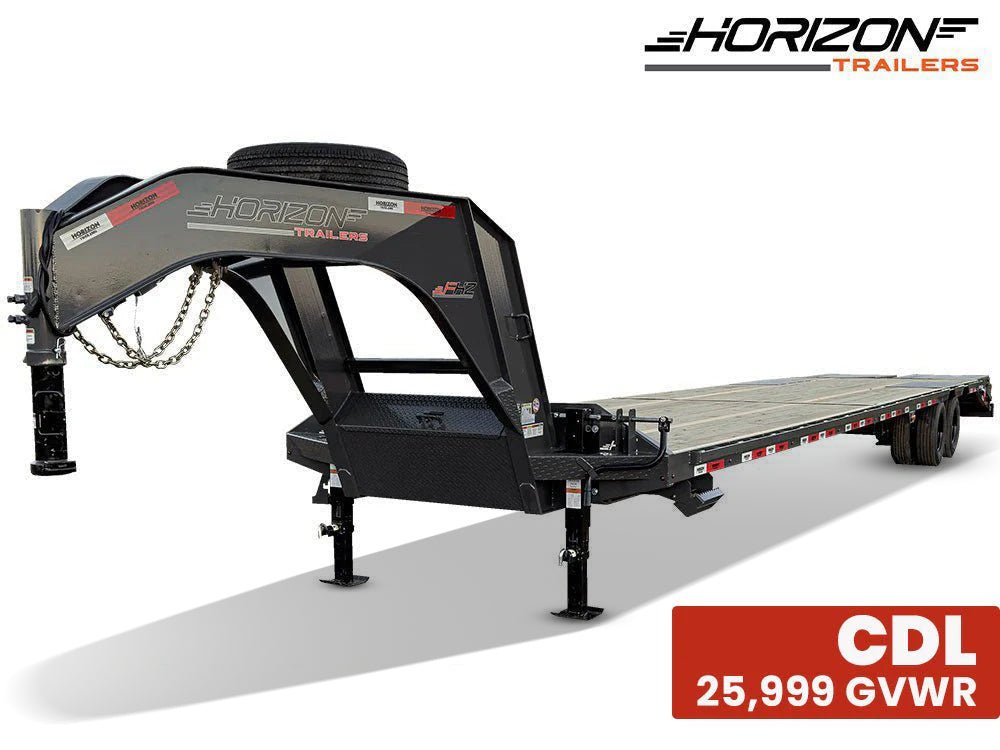

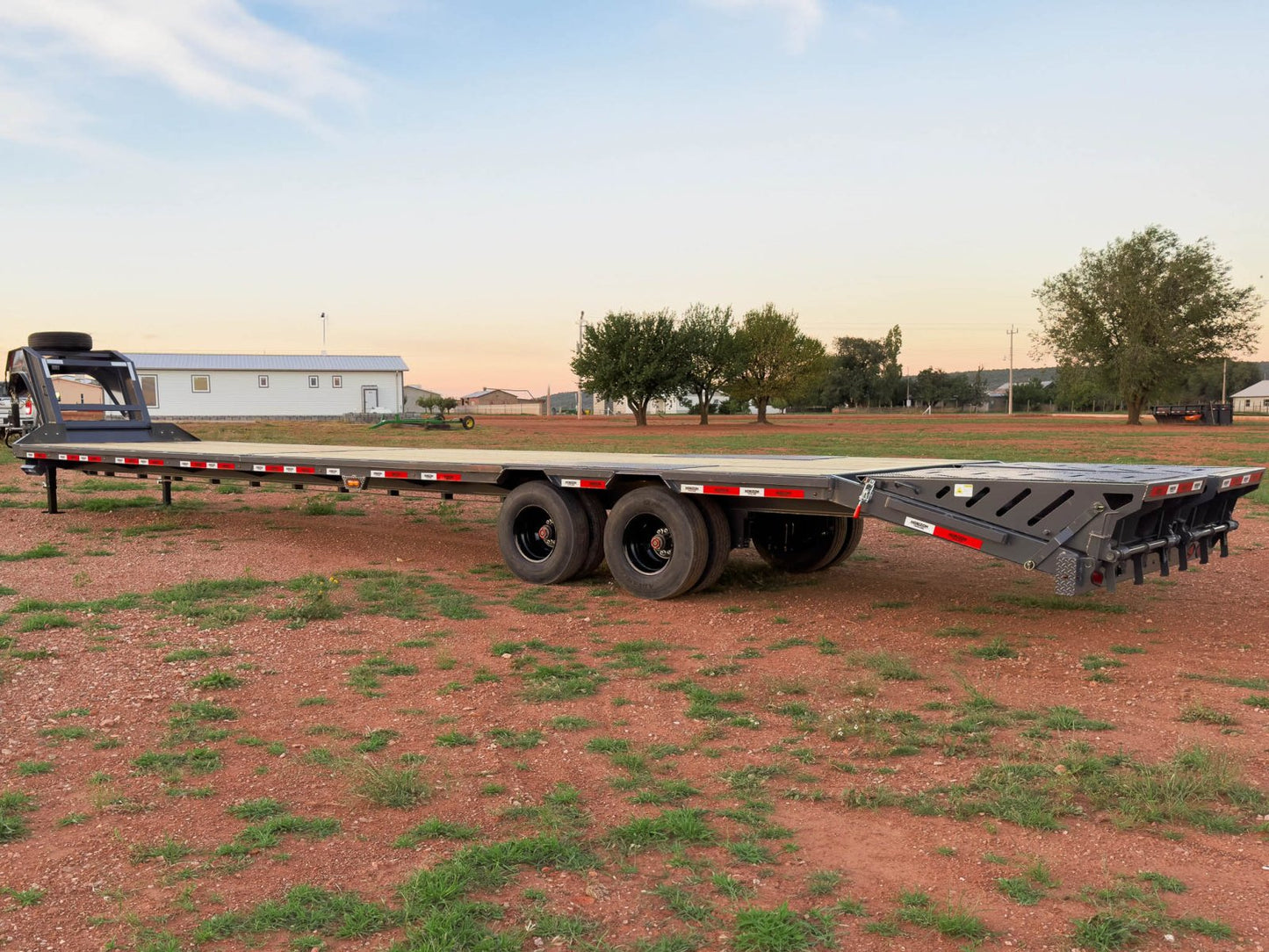

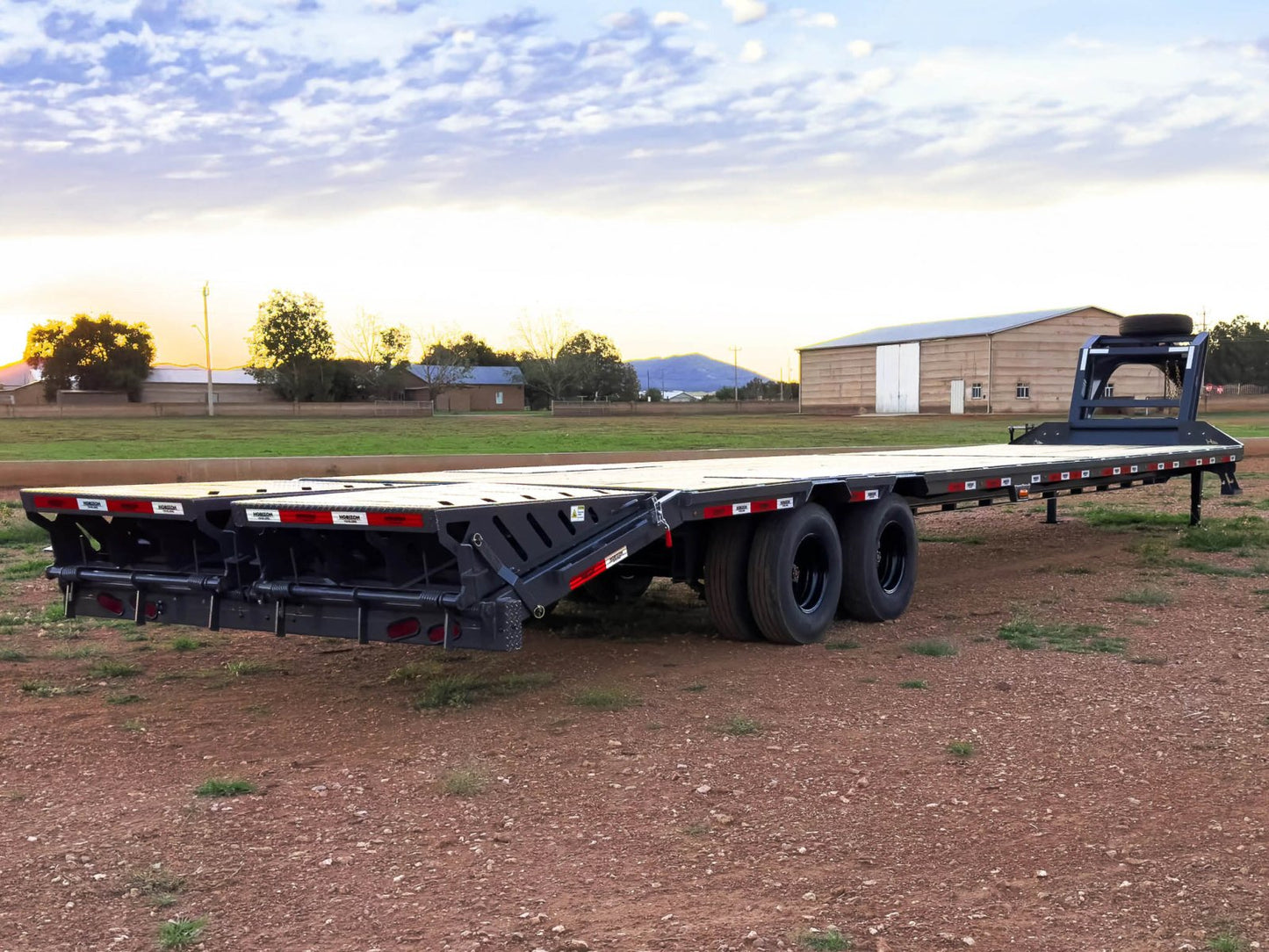

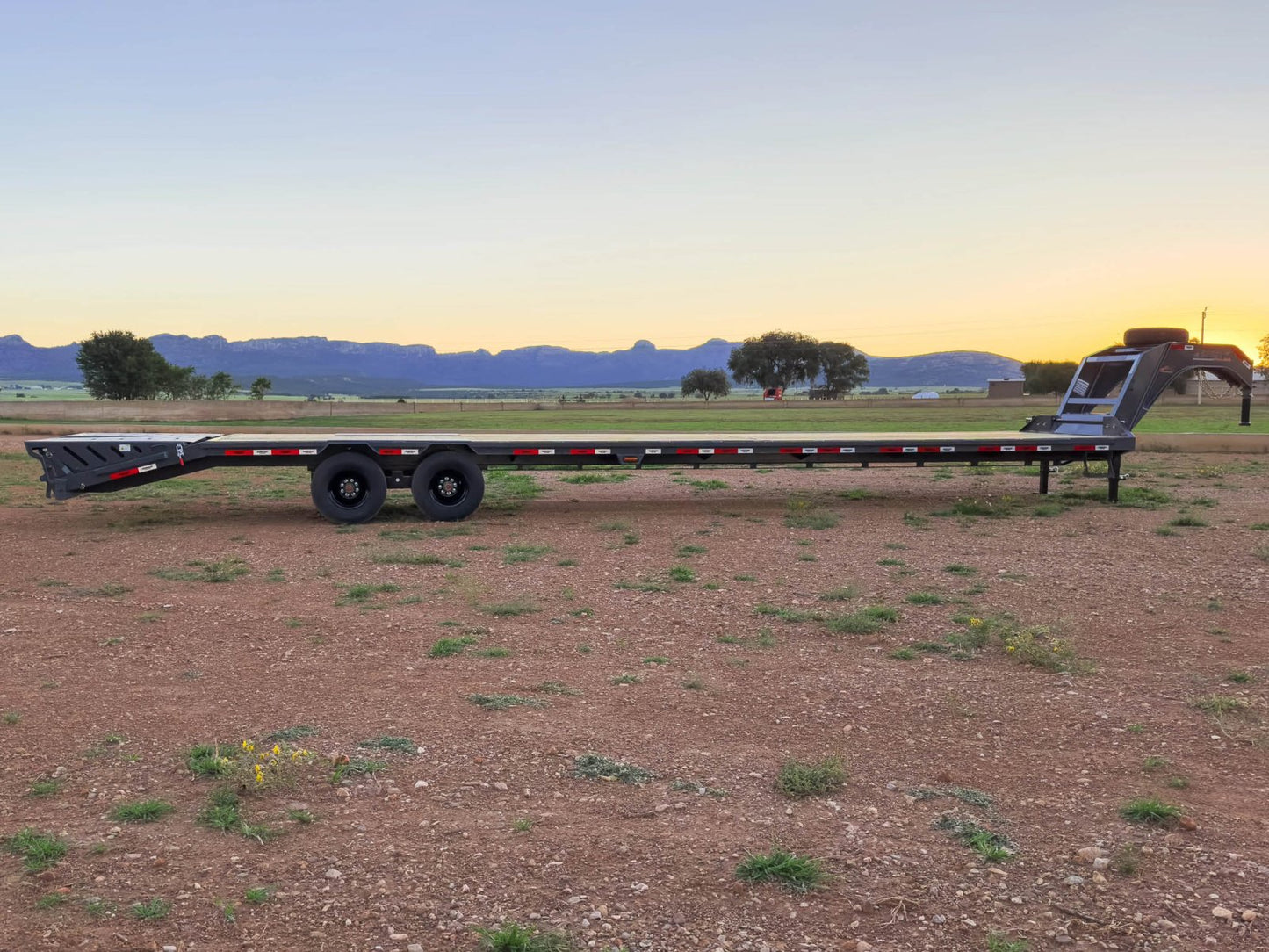

Horizon FHZ Gooseneck Deckover

Horizon FHZ Gooseneck Deckover

Horizon FHZ Gooseneck Deckover

Horizon FHZ Gooseneck Deckover

At a Glance

Brand Horizon
Pull type Gooseneck
Length 20'-44'

TRAILER SPECS:

Specifications

Brand:

Horizon

Pull Type:

Gooseneck

Dimensions

LENGTH:

20'-44'

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery
View full details

Product Features

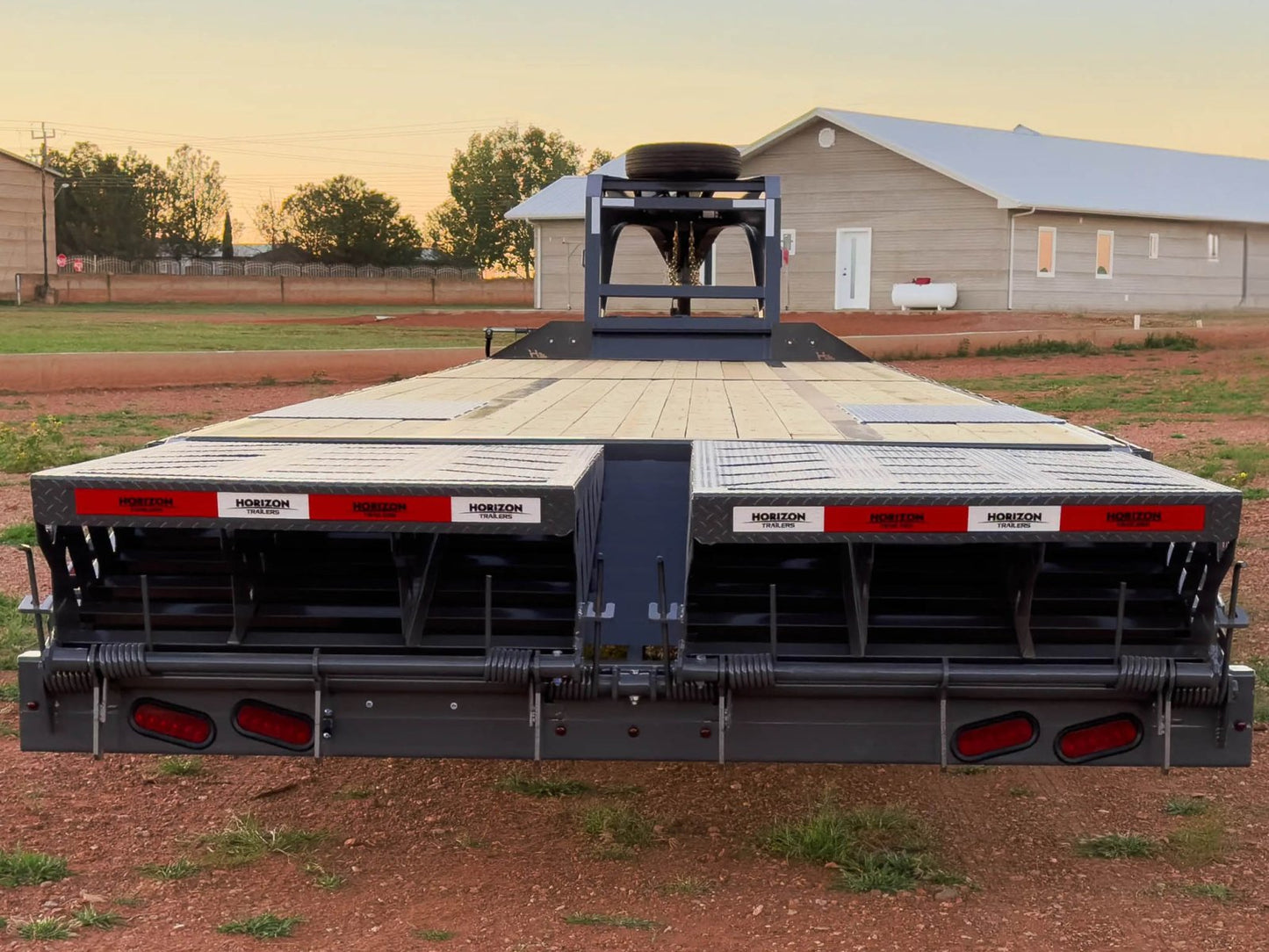

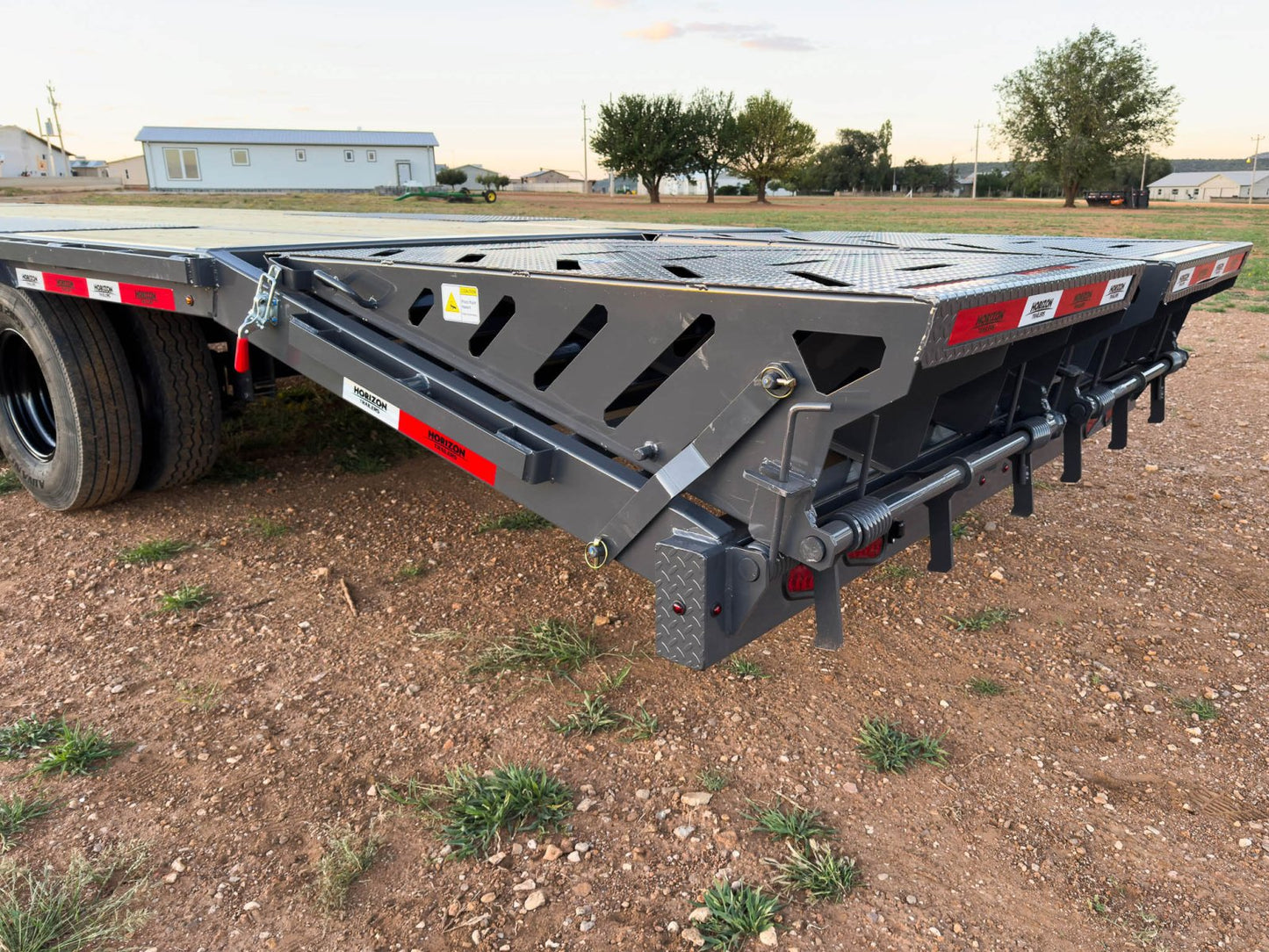

Ramp Options

Take loading and unloading to the next level with the Mega Ramps option, offering effortless access for heavy equipment and machinery. Alternatively, consider the standard heavy-duty slide or the Mountain Ramps with a 5ft dovetail for versatile hauling solutions tailored to your specific needs.

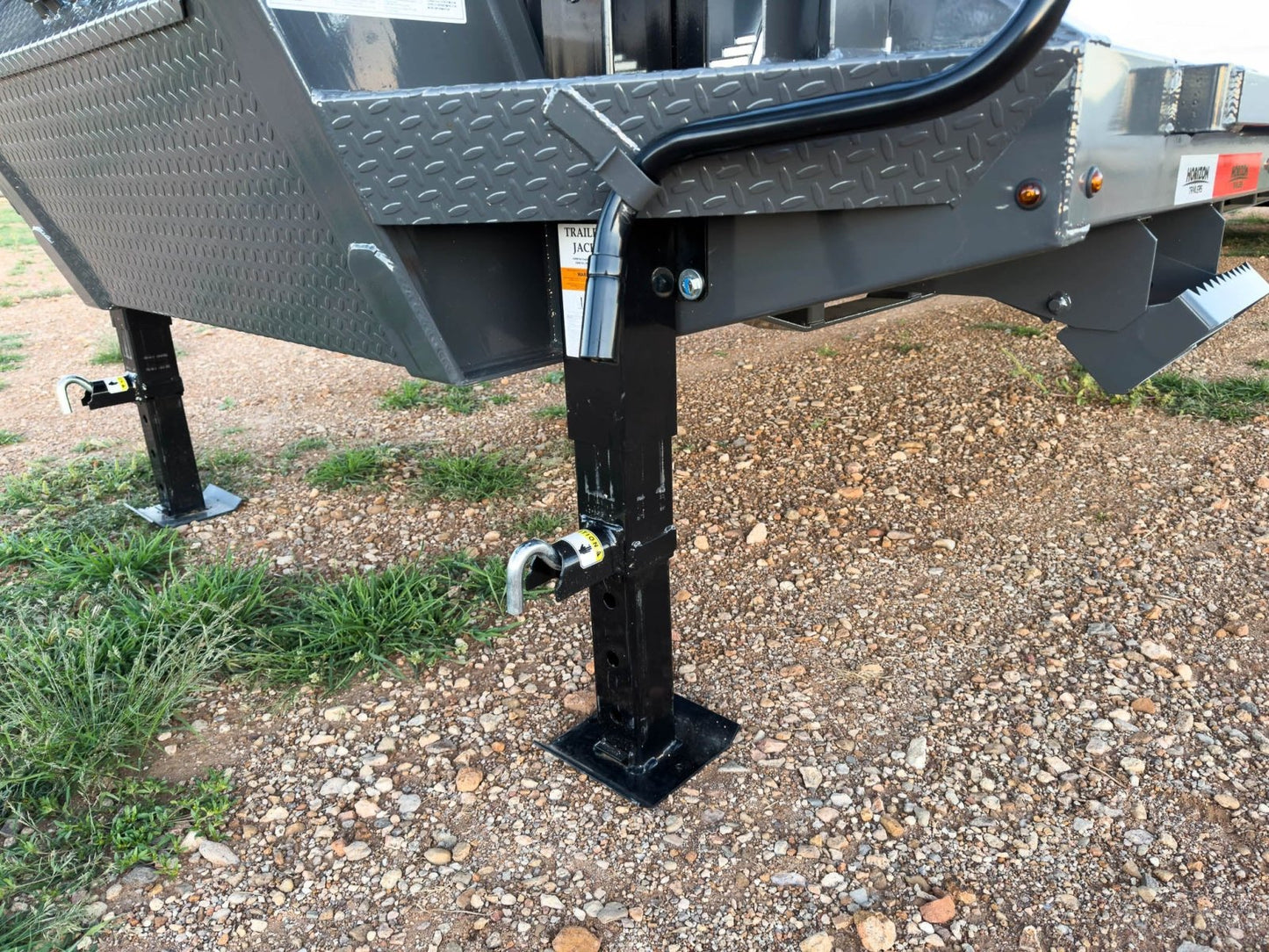

Jack Options

Elevate your towing experience with a selection of jack options, from standard side wind drop jack legs to premium hydraulic jacks. Choose the right jack to simplify hitching and unhitching processes, providing convenience and efficiency during loading and unloading.

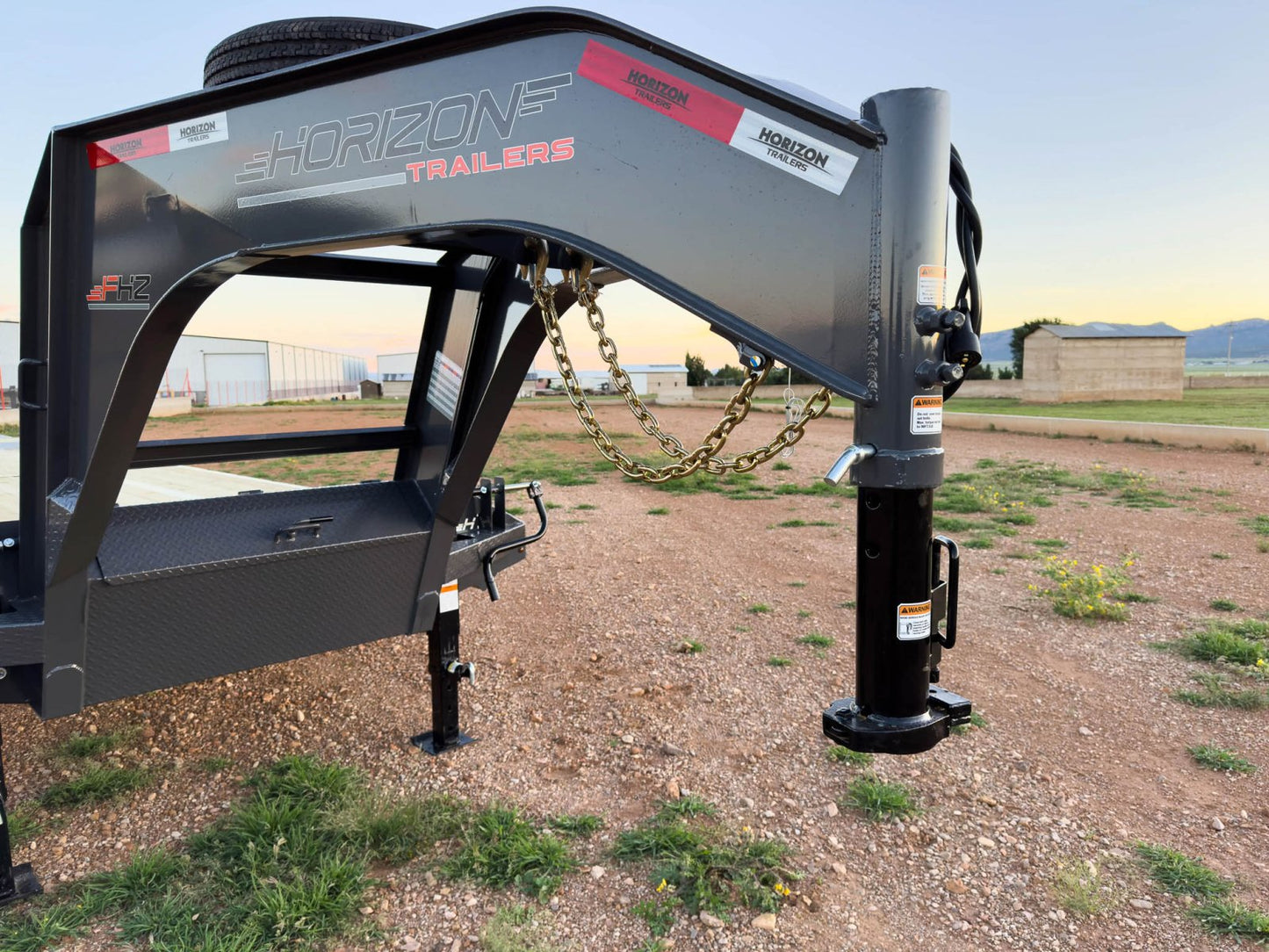

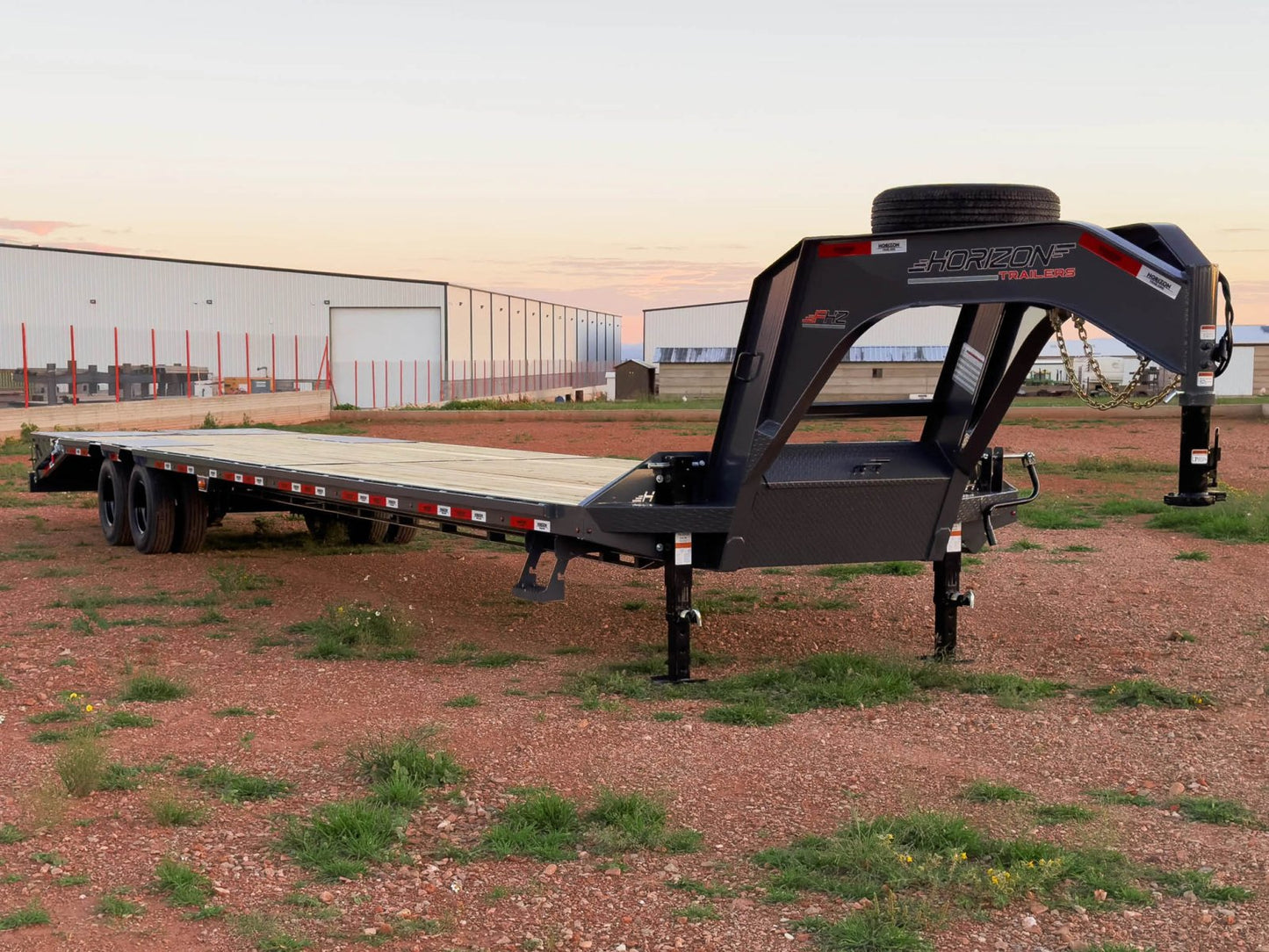

Gooseneck model

Opt for the Gooseneck design for superior stability, improved maneuverability, and increased towing capacity compared to traditional bumper pull trailers. Experience enhanced control and safety on the road, especially when hauling heavy loads or navigating tight turns.

Axle Options

Customize your trailer with a choice of axle options tailored to your needs, from standard electric brake dual oil bath spring axles to heavy-duty electric/hydraulic disc brake axles. Upgrade for enhanced performance, durability, and towing capacity, ensuring a smooth ride every time.

Deck on Neck

Maximize your hauling capacity with the Deck on the Neck feature, providing additional cargo space for those who require every last square inch. Ideal for HOT SHOT rigs, hay haulers, construction crews, and more, this option ensures you have the versatility to tackle any job with ease.

Warranty

Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
FHZ Gooseneck Hotshot Flatdeck Trailer Spec Sheet

Product Details

WARRANTY

WARRANTY:

AXLE WARRANTY:
5 Year
TRAILER WARRANTY:
3 Year Structural / 1 Year Paint

DIMENSIONS & CAPACITY

TRAILER:

MODEL:
FHZ Gooseneck Deckover Trailer
LENGTH:
20', 22', 24', 26', 28', 30', 32', 34', 36', 38', 40', 42', 44'
DECK WIDTH:
102"
DECK HEIGHT:
34"
GVWR:
25,000 lbs
GAWR:
10,000 lbs

WEIGHT RATING OPTIONS:

12K DUALS OPTION:
GVWR: 25,900 lbs, GAWR: 12,000 lbs
16K DUALS OPTION:
GVWR: 30,000 lbs, GAWR: 16,000 lbs

FRAME & CONSTRUCTION

FRAME:

MAIN FRAME:
Bridged 12" I-Beam [19 lbs/ft]
NECK:
Neckboss 12" Engineered I-Beam
BED FRAME:
2" x 8" x 11GA Tubing
CROSS-MEMBERS:
3" Channel (3.50 lbs/ft) 16" Spacing
STAKE POCKETS:
1-5/8" x 3-5/8" (ID) Stake Pockets (Spaced at 24")
SIDE STEP:
Slide In Side Step on Both Sides

FINISH:

TYPE:
Powdercoat

GOOSENECK & STORAGE

GOOSENECK:

COUPLER:
2-5/16" Gooseneck Ball Coupler
JACKS:
2 Side Wind Drop Legs - 12,000 lbs Each

STORAGE:

TOOL BOX:
Mega Lockable Toolbox
SPARE TIRE MOUNT:
Weld On Spare Tire Mount

RUNNING GEAR & SAFETY

RUNNING GEAR:

AXLE TYPE:
Spring
AXLES:
2
RATING:
10,000 lbs (Duals)
BRAKES:
Electric
TIRES:
Radial Tires
TIRE SIZE:
ST235/80R16
PLY:
14 Ply
TIRE RATING:
4,080 lbs
RIMS:
16" Black Mod Wheels
BOLT PATTERN:
8 on 6.5"

RUNNING GEAR OPTIONS:

12K DUALS OPTION:
Axle Rating: 12,000 lbs (Duals), Tire Size: ST235/85R16, Ply: 14 Ply, Tire Rating: 4,400 lbs
16K DUALS OPTION:
Axle Rating: 16,000 lbs (Duals), Tire Size: ST215/75R17.5, Ply: 16 Ply, Tire Rating: 4,805 lbs

SAFETY:

SAFETY CHAINS:
3/8" Grade 70 Safety Chains
BREAKAWAY SYSTEM:
Electric Breakaway Kit
REFLECTIVE TAPE:
3M DOT Compliant Reflective Tape

LOADING & ELECTRICAL

LOADING:

DECK:
Straight Deck
RAMPS:
Ramp Pockets w/ 8' Long Heavy Duty Slide In 4" Channel Ramps

ELECTRICAL & LIGHTING:

FRONT PLUG:
7-Way RV
FRAME WIRING:
All Weather Wiring Harness
SIDE MARKERS:
3/4" LED Bullet Lights
REAR LIGHTS:
DOT Approved LED Lights
