At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Featured Video
Product Features

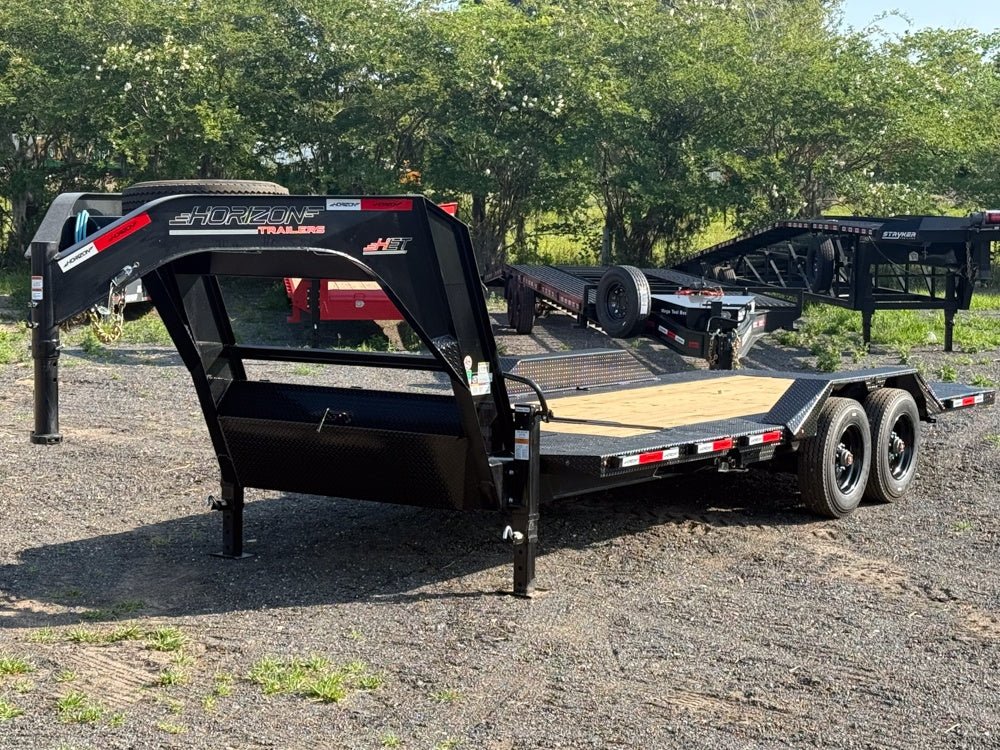

Heavy-Duty 10" I-Beam Main Frame
Built on a heavy-duty 10-inch (17 lbs/ft) I-beam main frame. This robust frame provides the foundational strength required for the trailer's 22,400 lb GVWR capacity.

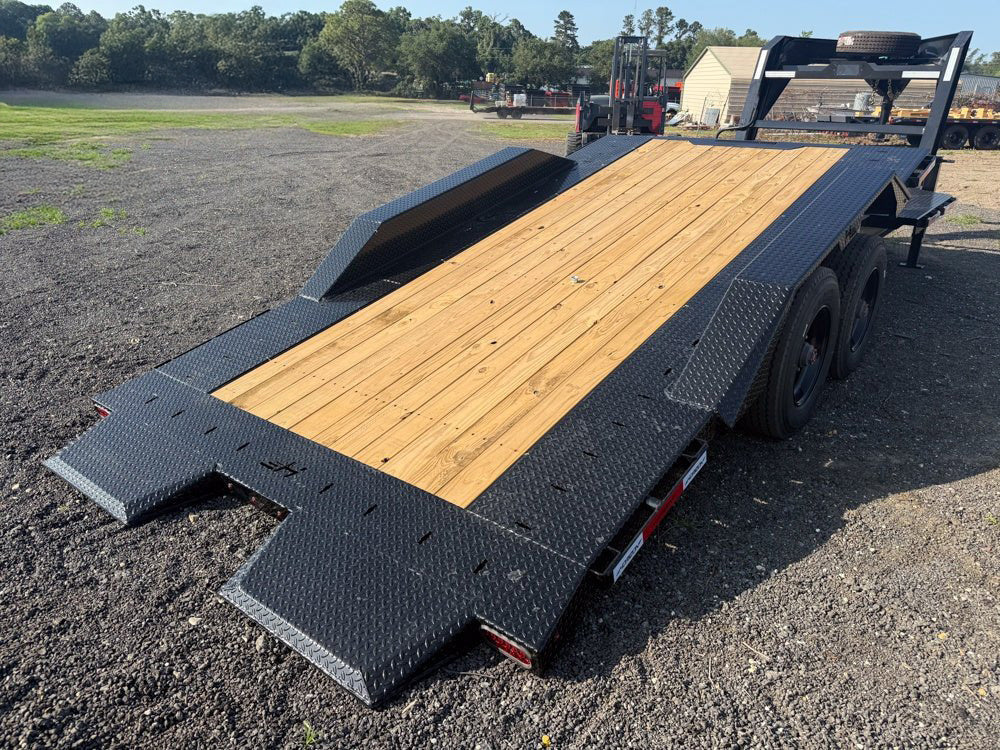

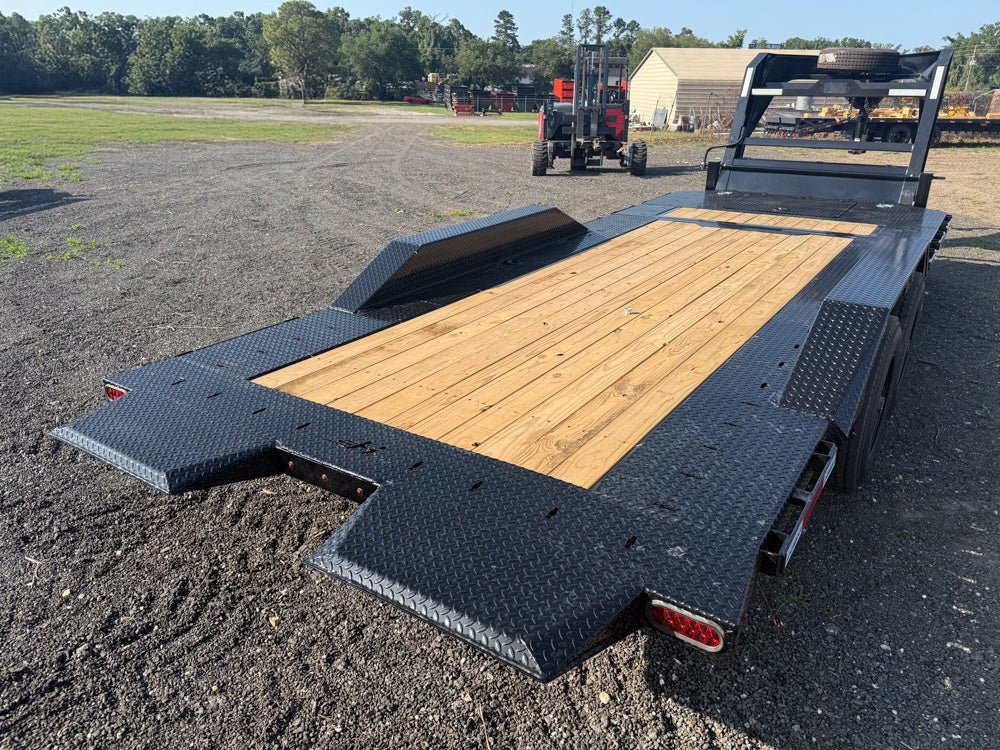

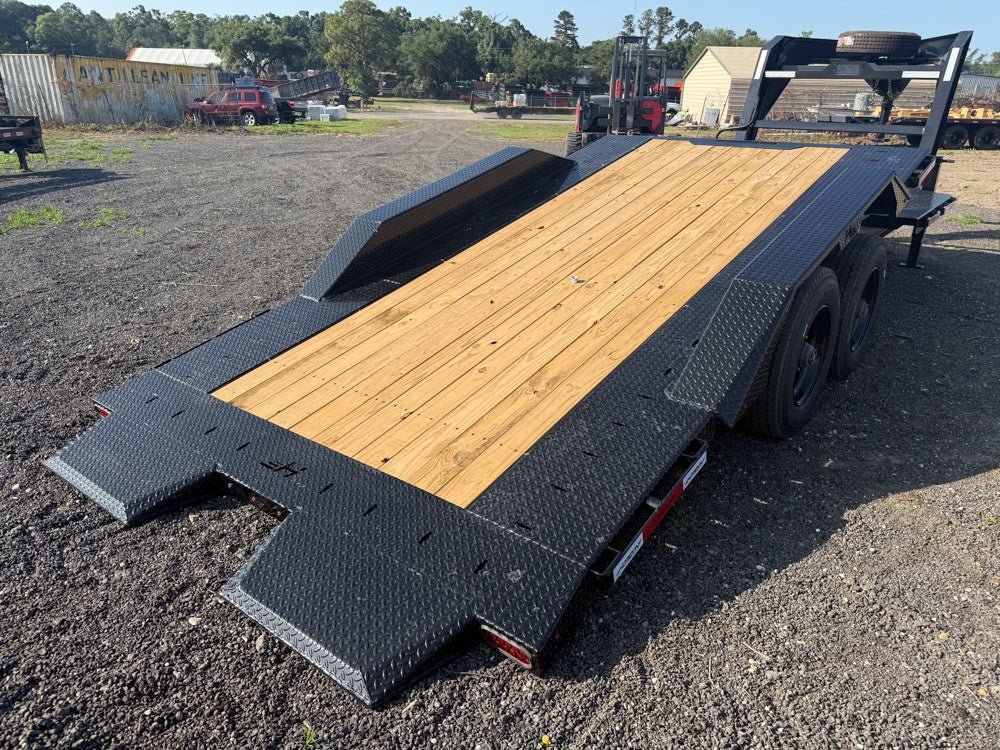

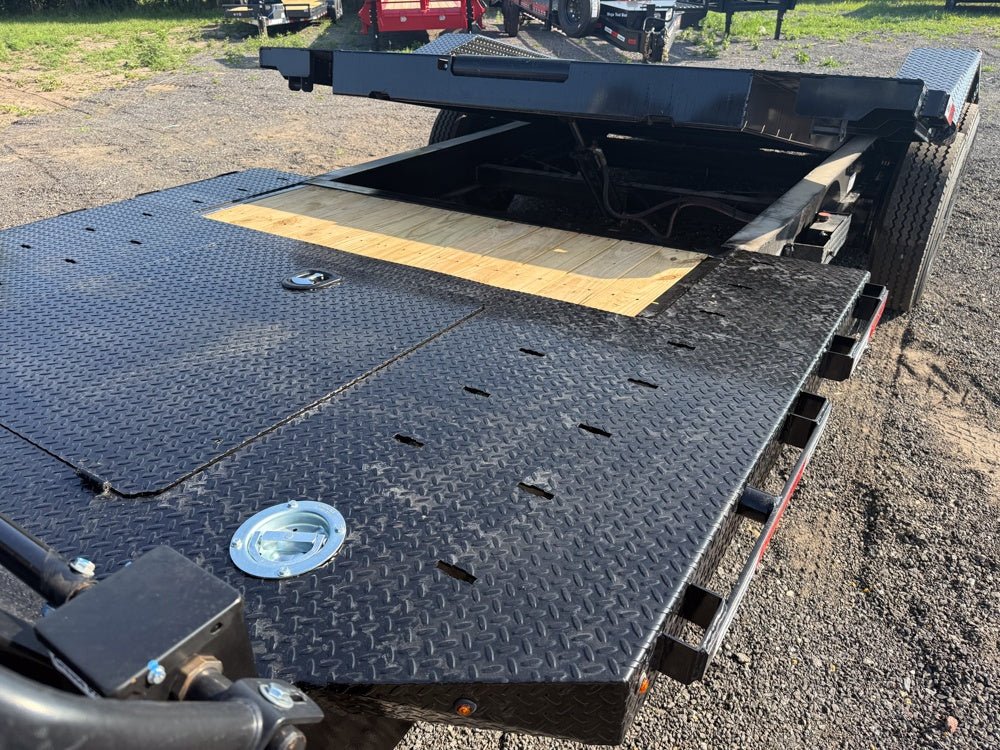

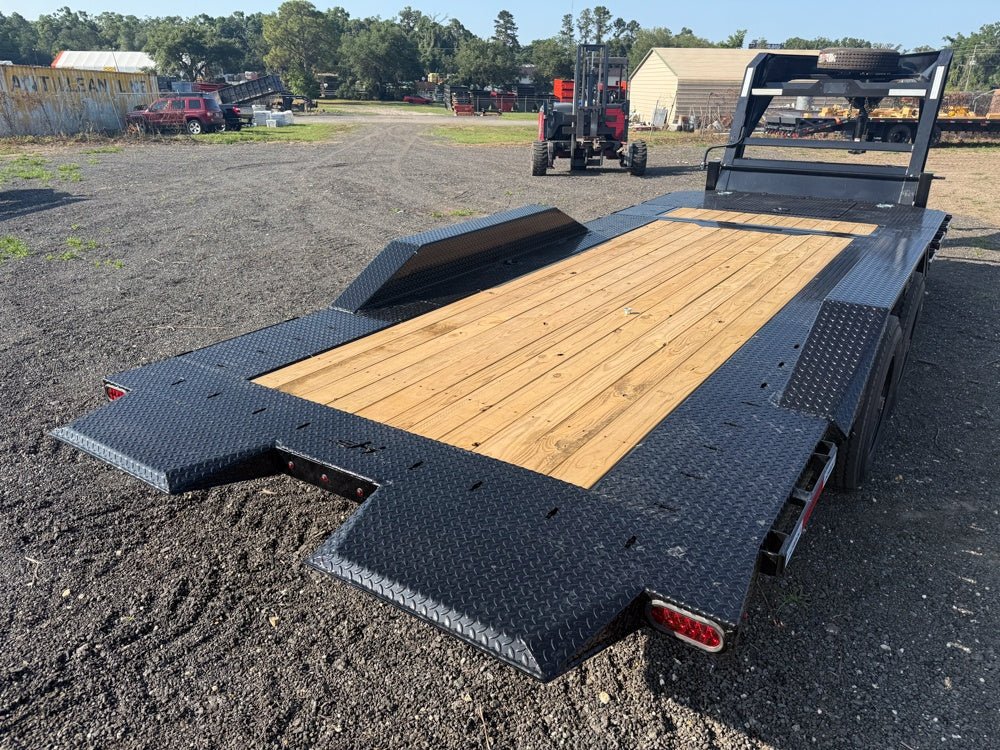

Gravity Tilt System with 16' Tilt Section
Features a gravity-operated tilt system for easy loading. The deck is split, with a 16-foot rear section that tilts down to the ground, creating a drive-on ramp.

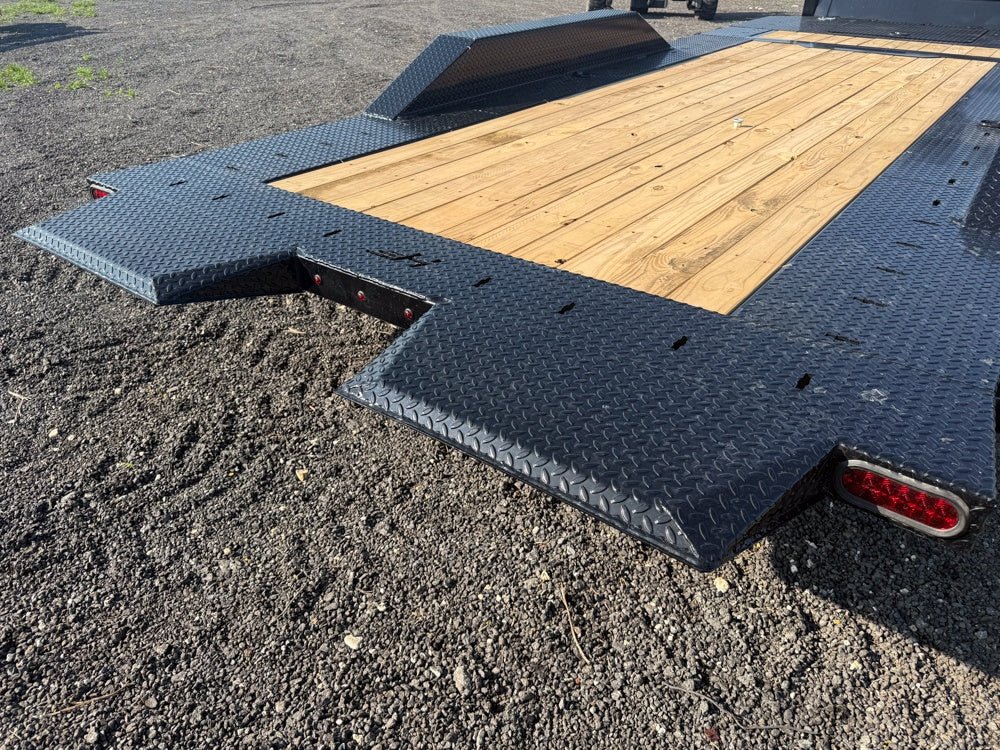

25" Low Profile Tilt Deck Height
Designed with a low 25-inch deck height in the tilted position. This creates a shallow, gradual incline for easier and safer loading of low-clearance equipment.

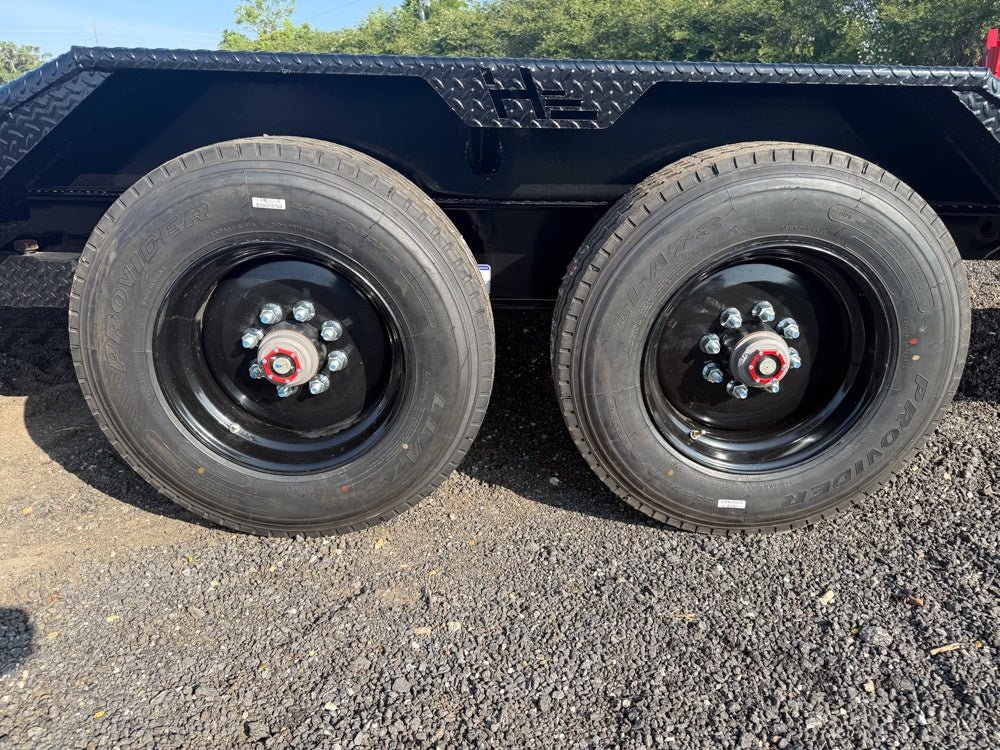

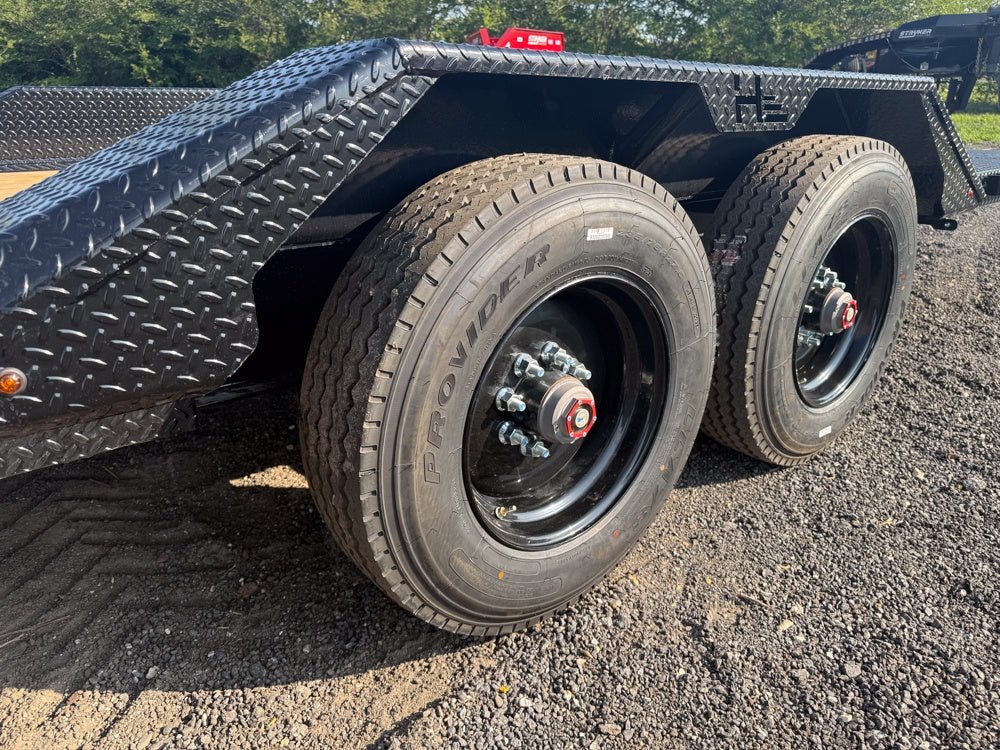

10k Dexter Oil Bath Torsion Axles
Equipped with two 10,000 lb Dexter oil bath torsion axles with electric brakes. This combination provides high capacity, smooth ride, and low maintenance.

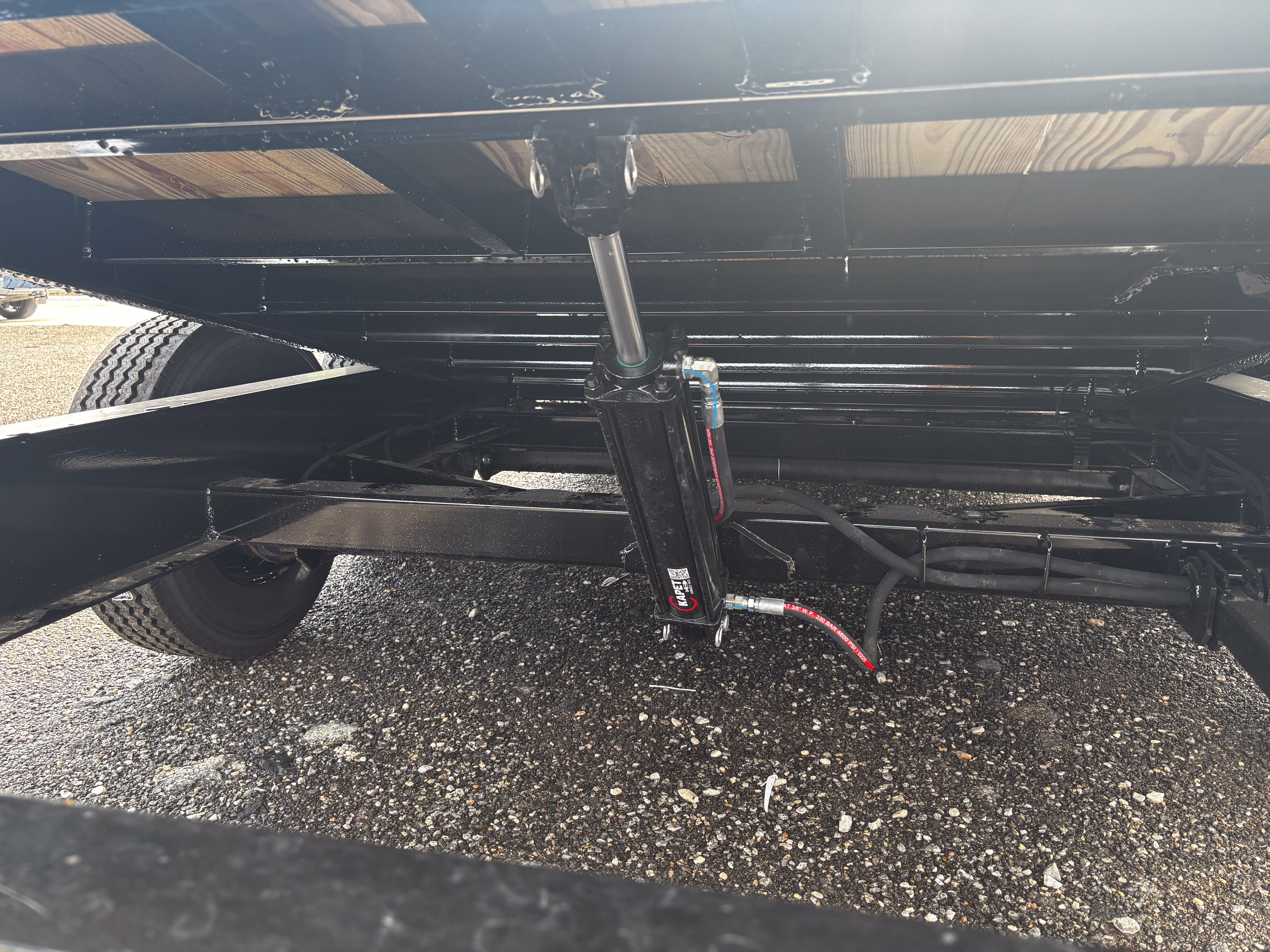

3"x16" Tilt Cylinder & Manual Release
The tilt function is powered by a single 3-inch bore by 16-inch stroke hydraulic cylinder. The system includes a manual safety release valve to control the lowering speed.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 26'
- WIDTH:
- 82" - 102"
- DECK HEIGHT:
- 25"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k SS
- GVWR:
- 22.4k
RUNNING GEAR
- TIRES:
- ST235/75R17.5
- TIRE PLY:
- 18 Ply
- TIRE RATING:
- 6005 lbs
- RIMS:
- 17.5" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k SS Oil Bath Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brake
- SUSPENSION:
- Torsion

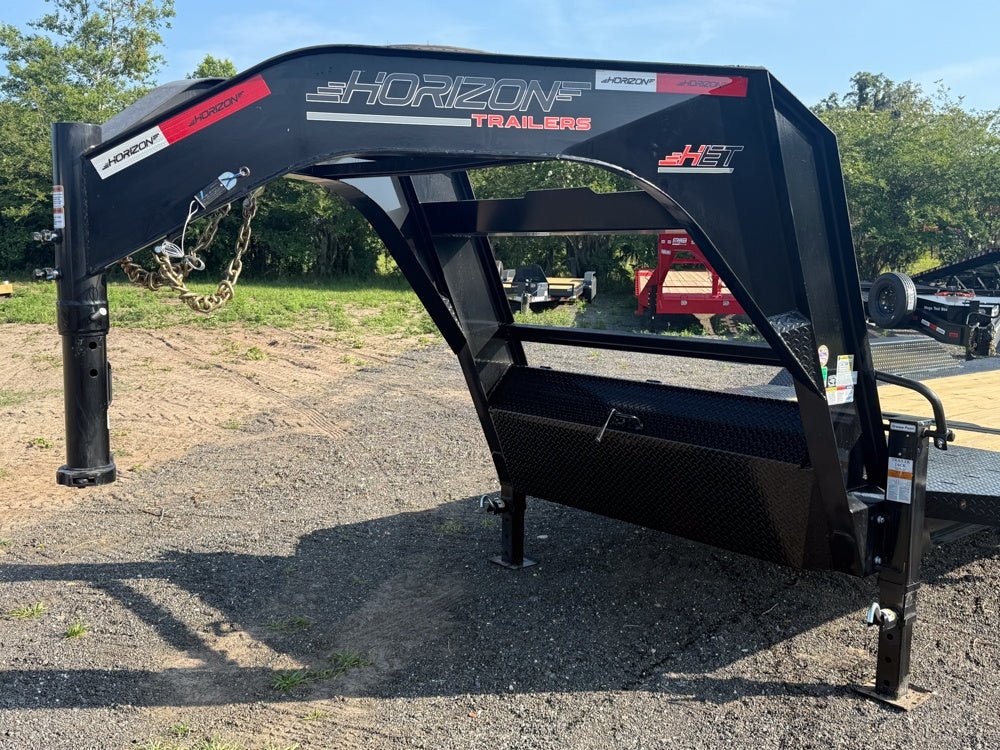

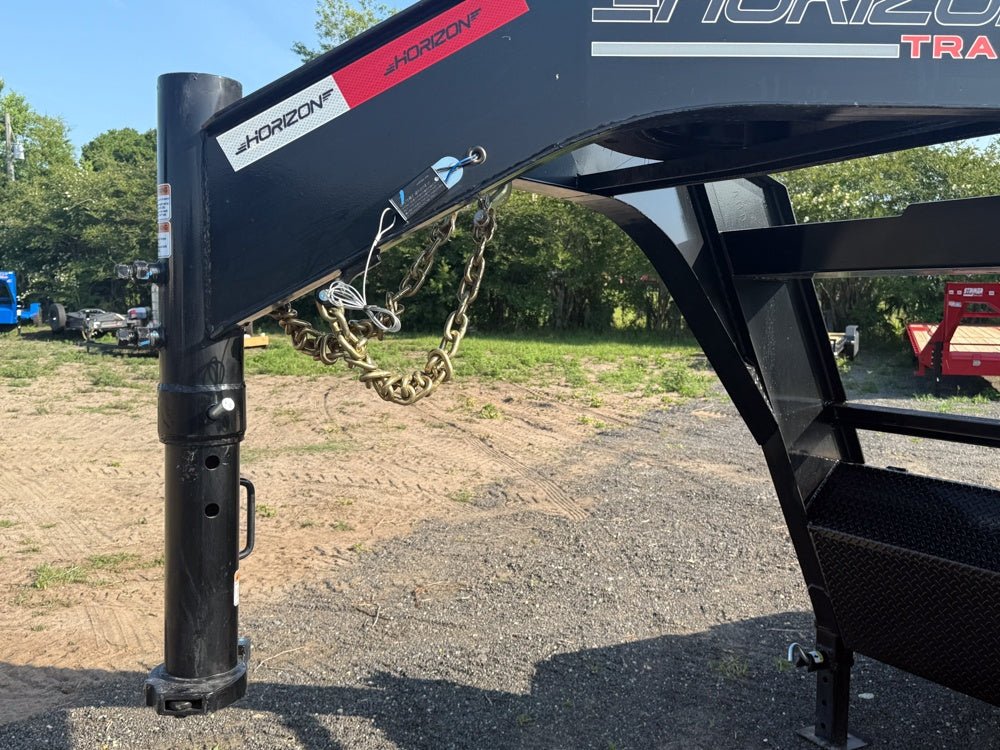

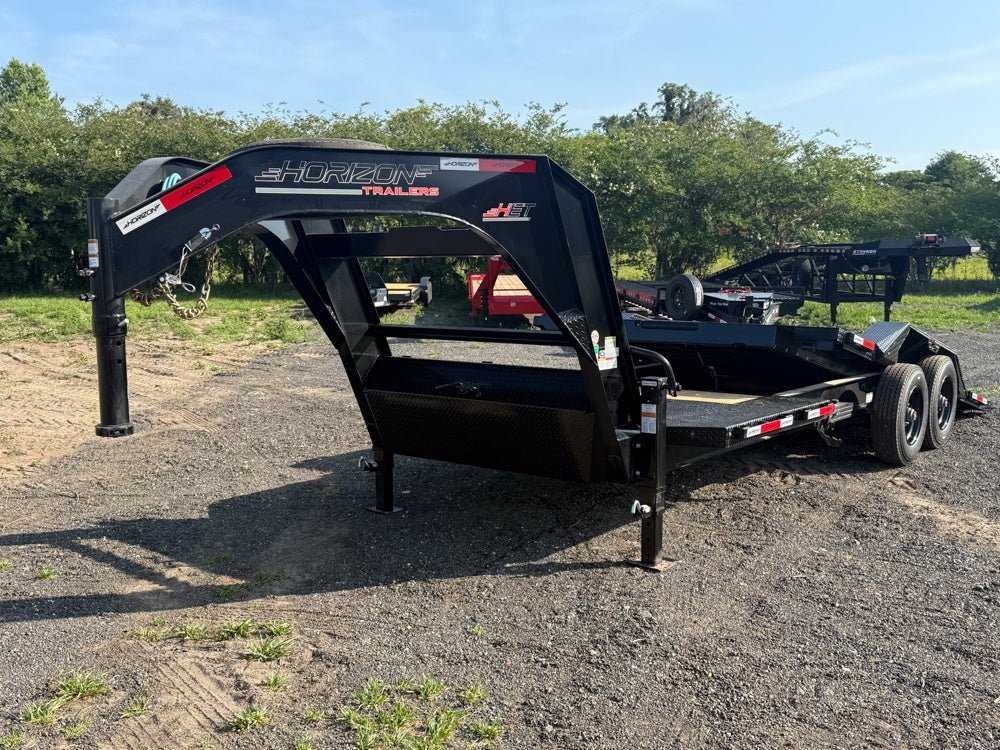

GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I-Beam
- LENGTH:
- 98" Long (From Behind Riser)
- HEIGHT:
- 70" High (From Underneath Neck)
- JACKS:
- 2 - Dual Side 12,000 lb Drop-Leg Jacks
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)

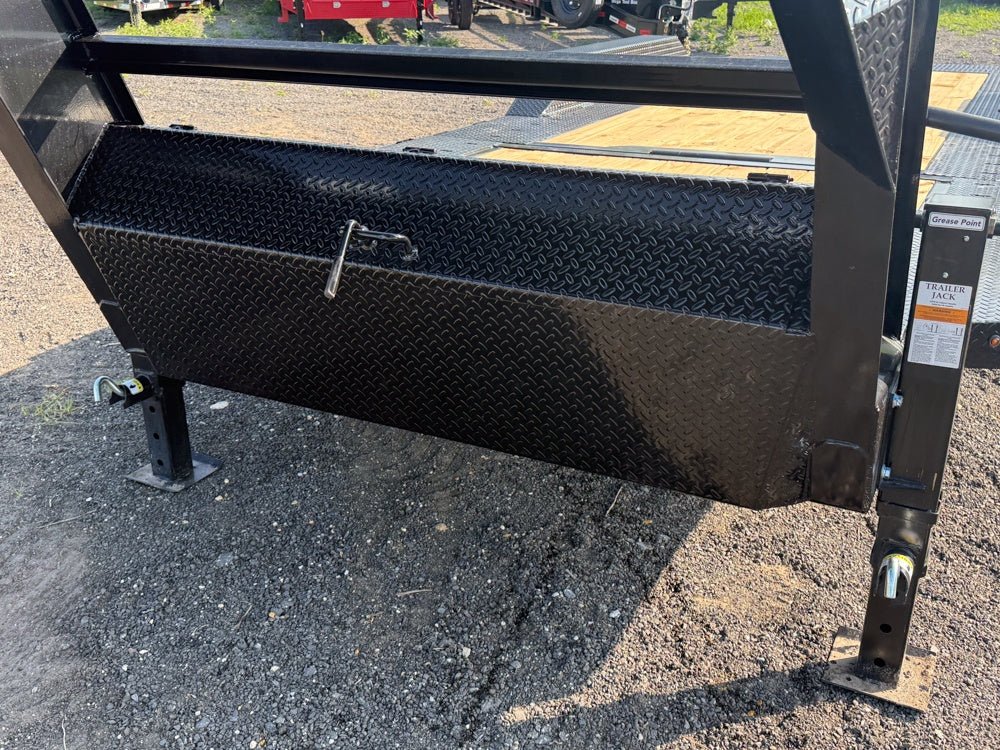

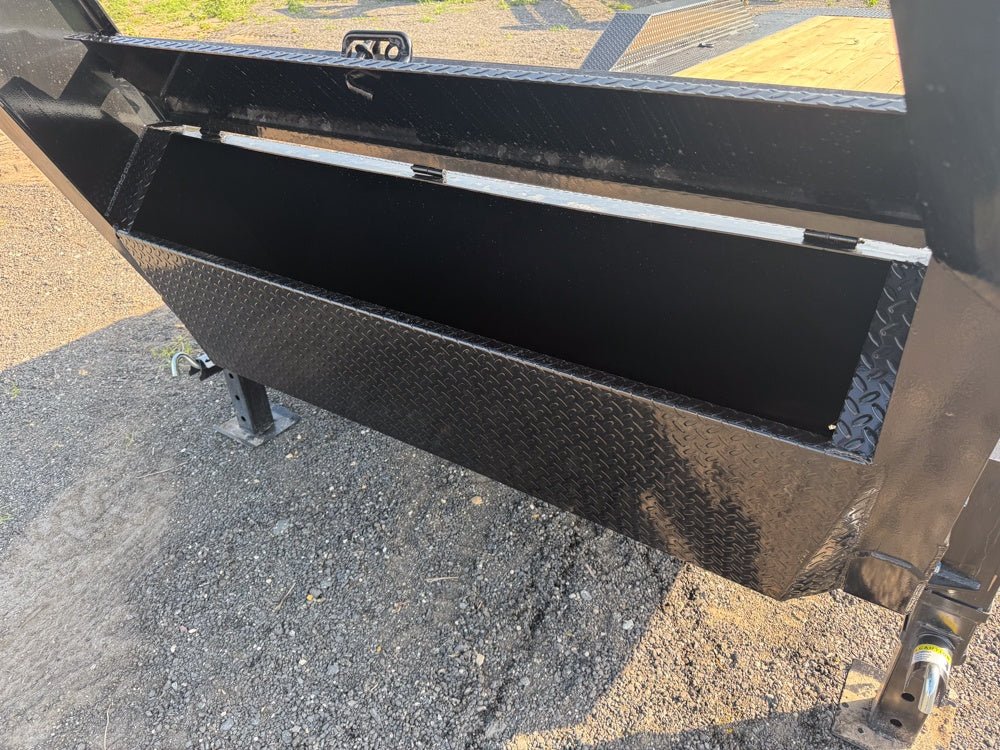

- TOOLBOX:
- Mega Lockable Toolbox
- WINCH PLATE:
- Storage Box w/ Winch Mounting Plate
FRAME & CONSTRUCTION
- MAIN FRAME:
- 10" (17lbs/ft) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing

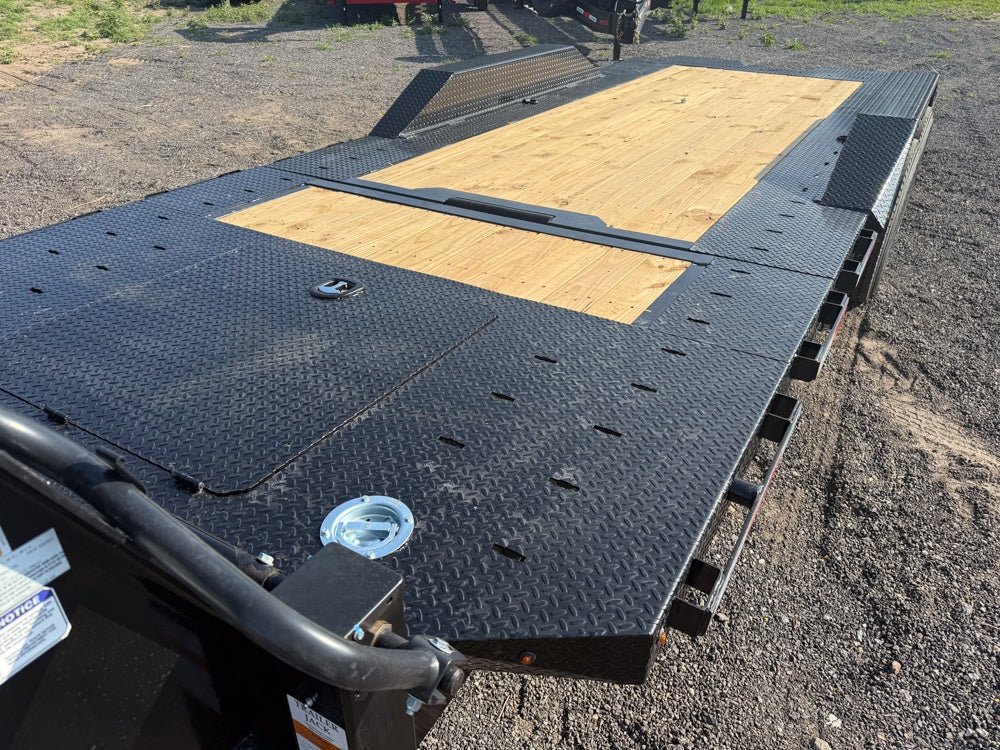

- DECK:
- Wood
- FENDERS:
- 12 Ga. Removable Fenders
1/4" Diamond Plate DOF
- TILT METHOD:
- Gravity Tilt System
- TILT DECK:
- Split Deck (16' Tilt Section)
- LIFT CYLINDER:
- 1 - 3"x16" Cylinder
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- All-Weather Wiring Harness (7-Way RV)
Double Insulated Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- D-RINGS:
- Additional D-Rings
- RATCHETS:
- Weld On Ratchets
Sliding Ratchets

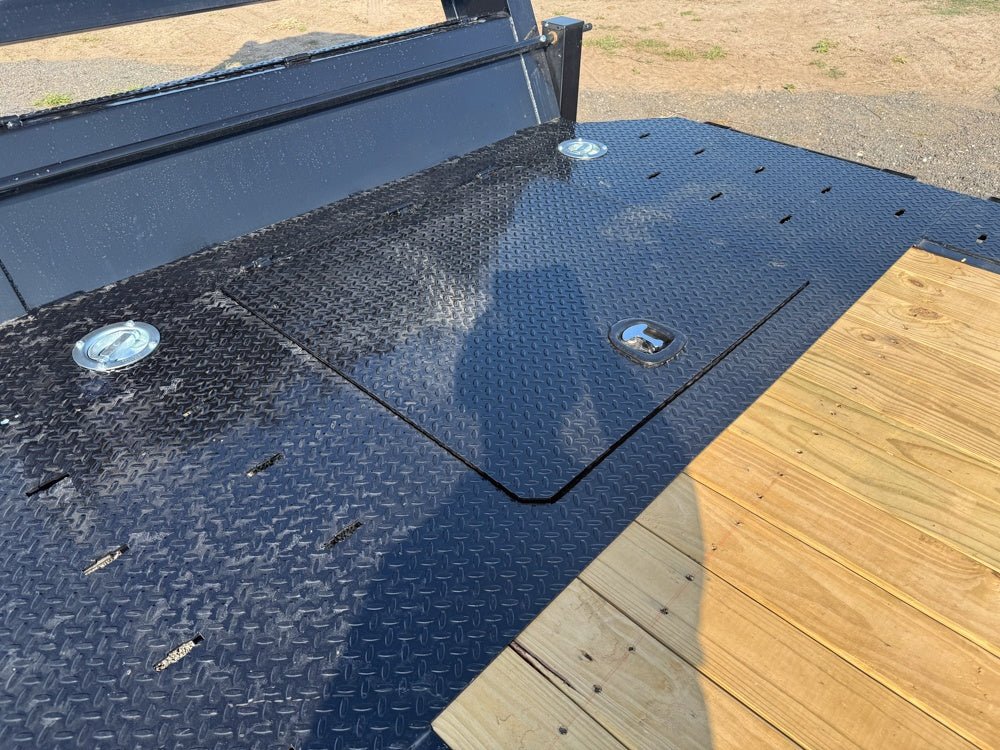

- TOOLBOX:
- Integrated Storage Box In Deck
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green(#949C78), Desert Tan(#D0BCA8), Flame Orange(#DD4B31), Midnight Black(#0B050D), Spectra Yellow(#C0973B), Blue Horizon(#1C4B92), Lime Green(#01A154), Ash Grey(#4F5154), True Red(#C03534), Pearl White(#C4CBCE), Cloud Grey(#ADADAC), Navy Blue(#26245B)
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
