Build & price yours
Pick a deck length, color and the options you need. Your list price updates as you go.
Deck length
List price includes all standard featuresColor
Powder coat color is included. Swatches are approximate; ask to see a sample.
Options
Loading options…
Product Features

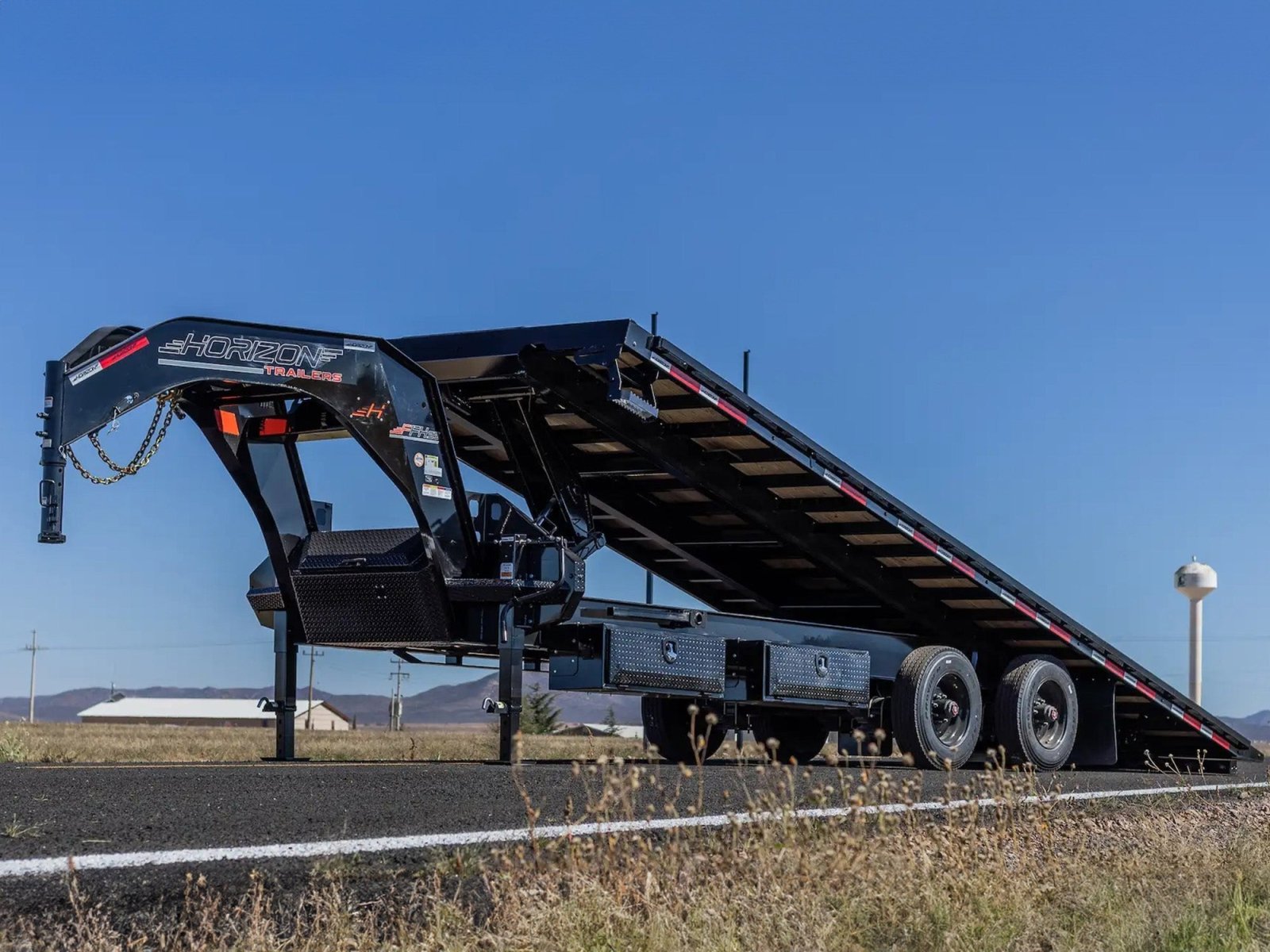

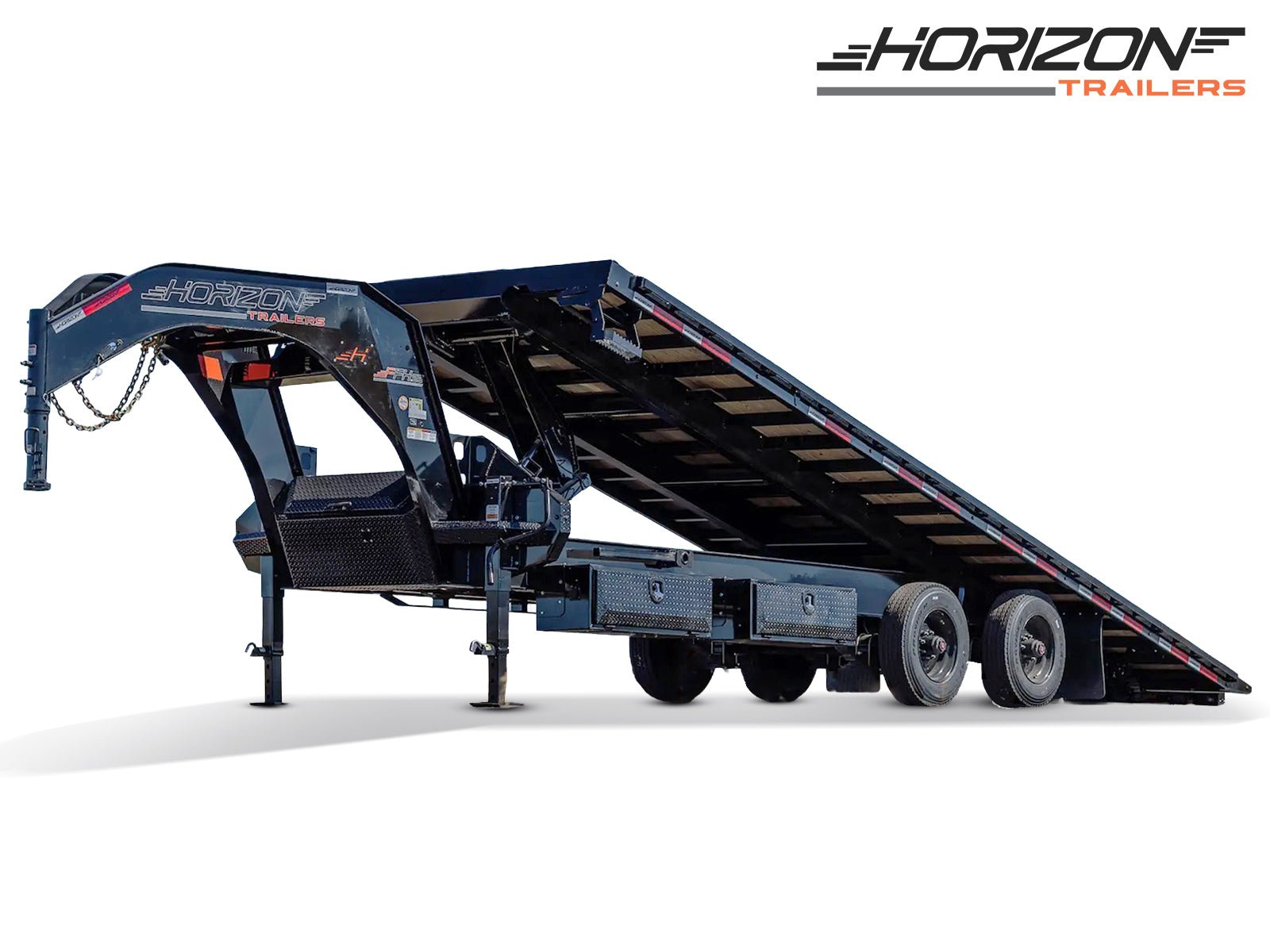

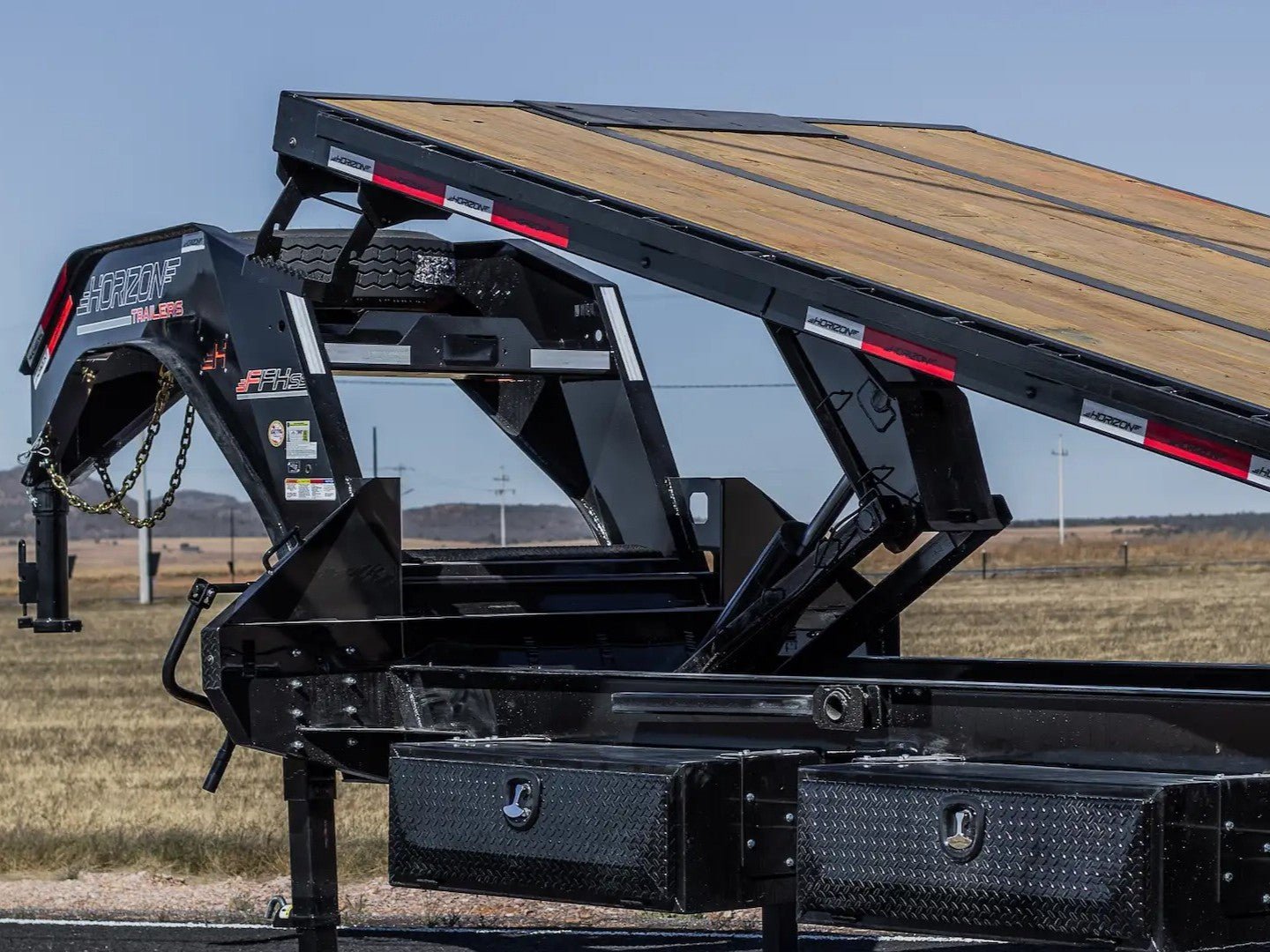

24' Split Tilt Deck with Full Hydraulic Power
Features a heavy-duty 24-foot hydraulic split tilt deck. Powered by a KTI 12V pump and a 6"x21" cylinder (20,000 lb capacity), the system provides full power-up and power-down control for easy, precise loading.
38" Deckover Height & 102" Width
Built as a true deckover with a 38-inch deck height and a full 102-inch width. This design provides an unobstructed load surface for wide equipment without wheel well interference.
98" Engineered Gooseneck & Dual Battery System
Features a 98-inch long engineered I-beam gooseneck. The trailer includes two Interstate 27 deep cycle batteries for reliable power to the hydraulic tilt system.
10k or 12k Oil Bath Axles
Equipped with 10k or 12k oil bath axles with electric brakes. The running gear uses 235/75R17.5 (18-ply) radial tires mounted on 17.5-inch black mod wheels.
12" I-Beam Frame & 4.5" Torque Tube
Constructed with a 12-inch (19 lbs/ft) I-beam main frame. Trailers 30 feet and longer include a 4.5-inch torque tube for maximum structural rigidity and towing stability.
Hutch Suspension & Air Ride Option
Available with a premium Hutch suspension upgrade for a smoother ride. An air ride suspension system is offered as an option for superior load protection and towing comfort.
Product Details
DIMENSIONS
- LENGTH:
- 28' - 40'
- TILT DECK LENGTH:
- 24'
- WIDTH:
- 102"
- DECK HEIGHT:
- 38"
WEIGHT RATINGS
- GAWR:
- 10k, 12k SS
- GVWR:
- 25k - 25.9k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape

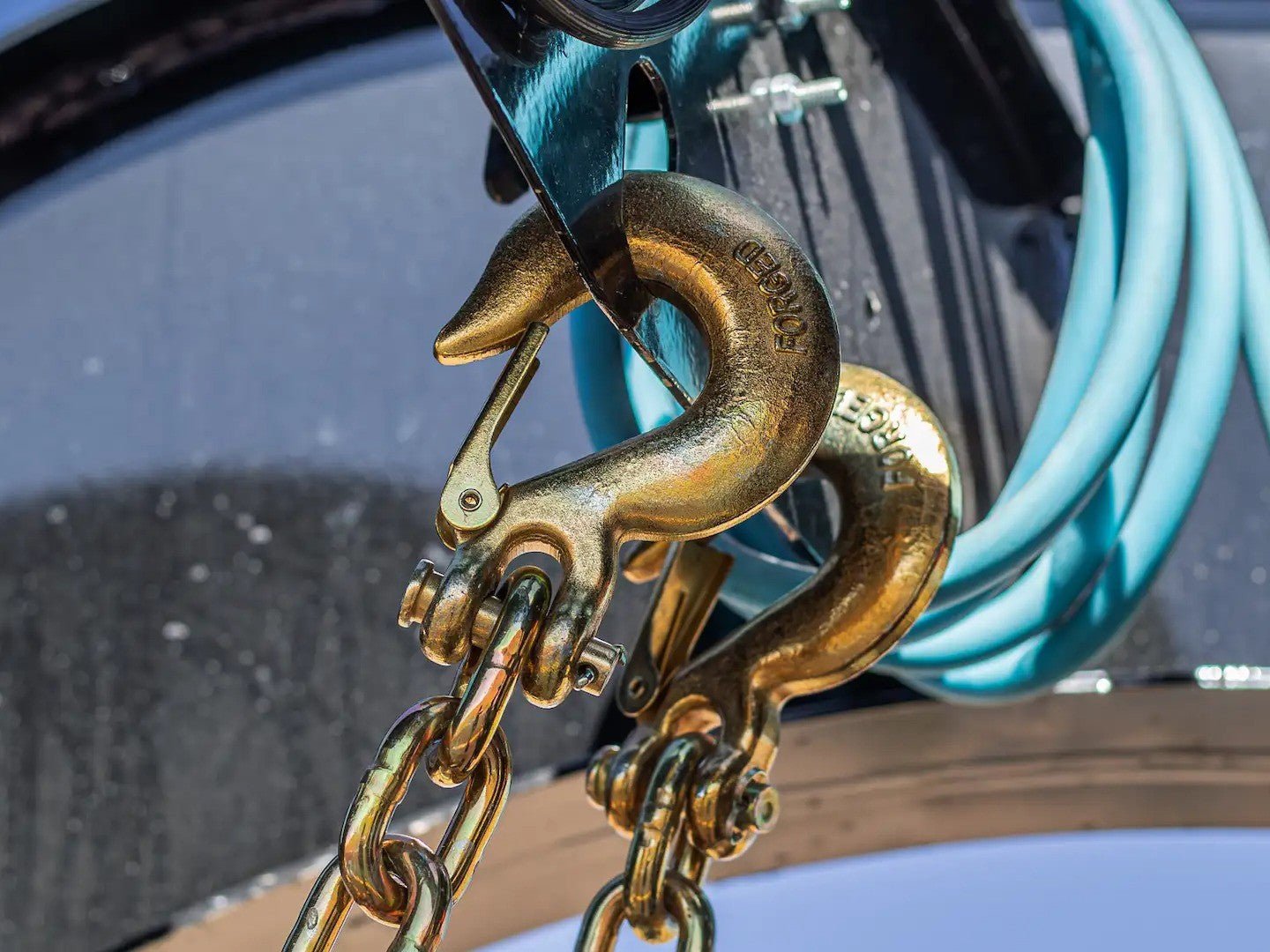

- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
- TORQUE TUBE:
- 4 1/2" Tube (30'+)
TONGUE
- TONGUE GOOSENECK:
- Engineered I-Beam, 98" Long
- HEIGHT:
- 70" (From Underneath Neck)
- STANDARD COUPLER GN:
- Adjustable 2-5/16" Coupler (30,000 lbs)

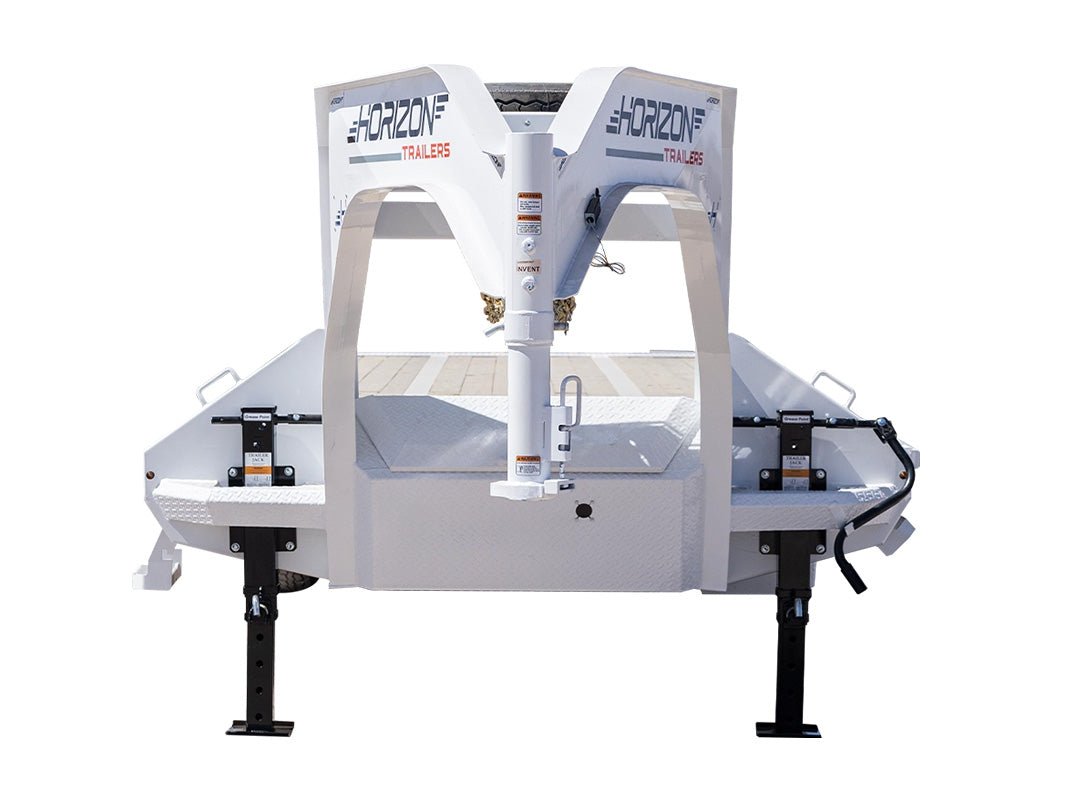

- FRONT JACKS GN:
- 2 Side Wind Drop Jack Legs (12,000 lbs)
- TOOLBOX GN:
- Mega Lockable Toolbox
ELECTRICAL & LIGHTING
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
TILT FUNCTIONS
- TILT METHOD:
- Power Up & Power Down
- TILT DECK:
- 24' Tilt Deck
RUNNING GEAR
- TIRES:
- Radial Tires, 235/75R17.5, 18 Ply
- RIMS:
- 17.5" Black Mod Wheels
- BRAKES:
- Electric Brakes
- AXLE TYPE:
- 2 - 10k SS Oil Bath Axles
2 - 12k SS Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
HYDRAULIC SYSTEM
- PUMP:
- KTI 12V Hydraulic Pump
- LIFT CYLINDER:
- Hoist w/ 6"x21" Single Cylinder (20,000 lbs)
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK TYPE:
- Wood
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
