At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
12' - 16'
Inquire About This Trailer
Product Features

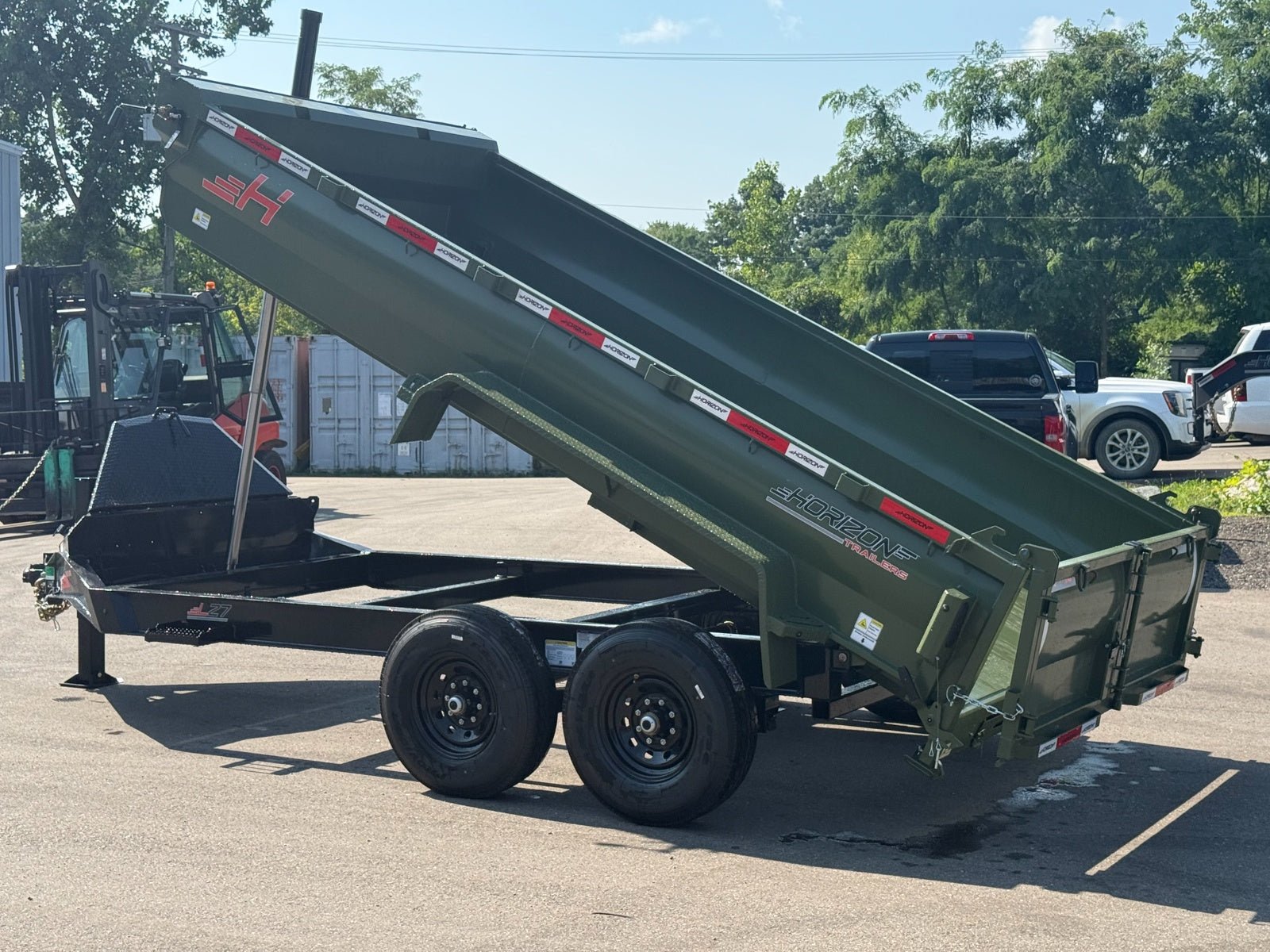

High-Performance Hydraulic System
Powered by a 12-volt hydraulic system with a 10,000-pound lifting capacity, the LZ7 dump trailer delivers smooth and efficient operation. Whether dumping gravel, soil, or demolition debris, its advanced hydraulic system ensures precise control and reliable performance, enhancing productivity on the job site.
Bed Made for Easy Loading and Unloading
Featuring a 7-foot wide bed and 24-inch sides, the LZ7 dump trailer provides ample space for loading and unloading bulky items with ease. Integrated ramps and a low-profile design facilitate seamless ingress and egress of heavy equipment, machinery, and bulk cargo, maximizing efficiency on the job site.
Durable Finish and Corrosion Resistance
Finished with a powder coat for superior durability and corrosion resistance, the LZ7 dump trailer is built to withstand the elements. Its rugged construction and premium finish ensure long-lasting performance, even in the harshest environments, making it a reliable asset for years to come.

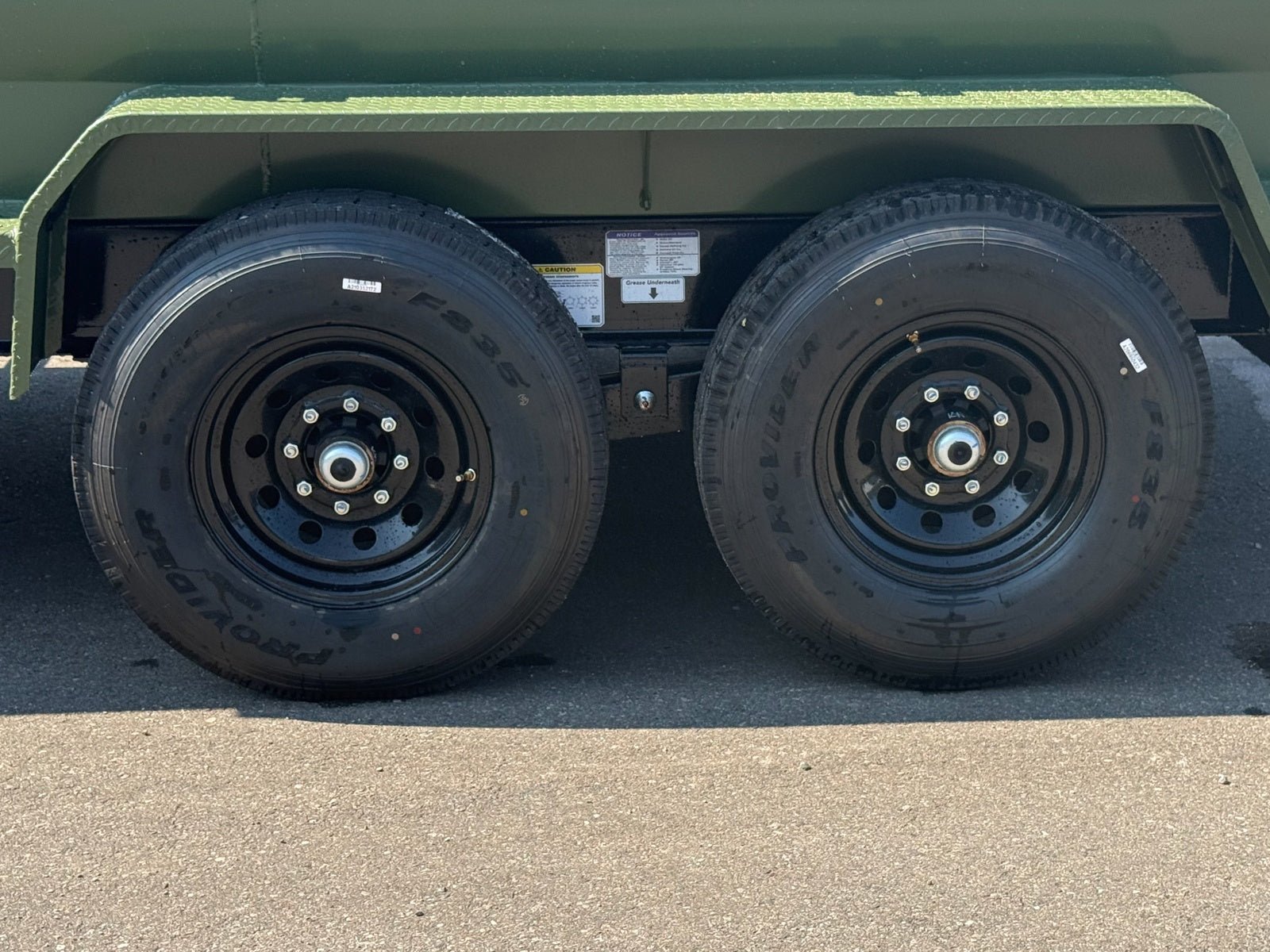

Axles and Running Gear
Engineered for reliable towing performance, the LZ7 dump trailer features a 7k tandem axle system with electric brakes for smooth and stable operation. With a GVWR of 14,000 lbs. and sturdy 16-inch radial tires, it offers exceptional towing capacity and maneuverability, whether on highways or job sites.
Heavy-Duty Construction
Built with 7-gauge steel construction and a reinforced frame, the LZ7 dump trailer is designed to withstand heavy loads of up to 14,000 lbs. Its rugged build ensures durability and resilience, making it the go-to choice for demanding hauling tasks in construction, landscaping, and agriculture.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Product Details
DIMENSIONS & CAPACITY
- AVAILABLE LENGTHS:
- 12', 14', 16'
- SIDE HEIGHTS:
- 24", 30", 42"
- BED WIDTH:
- 83"
- BED HEIGHT:
- 28"
- GVWR:
- 14,000 lbs
- GAWR:
- 7,000 lbs per axle
FRAME & STRUCTURE
- MAIN FRAME:
- 8" I-Beam (13 lbs/ft)
- FLOOR:
- 9ga. Steel
- CROSSMEMBERS:
- 3" Channel @ 16" OC
- D-RINGS:
- 4 Welded Inside Bed
- DUMP ANGLE:
- 40° – 48°
COUPLER & ACCESSORIES
COUPLER:
- TYPE:
- Adjustable Auto Latch 2-5/16" Bumper Pull Coupler (17,000 lbs)
JACKS:
- TYPE:
- 1 Side Wind Spring Loaded Drop-Leg Jack (12,000 lbs)
ACCESSORIES:

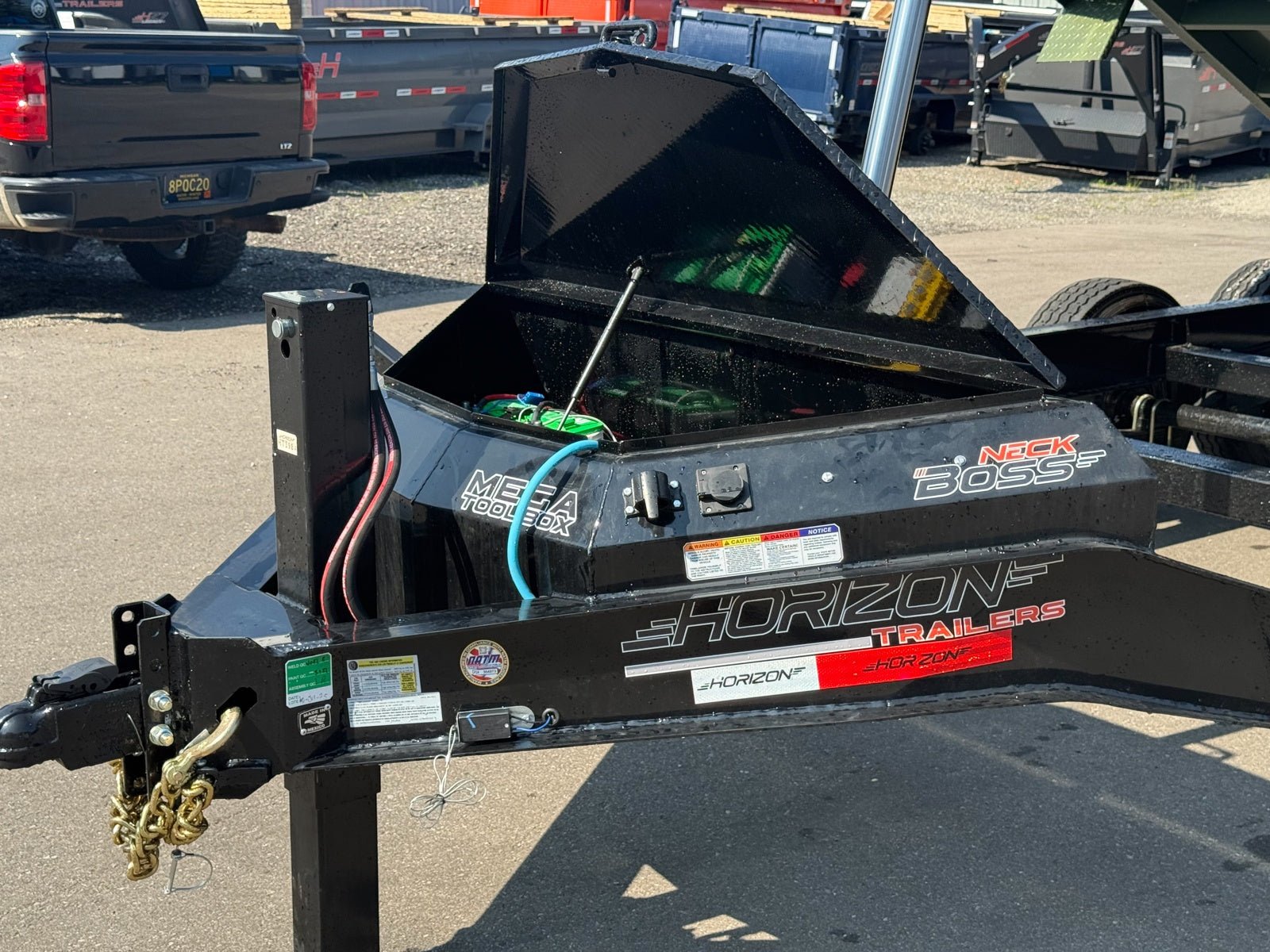

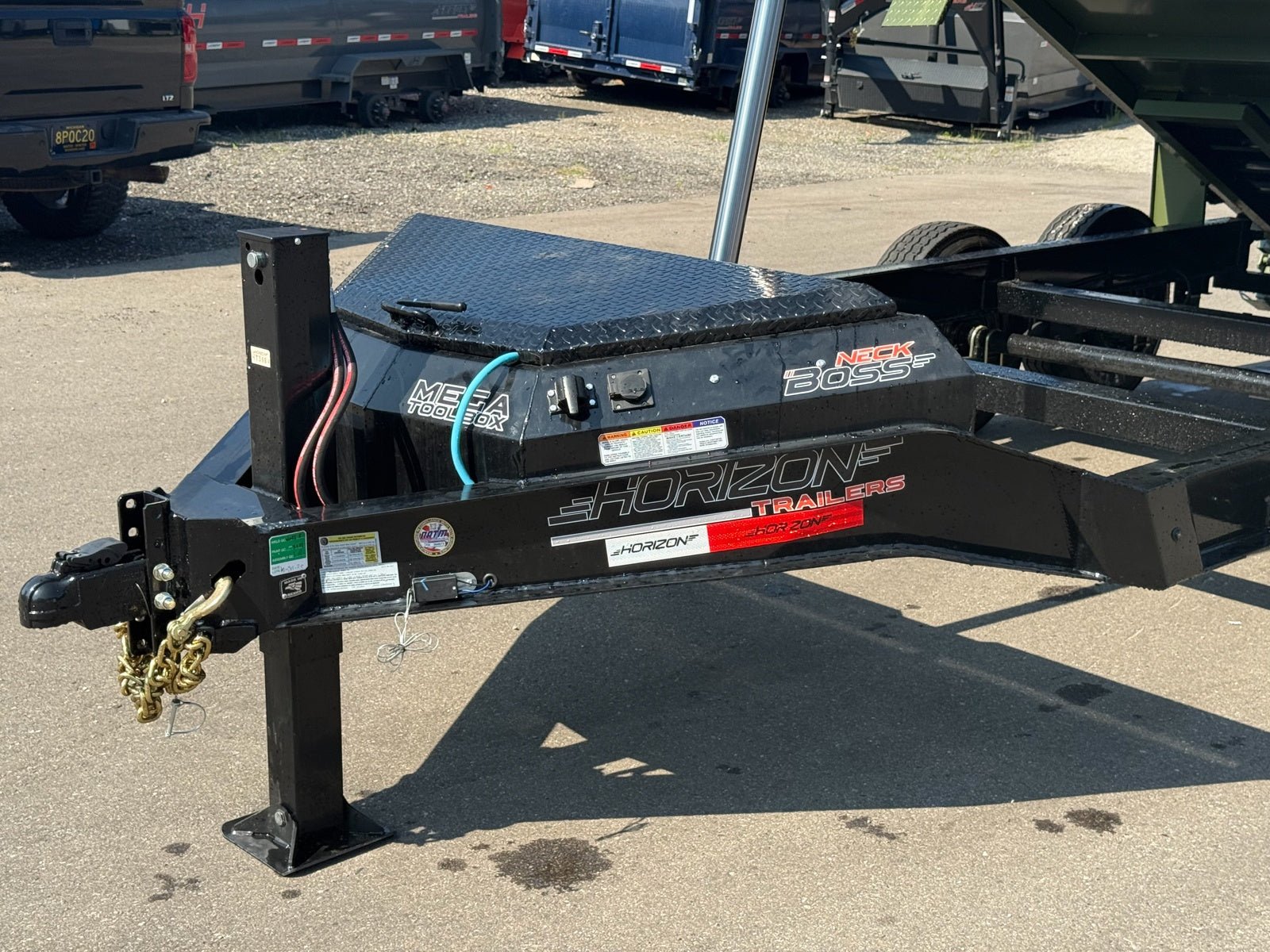

- TOOLBOX:
- Mega Lockable Toolbox (Houses Battery & Pump)
- TARP KIT:
- Manual Tarp Kit
- SAFETY CHAINS:
- 3/8" Grade 70 with Clevis Hooks (2 each)
- STEP:
- Side Step on Both Sides
- MARKER LIGHTS:
- Extra Marker Lights for Visibility
RUNNING GEAR & SUSPENSION
AXLES:
- TYPE:
- 7K Lippert Electric Brake, Auto Adjust, EZ Lube Spring Axles
- AXLE WARRANTY:
- 6-Year Lippert Spring Axle Warranty
SUSPENSION:
- TYPE:
- Leaf Spring
HYDRAULICS

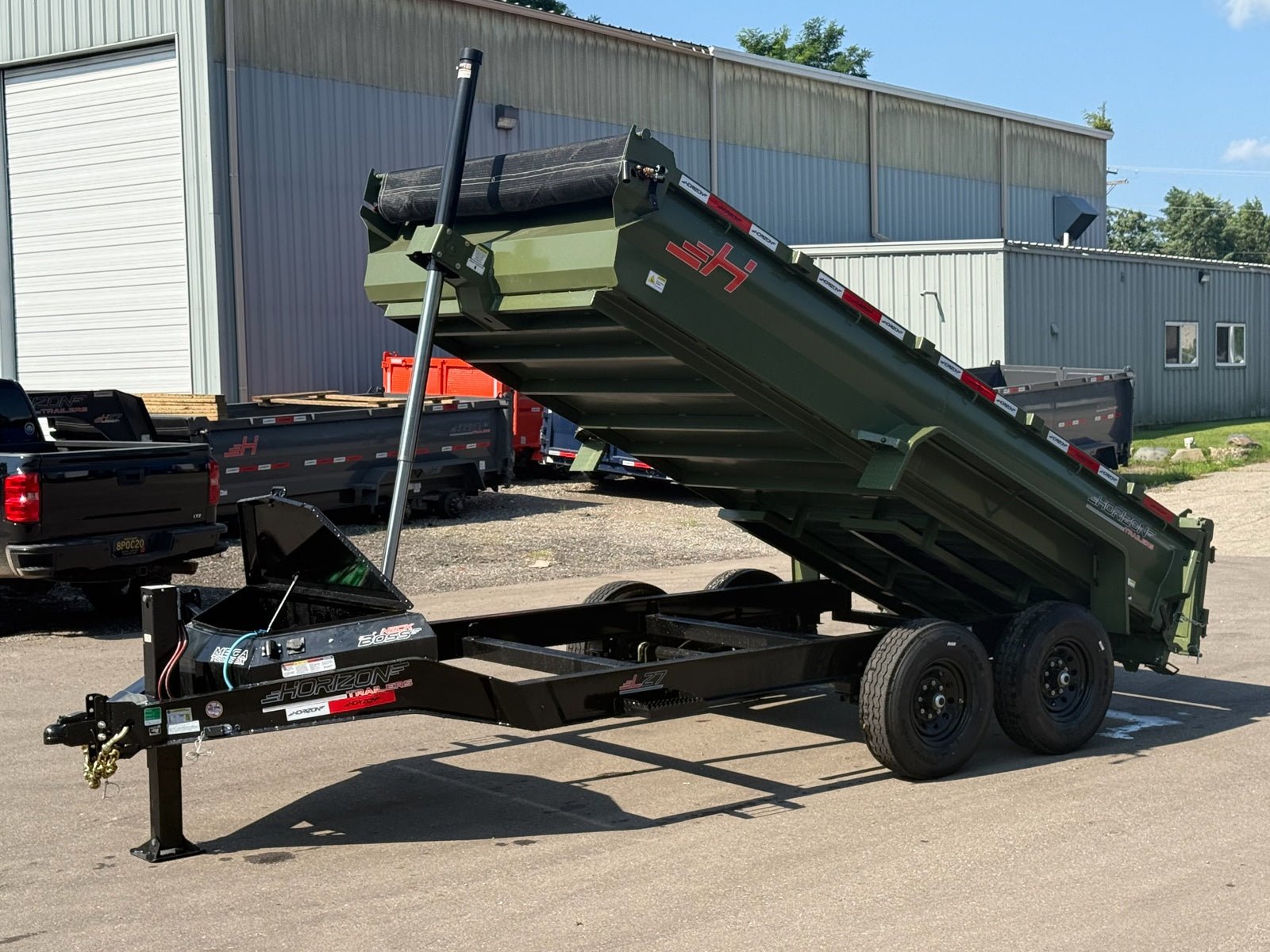

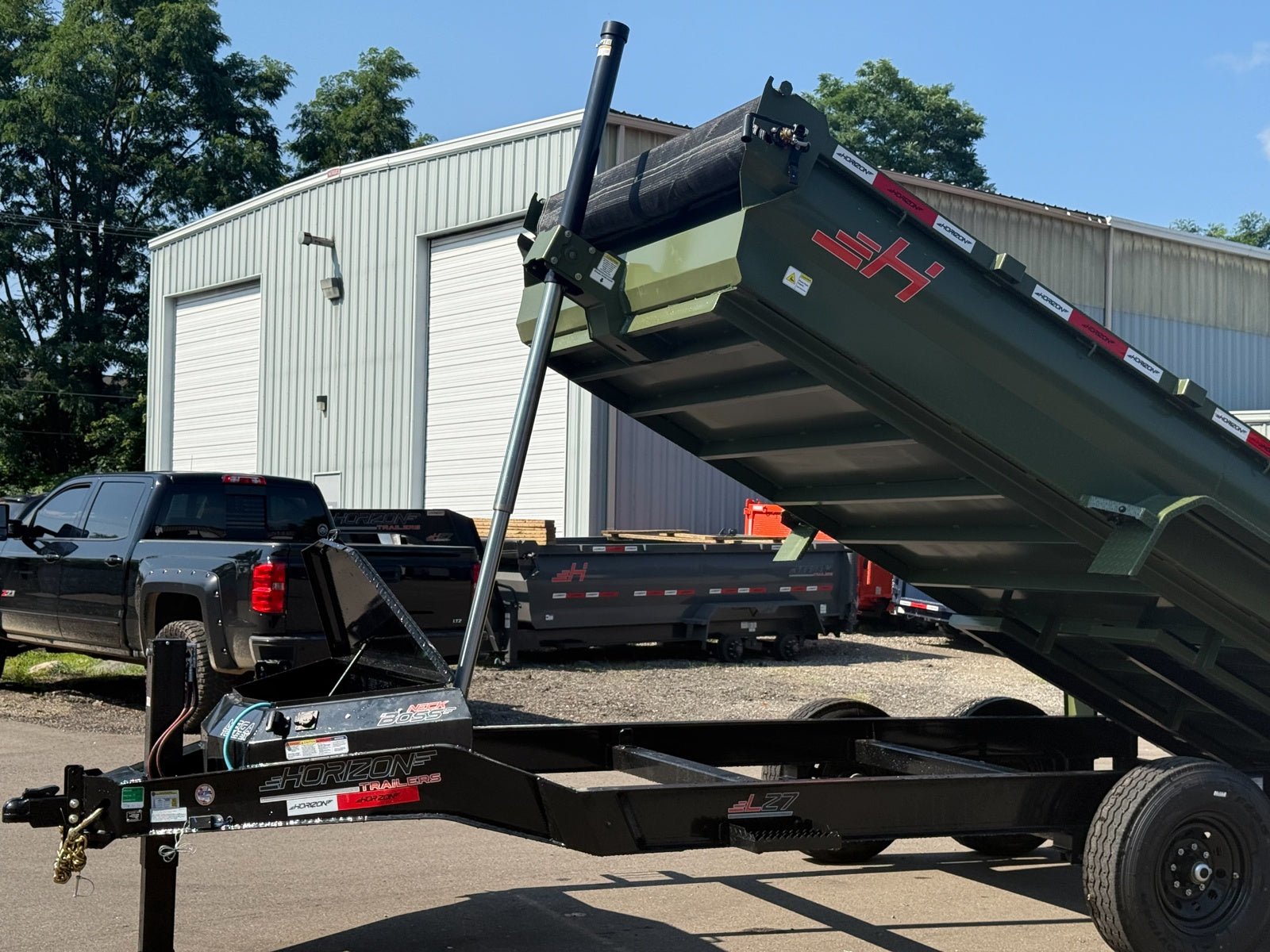

- LIFT SYSTEM:
- Hoist w/ Single Push Cylinder (15,000 lbs)
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 2-Button Remote – Power Up / Power Down
HYDRAULIC OPTIONS:
- LIFT SYSTEM:
- Telescopic Cylinder (7 or 12 Ton, based on length)
- CONTROLLER:
- Power Up / Gravity Down Remote
BATTERY & ELECTRICAL
- BATTERY:
- Interstate 27 Deep Cycle
- CHARGING:
- 110V Integrated Trickle Charger
- WIRING:
- 7-Way RV, All-Weather, Double Insulated Harness
- LIGHTING:
- DOT-Approved Tecniq LED
- REFLECTIVE TAPE:
- 3M DOT Compliant
TIRES & RAMPS
- TIRES:
- ST235/80R16 10PR Radial (3,520 lbs)
- WHEELS:
- 16" Black Mod Steel
- SPARE MOUNT:
- Weld-On Tire Mount

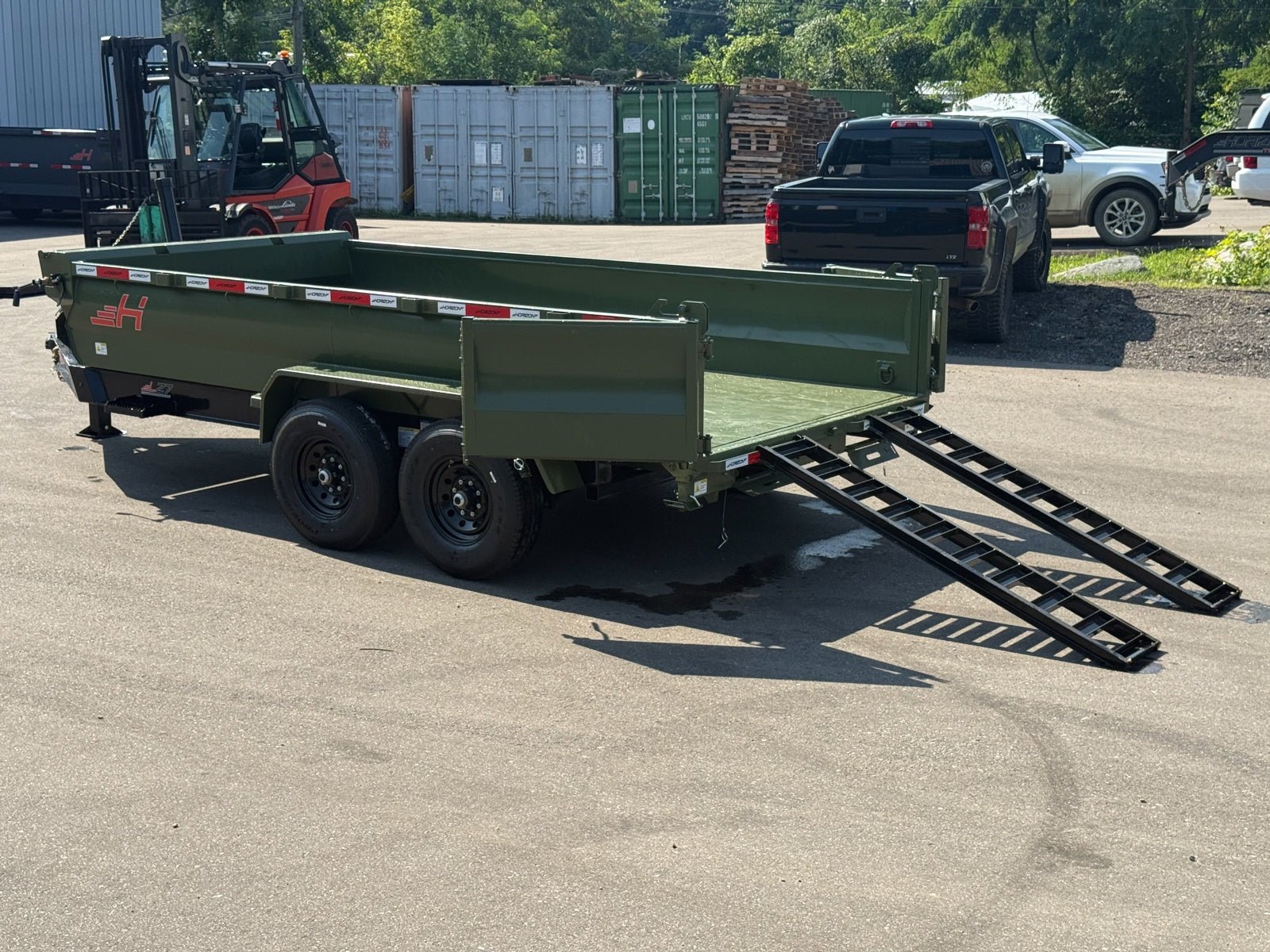

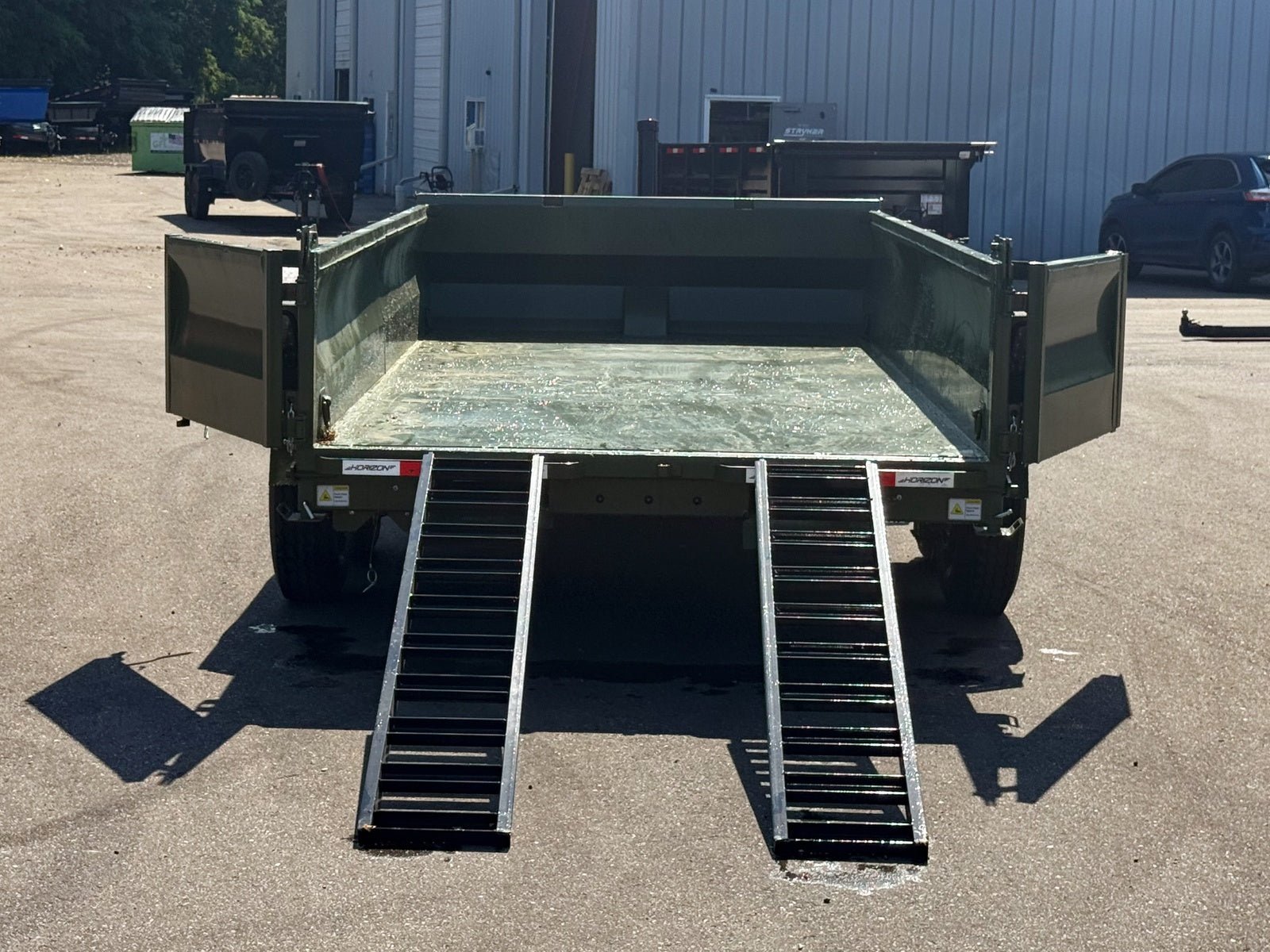

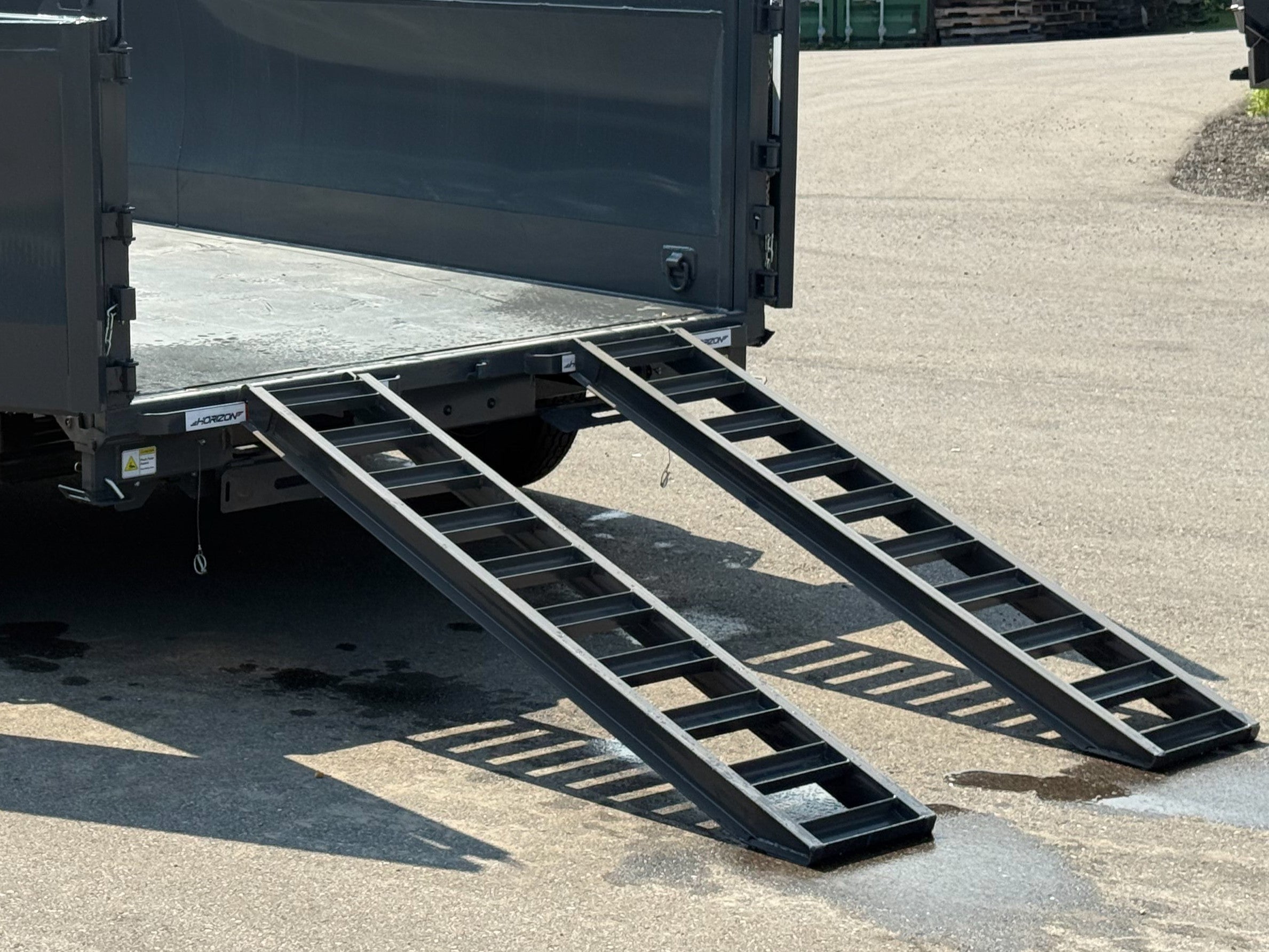

- RAMPS:
- 6' 4" Slide-In 3" Channel (4,000 lbs wheel rating per ramp)
SIDES & BODY
- SIDE HEIGHT:
- 24", 30", 42"
- SIDE MATERIAL:
- 12ga. Rounded Steel
- TOP RAIL:
- 2" × 3" × 11ga. Tubing
- STAKE POCKETS:
- 1-5/8" × 3-5/8" (ID)
- HOOKS:
- 3/8" Round "J" Hooks
- FENDERS:
- 14ga. Diamond Plate Steel

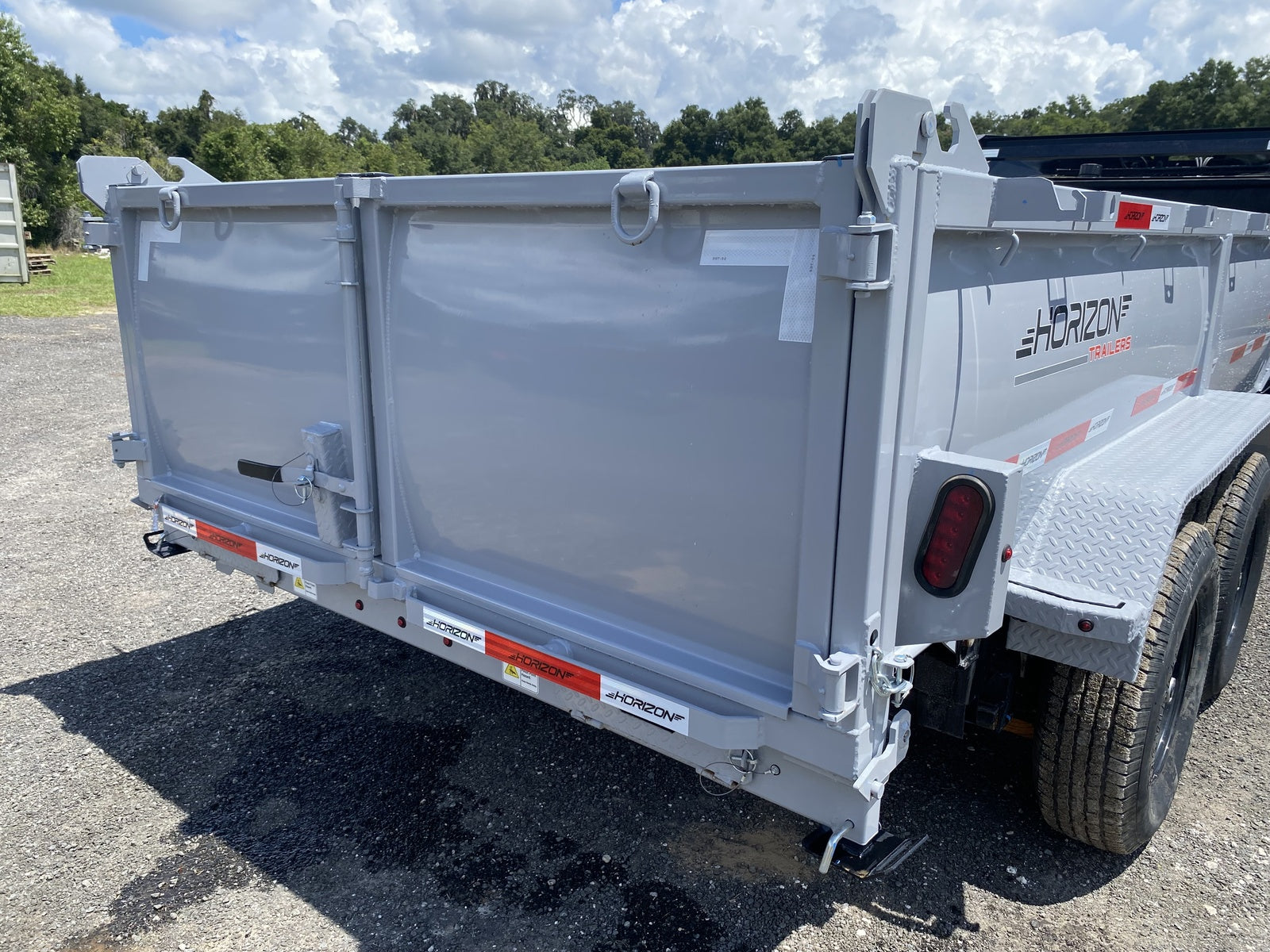

- REAR GATE:
- 3-Way Spreader Gate
FINISH & WARRANTY
- PREP:
- Steel Grit Blasted
- PAINT:
- Powdercoat
- COLOR OPTIONS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
- 2-TONE OPTION:
- Available – Chassis / Dump Split
- FRAME WARRANTY:
- 3-Year
- PARTS WARRANTY:
- 1-Year
AXLE WARRANTY:
- LIPPERT:
- 6-Year Spring Axle Warranty
