At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Featured Video
Product Features

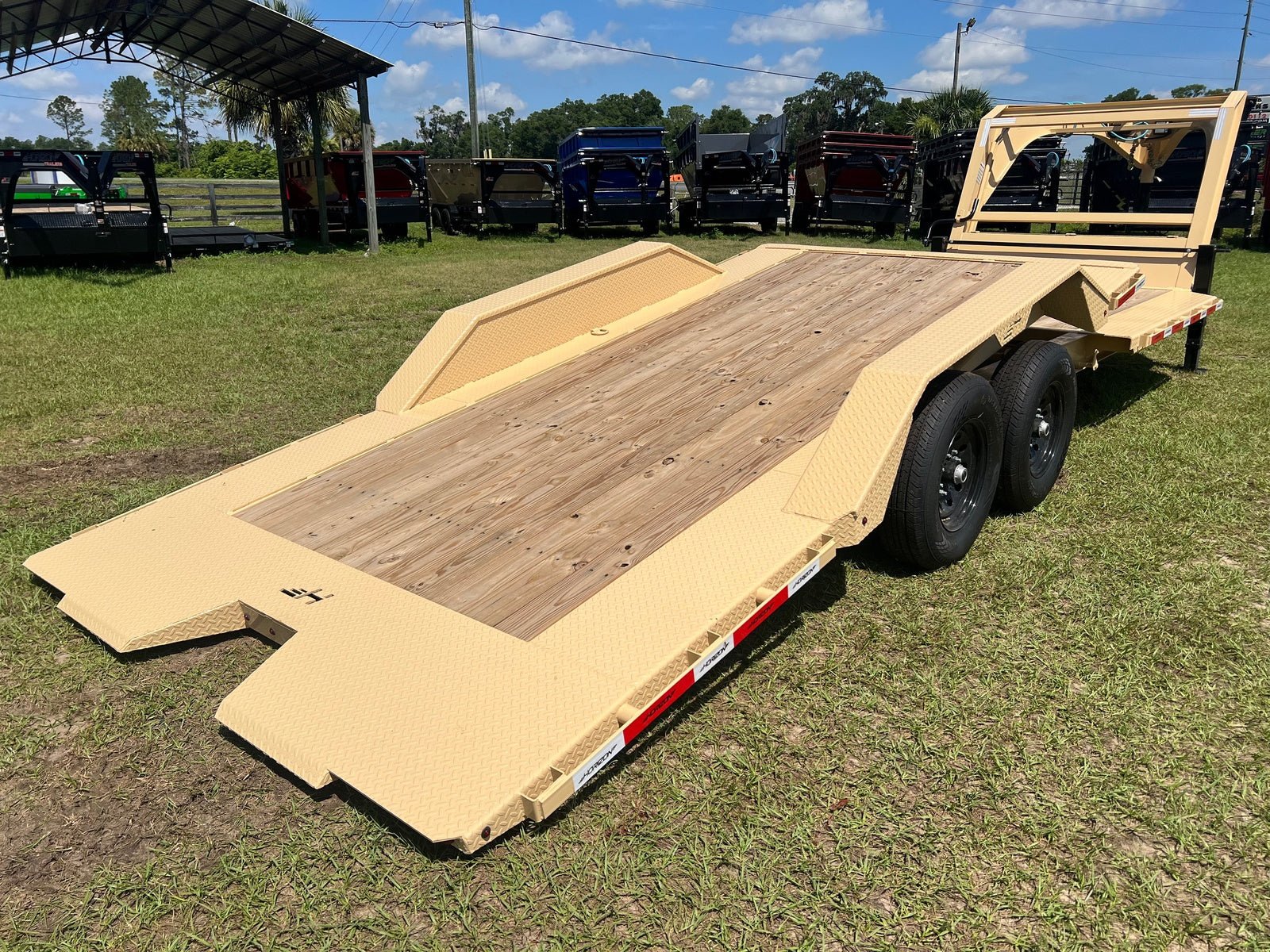

Gravity Tilt System with 16' Tilt Section
Features a gravity-operated tilt system. The deck is split, with a 16-foot rear section that tilts down to the ground for drive-on equipment loading.
Low 22" Tilt Deck Height
Designed with a low 22-inch deck height in the tilted position. This creates a shallow, gradual incline for easy and safe loading of low-clearance equipment.

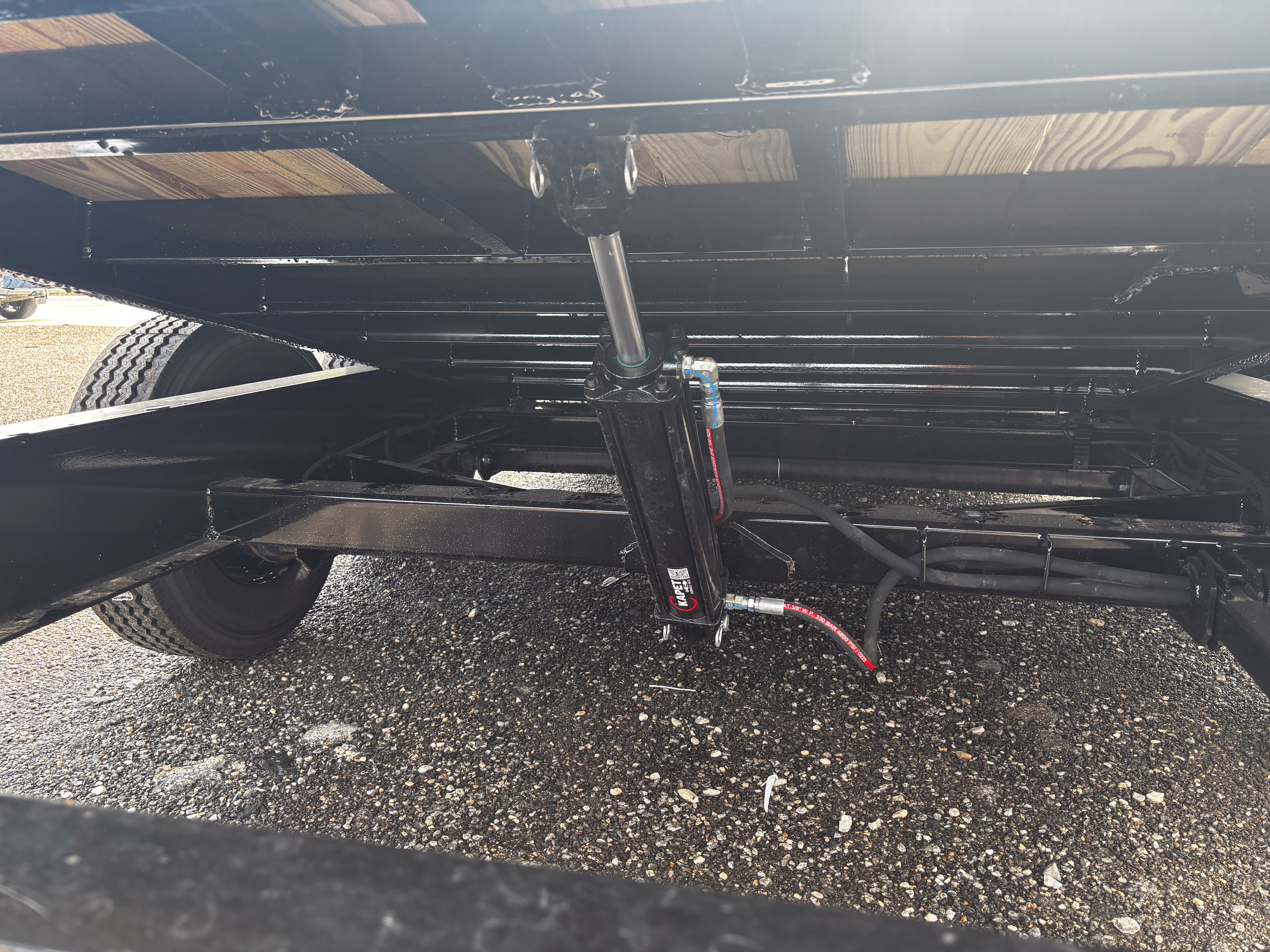

3"x16" Tilt Cylinder & Manual Release
The tilt function is powered by a single 3-inch bore by 16-inch stroke hydraulic cylinder. The system includes a manual safety release valve to control the lowering speed.

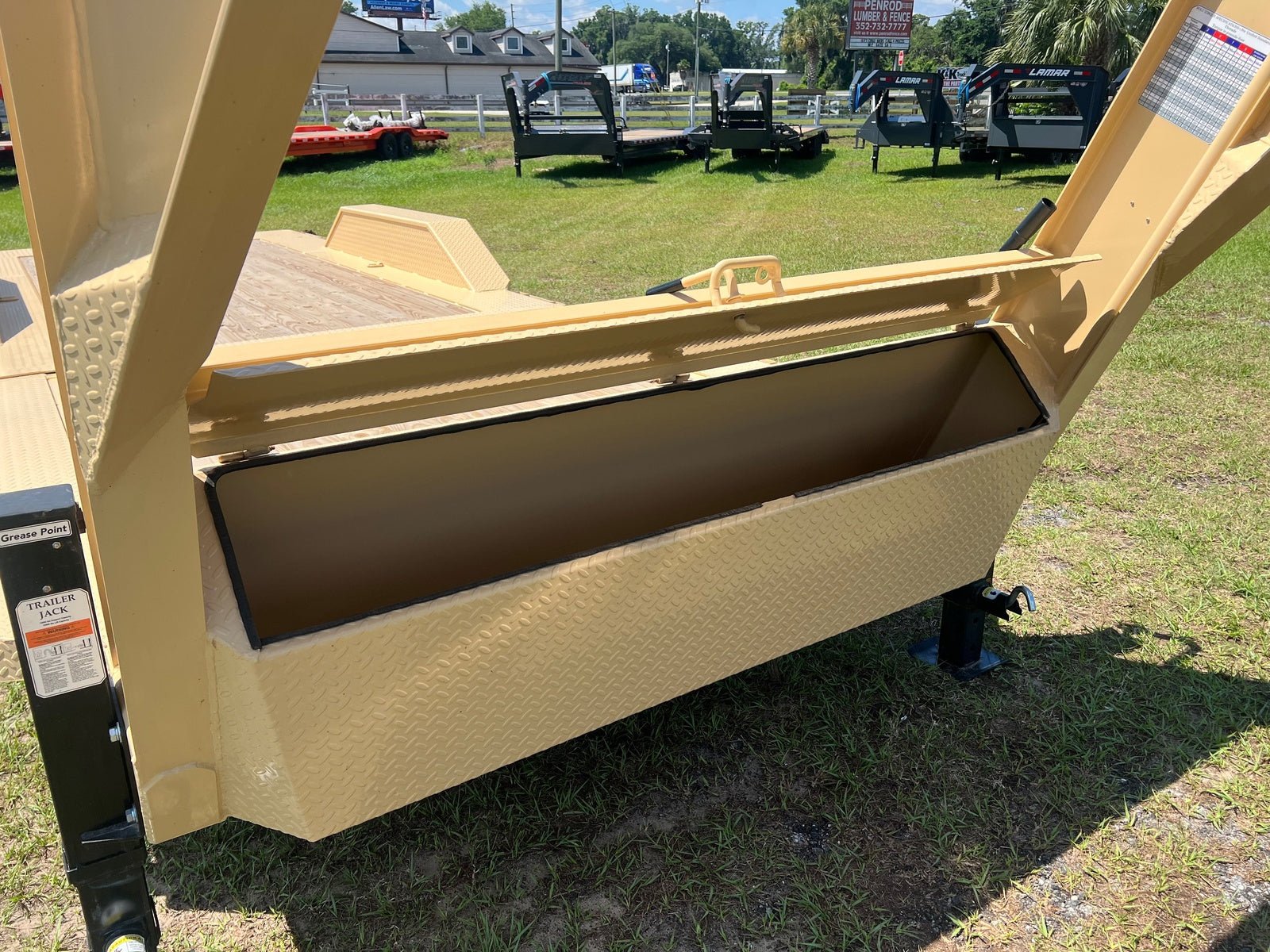

10" Engineered Neck & Mega Toolbox
The front of the deck includes a lockable storage box. This box incorporates a winch mounting plate, allowing a winch to be installed for pulling equipment onto the tilt deck.

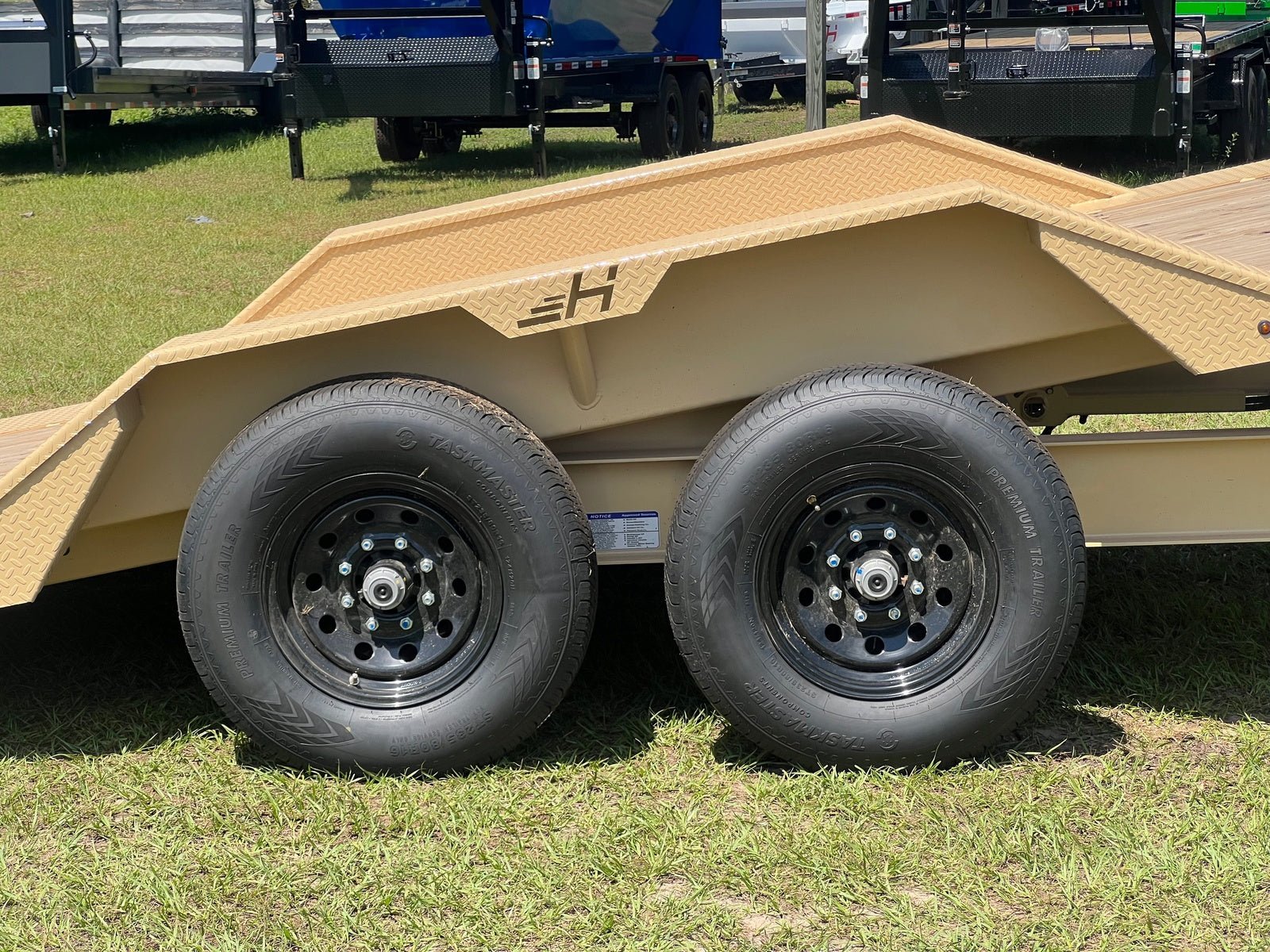

7k or 8k Dexter Torsion Axles
Equipped with either 7k or 8k Dexter electric brake axles. Both options use a torsion arm suspension system rather than traditional leaf springs.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 26'
- WIDTH:
- 83" - 102"
- DECK HEIGHT:
- 22"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 15.7k - 17.9k
RUNNING GEAR
- TIRES:
- ST235/80R16 / ST235/85R16 (8k)
- TIRE PLY:
- 10 Ply
- TIRE RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Electric Brake Dexter Axles
2 - 8k Electric Brake Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brake
- SUSPENSION:
- Torsion
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I-Beam
- LENGTH:
- 94" Long (From Behind Riser)
- HEIGHT:
- 70" High (From Underneath Neck)
- JACKS:
- 2 - Dual Side 12,000 lb Drop-Leg Jacks
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
- WINCH PLATE:
- Storage Box w/ Winch Mounting Plate
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" (13 lbs - 15lbs/ft on 8k) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 12 Ga. Removable Fenders
3/16" Diamond Plate DOF
- TILT METHOD:
- Gravity Tilt System
- TILT DECK:
- Split Deck (16' Tilt Section)
- LIFT CYLINDER:
- 1 - 3"x16" Cylinder
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- All-Weather Wiring Harness (7-Way RV)
Double Insulated Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- D-RINGS:
- Additional D-Rings
- RATCHETS:
- Weld On Ratchets
Sliding Ratchets
- TOOLBOX:
- Integrated Storage Box In Deck
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green(#949C78), Desert Tan(#D0BCA8), Flame Orange(#DD4B31), Midnight Black(#0B050D), Spectra Yellow(#C0973B), Blue Horizon(#1C4B92), Lime Green(#01A154), Ash Grey(#4F5154), True Red(#C03534), Pearl White(#C4CBCE), Cloud Grey(#ADADAC), Navy Blue(#26245B)
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
