Build & price your roll off package
Pick your hitch and deck length, then how many matching HDZ bins. Your package list price updates as you go.
Hitch
Pick how you tow itTrailer deck length
List price includes all standard featuresTrailer color
Powder coat color is included. Swatches are approximate; ask to see a sample.
Trailer options
Loading options…
Trailer deck length
List price includes all standard featuresTrailer color
Powder coat color is included. Swatches are approximate; ask to see a sample.
Trailer options
Loading options…
Roll off bins
How many bins?
Every bin in the package is built the same way. Need bins set up differently? Tell us in the form.
Bin color
Bin options
Priced per binLoading options…
Product Details
DIMENSIONS
- AVAILABLE LENGTHS:
- 14', 16', 20'
- DECK WIDTH:
- 61"
- DECK HEIGHT:
- 30"
- LOADING ANGLE:
- 60°
- DUMP ANGLE:
- 55°
- BOTTOM RAIL DECK WIDTH:
- 61"
WEIGHT RATINGS
- GVWR:
- 25,000 lbs
- GAWR:
- 10,000 lbs
- AXLE COUNT:
- 2
- AXLE RATING:
- 10,000 lbs (Super Singles)
FRAME CONSTRUCTION
- MAIN FRAME:
- 10" I-Beam (17 lbs/ft)
- BED FRAME:
- 2" x 5" x 7ga. Tubing
- CROSSMEMBERS:
- 2" x 5" x 7ga. Crossmembers
- SIDES:
- 3" x 4" x 3/8" Angle Iron
- FENDERS:
- Mega Diamond Plate Steel Fenders

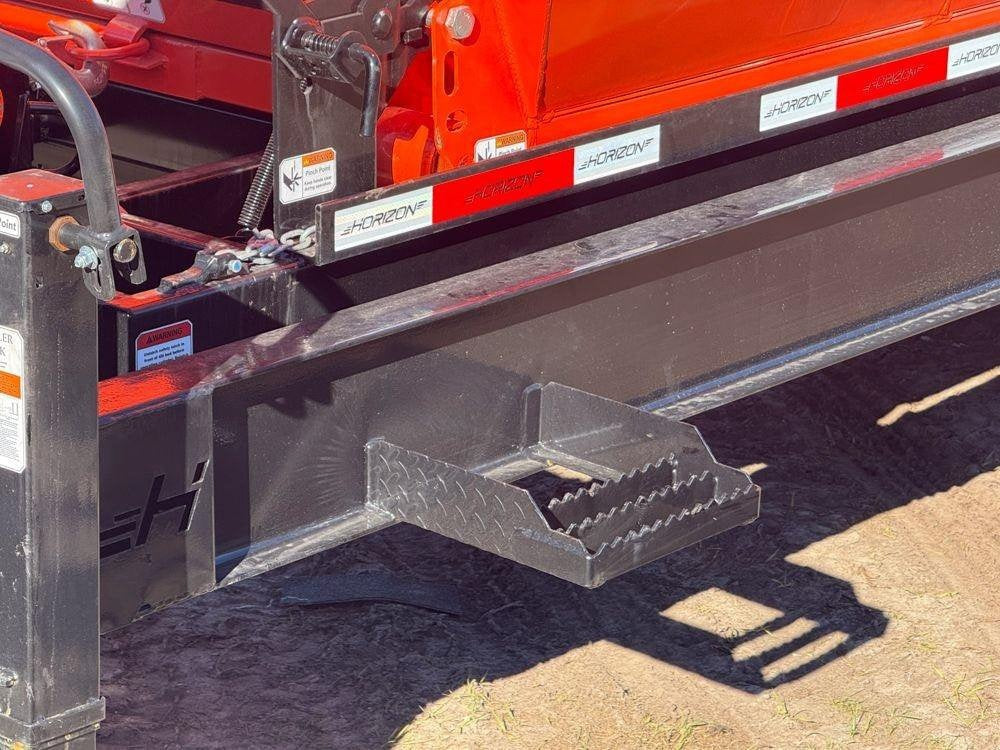

- SIDE STEP:
- Side Step on Both Sides

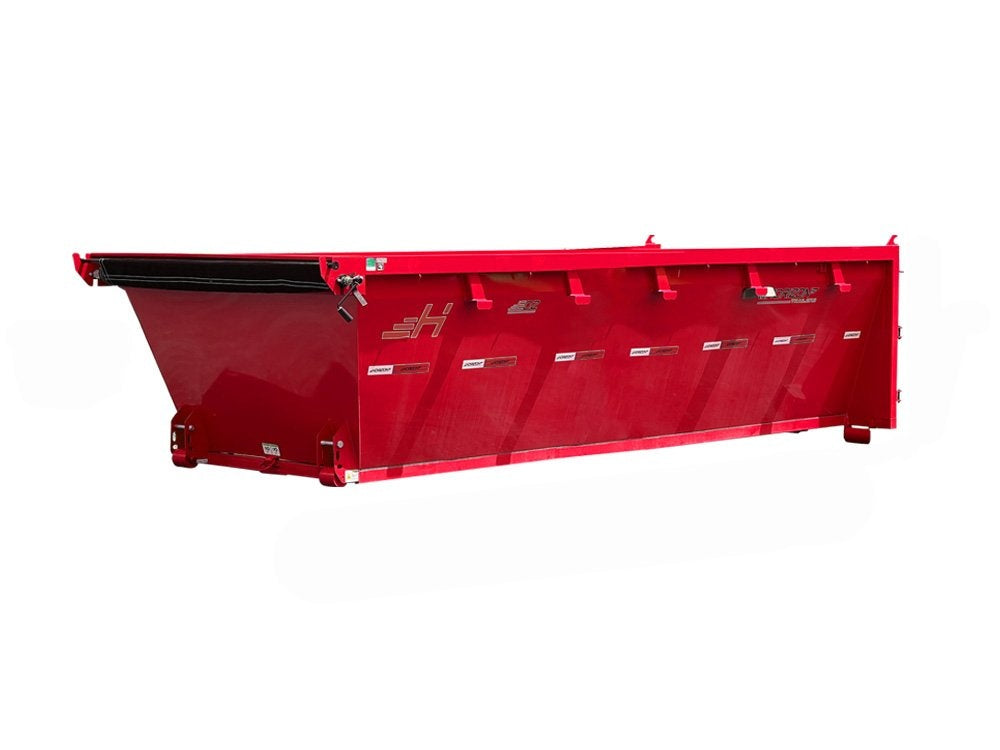

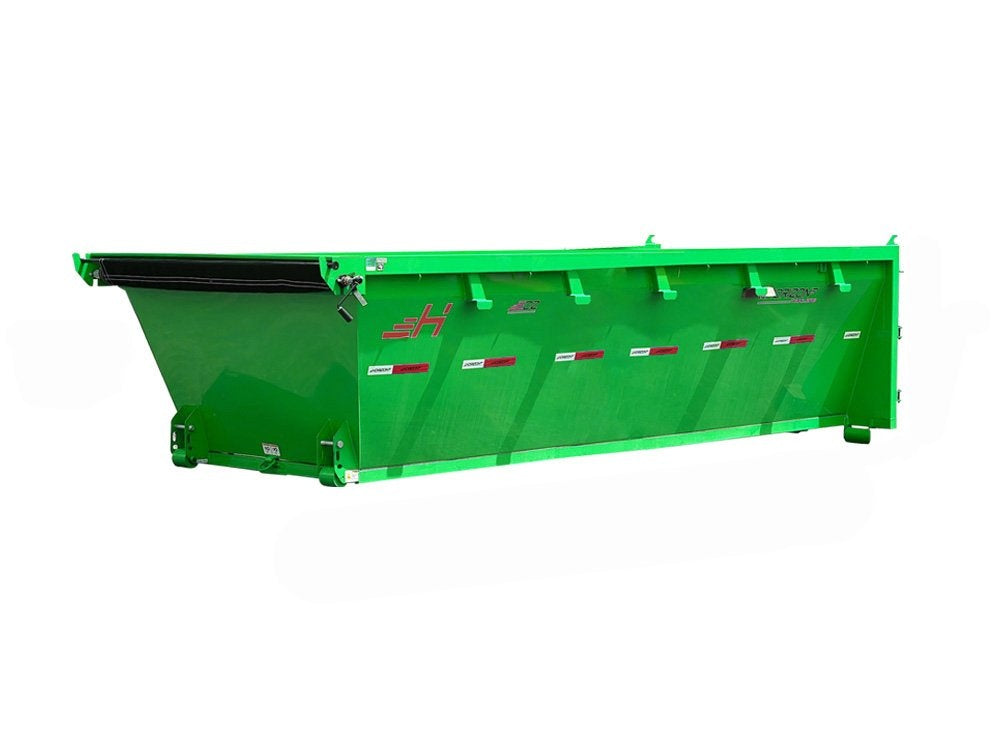

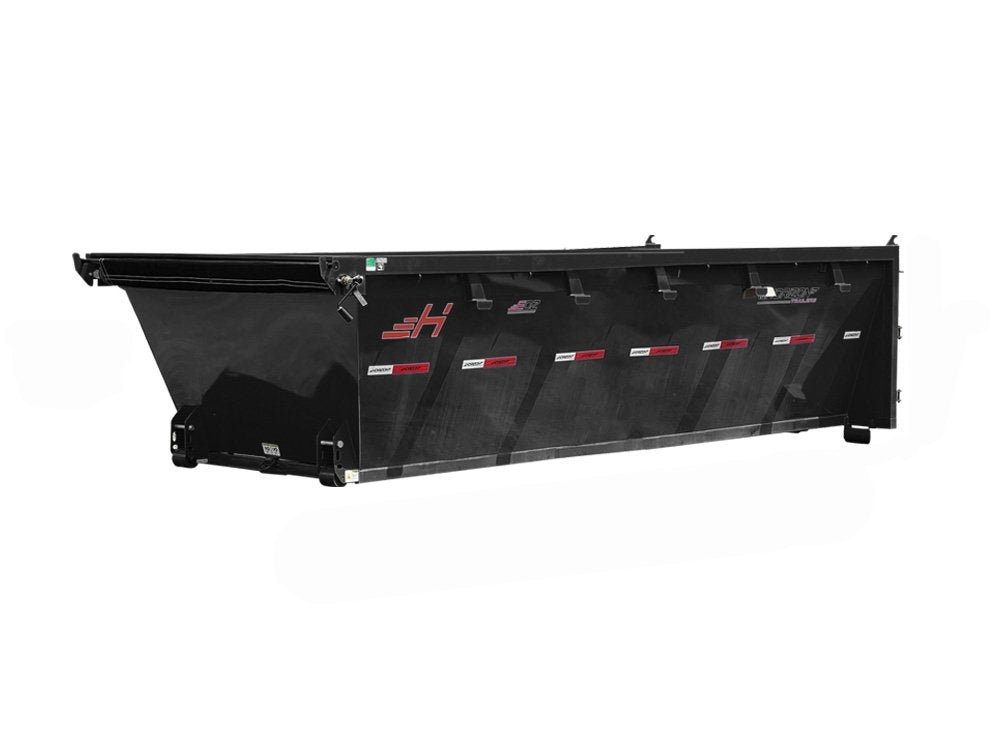

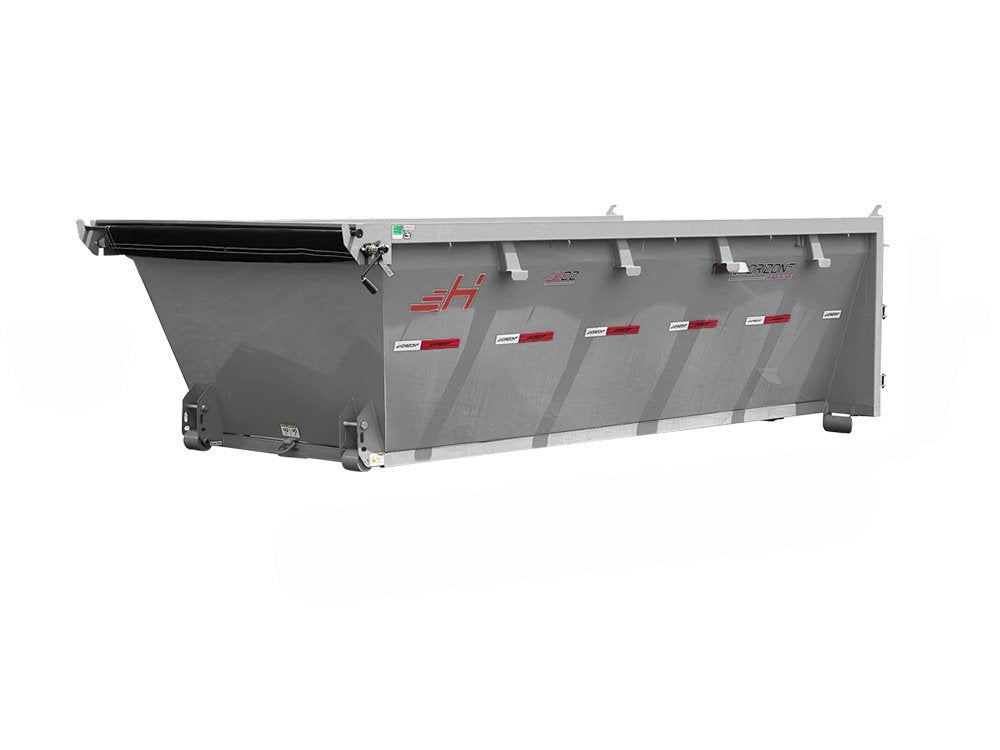

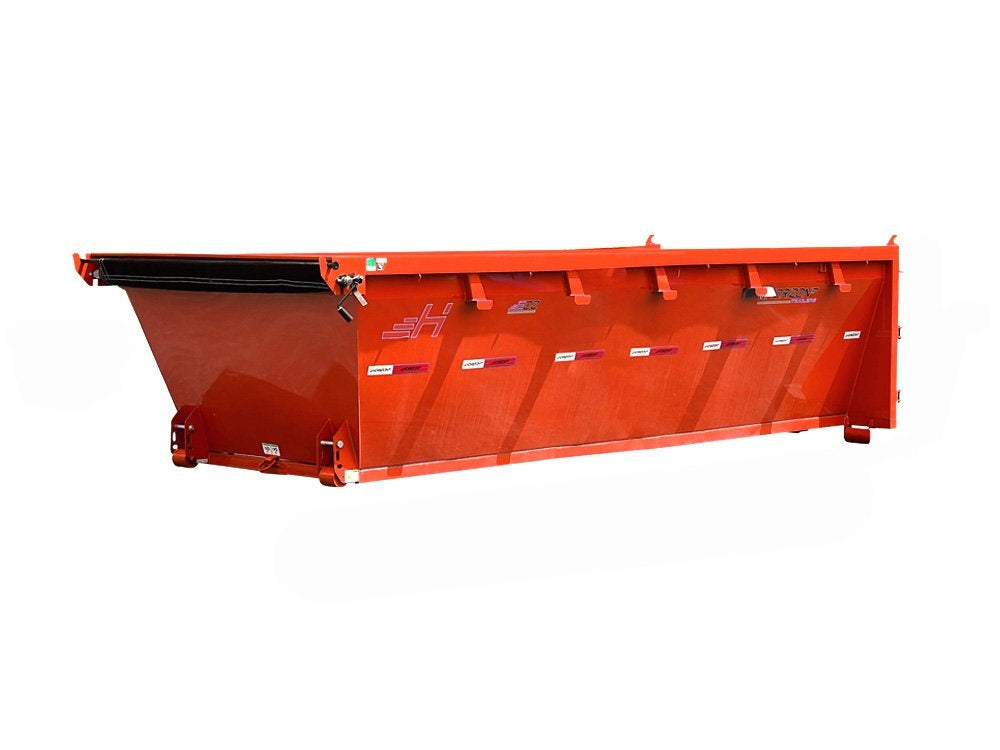

HDZ BIN CONSTRUCTION
- BIN FRAME:
- 1-1/2" x 3" x 7ga. Tube Frame
- BIN FLOORING:
- 14ga. Steel Floor
- BIN SIDES:
- Reinforced Steel (14ga.)
- TOP RAIL:
- 3" x 4" x 7ga. Tubing
- D-RINGS:
- 4 D-Rings Welded Inside Box
- REAR DOOR:
- 1 Heavy Duty Rear Door

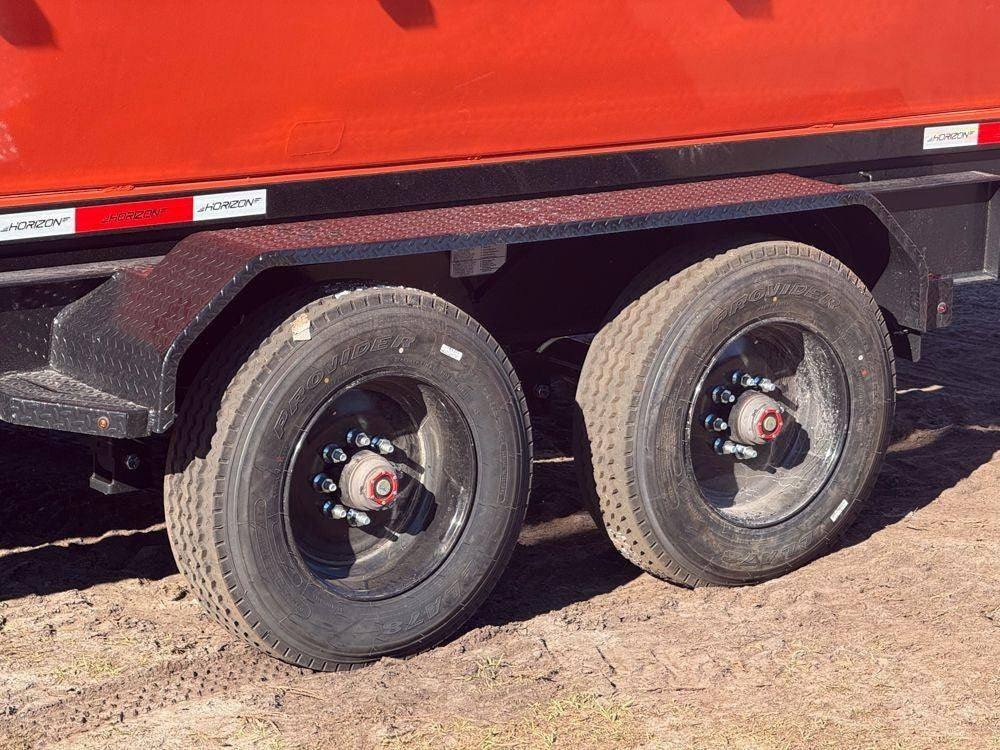

RUNNING GEAR
- AXLE TYPE:
- 10K Lippert Electric Brake Auto Adjust S-Cam Super Single Oil Bath Spring Axles (8 on 6.5")
- AXLE WARRANTY:
- 6 Year Lippert Spring Axle Warranty
- TIRES:
- ST235/75R17.5, Super Single 10,000 lbs
- RIMS:
- 17.5" Black Mod Wheels
- SUSPENSION:
- Spring

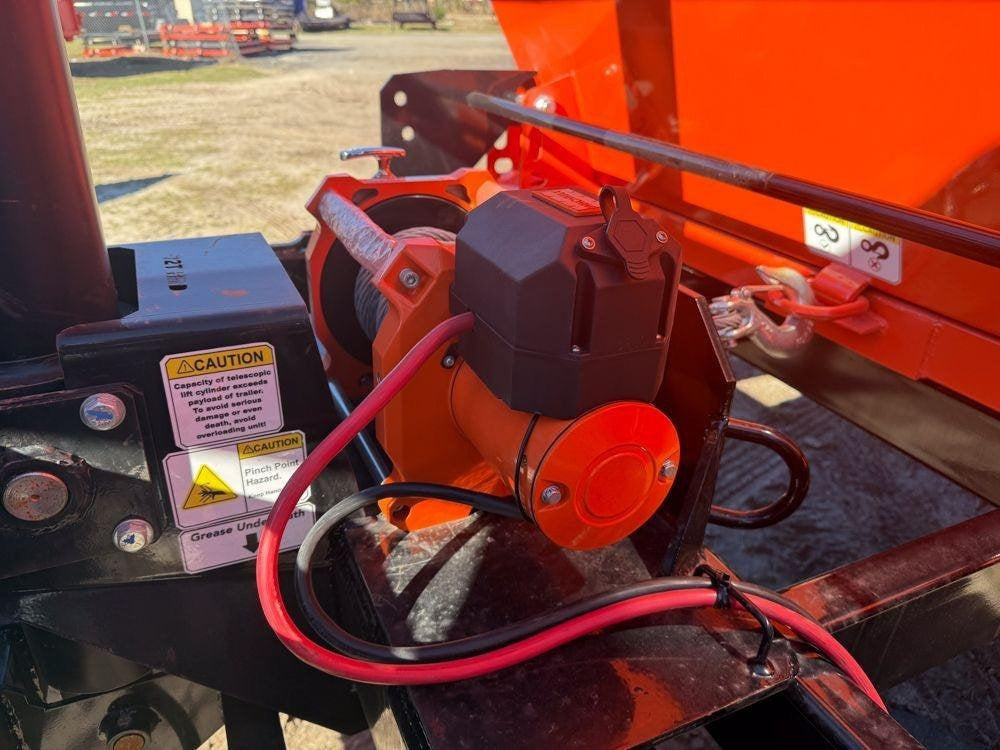

- WINCH:
- 20K Steel Cable WinchMax Winch

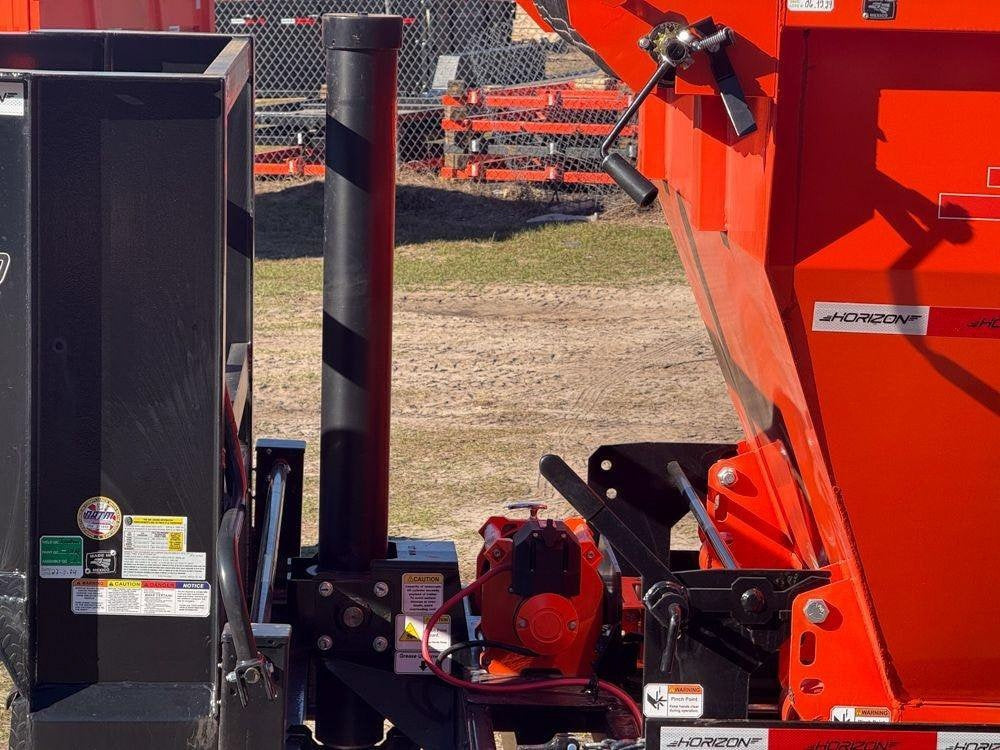

HYDRAULIC SYSTEM
- SYSTEM:
- 2 Button Hydraulic - Power Up / Power Down
- HOIST 14':
- 20K Hoist w/ 6" x 21" Single Push Cylinder
- HOIST 16':
- 20K Hoist w/ 6" x 40" Single Push Cylinder
- PUMP:
- K11 LV Hydraulic Pump

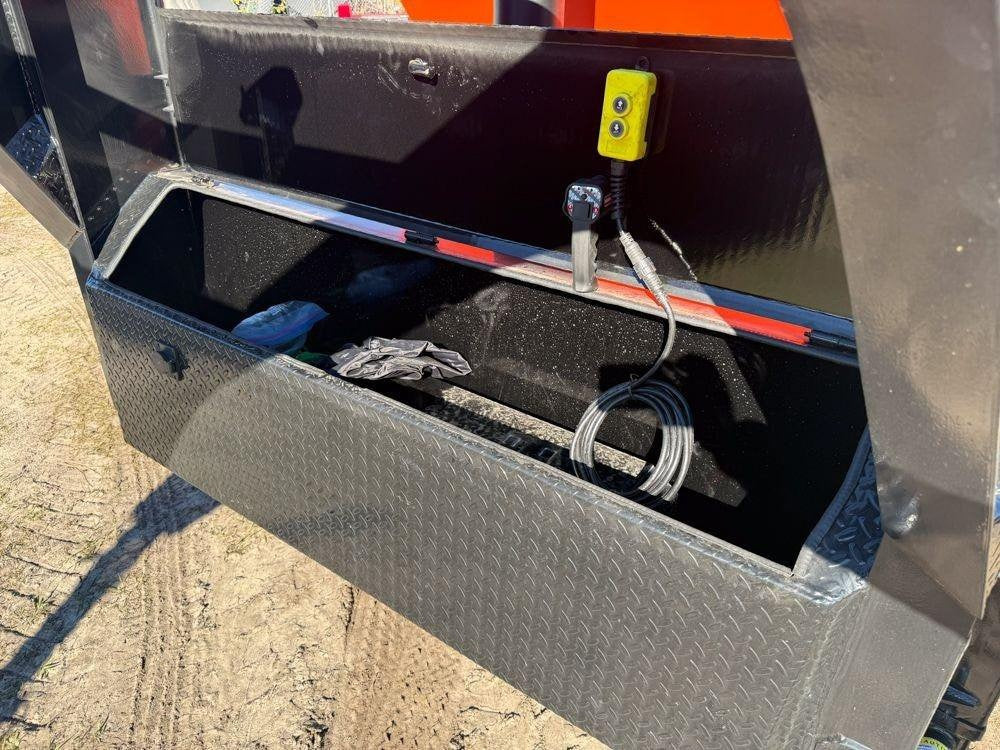

- CONTROLLER:
- K1 Control Cable
OPTIONS
