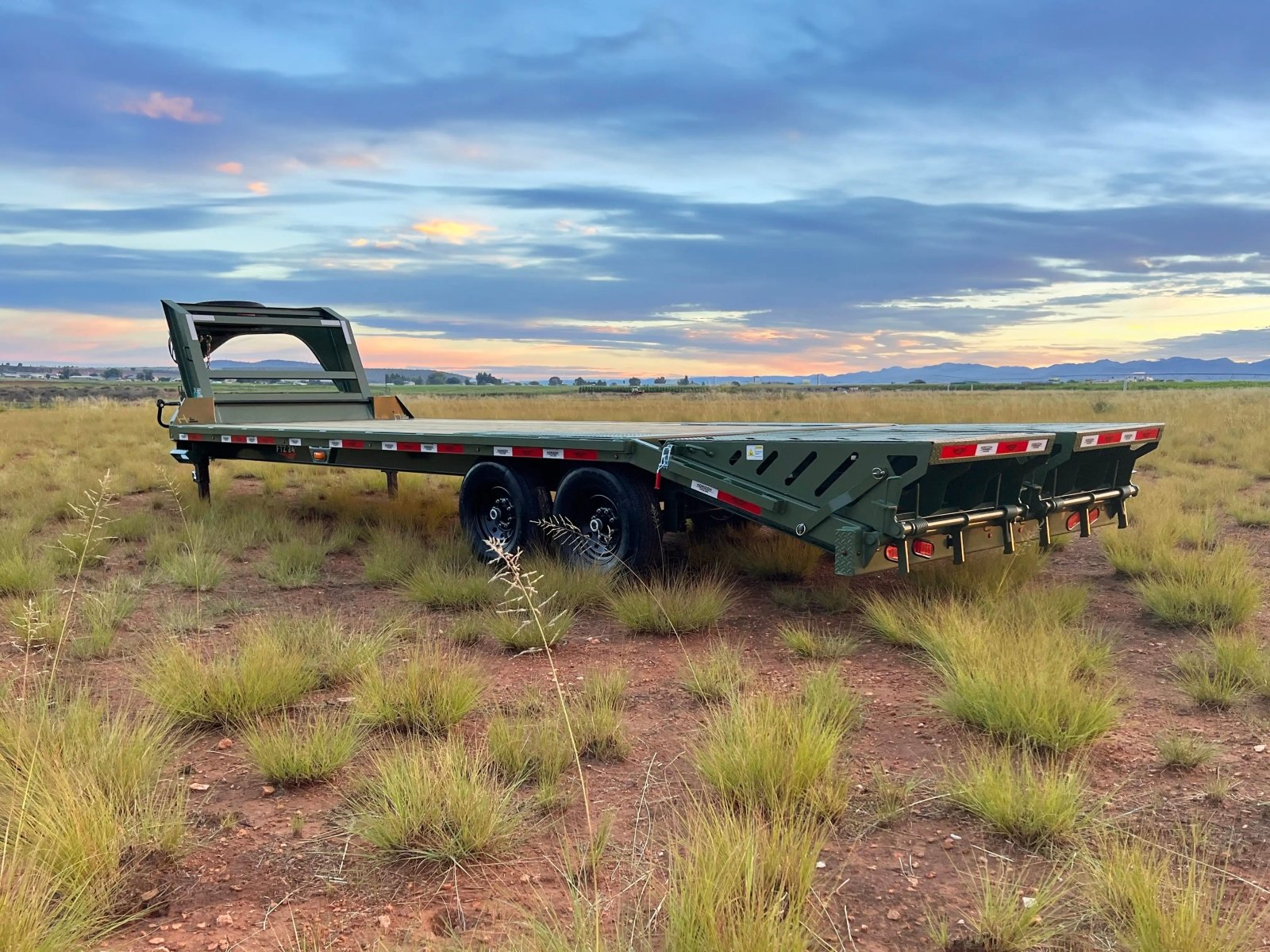

Horizon FTZ Gooseneck Flatbed
Horizon FTZ Gooseneck Flatbed
At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Gooseneck
Dimensions
- LENGTH:
24'-40'
Featured Video
Product Features
Ramp Options
The Horizon FTZ Flatbed Trailer offers three distinct ramp styles tailored for diverse loading requirements: choose from the ease of Straight Deck 8 Ft Slide-Ins, the robust 3 in Channel Ramps, or the 5 Ft Dovetail with 2 Mountain Ramps for maximum efficiency and safety in handling a variety of loads. Perfect for any task, each option provides reliable and convenient access tailored to your hauling needs.
12,000 LB Jacks
Choose from three options tailored to your needs: the 12k Side Wind Drop Leg, providing easy height adjustment with a side-winding mechanism; the 12k Ram 2 Speed Jacks, offering efficient lifting with two-speed operation; or the 12k Hydraulic Jack, providing effortless lifting with hydraulic power. Each option ensures reliable performance and is designed to meet your trailer's lifting requirements.
Connection Options
For this trailer, we offer both gooseneck and fifth wheel connections, providing versatility to meet your towing needs. Whether you prefer the stability and maneuverability of a gooseneck connection or the flexibility of a fifth wheel, our trailer accommodates both options seamlessly. With either choice, you can trust in secure and reliable towing for your cargo, ensuring peace of mind on the road.
Versatile Deck Options
Tailor your hauling needs with two versatile deck configurations. Opt for the 5' dovetail equipped with dual-mounted ramps for easy loading and unloading of equipment, or choose the straight deck with 8' channel slide-in ramps for straightforward access. These options provide flexibility for various types of cargo and loading requirements.
DURABLE POWDER COAT FINISH
Available in a variety of vibrant colors, the FTZ flatdeck trailer is finished with a durable powder coating. This not only enhances its aesthetic appeal but also provides robust protection against corrosion, extending the trailer's lifespan and maintaining its appearance even under tough environmental conditions.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Horizon Flatdeck Trailer
- DECK WIDTH:
- 102"
- DECK HEIGHT:
- 34"
- LENGTHS:
- 20' - 40' (Available On)
- GVWR PH:
- 15,200 - 23,500 lbs (Pintle Hitch)
- GVWR GN:
- 15,200 - 23,500 lbs (Gooseneck)
TONGUE
TONGUE PINTLE HITCH:
- TYPE:
- 12" I-Beam (14 lbs/ft)
- LENGTH:
- 63"
- SPARE:
- Weld On Spare Tire Mount

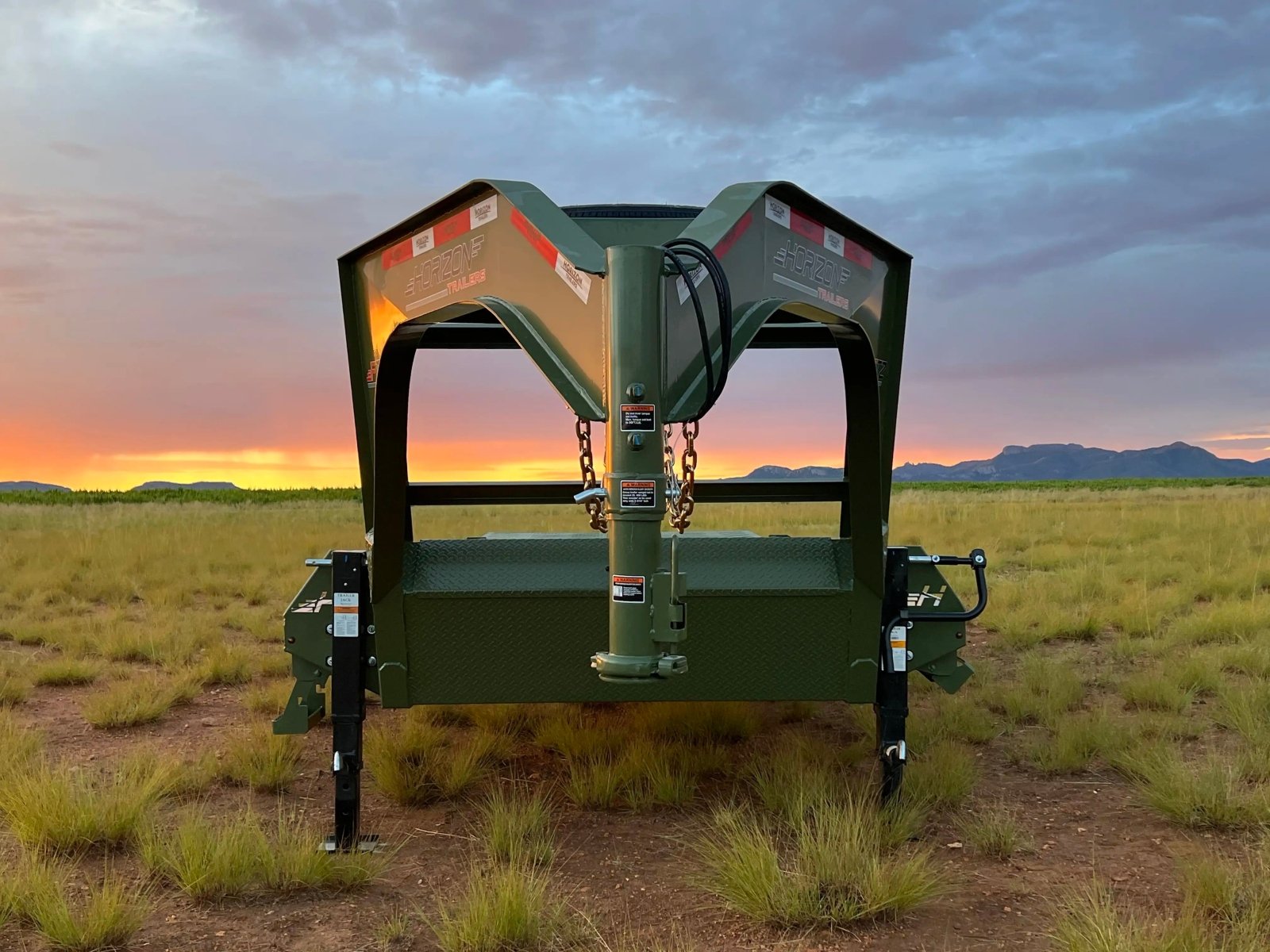

TONGUE GOOSENECK:
- TYPE:
- 10" Engineered Steel I-Beam
- LENGTH:
- 96" (From Behind Riser)
- HEIGHT:
- 70" (From Underneath Neck)
- SPARE:
- Weld On Spare Tire Mount
COUPLER:
- STANDARD COUPLER PH:
- Pintle Ring (25,000 lbs)
- STANDARD COUPLER GN:
- Adjustable 2-5/16" Coupler (30,000 lbs)
JACKS:
- FRONT JACK PH:
- 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
- FRONT JACKS GN:
- 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
TOOLBOX:
- TOOLBOX PH:
- Diamond Mesh Wire Floor Storage
- TOOLBOX GN:
- Mega Lockable Toolbox
SPARE TIRE:
- TYPE:
- ST235/80R16 10 Ply Tire, Single (3,520 lbs)
CHASSIS
FRAME:
- MAIN FRAME:
- 12" I-Beam (14 lbs/ft)
- TORQUE TUBE:
- 4-1/2" Tube
- SIDE:
- Slide In Side Stop On Both Sides
BED:
- DECK:
- Straight Deck
- DECK WIDTH:
- 102"
- DECK HEIGHT:
- 34"
- FLOORING:
- Pine Lumber Floor
- FRAME:
- 2" x 6" Tubing Bed Frame
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) 16" Spacing
SIDES:
- STAKE POCKETS:
- 1-5/8" x 3-5/8" (ID) Stake Pockets (Spaced at 24")

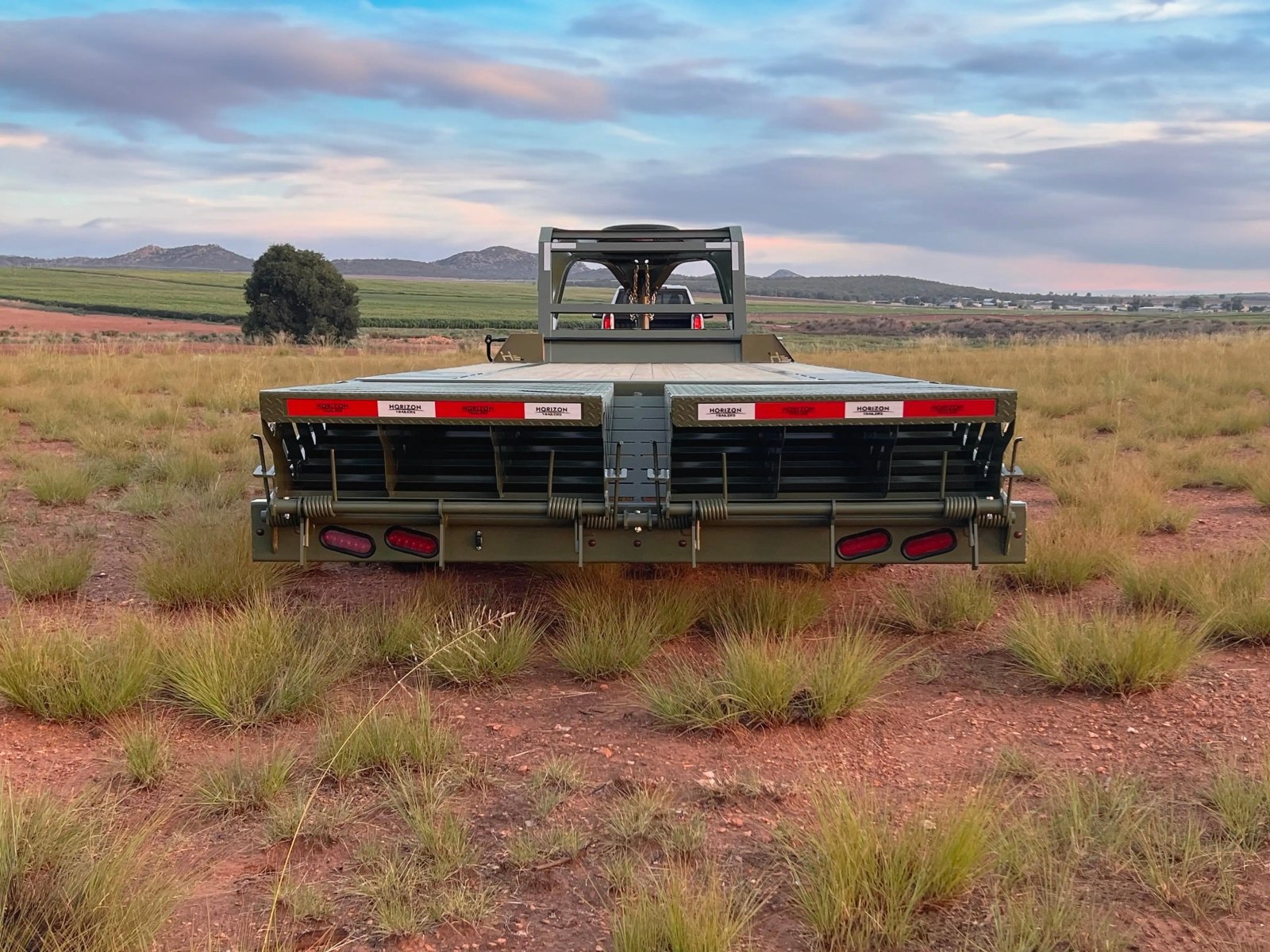

REAR:
- RAMPS:
- Ramp Pockets w/ 2 - 8' Long Heavy Duty Slide In 4" Channel Ramps (5,000 lbs each)
RUNNING GEAR
TIRES:
- TYPE:
- Radial Tires
- SIZE:
- ST235/80R16
- PLY:
- 10 Ply
- RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
SUSPENSION:
- AXLE:
- 2 - 7k Lippert Electric Brake EZ Lube Spring Axles
- BOLT PATTERN:
- 8 on 6.5"
- AXLE COUNT:
- 2
- SUSPENSION TYPE:
- Spring
- AXLE WARRANTY:
- 6 Year Lippert Spring Axle Warranty
SAFETY & ELECTRICAL
SAFETY SYSTEM:
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
ELECTRICAL & LIGHTING:
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- LIGHTS:
- DOT Approved Tecniq LED Lights
FINISH
PAINT:
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
WARRANTY
WARRANTY:
- AXLE WARRANTY:
- 6 Year Lippert Spring Axle Warranty
- TRAILER WARRANTY:
- Three (3) Year Frame
- PARTS WARRANTY:
- One (1) Year Parts Warranty
