At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Gooseneck
Dimensions
- LENGTH:
12' - 16'
Interested in this Trailer?
Product Features

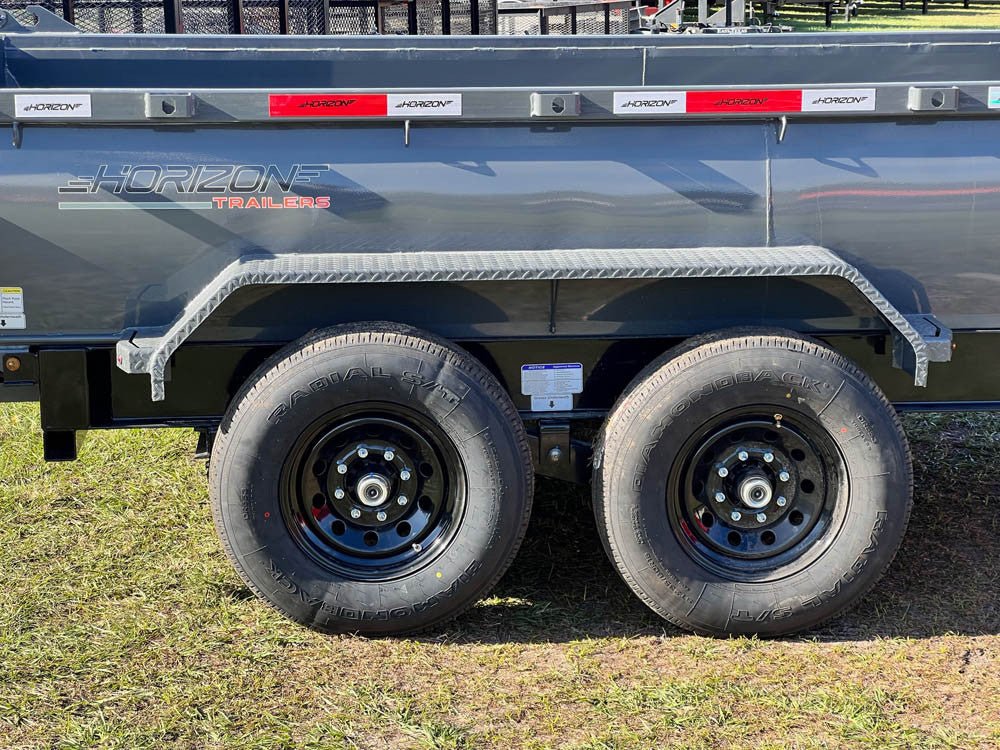

Axles and Running Gear
Engineered for reliable towing performance, the LZ7 dump trailer features a tandem axle system with electric brakes for smooth and stable operation. With a GVWR of 14,000 lbs. and sturdy 16-inch radial tires, it offers exceptional towing capacity and maneuverability, whether on highways or job sites.
High-Performance Hydraulic System
Powered by a 12-volt hydraulic system with a 10,000-pound lifting capacity, the LZ7 dump trailer delivers smooth and efficient operation. Whether dumping gravel, soil, or demolition debris, its advanced hydraulic system ensures precise control and reliable performance, enhancing productivity on the job site.
Powder Coat LZ7
Finished with a powder coat for superior durability and corrosion resistance, the LZ7 dump trailer is built to withstand the elements. Its rugged construction and premium finish ensure long-lasting performance, even in the harshest environments, making it a reliable asset for years to come.

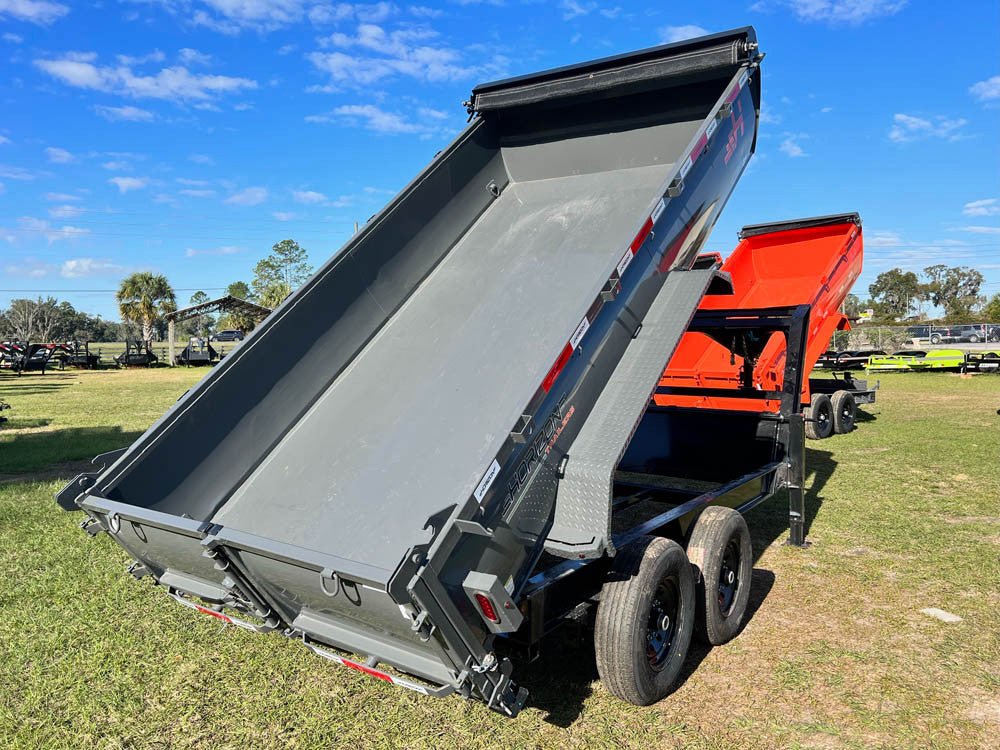

Bed
Featuring a 7-foot wide bed and 24-inch sides, the LZ7 dump trailer provides ample space for loading and unloading bulky items with ease. Integrated ramps and a low-profile design facilitate seamless ingress and egress of heavy equipment, machinery, and bulk cargo, maximizing efficiency on the job site.
Heavy Duty Construction
Built with 7-gauge steel construction and a reinforced frame, the LZ7 dump trailer is designed to withstand heavy loads of up to 14,000 lbs. Its rugged build ensures durability and resilience, making it the go-to choice for demanding hauling tasks in construction, landscaping, and agriculture.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Product Details
WARRANTY
WARRANTY:
- AXLE WARRANTY:
- 6 Year Lippert Spring Axle Warranty
- TRAILER WARRANTY:
- One (1) Year Frame / One (1) Year Parts Warranty
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- LZ7 Dump Trailer
- LENGTHS:
- 12', 14', 16'
- BED WIDTH:
- 83"
- BED HEIGHT:
- 28"
- SIDE HEIGHT:
- 24"
- GAWR:
- 7,000 lbs
- GVWR:
- 14,000 lbs
- CURB WEIGHT:
- Varies by length
FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 8" I-Beam (13 lbs/ft)
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) on 16" Spacing
- BED FLOORING:
- 9ga. Steel Floor
- D-RINGS:
- 4 Welded Inside Box
FINISH:
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
- STYLE:
- 2 Tone Colors Available (Chassis / Dump)
LIFT SYSTEM
LIFT SYSTEM:
- TYPE:
- 5" x 15" Single Push Cylinder (12', 14')
- HOIST CAPACITY:
- 15,000 lbs
HYDRAULICS
HYDRAULICS:
- SYSTEM:
- 3 Button Hydraulic - Power Up / Power & Gravity Down
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 14' Control Cable
DUMP & REAR
DUMP & REAR:
- DUMP ANGLE:
- 40° - 48°

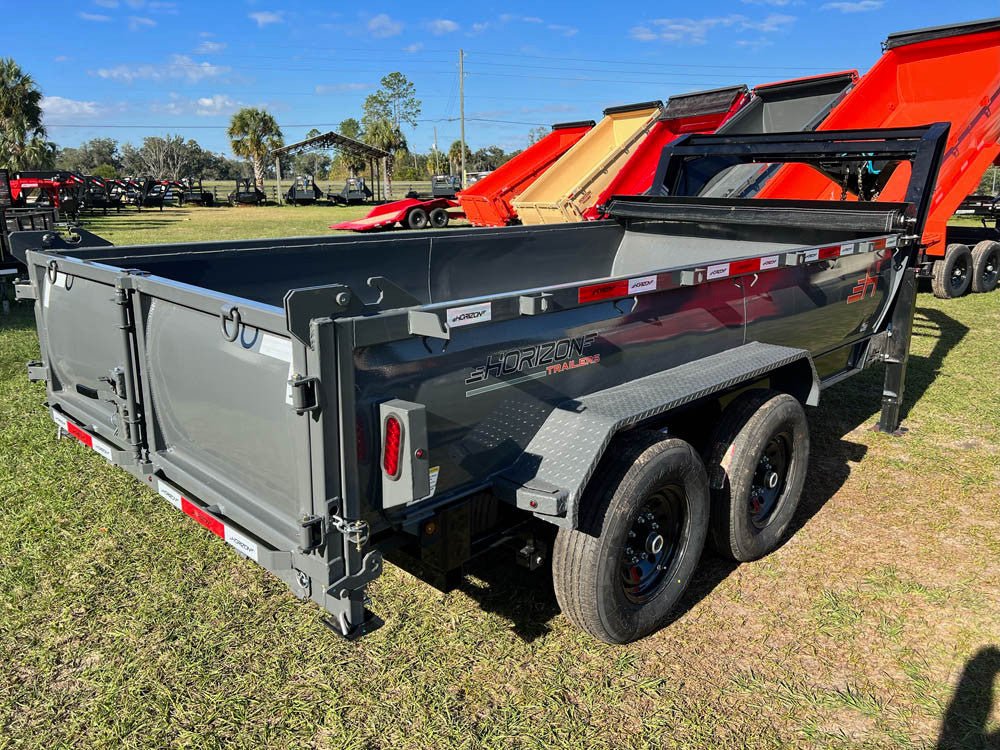

- GATE:
- 3 Way Door - Spreader Gate
- RAMPS:
- Ramp Pockets w/ 2 - 6' 4" Long Slide-In 3" Channel Ramps (2,500 lbs each)
RUNNING GEAR
RUNNING GEAR:
- AXLES:
- 2 - 7k Lippert Electric Brake EZ Lube Spring Axles
- SUSPENSION TYPE:
- Spring
- TIRES:
- Radial Tires, ST235/80R16, 10 Ply, 3,520 lbs Rating
- RIMS:
- 16" Black Mod Wheels
- BOLT PATTERN:
- 8 on 6.5"
ELECTRICAL & LIGHTING
ELECTRICAL & LIGHTING:

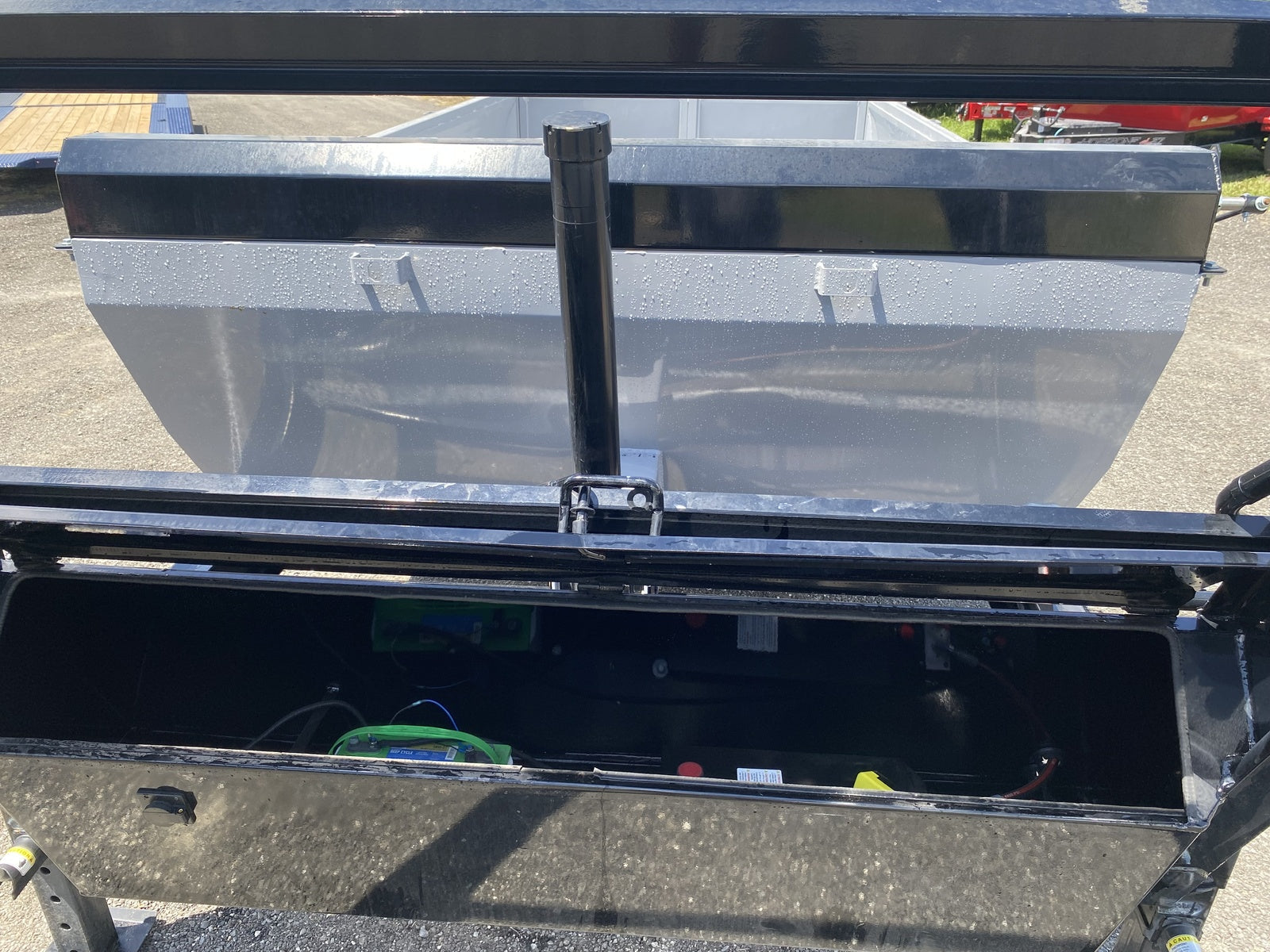

- BATTERY:
- 1 - Interstate 27 Deep Cycle Battery
- CHARGING SYSTEM:
- 110V Integrated Trickle Charger
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV), Double Insulated
- LIGHTS:
- DOT Approved Tecniq LED Lights
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
SAFETY
SAFETY:
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 each)
