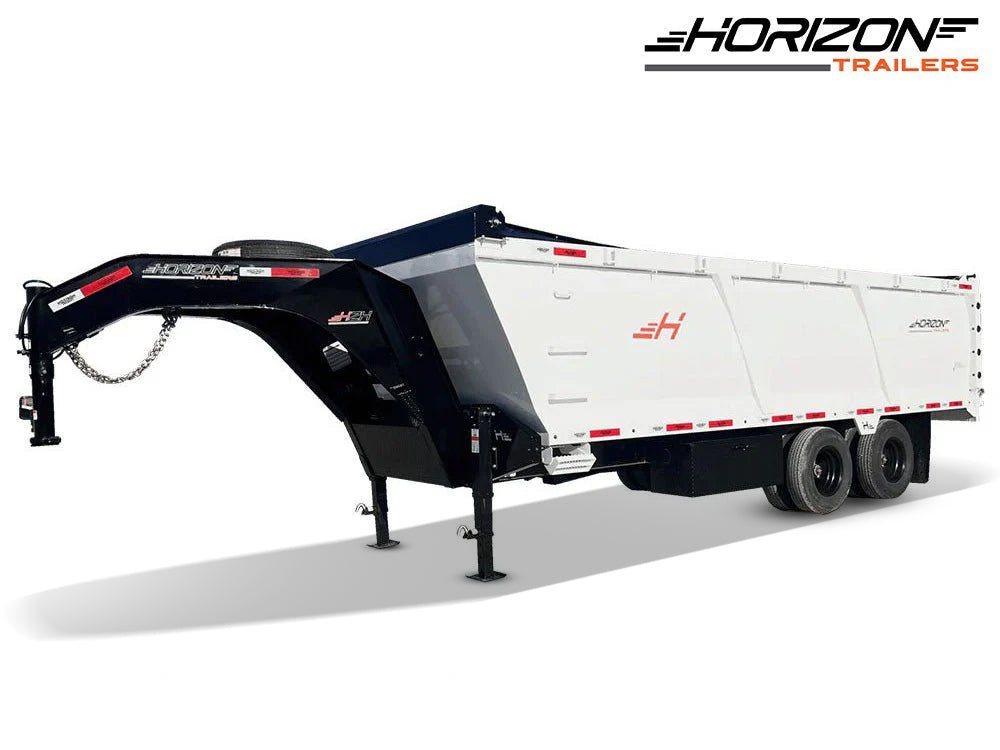

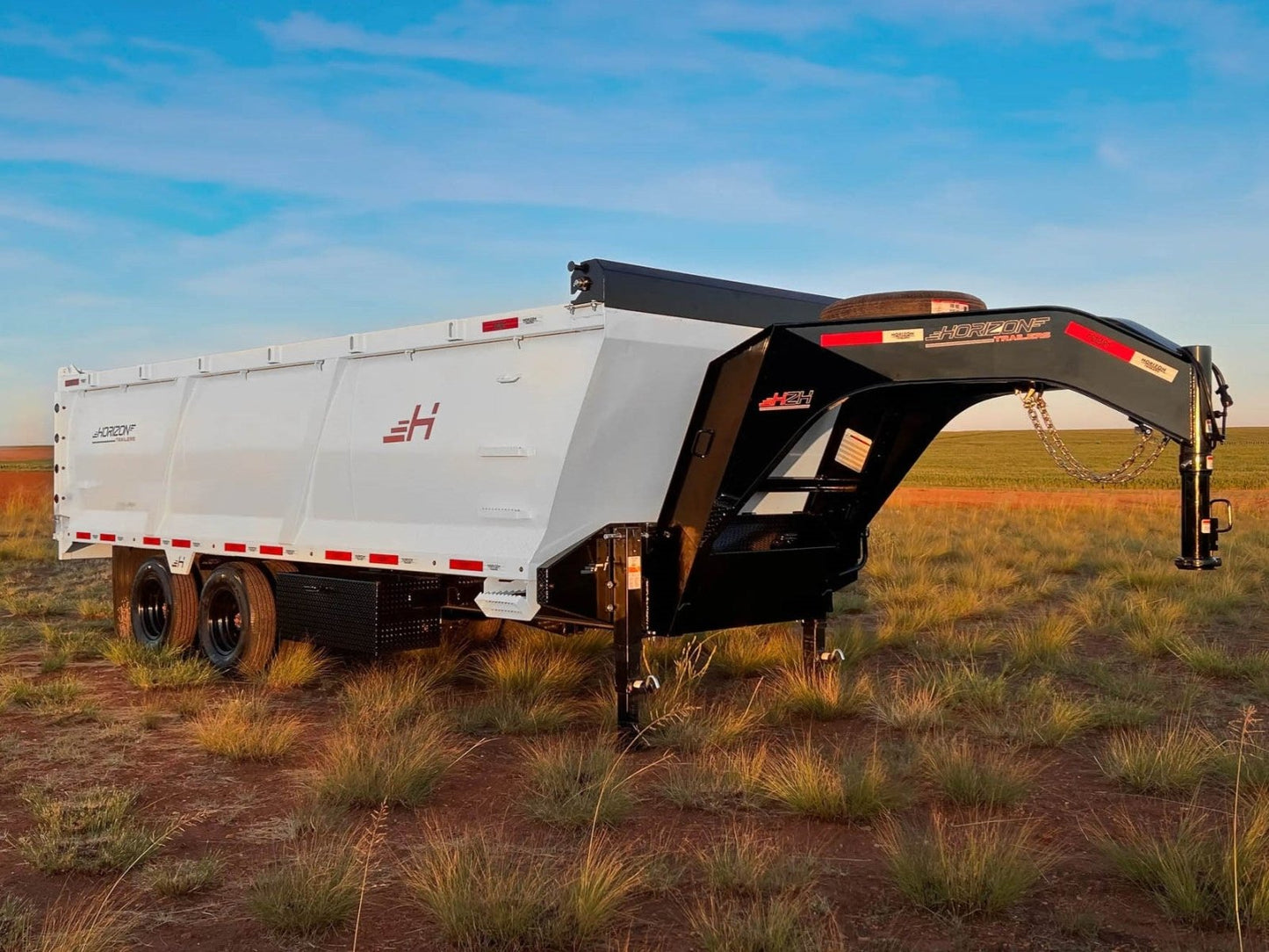

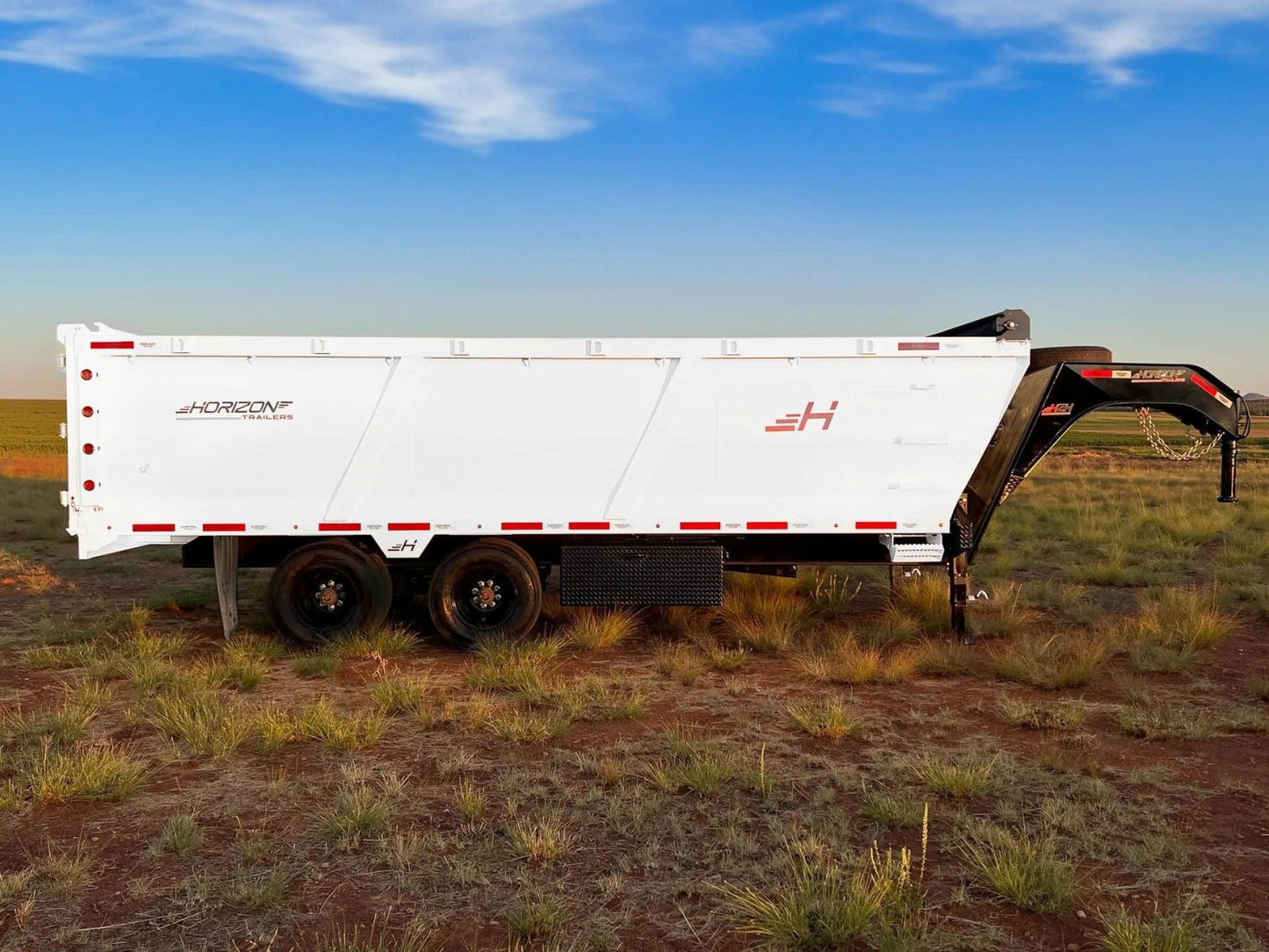

Horizon HZH Gooseneck Dump Trailer

Horizon HZH Gooseneck Dump Trailer

Horizon HZH Gooseneck Dump Trailer

Horizon HZH Gooseneck Dump Trailer

At a Glance

Brand Horizon
Pull type Gooseneck
GVWR 22400lbs
Length 16' - 20'

TRAILER SPECS:

Specifications

Brand:

Horizon

Pull Type:

Gooseneck

Weight Ratings

GVWR:
22400lbs

Dimensions

LENGTH:

16' - 20'

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery
View full details

Featured Video

Product Features

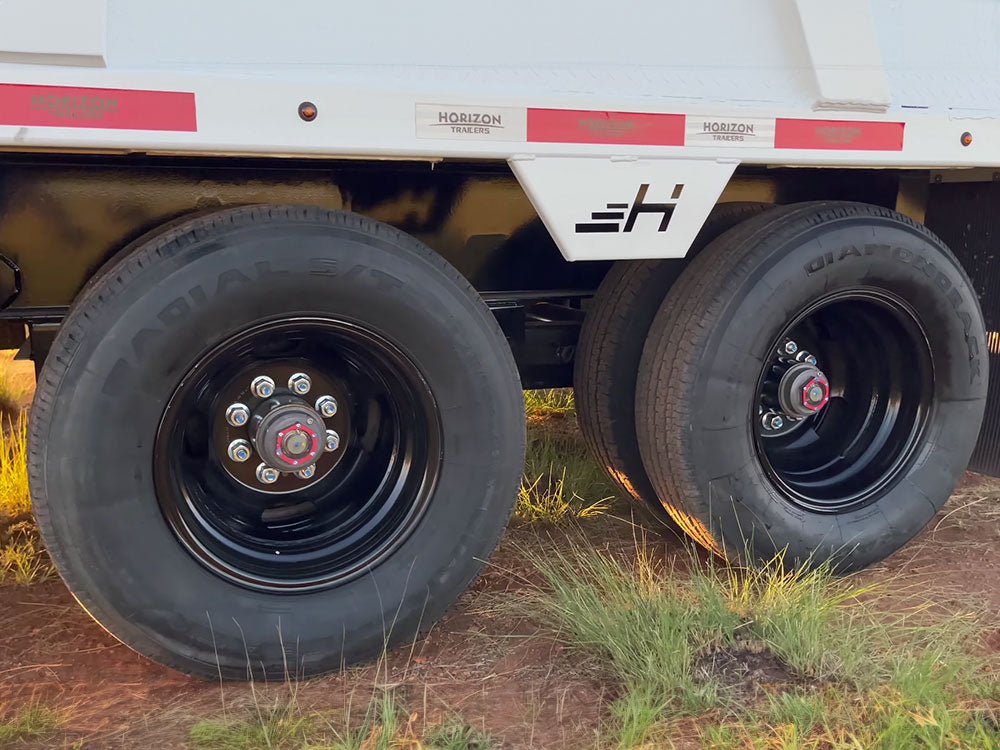

2 Monster 10 or 12K Axles

Built tough with two heavy-duty 10 or 12,000-pound axles for unmatched strength and stability. With its rugged construction and efficient design, this trailer is ready to tackle any hauling task with ease.

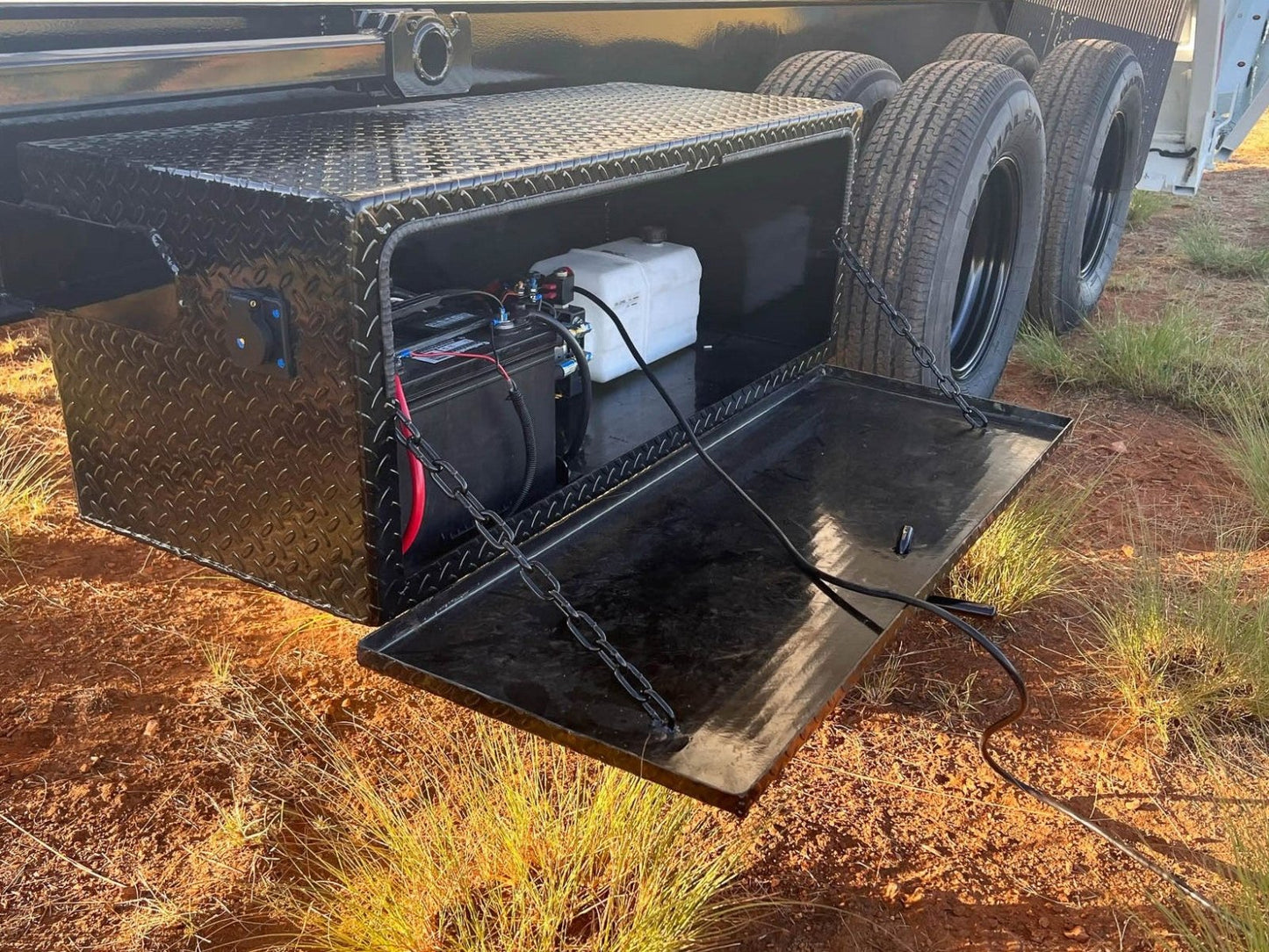

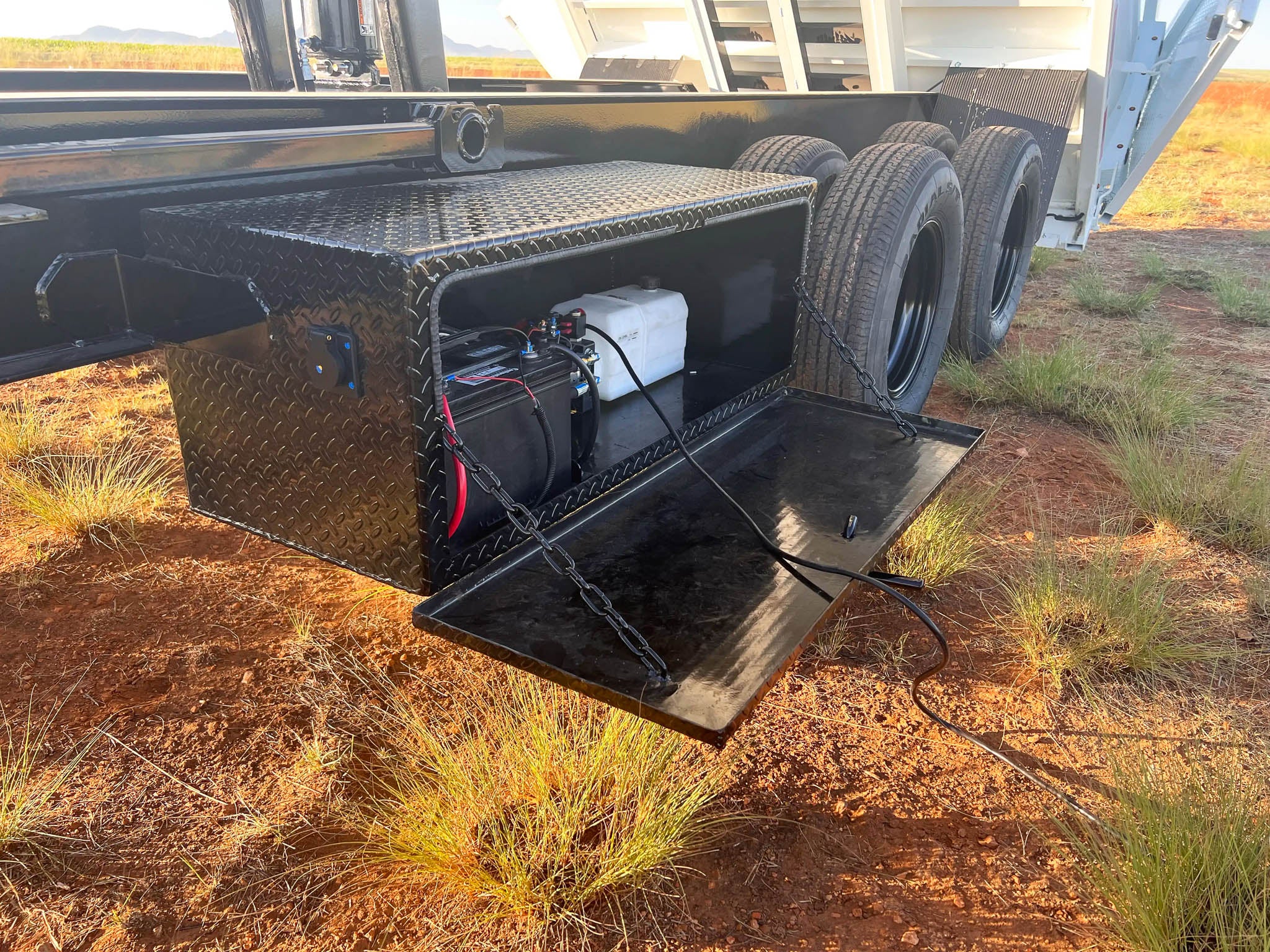

3 Spacious Toolboxes

The HZH Dump Trailer comes equipped with two large toolboxes, ensuring ample storage space for your gear and equipment. Two of these toolboxes are conveniently lockable, providing added security for your valuables while on the move.

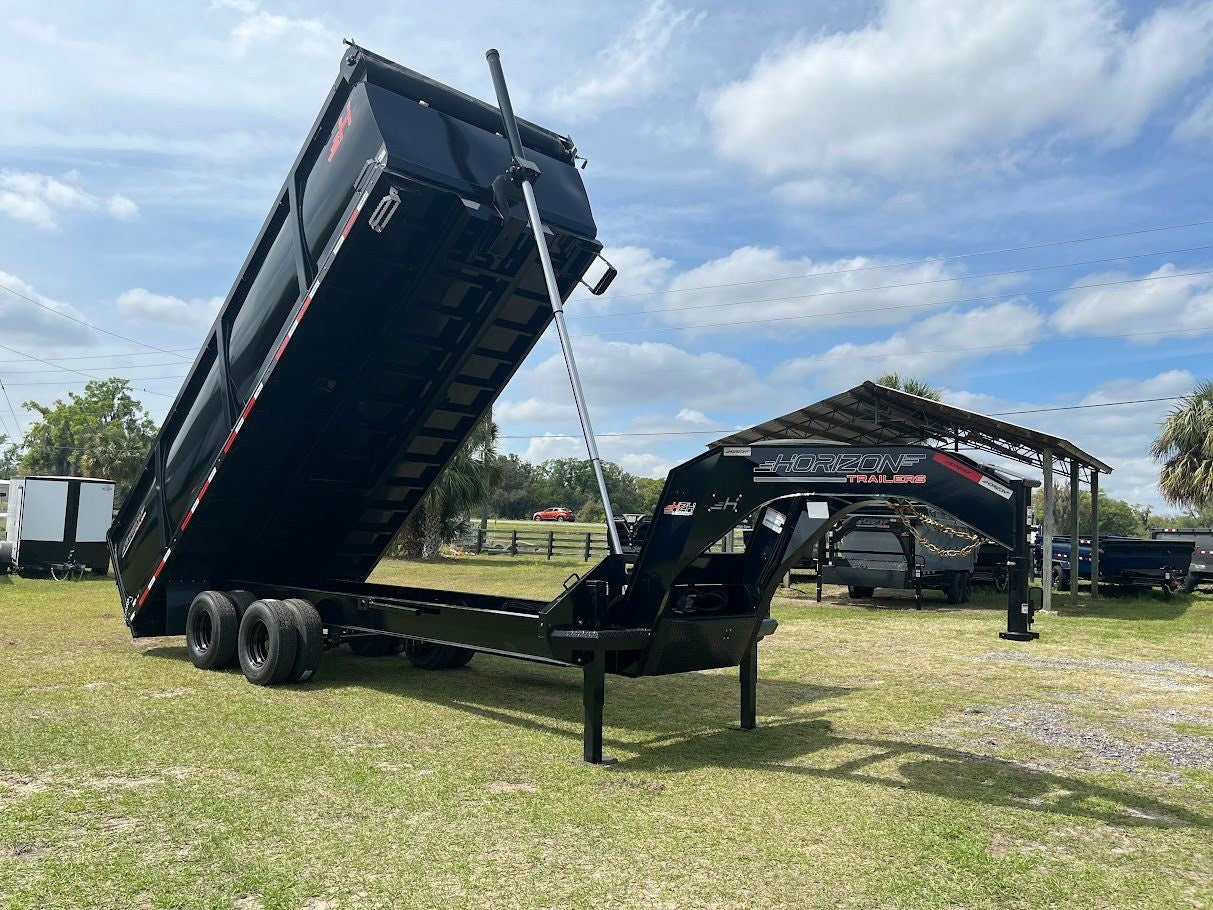

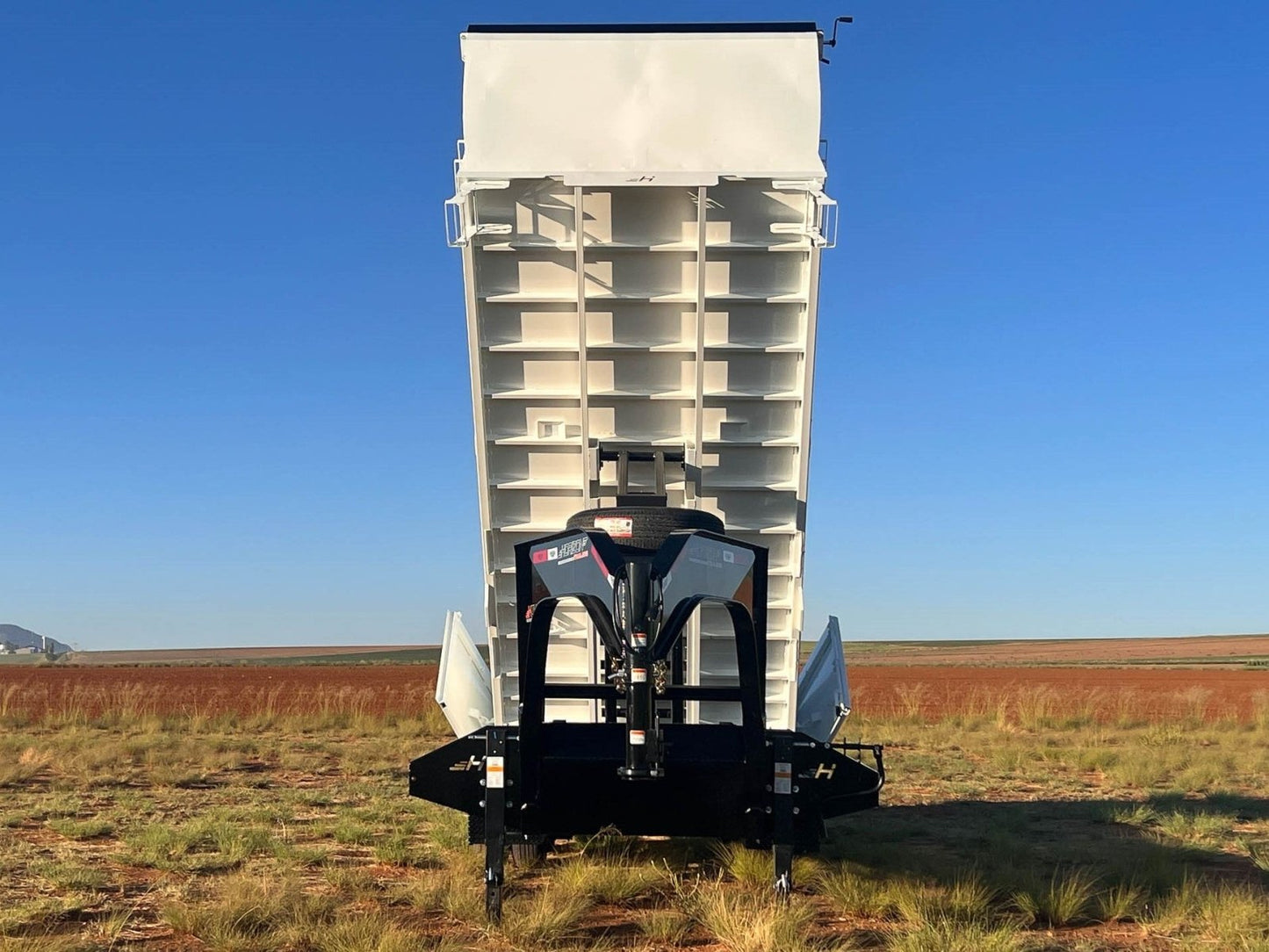

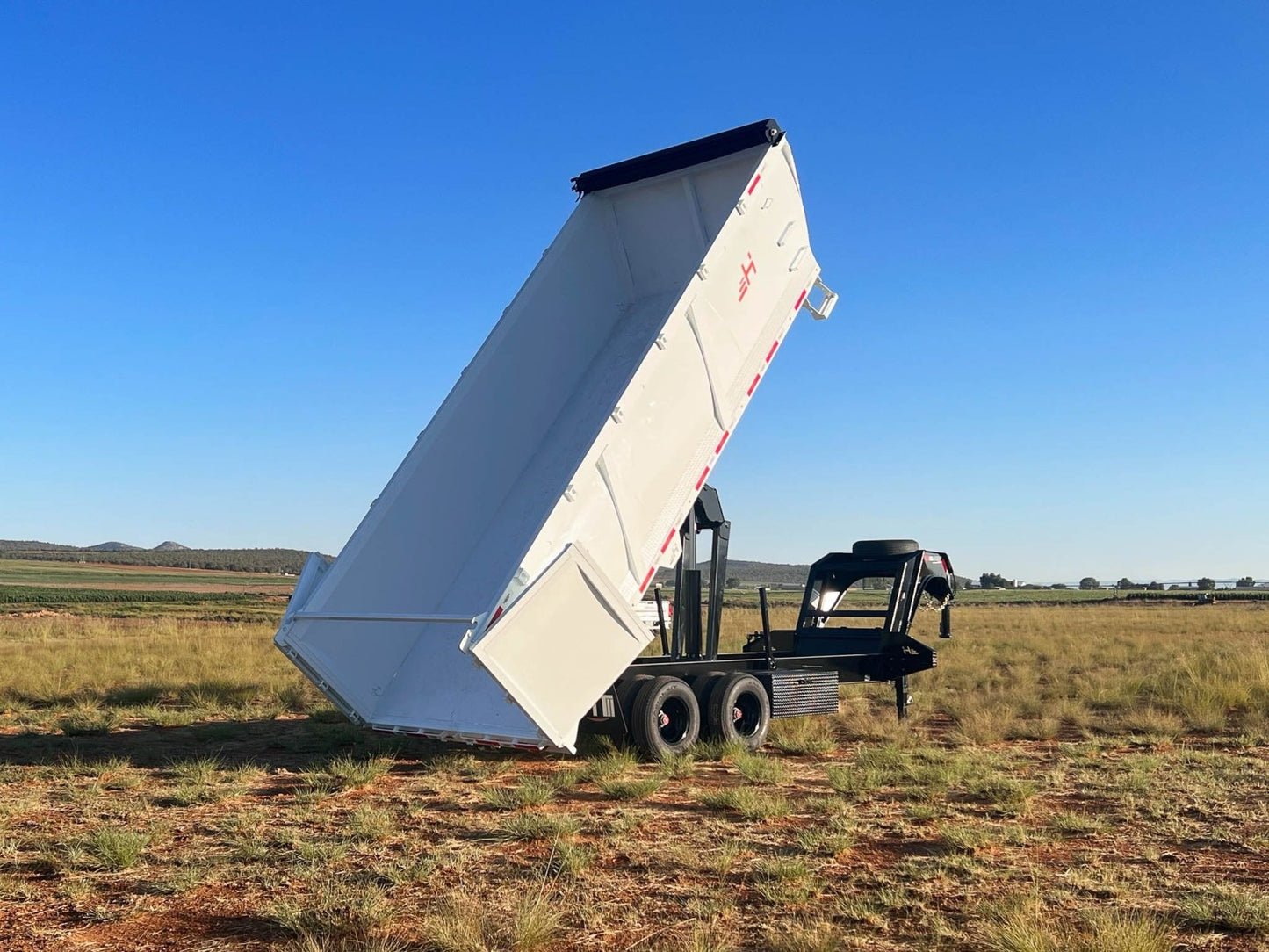

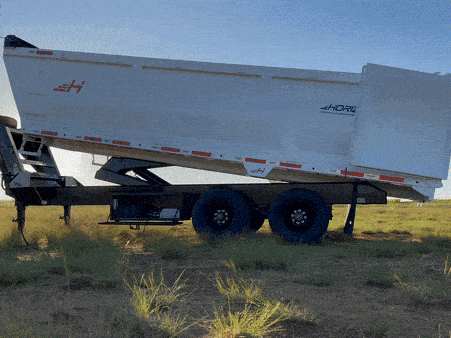

Lift System

This trailer boasts a powerful hydraulic system with options for either a 6" x 30" or 6" x 21" hydraulic cylinder and scissor hoist, or a 12-ton telescopic cylinder, alongside a 12v KTI pump. Together, they effortlessly tilt the trailer bed up to 42 degrees, simplifying the loading and unloading of heavy loads with ease.

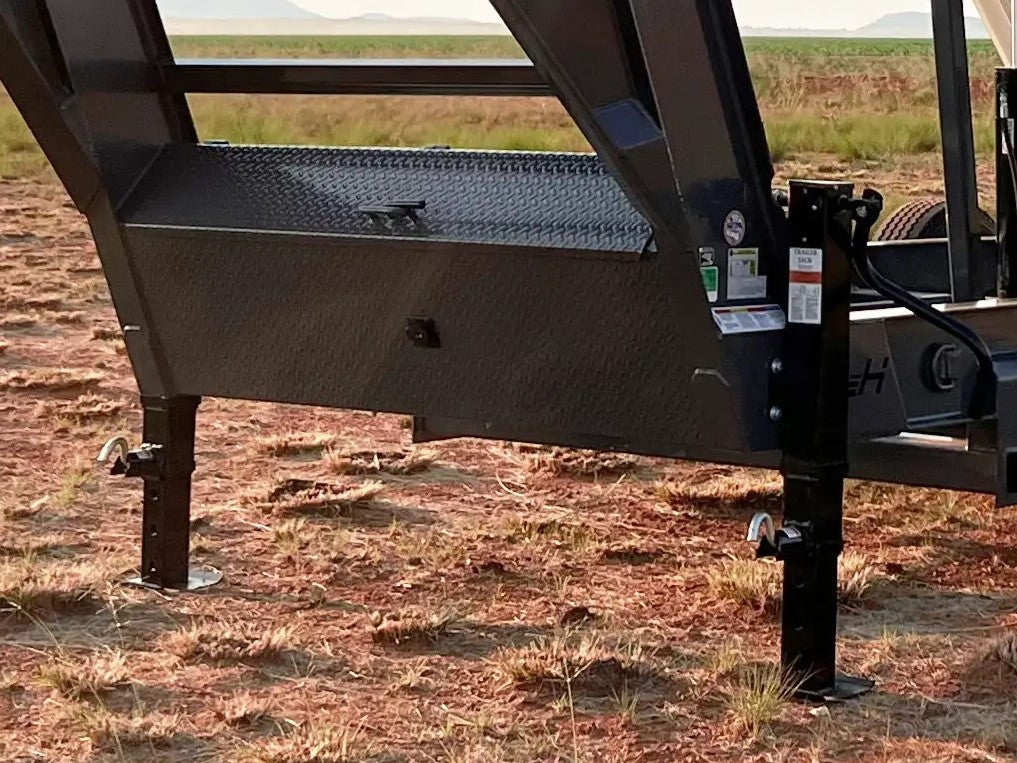

Jack Options

Equipped with a choice of 12k Jost 2 Speed Jacks, 12k Ram 2 Speed Jacks, or a 12k Hydraulic Jack, this dump trailer provides robust support and easy height adjustment. Each option is designed to enhance stability and adjust the trailer height effortlessly, ensuring smooth setup and leveling.

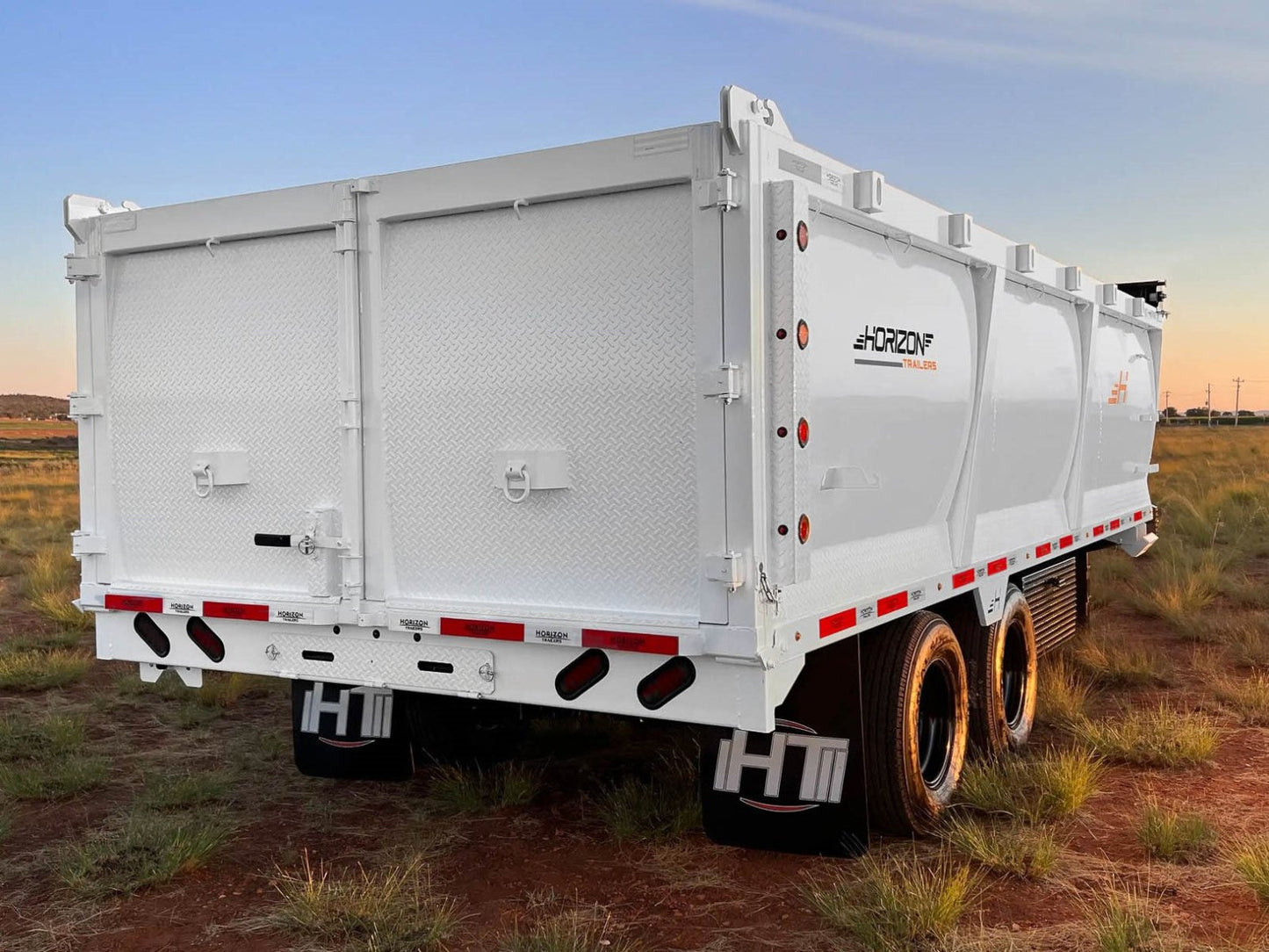

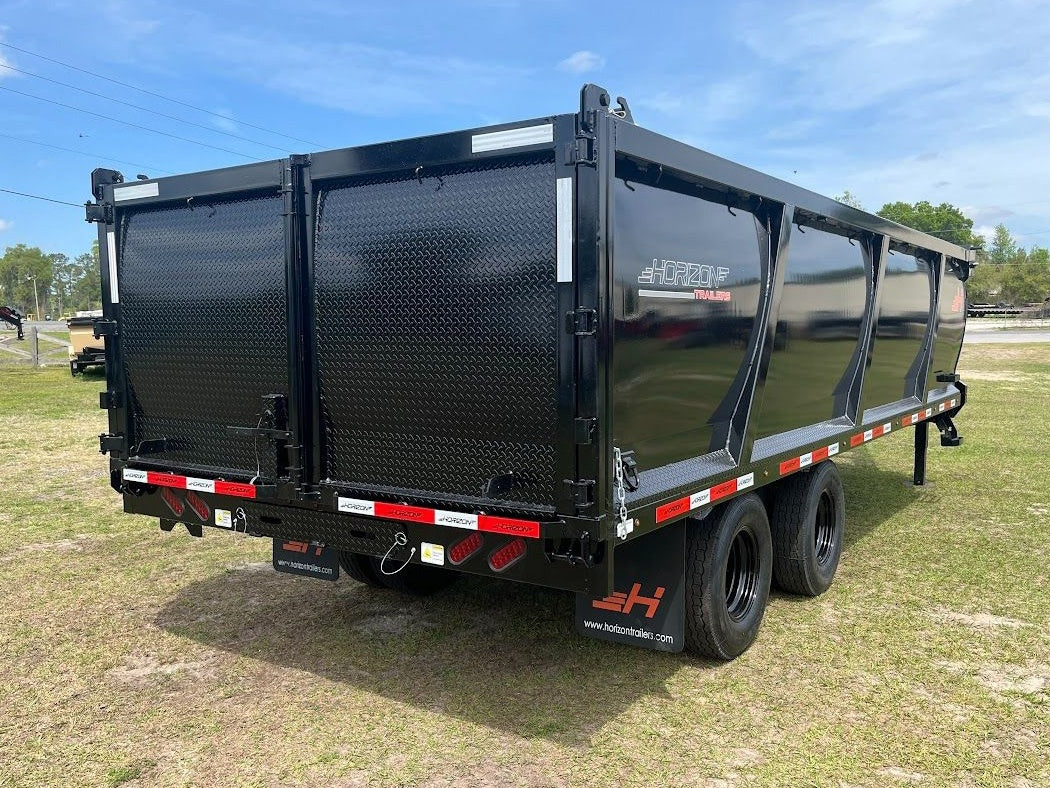

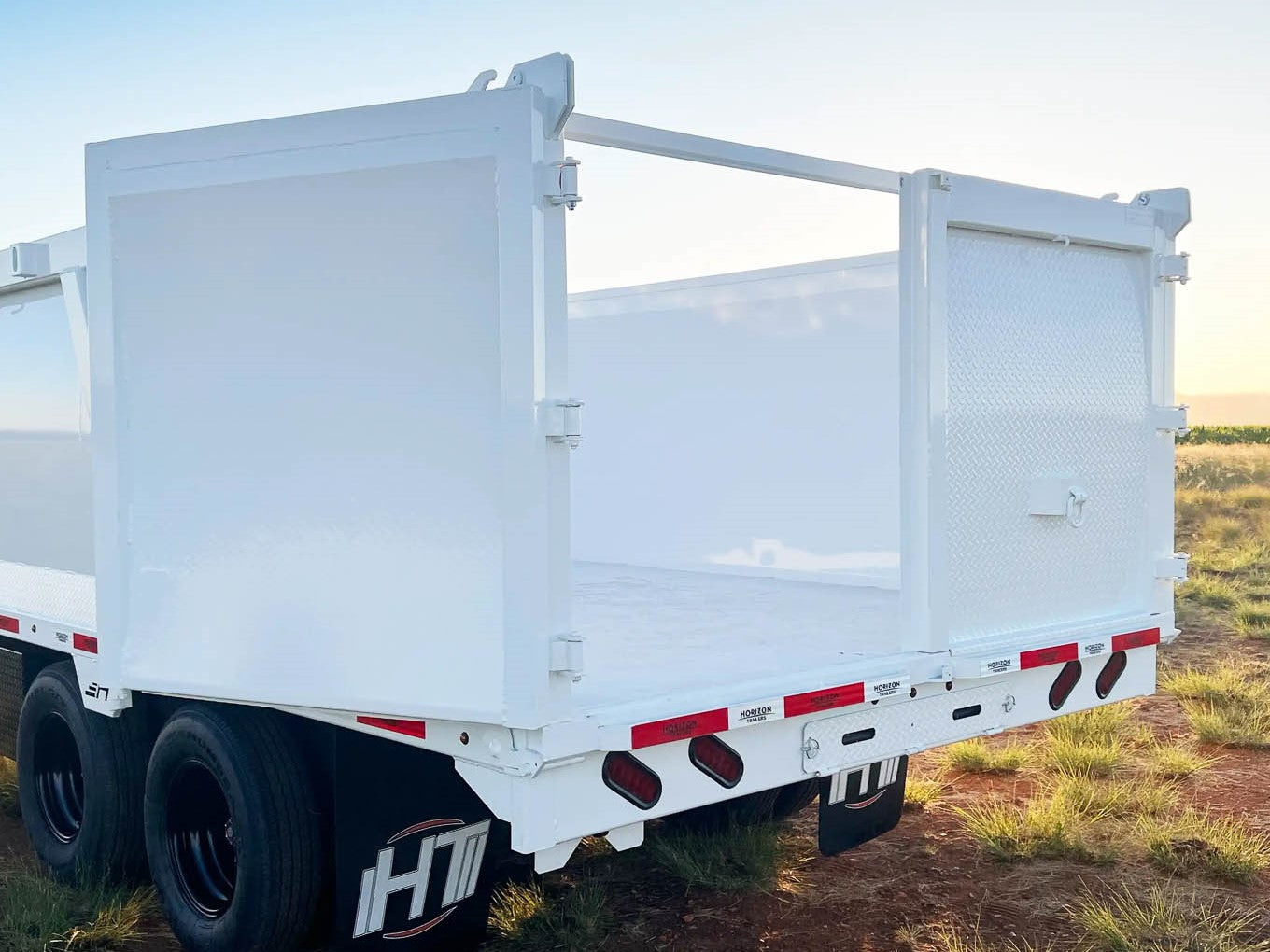

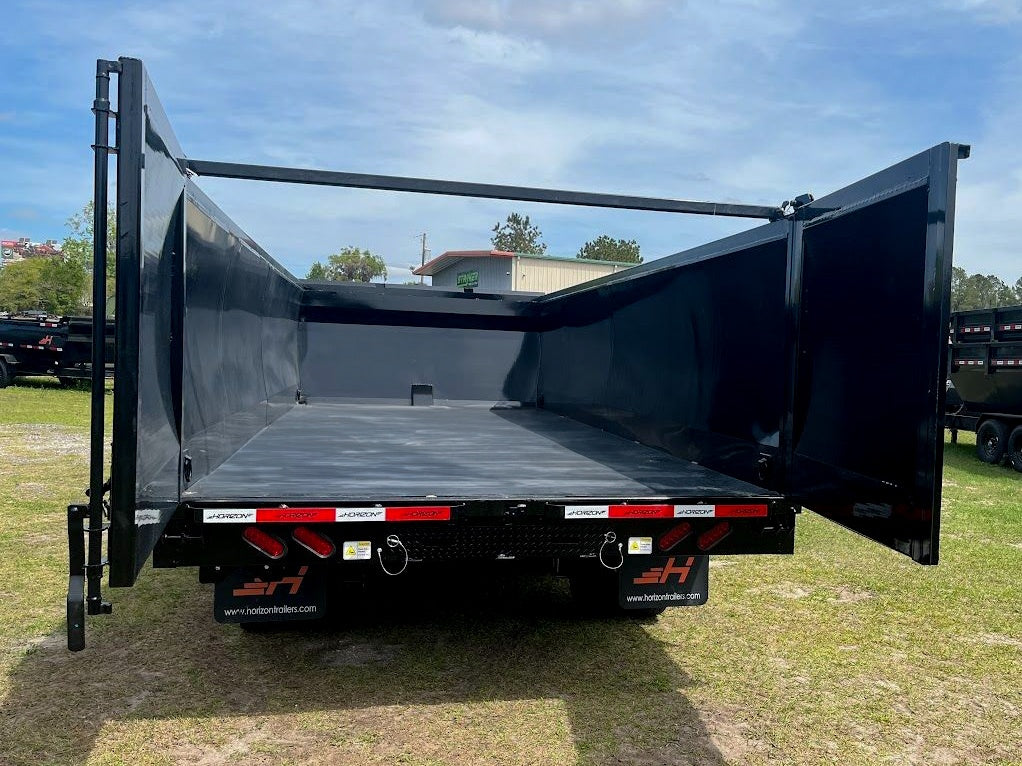

2 Way Door

The two-way door on this trailer enhances functionality by allowing it to swing open like a barn door or drop down as a spreader gate, facilitating easy unloading and material distribution. Its design enables closer access to buildings and structures for more convenient operation, while also simplifying the opening and latching process.

Warranty

Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Trailer Spec Sheet

Product Details

DIMENSIONS

LENGTH:
16', 18', 20'
SIDE HEIGHT:
2', 3', 4'
BED WIDTH:
92"
BED HEIGHT:
37"

WEIGHT RATINGS

GAWR:
10,000 lbs - 12,000 lbs
GVWR:
21,800 lbs - 26,880 lbs
ESTIMATED DRY WEIGHT:
8,182 lbs - 10,582 lbs
ESTIMATED PAYLOAD:
11,818 lbs - 18,298 lbs
ESTIMATED TONGUE WEIGHT:
1,300 lbs - 1,400 lbs

FINISH

PAINT TYPE:
Powdercoat
PREP:
Steel Grit Blasted
COLORS:
View Bottom Of Page For Colors
STYLE:
2 Tone Colors Available, Chassis / Dump

WARRANTY

AXLE WARRANTY:
6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY:
Three (3) Year Frame, One (1) Year Parts Warranty

HYDRAULICS

SYSTEM:
Hydraulic - Power Up / Gravity Down
PUMP:
KTI 12V Hydraulic Pump
CONTROLLER:
14' Control Cable

ELECTRICAL AND LIGHTING

BATTERY AND CHARGING:

BATTERY:
2 - Interstate 27 Deep Cycle Batteries
CHARGING SYSTEM:
110V Integrated Trickle Charger

WIRING HARNESS:

TYPE:
All-Weather Wiring Harness (7-Way RV)
FRAME WIRING:
Double Insulated Wiring Harness

LIGHTING:

TYPE:
DOT Approved Tecniq LED Lights

SAFETY SYSTEM

BREAKAWAY SYSTEM:
2382 Brightway Group Electric Breakaway Kit
REFLECTIVE TAPE:
3M DOT Compliant Reflective Tape
SAFETY CHAINS:
3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)

DUMP

FLOORING:
7ga. Steel Bed
FRAME:
3" x 4" x 11ga. Tubing Bed Frame
CROSSMEMBERS:
3" Channel (3.50 lbs/ft) 16" Spacing
D-RINGS:
4 D Rings Welded Inside Box
DUMP ANGLE:
42°

TIRES

TYPE:
Radial Tires
SIZE:
ST235/80R16, Dual
PLY:
10
RIMS:
16" Black Mod Wheels

FRAME

MAIN FRAME:
12" I Beam (19 lbs/ft)
