At a Glance
- Colors:
-
Onyx BlackMocha MetallicCarbon Metallic GrayDynamic Blue MetallicPlatinum Silver MetallicScarlet RedArctic WhiteCement Gray
Featured Video
Product Features

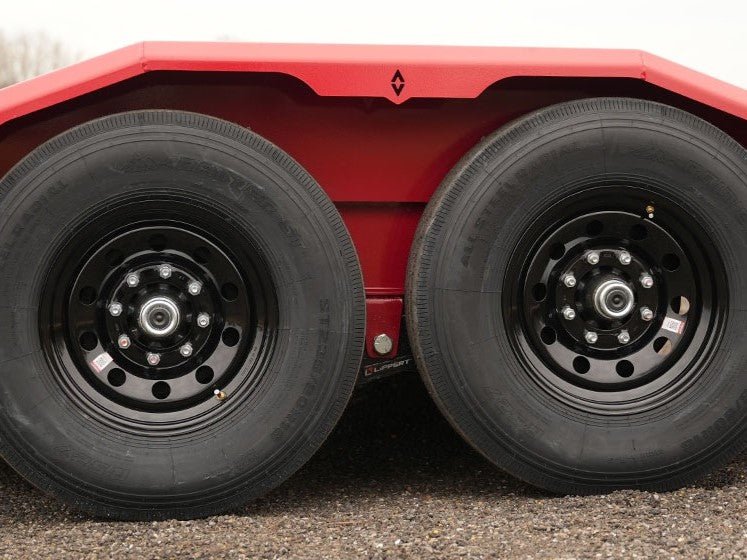

Heavy-Duty Torsion Axle System
Choose from 7k Super Lube, 8k Oil Bath, or 10k Oil Bath torsion axles for superior ride quality and ground clearance. The independent torsion suspension smooths out bumps better than leaf springs, protecting both your trailer and your valuable equipment from road shock.

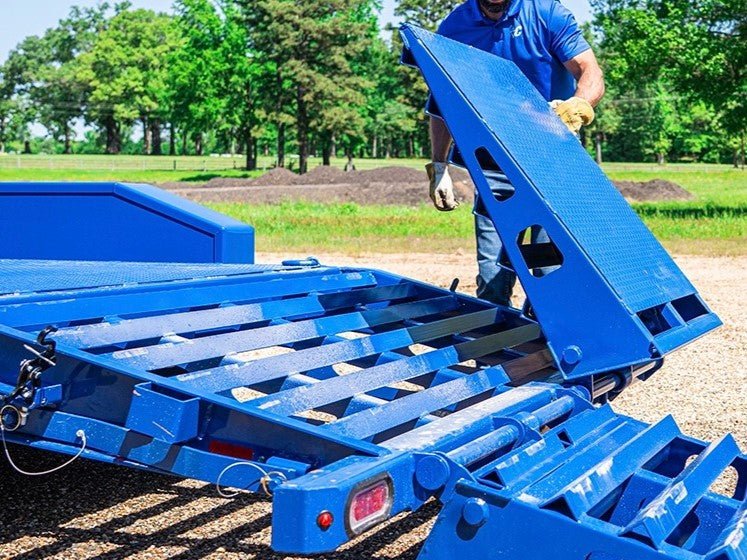

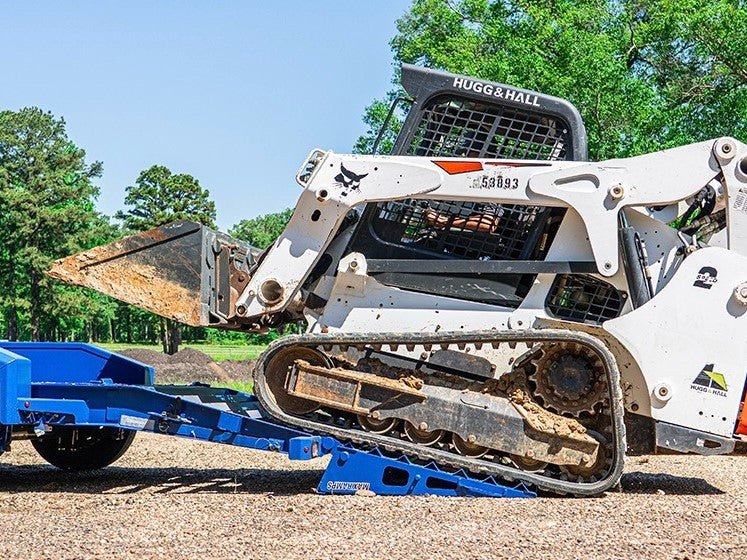

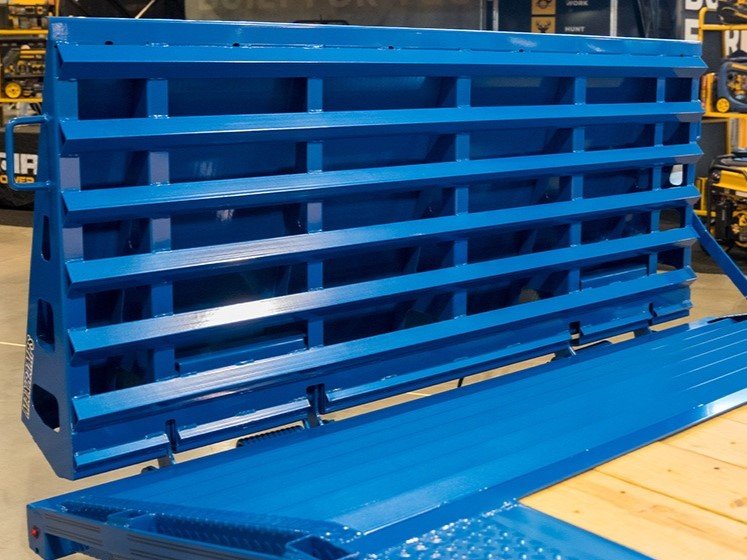

Extra Wide Spring Assist Ramps
The heavy-duty spring assist ramps make loading equipment effortless. Their extra width provides a confident path for machinery, while the spring mechanism reduces the physical effort required to position them, saving time and strain on every job.

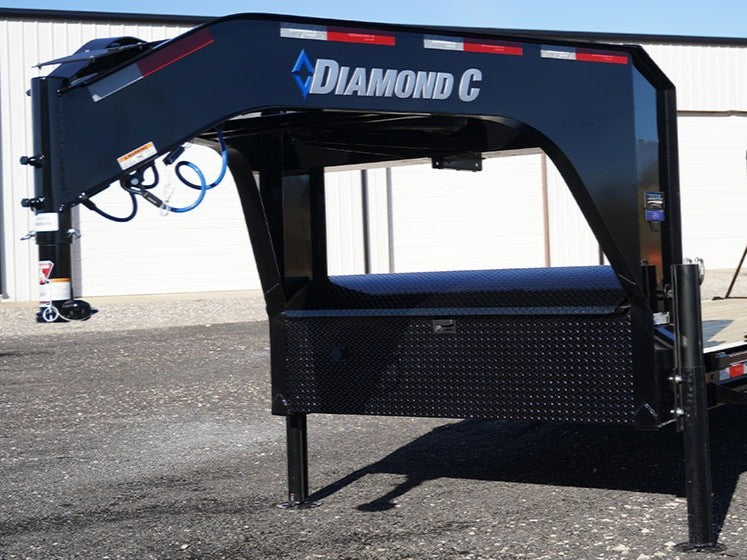

12" Engineered Gooseneck
Built with a heavy-duty 12-inch engineered gooseneck. This robust neck is 103 inches long, providing excellent approach angles and a solid connection point for towing.

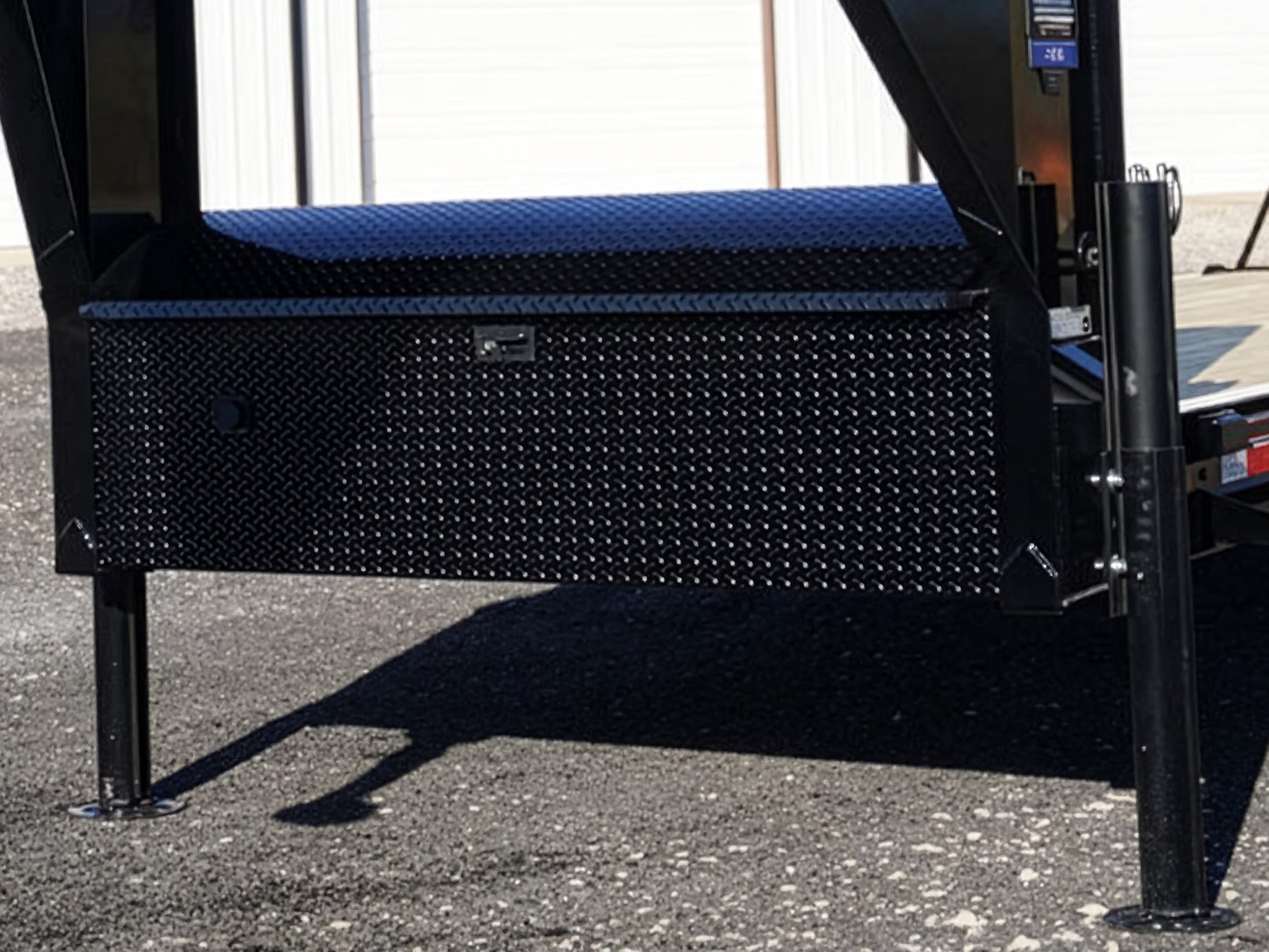

Diamond Plate Neck Box with Gas Shock Lid
Features a diamond plate storage box mounted on the gooseneck neck. The box includes a gas-shock-assisted lid for easy one-handed opening and secure tool storage.

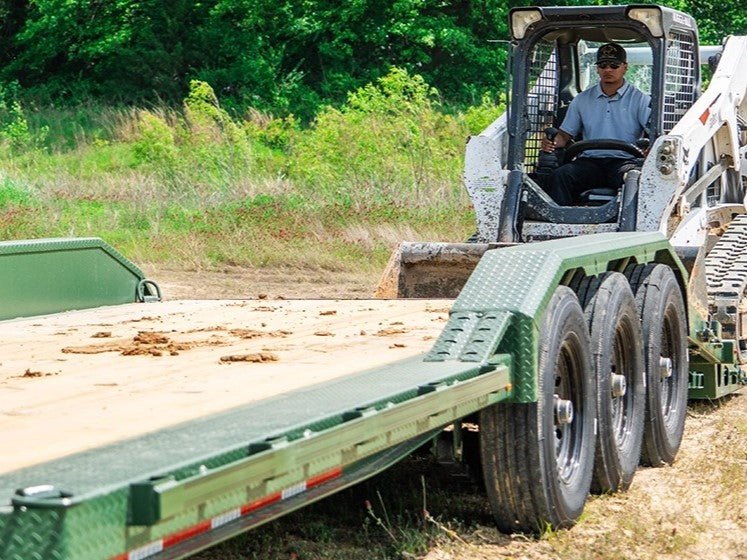

Low Deck Height for Easy Loading
Designed with a low deck height for easier equipment loading. This low profile reduces the ramp angle and makes for safer, more stable drive-on loading compared to standard trailers.
6-Year Structural / 2-Year Component Warranty
Backed by a comprehensive 6-year structural warranty on the main frame. The trailer's components are covered by a separate 2-year warranty for long-term assurance.
Product Details
DIMENSIONS
- LENGTH:
- 16' - 30'
- WIDTH:
- 80" - 102"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k, 10k SS
- GVWR:
- 14.9k - 20k
RUNNING GEAR
- TIRES:
- 235/80R16 / 215/75R17.5 (8k & 10k)
- TIRE PLY:
- 14 Ply / 18 Ply (8k & 10k)
- RIMS:
- 16" Black Wheels
16" Aluminum Two Tone Wheels
- AXLE TYPE:
- 2 - 7k Lippert Torsion
2 - 8k Lippert Oil Bath
2 - 10k Lippert Oil Bath
- AXLE COUNT:
- 2
- BRAKES:
- Electric Drum / Electric Over Hydraulic (10k)
- SUSPENSION:
- Slipper Roller
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 12" Engineered
- LENGTH:
- 103" Long
- JACKS:
- 2 - 12,000 lb Drop-Leg Jacks
- COUPLER:
- Curt Cushion (30,000 lbs)
- TOOLBOX:
- Diamond Plate Neck Box w/ Gas Shock Lid
- WINCH PLATE:
- Winch Mounting Plate
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam (10lb - 15lb/ft)
- CROSSMEMBERS:
- 3" I-Beam, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 12 Ga. Bolt-On Fenders
3/16" HD DOF (Max Width)
- RAMPS:
- Extra Wide HD Spring Assist
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- Sealed Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Track (Right, Left, or Both)
- D-RINGS:
- Additional D-Rings Available

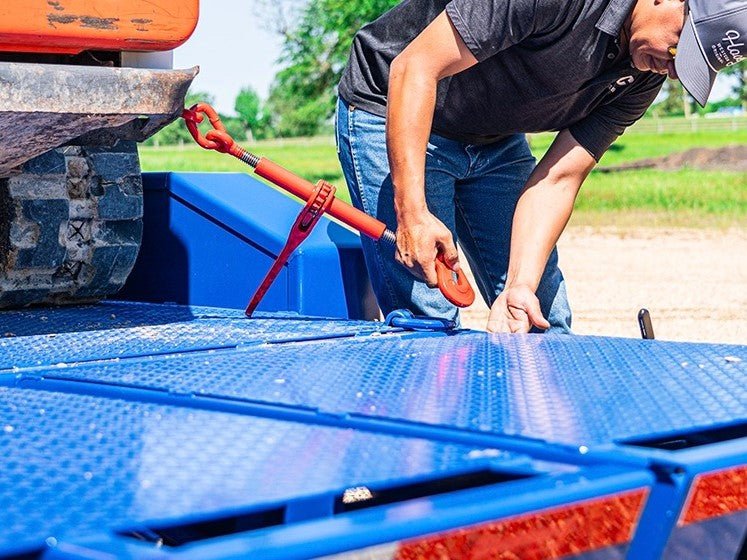

- RATCHETS:
- Weld On Ratchets
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component
OPTIONS
