At a Glance
TRAILER SPECS:
Specifications
- Brand:
RawMaxx
- Pull Type:
Gooseneck
Dimensions
- LENGTH:
20'-44'
Product Features
Robust Weight Capacity
With a standard GVWR of 14,000 lbs. and a GAWR of 7,000 lbs., the LDX trailer is built to handle substantial loads. Upgraded options include 8,000 lbs. Lippert Hybrid Spring Axles with 14 ply tires and 10k lbs. Spring Axles with 18 ply tires, enhancing the trailer's capacity for even more demanding hauling requirements.Durable Construction
The LDX trailer features a 10" x 12 lbs. I-beam main frame and 3" channel cross-members with 16" spacings. This sturdy construction is designed to withstand tough conditions and provide long-lasting durability.
Durable Finish
Finished with a powder coat and steel grit blasted prep, the LDX Trailer is designed to withstand the elements and resist corrosion effectively. This durable finish ensures long-lasting performance, maintaining the trailer's appearance and structural integrity over time.
Enhanced Safety Measures for Peace of Mind
Equipped with safety features such as 3/8" G70 safety chains and an electric breakaway kit, the FDX Dual Trailer prioritizes safety during transport. Enhanced visibility is provided by reflective tape and DOT-approved LED lights, minimizing the risk of accidents on the road.
Mega Ramps for Easy Loading
The LDX trailer features 8' slide-in channel ramps, making it easy to load and unload equipment. For enhanced versatility, optional mega ramps are available, providing a wider and more stable platform for loading larger machinery and vehicles.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

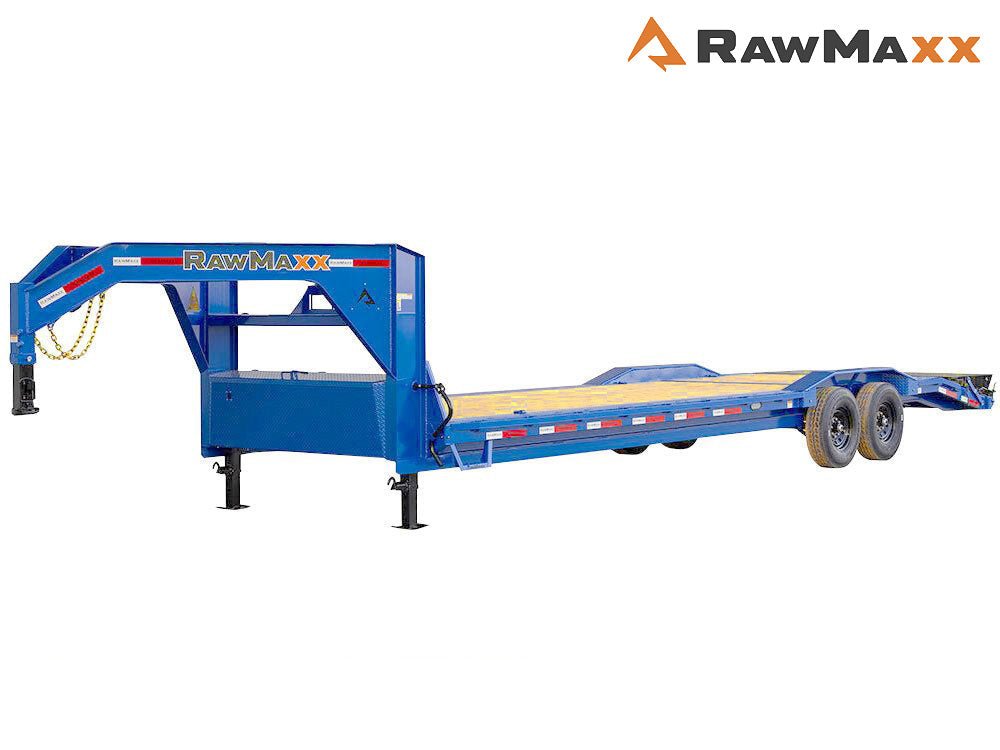

- RawMaxx LDX Gooseneck Equipment Hauler
- LENGTHS:
- 20', 22', 24', 26', 28', 30', 32', 34', 36', 38', 40', 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 30"
- GVWR:
- 14,000 lbs
- GAWR:
- 7,000 lbs
- EMPTY WEIGHT:
- 4,080 lbs
- LOAD CAPACITY:
- 11,904 lbs
FRAME & STRUCTURE
STRUCTURE:
- MAIN FRAME:
- 10" x 12 lb. I-Beam Main Frame
- BRIDGE FRAME:
- 4" x 4" Angle Iron
- SIDE PERIMETER:
- 2" x 5" x 1/8" Tubing Outer Deck Frame
- CROSS-MEMBERS:
- 3" Channel / 16" Spacings
- FENDERS:
- 3/16” Thread Plate (Drive-Over)
- STAKE POCKETS:
- 3-5/8" x 1-1/2" (ID)
- FLOORING:
- 2” Treated Lumber Deck
- D-RINGS:
- 4 Welded Outside Perimeter
GOOSENECK & ACCESSORIES
COUPLER:
- TYPE:
- 2-5/16” Ball Coupler
JACKS & TOOLBOX:
- JACKS:
- 2 Side Wind Drop Legs - 10,000 lbs
- TOOL BOX:
- Front Tool Box Between Risers / Lockable Latch
- NECK LENGTH:
- 98"
RUNNING GEAR
TIRES & WHEELS:
- TIRES:
- ST235/80R16 Radial, 10 Ply
- RATING:
- 3,520 lbs
- WHEELS:
- 16” Black Mod Wheels
- BOLT PATTERN:
- 8 on 6.5”
SUSPENSION:
- AXLE TYPE:
- Spring
- AXLES:
- 2 x 7,000 lb
- BRAKES:
- Electric
REAR TAIL
- TAIL TYPE:
- Straight Deck
- RAMPS:
- 8' Slide-In Channel Ramps
ELECTRICAL & LIGHTING
WIRING:
- FRONT PLUG:
- 7-Way Plug
- FRAME WIRING:
- All Weather Wiring Harness
LIGHTING:
- SIDE MARKERS:
- 3/4" LED Bullet Lights
- TURN FLASHERS:
- 2" x 6" Amber Side Turn Lights
- REAR LIGHTS:
- DOT Approved LED Lights
SAFETY SYSTEM
- SAFETY CHAINS:
- 3/8" G70 Safety Chains
- BREAKAWAY SYSTEM:
- Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
FINISH & WARRANTY
- FINISH:
- Powder Coat with Grit Blast Prep – Jet Black
- AXLE WARRANTY:
- 5 Year Dexter
- TRAILER WARRANTY:
- 3 Year Structural / 1 Year Paint
