Ultra Max 53′ SD 4 Car Hauler

Ultra Max 53′ SD 4 Car Hauler

At a Glance

Brand Buckeye
Pull type Fifth Wheel
GVWR 24
Length 53'
Weight 9,440 lbs
Payload 14,500-20,500 lbs

TRAILER SPECS:

Specifications

Brand:

Buckeye

Pull Type:

Fifth Wheel

Weight Ratings

GVWR:
24,000-30,000 lbs

Dimensions

LENGTH:

53'

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery
View full details

Product Features

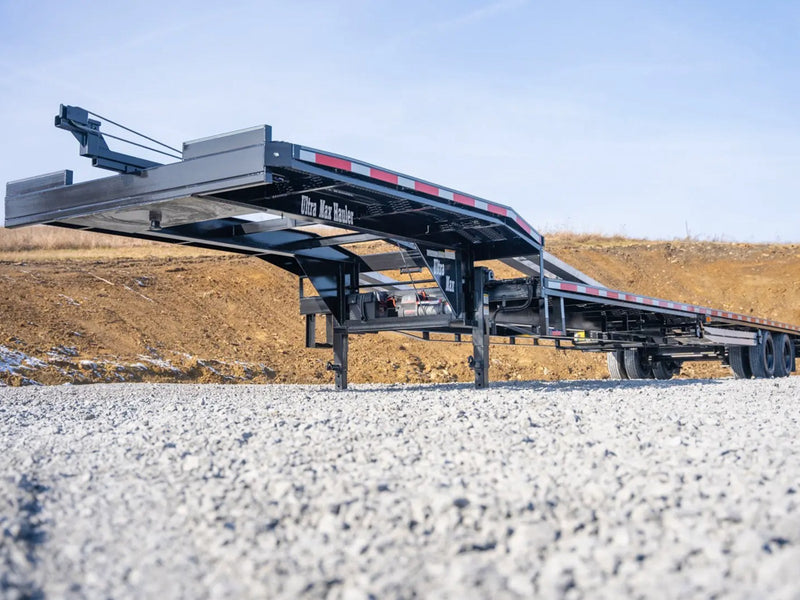

Ultra-Low Deck Advantage

With a 33.5” lower deck height across 32’, this trailer accommodates loads up to 10’6” tall—perfect for trucks, campers, or enclosed trailers. Unlike taller decks, its low-profile design, paired with an 11’ dovetail and 22"-24" bumper height, ensures easy loading and maximizes hotshot revenue potential.

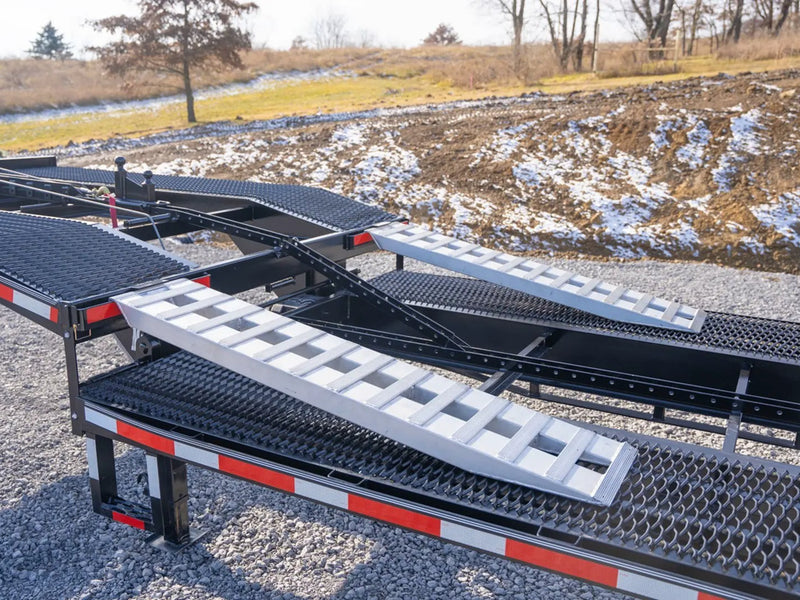

Dual-Level Ramp System

Unique 6’ aluminum ramps access the 10’ upper deck at 50”, doubling as deck extensions when secured. Combined with 9’ ramps rated at 10,000 lbs for the lower deck, this dual setup offers unmatched flexibility for hauling multiple vehicles or freight, setting it apart for versatile loads.

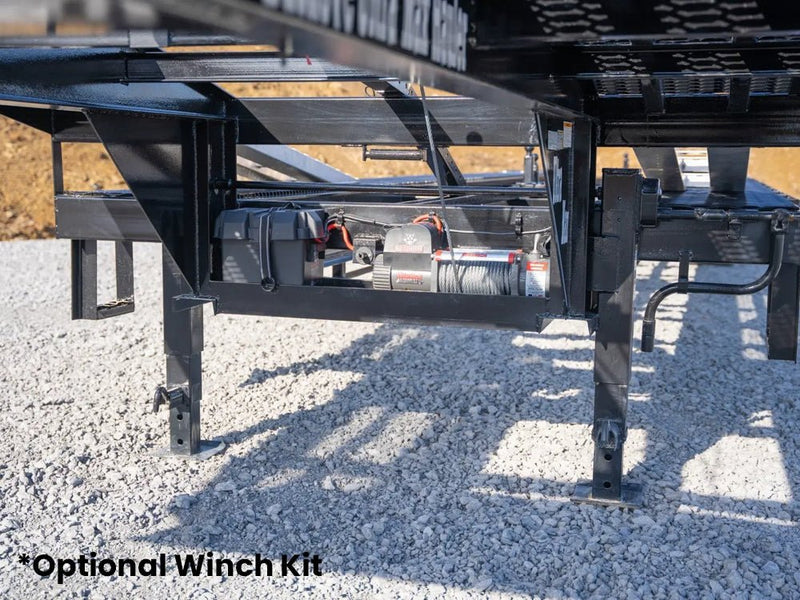

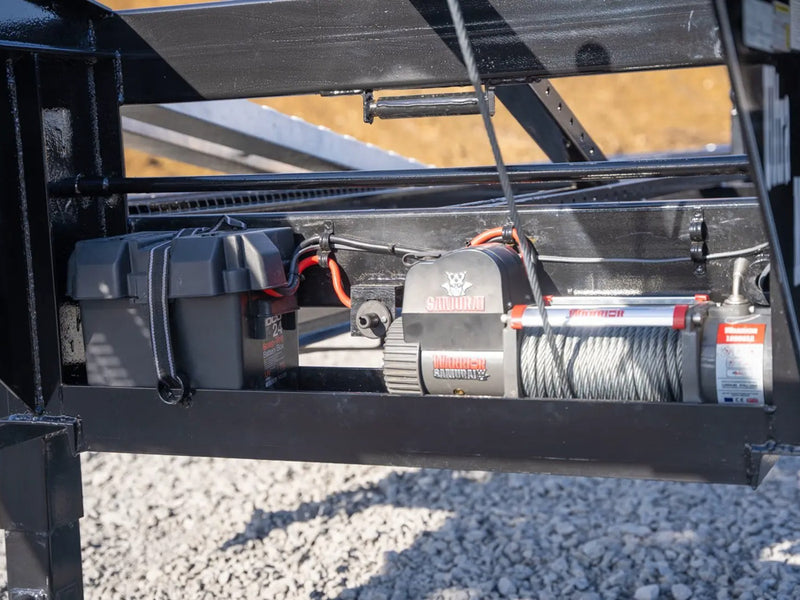

Powerful Winch Option

An optional 12,000lb winch kit with wireless remote enhances this trailer’s capability, effortlessly pulling heavy loads like trucks or campers onto its 53’ deck. Unlike basic setups, this upgrade simplifies tough jobs, making it a game-changer for hotshot haulers tackling oversized or stuck cargo.

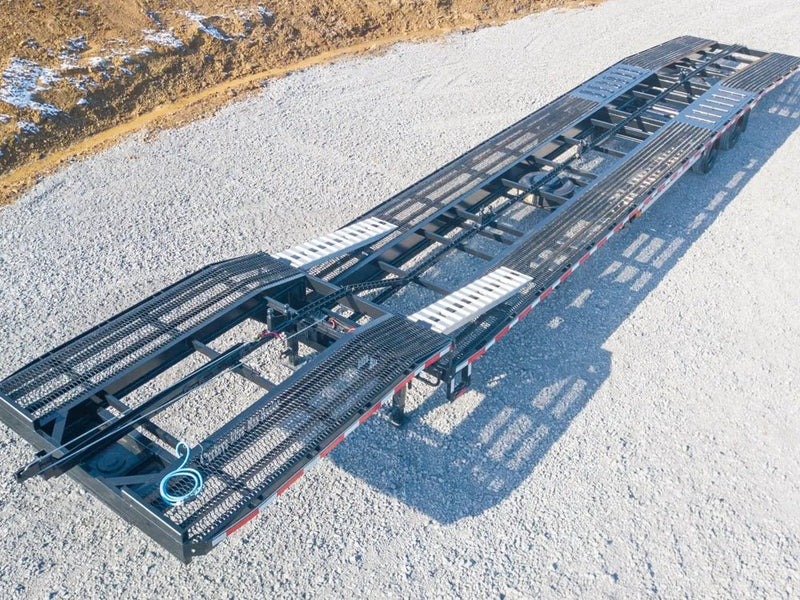

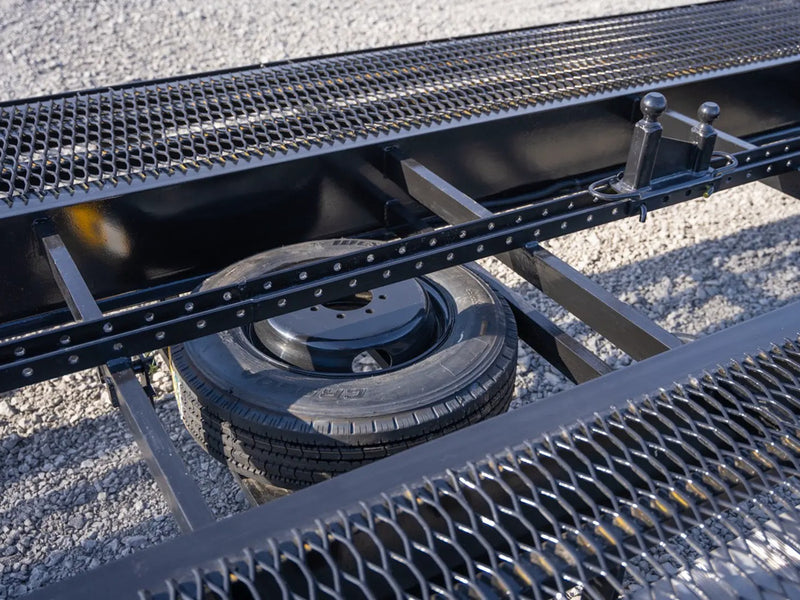

Precision Tie-Down Floor

The HD grate floor with a 3-point soft tie system ensures secure load fastening across 53’—11’ dovetail, 32’ lower, 10’ upper. Unlike standard floors, this engineered design, with optional enclosed center, caters to cars, SUVs, or campers, offering tailored stability for varied hauling needs.

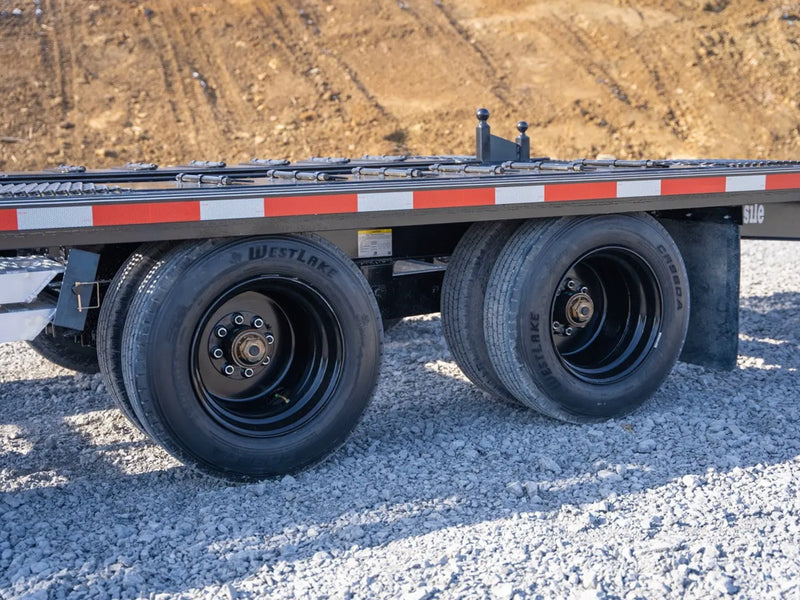

Rugged Dexter Axles

Dual 10k HD Dexter oil bath axles with a 5-year warranty power this trailer, paired with electric brakes for control. Optional upgrades to 12,000 lbs spring or 20,000 lbs air ride with hydraulic/air brakes provide adaptability, distinguishing it for heavy-duty hotshot reliability on every run.

Enhanced Upper Deck Access

A 10’ upper deck at 50” height, reached via 6’ ramps, adds versatility not found in single-deck designs. With a 42” fifth wheel height, it’s optimized for tall loads, supported by dual-speed 12k jacks, making it ideal for campers or freight atop its rugged I-beam frame.
Buckeye Ultra Max SD 53' Spec Sheet

Dimensions & Capacity

  • Model: Ultra Max SD 53'
  • GVWR: 24,000-30,000 lbs
  • Options - GVWR: 40,000 lbs
  • Payload: 14,500-20,500 lbs
  • Empty Weight: 9,440 lbs
  • Deck Length: 53' (11' Dovetail, 32' Lower Deck, 10' Upper Deck)
  • Deck Width: 102"
  • Deck Height: 33.5" Lower Deck, 50" Upper Deck
  • Bumper Height: 22"-24"

Frame & Suspension

  • Frame: Heavy-Duty Fabricated I-Beam
  • Suspension: Heavy-Duty Slipper Spring
  • Floor: HD Grate Engineered for 3 Point Soft Tie System
  • Options - Floor: Enclosed Center
  • Axles: 10k HD Dexter Oil Bath Axles 5 Year Warranty
  • Options - Axles: 12,000 lbs Spring Axles to 20,000 lbs Air Ride With Air Brakes
  • Runners: 30" Wide HD Engineered Grate

Coupler & Accessories

  • Coupler: King Pin with a fifth wheel (Height of 45"-48")
  • Jacks: 2 Dual Speed 12k Spring Loaded Drop Leg Jacks
  • Stake Pockets & Rubrails: Included
  • Tie Downs: Included
  • Storage: 2 Steel Side Mount Toolboxes With Lock
  • Options - Storage: Toolbox - weatherproof, locking
  • Finish: Automotive Grade Epoxy Primer With Two Top Coats of Industrial Urethane
  • Warranty: 2 Year Structural Frame

Running Gear & Safety

  • Tires: 235-80-R16 Load Range G
  • Options - Tires: 215-75-R17.5 Load Range J on Aluminum Wheel
  • Options - Tire Upgrade: 14 Ply Tire Upgrade
  • Wheels: HD Steel Dual 16"
  • Bolt Pattern: 8 on 6.5" Bolt Pattern
  • Spare Mount: 235-80-R16 Load Range G
  • Options - Spare Mount: 215-75-R17.5 Load Range J on Aluminum Wheel
  • Options - Spare Tire: 10 Ply Spare Tire
  • Options - Spare Tire: 14 Ply Spare Tire
  • Brakes: Electric Brakes
  • Options - Brakes: Hydraulic & Air
  • Ramps: 9' Aluminum Ramps rated for 10,000 lbs, 6
