At a Glance
- Colors:
-
BlackGrayWhteLight GreyRedBlueLime GreenGreenOrange
Product Features

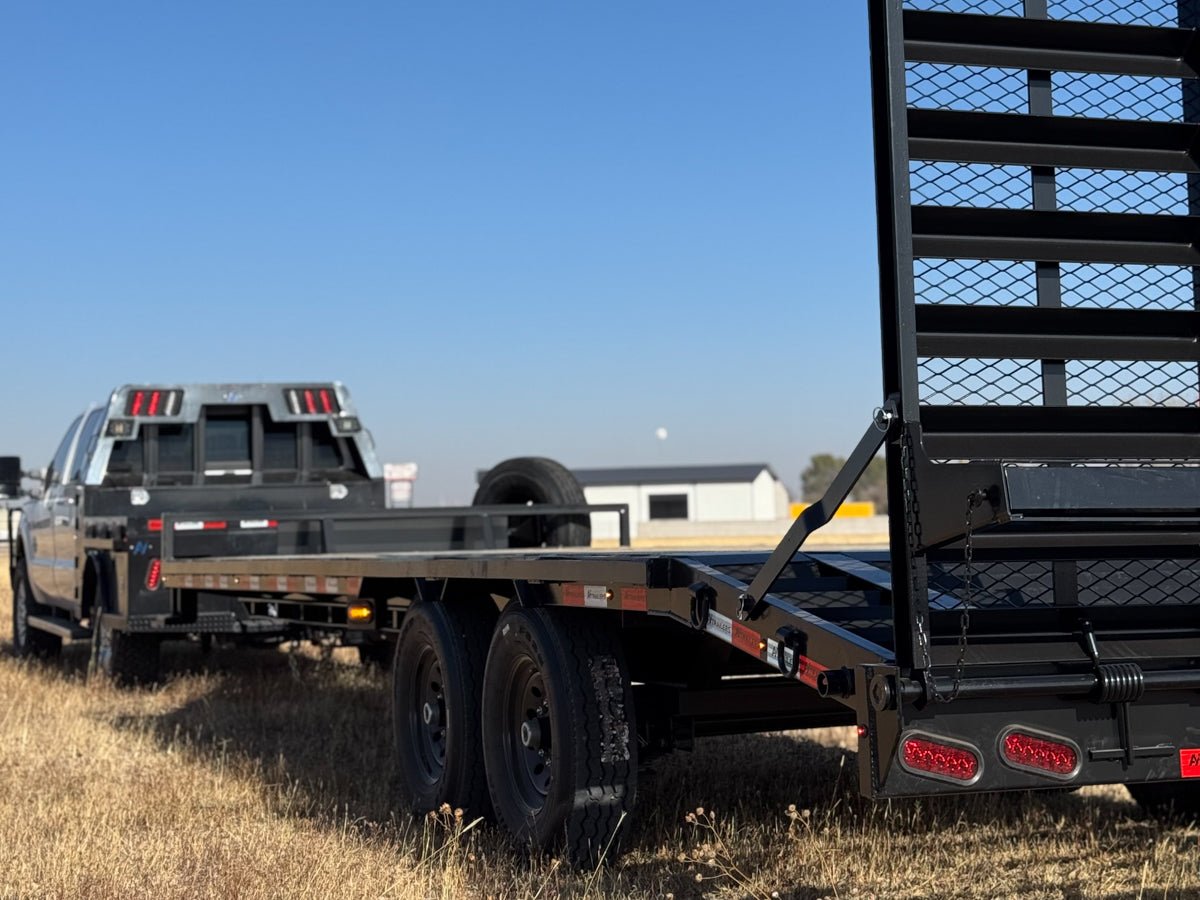

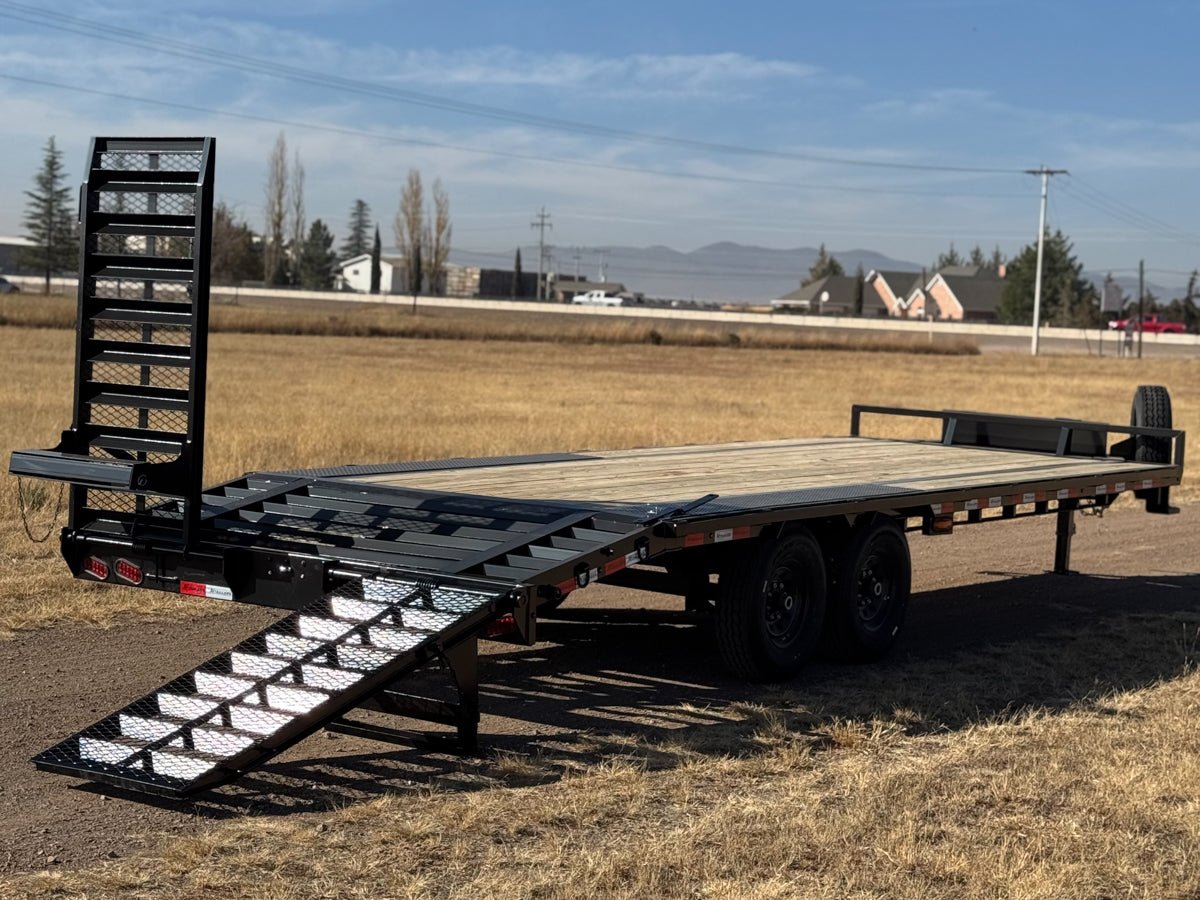

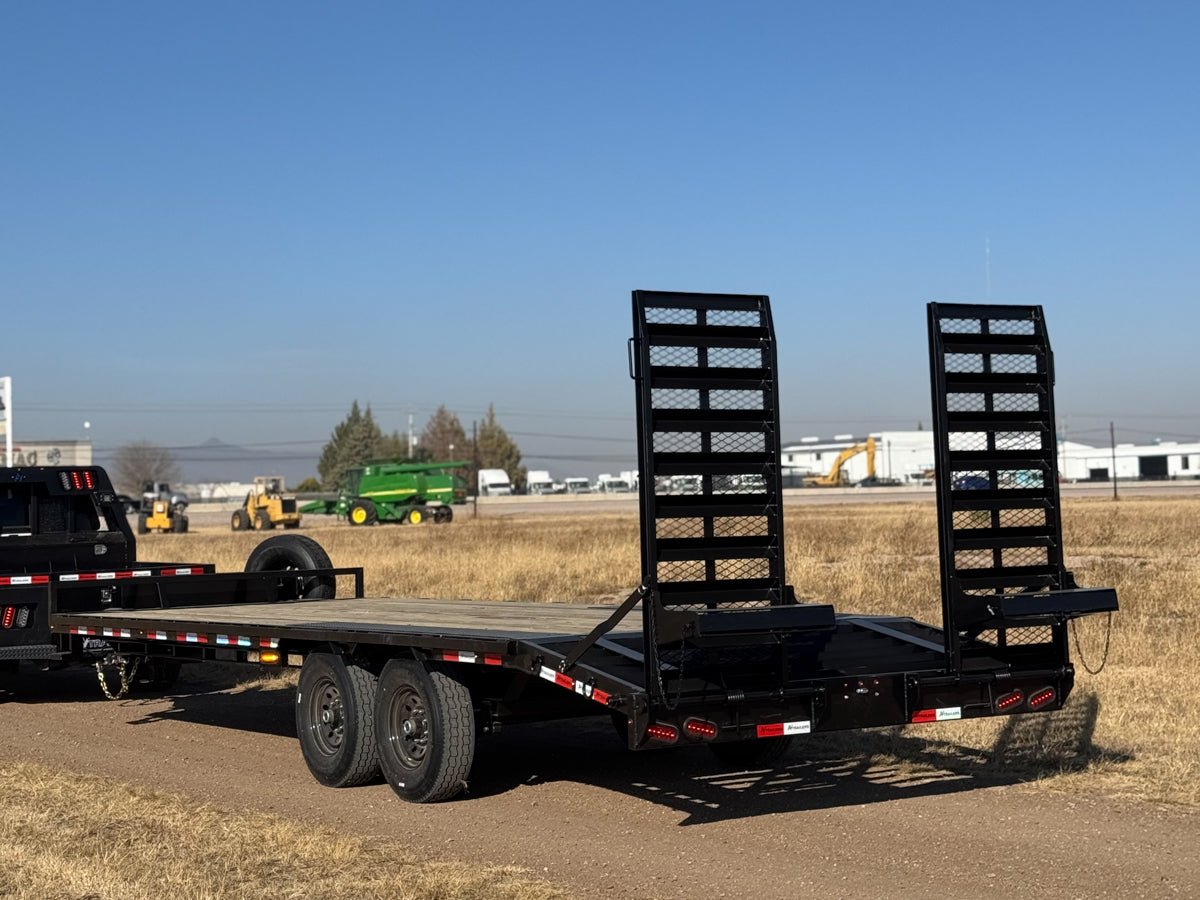

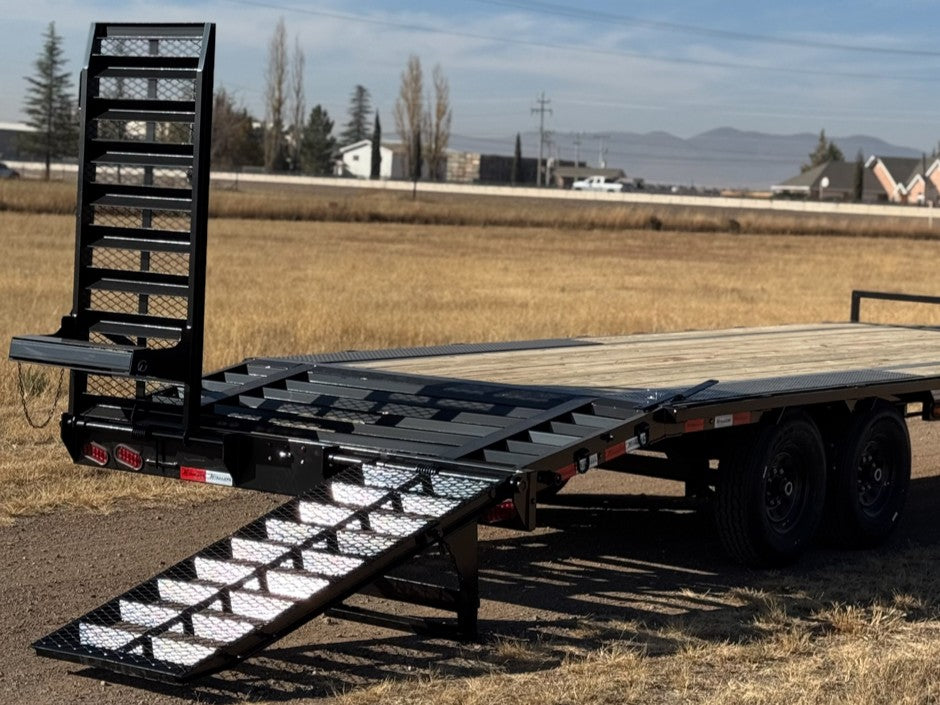

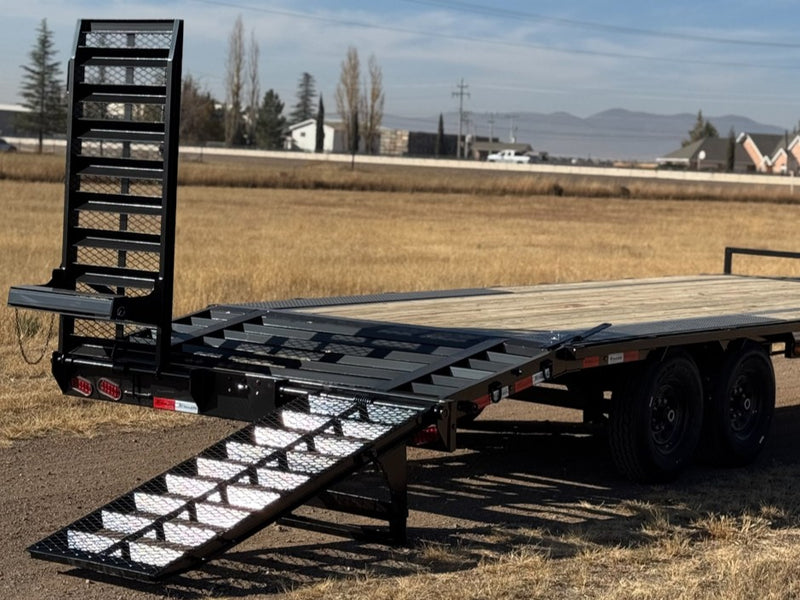

Stand-Up or Mega Ramp Options
Available with standard stand-up ramps for easy deployment. The trailer can be upgraded to heavy-duty mega ramps for larger equipment and high-volume loading.
8" I-Beam Frame
Constructed with an 8-inch I-beam main frame. This frame provides a solid foundation for the trailer's 14,000 to 16,000 lb GVWR capacities.

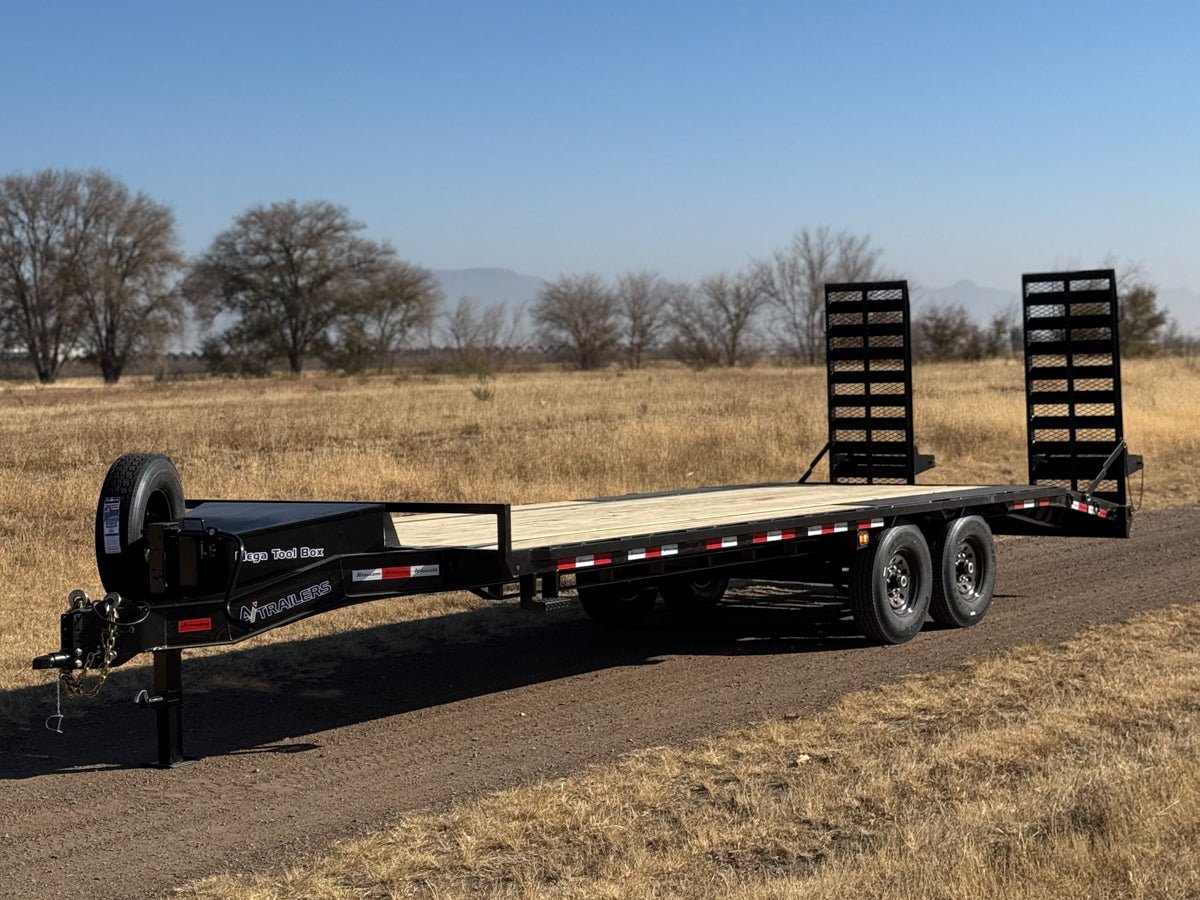

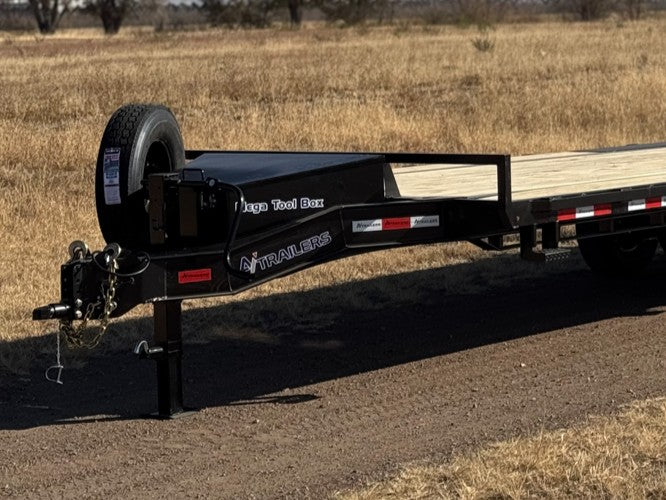

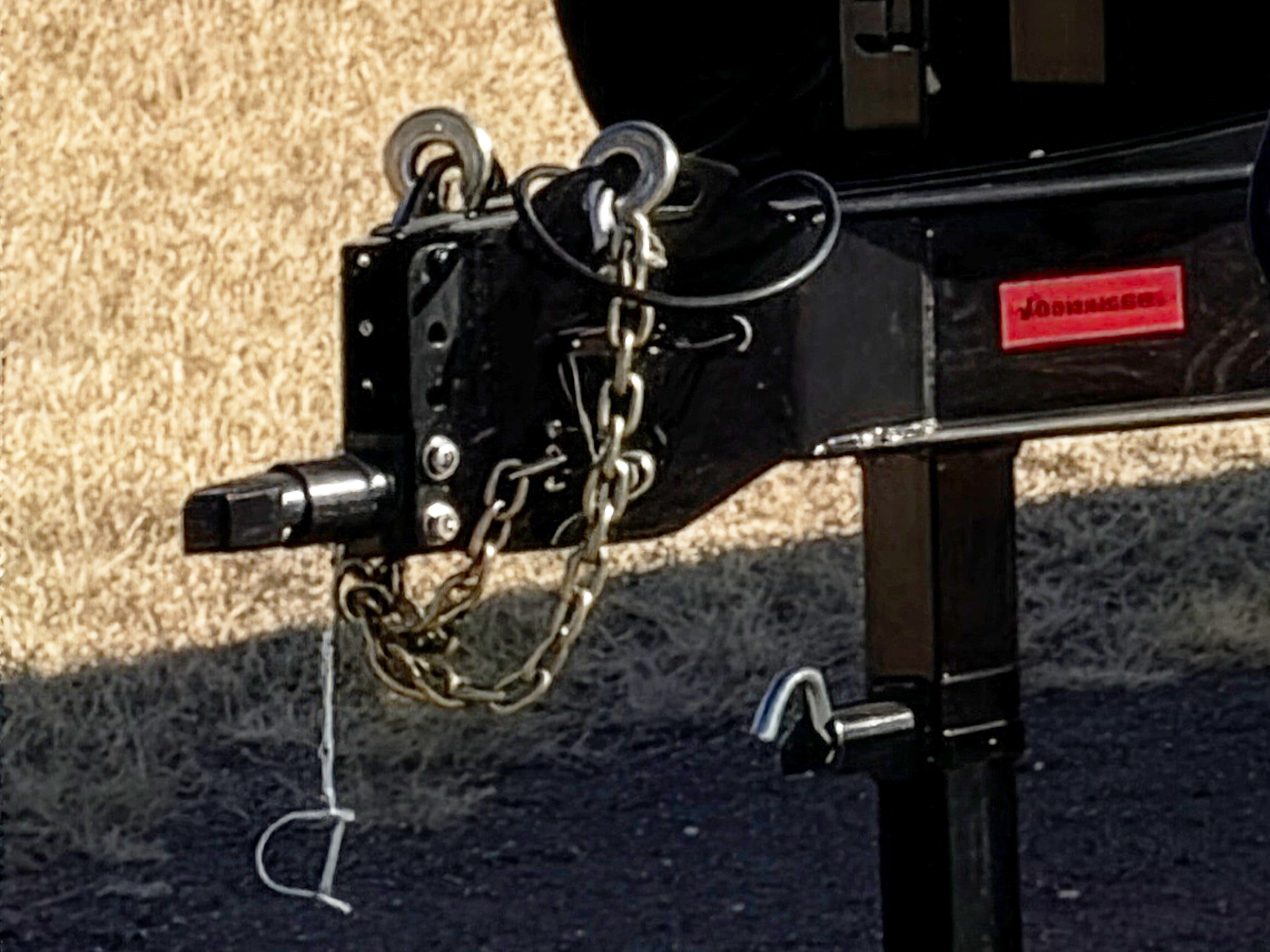

Bumper Pull with 21k Coupler
Configured as a bumper pull trailer with an adjustable 2 5/16-inch coupler rated for 21,000 lbs. The front is equipped with a single 10,000 lb jack for hitching stability.

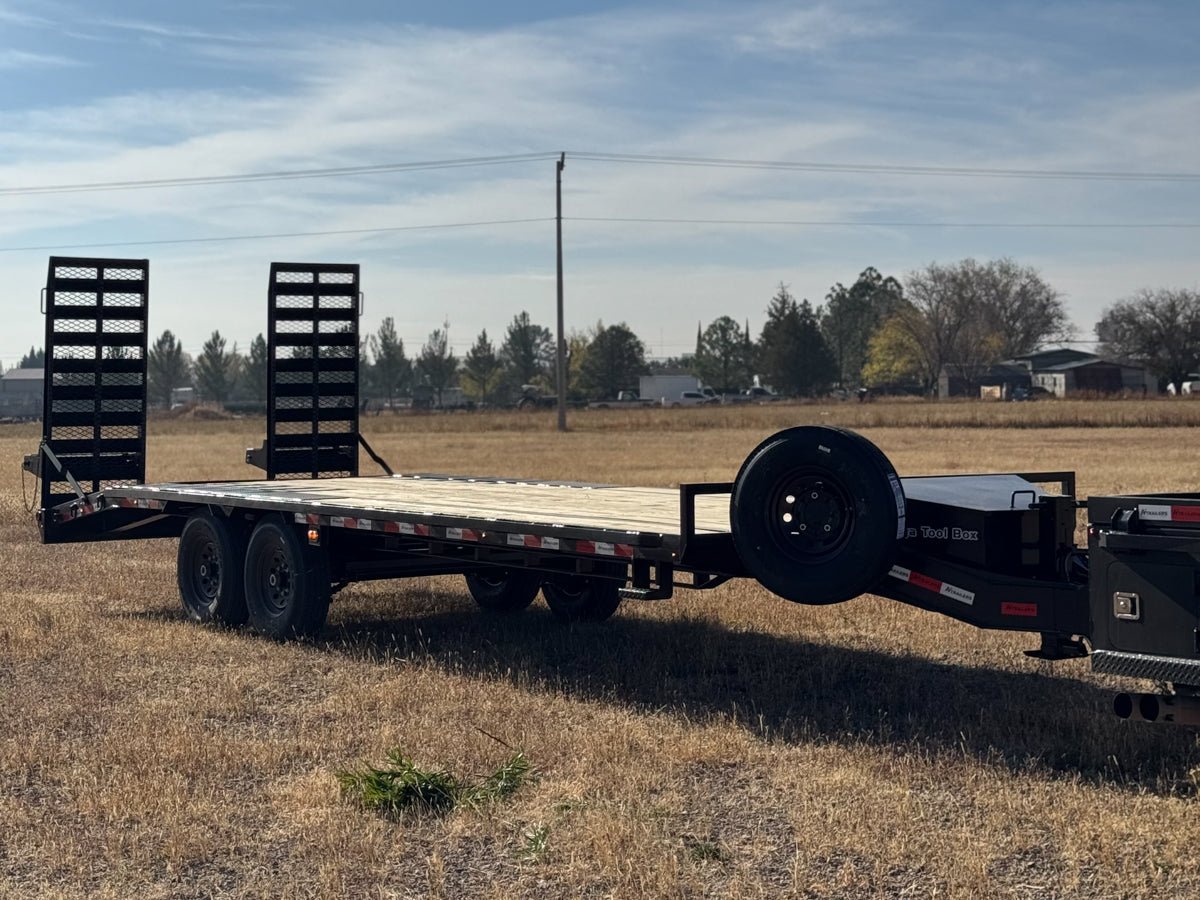

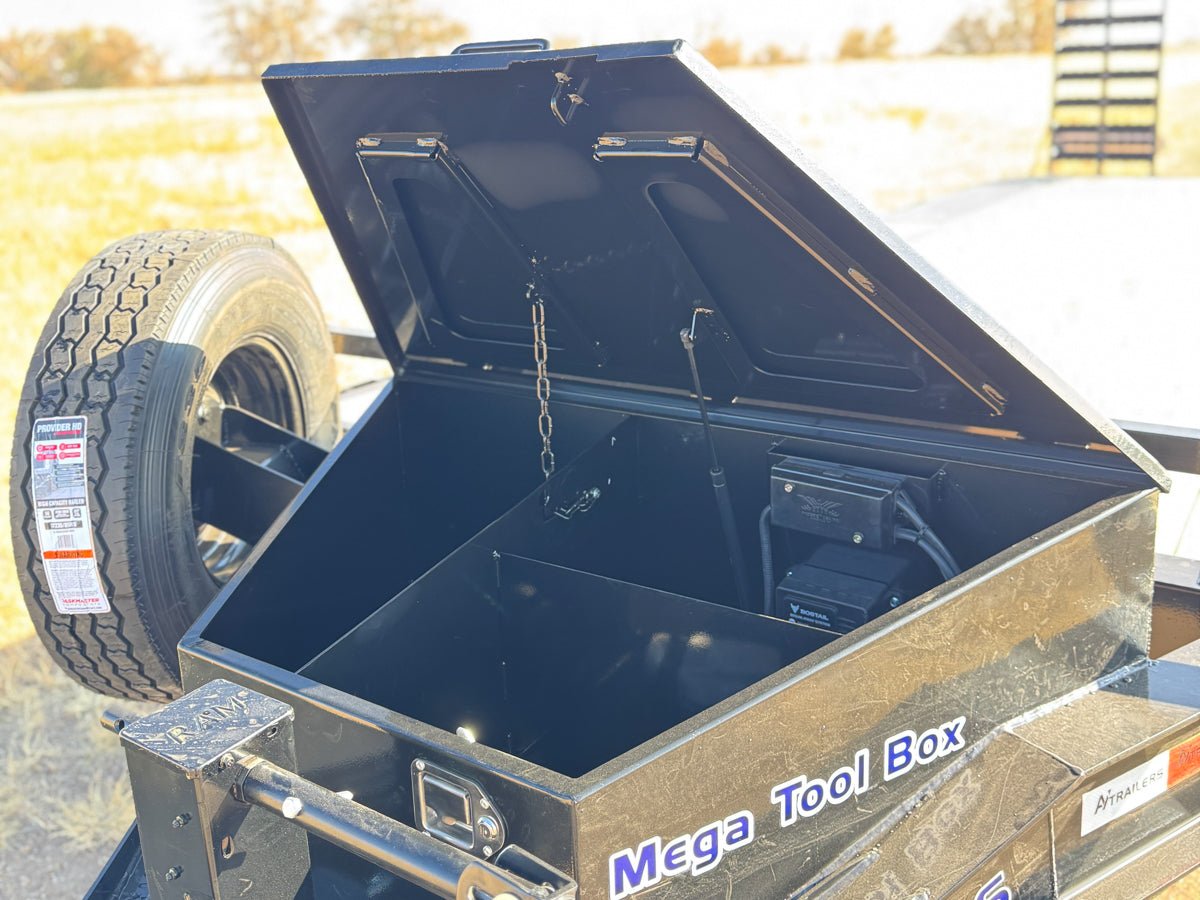

Standard Front Toolbox
Includes a front-mounted toolbox as standard equipment. This provides convenient, secure storage for tools, chains, and other equipment.

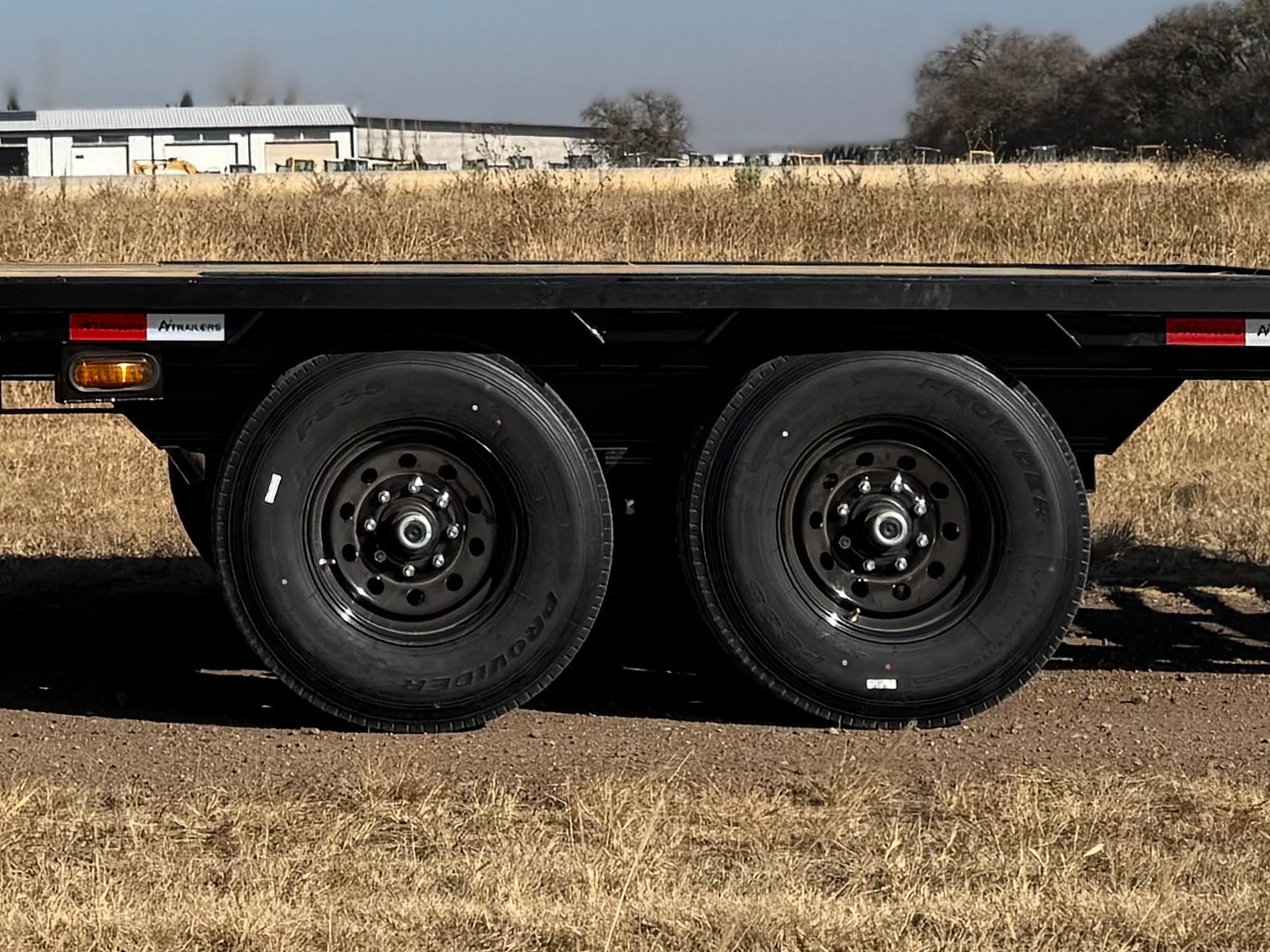

7k or 8k Dexter Spring Axles
Configurable with either 7k or 8k Dexter spring axles with electric brakes. Both axle options are backed by a 5-year Dexter warranty.
102" Wide Deck
Built with a 102-inch wide deck as standard. This provides maximum load space and stability for large, wide equipment on a bumper pull platform.
Product Details
DIMENSIONS
- LENGTH:
- 16' - 30'
- WIDTH:
- 102"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 14k, 16k
RUNNING GEAR
- TIRES:
- ST235/80R16
- TIRE PLY:
- 10 Ply
- RIMS:
- 16" x 6" Black
- AXLE TYPE:
- 2 - 7k Dexter Axles
2 - 8k Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brakes
- SUSPENSION:
- Spring
- SPARE TIRE:
- ST 235/80R16 - Included
TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- Bumper Pull
- JACK:
- 1 Side Wind Drop Jack Legs (10,000 lbs)
- COUPLER:
- Adjustable 2-5/16" Coupler (21,000 lbs)
- TOOLBOX:
- Mega Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- RAIL SYSTEM:
- Side Rail System For Ratchets
- RAMPS:
- Stand Up Ramps
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- Weather Resistant Wiring Harness
Double Insulated Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Rails w/ Ratchets
- D-RINGS:
- Additional D-Rings
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Black (#000000), Gray (#808080), White (#FFFFFF), Light Grey (#D3D3D3), Red (#E20000), Blue (#1D1DBB), Lime Green (#32CD32), Green (#008000), Orange (#FF5414)
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
