Build Summary

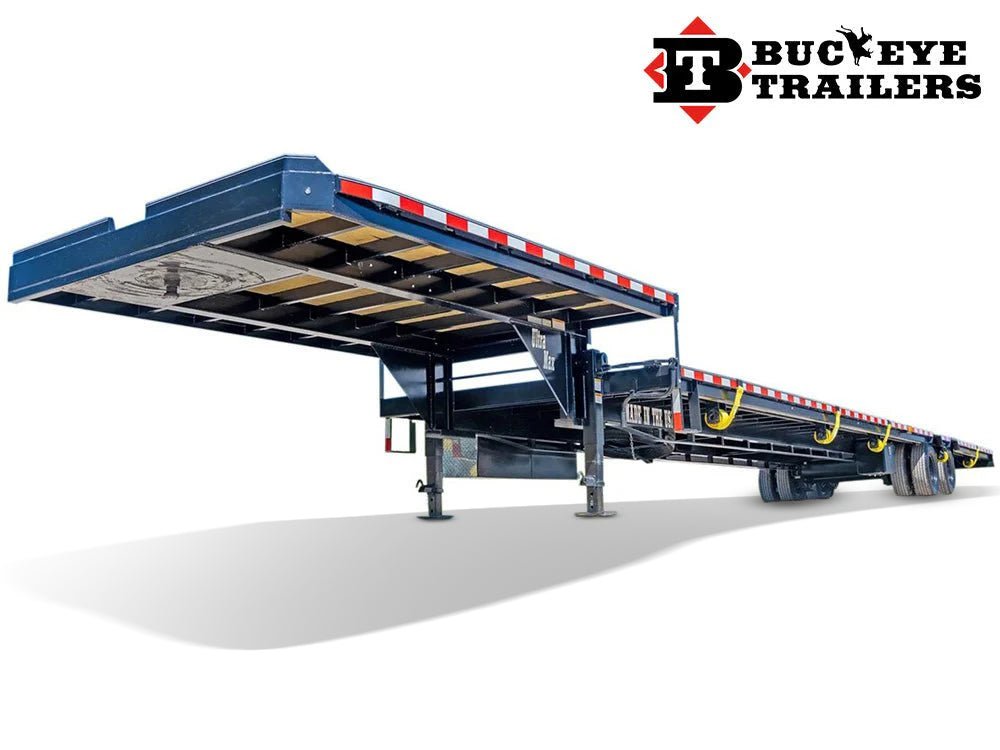

Step Deck Freight 53’ Trailer
Build Summary
Step Deck Freight 53’ Trailer
At a glance ValuesPRODUCT DETAILS
Product Features

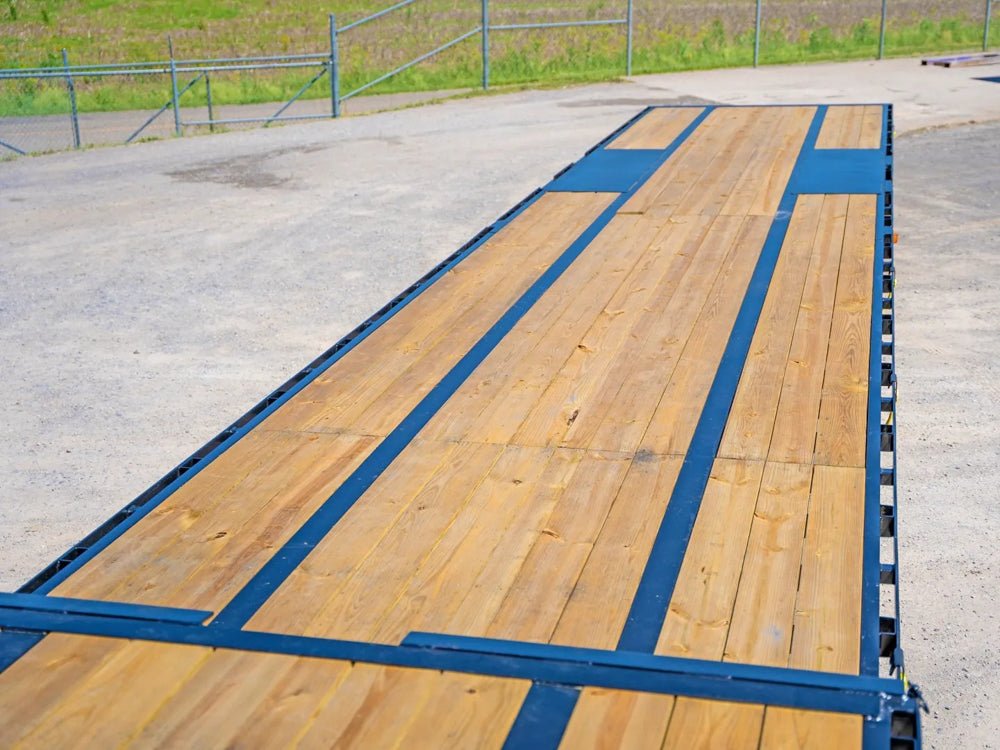

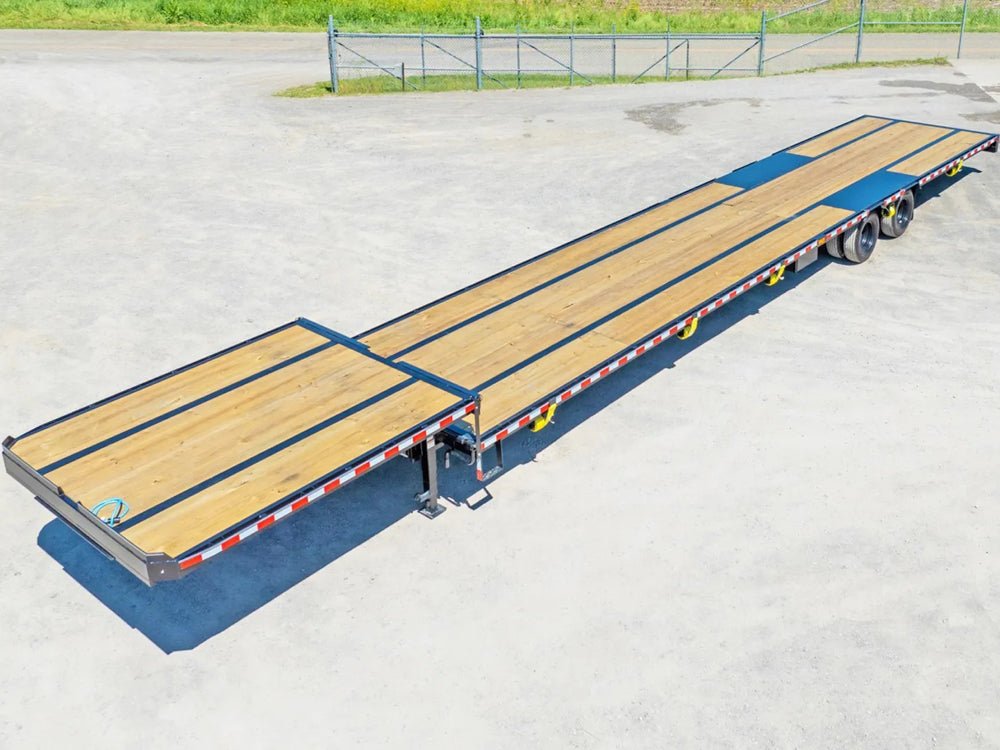

Expansive Freight Deck
With 53’ of usable space—43’ lower deck and 10’ upper deck—this trailer maximizes every inch. The 35” lower deck height and 52” upper deck, paired with a 102” width, offer versatility for diverse loads, ensuring no payload is left behind. Compatible with HD cab and chassis trucks, it’s built for profit-driven hauls.

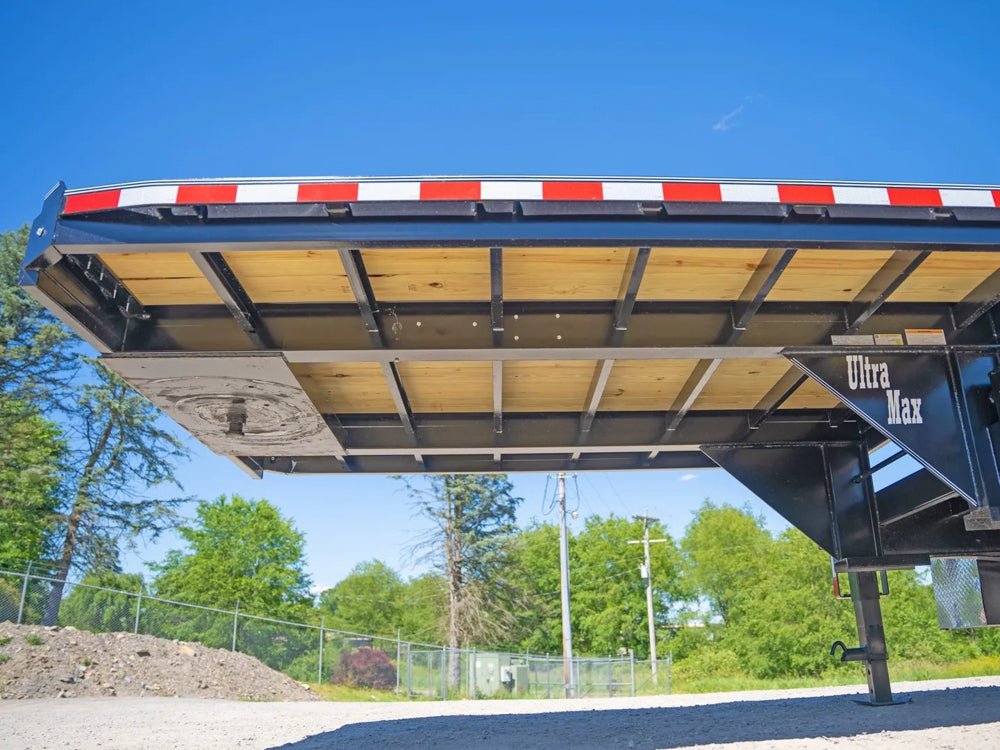

Robust I-Beam Strength
Crafted on a heavy-duty fabricated I-beam frame with 16” crossmember spacing, this trailer delivers unmatched durability. Supporting a 24,000-30,000 lbs GVWR and 13,500-19,500 lbs payload, its slipper spring suspension ensures stability. Optional air ride and axle upgrades to 20,000 lbs enhance toughness for the heaviest freight jobs.
Secure Load Management
Featuring a 3” rub rail with stake pockets and chain spools every 16”, plus a 6” channel side rail with sliding ratchet track, securing loads is effortless. Five sliding ratchets with 30’x4” straps provide flexibility, while DOT-approved LED lighting and reflective tape ensure safety on every haul.

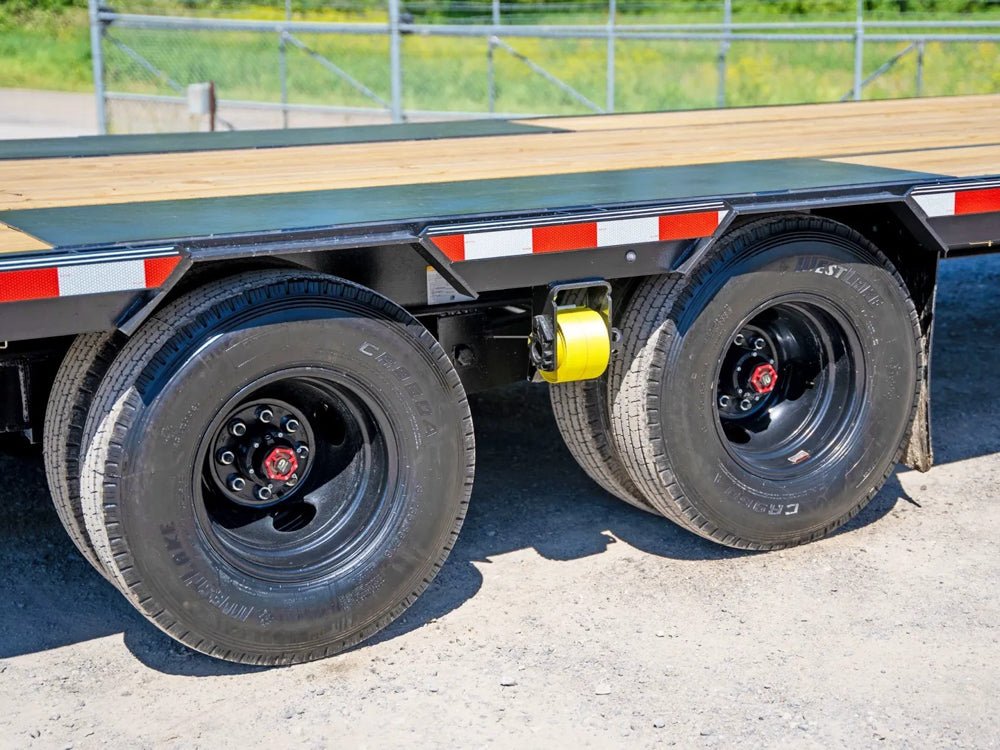

Reliable Running Gear
Equipped with dual 12k HD Dexter oil bath axles and electric brakes, this trailer guarantees control. Rolling on 235-80-R16 tires with HD steel dual 16” wheels and an 8 on 6.5” bolt pattern, it’s built for reliability. Upgrade options include 215-75-R17.5 tires and 14-ply enhancements for tougher runs.

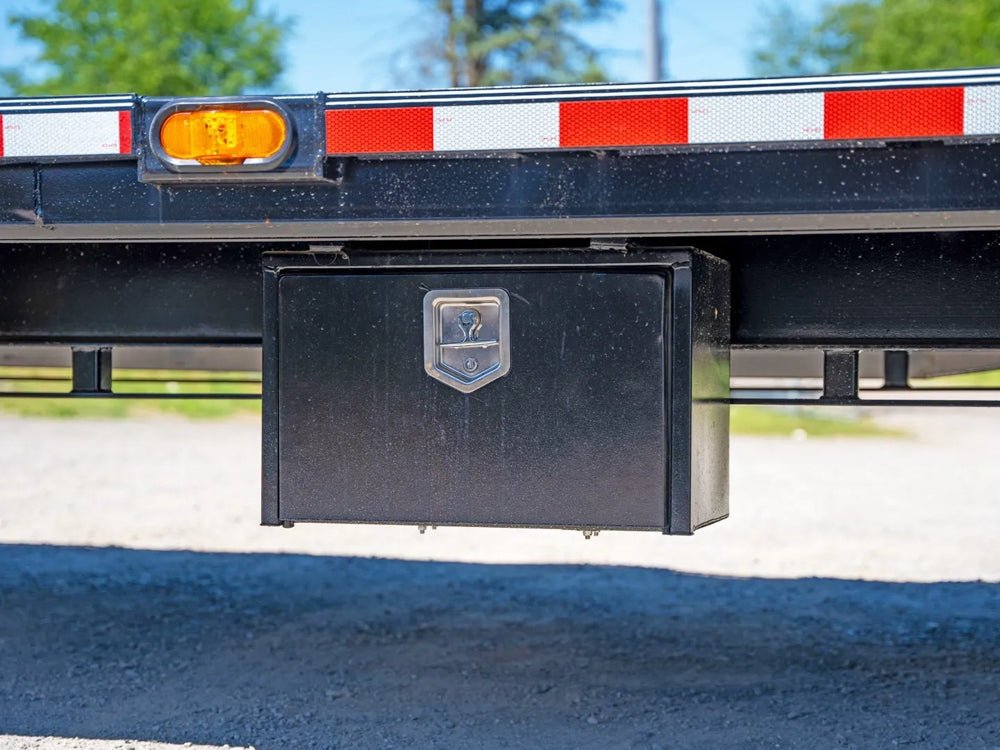

Convenient Toolbox Storage
Two steel side-mount toolboxes with locks keep gear secure and accessible, standard on every trailer. An optional weatherproof, locking upgrade adds durability for long hauls. Paired with dual-speed 12k jacks, this freight hauler ensures your tools and equipment are organized and ready for any job.
Durable Finish & Warranty
Coated in automotive-grade epoxy primer with dual urethane topcoats, this trailer resists wear and tear across countless hauls. Backed by a 2-year structural warranty, its heavy-duty I-beam frame ensures lasting reliability, making it a trusted investment for freight haulers facing demanding conditions.Description
Dimensions & Capacity
- Model: Buckeye Step Deck Freight Trailer 53'
- GVWR: 24,000-30,000 lbs
- Options - GVWR: 40,000 lbs
- Payload: 13,500-19,500 lbs
- Empty Weight: 10,500 lbs
- Deck Length: 53' (43' Lower Deck, 10' Upper Deck)
- Deck Width: 102"
- Deck Height: 35" Lower Deck, 52" Upper Deck
- Fifth Wheel Height: 42"
Frame & Suspension

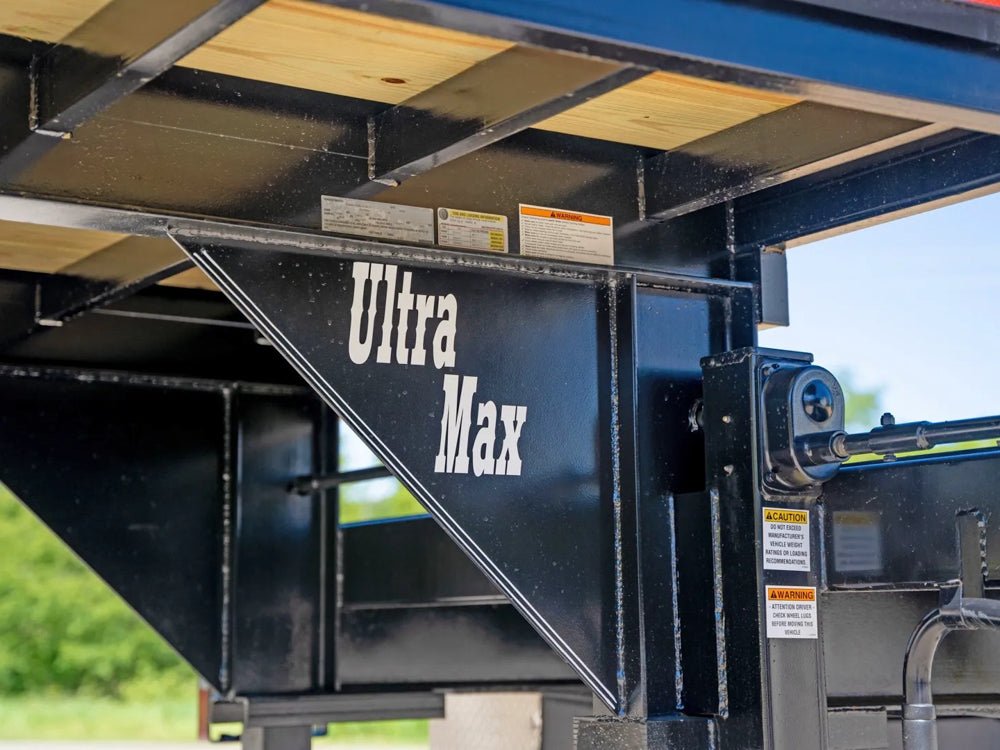

- Frame: Heavy-Duty Fabricated I-Beam
- Suspension: Heavy-Duty Slipper Spring
- Options - Suspension: Air Ride
- Floor: Treated Yellow Pine
- Options - Floor: Oak Flooring
- Axles: Dual 12k HD Dexter Oil Bath Axles 5 Year Warranty
- Options - Axles: 12,000 lbs Spring Axles to 20,000 lbs Air Ride With Air Brakes
Coupler & Accessories
- Coupler: King Pin with a fifth wheel (Height of 45"-48")

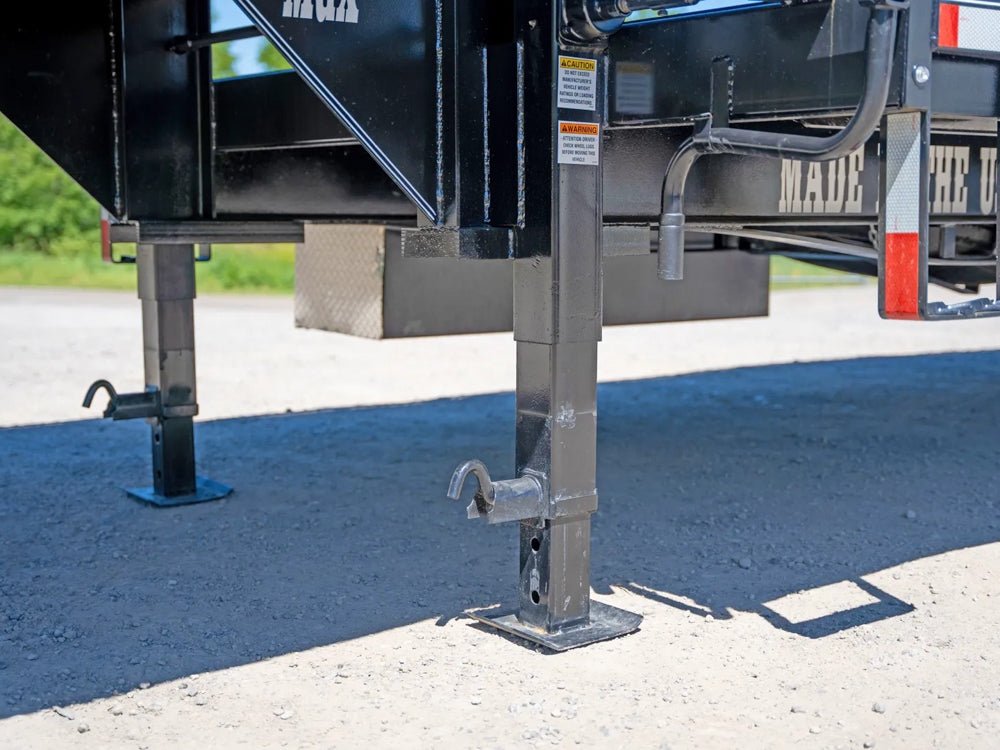

- Jacks: 2 Dual Speed 12k Spring Loaded Drop Leg Jacks
- Stake Pockets & Rubrails: 3" Rail, Stake Pockets Along Both Sides, Chain Spools

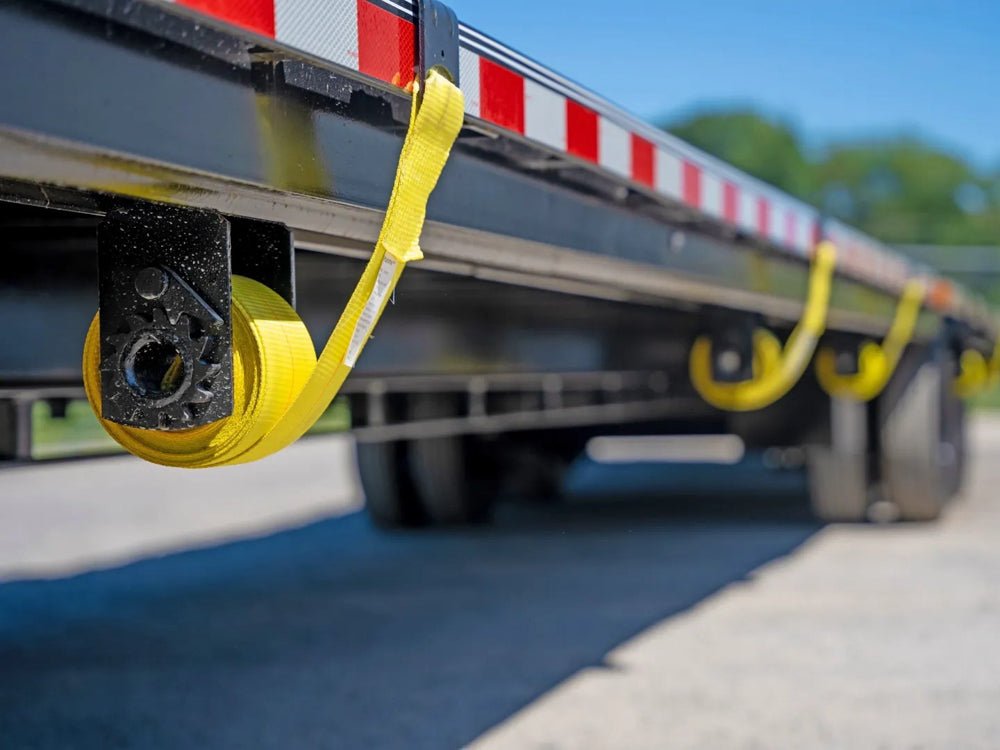

- Tie Downs: Sliding ratchet rail full deck with 5 ratchets and 30' straps
- Storage: 2 Steel Side Mount Toolboxes With Lock
- Options - Storage: Toolbox - weatherproof, locking
- Finish: Automotive Grade Epoxy Primer With Two Top Coats of Industrial Urethane
- Warranty: 2 Year Structural Frame
Running Gear & Safety
- Tires: 235-80-R16 Load Range G
- Options - Tires: 215-75-R17.5 Load Range J on Aluminum Wheel
- Options - Tire Upgrade: 14 Ply Tire Upgrade
- Wheels: HD Steel Dual 16"
- Bolt Pattern: 8 on 6.5" Bolt Pattern
- Spare Mount: 235-80-R16 Load Range G
- Options - Spare Mount: 215-75-R17.5 Load Range J on Aluminum Wheel
- Options - Spare Tire: 10 Ply Spare Tire
- Options - Spare Tire: 14 Ply Spare Tire
- Brakes: Electric Brakes
- Ramps: 9' Aluminum Ramps rated for 10,000 lbs
- Options - Ramps: 10' or 12' Aluminum Ramps rated for 10,000 lbs
- Safety: DOT Approved Reflective Tape

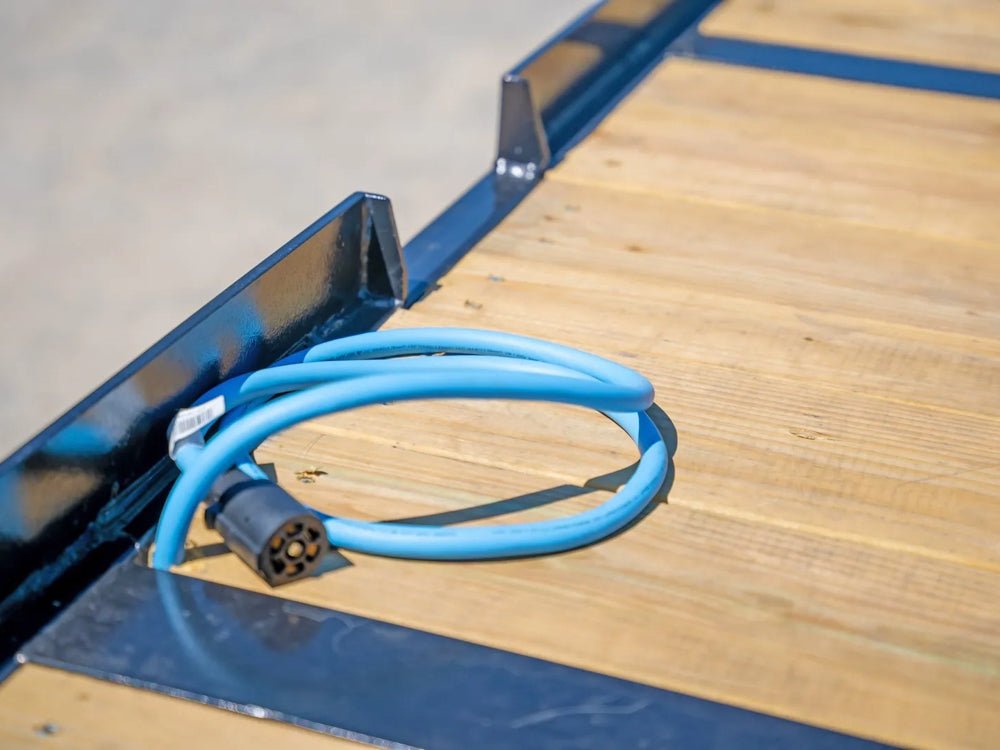

- Trailer Plug: 7-Way RV

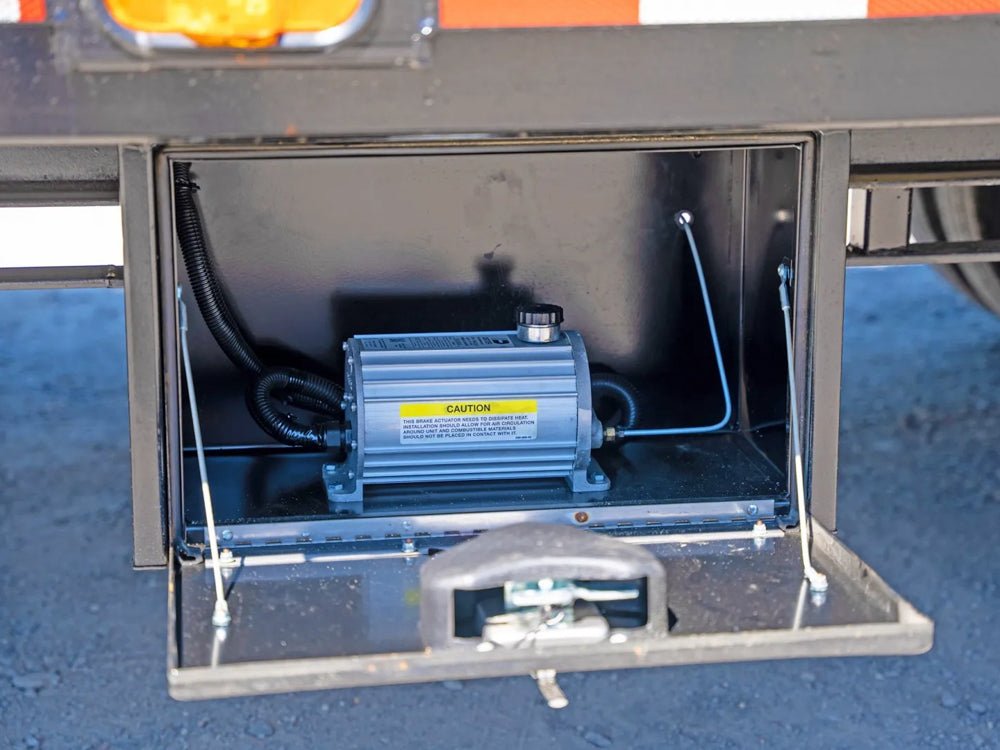

- Break-Away Kit: Breakaway Kit & Battery Box
- Safety Chains: Included
- Lights: DOT Approved LED Lighting
- Options - Lights: LED Flood Lights
- Options - Winch: 12,000lb Winch Kit – wireless remote included
- Options - Package: Trailer Hauling Package (102" wide deck, Center Rail, 3 ball towers, 12,000lb winch kit)
