At a Glance
TRAILER SPECS:
Specifications
- Brand:
RawMaxx
Dimensions
- LENGTH:
10'
Product Features
Robust Frame Construction

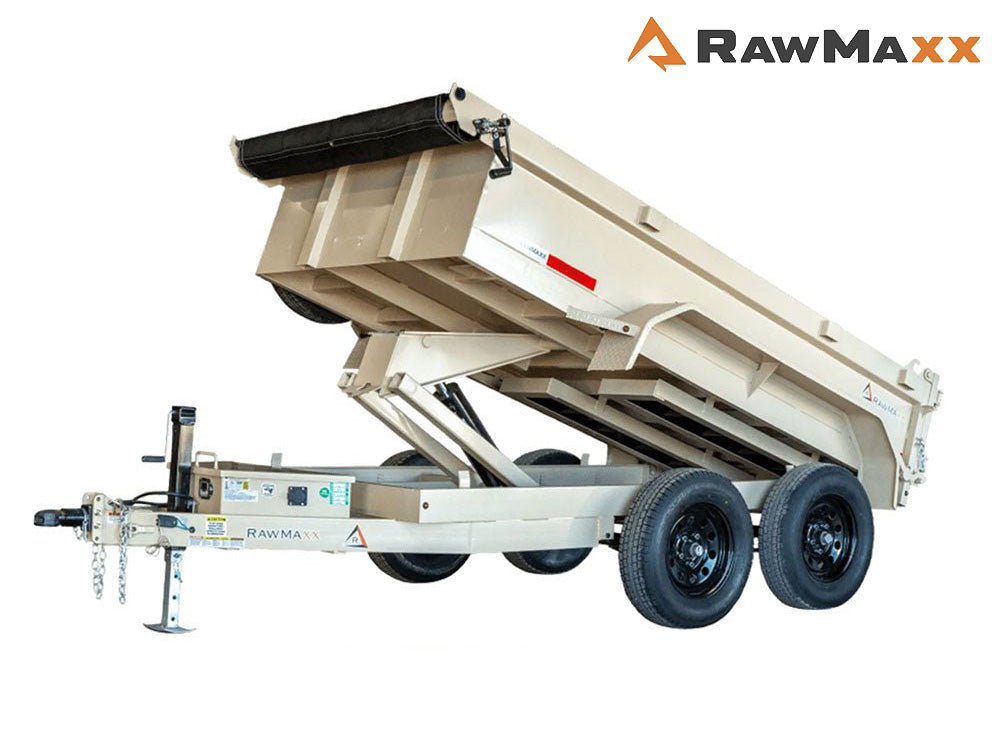

Constructed with a 5" C-channel main frame and 4" x 3" x 3/16" tubing cross-members, the SDX Dump Trailer ensures durability and strength. The dump bed features 12-gauge formed side walls and a 10-gauge steel floor, complemented by 12-gauge diamond plate steel fenders and welded D-rings in the inside corners for added functionality and resilience.
Hydraulic Lift System
The SDX is equipped with a heavy-duty scissor lift powered by a KTI 12V hydraulic pump, providing a tilt angle of 41° for efficient dumping operations. The system includes a 5" x 16" cylinder and is controlled by a 14' cable, offering both power-up and power-down capabilities for versatile operation.
Durable Running Gear
The SDX Dump Trailer is equipped with two spring axles, each rated at 3,500 lbs, paired with ST205/75R15 radial tires. These 8-ply tires are mounted on 15” black mod wheels with a bolt pattern of 550, providing stability and reliable load-bearing capacity. The electric brakes on both axles enhance safety and control during transport.
Practical Cargo Management
The SDX includes a spacious tongue tool box for the pump, battery, and charger, adding to its practicality. The rear gate features 3-way doors with EZ Slam door latches and 5' slide-in channel ramps for easy loading and unloading of cargo. The manual tarp kit provides additional protection for the load.
DURABLE POWDER COAT FINISH
The trailer is finished with a high-quality powder coat applied after a thorough grit blast preparation. This finish offers excellent resistance to rust and corrosion, ensuring the trailer remains in top condition even in harsh environments. The standard color is Jet Black, providing a sleek and professional appearance.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- 14’ - 20’ Gooseneck Dump Trailer
- LENGTHS:
- 14’, 16’, 18’, 20’
- WIDTH:
- 83"
- DECK HEIGHT:
- 29"
- GVWR:
- 20,000 lbs
- GAWR:
- 10,000 lbs
- EMPTY WEIGHT:
- 5,185 lbs+
- LOAD CAPACITY:
- 16,392 lbs
- CARGO CAPACITY:
- 9.5 Cubic Yards
FRAME & SUSPENSION
STRUCTURE:
- MAIN FRAME:
- 10" x 15 lb. I-Beam Frame
- GOOSENECK NECK:
- 10" x 15 lb. I-Beam, 92" Length
- CROSS-MEMBERS:
- 4" x 6" x 3/16" Tubing
- SUSPENSION:
- Torsion Suspension
- AXLES:
- 2 x 10,000 lb Dexter Axles
- BRAKES:
- Electric
COUPLER & ACCESSORIES
COUPLER:
- TYPE:
- 2-5/16” Gooseneck Ball Coupler
JACKS:
- TYPE:
- 2 Side Wind Drop Legs - 10,000 lbs
ACCESSORIES:
- STORAGE:
- Tool Box Between Risers for Pump, Battery & Charger
- FENDERS:
- 12G Diamond Plate Steel
- FINISH:
- Powder Coat - Grit Blast Prep, Jet Black
- WARRANTY:
- 5 Year Dexter Axle, 3 Year Structural / 1 Year Paint
RUNNING GEAR & SAFETY
TIRES & WHEELS:
- TIRES:
- ST235/80R17.5 Radial, 18 Ply
- RATING:
- 4,805 lbs
- WHEELS:
- 17.5” Black Mod Wheels
- BOLT PATTERN:
- 8 on 6.5”
SAFETY:
- SAFETY CHAINS:
- 3/8" G70 Safety Chains
- BREAKAWAY KIT:
- Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
ELECTRICAL & LIGHTING
WIRING:
- FRONT PLUG:
- 7-Way RV
- FRAME WIRING:
- All Weather Wiring Harness
LIGHTING:
- SIDE MARKERS:
- 3/4" LED Bullet Lights
- REAR LIGHTS:
- DOT Approved LED Lights
ELECTRICAL SYSTEM:
- BATTERY:
- 27M Deep Cycle Marine Battery
- CHARGER:
- 110V Integrated Trickle Charger
DUMP BED & HYDRAULICS
DUMP SYSTEM:
- TYPE:
- Hydraulic - Power Up / Down
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 14’ Cable with Control
- LIFT CYLINDER:
- 6" x 20" Heavy Duty Scissor
- TILT ANGLE:
- 48°
- TILT FRAME:
- 5’ x 5" x 3/8" Angle
DUMP BED:
- INSIDE WIDTH:
- 83"
- SIDE HEIGHT:
- 24"
- SIDE WALLS:
- 10G Formed Steel Walls
- FLOOR:
- 7G One Piece Steel Floor
- CROSS-MEMBERS:
- 3" Channel / 16" Spacing
- D-RINGS:
- 4 Welded D-Rings (Inside Corners)
- REAR GATE:
- 3-Way Doors
- LATCHING SYSTEM:
- EZ Slam Door Latches
- RAMPS:
- 6’ Slide-In Channel Ramps
- TARP:
- Manual Tarp Kit
