Build Summary

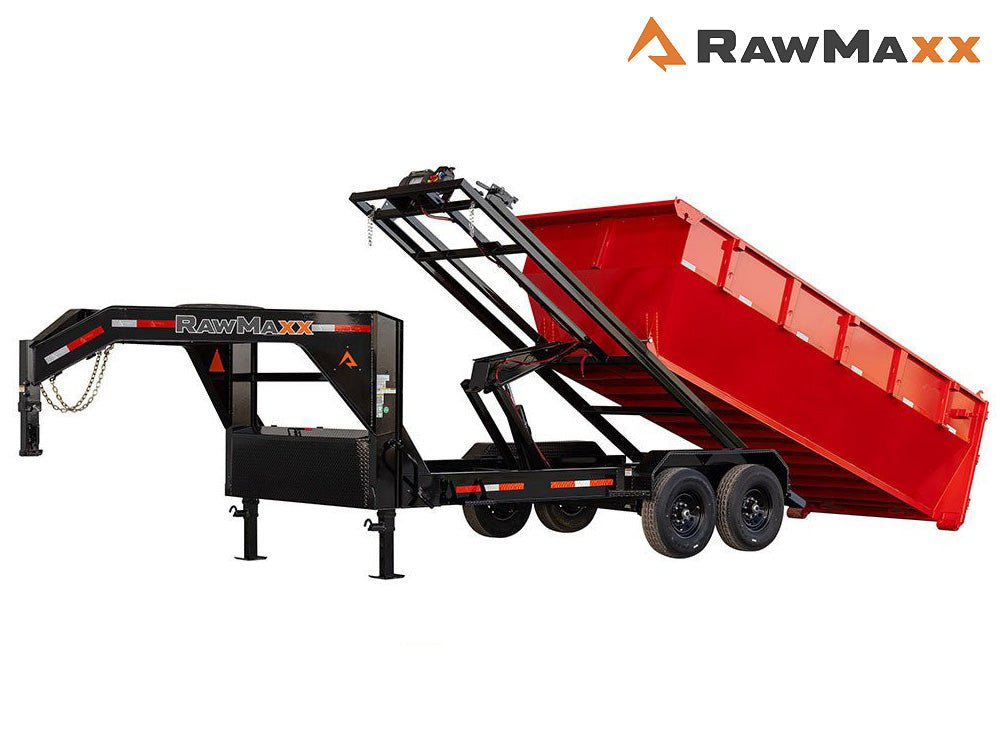

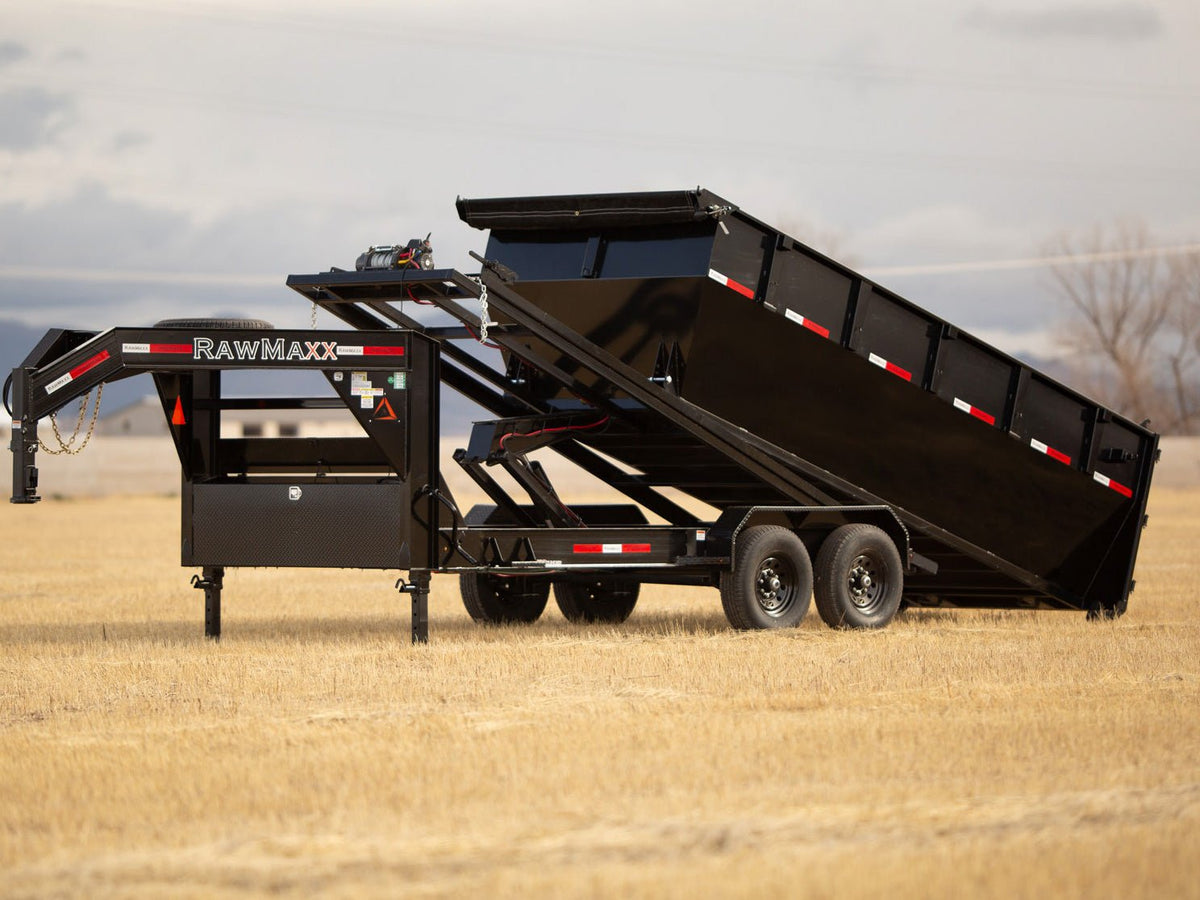

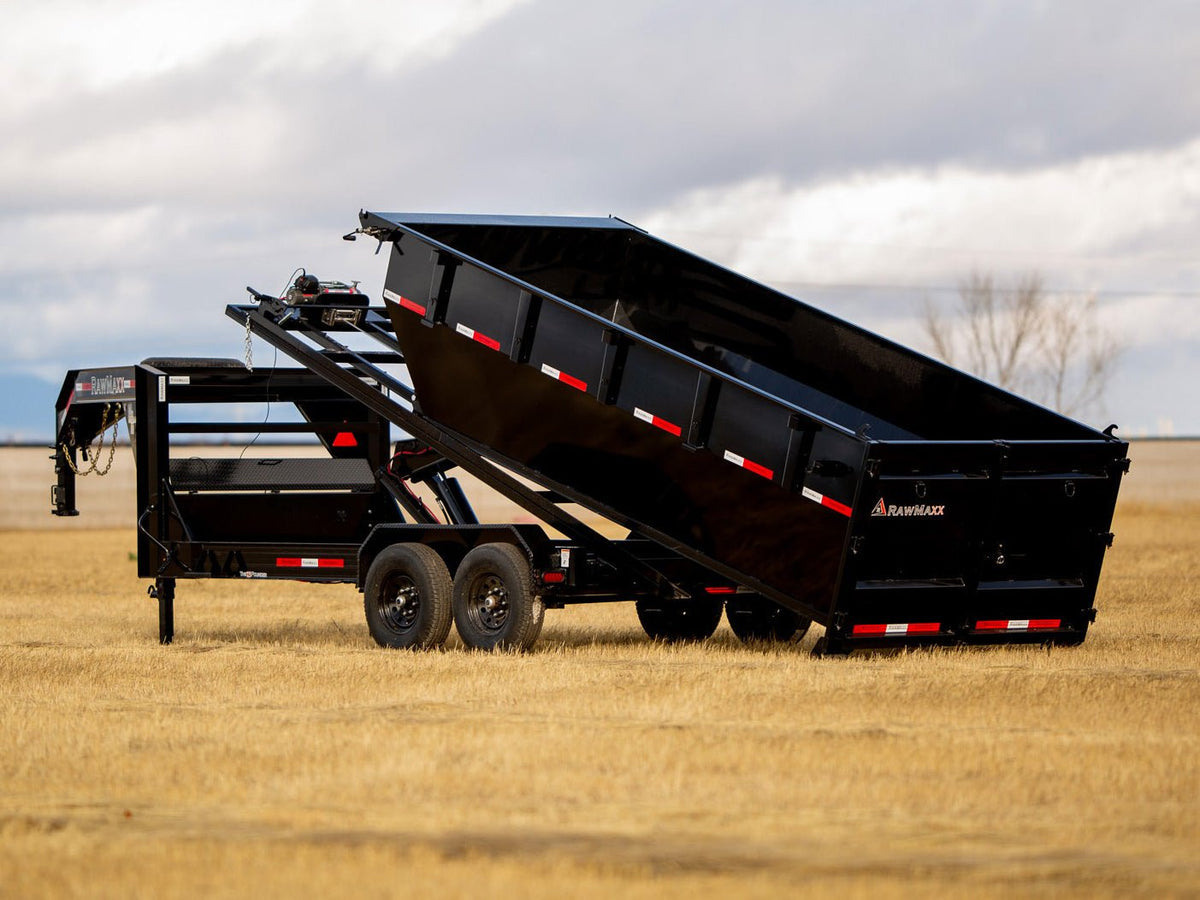

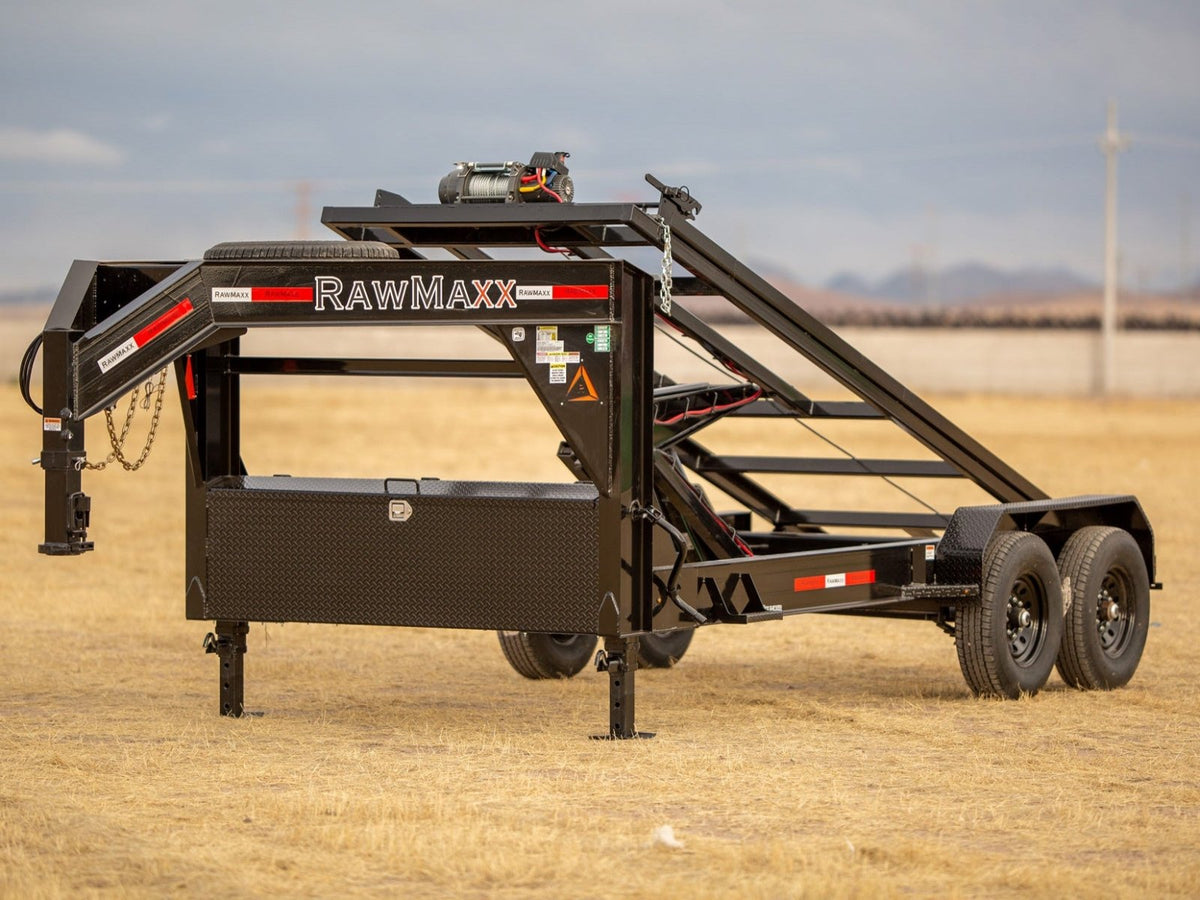

RawMaxx RDX Gooseneck Roll Off
Build Summary
RawMaxx RDX Gooseneck Roll Off
At a glance ValuesPRODUCT DETAILS
Featured Video
Product Features

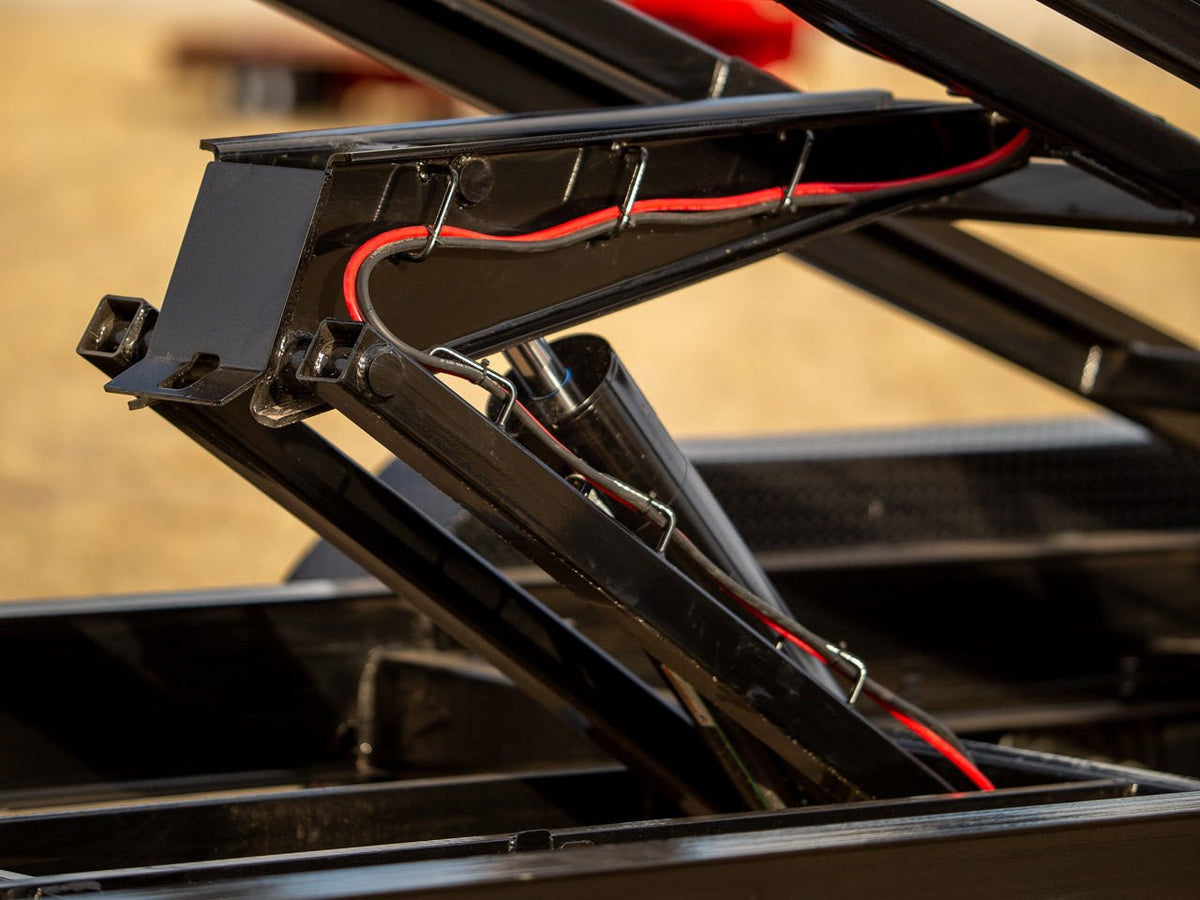

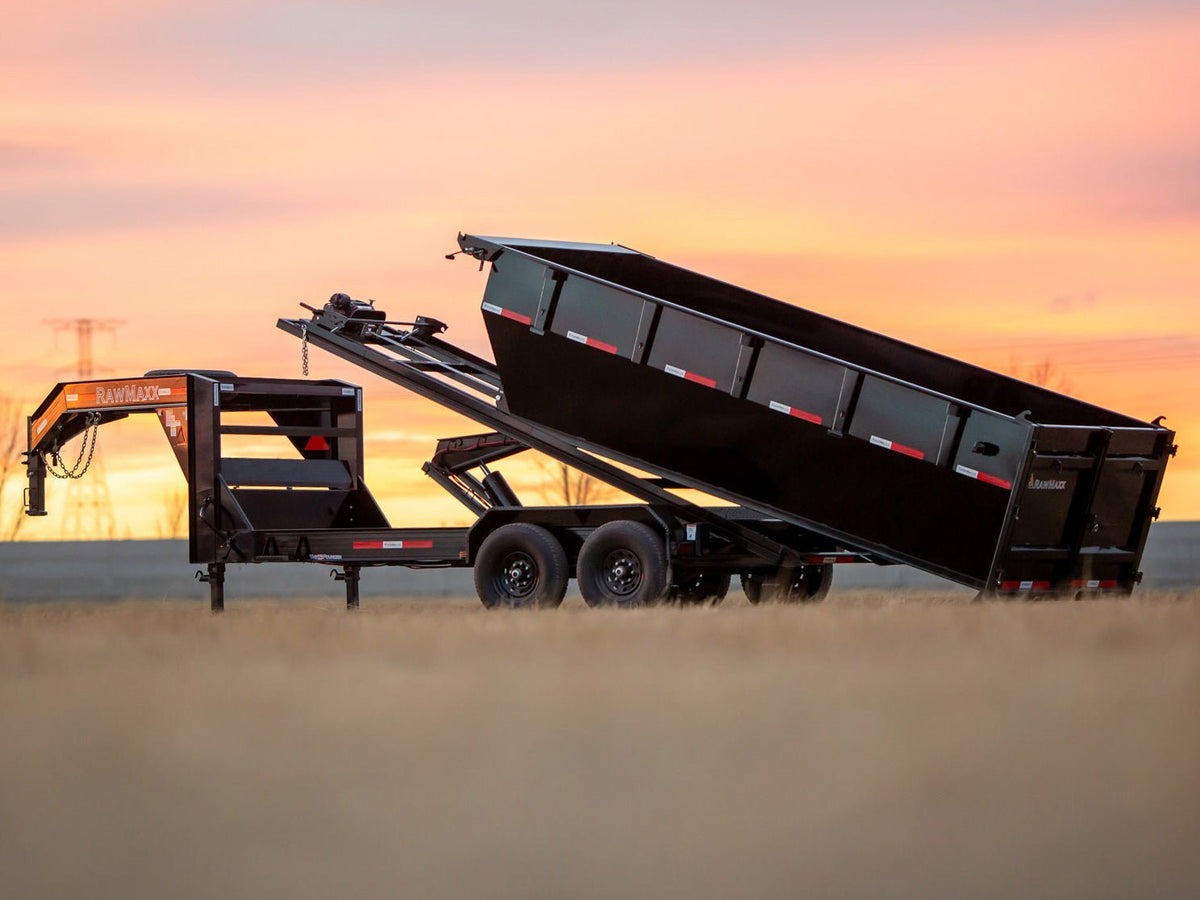

Scissor Lift
The lift system utilizes a heavy-duty scissor lift with a 6" x 20" cylinder, ensuring smooth and reliable operation. This powerful lift mechanism provides the necessary force to tilt the trailer bed effortlessly. The scissor lift design offers stability and precision, making loading and unloading safer and more efficient.
Powder Coat Finish
The trailer is finished with a high-quality powder coat, prepped with grit blast and coated in jet black. This durable finish enhances the trailer's visual appeal and provides long-lasting protection against corrosion and wear. The powder coat finish ensures the trailer maintains its sleek appearance and structural integrity over time.

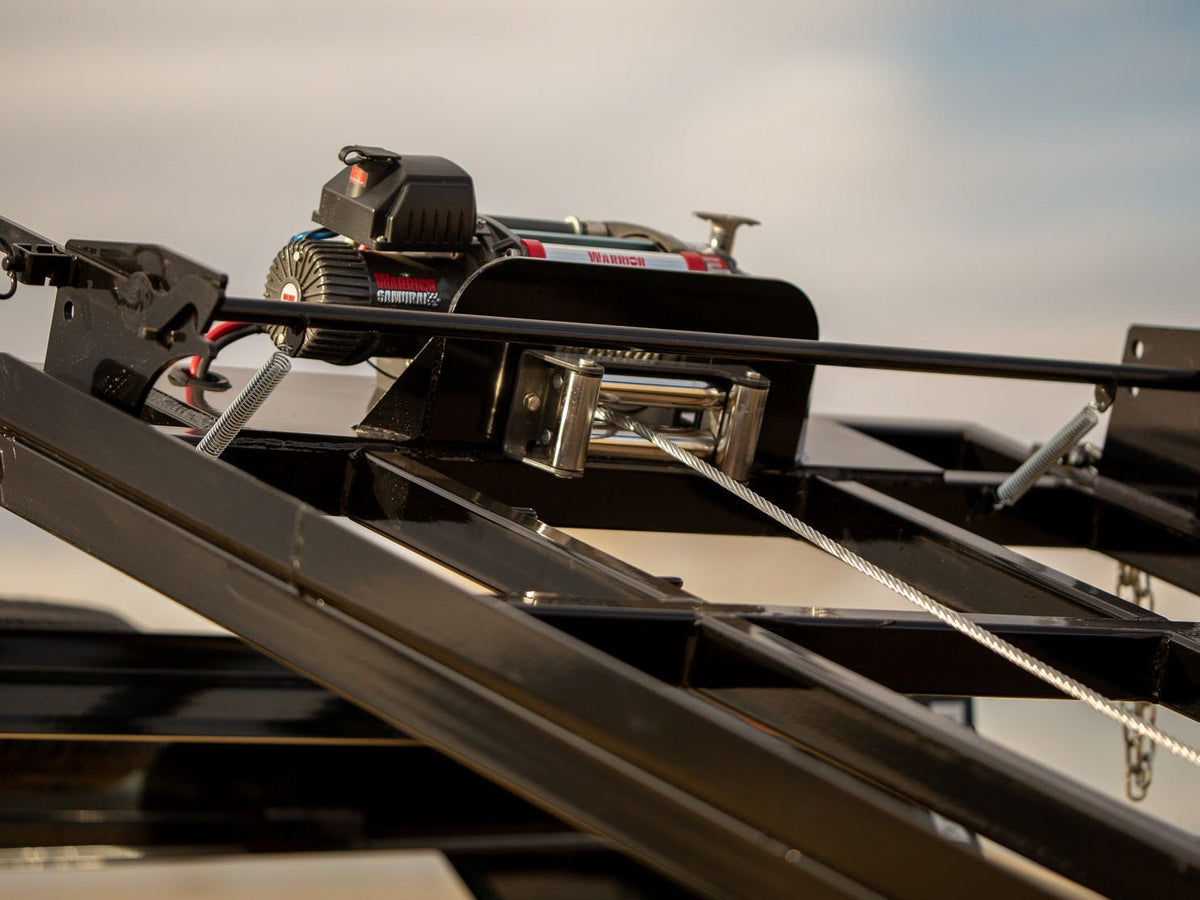

Electric Winch
The RDX trailer comes with a 17,500 lbs. Warrior electric winch, enhancing the efficiency of handling heavy loads. This high-capacity winch makes it easier to load and unload equipment, even in challenging conditions. Its electric operation provides convenience and power, ensuring reliable performance during heavy-duty tasks.
Heavy-Duty Frame
The RDX trailer features a robust frame constructed from a 10" x 12 lb. I-beam, ensuring superior strength and durability. This heavy-duty frame is designed to handle substantial loads, making it ideal for demanding hauling tasks. Its structural integrity ensures longevity and reliable performance under tough conditions.
Durable Fenders
The fenders are crafted from 12-gauge diamond plate steel, offering excellent protection and longevity. This durable material shields the wheels and undercarriage from debris and impact damage. The diamond plate design also provides a non-slip surface, enhancing safety when accessing the trailer.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.Description
Dimensions
- Length: 14'
- Width: 83"
- Deck Height: 29"
Weight Rating
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 4,148 lbs.
- Load Capacity: 12,300 lbs.
Finish
- Type: Powder Coat
- Prep: Grit Blast
- Standard Color: Jet Black
Warranty
- Axle: 5 Year Dexter
- Trailer: 3 Year Structural / 1 Year Paint

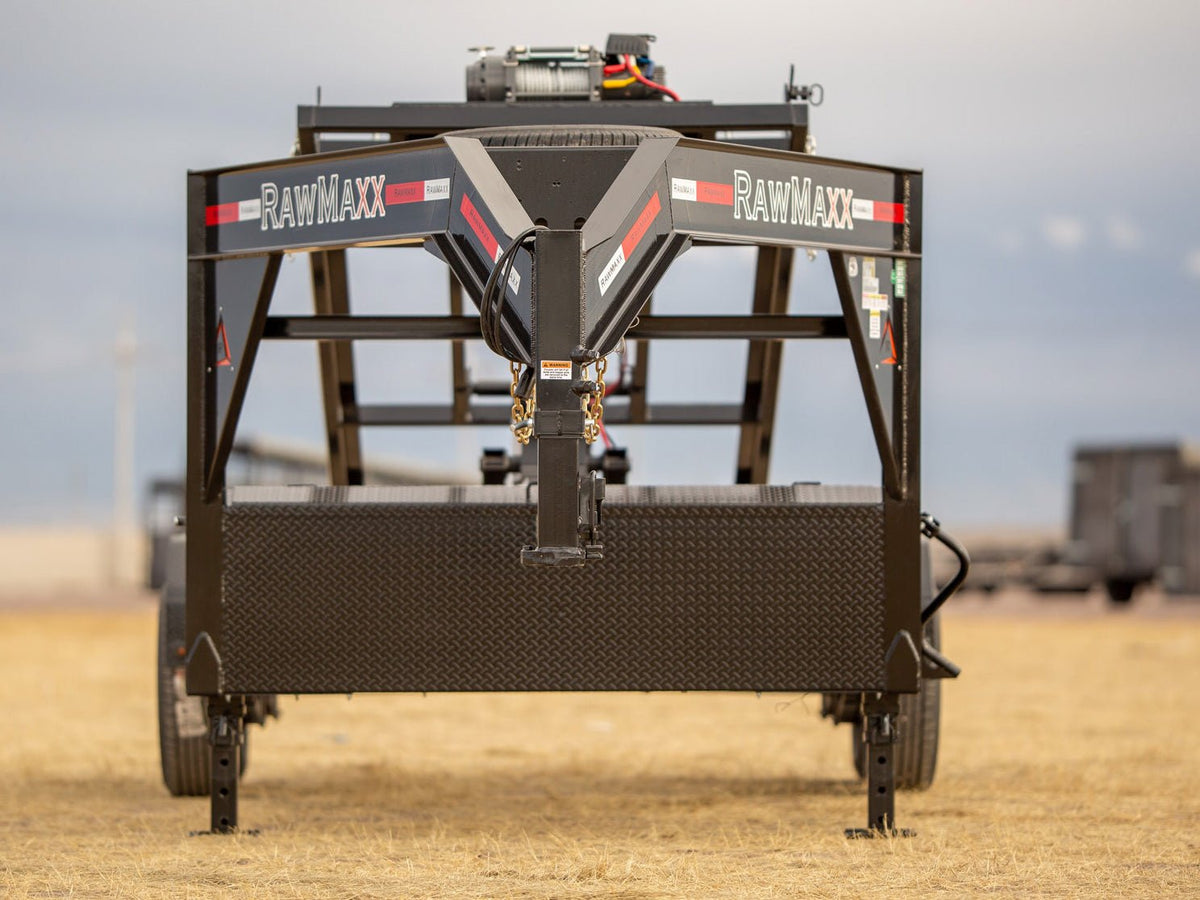

Feature Details - Gooseneck
- Coupler: 2-5/16” Gooseneck Ball Coupler

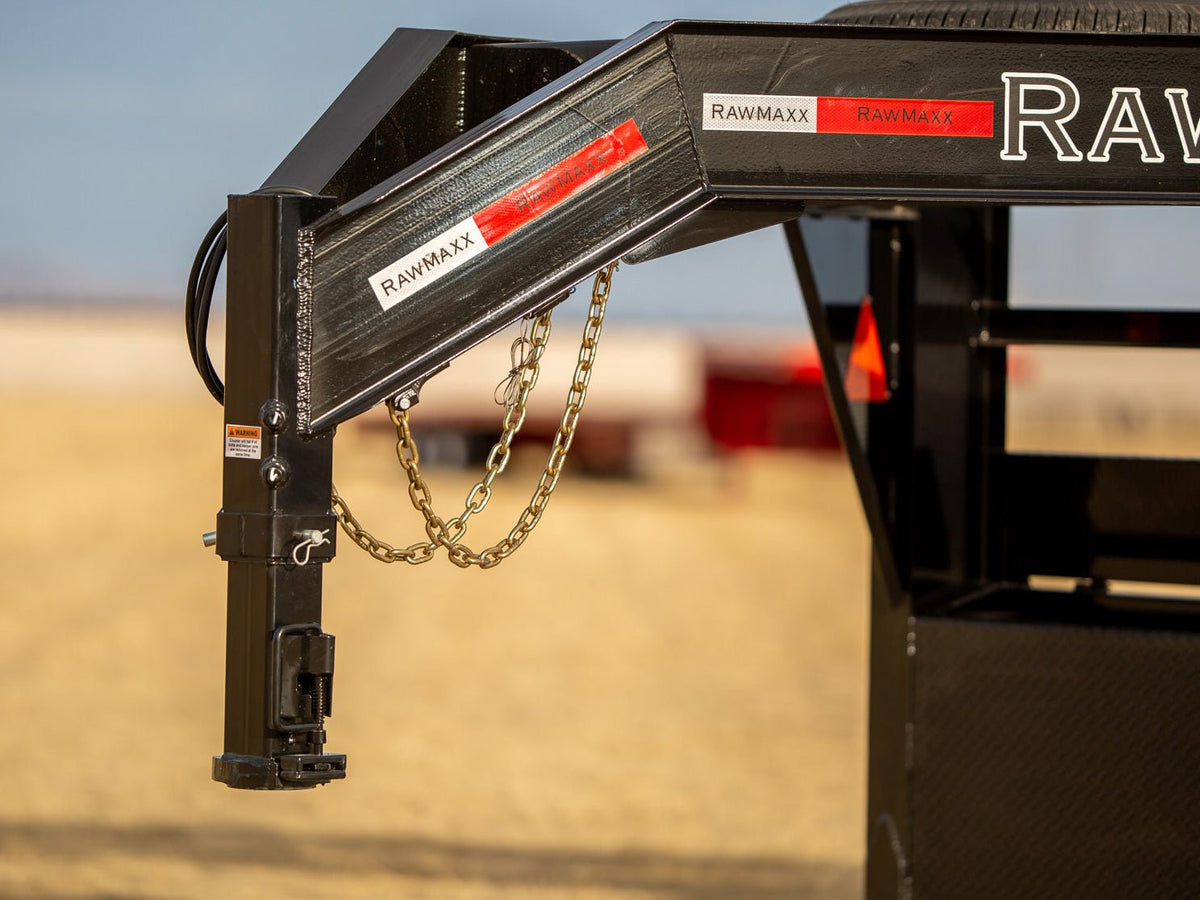

- Jack: 2 Side Wind Drop Legs - 10,000 lbs.
- Tool Box: Tool Box Between Risers for Pump, Battery & Charger
- Neck: 10" x 12 lb. I-beam
- Gooseneck Length: 90"
Safety System
- Safety Chains: 3/8" G70 Safety Chains
- Breakaway System: Electric Breakaway Kit
- Reflective Tape: 3M DOT Compliant Reflective Tape

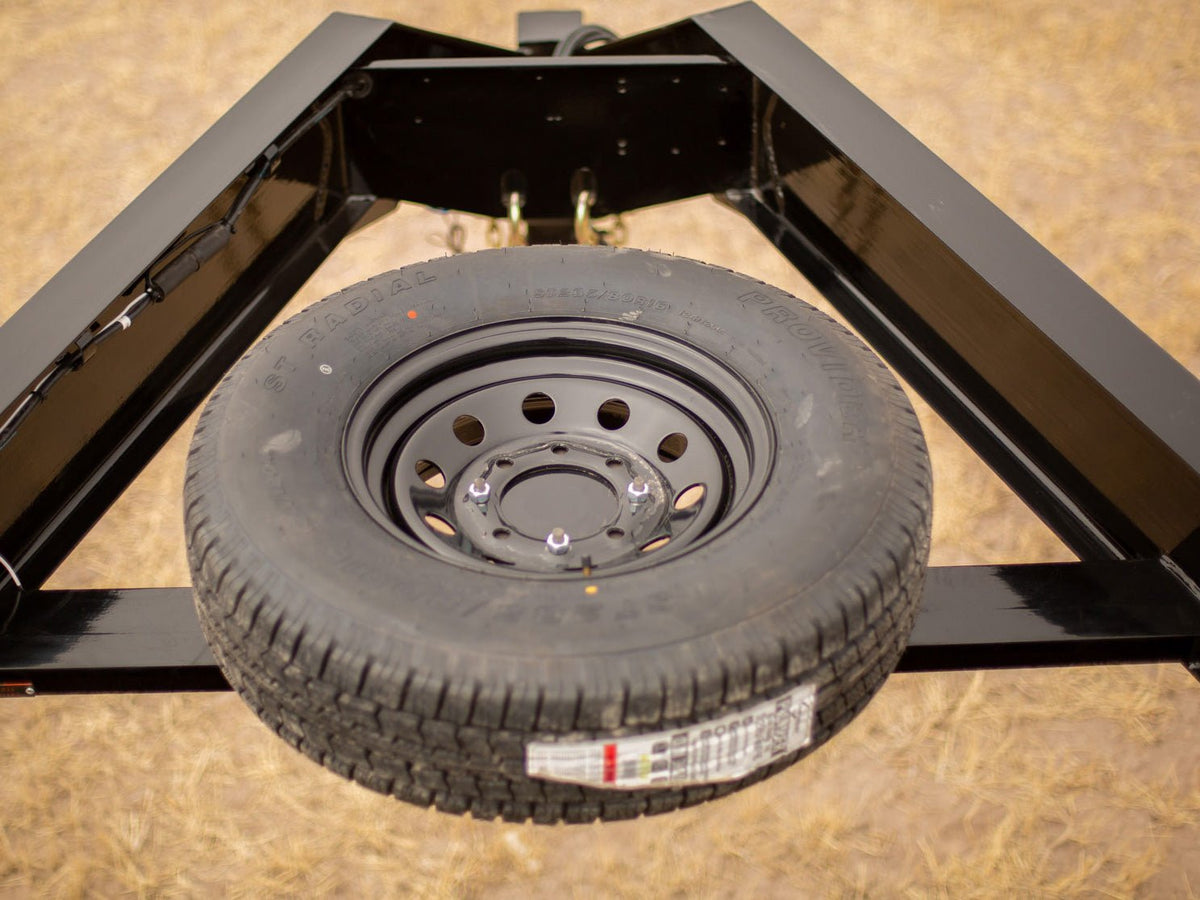

- Spare Tire Mount: 3" Tubing / 3/16" Plate
Feature Details - Chassis
- Main Frame: 10" x 12 lb. I-beam Frame
- Cross-Member: 4" x 6" x 3/16" Tubing
- Fenders: 12G Diamond Plate Steel

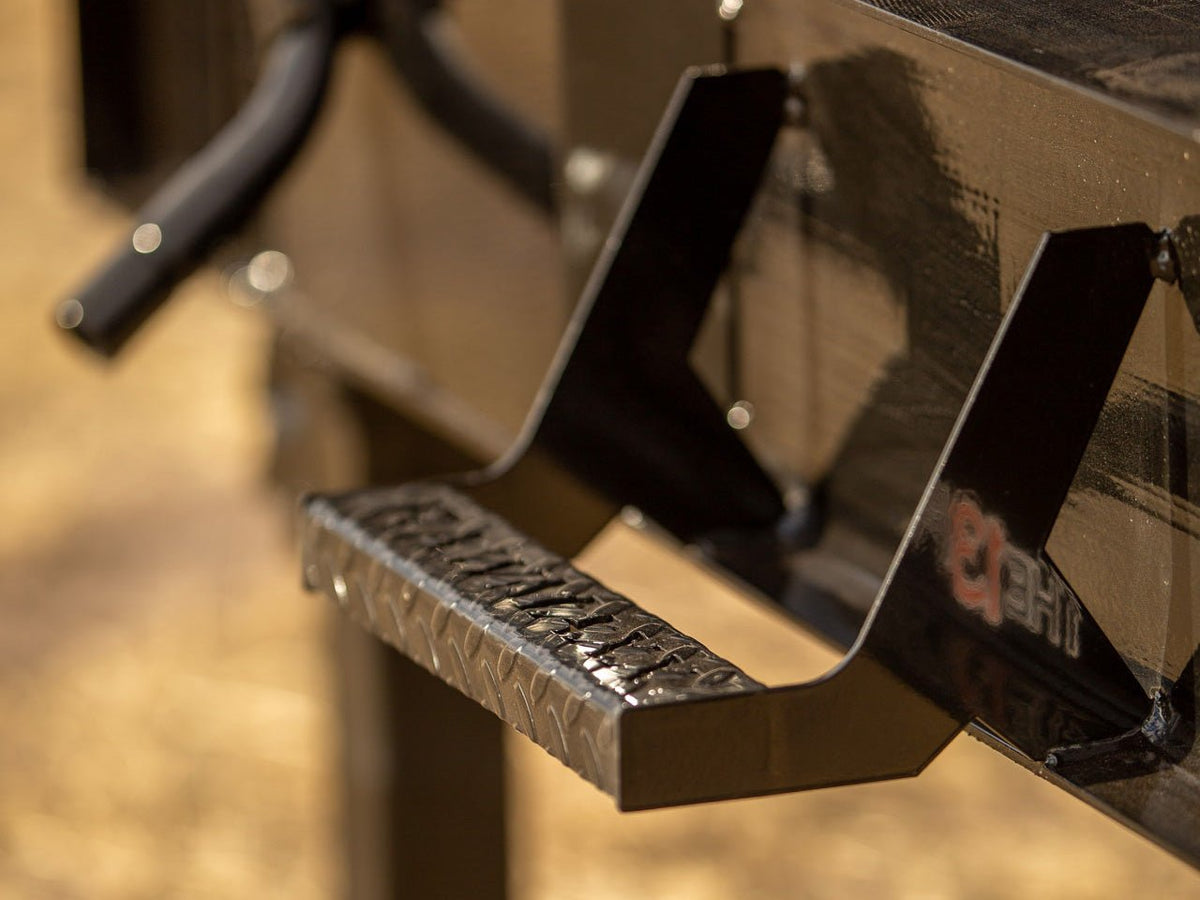

- Side Step: G10 Sides / G12 Diamond Plate Step

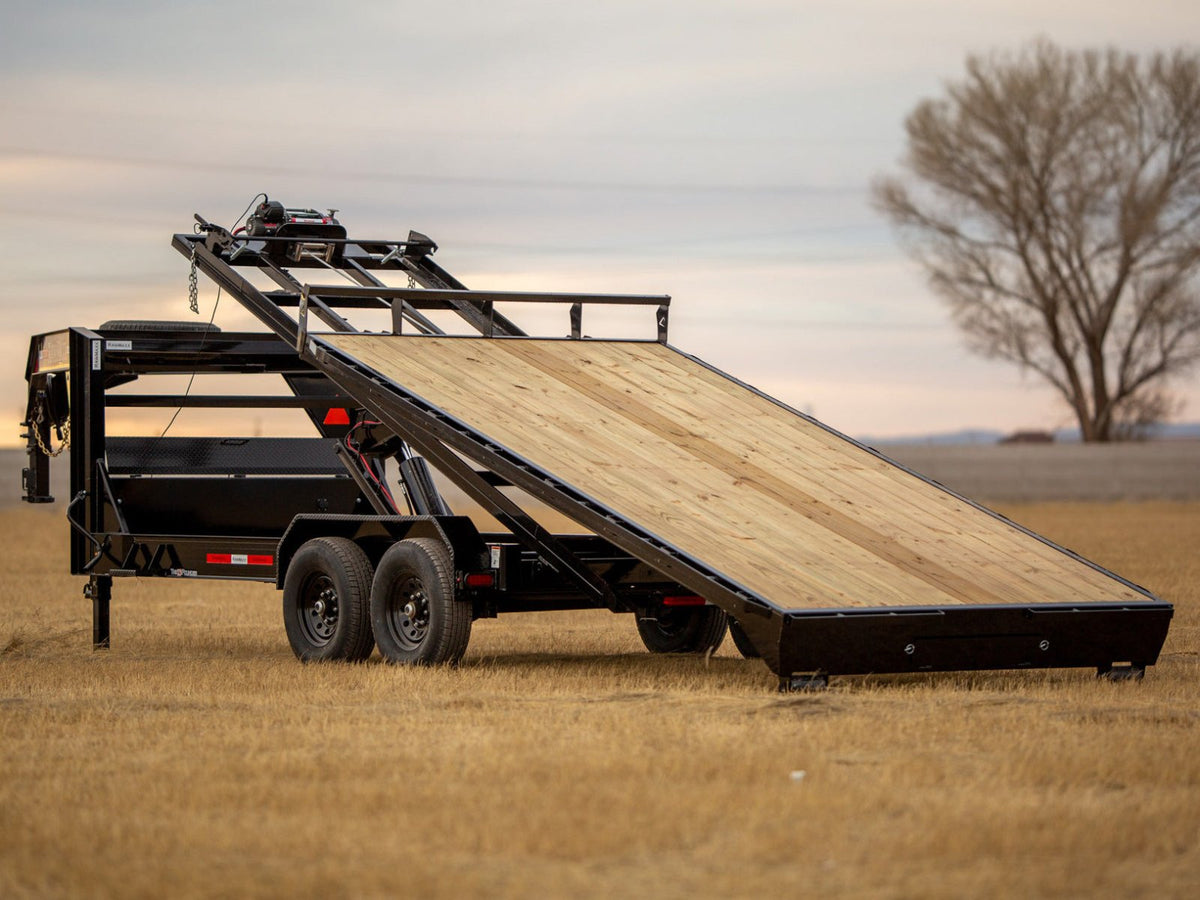

Feature Details - Tilt Bed
- Side Frame: 2" x 3" x 3/16" Tubing
- Deck: 5" x 3" Formed Slide Rails
- Cross-Members: 2" x 3" x 3/16" Tubing
- D-Ring: 1 D-Ring (Welded On Back)
Feature Details - Lift System
- Power: Hydraulic - Power Up - Down
- Pump: KTI 12V Hydraulic Pump
- Controller: 14' Cable with Control
- Scissor: Heavy Duty Scissor Lift
- Cylinder: 6" x 20" Cylinder
- Tilt Angle: 55°
Feature Details - Winch System
- Winch: 17,500 lbs. Warrior Electric Winch

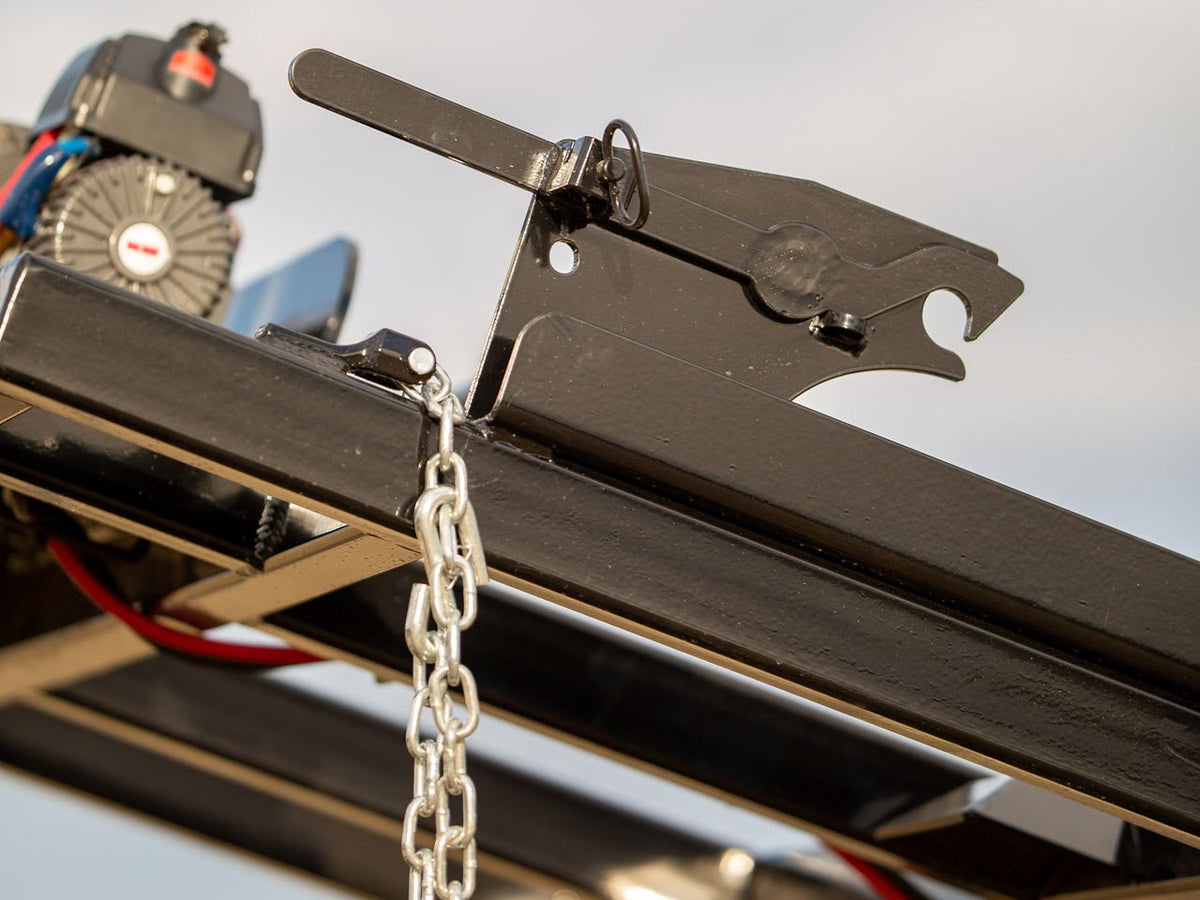

- Latching System: Spring Loaded Latch Assembly / Zinc Plated 5/8" diameter pin

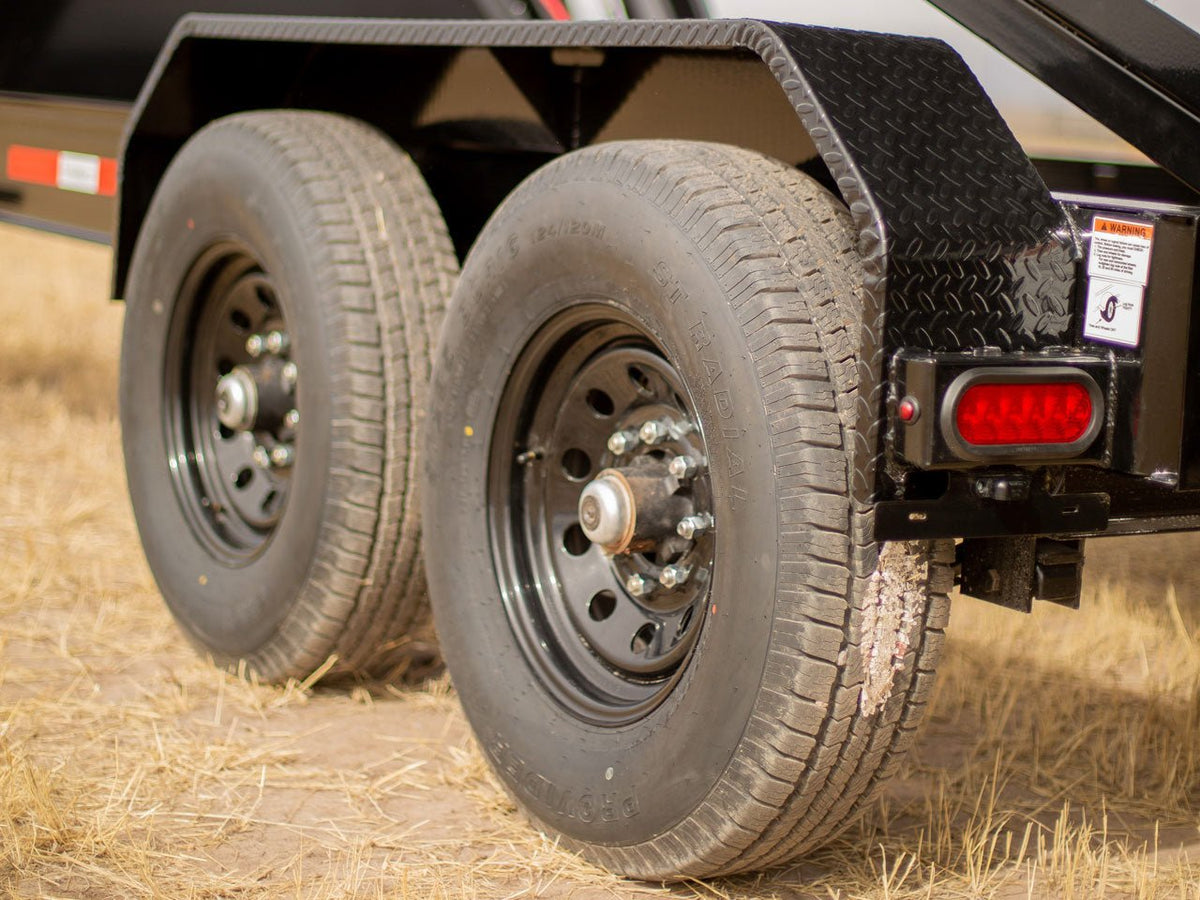

Feature Details - Running Gear
- Tires: Radial Tires
- Size: ST235/80R16
- Ply: 10 Ply
- Rating: 3,520 lbs.
- Rims: 16” Black Mod Wheels
- Bolt Pattern: 8 on 6.5”
- Axle Type: Spring
- Axles: 2
- Rating: 7,000 lbs.
- Brakes: Electric
- Suspension Type: 6-Leaf Slipper Spring Suspension
Feature Details - Electrical & Lighting
- Wiring:
- Front Plug: 7 - Way RV
- Frame Wiring: All Weather Wiring Harness
- Lighting:
- Side Markers: 3/4" LED Bullet Lights

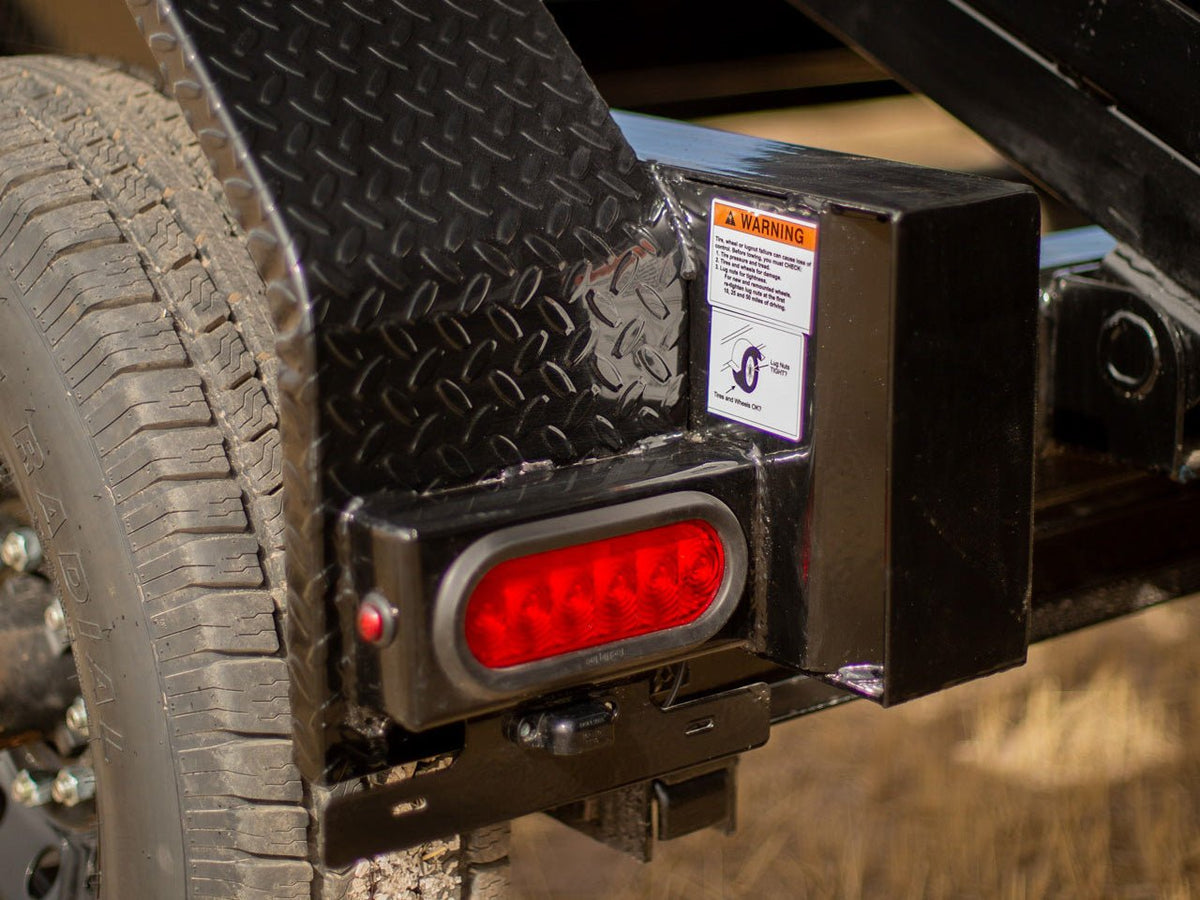

- Rear Lights: DOT Approved LED Lights
- Battery & Charging:
- Battery: 27M Deep Cycle Marine Battery
- Charging System: 110V Integrated Trickle Charger
