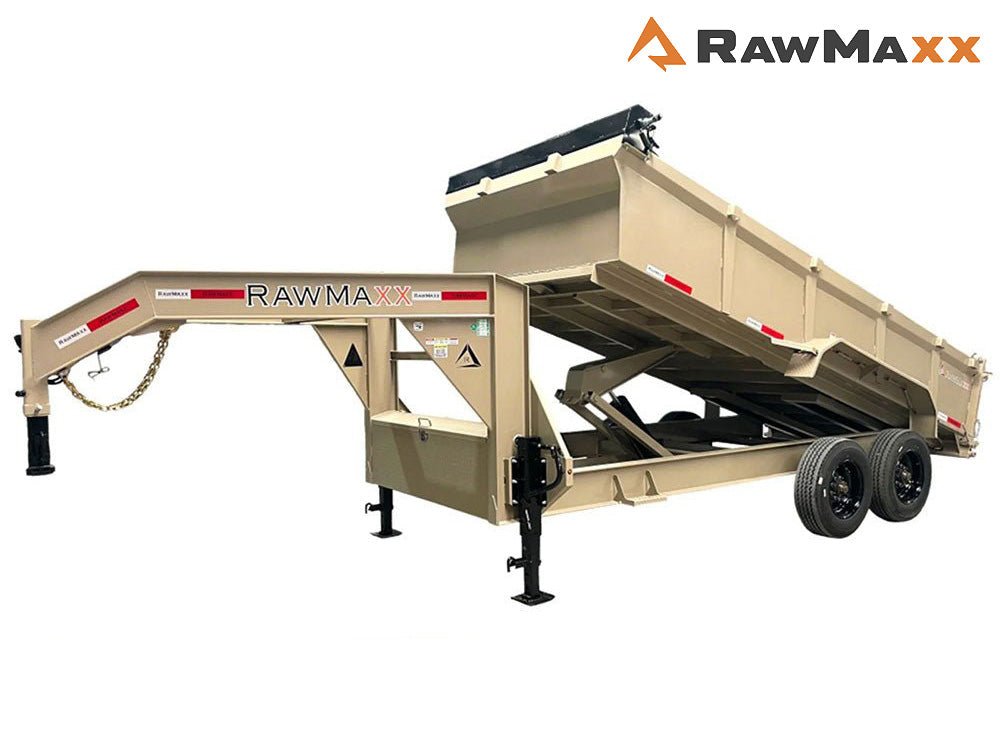

RawMaxx LTX Gooseneck Dump Trailer

RawMaxx LTX Gooseneck Dump Trailer

RawMaxx LTX Gooseneck Dump Trailer

RawMaxx LTX Gooseneck Dump Trailer

At a Glance

Brand RawMaxx
GVWR 20,000 lbs
Length 14-20'

TRAILER SPECS:

Specifications

Brand:

RawMaxx

Weight Ratings

GVWR:
20,000 lbs

Dimensions

LENGTH:

14-20'

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery
View full details

Product Features

Multiple Size Options

Available in multiple sizes, the RawMaxx LTX Dump Trailer meets diverse hauling needs. The 14' model has a GVWR of 20,000 lbs, weighing 5,185 lbs empty with a 16,392 lbs load capacity. The 20' model, with the same GVWR, weighs 7,500 lbs empty and has a 14,375 lbs load capacity, offering versatile options.

Robust Frame Construction

The trailer boasts a main frame of 10" x 15 lb I-beam and 4" x 6" x 3/16" tubing cross-members for durability. Its dump bed features 10-gauge formed walls and a 7-gauge one-piece floor for lasting performance. Welded D-rings and 12-gauge diamond plate steel fenders enhance robustness and functionality.

Hydraulic Lift System

Equipped with a heavy-duty scissor lift, the LTX Dump Trailer ensures efficient and reliable dumping operations. Its hydraulic system includes a KTI 12V hydraulic pump and a 6" x 20" cylinder, controlled by a 14' cable. This setup offers a 48° tilt angle for easy unloading and supports both power up and power down operations.

Durable Running Gear

The running gear includes torsion axles rated at 10,000 lbs each, paired with ST235/80R17.5 radial tires. These 18-ply tires are mounted on 17.5” black mod wheels with an 8 on 6.5” bolt pattern, ensuring stability and load-bearing capacity. The electric brakes on both axles provide reliable stopping power.

Powder Coat Finish

The RawMaxx LTX Dump Trailer is finished with a high-quality powder coat, applied after a thorough grit blast preparation. This finish offers excellent resistance to rust and corrosion, ensuring the trailer remains in top condition even in harsh environments. The standard color is Jet Black, providing a sleek and professional appearance.

Reliable Warranty

This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.

Product Details

DIMENSIONS & CAPACITY

TRAILER:

MODEL:
RawMaxx LTX Gooseneck Dump Trailer
LENGTHS:
14’, 16’, 18’, 20’
WIDTH:
83"
DECK HEIGHT:
29"
GVWR:
20,000 lbs
GAWR:
10,000 lbs
EMPTY WEIGHT:
5,185 lbs+
LOAD CAPACITY:
16,392 lbs
CARGO CAPACITY:
9.5 Cubic Yards

FRAME & SUSPENSION

STRUCTURE:

MAIN FRAME:
10" x 15 lb. I-Beam Frame
GOOSENECK NECK:
10" x 15 lb. I-Beam, 92" Length
CROSS-MEMBERS:
4" x 6" x 3/16" Tubing
SUSPENSION:
Torsion Suspension
AXLES:
2 x 10,000 lb Dexter Axles
BRAKES:
Electric

COUPLER & ACCESSORIES

COUPLER:

TYPE:
2-5/16” Gooseneck Ball Coupler

JACKS:

TYPE:
2 Side Wind Drop Legs - 10,000 lbs

ACCESSORIES:

STORAGE:
Tool Box Between Risers for Pump, Battery & Charger
FENDERS:
12G Diamond Plate Steel
FINISH:
Powder Coat - Grit Blast Prep, Jet Black
WARRANTY:
5 Year Dexter Axle, 3 Year Structural / 1 Year Paint

RUNNING GEAR & SAFETY

TIRES & WHEELS:

TIRES:
ST235/80R17.5 Radial, 18 Ply
RATING:
4,805 lbs
WHEELS:
17.5” Black Mod Wheels
BOLT PATTERN:
8 on 6.5”

SAFETY:

SAFETY CHAINS:
3/8" G70 Safety Chains
BREAKAWAY KIT:
Electric Breakaway Kit
REFLECTIVE TAPE:
3M DOT Compliant Reflective Tape

ELECTRICAL & LIGHTING

WIRING:

FRONT PLUG:
7-Way RV
FRAME WIRING:
All Weather Wiring Harness

LIGHTING:

SIDE MARKERS:
3/4" LED Bullet Lights
REAR LIGHTS:
DOT Approved LED Lights

ELECTRICAL SYSTEM:

BATTERY:
27M Deep Cycle Marine Battery
CHARGER:
110V Integrated Trickle Charger

DUMP BED & HYDRAULICS

DUMP SYSTEM:

TYPE:
Hydraulic - Power Up / Down
PUMP:
KTI 12V Hydraulic Pump
CONTROLLER:
14’ Cable with Control
LIFT CYLINDER:
6" x 20" Heavy Duty Scissor
TILT ANGLE:
48°
TILT FRAME:
5’ x 5" x 3/8" Angle

DUMP BED:

INSIDE WIDTH:
83"
SIDE HEIGHT:
24"
SIDE WALLS:
10G Formed Steel Walls
FLOOR:
7G One Piece Steel Floor
CROSS-MEMBERS:
3" Channel / 16" Spacing
D-RINGS:
4 Welded D-Rings (Inside Corners)
REAR GATE:
3-Way Doors
LATCHING SYSTEM:
EZ Slam Door Latches
RAMPS:
6’ Slide-In Channel Ramps
TARP:
Manual Tarp Kit
