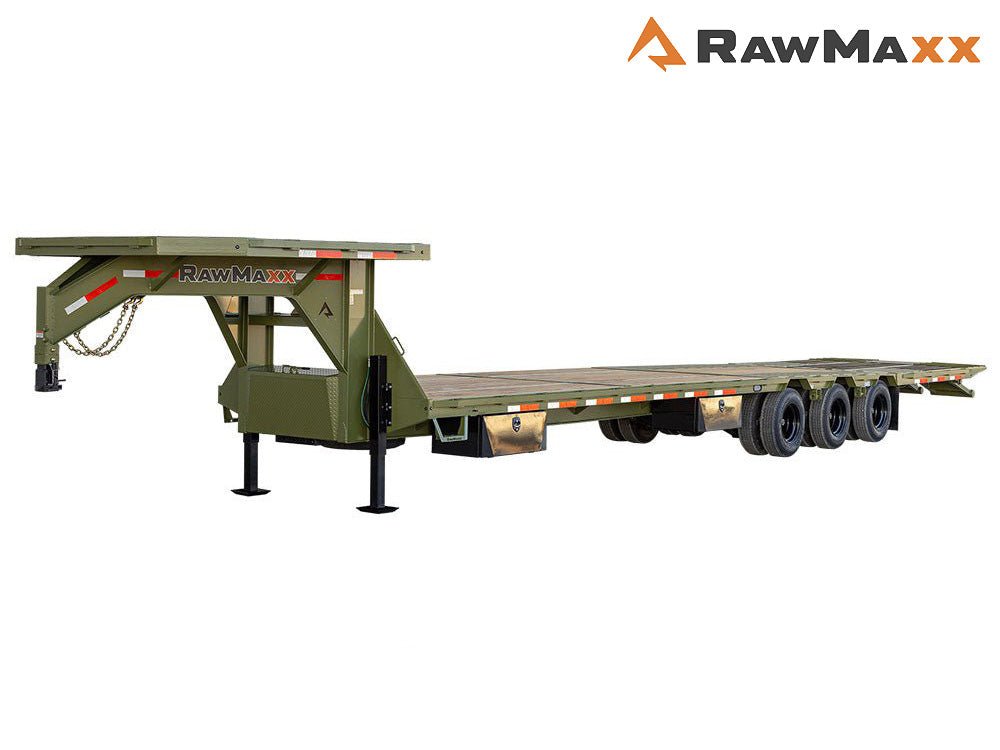

RawMaxx HTX Dual Wheel Hydraulic Tail Flatdeck

RawMaxx HTX Dual Wheel Hydraulic Tail Flatdeck

RawMaxx HTX Dual Wheel Hydraulic Tail Flatdeck

RawMaxx HTX Dual Wheel Hydraulic Tail Flatdeck

At a Glance

Brand RawMaxx
Pull type Gooseneck
GVWR 20K-30K
Trailer Type Deckover
Length 30'-44'
Axle Capacity 10k-15k

TRAILER SPECS:

Specifications

Brand:

RawMaxx

Pull Type:

Gooseneck

Weight Ratings

GVWR:
20K-30K

Dimensions

LENGTH:

30'-44'

Delivery Available

If your schedule is demanding, we are happy to provide you with a quote on delivering your new trailer to your

Trailer delivery
View full details

Featured Video

Product Features

Advanced Hydraulic Tail

Featuring an 11' hydraulic lift tail, the RawMaxx HTX Trailer facilitates easy loading and unloading of equipment or materials. This hydraulic system provides efficient operation and is crucial for managing heavy payloads with precision and control.

DURABLE POWDER COAT FINISH

Finished with a durable powder coat after grit blasting, the trailer's exterior is resistant to corrosion and rust, maintaining its aesthetic appeal and structural integrity over time. The standard Jet Black color adds a professional look while offering protection against environmental elements.

Durable Running Gear

The RawMaxx HTX Trailer comes standard with two 10,000 lbs. axles featuring electric brakes and ST235/80R16 radial tires on 16” dual black mod wheels, ensuring stability and safety. Optional upgrades include axles up to 15,000 lbs. for increased load capacity.

Robust Frame Construction

Constructed with a sturdy 12" x 19 lbs. I-Beam main frame and reinforced with 3" channel cross-members spaced 16" apart, the RawMaxx HTX Trailer is built for durability and strength. The 2" x 5" x 1/8" tubing outer deck frame and 3/16” treadplate fenders further enhance its structural integrity and resilience against rugged environments.

Tool Box

The RawMaxx HTX Trailer is equipped with front and rear tool boxes, each located between risers and featuring lockable latches. These tool boxes provide secure storage for essential equipment, tools, or personal items needed for various hauling tasks, ensuring convenience and organization on the job site or during transport.

Reliable Warranty

This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.

Product Details

DIMENSIONS & CAPACITY

TRAILER:

MODEL:
RawMaxx HTX Dual Wheel Hydraulic Tail Flatdeck
LENGTHS:
36', 40'
WIDTH:
102"
DECK HEIGHT:
33"
GVWR:
20,000 lbs
GAWR:
10,000 lbs

FRAME & STRUCTURE

MAIN FRAME:
12" x 19 lbs. I-Beam
CROSS-MEMBERS:
3" Channel / 16" Spacings
TORQUE TUBE:
5" Round Tube

DECK

FLOORING:
2” Treated Lumber Deck
D-RINGS:
4 D-Rings (Welded Outside Perimeter)

SIDE

SIDE PERIMETER:
2" x 5" x 1/8" Tubing Outer Deck Frame
STAKE POCKETS:
3-5/8" x 1-1/2" (ID)
FENDERS:
3/16” Treadplate

HYDRAULIC TAIL

TAIL:
11' Hydraulic Lift Tail

SIDE STEP & HANDLE

SIDE STEP:
G10 Sides / G12 Diamond Plate Step
HANDLE:
1/2" Round Rod

GOOSENECK & ACCESSORIES

COUPLER:
2-5/16” Ball Coupler
NECK LENGTH:
96"
JACKS:
2 Side Wind Drop Legs - 10,000 lbs
TOOL BOX:
Front Tool Box Between Risers / Lockable Latch

RUNNING GEAR

AXLES:
2 x 10,000 lb
BRAKES:
Electric
SUSPENSION TYPE:
6-Leaf Slipper Spring

TIRES & WHEELS

TYPE:
Radial Tires
SIZE:
ST235/80R16
PLY:
10 Ply
RATING:
3,520 lbs
RIMS:
16” Dual Black Mod Wheels
BOLT PATTERN:
8 on 6.5”

ELECTRICAL & LIGHTING

FRONT PLUG:
7-Way Plug
WIRING:
All Weather Wiring Harness
SIDE MARKERS:
3/4" LED Bullet Lights
TURN FLASHERS:
2" x 6" Amber Side Turn Lights
REAR LIGHTS:
DOT Approved LED Lights

SAFETY SYSTEM

SAFETY CHAINS:
3/8" G70 Safety Chains
BREAKAWAY SYSTEM:
Electric Breakaway Kit
REFLECTIVE TAPE:
3M DOT Compliant Reflective Tape

FINISH & WARRANTY

FINISH:
Powder Coat with Grit Blast Prep – Jet Black
AXLE WARRANTY:
5 Year Dexter
TRAILER WARRANTY:
3 Year Structural / 1 Year Paint
