At a Glance
- Colors:
-
Jet BlackMidnight BlackShadow GrayLava GrayCobalt BlueArmy GreenSunny BiegeDesert TanRuby RedClassic OrangeChalk WhiteGhost WhiteMinion YellowLemon Green
Featured Video
Product Features

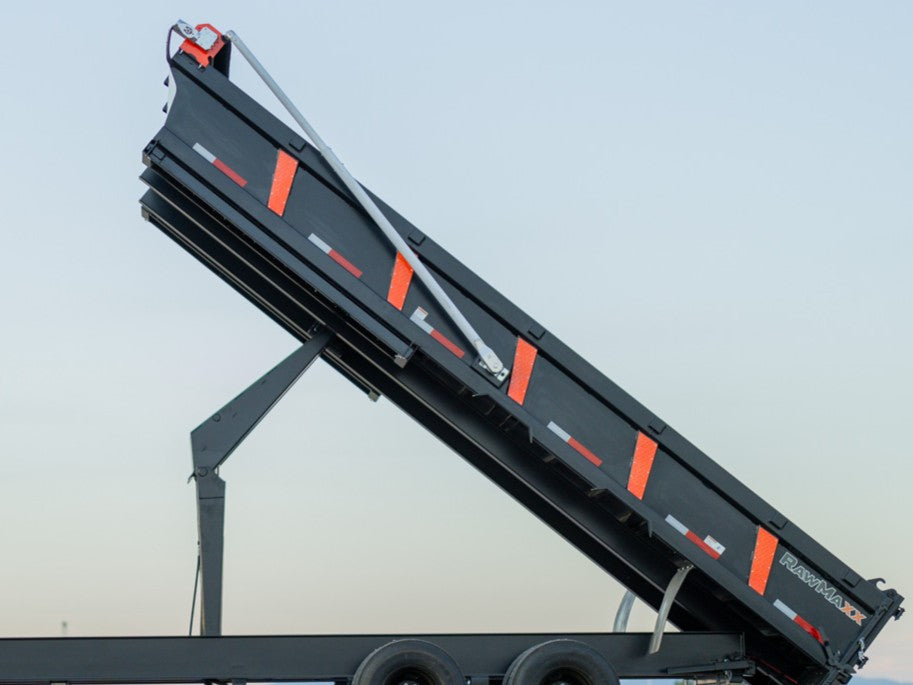

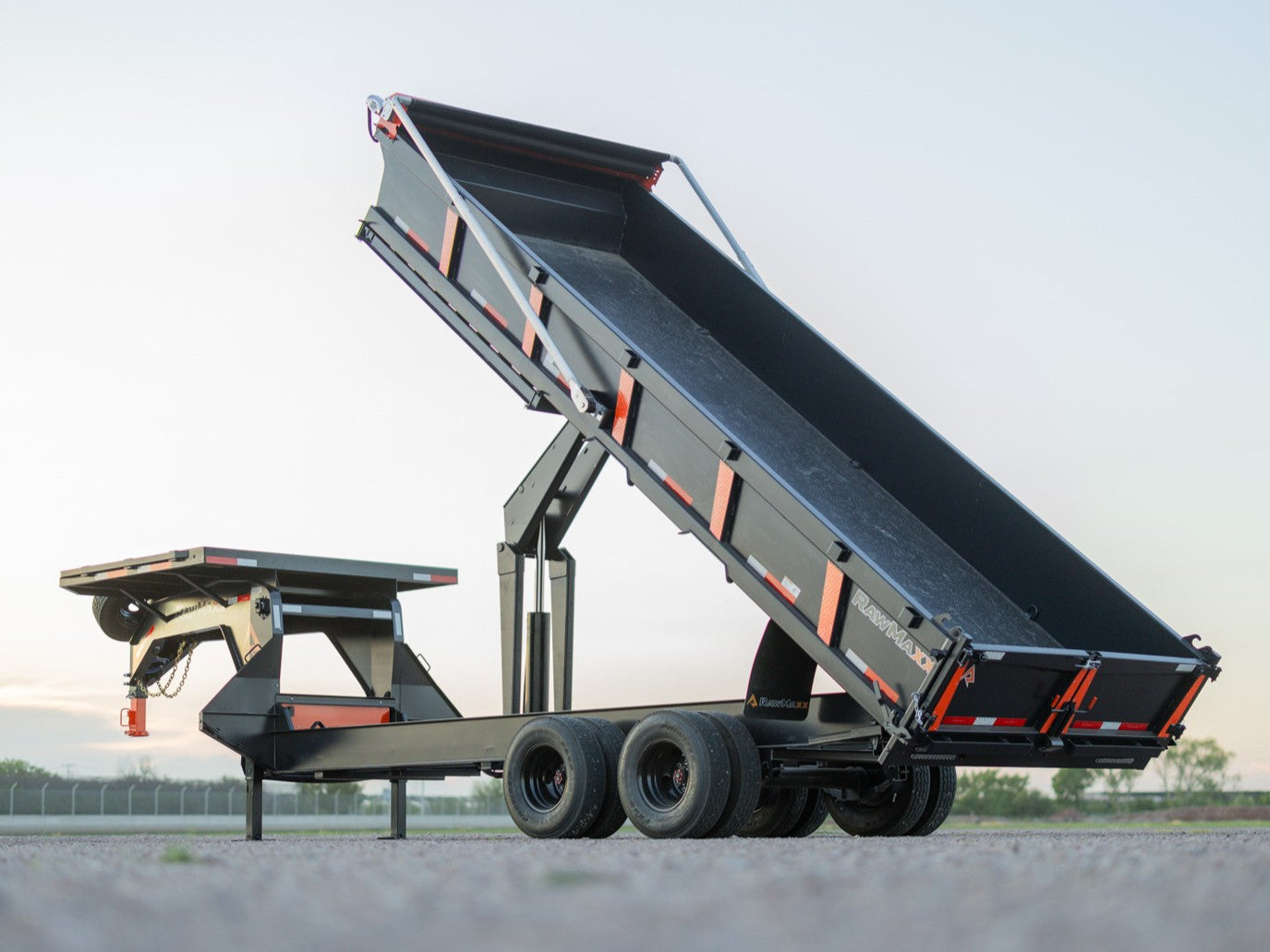

Versatile Dump Bed System
Features a robust scissor lift mechanism powered by a 6"x30" hydraulic cylinder. This system delivers reliable, high-force lifting for the 16’ to 20’ bed lengths, ensuring positive dumping of heavy materials with a 48-degree dump angle.
Durable Construction
Built with a full 12-inch (19 lbs/ft) I-beam main frame for foundational strength. This heavy-duty construction provides the rigid backbone necessary to handle the 20k GVWR and the stresses of dumping heavy loads with complete reliability.
Durable Powder Coat Finish
The HDX trailer features a robust powder coat finish that resists rust and corrosion, ensuring long-lasting protection against the elements. With a grit blast prep process and Jet Black color, this finish offers both durability and a sleek appearance, maintaining the trailer's structural integrity even under tough conditions.
20k GVWR with High-Capacity Axle Options
Engineered for a 20,000 lb Gross Vehicle Weight Rating to tackle the biggest loads. Configure with standard 10k axles or upgrade to 12k axles for maximum durability and weight distribution, ensuring dependable performance under heavy payloads.
102-Inch Wide Ultra-Wide Bed
This 102-inch wide dump bed provides exceptional volume and a stable, low-center-of-gravity load. The extra width is engineered for maximum hauling efficiency on a gooseneck chassis, offering superior capacity and towing control.
Standard Dual 10k Jacks & Front Toolbox
Comes equipped with dual 10,000 lb drop-leg jacks for secure unhooking and a front-mounted toolbox for convenient storage. These integrated features provide worksite stability and keep essential tools and chains organized and accessible.
Product Details
DIMENSIONS
- LENGTH:
- 16' - 20'
- BED WIDTH:
- 102"
- SIDE HEIGHT:
- 24" - 44"
- DECK HEIGHT:
- 37"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k, 12k
- GVWR:
- 20k
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial
- TIRE PLY:
- 10 Ply
- RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k Dexter Axles
2 - 12k Dexter Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION:
- Spring
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 12" I-Beam (19lb/ft)
- LENGTH:
- 96"
- JACKS:
- Dual 10k Drop-Leg Jacks
- COUPLER:
- Adjustable 2 5/16"
- TOOLBOX:
- Front Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lb/ft)
- BED FRAME:
- 12" I-Beam (19lb/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- FLOORING:
- 7ga. Steel Bed
- SIDES:
- 10 Ga. Formed Steel
- STAKE POCKETS:
- Standard Stake Pockets
- D-RINGS:
- 4 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- CYLINDER:
- HD Scissor Lift - 6"x30"
- DUMP ANGLE:
- 48 Degrees
- STABILIZERS:
- Rear Stabilizer Stands
CARGO & BODY
- GATE:
- 3 Way Spreader Gate
- RAMPS:
- 7' Slide In Ramps
- TARP:
- Crank Style Roll-Up
- HOOKS:
- J-Hooks Along Sides
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 110V Trickle Charger
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Warranty
- TRAILER WARRANTY:
- 3 Year Structural / 1 Year Paint
