At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Midnight Black w/ Classic Orange Trim
Get a Custom Quote
Featured Video
Product Features

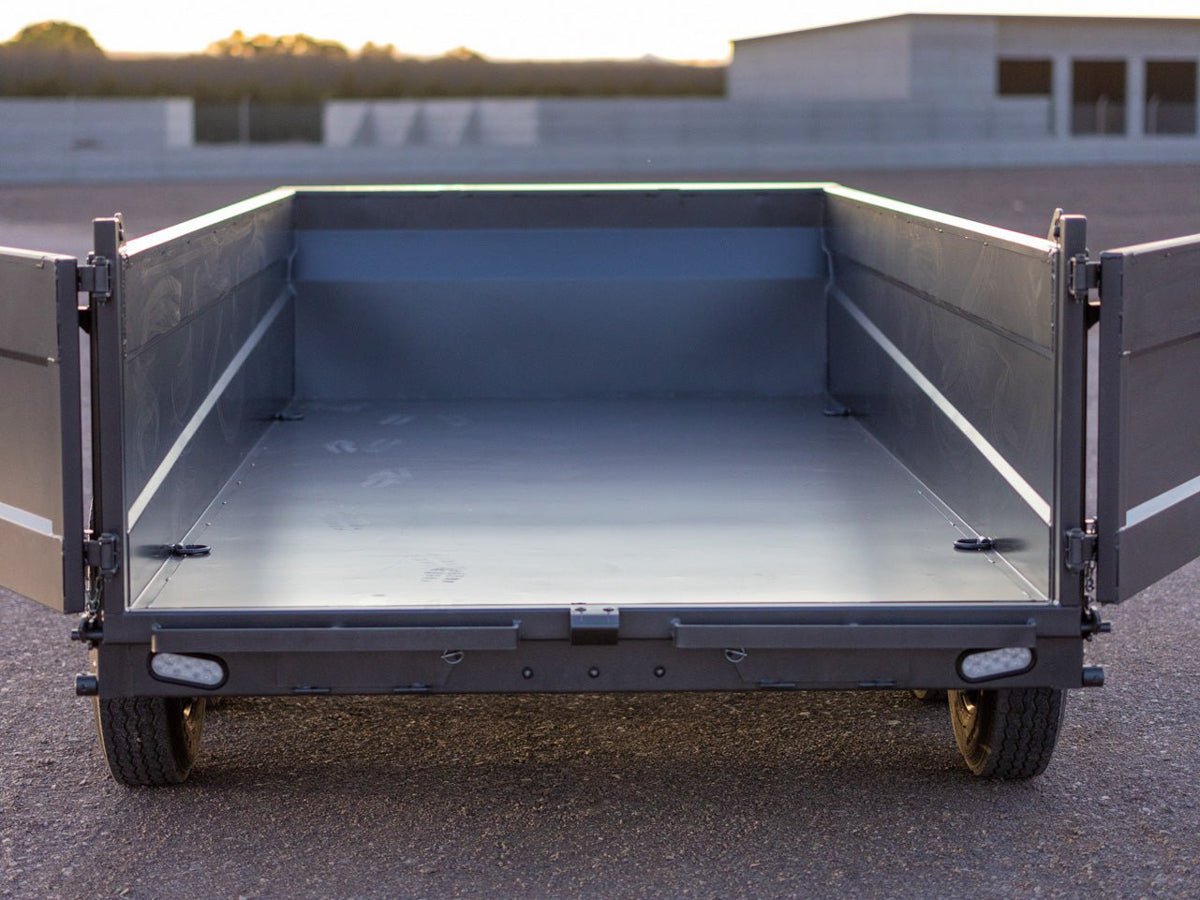

Spacious Dump Bin
The dump bin offers ample space with an inside width of 83" and 32" high side walls. Constructed with durable 12G formed walls and a 10G floor, it provides plenty of room for large loads and ensures easy loading and unloading.
The Knight's Heavy-Duty Chassis
The trailer offers generous dimensions with a length of 14 feet, a width of 83 inches, and a deck height of 28 inches. These measurements ensure the trailer can accommodate a variety of loads while maintaining a manageable height for easy loading and unloading.

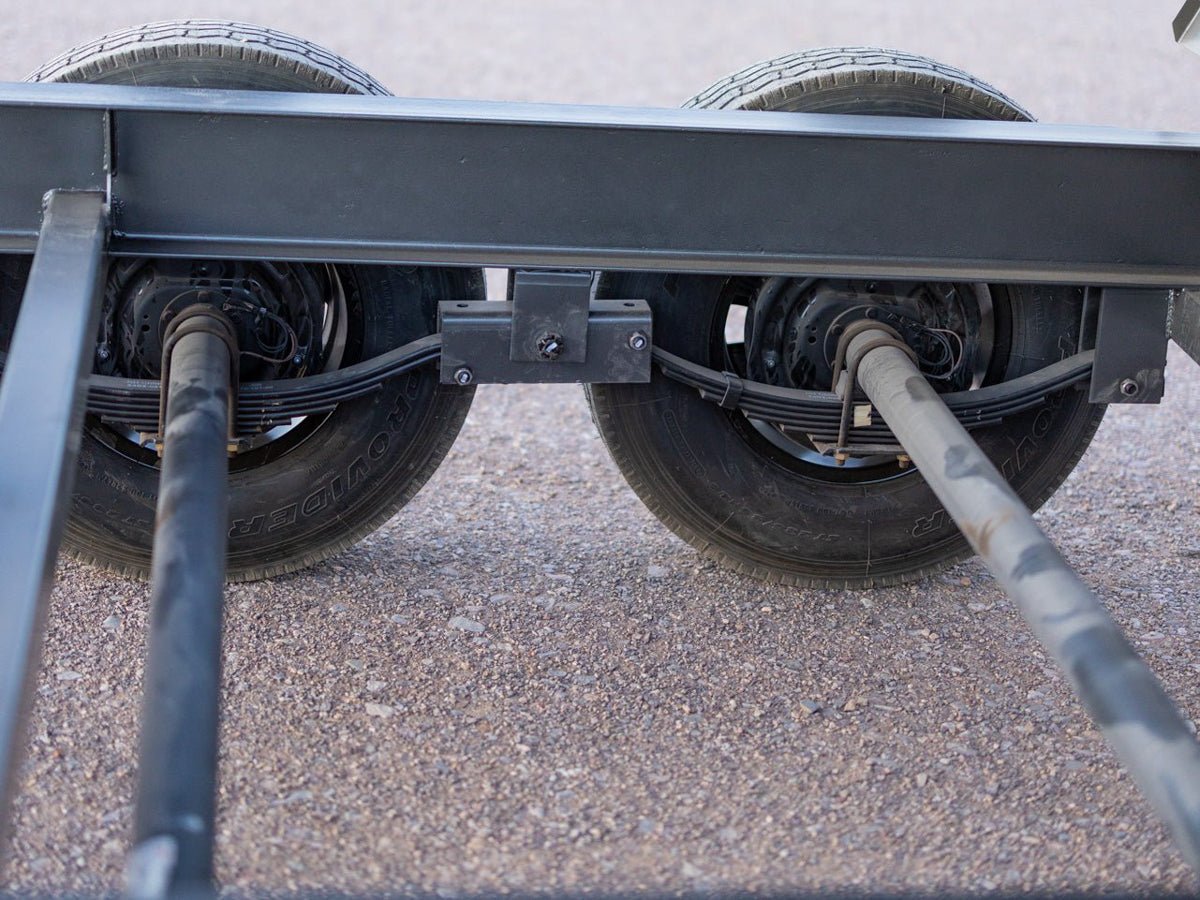

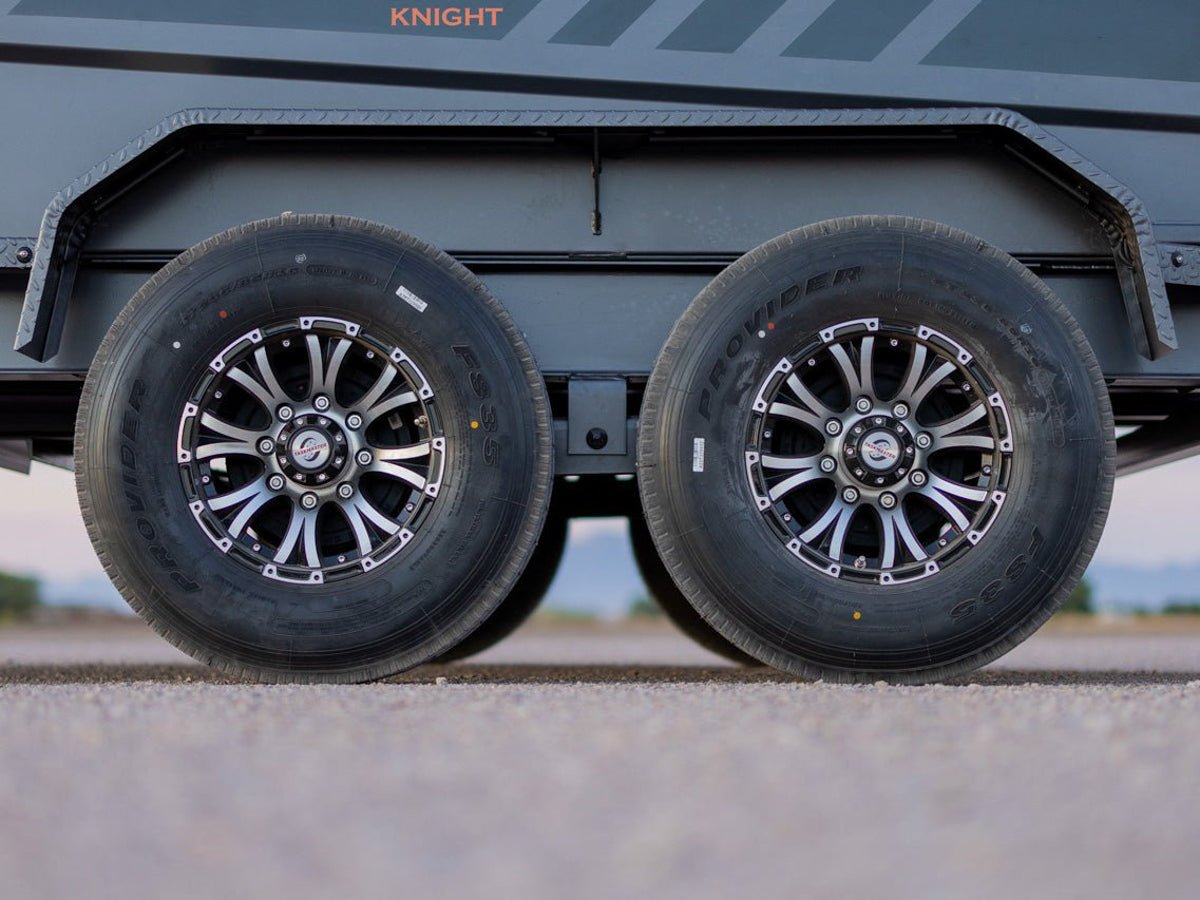

Reliable Running Gear
Dual 7k Dexter axles with leaf spring suspension provide a stable, smooth ride even when fully loaded. Backed by a 5-year warranty, this proven running gear ensures your trailer can handle repeated heavy payloads with confidence.
Durable Powder Coat Finish
Featuring a powder coat finish prepared using a grit blast method, the trailer is coated in a sleek jet black color. This durable finish provides a robust protective layer, preventing rust and corrosion while giving the trailer a professional appearance.

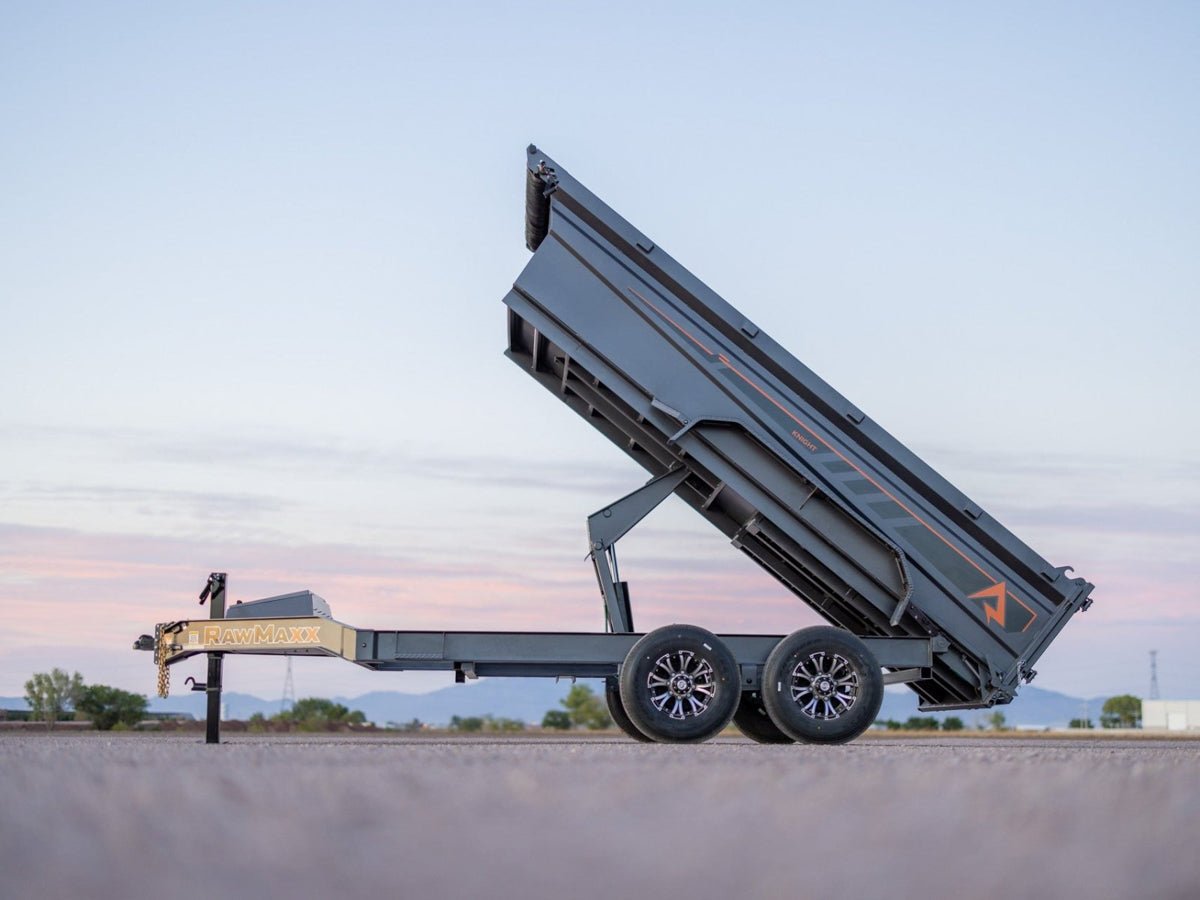

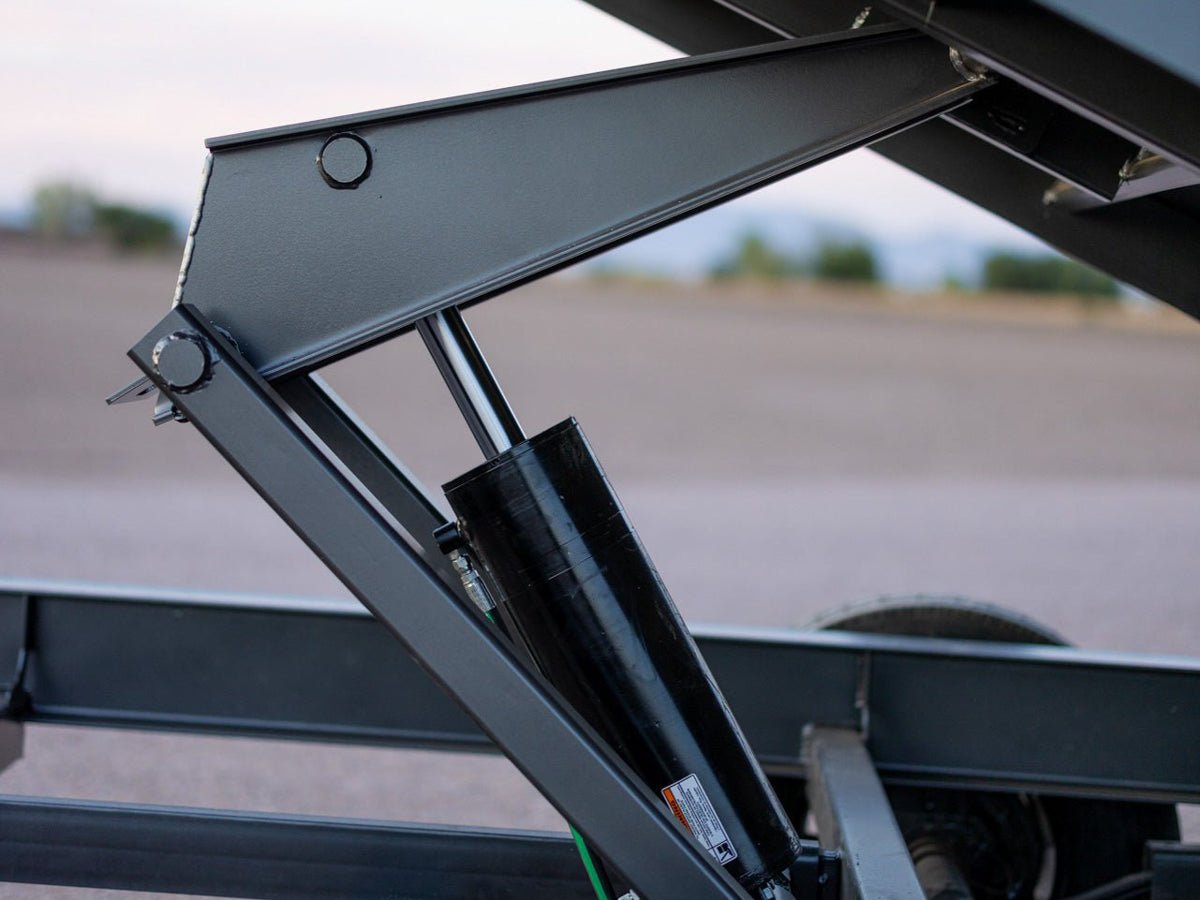

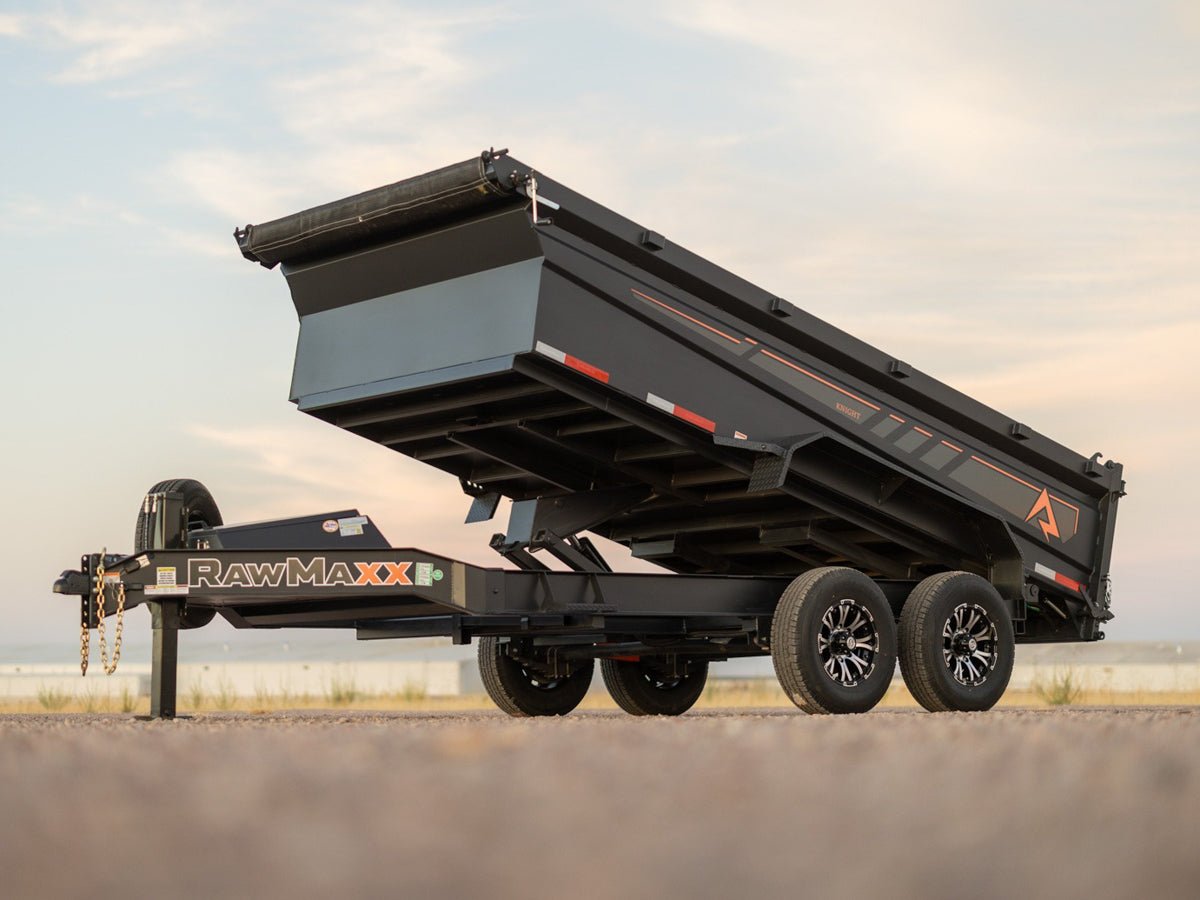

Efficient Hydraulic Dump System
Command a full 38 to 41-degree dump angle with the robust 5x16 scissor lift system. Powered by a reliable KTI hydraulic pump and deep-cycle marine battery, it delivers consistent lifting power to quickly shed heavy loads of dirt, gravel, and debris.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.
Product Details
DIMENSIONS
- LENGTH:
- 14', 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 32"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k
- GVWR:
- 14k
FINISH
- PAINT TYPE:
- Powdercoat
- COLORS:
- Midnight Black w/ Classic Orange Trim
SAFETY
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains

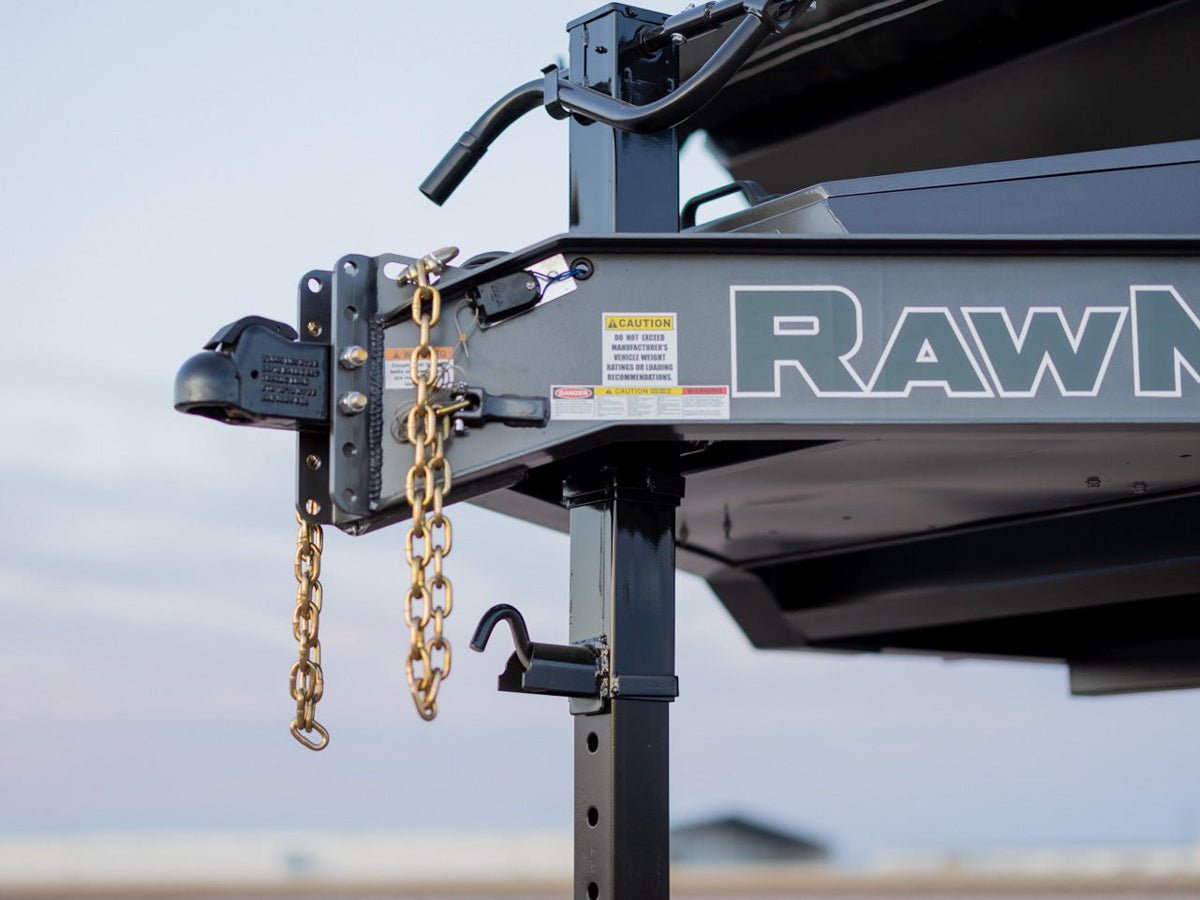

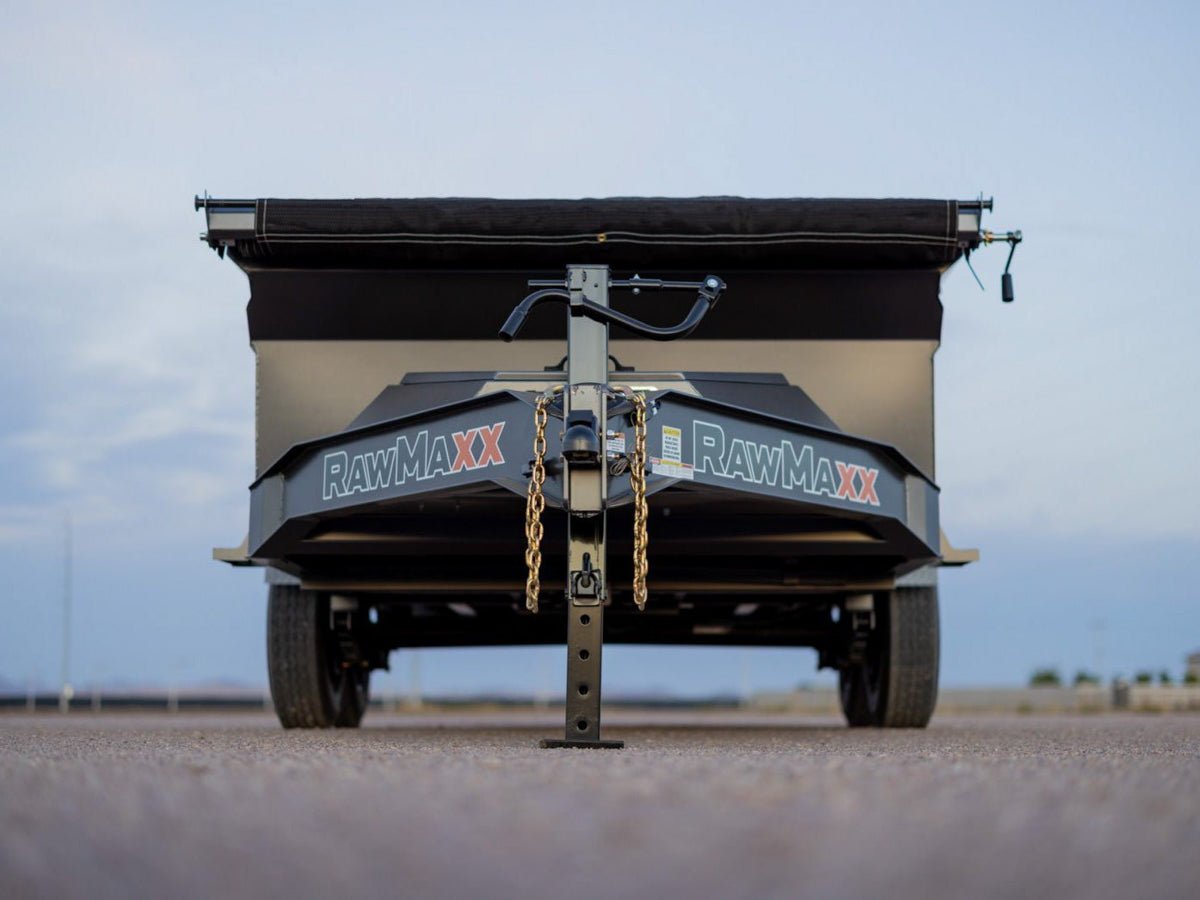

TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- 8" I-Beam (13 lbs/ft)
- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler
- FRONT JACK BP:
- Single 10,000 lb Drop-Leg Jack

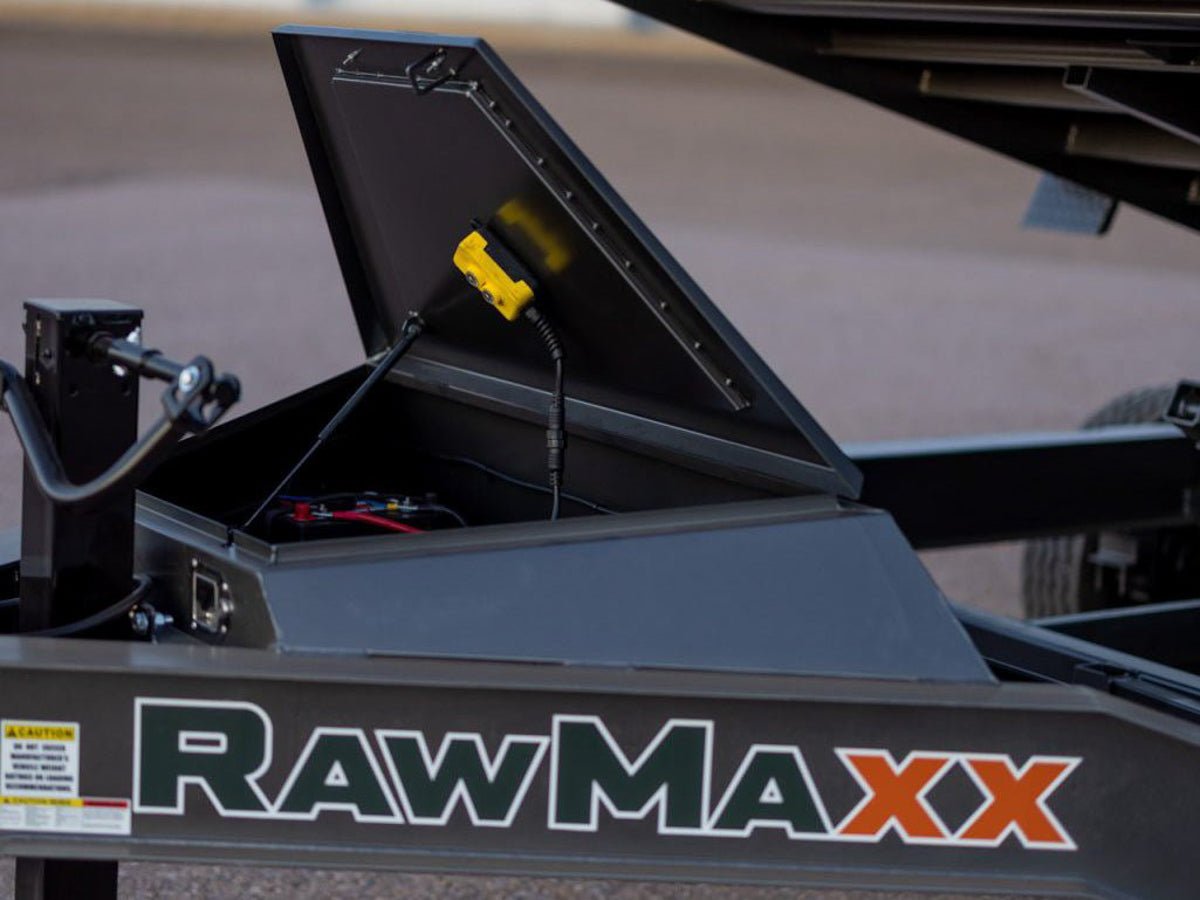

- TOOLBOX BP:
- Tongue Integrated Toolbox
CARGO AREA
- FLOORING:
- 10ga. Steel Bed
- GATE:

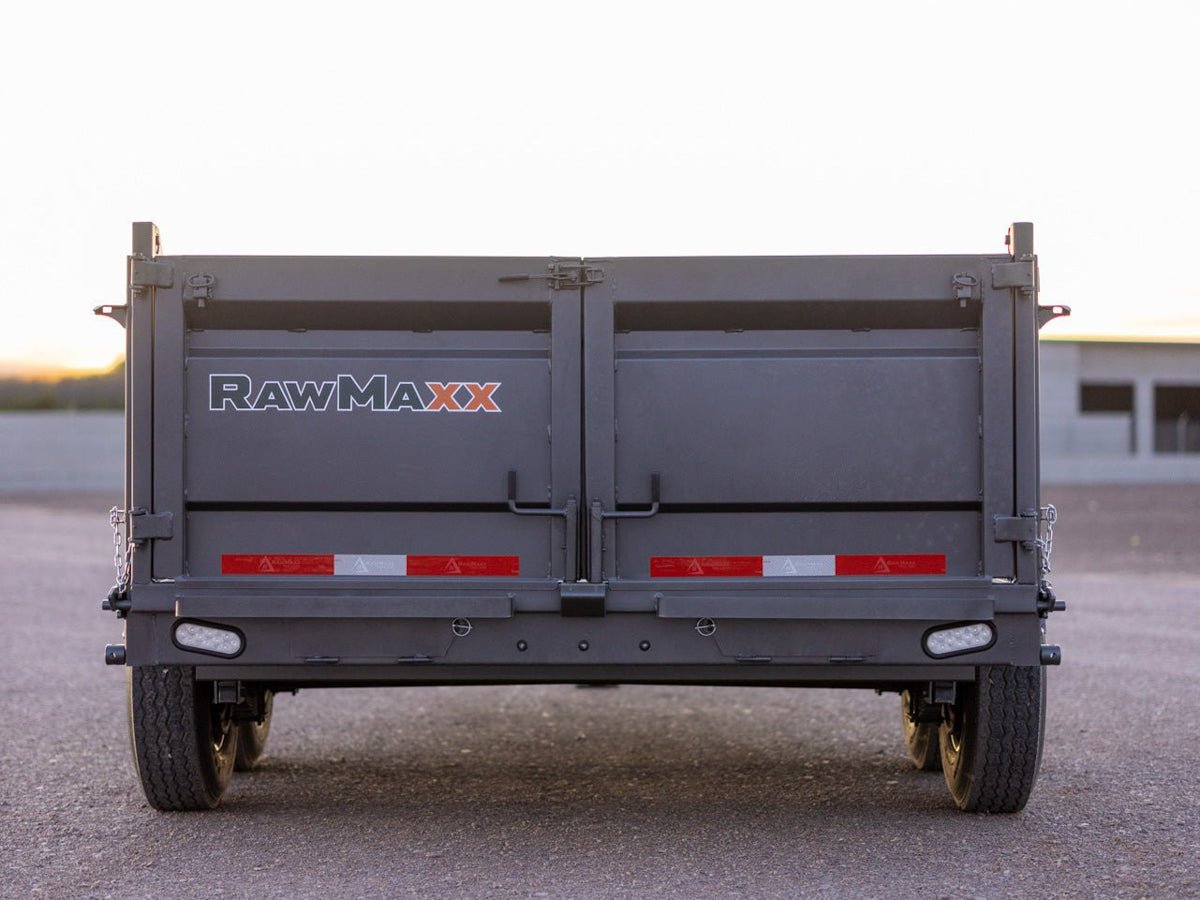

- 3 Way Spreader Gate
- SIDE HEIGHT:
- 32"
- D-RINGS:
- 4 D-Rings

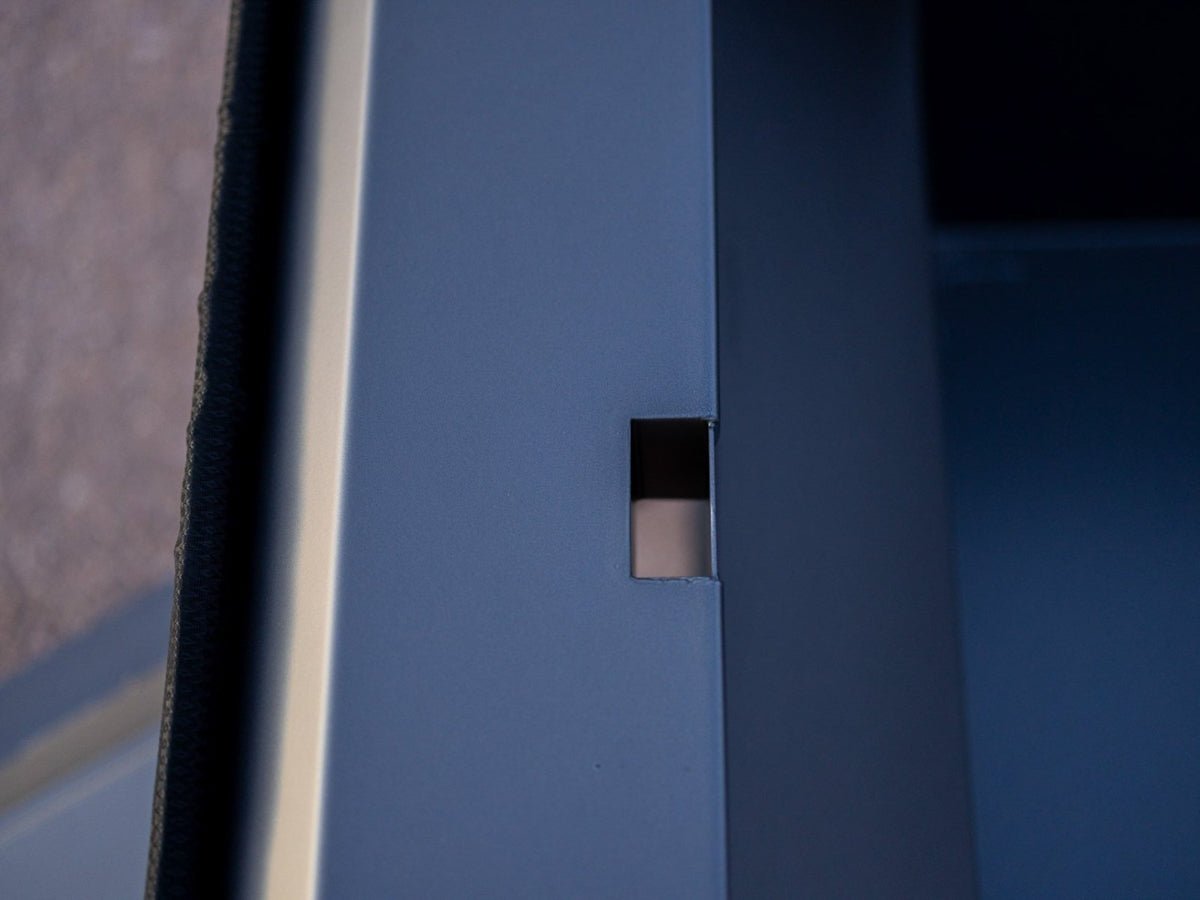

- STAKE POCKETS:
- 3 7/8" x 1 13/16"
- FENDERS:
- 12 Ga. Diamond Plate Fenders
- TARP:
- Crank Style Roll-Up Tarp
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- CYLINDER:
- 5x16 Scissor Lift (14', 16')
- DUMP ANGLE:
- 38 Degrees (14') / 41 Degrees (16')
RUNNING GEAR
- TIRES:
- Radial Tires, 235/80R16, 10 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Leaf Spring
ELECTRICAL & LIGHTING
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- Trickle Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- 6" Oval DOT Approved LED Lights
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Structural Warranty
OPTIONS
