Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

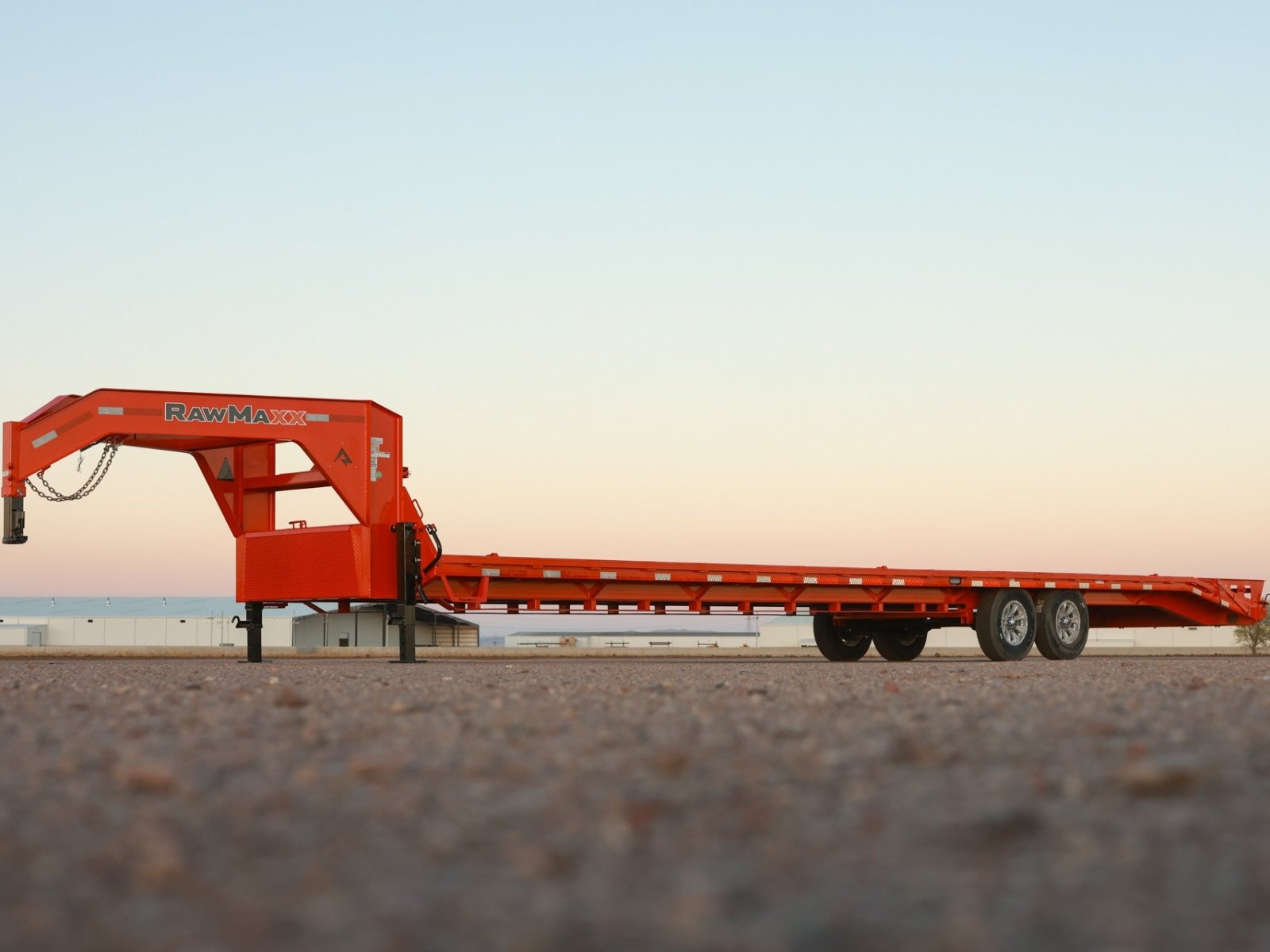

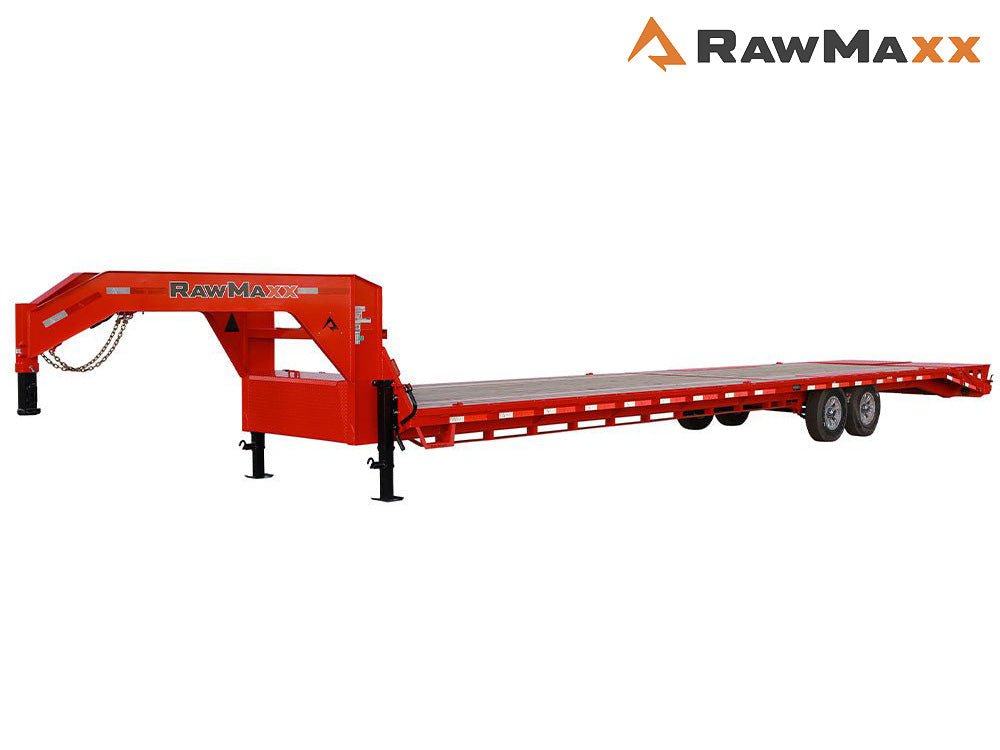

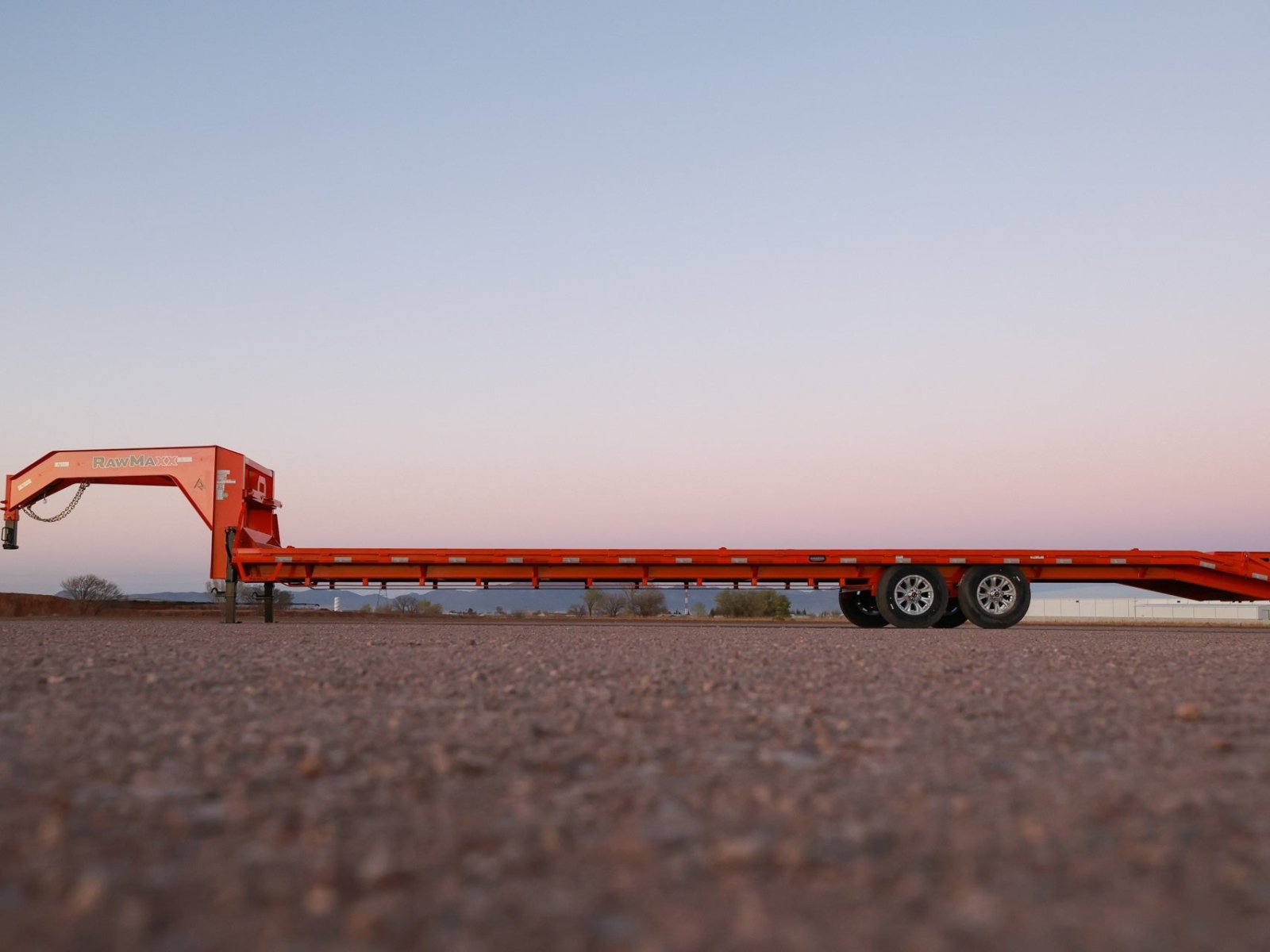

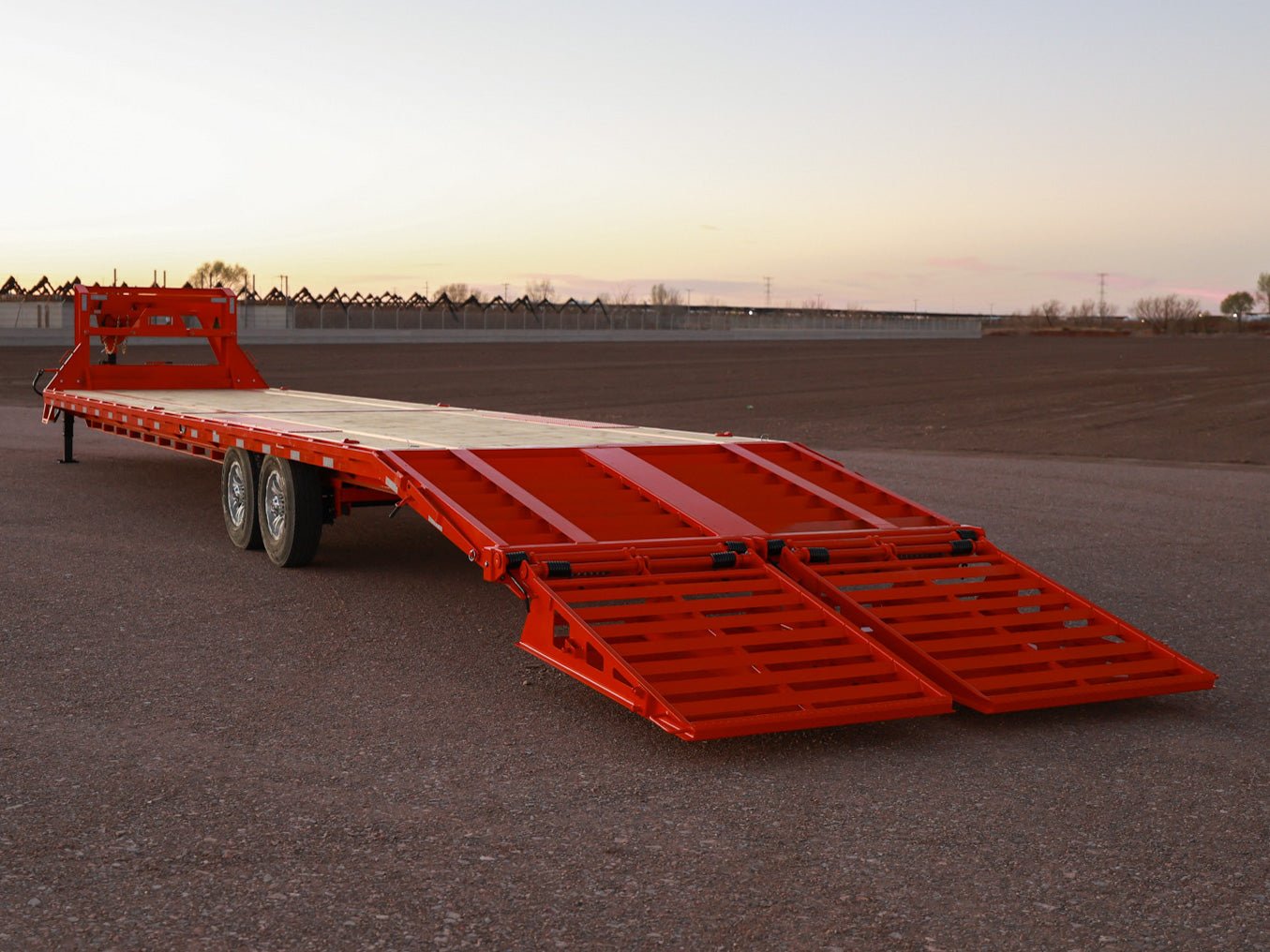

- RawMaxx FDX Gooseneck Trailer
- LENGTHS:
- 20', 22', 24', 26', 28', 30', 32', 34', 36', 38', 40', 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 33"
- GVWR:
- 14,000 lbs
- GAWR:
- 7,000 lbs
FRAME & STRUCTURE
STRUCTURE:
- FRAME:
- 12" x 14 lb. I-Beam Main Frame
- CROSS-MEMBERS:
- 3" Channel / 16" Spacings
- BRIDGE FRAME:
- 2" x 4" Square Tube / 4" x 3/8" Flat Bar

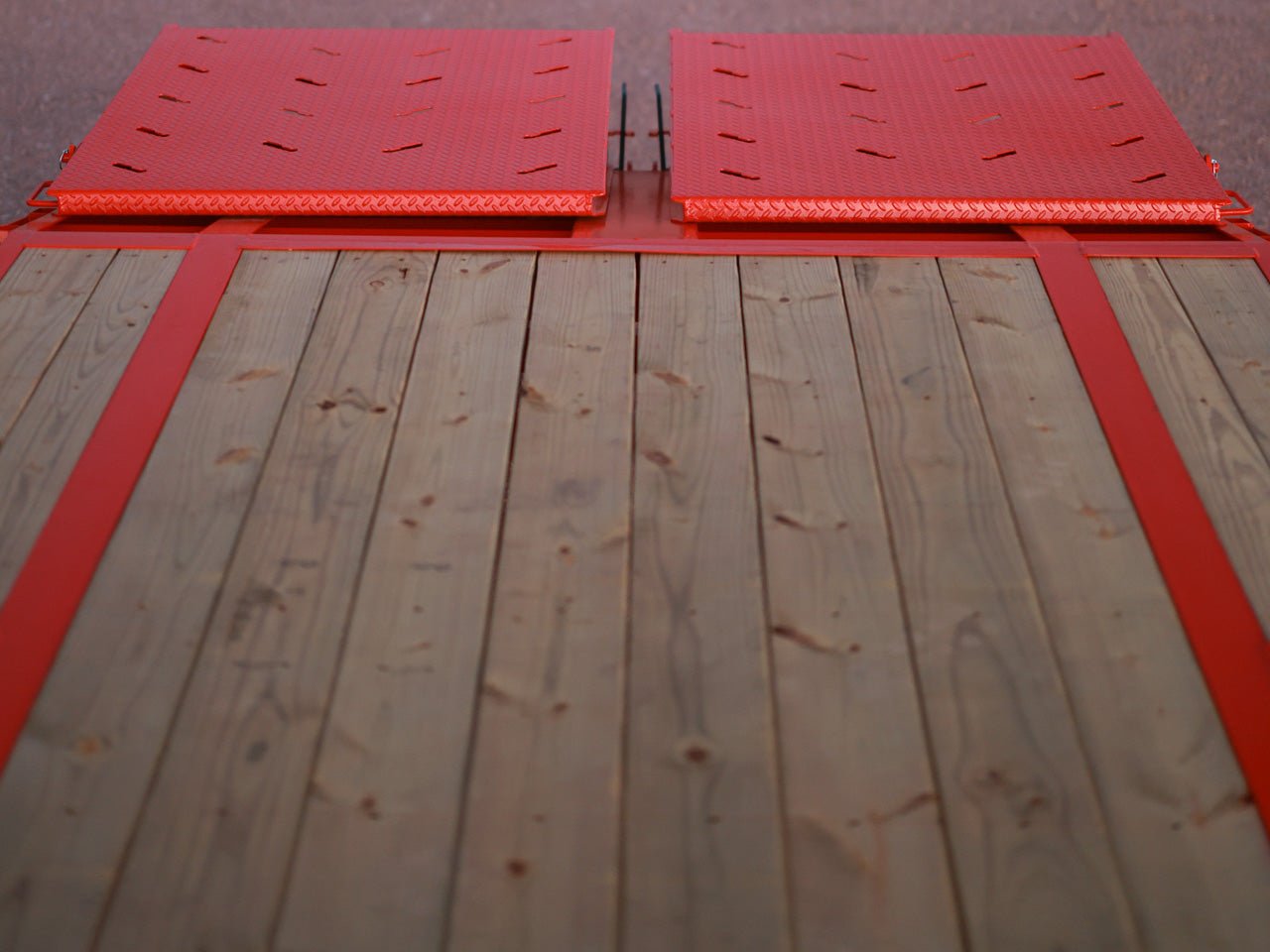

DECK
- FLOORING:
- 2” Treated Lumber Deck

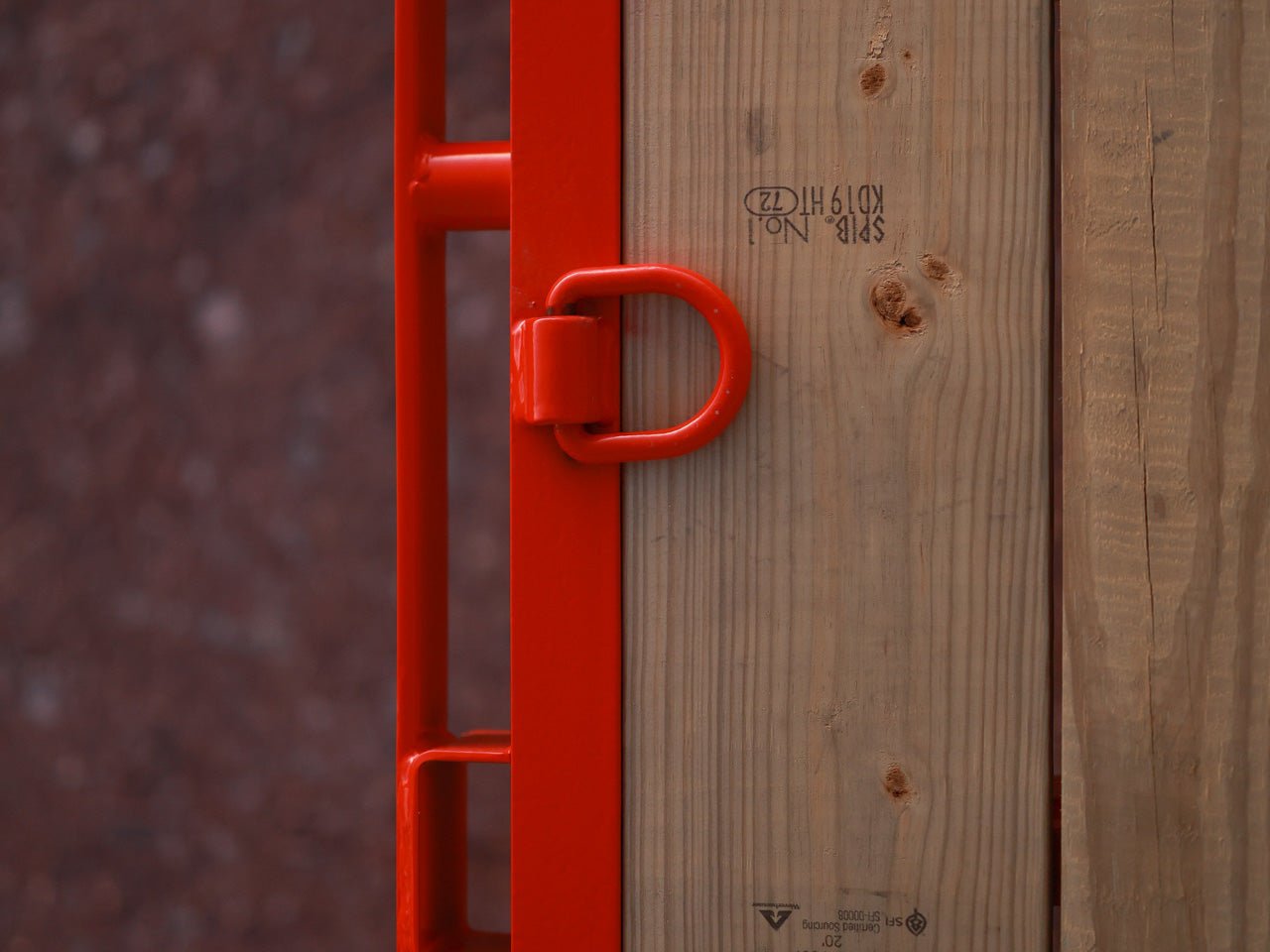

- D-RINGS:
- 4 Welded Outside Corners
SIDE
- SIDE PERIMETER:
- 6" Channel Outer Deck Frame
- RUB RAIL:
- 2" x 3/8" Flat Bar
- STAKE POCKETS:
- 3-7/8" x 1-13/16" (ID)
- CHAIN SPOOL:
- 1 5/8" OD
- FENDERS:
- 3/16” Thread Plate

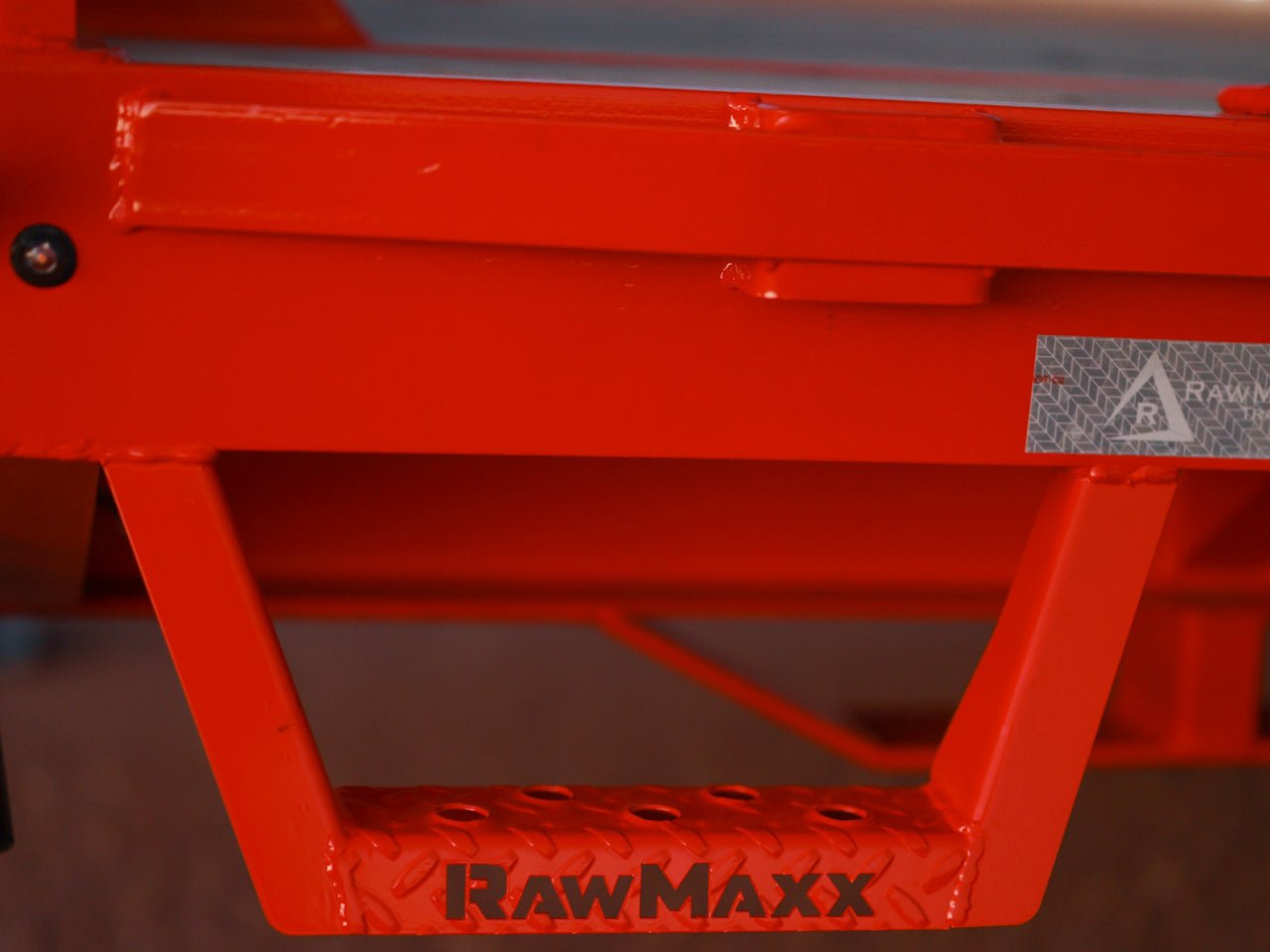

SIDE STEP & HANDLE
- SIDE STEP:
- G10 Sides / G12 Diamond Plate Step
- HANDLE:
- 1/2" Round Rod

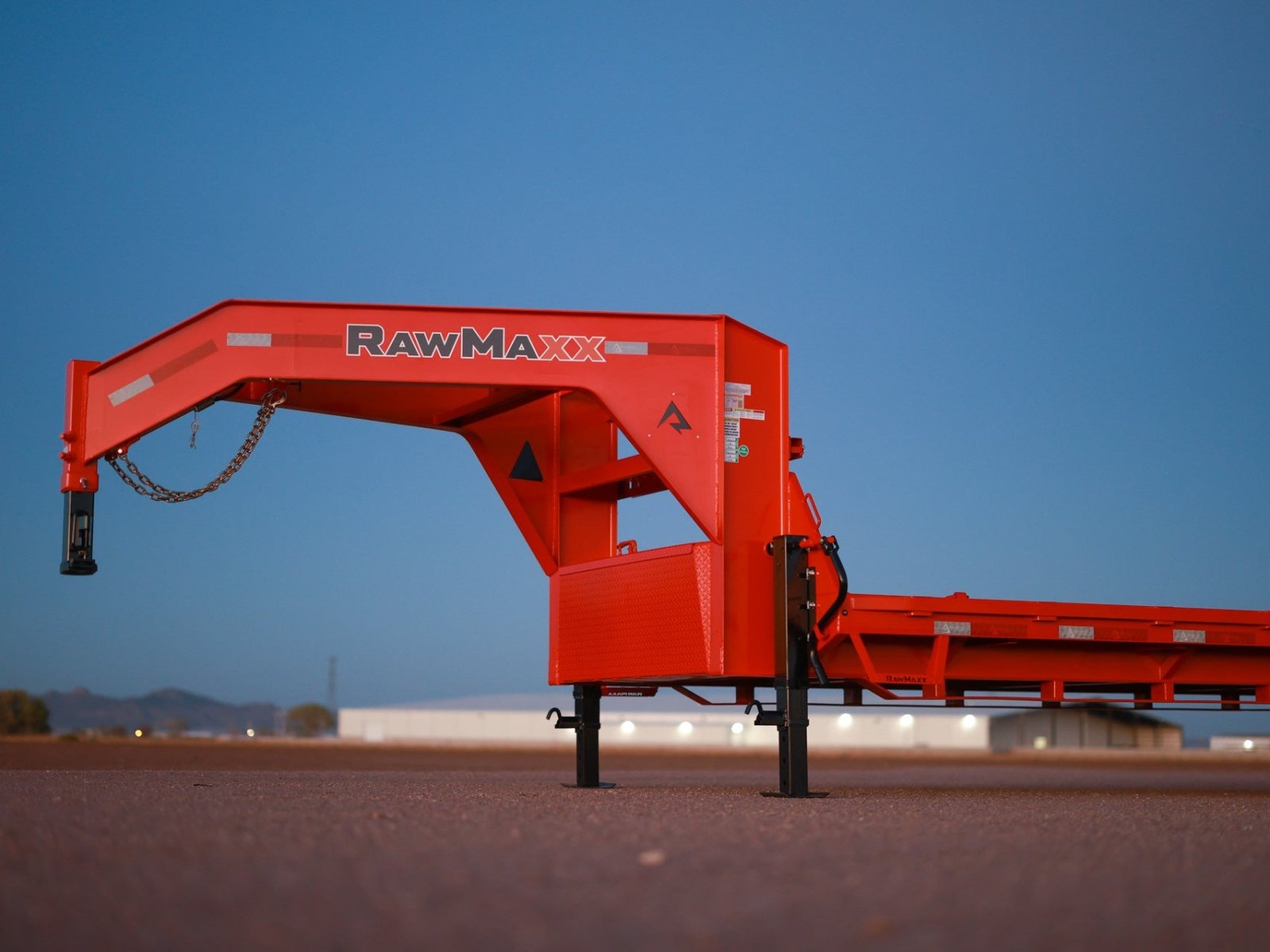

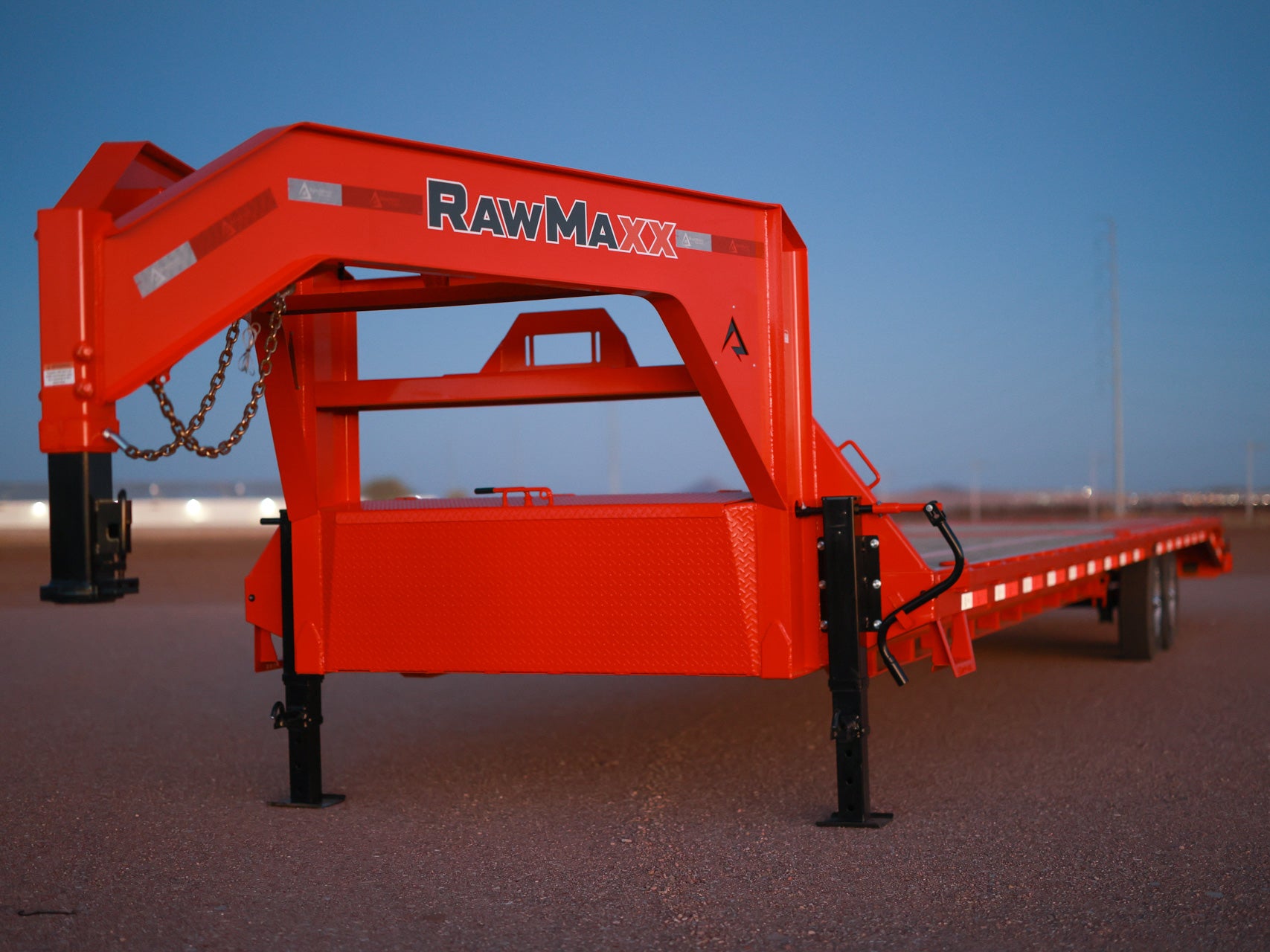

GOOSENECK & ACCESSORIES
- COUPLER:
- 2-5/16” Ball Coupler
- JACKS:
- 2 Side Wind Drop Legs - 10,000 lbs
- TOOL BOX:
- Front Tool Box Between Risers / Lockable Latch
- NECK LENGTH:
- 93"
SPARE MOUNT

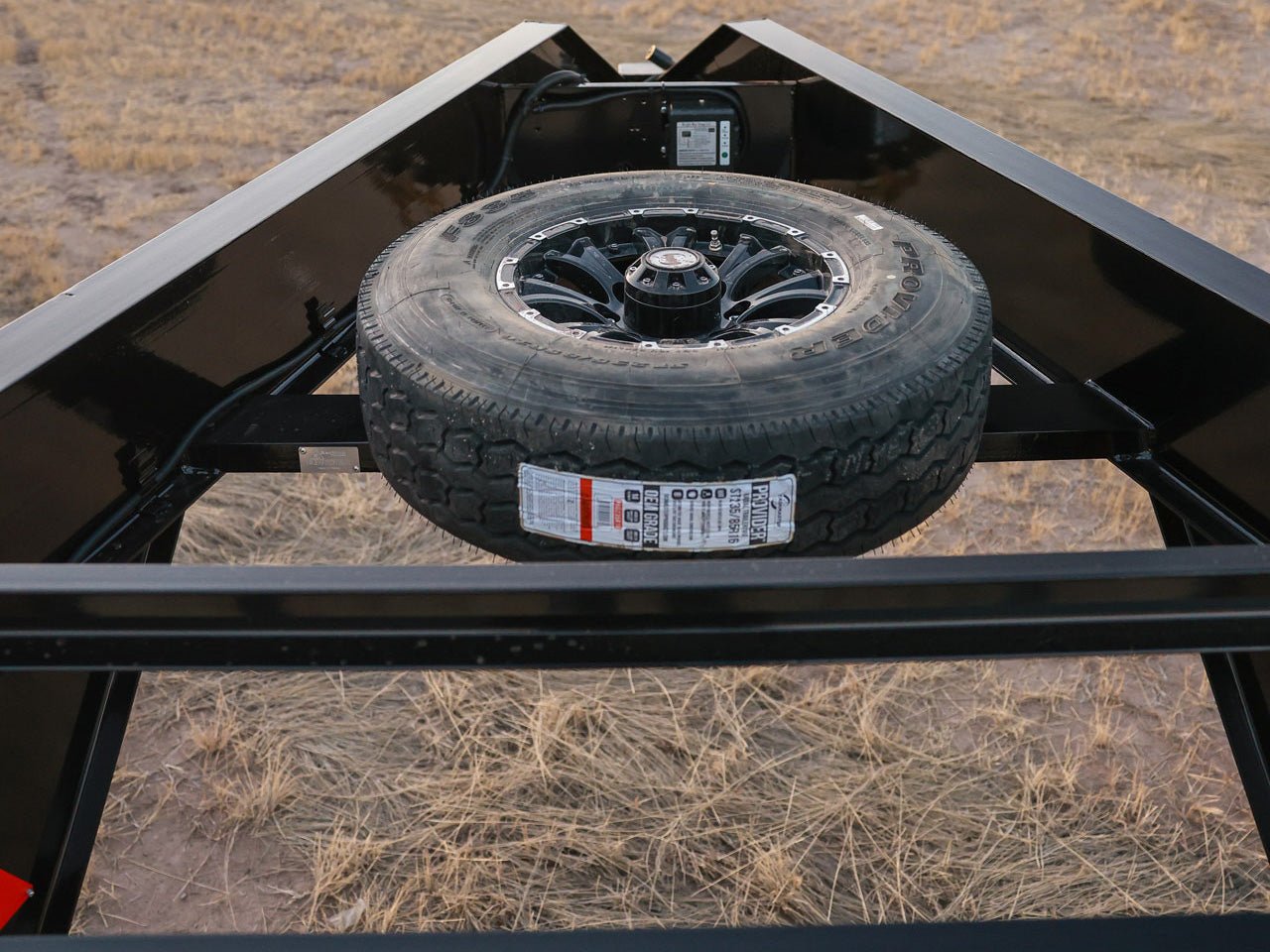

- SPARE TIRE MOUNT:
- 3" Tubing / 3/16" Plate
REAR TAIL
- TAIL TYPE:
- Straight Deck

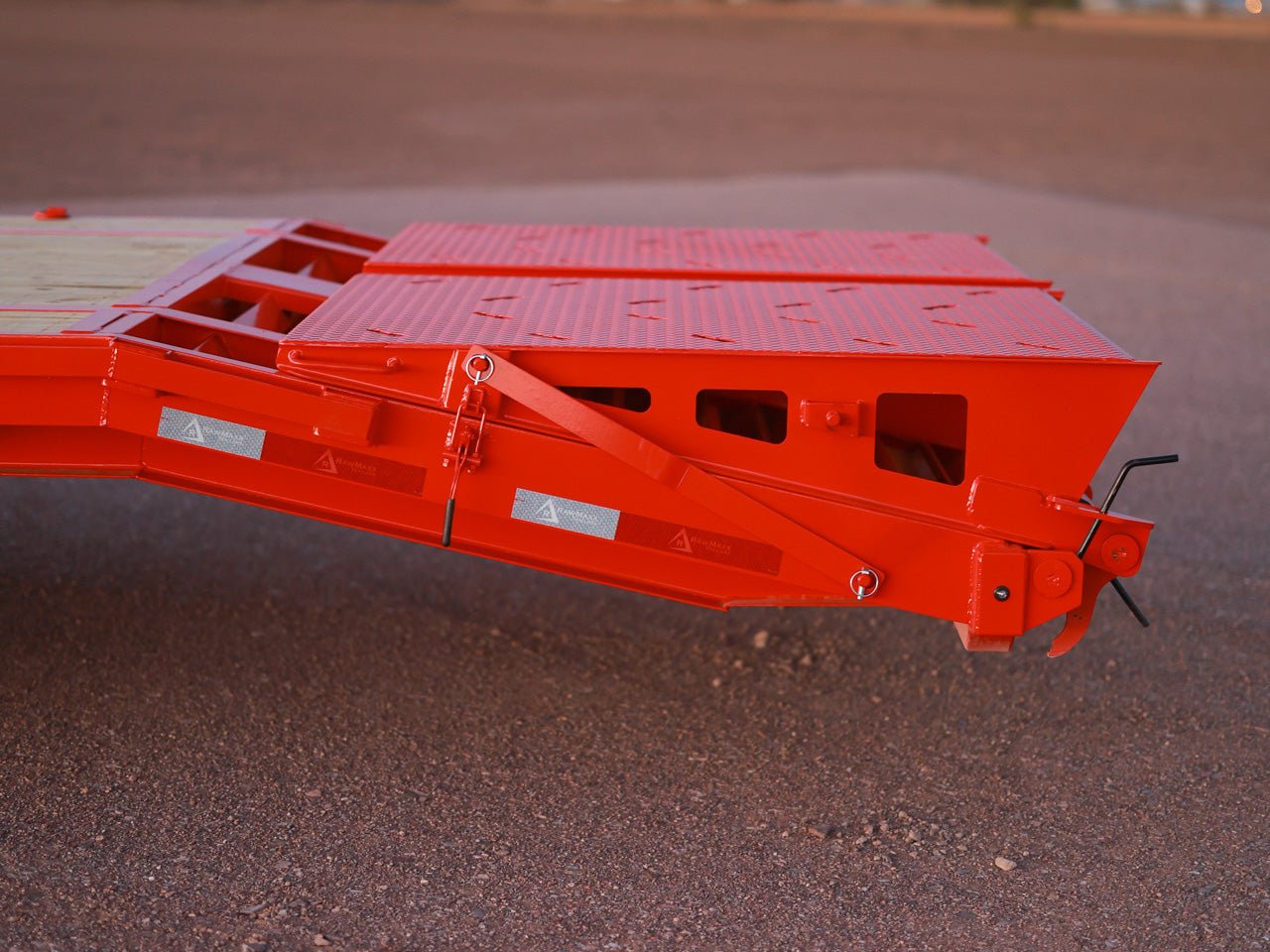

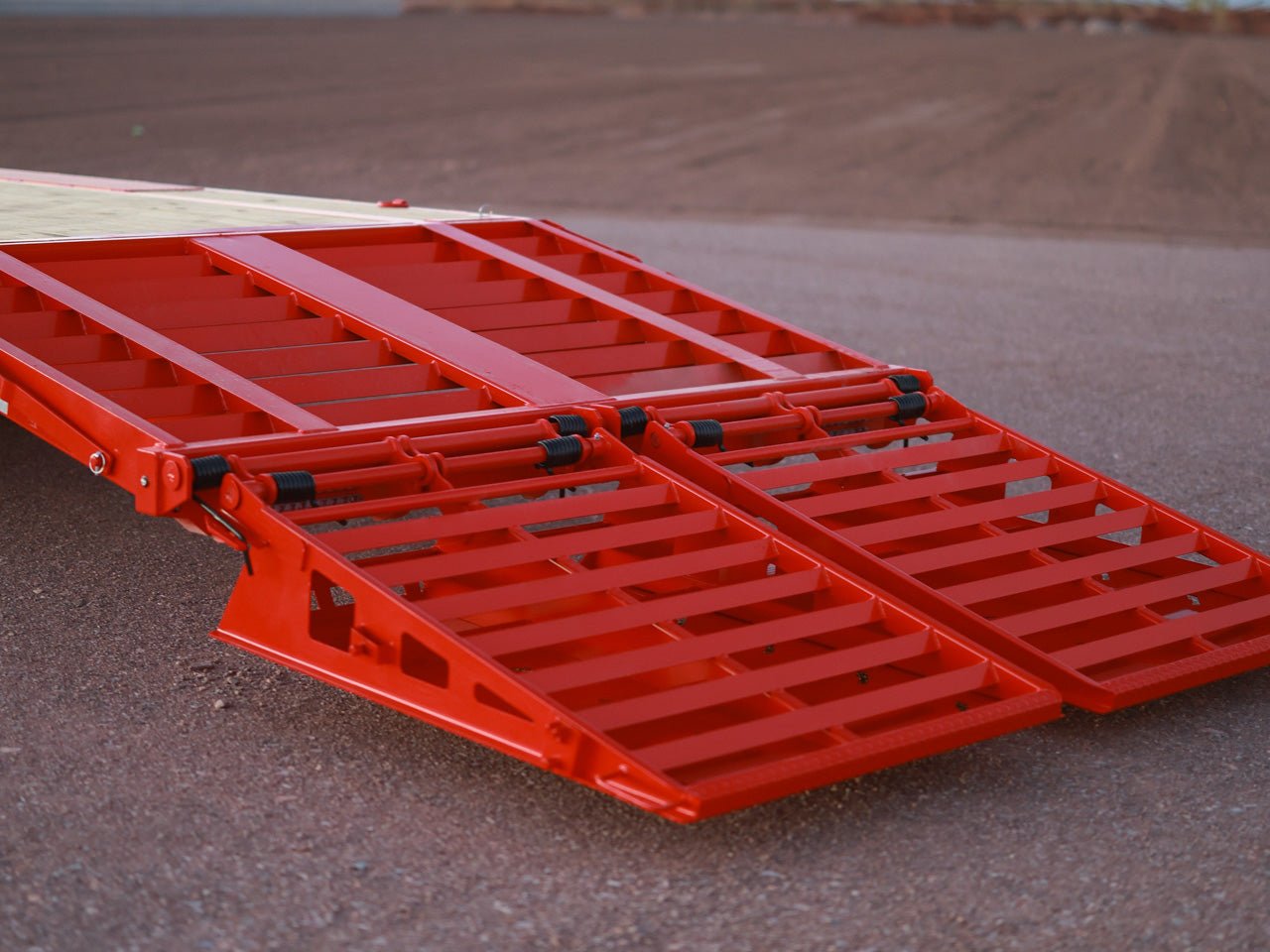

- RAMPS:
- 8' Slide-In Channel Ramps
RUNNING GEAR
- AXLE TYPE:
- Spring
- AXLES:
- 2 x 7,000 lb
- BRAKES:
- Electric

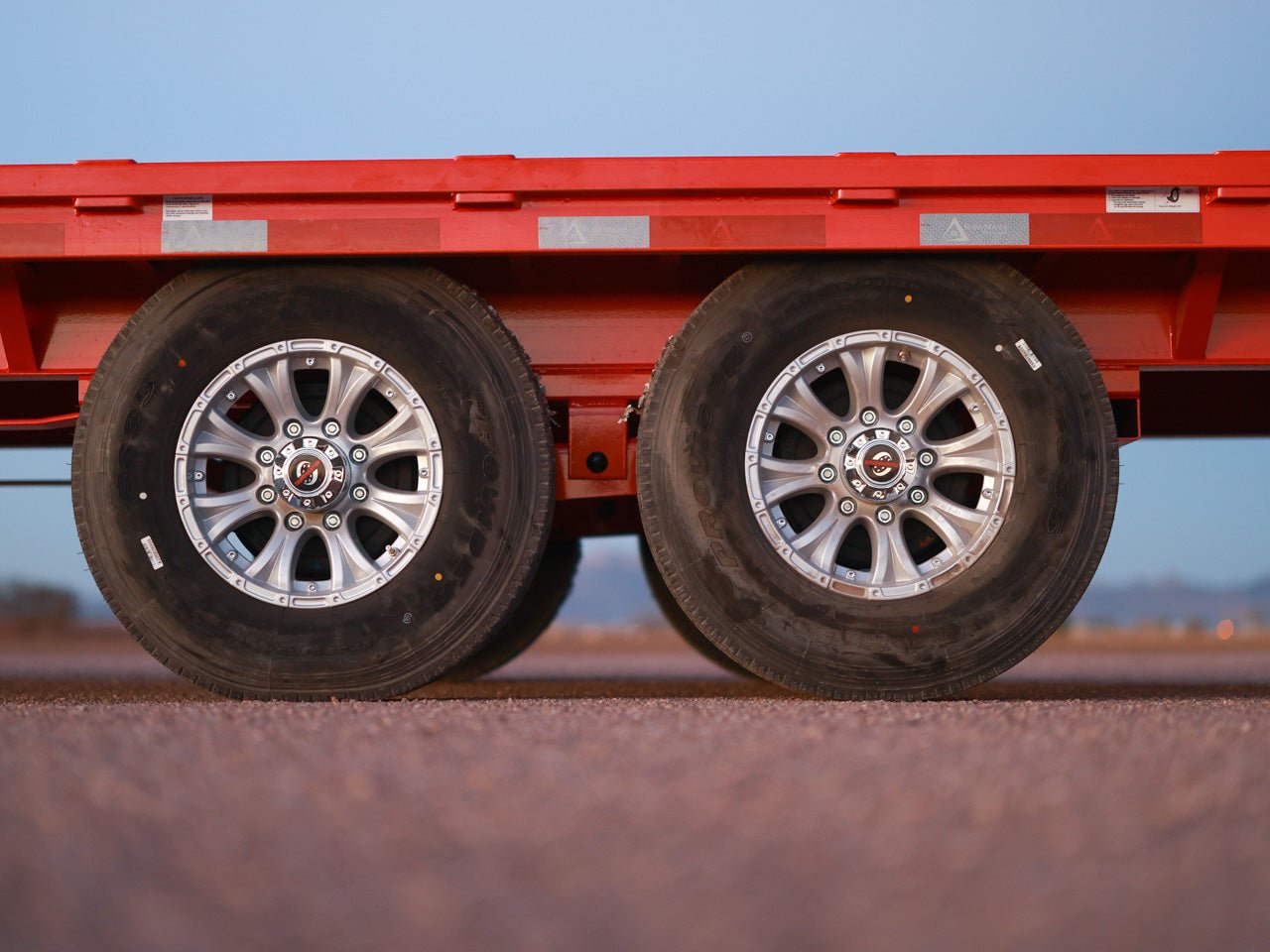

TIRES & WHEELS
- TYPE:
- Radial Tires
- SIZE:
- ST235/80R16
- PLY:
- 10 Ply
- RATING:
- 3,520 lbs
- RIMS:
- 16” Black Mod Wheels
- BOLT PATTERN:
- 8 on 6.5”
ELECTRICAL & LIGHTING
- FRONT PLUG:
- 7-Way Plug
- WIRING:
- All Weather Wiring Harness
- SIDE MARKERS:
- 3/4" LED Bullet Lights

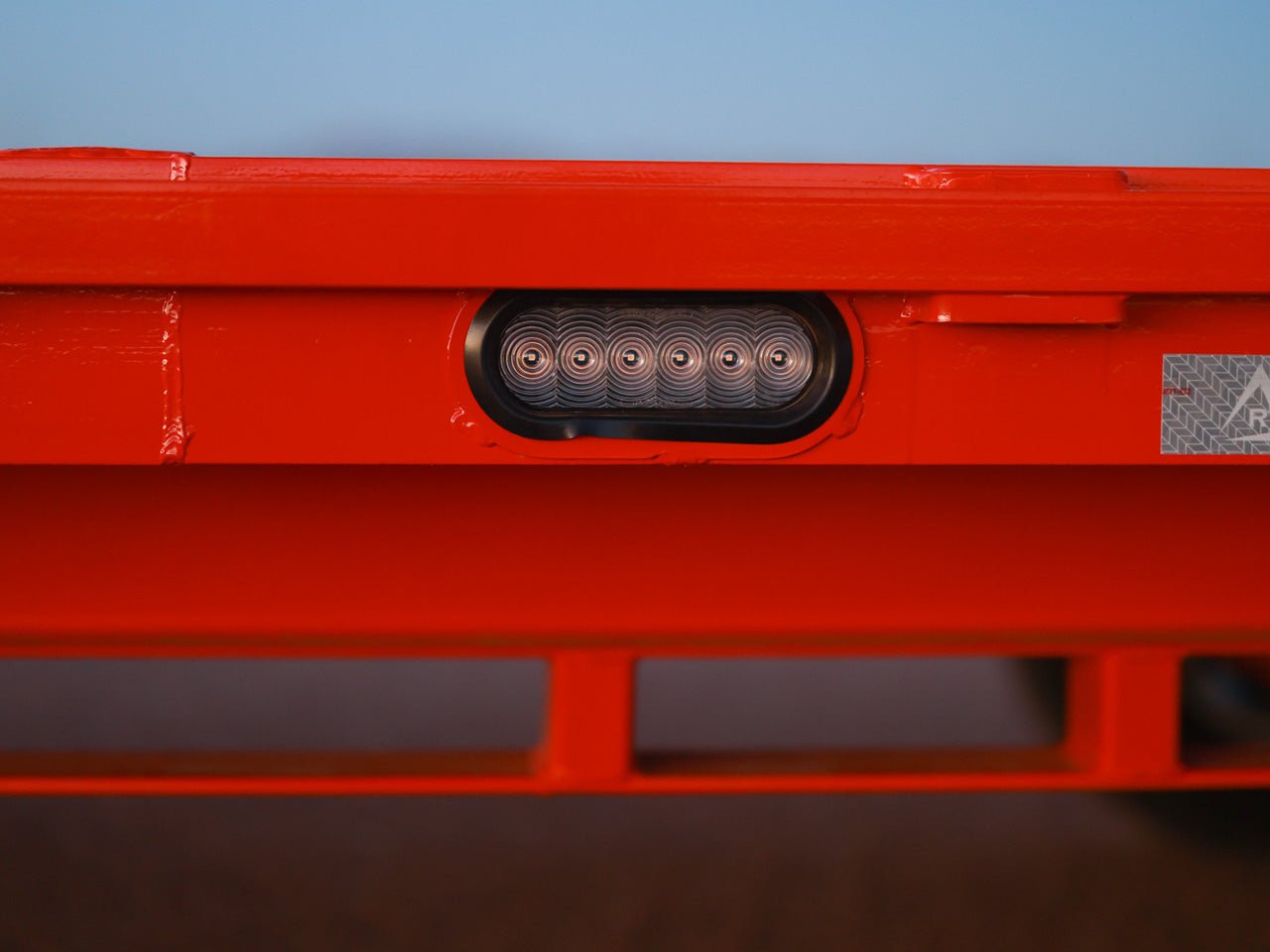

- TURN FLASHERS:
- 2" x 6" Amber Side Turn Lights

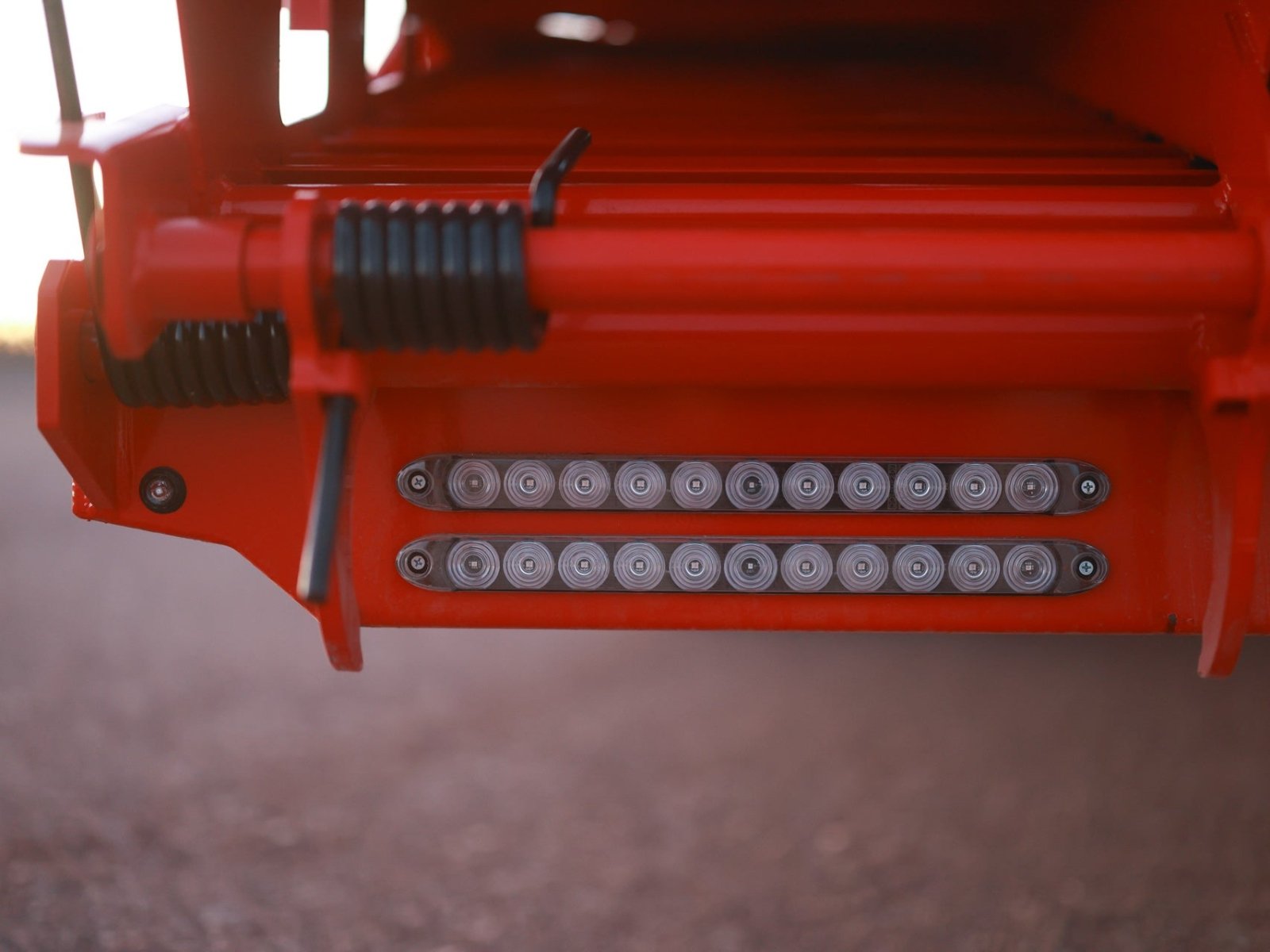

- REAR LIGHTS:
- DOT Approved LED Lights
SAFETY SYSTEM

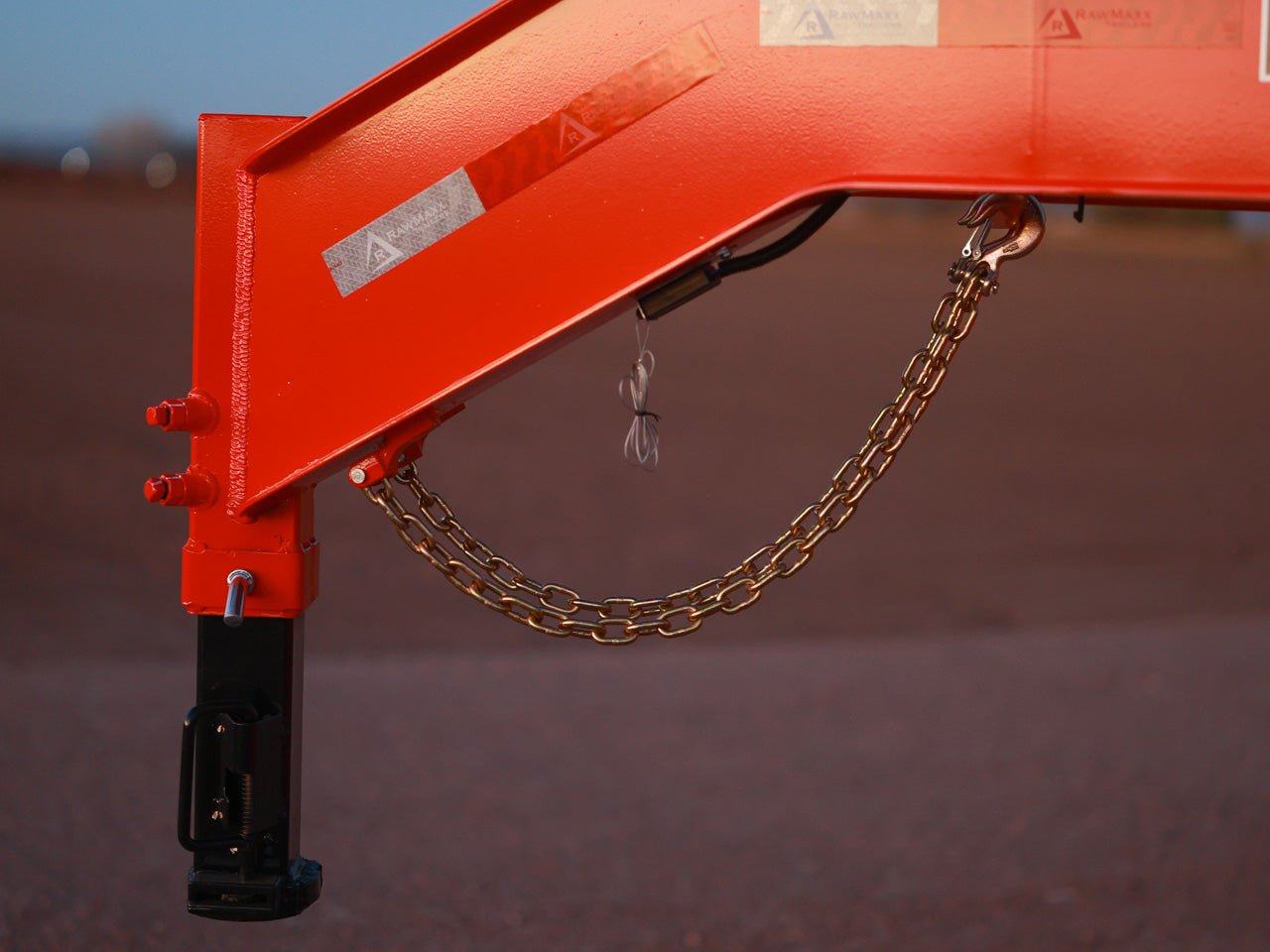

- SAFETY CHAINS:
- 3/8" G70 Safety Chains
- BREAKAWAY SYSTEM:
- Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
FINISH & WARRANTY
- FINISH:
- Powder Coat with Grit Blast Prep – Jet Black
- AXLE WARRANTY:
- 5 Year Dexter
- TRAILER WARRANTY:
- 3 Year Structural / 1 Year Paint
