At a Glance
TRAILER SPECS:
Specifications
- Brand:
RawMaxx
- Pull Type:
Gooseneck
Dimensions
- LENGTH:
16'-44'
Inquire About This Trailer
Featured Video
Product Features

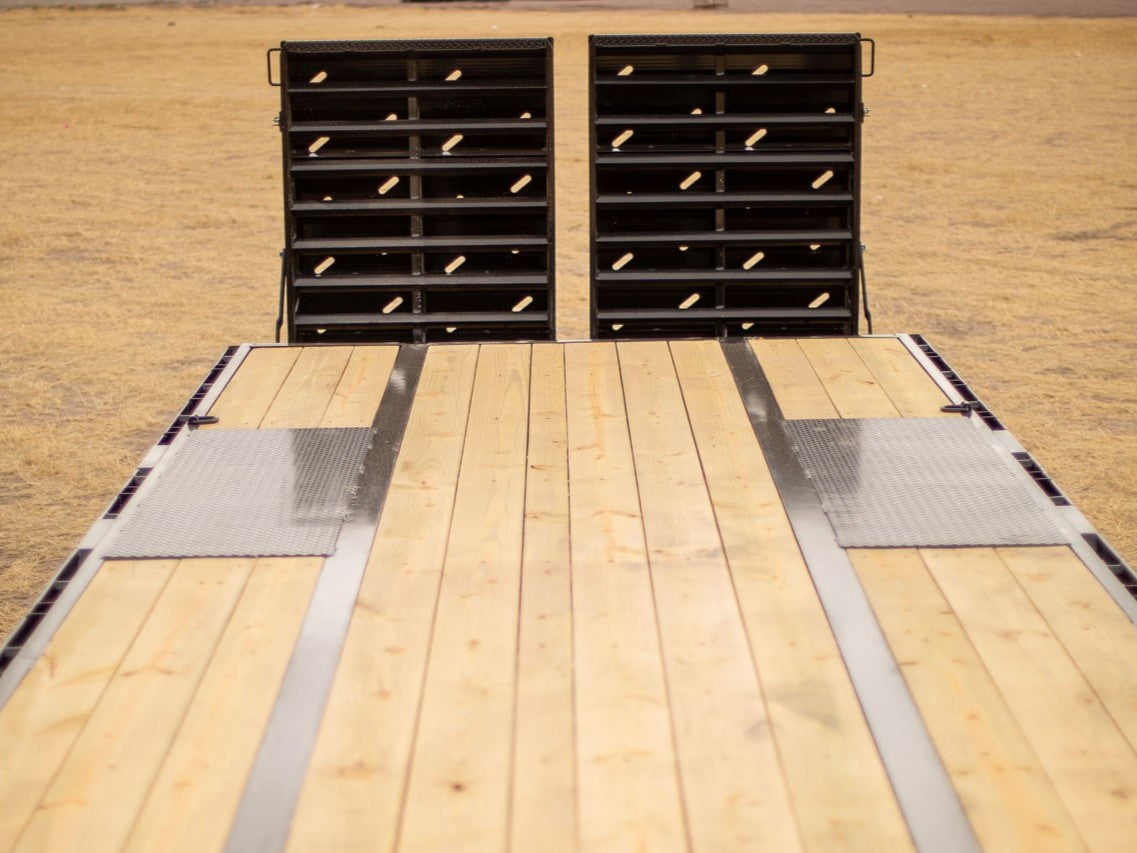

Deck
The RawMaxx FDX Dual Trailer boasts a strong and durable deck that can handle heavy loads with ease. The 2″ treated lumber deck provides a sturdy surface for transporting a variety of equipment and materials. The FDX Dual Trailer is a reliable choice for heavy-duty hauling applications.
Tool Box
The FDX Dual Trailer includes a front tool box for easy access to essential tools and equipment, ensuring they remain secure and protected during transport. This feature enhances trailer functionality and convenience, ideal for hauling heavy equipment, machinery, and cargo.
Jacks
The FDX Dual Trailer includes a front tool box for easy access to essential tools and equipment, ensuring they remain secure and protected during transport. This feature enhances trailer functionality and convenience, ideal for hauling heavy equipment, machinery, and cargo.
DURABLE POWDER COAT FINISH
Finished with a powder coat and steel grit blasted prep, the FDX Dual Trailer is designed to withstand the elements and resist corrosion effectively. This durable finish ensures long-lasting performance, maintaining the trailer's appearance and structural integrity over time.

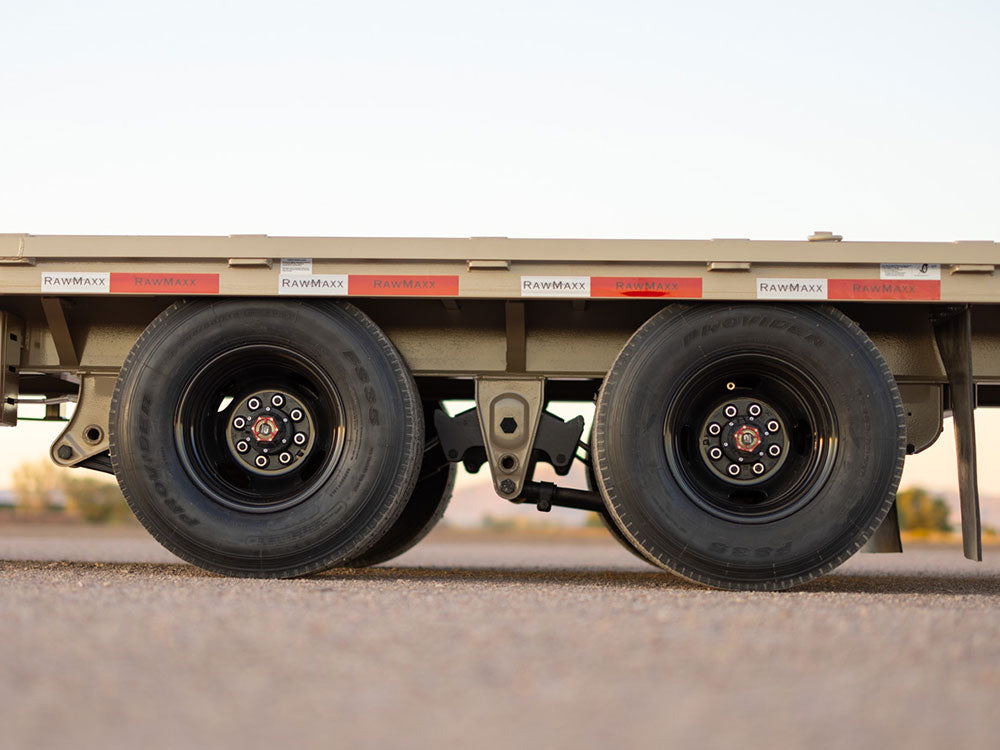

Axles & Tires
The FDX Dual Trailer, equipped with electric brakes, ensures smooth towing under heavy loads. It features tandem 10,000 lbs. Lippert electric brake axles and a flexible GVWR range of 20,000 to 32,000 lbs. Radial tires rated at 10 Ply provide reliable traction and stability on various road surfaces.
Lights
The FDX Dual features a DOT-compliant lighting system with 3/4″ LED bullet lights for side markers and 2″ x 6″ amber LED lights for turn signals. The rear includes durable DOT-approved LED lights for enhanced visibility and reliable performance in all conditions.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- LENGTH:
- 20', 22', 24', 26', 28', 30', 32', 34', 36', 38', 40', 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 33"
- GVWR:
- 14,000 lbs.
- GAWR:
- 7,000 lbs.
FRAME & STRUCTURE
FRAME:
- MAIN FRAME:
- 12" x 14 lbs. I-Beam Main Frame
- CROSS-MEMBERS:
- 3" Channel / 16" Spacings
- BRIDGE FRAME:
- 2" x 4" Square Tube / 4 x 3/8" Flat Bar
DECK
DECK:
- FLOORING:
- 2” Treated Lumber Deck
- D-RINGS:
- 4 D-Rings Welded Outside Corners
GOOSENECK
GOOSENECK:
- COUPLER:
- 2-5/16” Ball Coupler
- FRONT JACKS:
- 2 Side Wind Drop Legs - 10,000 lbs.
- FRONT TOOL BOX:
- Between Risers / Lockable Latch
- NECK LENGTH:
- 93"
SIDE
SIDE:
- SIDE PERIMETER:
- 6" Channel Outer Deck Frame
- RUB RAIL:
- 2" x 3/8" Flat Bar
- STAKE POCKETS:
- 3-7/8" x 1-13/16" (ID) Stake Pockets
- CHAIN SPOOL:
- 1 5/8" OD
- FENDERS:
- 3/16” Thread Plate
SIDE STEP & HANDLE
SIDE STEP:
- SIDE STEP:
- G10 Sides / G12 Diamond Plate Step
- HANDLE:
- 1/2" Round Rod
REAR TAIL
REAR TAIL:
- STRAIGHT DECK:
- 8' Slide-In Channel Ramps
FINISH
FINISH:
- TYPE:
- Powder Coat
- PREP:
- Grit Blast
- STANDARD COLOR:
- Jet Black
WARRANTY
WARRANTY:
- AXLE:
- 5 Year Dexter
- TRAILER:
- 3 Year Structural / 1 Year Paint
SPARE MOUNT
SPARE MOUNT:
- SPARE TIRE MOUNT:
- 3" Tubing / 3/16" Plate
RUNNING GEAR & SAFETY
RUNNING GEAR:
- AXLE TYPE:
- Spring
- AXLES:
- 2
- RATING:
- 7,000 lbs.
- BRAKES:
- Electric
TIRES:
- TYPE:
- Radial Tires
- SIZE:
- ST235/80R16
- PLY:
- 10 Ply
- RATING:
- 3,520 lbs.
- RIMS:
- 16” Black Mod Wheels
- BOLT PATTERN:
- 8 on 6.5”
SAFETY:
- SAFETY CHAINS:
- 3/8" G70 Safety Chains
- BREAKAWAY SYSTEM:
- Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
ELECTRICAL & LIGHTING
ELECTRICAL:
- FRONT PLUG:
- 7-Way Plug
- FRAME WIRING:
- All-Weather Wiring Harness
- SIDE MARKERS:
- 3/4" LED Bullet Lights
- TURN FLASHERS:
- 2" x 6" Amber Side Turn Lights
- REAR LIGHTS:
- DOT Approved LED Lights
