At a Glance
Product Features

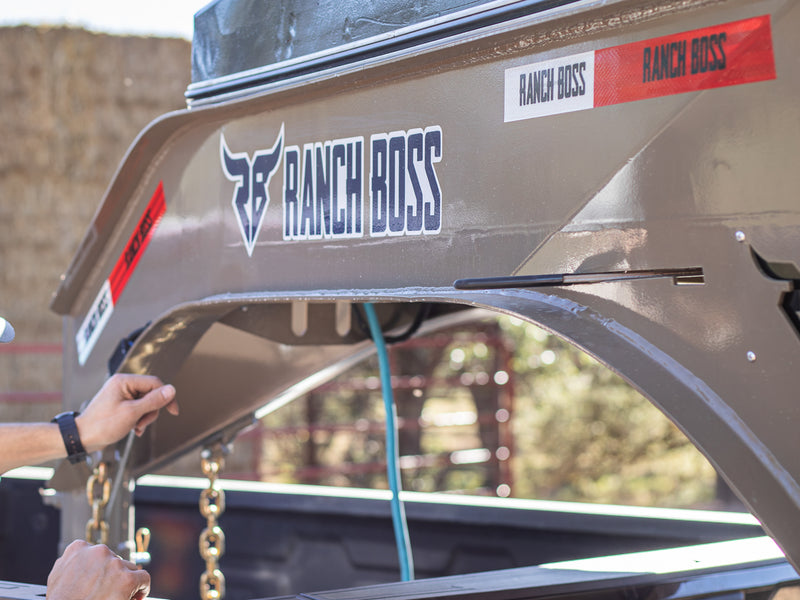

Superior Heavy-Duty Construction
No corners were cut when Ranch Boss designed their livestock models. Each gooseneck trailer comes equipped with a massive 10" engineered I-beam neck, heavy-duty fabricated 3/16" plate beams on 4' centers, and 10-gauge formed steel sidewalls for lasting durability.

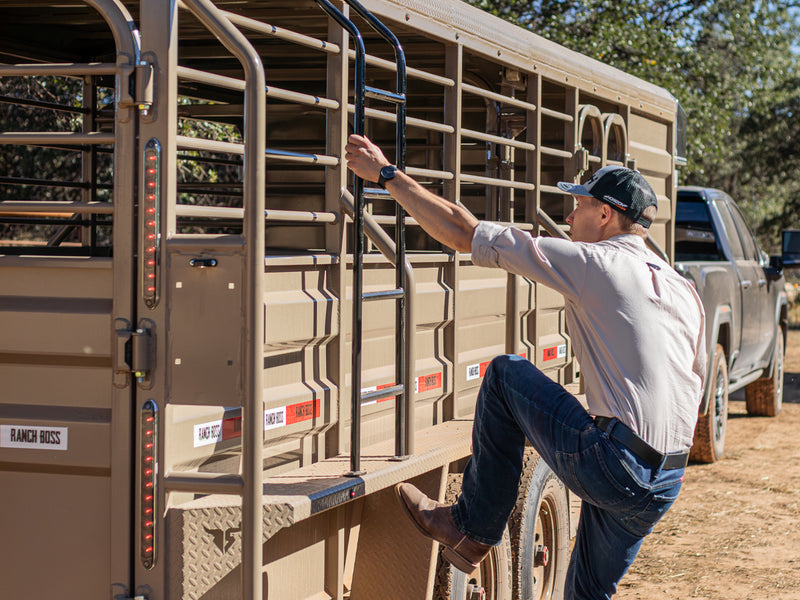

Limitless Customization Options
Ranch Boss provides a ton of standard features and countless upgrades. From an optional top-mounted hay rack with ladder to different front, center, and rear gate configurations and escape doors. Custom flooring options from wood to cleated rubber—you'll find this trailer can be built to your exact specifications.

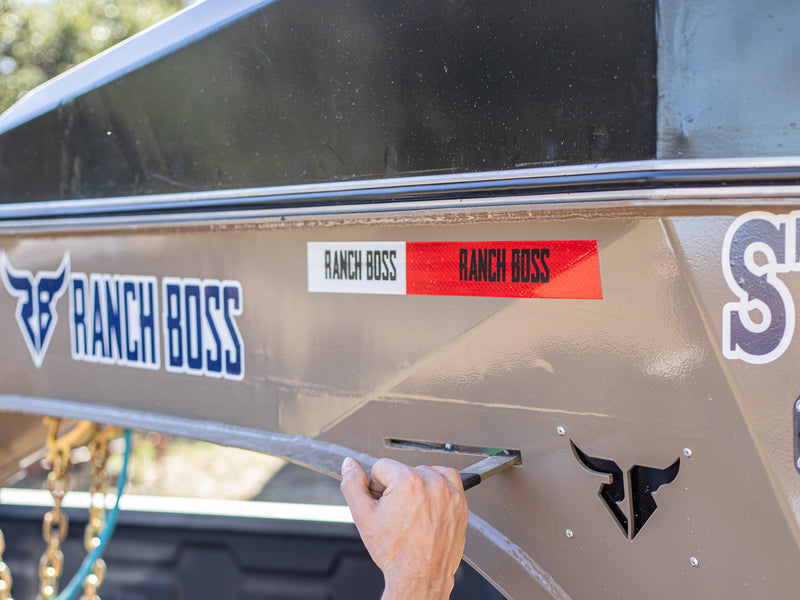

Neck-Equipped Coupler Release Lever
For more efficient operation, the driver's side of the gooseneck features a standard release lever. Simply slide the lever forward or back to quickly lock or unlock the adjustable 25,000 lb coupler without climbing into the truck bed.
Multiple High-Capacity Axle Options
Configure your hauling power with multiple axle options. Standard 7k Dexter oil bath axles provide a solid foundation, with upgrades to 8k or even 10k Super Single Dexter oil bath axles to support GVWRs up to 22,400 lbs.

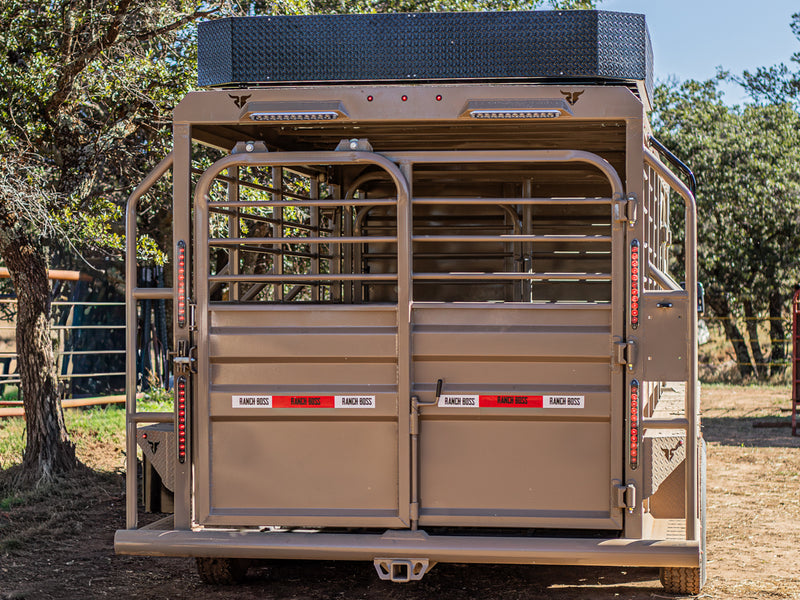

Hauling Versatility with Width Options
Maximize your hauling potential with multiple size configurations. Ranging from the standard 6' 8" wide for maneuverability all the way to a high-capacity 8' wide design, you can maximize your hauling and profit potential.

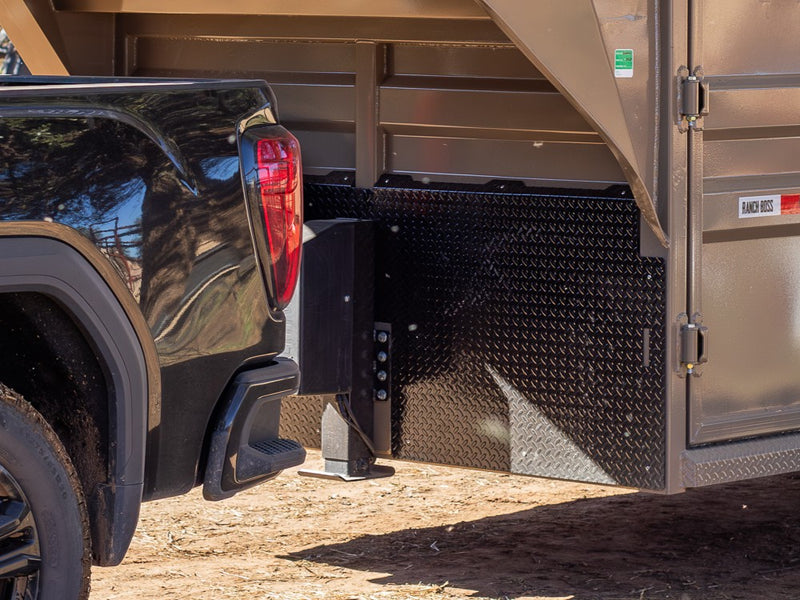

Standard 30" Diamond Plate Gravel Guard
All Ranch Boss livestock trailers come standard equipped with a 30" black diamond plate gravel guard. The gravel guard works well with any color you've selected for your new trailer and will offer enhanced front protection while hauling.
Product Details
DIMENSIONS
- LENGTH:
- 16' - 32'
- WIDTH:
- 6' 8" - 8'
- INTERIOR HEIGHT:
- 6' 6"
- TRAILER TYPE:
- Livestock
WEIGHT RATINGS
- GVWR:
- 15.7k - 22.4k
- AXLE OPTIONS:
- 7k, 8k, 10k SS
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial Tires
- TIRE RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter Auto Adjust Oil Bath Axles
2 - 8k Dexter Auto Adjust Oil Bath Axles
2 - 10k SS Dexter Auto Adjust Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brakes
- SUSPENSION:
- Torsion Axles
- SPARE TIRE:
- Spare Tire Mount
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I-Beam
- LENGTH:
- 88" Long (From Behind Riser)
- HEIGHT:
- 70" High (From Underneath Neck)
- COUPLER:
- Adjustable 2 5/16" Coupler (25,000 lbs)
- JACK:
- 12k Drop-Leg Jack
FRAME & CONSTRUCTION
- MAIN FRAME:
- 6" Channel
- WALLS:
- 10 Ga. Formed Steel Sidewalls
- CROSSMEMBERS:
- HD Fabricated 3/16" Plate Beams (4' Spacing)
- FLOOR:
- Treated Wood Floor
- ROOF:
- Custom Fiberglass 1/2 Top
- FRONT PROFILE:
- Sloped
- EXTERIOR FINISH:
- Powdercoat Finish
- FENDERS:
- 12 Ga. Diamond Plate Steel Fenders
- GATES:
- Rear Butterfly Gate
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness
Double Insulated Wiring Harness
- REAR LIGHTS:
- Rear DOT Approved LED Lighting
- CLEARANCE LIGHTS:
- DOT Approved TecNiq LED Lights Spaced 48"
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 10 Year Dexter Axle Warranty
OPTIONS
