At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Product Features

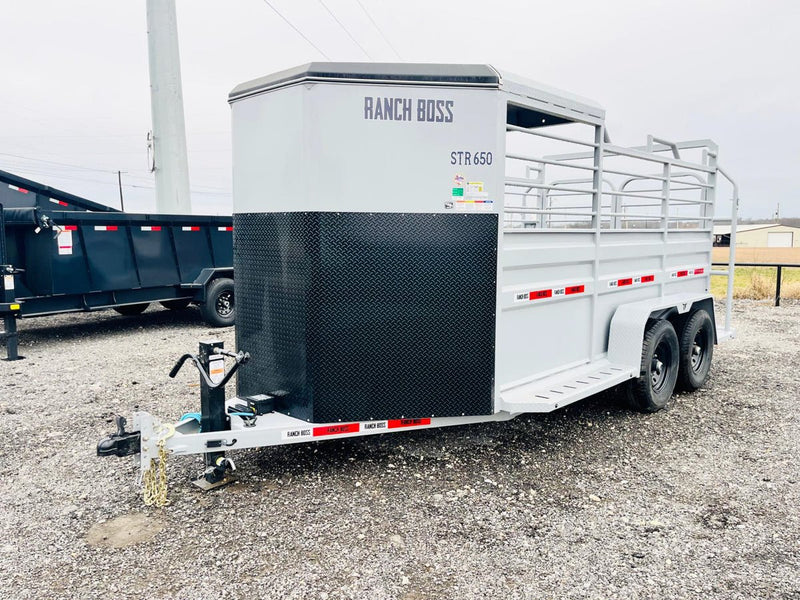

Heavy-Duty Reinforced Frame Construction
Construction starts strong with a 4" channel frame (5.40 lbs/ft). It's reinforced with 2" x 4" x 3/16" rectangular tubing and HD fabricated 3/16" plate beams spaced every 4', offering total support and durability for safe livestock hauling.

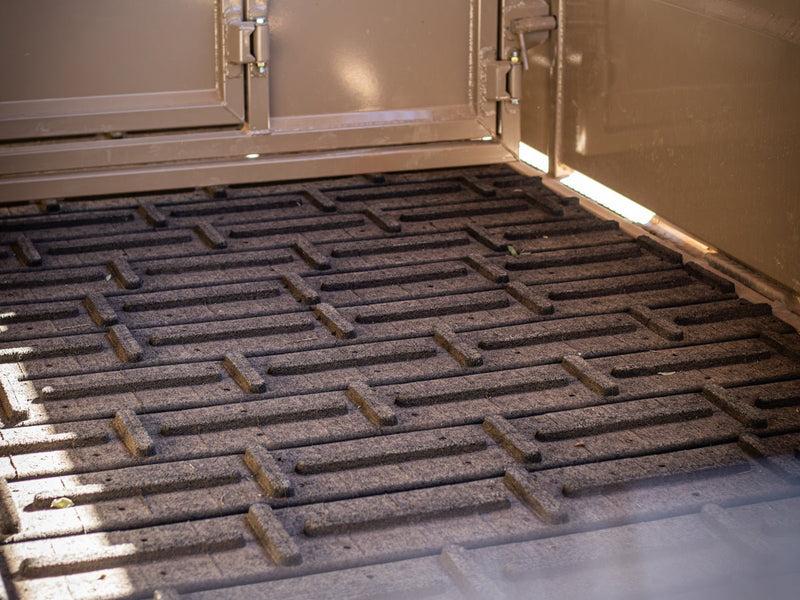

Limitless Customization Options
Ranch Boss provides a ton of standard features and countless upgrades. Customize with different gate configurations, escape doors, tack rooms, flooring from wood to cleated rubber, and a top-mounted hay rack with ladder to build your ideal trailer.

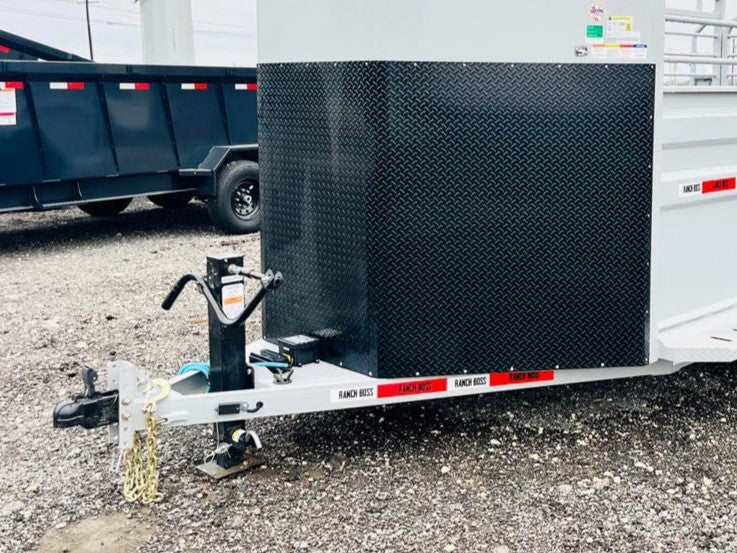

Standard Gravel Guard & 12k Jack
For practical protection, the trailer comes standard with a 48-inch black diamond plate gravel guard. It's also equipped with a 12k drop-leg jack for stable hitching and unhitching.
7k Dexter Oil Bath Axles with 10-Year Warranty
Equipped with reliable 7k Dexter auto-adjust oil bath torsion axles as standard, providing a smooth ride. These axles are backed by an exceptional 10-year Dexter warranty for long-term peace of mind.
Hauling Versatility with Width Options
Maximize your hauling potential with multiple size configurations. Choose from the standard 6' 8" width for maneuverability or upgrade to a high-capacity 8' wide design for transporting more livestock per trip.
Premium Lighting & Undercoating
Features premium TecNiq LED clearance lights and rear lighting for safety and visibility. The trailer includes a zinc primer undercoat for enhanced corrosion protection, ensuring long-lasting durability.
Product Details
DIMENSIONS
- LENGTH:
- 16' or 20'
- WIDTH:
- 6' 8" - 8'
- INTERIOR HEIGHT:
- 6' 6"
- TRAILER TYPE:
- Livestock
WEIGHT RATINGS
- GVWR:
- 15.2k
- AXLE OPTIONS:
- 7k
RUNNING GEAR

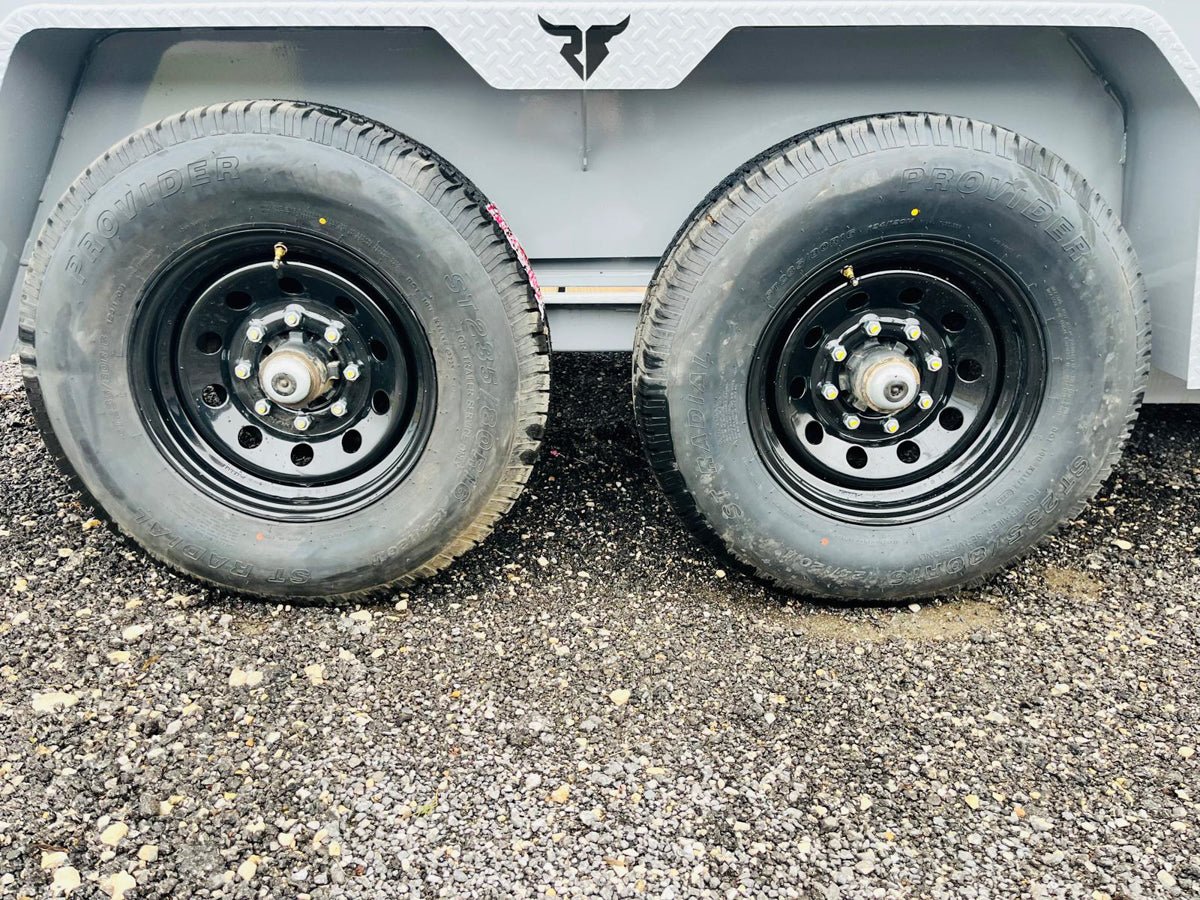

- TIRES:
- ST235/80R16 Radial Tires
- TIRE RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter Auto Adjust Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brakes
- SUSPENSION:
- Torsion Axles
- SPARE TIRE:
- Spare Tire Mount
BUMPER PULL
- PULL TYPE:
- Bumper Pull
- TYPE:
- 4" Channel Bumper Pull
- LENGTH:
- 85"
- COUPLER:
- Adjustable 2 5/16" Coupler (17,000 lbs)
- JACK:
- 12k Drop-Leg Jack
FRAME & CONSTRUCTION
- MAIN FRAME:
- 4" Channel
- WALLS:
- 10 Ga. Formed Steel Sidewalls
- CROSSMEMBERS:
- HD Fabricated 3/16" Plate Beams (4' Spacing)
- FLOOR:
- Treated Wood Floor
- ROOF:
- 16 Ga. Formed Steel 1/2 Top
- FRONT PROFILE:
- Angled
- EXTERIOR FINISH:
- Powdercoat Finish
- FENDERS:
- 12 Ga. Diamond Plate Steel Fenders

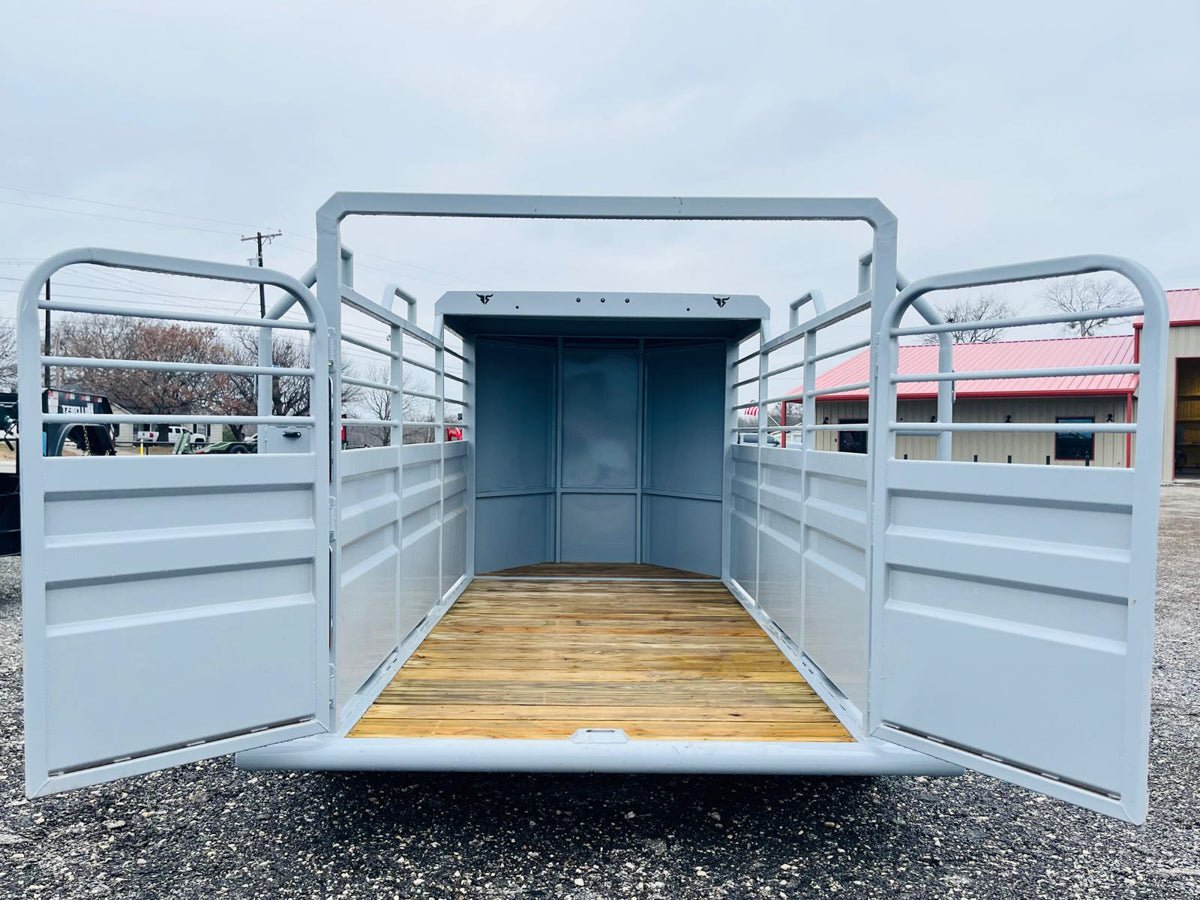

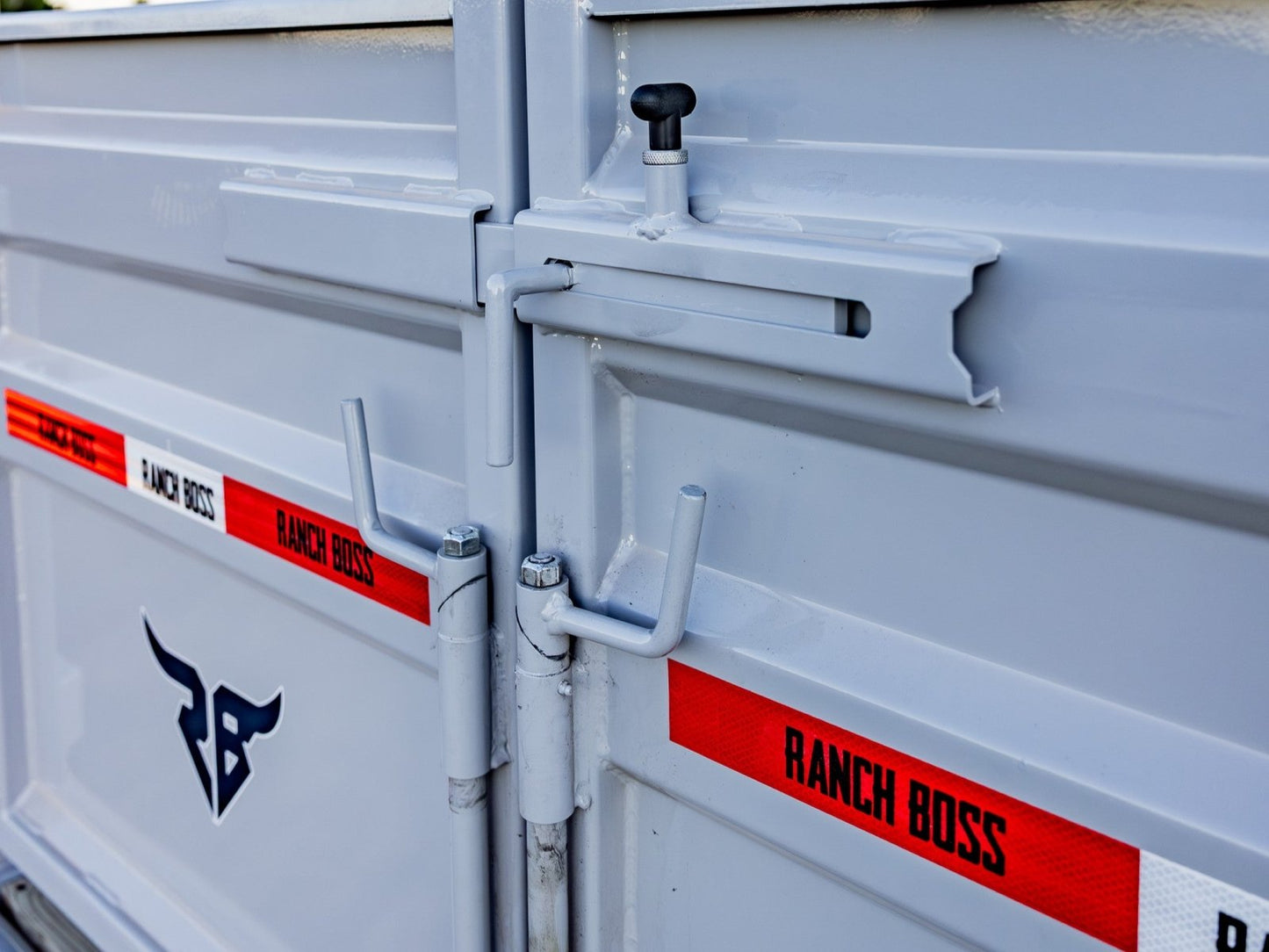

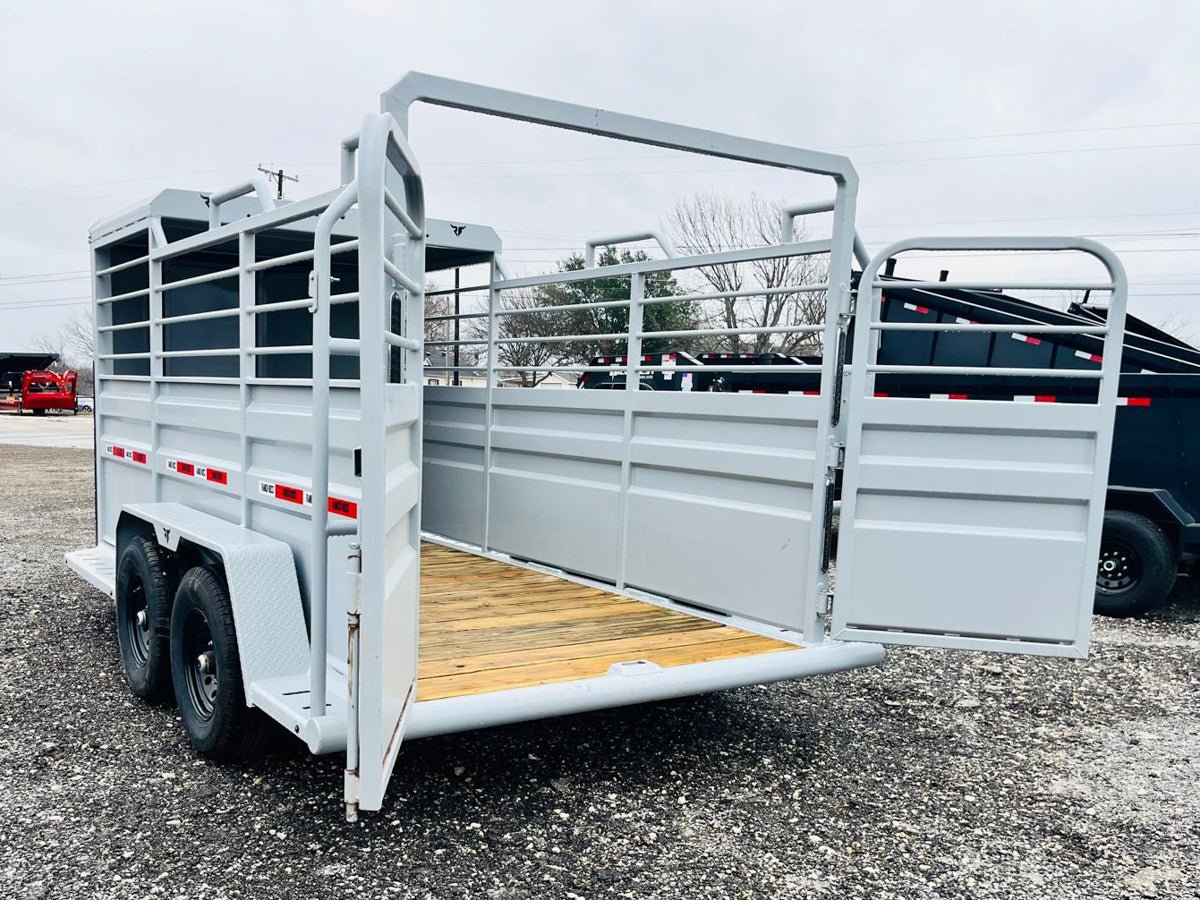

- GATES:

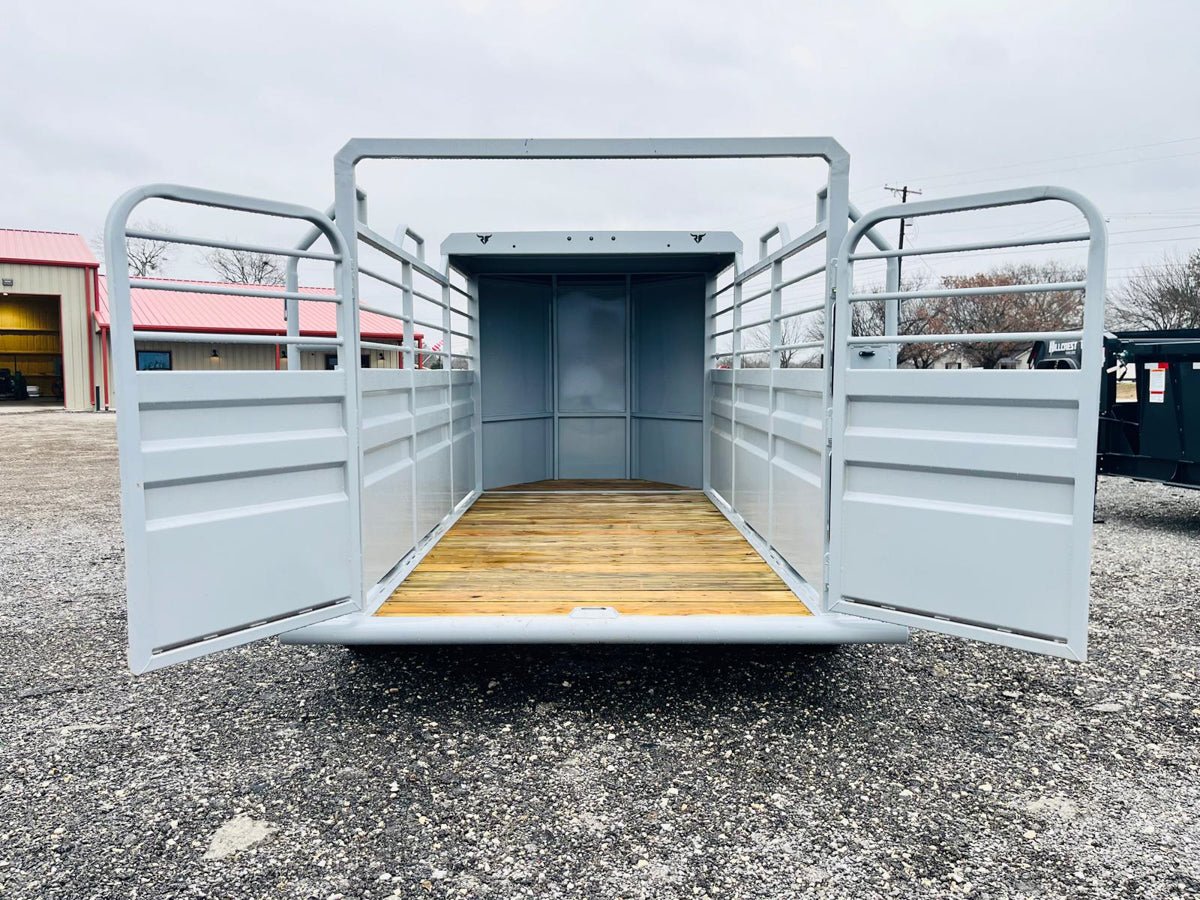

- Rear Butterfly Gate
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness
Double Insulated Wiring Harness
- REAR LIGHTS:
- Rear DOT Approved LED Lighting

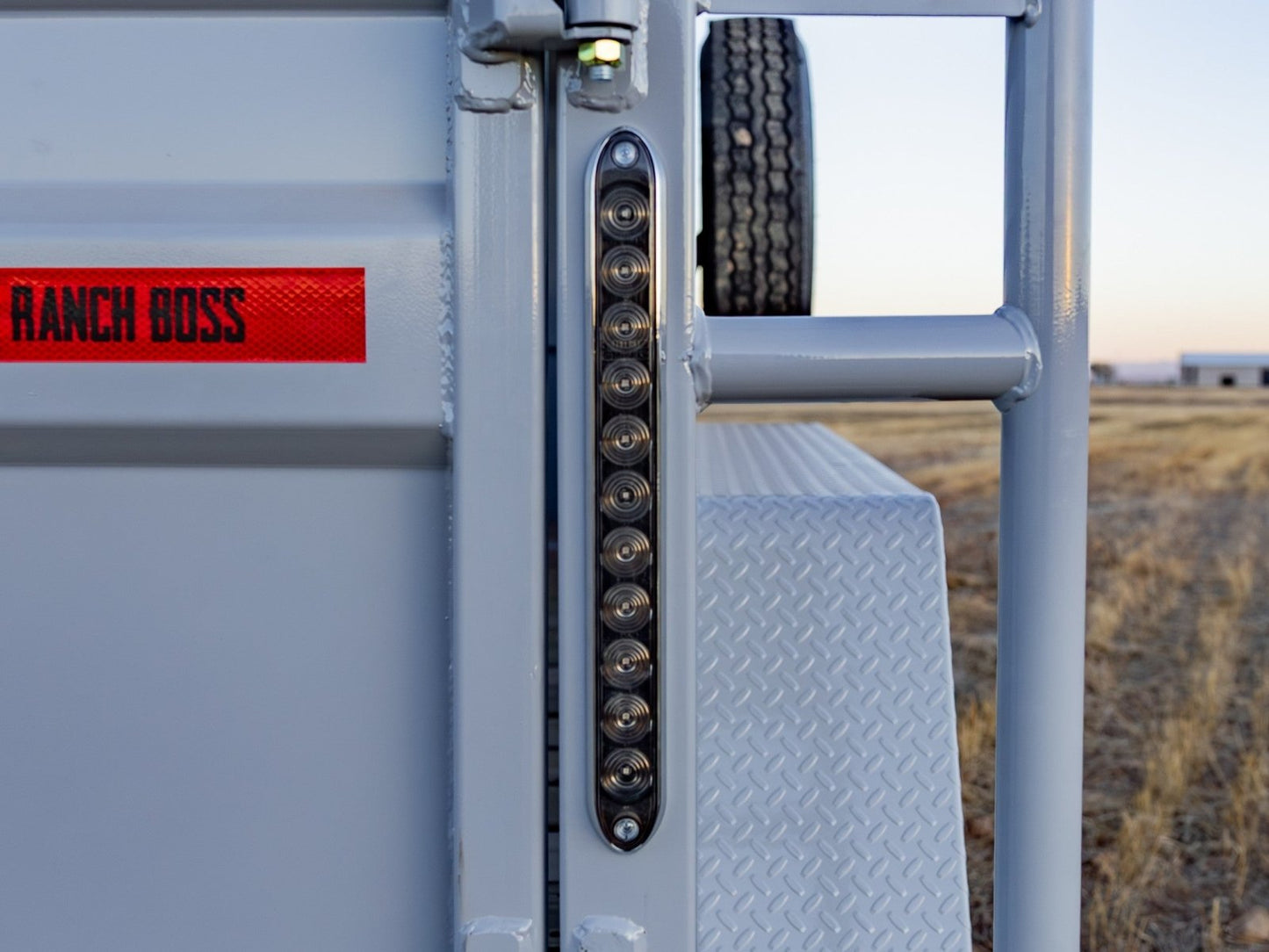

- CLEARANCE LIGHTS:
- DOT Approved TecNiq LED Lights Spaced 48"
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 10 Year Dexter Axle Warranty
OPTIONS
