Build Summary

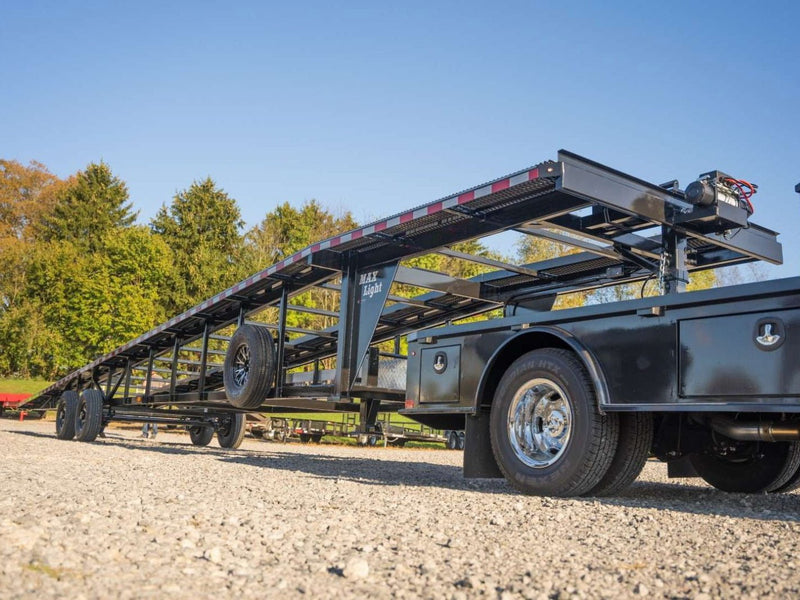

Max Light 48′ Wedge Trailer
Build Summary
Max Light 48′ Wedge Trailer
At a glance ValuesPRODUCT DETAILS
Product Features
Lightweight Durable Design
Weighing just 4,780 lbs with spare tire and ramps included, this trailer boasts a GVWR of 12,000-17,500 lbs for robust payload capacity. The engineered truss frame ensures lasting durability, making it the lightest yet toughest car hauler in its class. Perfect for hot shot businesses, it pairs seamlessly with ¾-ton and 1-ton pickup trucks.

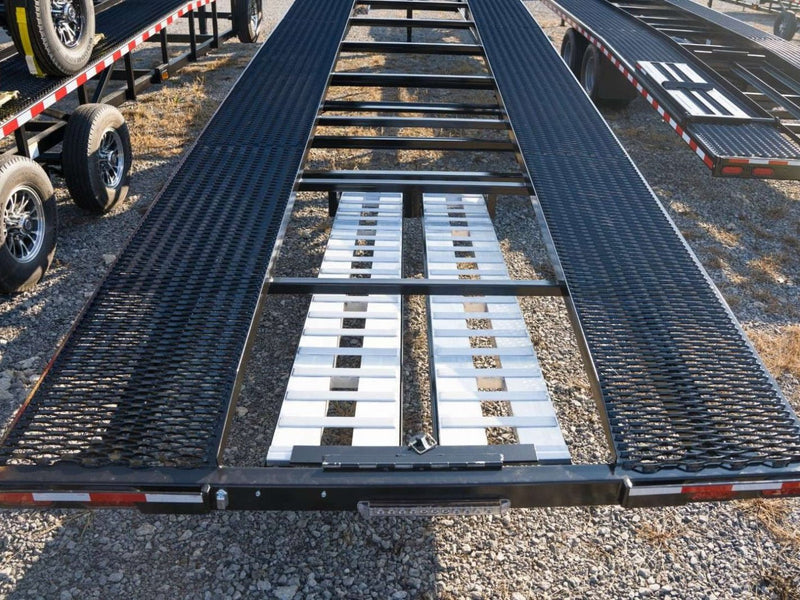

Spacious Wedge Deck
Featuring a 48-foot deck length and 91-inch width, this trailer provides generous space for car hauling needs. The HD grate floor, designed with a 3-point soft tie system, secures loads effectively. Its wedge shape and variable deck height enhance accessibility, offering versatility for professional haulers tackling diverse transport demands.

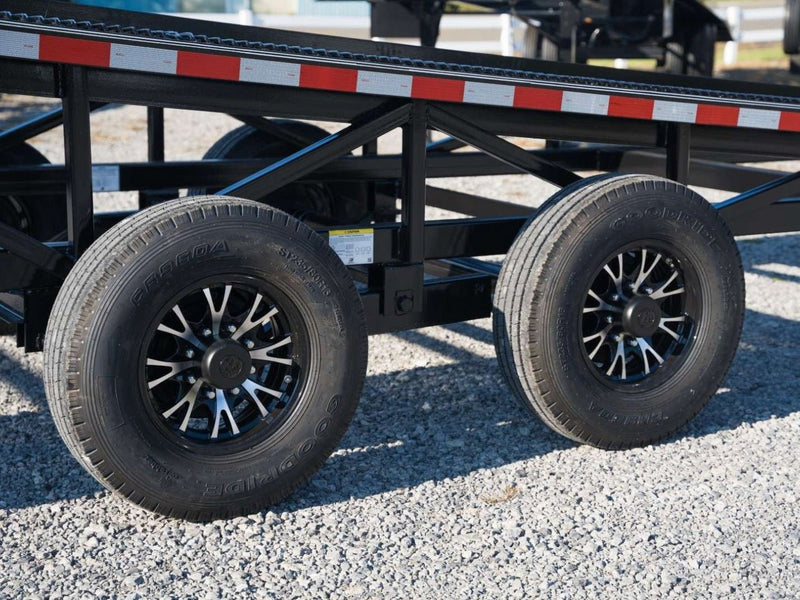

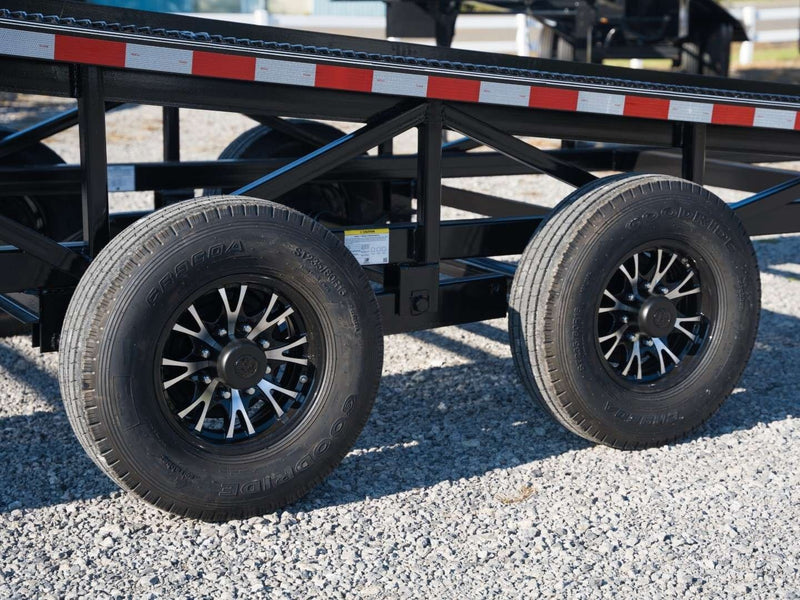

Reliable Running Gear
Equipped with 235-80-R16 Load Range G tires on premium HD polished aluminum 16” wheels with an 8 on 6.5” bolt pattern, this trailer delivers dependable performance. The 7k HD axle and electric brakes ensure smooth rides and safe stops, with an optional 14-ply tire upgrade available for added reliability.

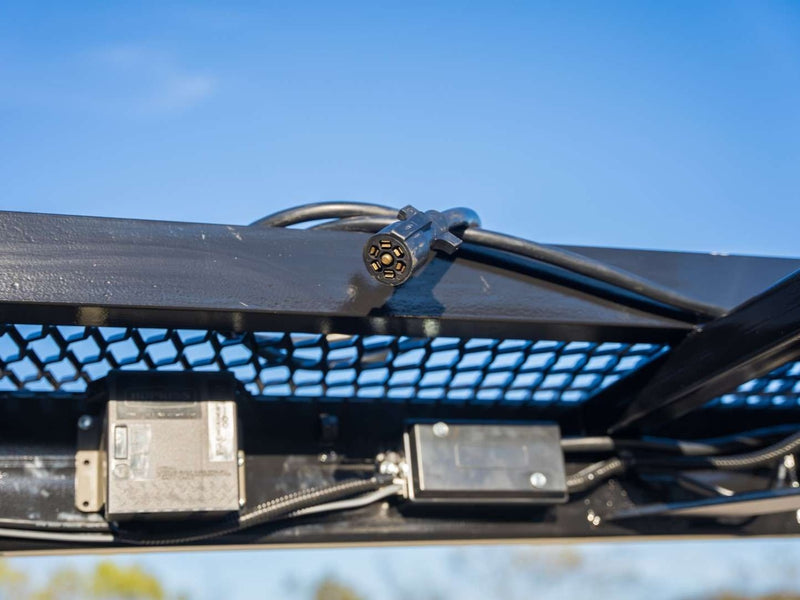

Advanced Safety Systems
With DOT-approved reflective tape, a 7-way RV trailer plug, and a breakaway kit with battery box, this trailer prioritizes road safety. Safety chains and DOT-approved LED lighting boost visibility and compliance. These features provide peace of mind, ensuring secure hauls day or night for professional operators in the field.

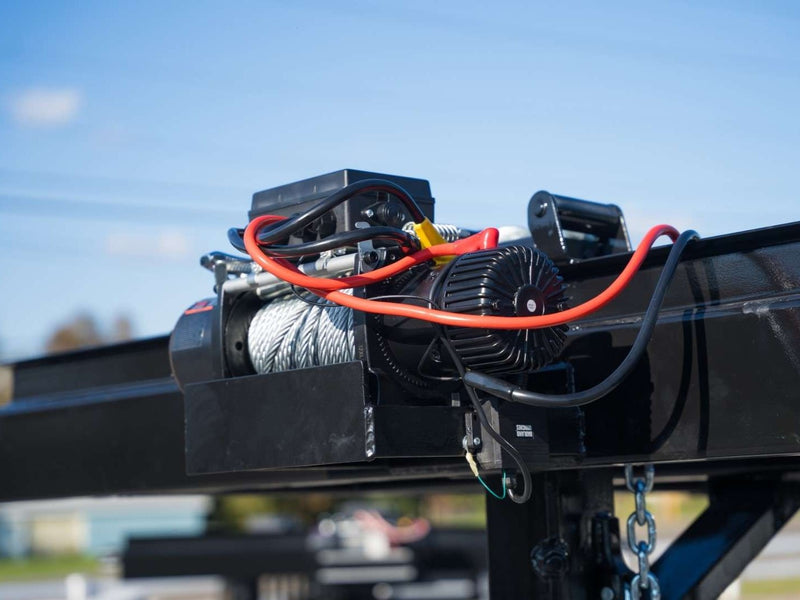

Powerful Winch Option
Enhance your hauling with an optional 12,000lb winch kit, complete with a wireless remote for effortless operation. This powerful addition simplifies loading heavy vehicles onto the 48-foot wedge deck, boosting efficiency for hot shot haulers. Paired with the trailer’s durable design, it’s a game-changer for tackling tough jobs with ease.

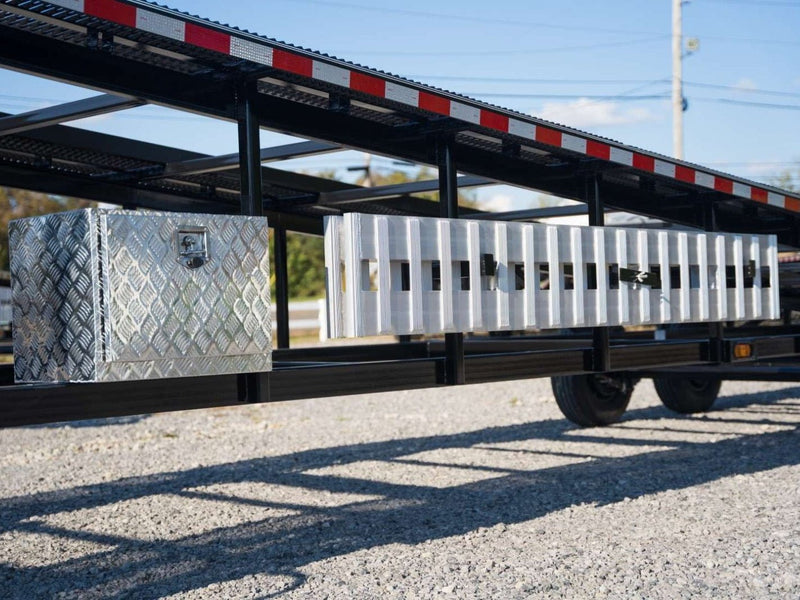

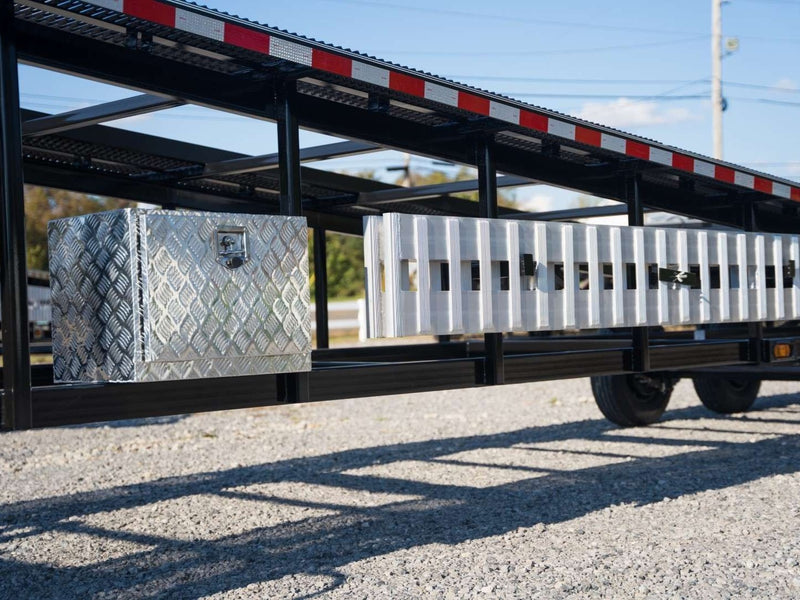

Rugged Ramps & Storage
Featuring 9-foot aluminum ramps rated for 10,000 lbs, this trailer ensures durable, easy loading for heavy cars. A standard aluminum side mount toolbox with lock offers secure storage, with an optional weatherproof upgrade available. Coated in automotive-grade epoxy and urethane, it’s built to withstand tough conditions with a 2-year warranty.Description
Dimensions & Capacity
- Model: MAX Light 48' Wedge
- GVWR: 12,000-17,500 lbs
- Payload: 7,000-12,400 lbs
- Empty Weight: 4,780 lbs (with spare tire and ramps)
- Deck Length: 48'
- Deck Width: 91"
- Options - Deck Width: 102" Wide Deck Option
- Deck Height: Varies
Frame & Suspension
- Frame: Engineered Truss
- Suspension: Heavy-Duty Slipper Spring
- Floor: HD Grate Engineered for 3 Point Soft Tie System
- Axles: 7k HD Axle
- Options - Axles: Tandem 8k HD Axle
- Runners: 25" Wide HD Engineered Grate
- Options - Runners: 30" Wide HD Engineered Grate
Coupler & Accessories
- Coupler: 2-5/16" Ball
- Jacks: 12k Spring Loaded Drop Leg Jack
- Options - Jacks: 2 Speed Dual 12k Spring Loaded Drop Leg Jacks
- Stake Pockets & Rubrails: Included
- Tie Downs: Included
- Storage: 1 Aluminum Side Mount Toolbox With Lock
- Options - Storage: Toolbox - weatherproof, locking
- Finish: Automotive Grade Epoxy Primer With Two Top Coats of Industrial Urethane
- Warranty: 2 Year Structural Frame
Running Gear & Safety
- Tires: 235-80-R16 Load Range G
- Options - Tires: 235-75-R17.5 Aluminum or 215-75-R17.5 Steel Tire and Wheel
- Options - Tire Upgrade: 14 Ply Tire Upgrade
- Wheels: Premium HD Polished Aluminum 16" 8"
- Bolt Pattern: 8 on 6.5" Bolt Pattern
- Spare Mount: 235-80-R16 Load Range G
- Options - Spare Mount: 235-75-R17.5 Aluminum or 215-75-R17.5 Steel Tire and Wheel
- Options - Spare Tire: 10 Ply Spare Tire
- Options - Spare Tire: 14 Ply Spare Tire
- Brakes: Electric Brakes
- Ramps: 9' Aluminum Ramps rated for 10,000 lbs
- Options - Ramps: 10' Aluminum Ramps
- Options - Ramps: 10' or 12' Aluminum Ramps rated for 10,000 lbs
- Safety: DOT Approved Reflective Tape
- Trailer Plug: 7-Way RV
- Break-Away Kit: Breakaway Kit & Battery Box
- Safety Chains: Included
- Lights: DOT Approved LED Lighting
- Options - Lights: LED Flood Lights
- Options - Winch: 12,000lb Winch Kit – wireless remote included
- Options - Package: Trailer Hauling Package (102" wide deck, Center Rail, 3 ball towers, 12,000lb winch kit)
