At a Glance
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

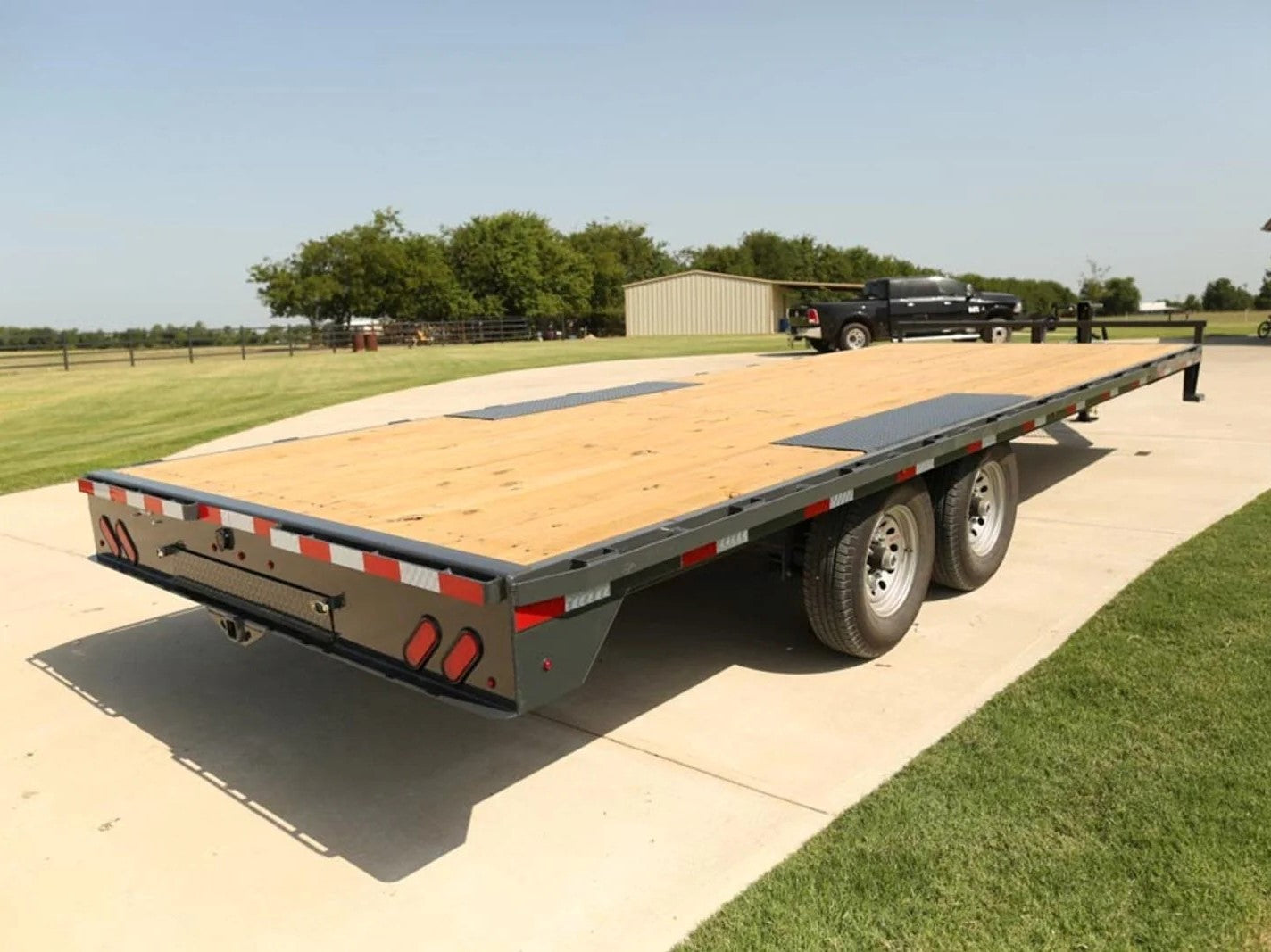

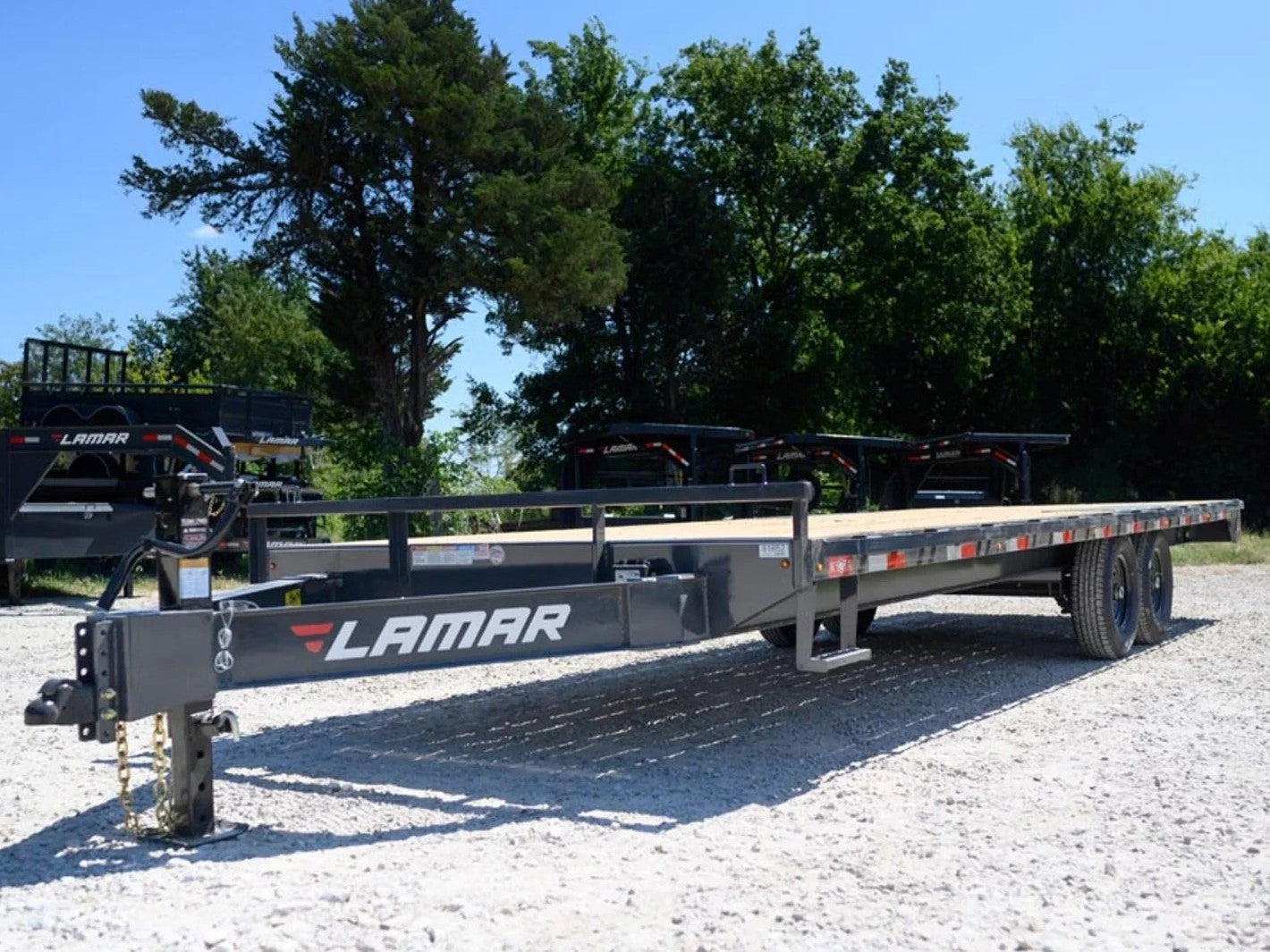

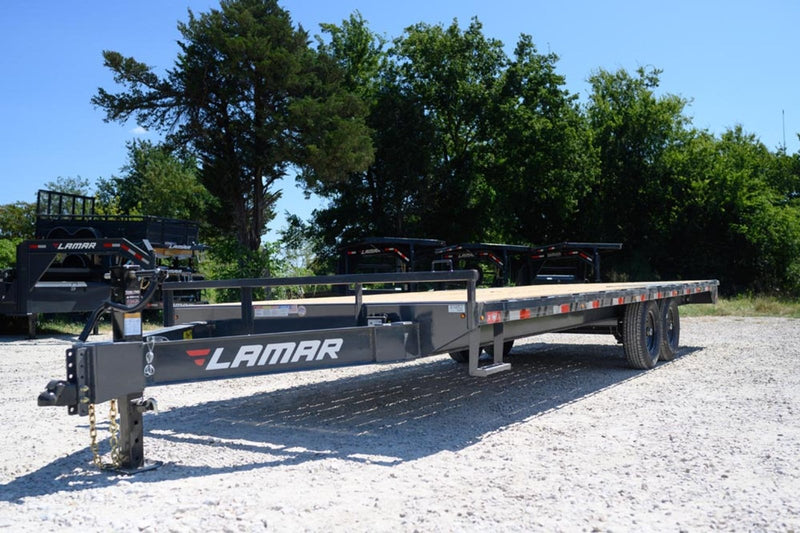

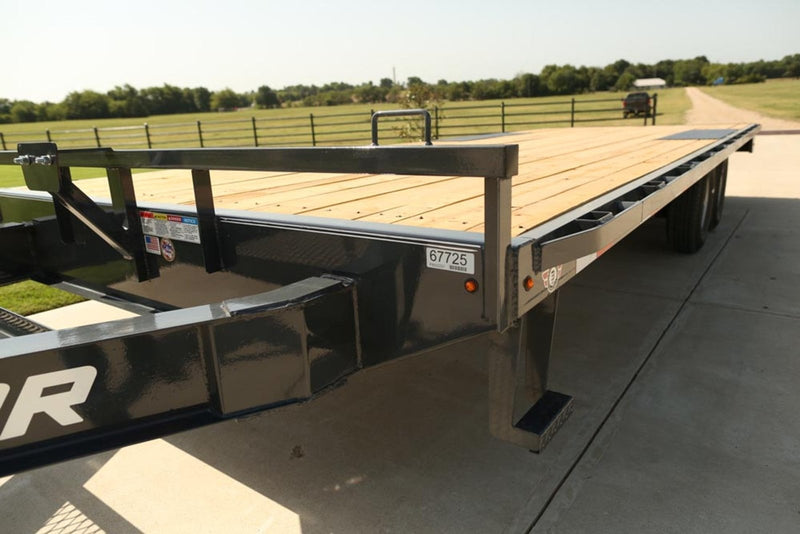

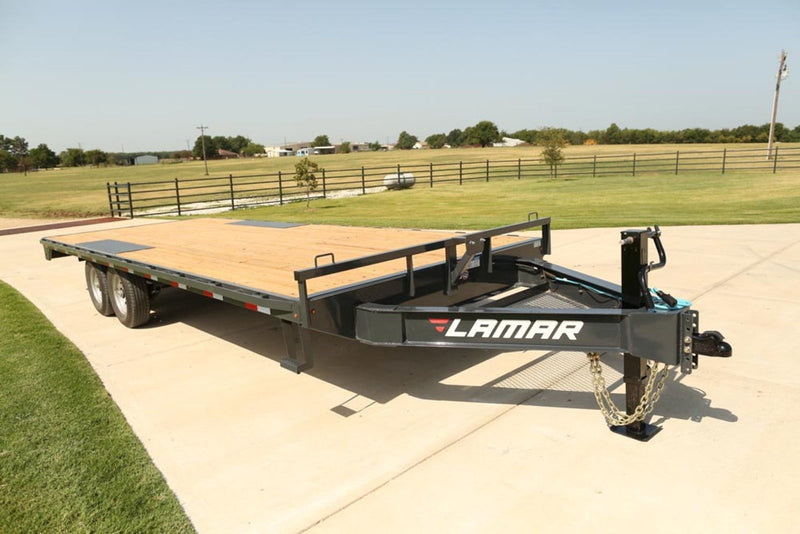

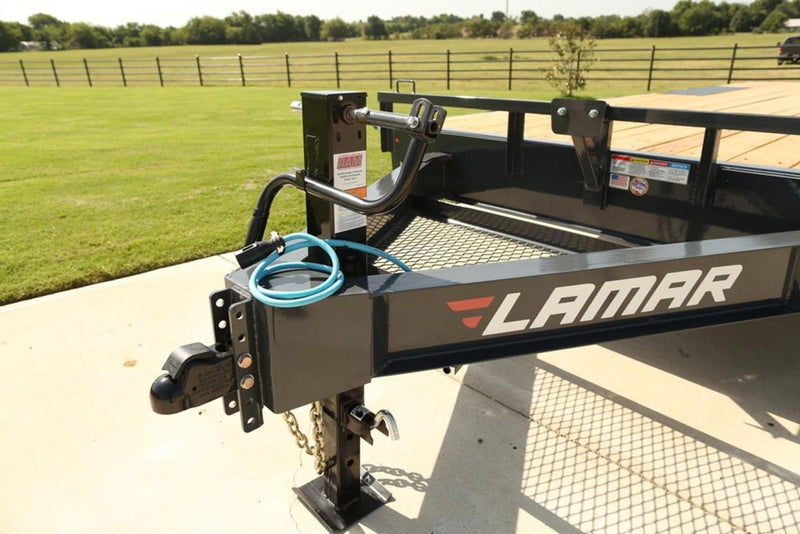

- Lamar F8 Deckover Trailer
- 14K SIZES:
- 102” x 16’, 102” x 18’, 102” x 20’, 102” x 22’, 102” x 24’
- 14K WEIGHT:
- 3,325 lbs (16’), 3,435 lbs (18’), 3,675 lbs (20’), 3,970 lbs (22’), 4,231 lbs (24’)
- 14K PAYLOAD:
- 10,675 lbs (16’), 10,565 lbs (18’), 10,325 lbs (20’), 10,030 lbs (22’), 9,769 lbs (24’)
- AXLES:
- 7K easy lube electric brake spring axles (varies by GVWR)
RUNNING GEAR OPTIONS:
- AXLES:
- 7K electric brake oil bath spring axles
- AXLES:
- 7K easy lube electric brake 22.5° down torsion axles
- AXLES:
- 8K electric brake oil bath spring axles
- AXLES:
- 8K electric brake oil bath 22.5° down torsion axles
FRAME & CONSTRUCTION
FRAME:
- FRAME:
- 8” 10 lb I-beam frame
- CROSSMEMBERS:
- 16” spaced crossmembers
- FLOOR:
- Treated yellow pine floor
- DECK:
- Straight deck
- COLOR:
- Lamar charcoal gray powder coat
FRAME OPTIONS:
- DECK:
- 4’ dove tail
- DECK:
- 5’ dove tail
- DECK ON NECK:
- 8’ deck over neck
- CROSSMEMBERS:
- 12” spaced crossmembers
- FLOOR:
- 11 gauge diamond plate floor
- FLOOR:
- Oak floor
- COLOR:
- None available
RUNNING GEAR & SAFETY
RUNNING GEAR:
- COUPLER:
- 2-5/16” 21K Demco adjustable cast iron coupler
- COUPLER HEIGHT:
- Ground to coupler height 25” - 33”
- JACKS:
- Single 10K drop-leg jack

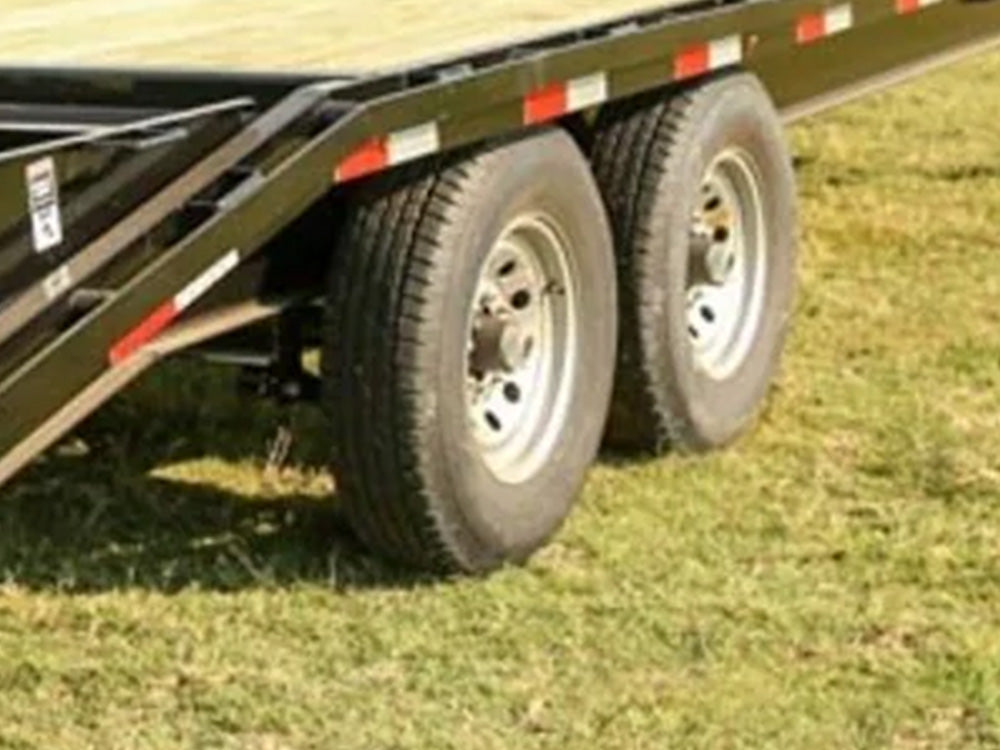

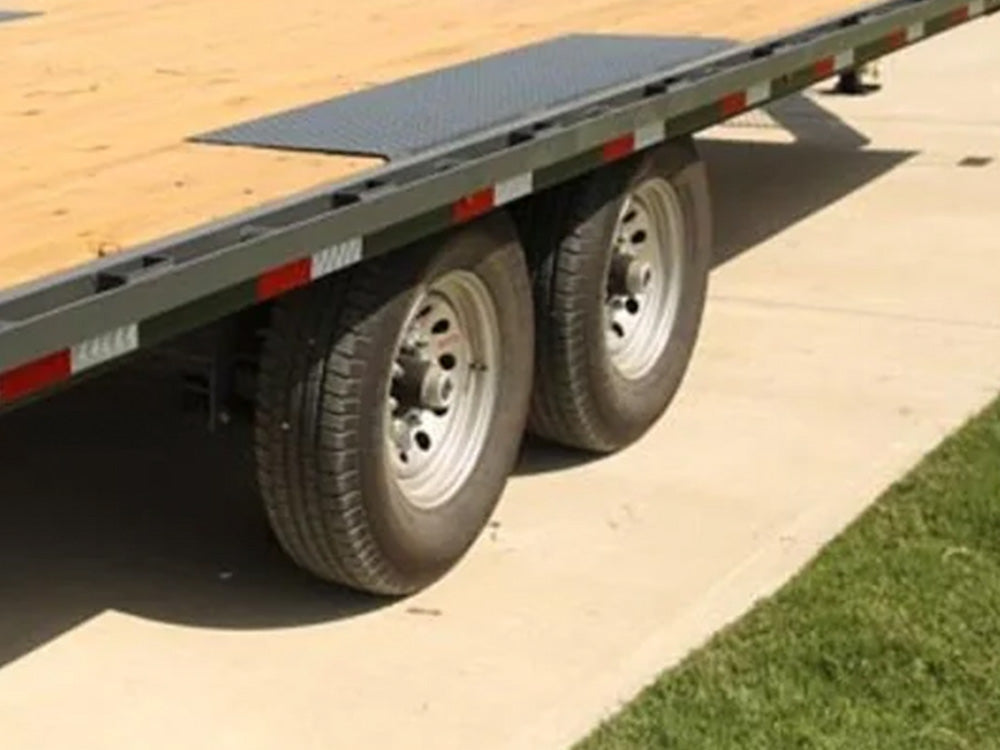

- TIRES:
- 235/80 R16 (E) 10 ply tire (varies by GVWR)
- SPARE:
- Spare tire mount
RUNNING GEAR OPTIONS:
- COUPLER:
- 3” 25K adjustable pintle eye coupler
- COUPLER:
- 2-5/16” 25K gooseneck coupler
- COUPLER:
- 2-5/16” 30K gooseneck adjustable topwind square coupler
- NECK & COUPLER:
- 6” raised neck & coupler (ideal for lifted trucks)
- NECK & COUPLER:
- 12” raised neck & coupler (ideal for lifted trucks)
- JACKS:
- Dual 10K drop-leg jacks
- JACKS:
- Single 10K 2-speed jack
- JACKS:
- Dual 10K 2-speed jacks
- JACKS:
- Dual 10K hydraulic jacks
- TIRES:
- 215/75 R17.5 (H) 16 ply SS tire black wheel
- TIRES:
- 235/85 R16 (G) 14 ply tire with black wheel
- SPARE:
- Spare tire
SAFETY:
- LIGHTING:
- LED lights
- WIRING:
- Weather resistant harness (-65°F)
ELECTRICAL OPTIONS:
- SOLAR CHARGER:
- Available
CARGO MANAGEMENT
CARGO:
- TOOLBOX:
- Expanded metal tool tray
- RUB RAIL:
- Included
- STAKE POCKETS:
- Standard stake pockets
LOADING:
- LOADING ANGLE:
- Straight deck with 96” slide-in ramps - 20°

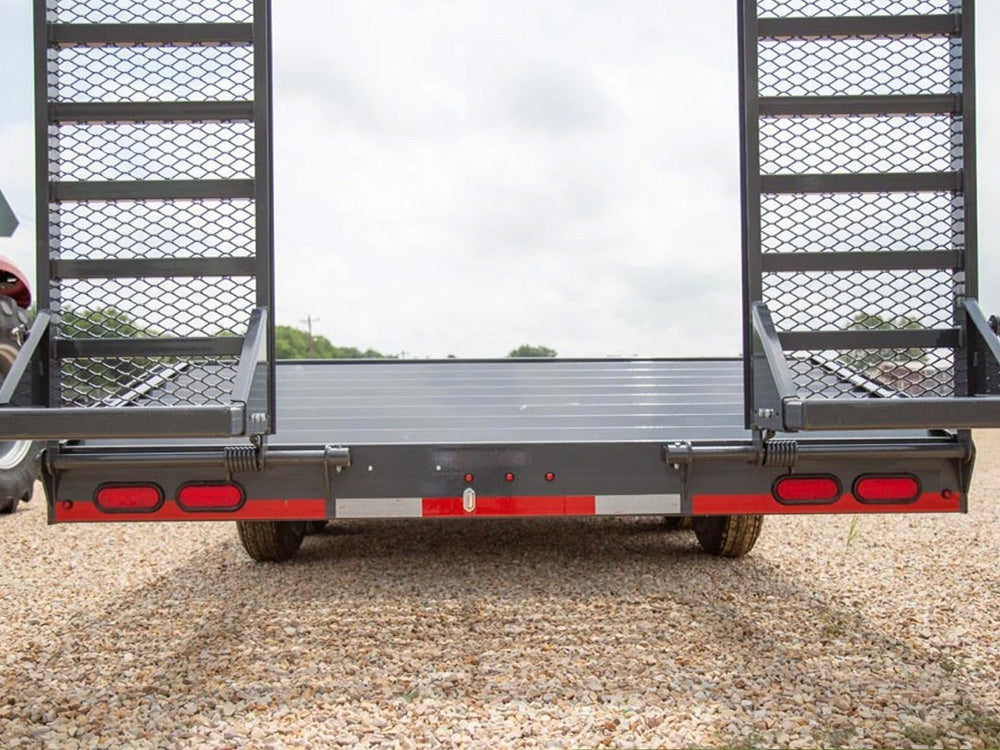

- RAMPS:
- Pair of slide-in ramps
CARGO MANAGEMENT OPTIONS:
- TOOLBOX:
- Front toolbox
- TOOLBOX:
- 4’ side mount toolbox
- GATE:
- 5’ spring assisted heavy duty gate with ramp legs
- D-RINGS:
- Weld-on D-rings
- D-RINGS:
- Flush mount D-rings
- D-RINGS:
- Flush mount swivel D-rings
- WINCHES:
- Weld-on strap winches
- WINCHES:
- Sliding strap track & winches
- CHAIN RACK:
- Lockable chain rack
- WINCH PLATE:
- Available
- WINCH:
- 12,500lb Warrior winch
- RECEIVER HITCH:
- Receiver hitch & plug
- LOADING ANGLE:
- 4’ dove with 24” stand up ramps - 18°
- LOADING ANGLE:
- 4’ dove with Rhino ramps - 19°
- LOADING ANGLE:
- 5’ dove with Rhino ramps - 16°
- RAMPS:
- Pair of flip-over ramps
- RAMPS:
- Pair of Rhino ramps
- RAMPS:
- Pair of 24” wide heavy duty stand-up ramps
