Product Features
Scissor Lift Hoist with 5" or 6" Bore
Equipped with a heavy-duty scissor lift hoist, available in 5" or 6" bore cylinder sizes. This provides powerful, reliable lifting for the trailer's 14,000 to 16,000 lb GVWR capacity.
28-Inch Low Profile Load Height
Features a 28-inch load height for easier loading. The low profile reduces the effort required to load material by hand or machine, improving job-site efficiency.

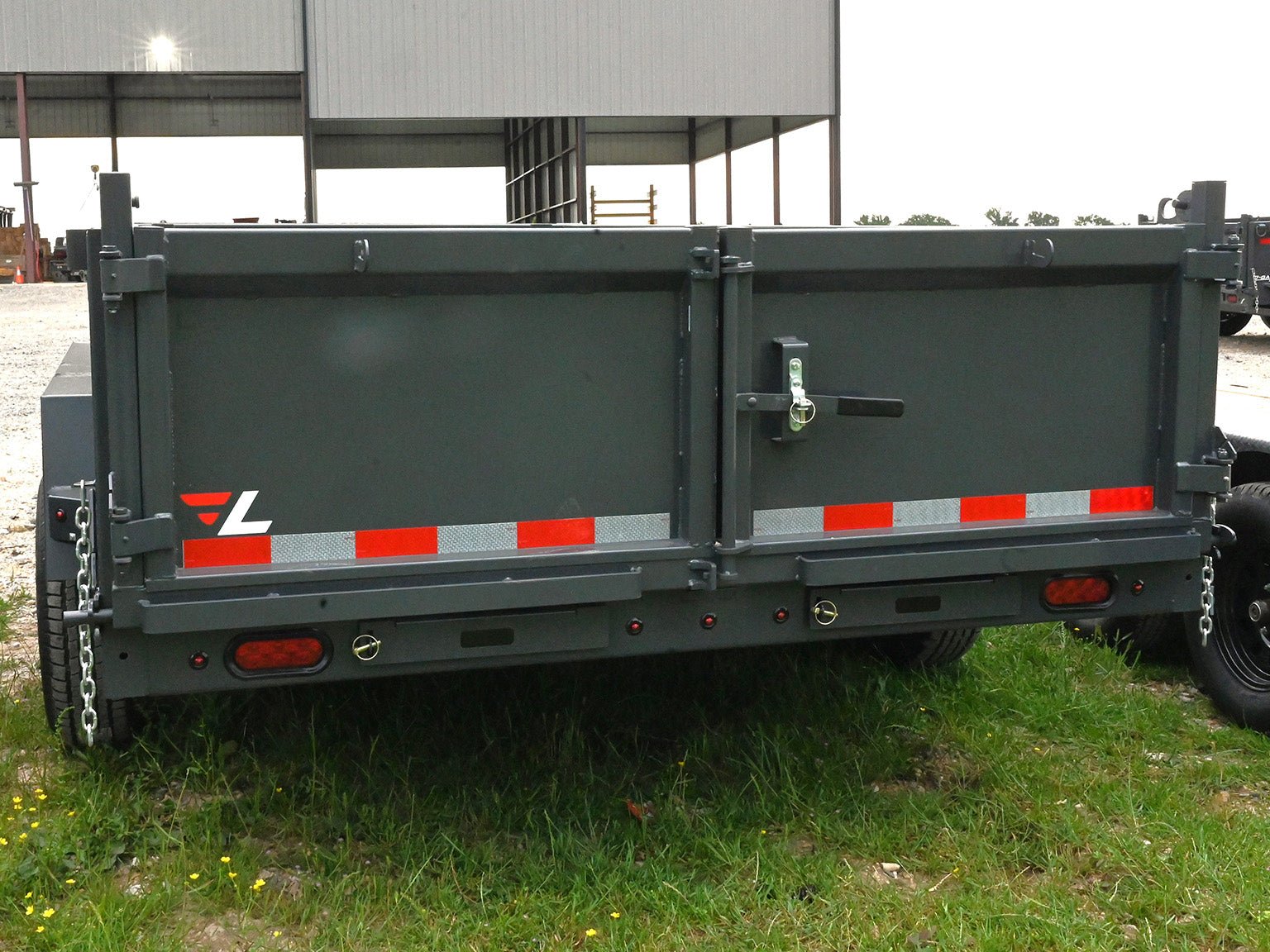

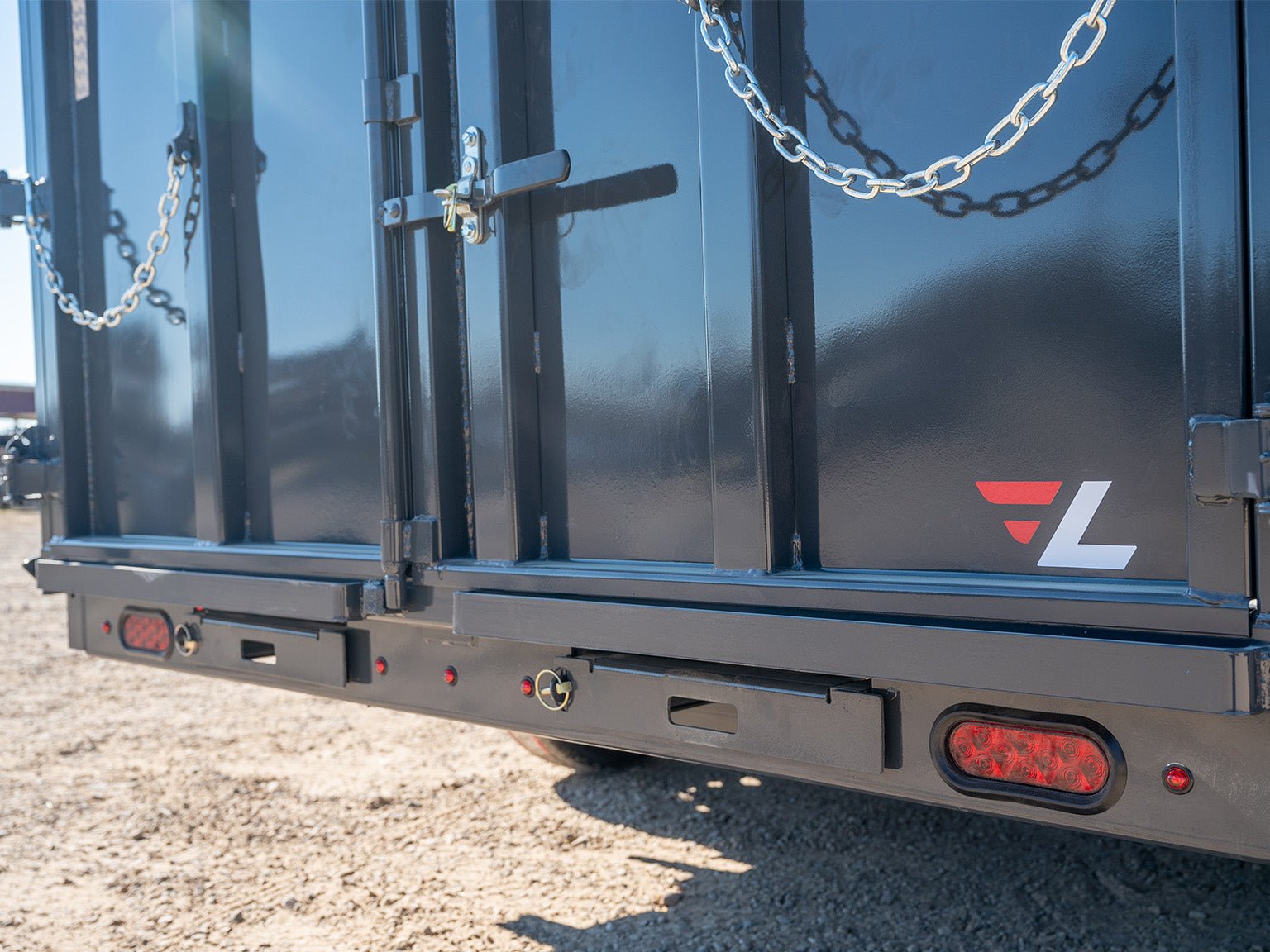

2-Way Spreader Gate
Equipped with a 2-way spreader gate. This allows for standard rear dumping or opening the gate to the sides for controlled spreading of materials like gravel or topsoil.
7k or 8k Easy Lube Axle Options
Configure with tandem 7k or 8k Easy Lube axles. The 8k axles provide increased capacity to support the 16,000 lb GVWR, and both options feature a convenient lubrication system for easier maintenance.
Large Front Lockable Toolbox
Includes a large, lockable toolbox integrated into the front of the trailer. This provides ample, secure storage for the battery, controller, and a variety of tools or equipment.

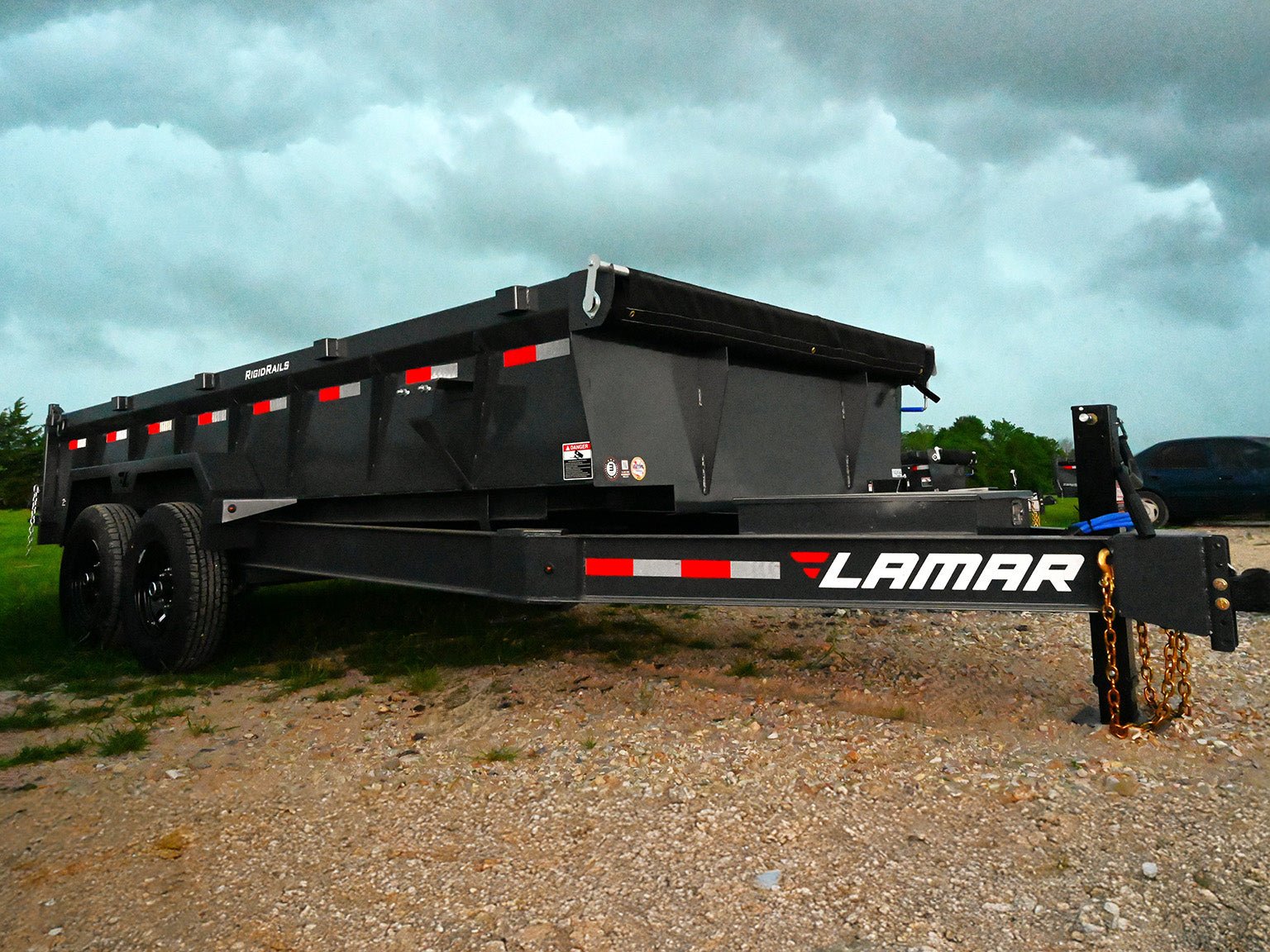

83-Inch Wide Dump Bed
Features an 83-inch wide dump bed, providing a high-volume capacity for material hauling. The width accommodates larger, bulkier loads common in contractor and landscaping work.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 28"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 14k - 16k
RUNNING GEAR

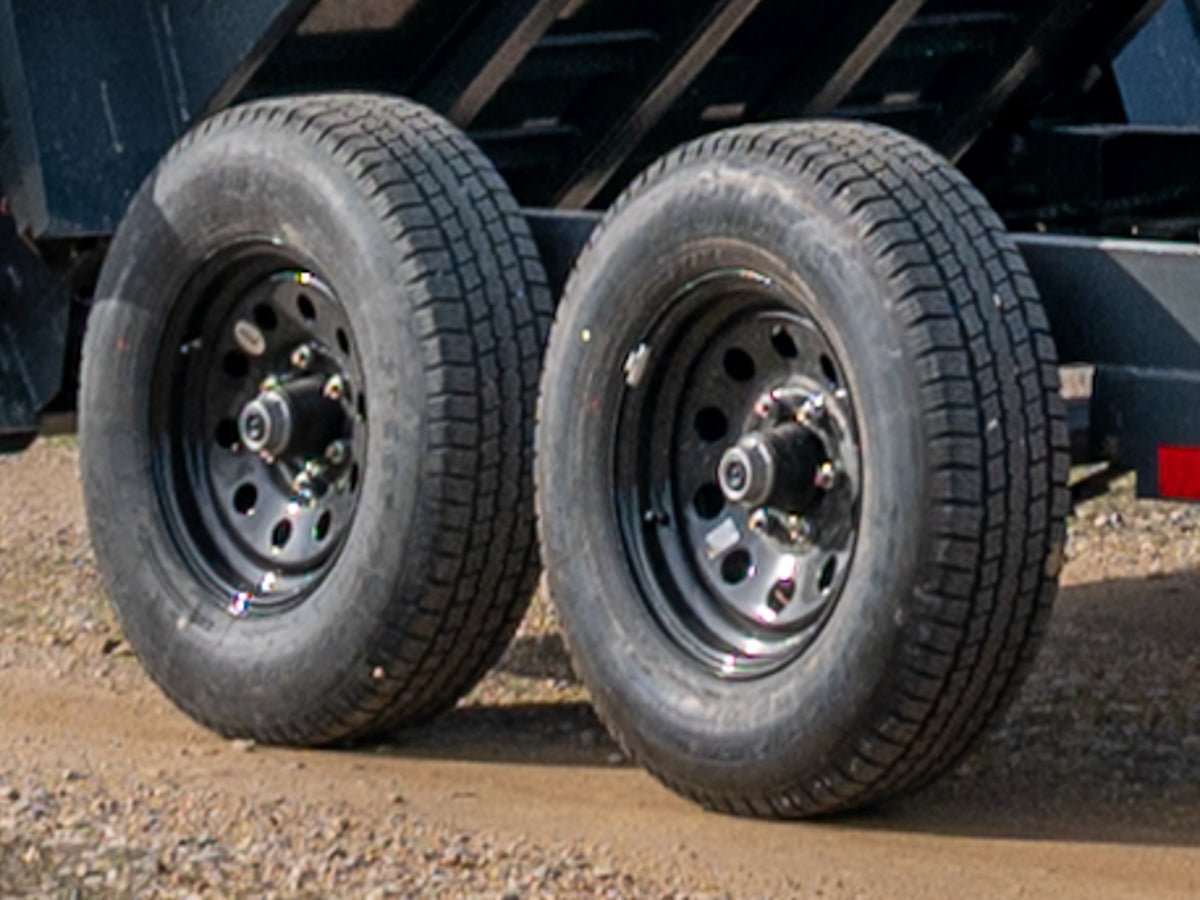

- TIRES:
- ST235/80R16 Radial
- TIRE PLY:
- 10 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Easy Lube Axles
3 - 7k Easy Lube Axles
2 - 8k Easy Lube Axles
- AXLE COUNT:
- 2 or 3
- BRAKES:
- Electric
- SUSPENSION:
- Spring
BUMPER PULL
- PULL TYPE:
- Bumper Pull
- TYPE:
- 8" I-Beam
- JACK:
- Single 10k Drop-Leg Jack
- COUPLER:
- Adjustable 2 5/16" (21,000 lbs)
- TOOLBOX:
- Large Front Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam (13lb/ft)
- BED FRAME:
- 8" I-Beam
- CROSSMEMBERS:
- 12" Spaced Crossmembers
- FLOORING:

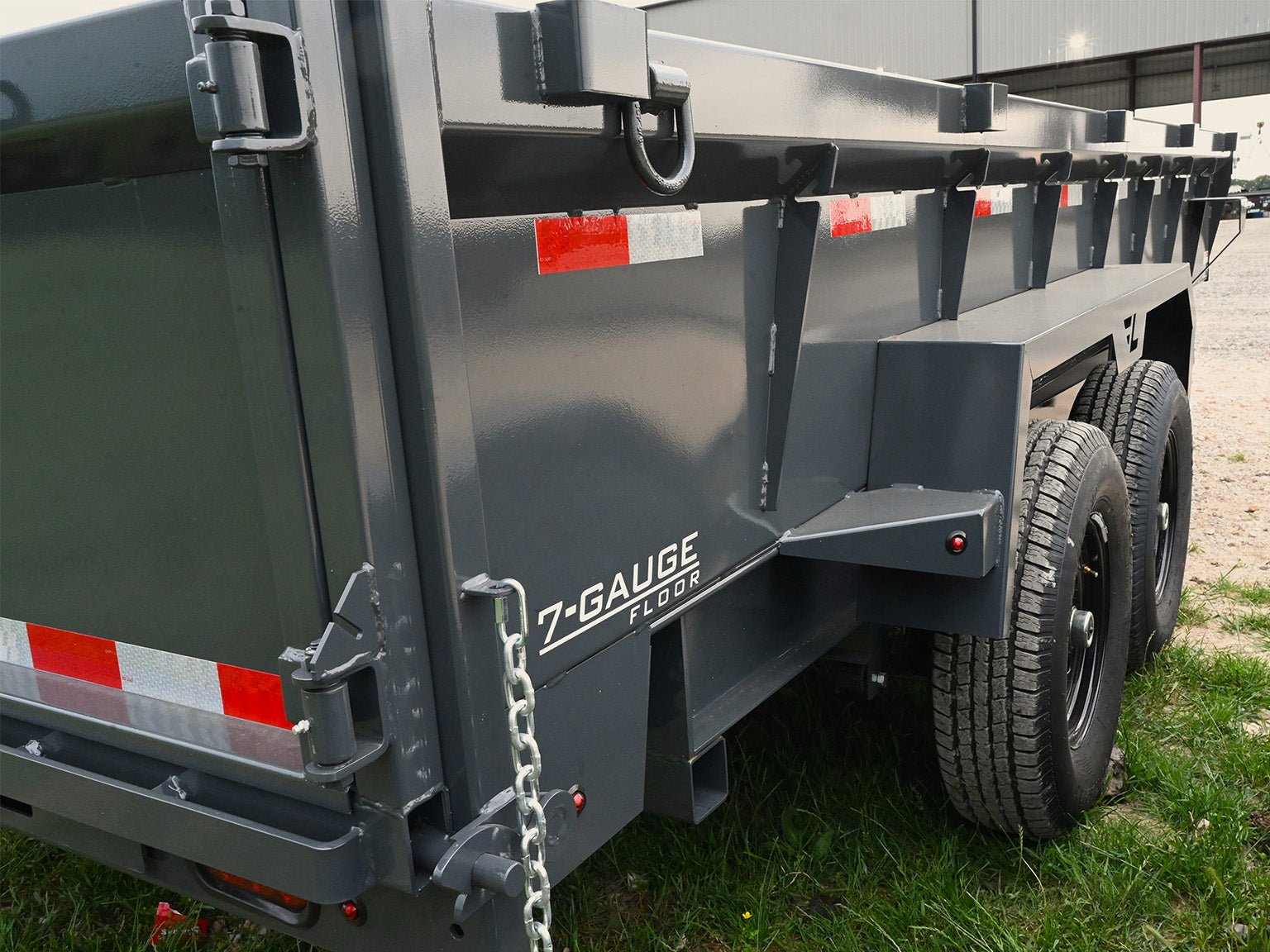

- 7ga. Steel Bed
- FENDERS:
- Diamond Plate Fenders
- STAKE POCKETS:
- Standard Stake Pockets
- D-RINGS:
- 4 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- 12' CYLINDER:
- Scissor Lift - 5" Bore
- 14', 16'+ CYLINDER:
- Scissor Lift - 6" Bore
- DUMP ANGLE:
- 45 Degrees
CARGO & BODY
- GATE:
- 2 Way Spreader Gate

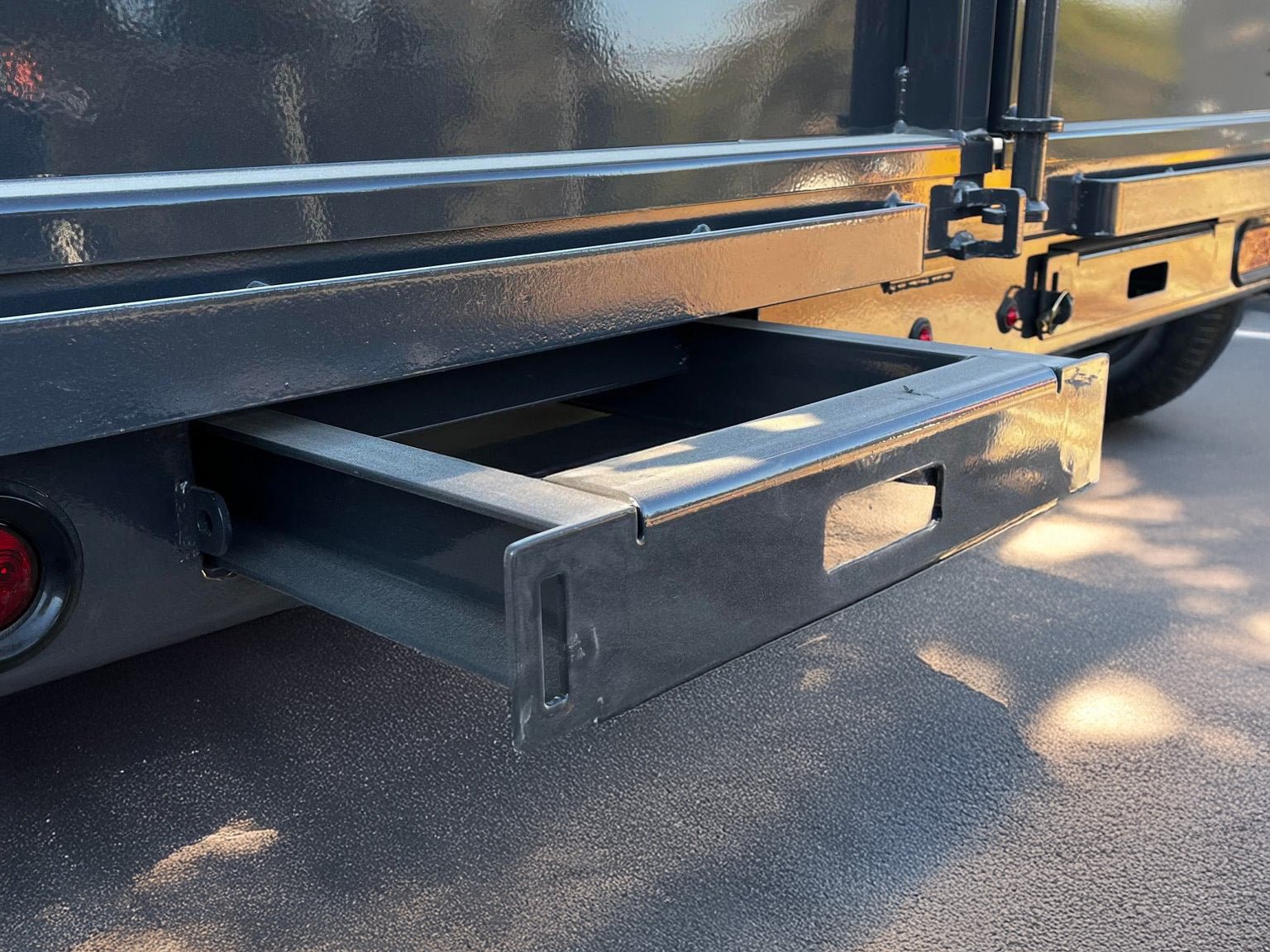

- RAMPS:
- Slide In Ramps

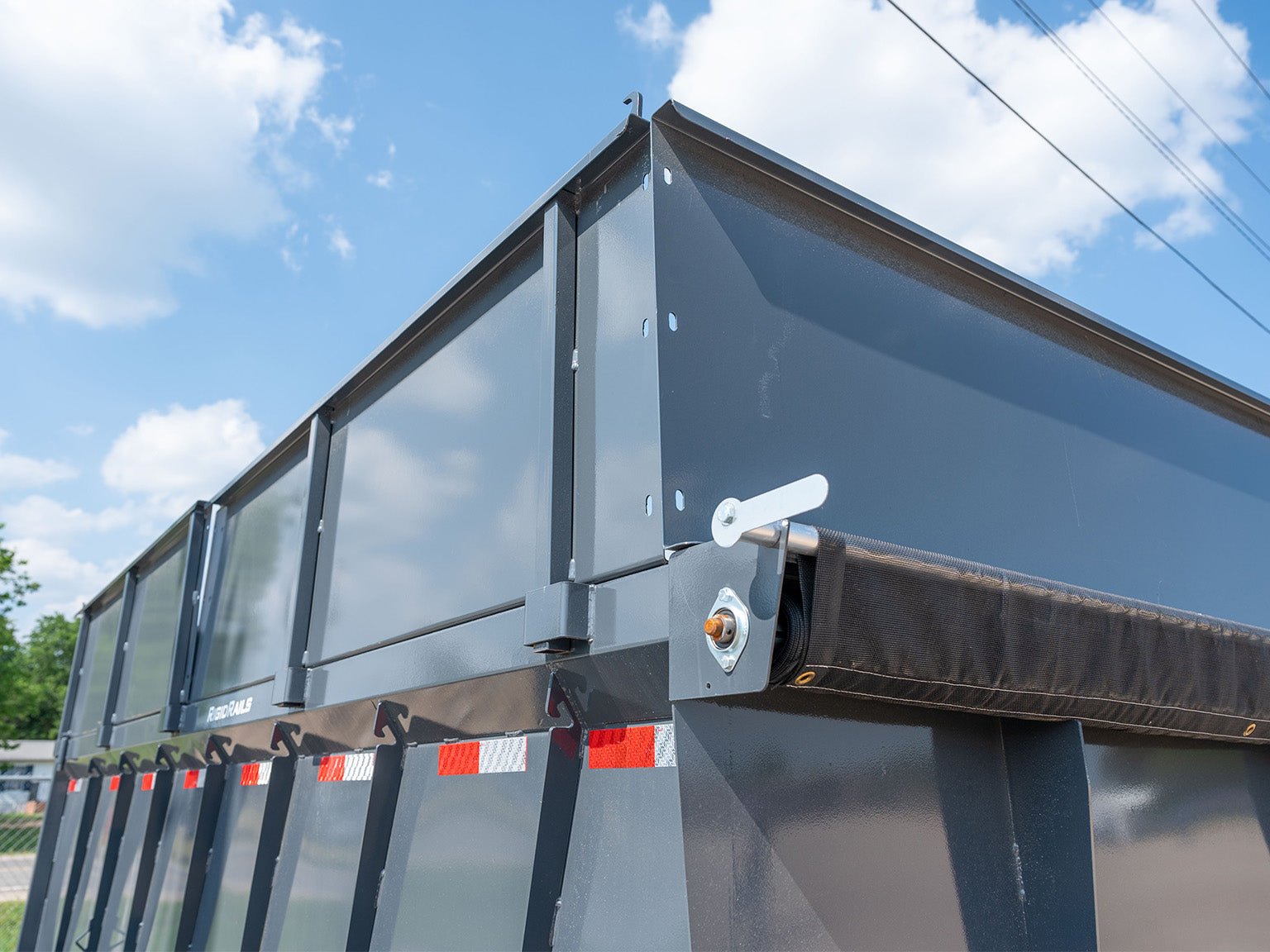

- TARP:
- Crank Style Roll-Up
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 5 Amp Trickle Charger
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Sandblasted
- COLORS:
- Lamar Charcoal Gray
WARRANTY
- TRAILER WARRANTY:
- 3 Year Structural / 1 Year Component
