Product Features

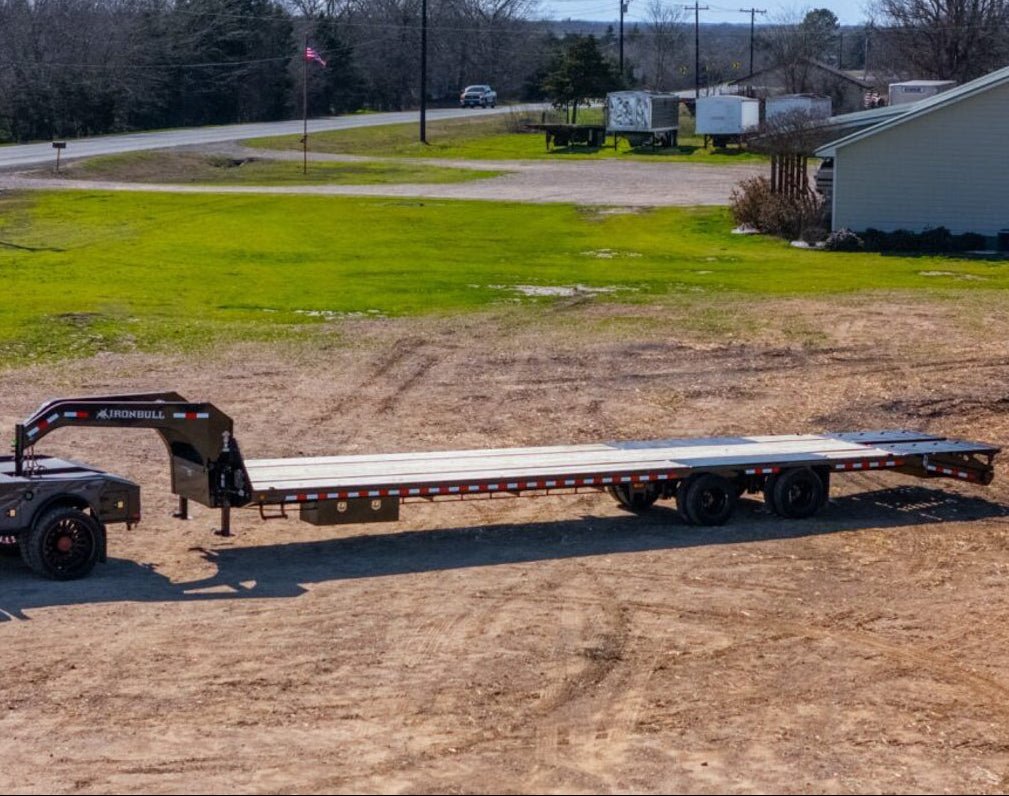

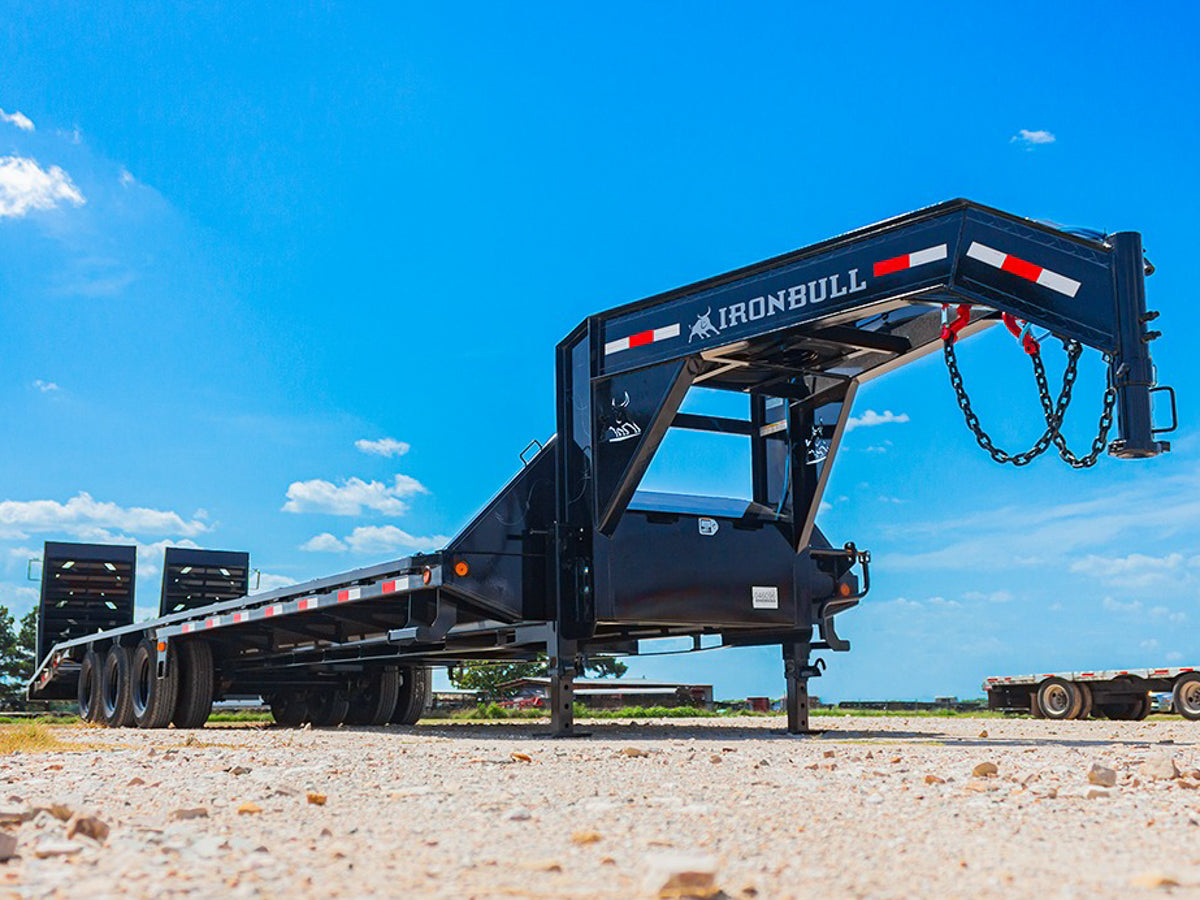

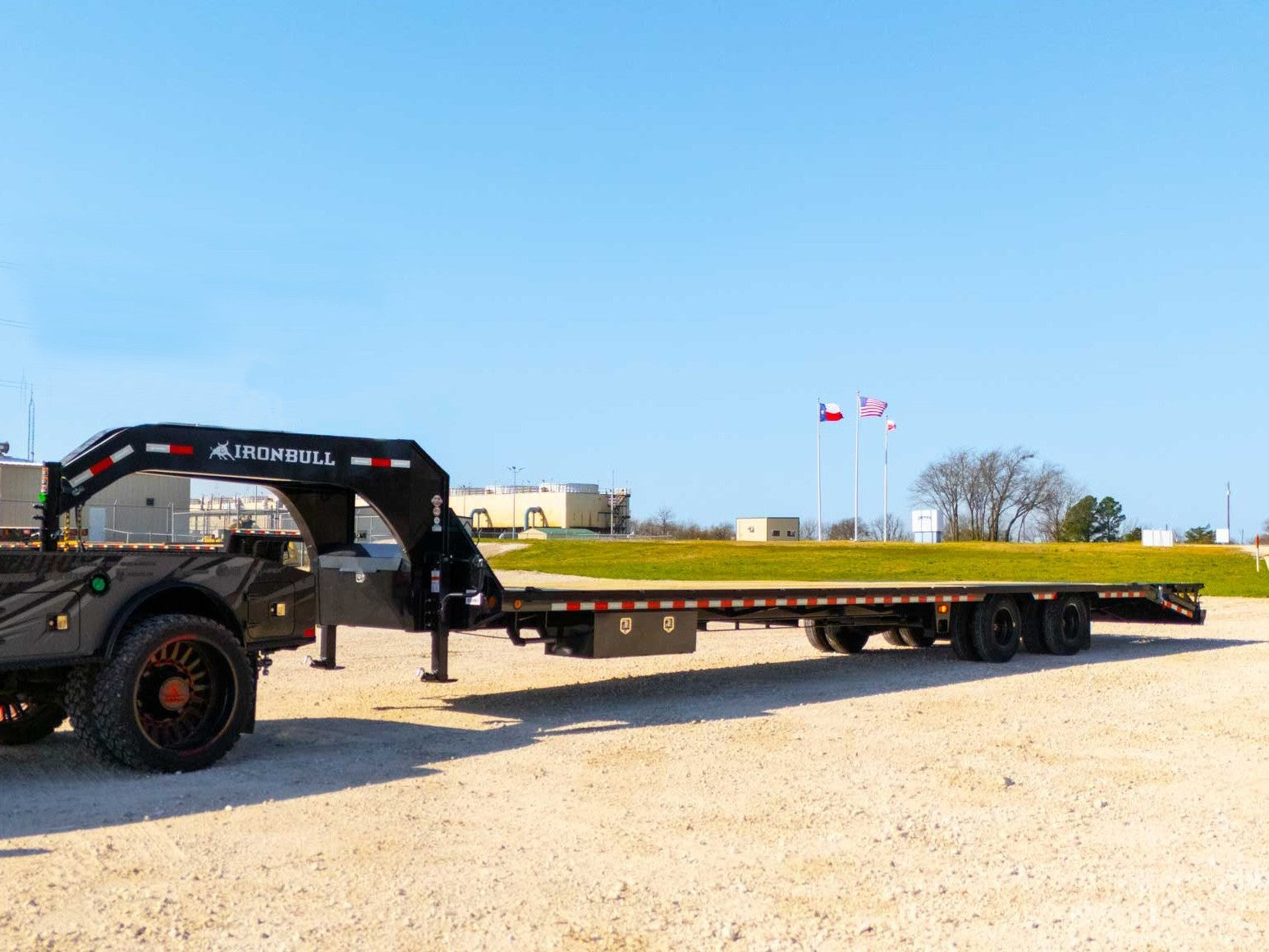

Low-Profile 12" Pierced I-Beam Frame
Built with a low-profile 12" pierced I-beam main frame. This engineering lowers the overall deck height by 3", providing a decreased center of gravity for better towing stability and a lower, easier loading angle for equipment.

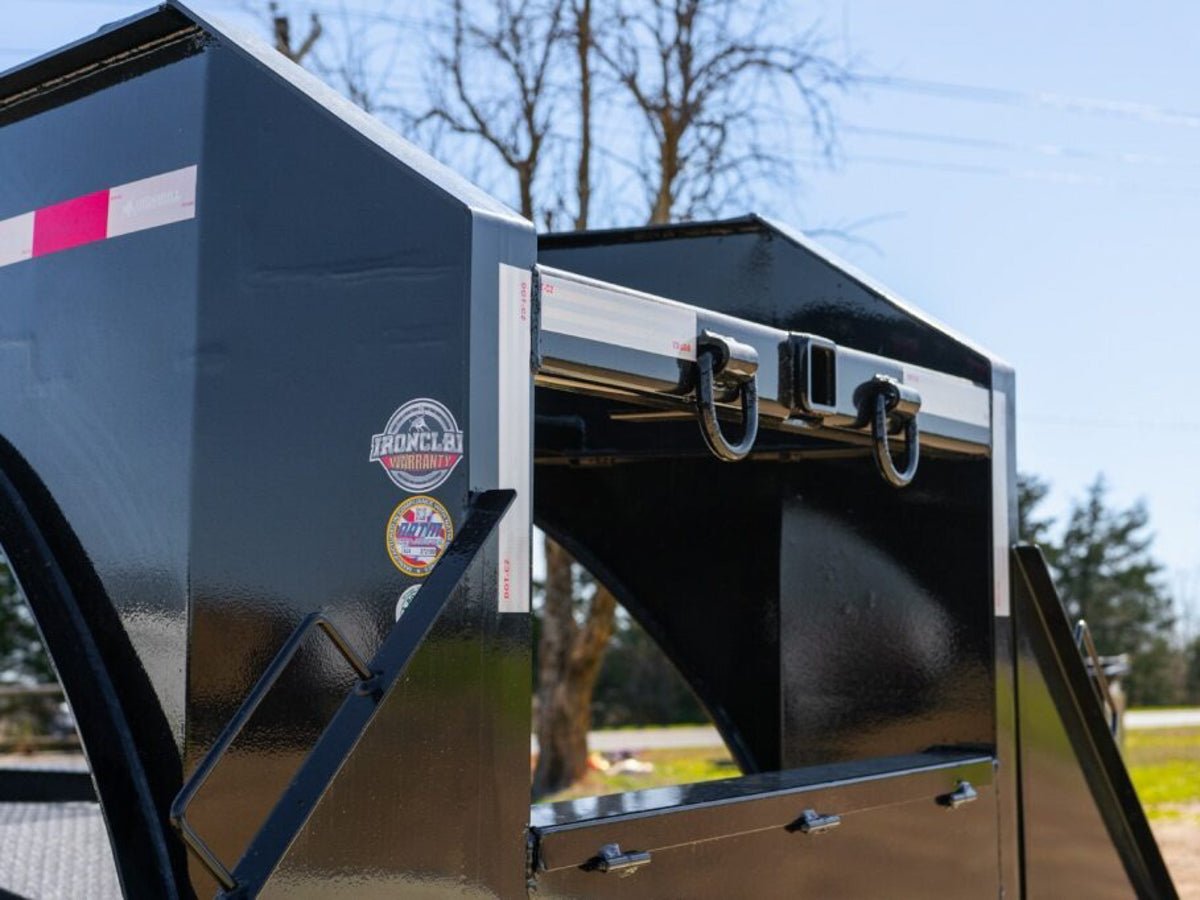

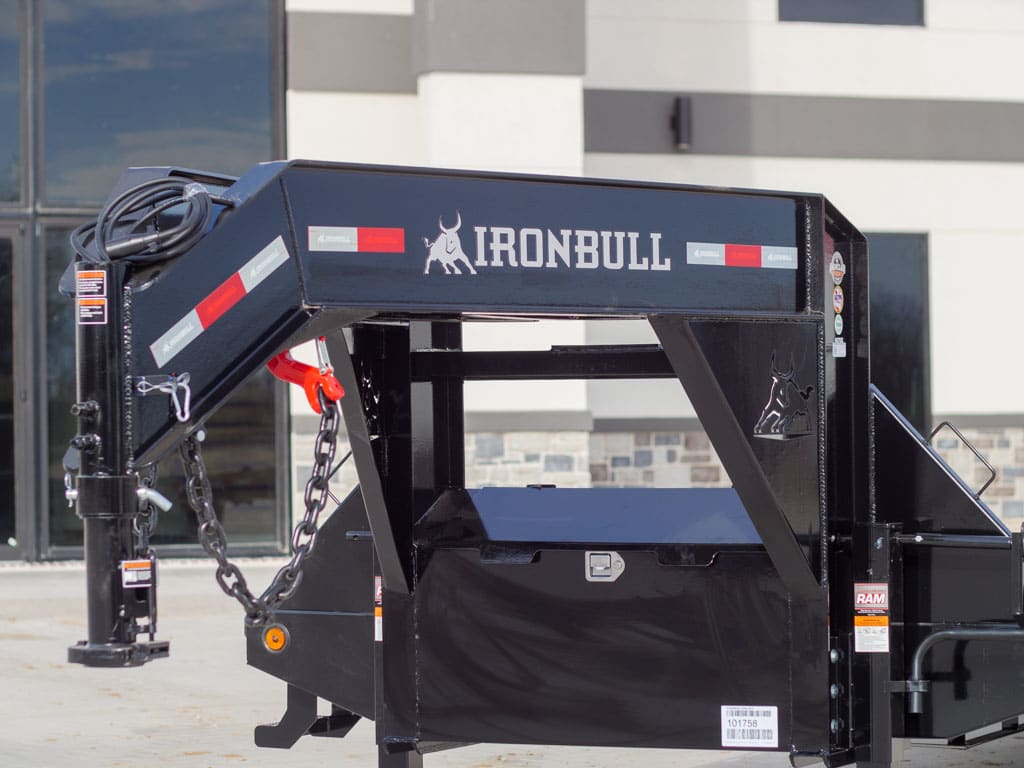

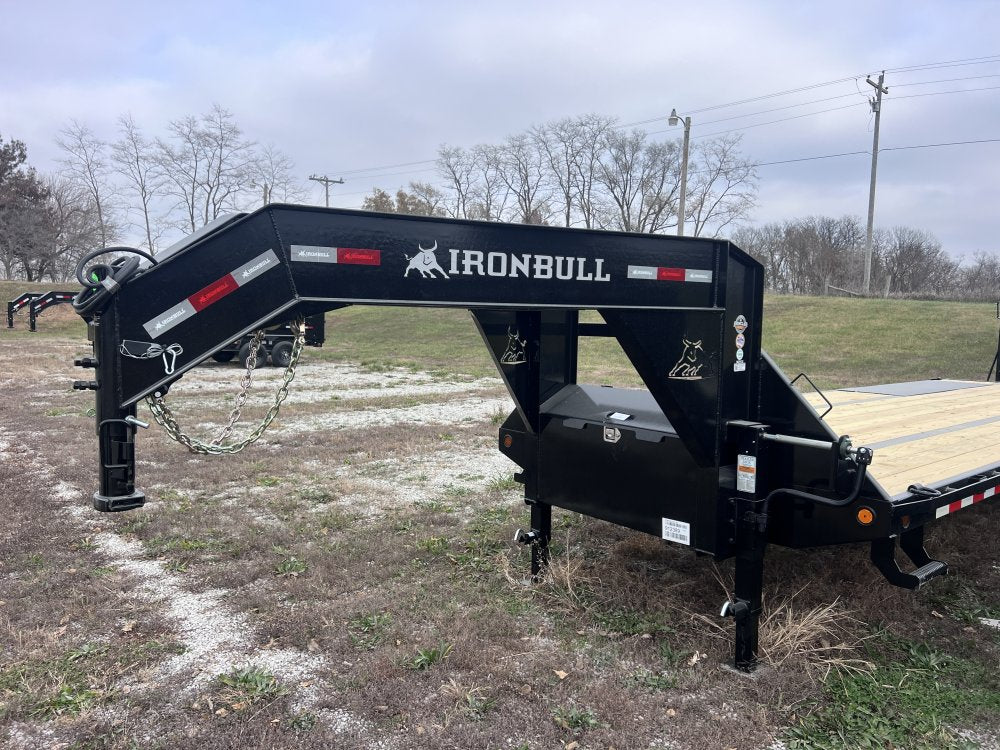

Massive 25" Full-Neck Width Toolbox
The gooseneck is equipped with a massive 25" full-neck width locking toolbox. This provides an exceptional amount of secure, weatherproof storage for all your tools, straps, and equipment, keeping them organized and protected.
Heavy-Duty SCH40 Construction
Built with SCH40 materials, an HD 12" I-Beam (19 lbs/ft) frame & neck, and 3" channel crossmembers on 16" centers. The structure is fortified with a standard torque tube and underframe bridge for maximum rigidity and strength.

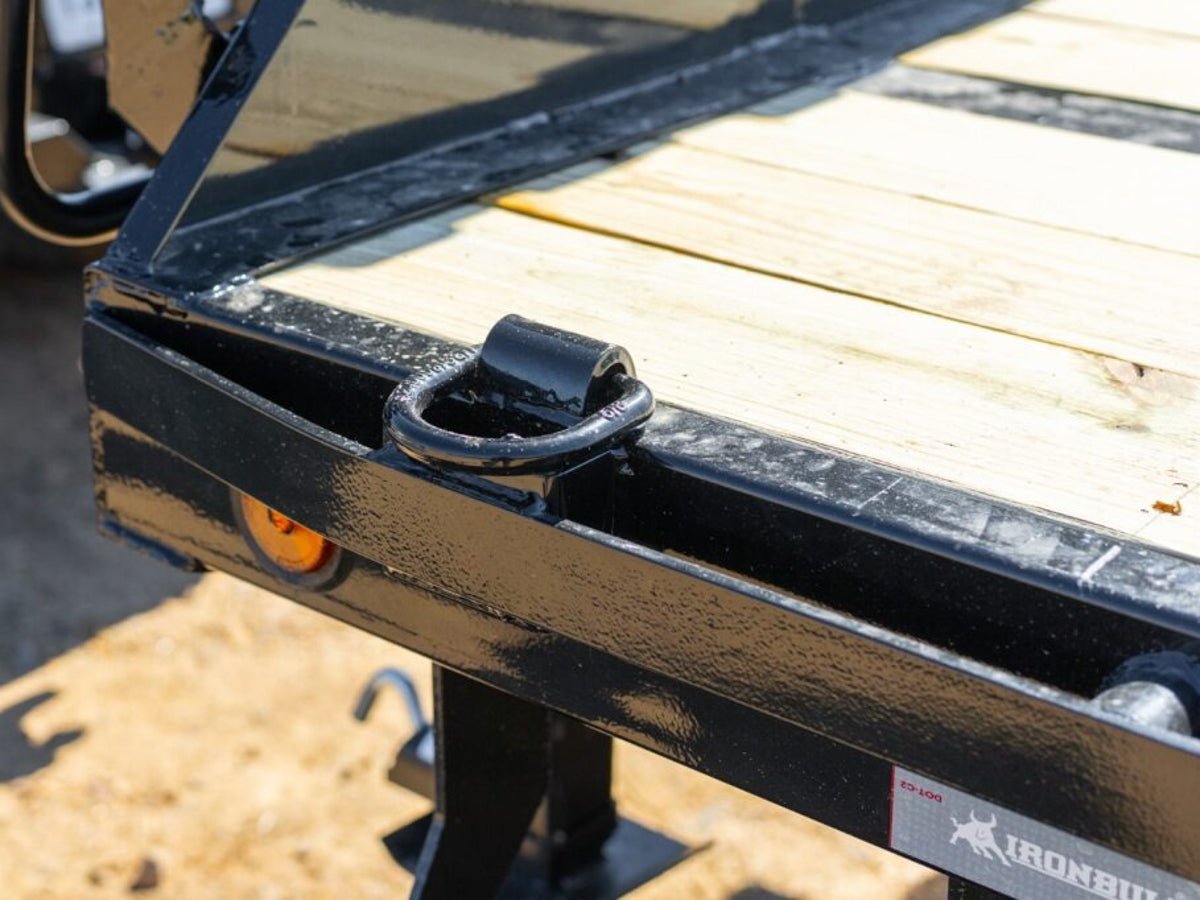

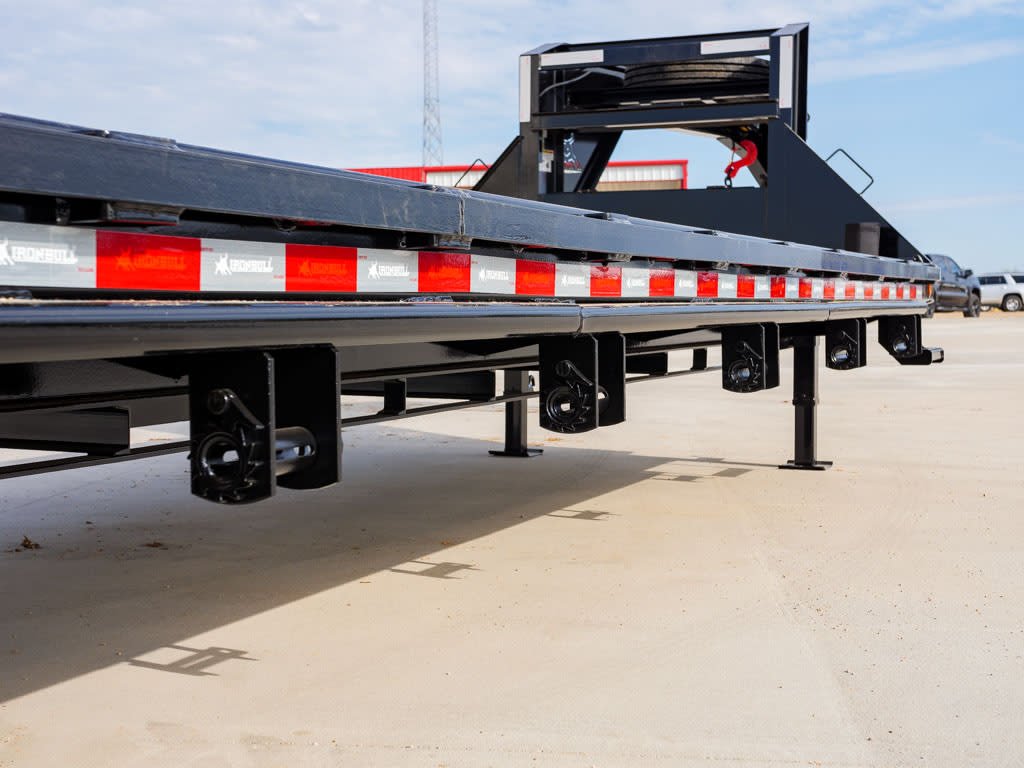

Comprehensive Cargo Management System
Comes standard with rub rails, stake pockets, and pipe spools. Customize further with multiple options like weld-on ratchets, weld-on adjustable track systems, and side-mounted toolboxes to secure any load.

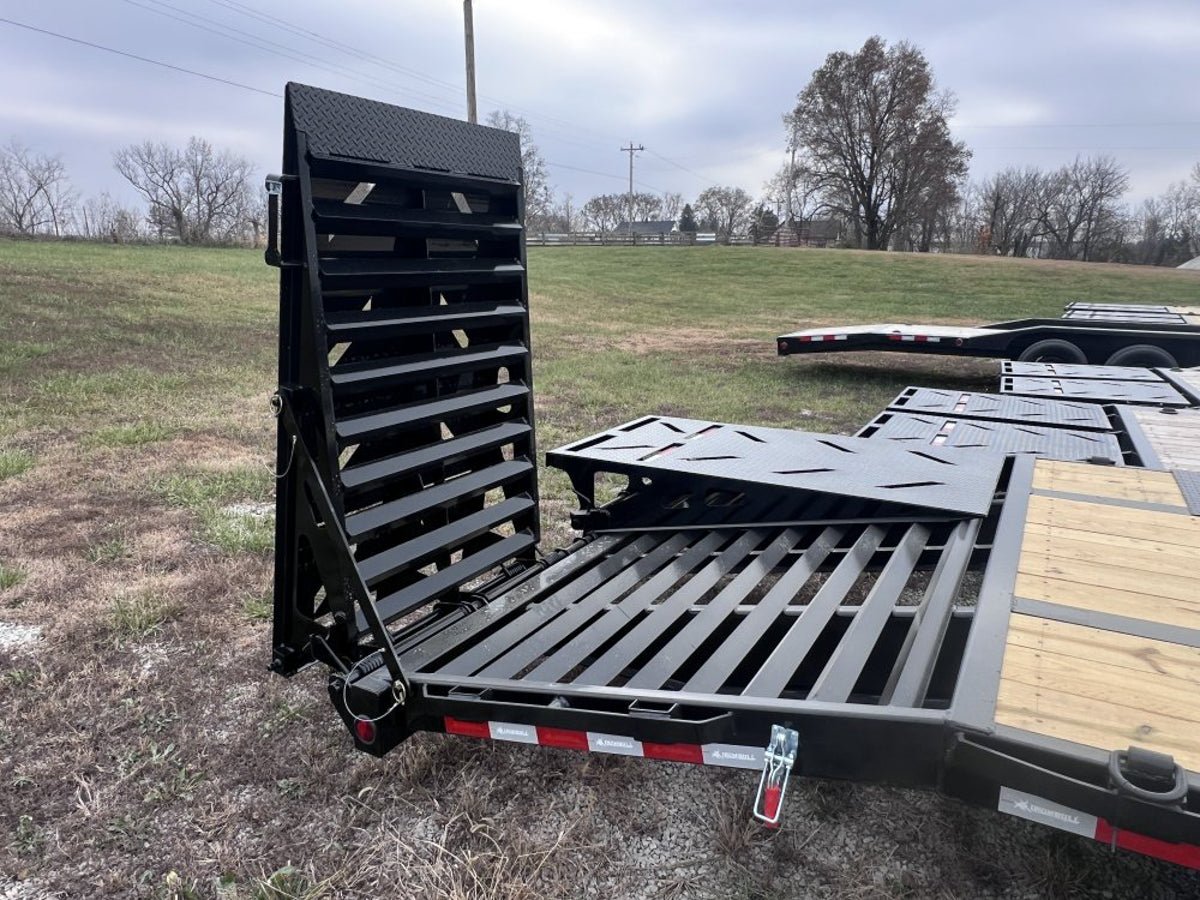

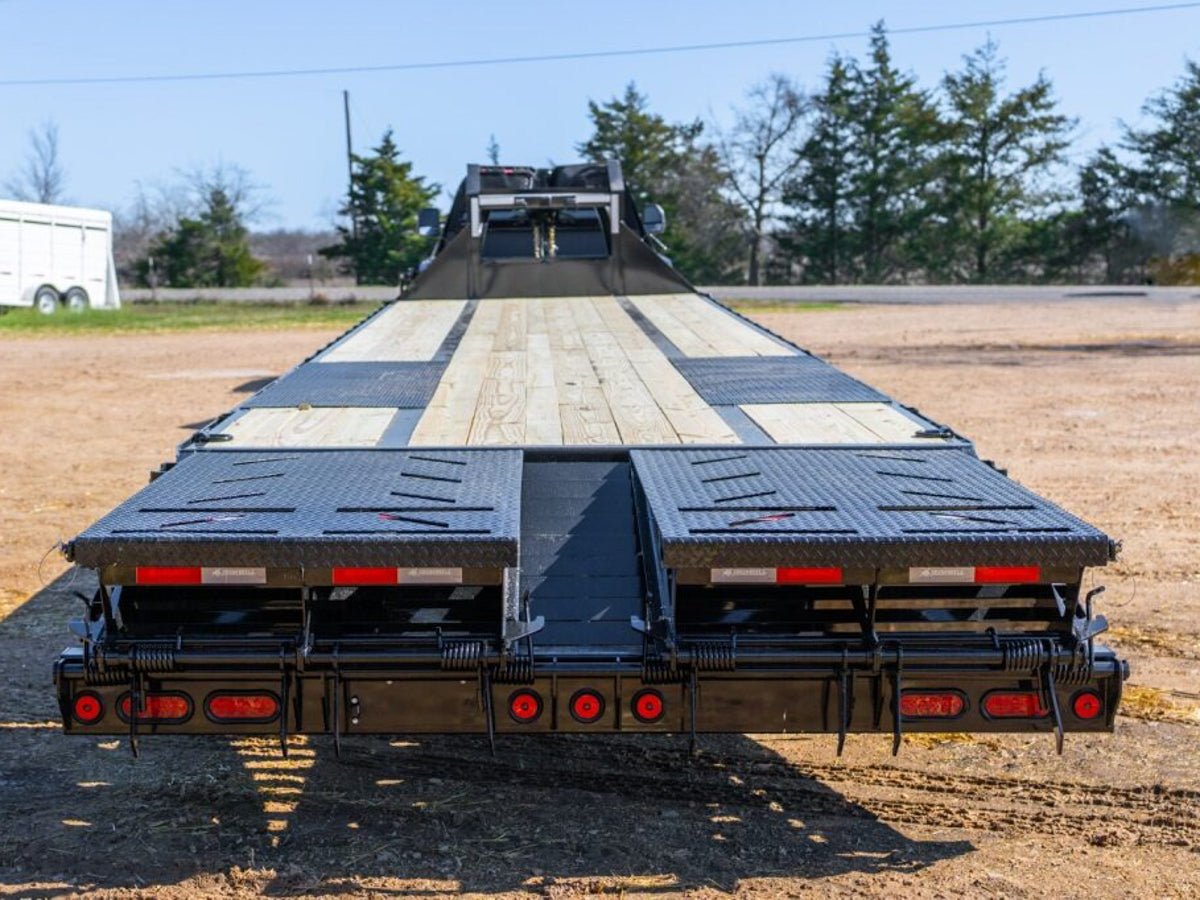

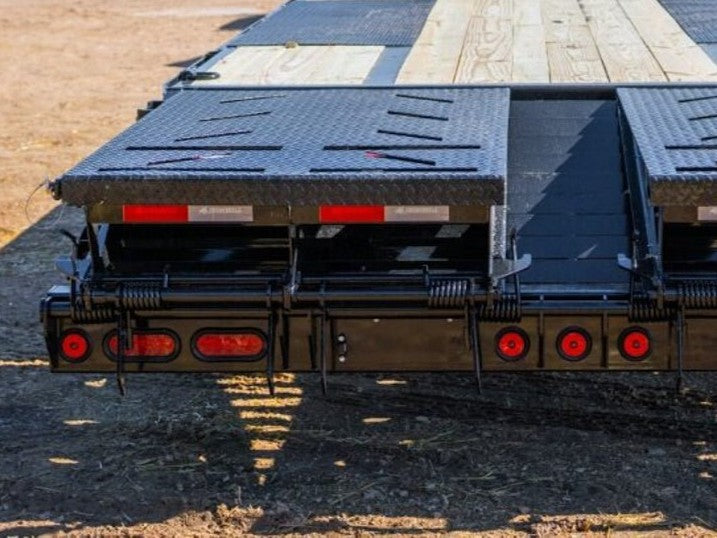

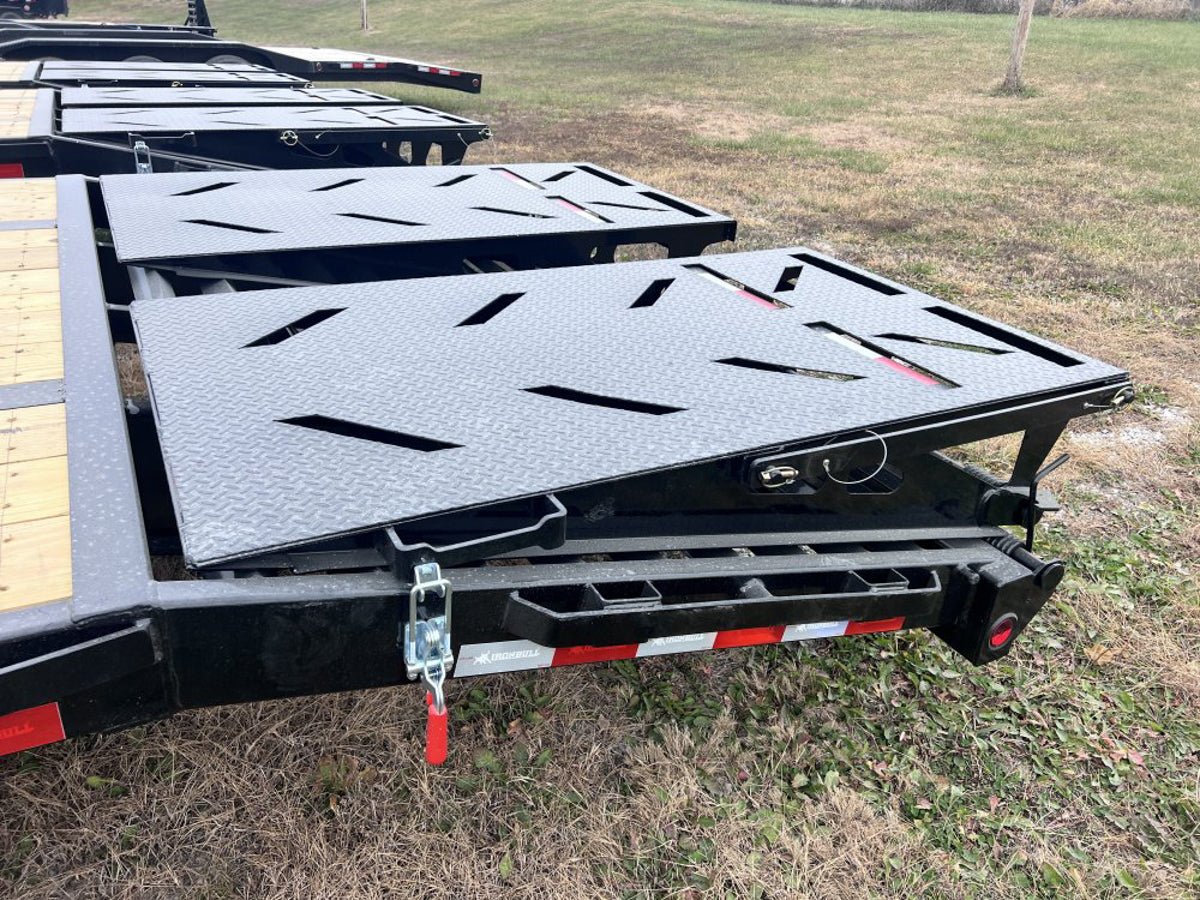

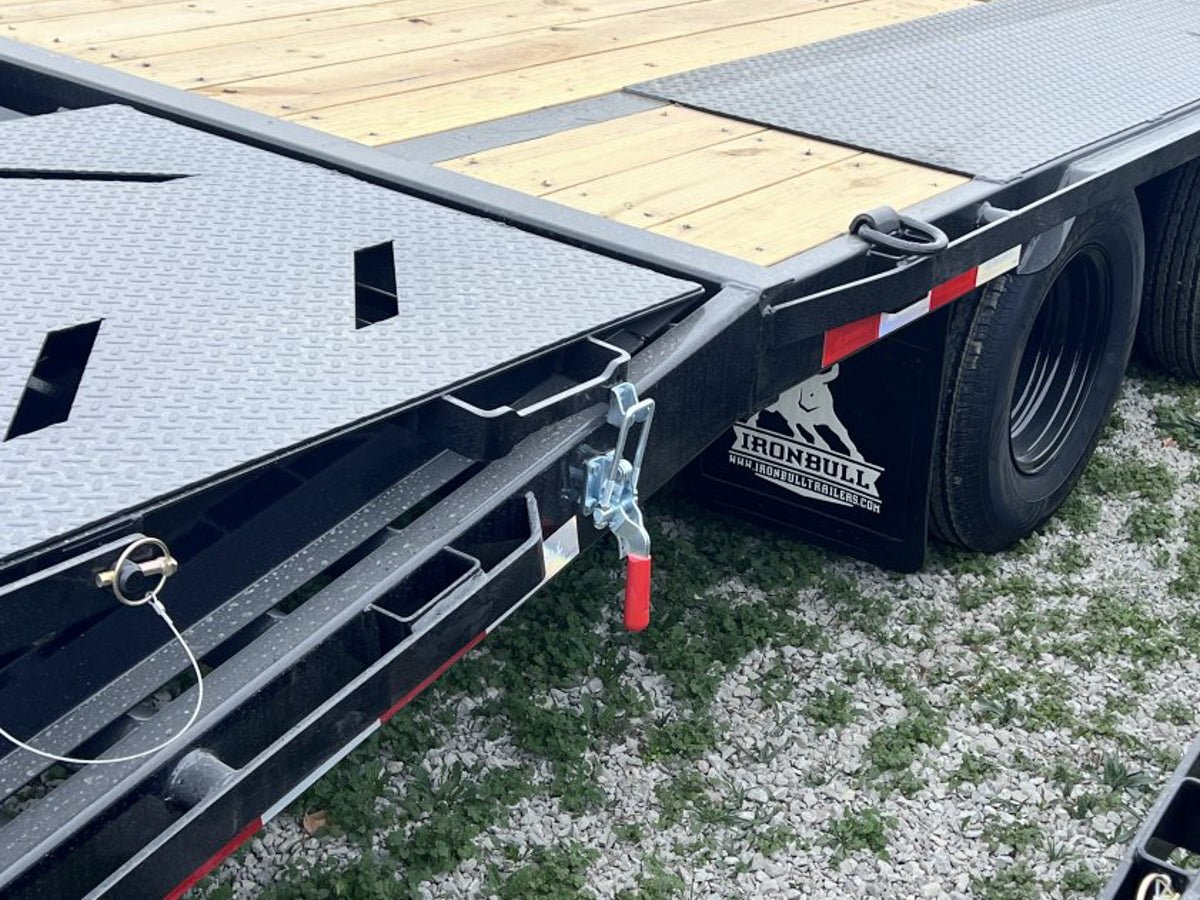

Multiple Heavy-Duty Ramp Options
Configure with standard 8-foot slide-in ramps for easy storage. Upgrade to heavy-duty Mega Ramps or a set of 2 or 3 flip-over ramps for specialized loading needs and maximum versatility.
Lifetime LED Lighting Warranty
All IronBull trailers come with TecNiq branded LED lights, providing superior brightness and reliability. This premium lighting is backed by an industry-leading Lifetime LED warranty for worry-free operation.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 40'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34" (Low-Profile Design)
- DOETAIL:
- 5' Dovetail
WEIGHT RATINGS
- GVWR:
- 23,900 lbs
- AXLE OPTIONS:
- 10k, 12k, 15k

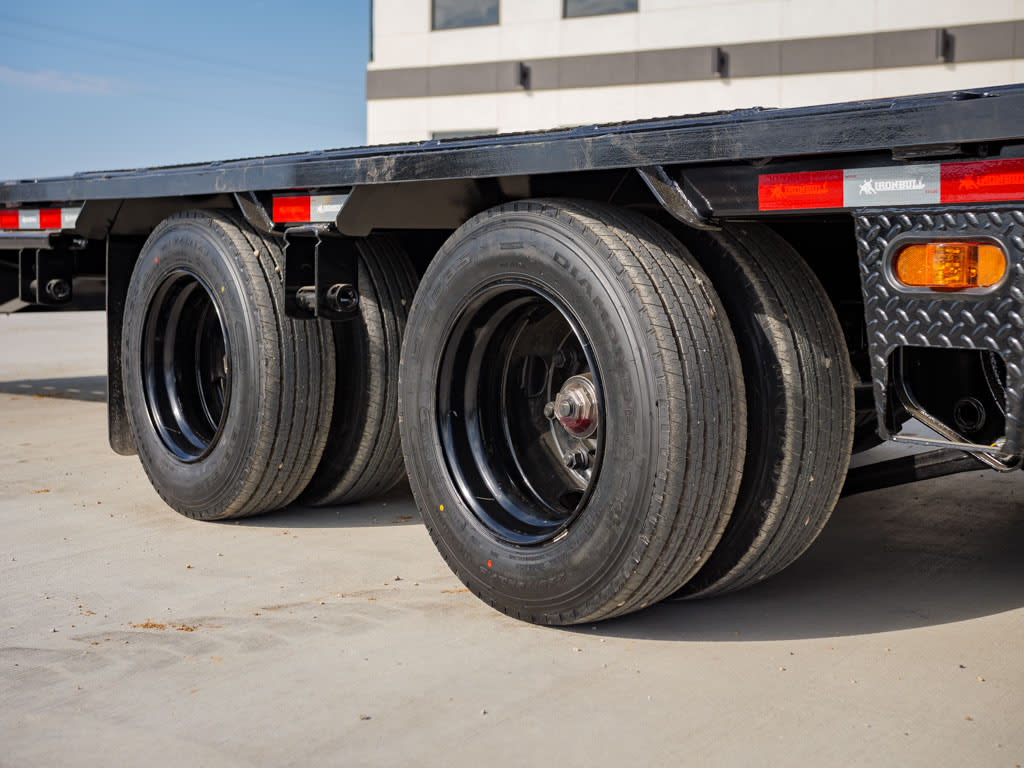

RUNNING GEAR
- TIRES:
- 235/80R16 Radial Tires
- TIRE UPGRADE:
- ST235/85R16 - 14 Ply
- RIMS:
- 16" Black Mod Wheels

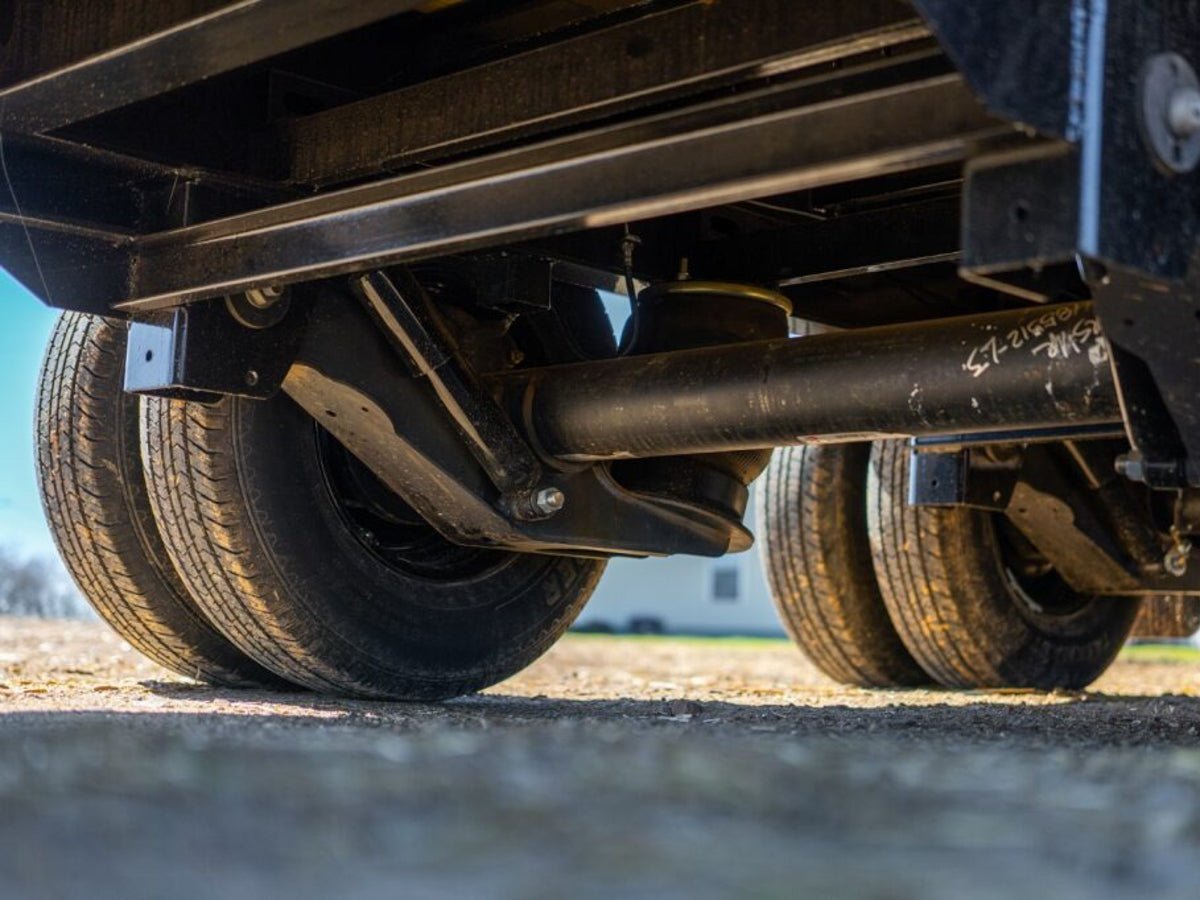

- AXLE TYPE:
- 2 - 10k Lippert Electric Brake Axles
2 - 12k Lippert Electric Brake Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric Brake
- SUSPENSION:
- Multi-Leaf Slipper Spring Suspension
- AXLE SPREAD:
- 6' Spread Axles

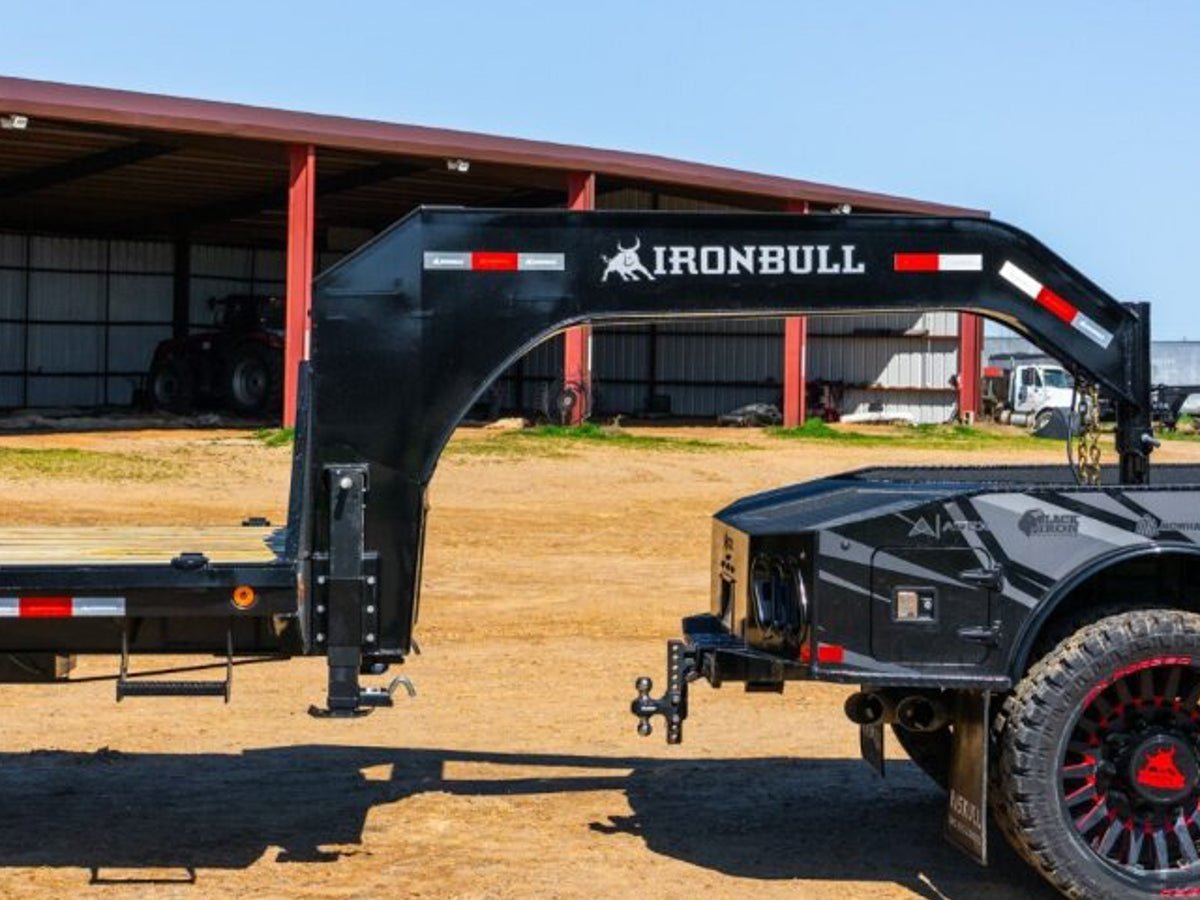

GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- 12" I-Beam Neck
- COUPLER:
- 2 5/16" Adjustable Coupler

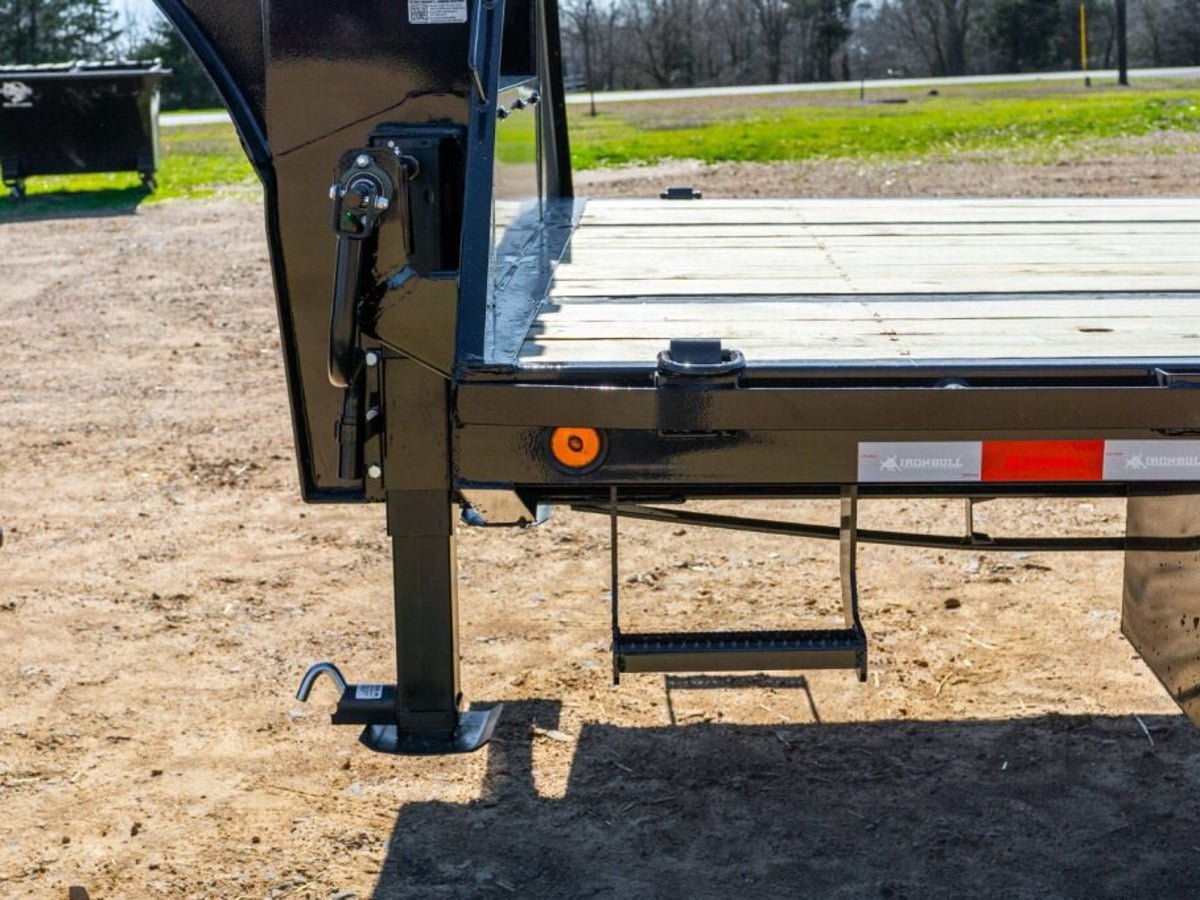

- JACKS:
- 2 - 10k Drop-Leg Jacks
- TOOLBOX GN:
- 25" Lockable Full Neck Width Toolbox
- NECK OPTION:
- Deck Over Neck
- WINCH PLATE:
- 1/2" Winch Plate in Neck
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft), Low-Profile Pierced Beam Frame
- CROSSMEMBERS:
- 10" I-Beam (Lower Frame)
3" Channel, 16" Centers (Deck)
- DECK:
- Wood
- TORQUE TUBE:
- Standard Torque Tube & Underframe Bridge
- SUPPORT STANDS:
- Tube Rear Support Stands
- RAMPS:
- 8' Slide In Ramps
- RAIL:
- Rub Rails, Stake Pockets, Pipe Spools
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Molded Sealed Wiring Harness w/ Resistors
- REAR LIGHTS:
- TecNiq DOT Approved Lifetime LED Lighting
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Primer
- COLOR:
- Black
WARRANTY
- TRAILER WARRANTY:
- 3 Year Structural / 2 Year Component
- LIGHT WARRANTY:
- Lifetime LED Warranty
OPTIONS
