Product Features

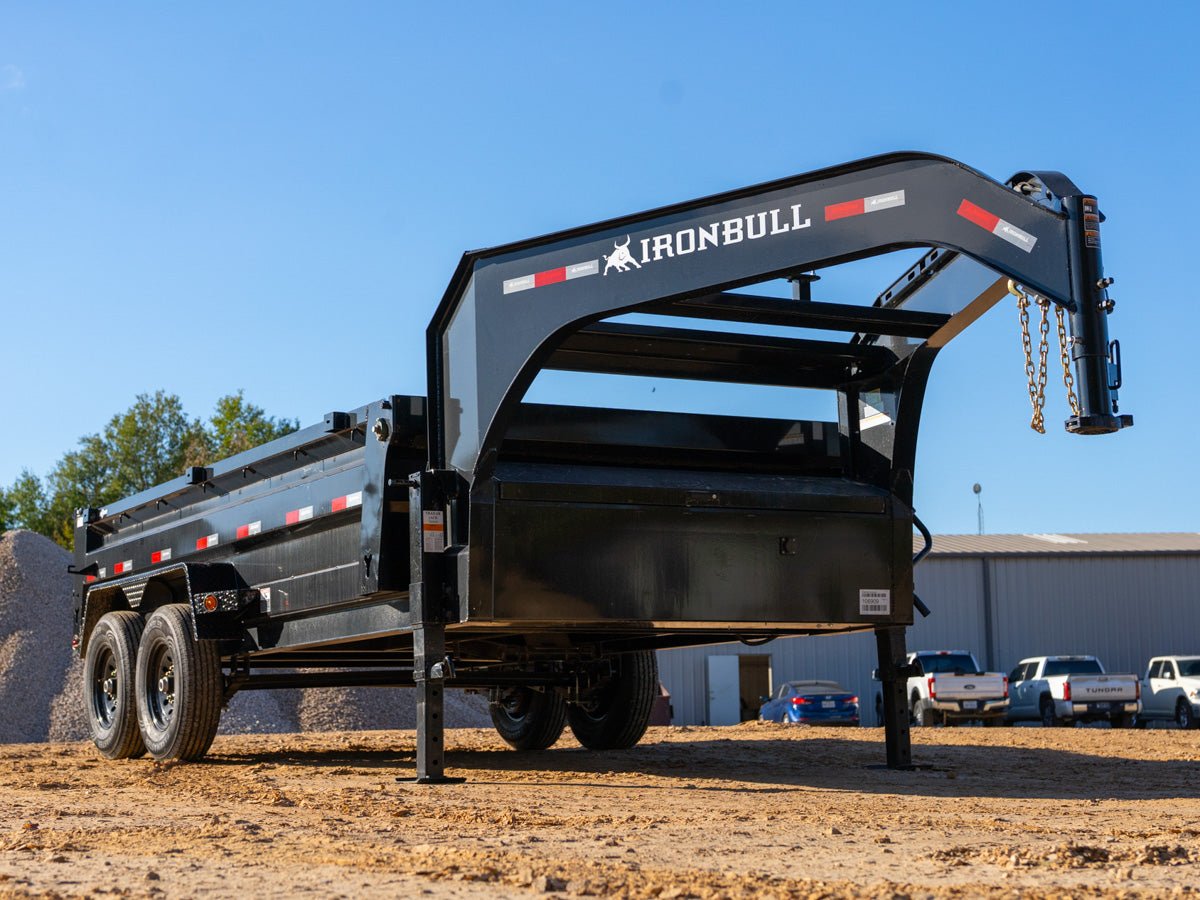

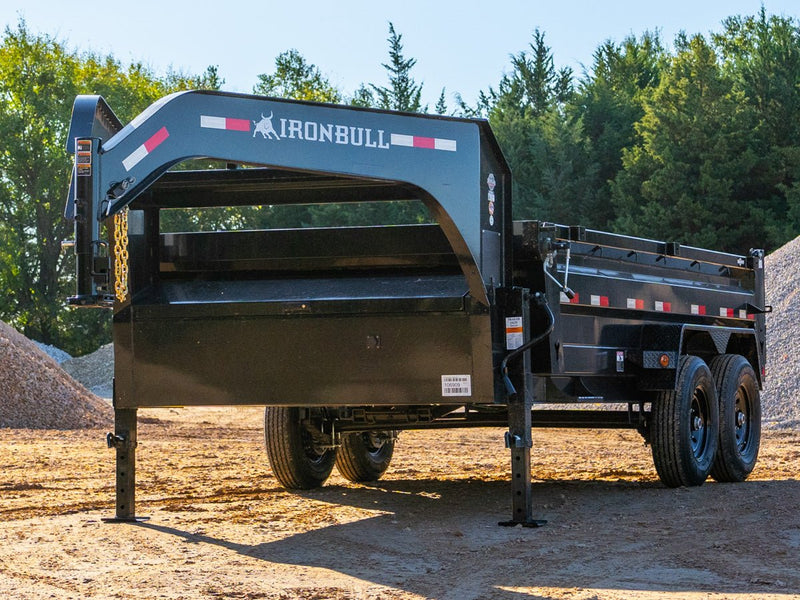

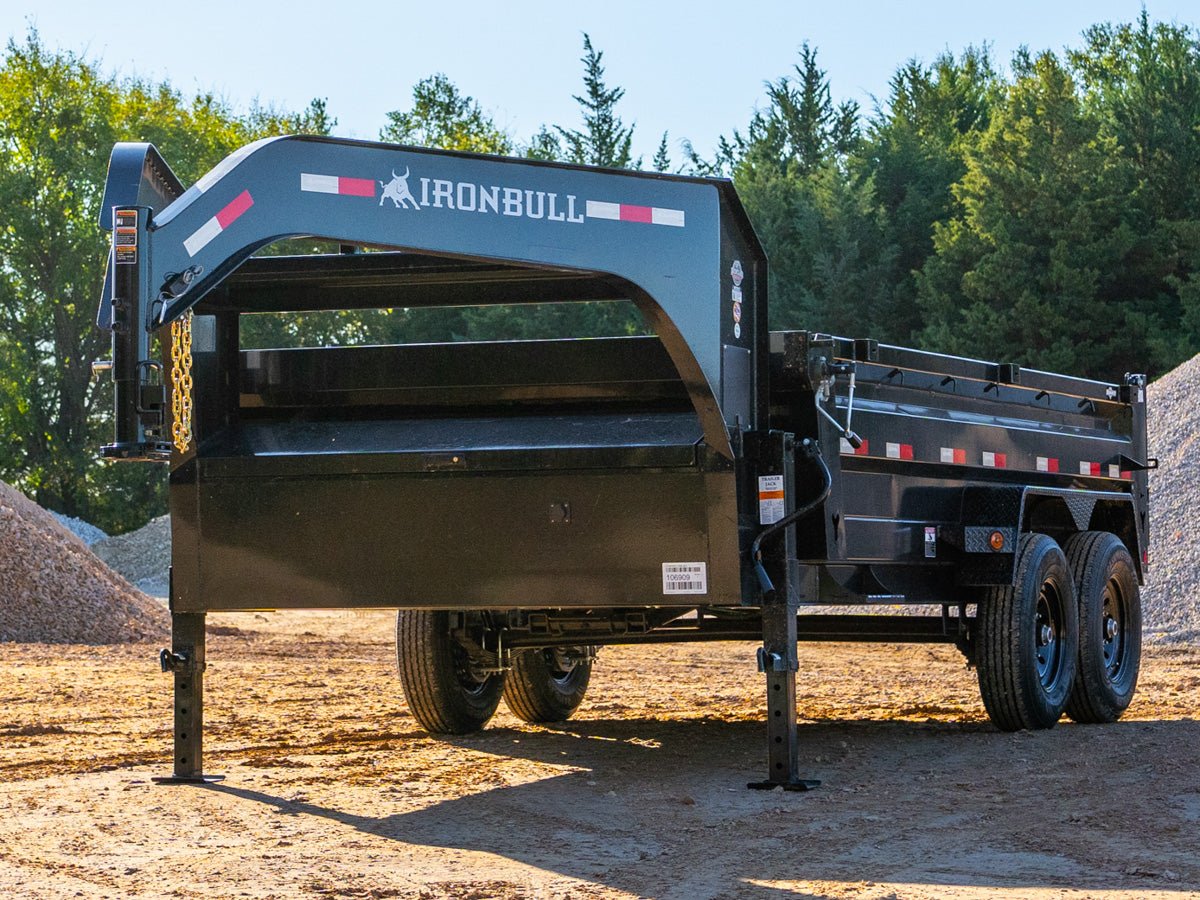

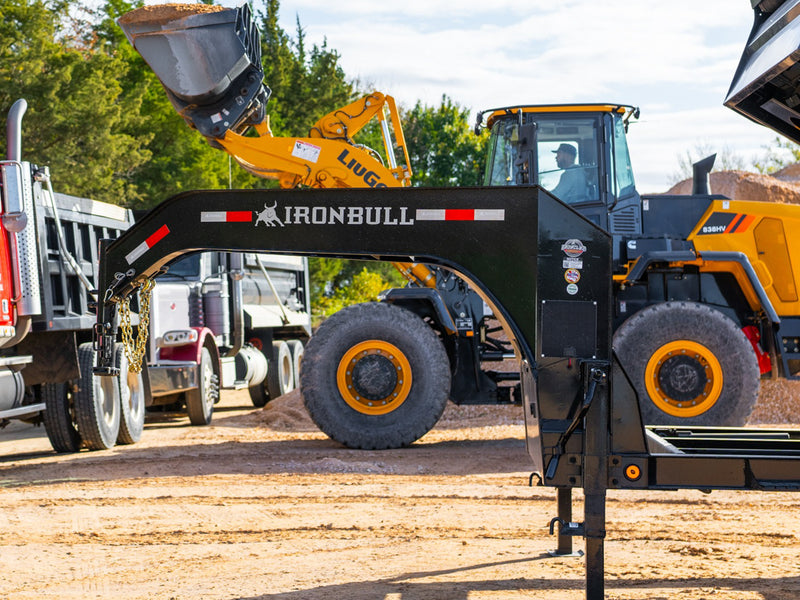

Massive 12" I-Beam Neck & Reinforced Frame
Construction on the DTG starts with a massive 12" I-beam neck and risers, reinforced with a 12" I-beam main frame. The structure is further strengthened by 3" channel crossmembers spaced 16" on center for uncompromising durability.

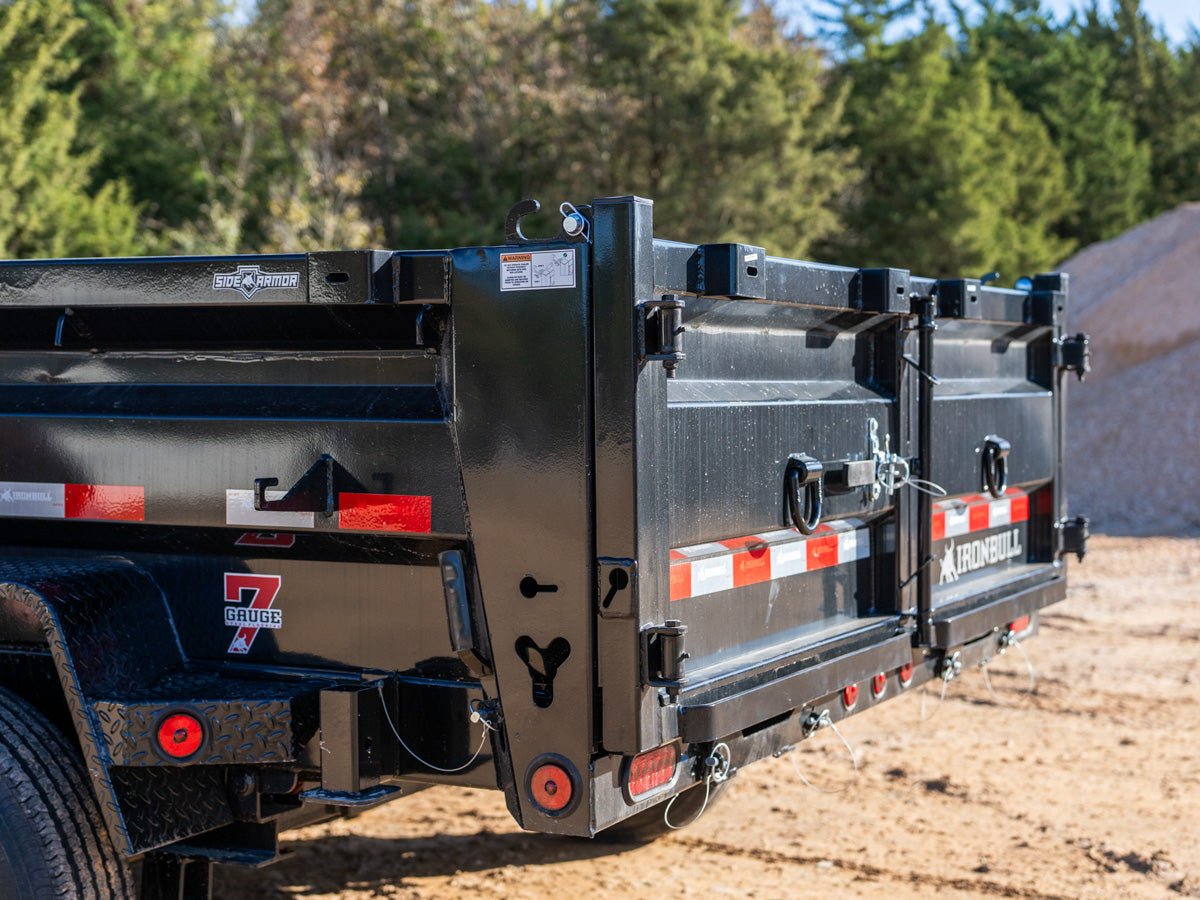

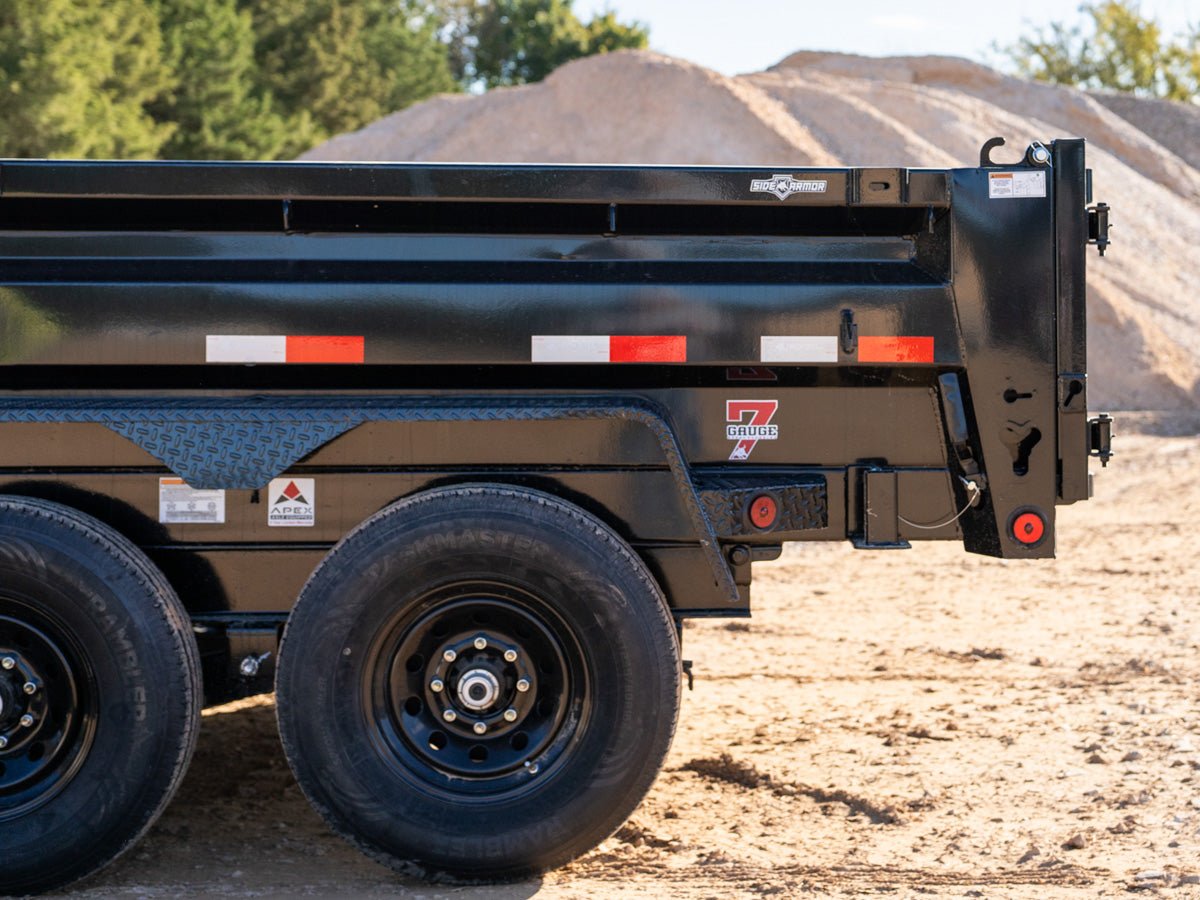

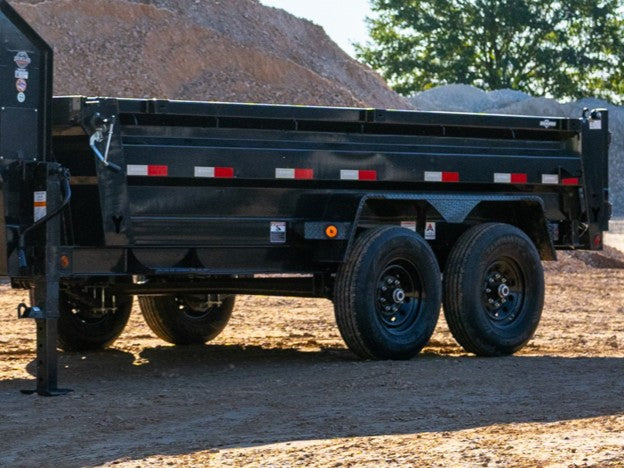

SideArmor Reinforced Wall System
Equipped with IronBull's SideArmor System. This features a one-piece side wall, oversized side brake, and reinforced corners, all engineered to eliminate weak points, reduce warping, and come with a fully enclosed top rail for total peace of mind.
Lightweight All-Aluminum Ramps
All-aluminum ramps now come standard on the 83" models. These redesigned ramps are significantly stronger and more durable while weighing 60 lbs less than standard steel ramps, making them easier and safer to handle.

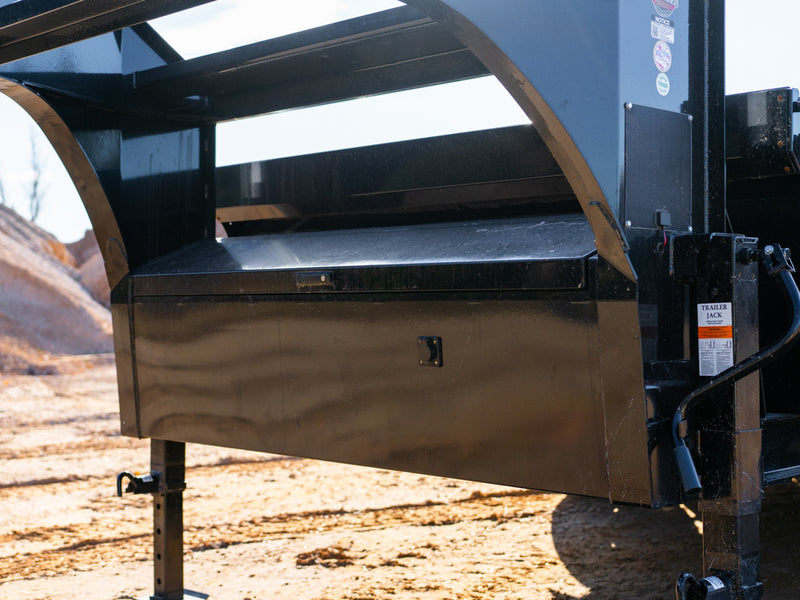

Comprehensive Standard Features
Each IronBull dump trailer comes standard with a full neck-width locking toolbox for maximum storage. The package also includes a manual top-mounted tarp kit, spare tire mount, rear stabilizer stand brackets, stake pockets, and a 5-AMP 110V wall outlet charging receptacle for immediate jobsite readiness.

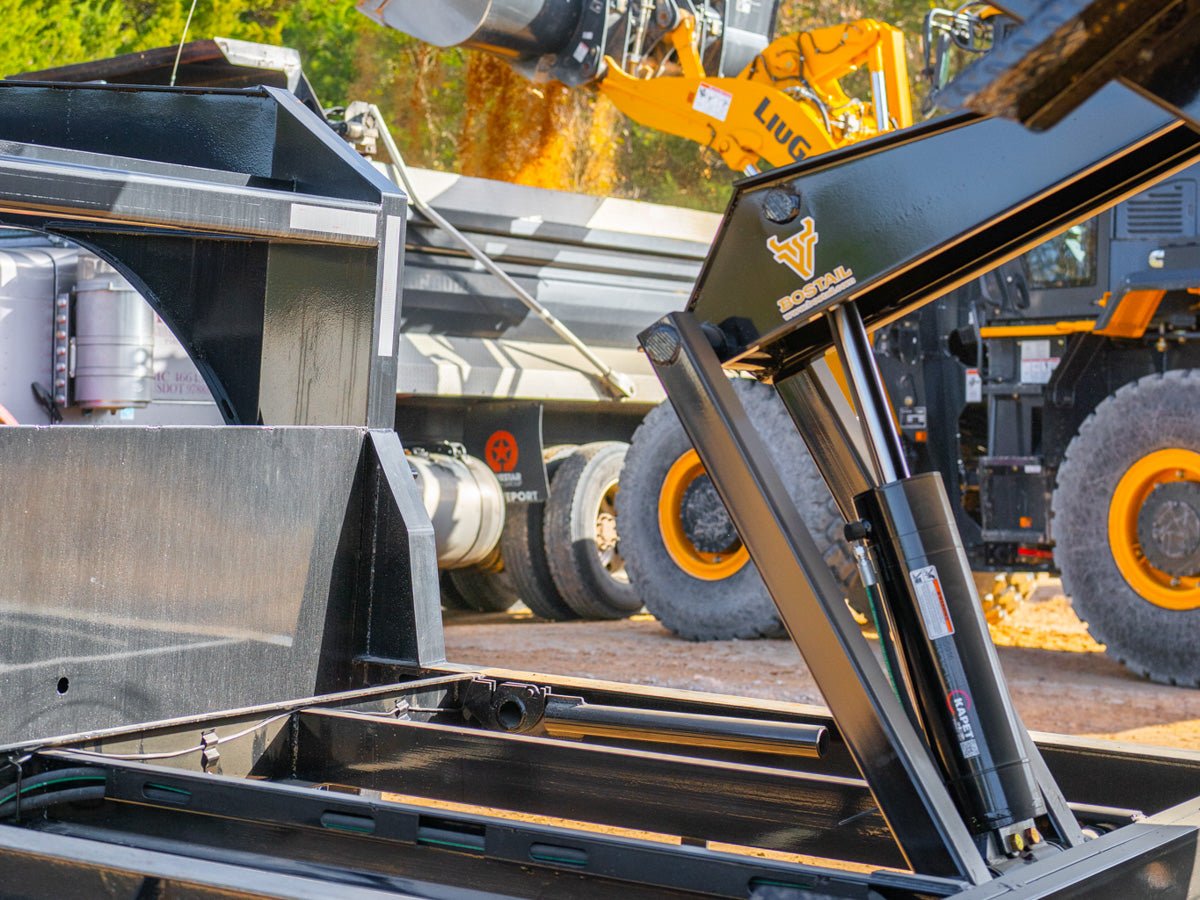

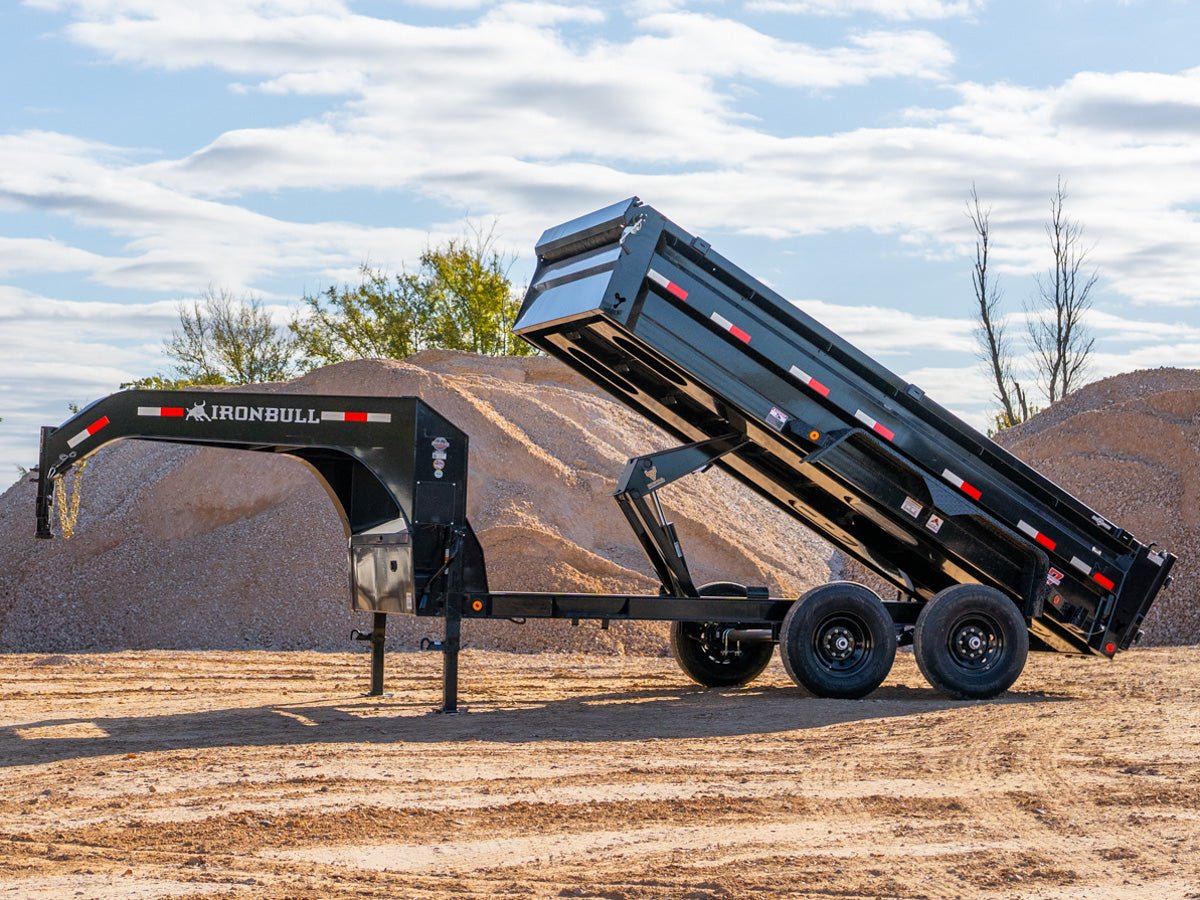

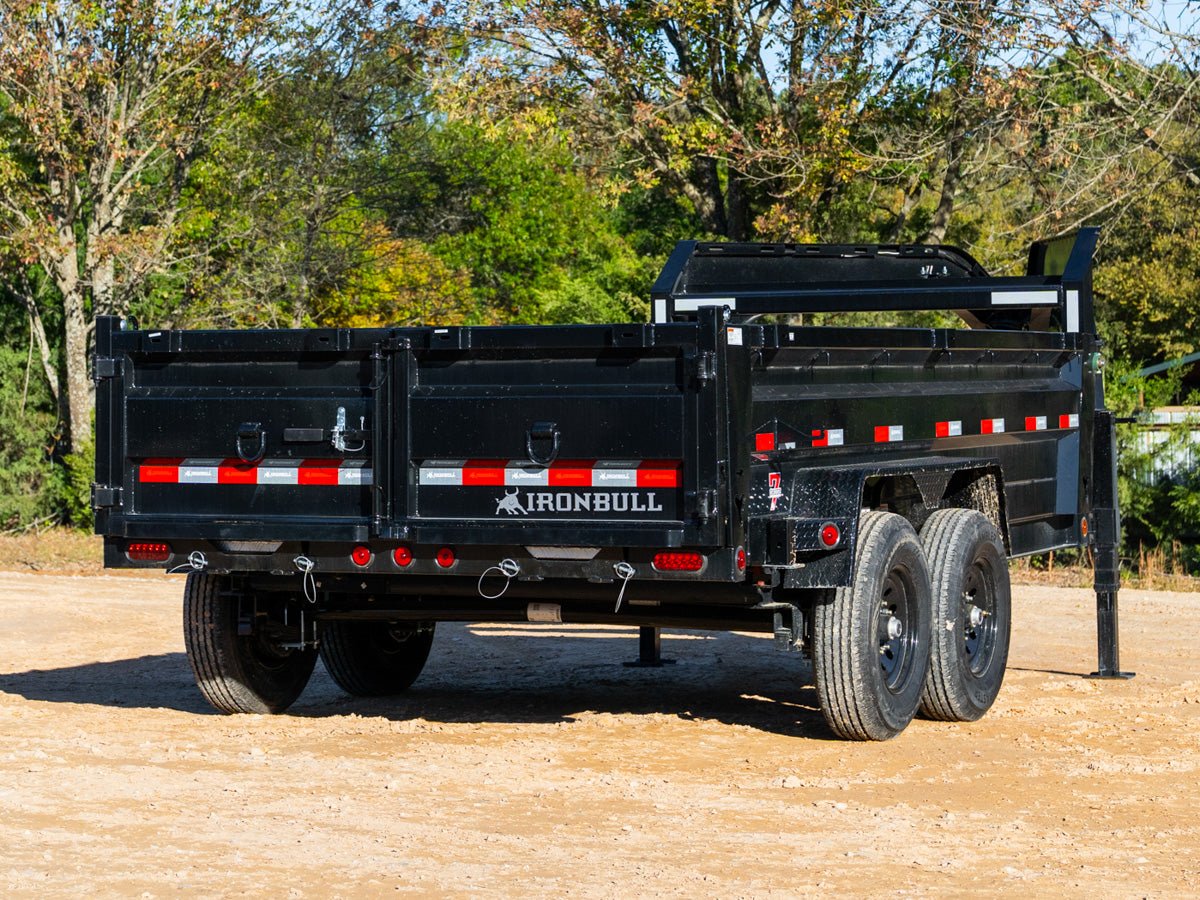

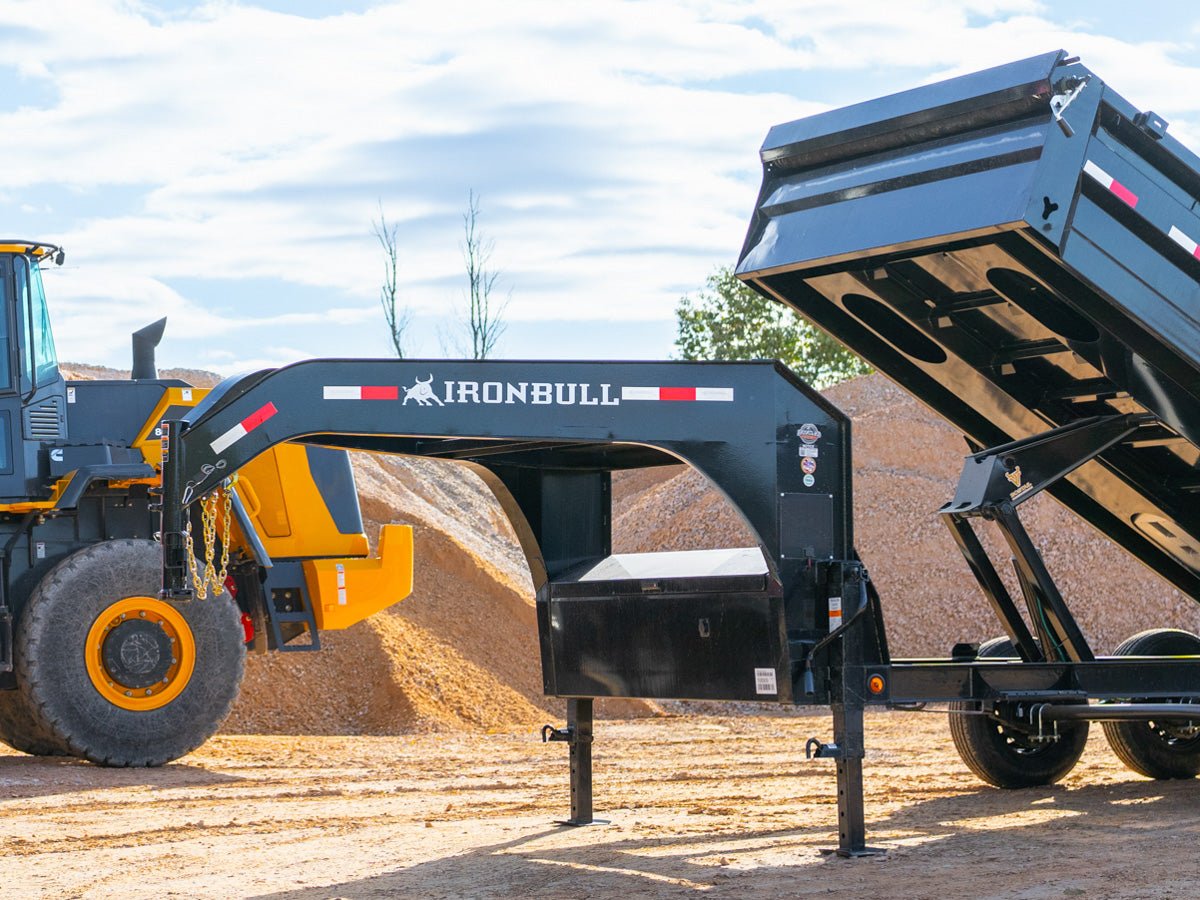

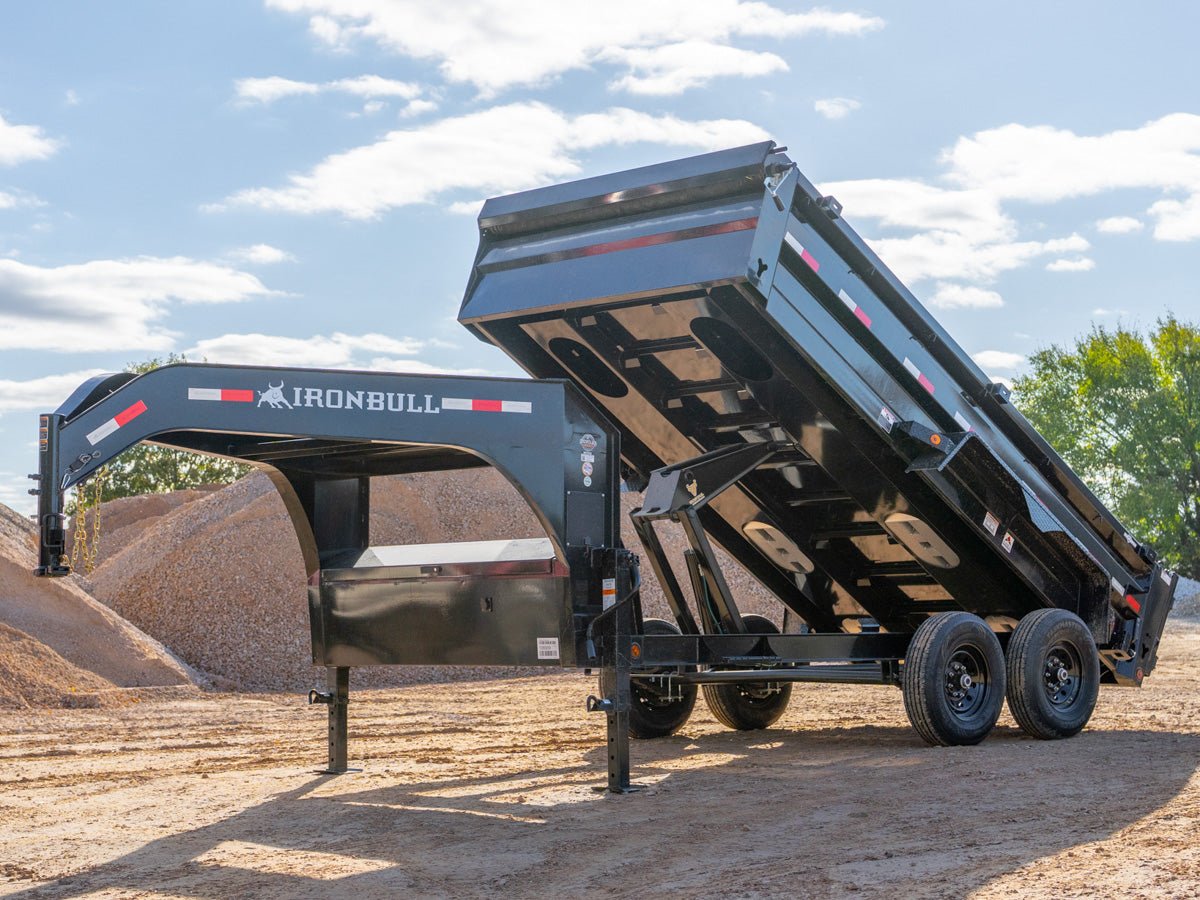

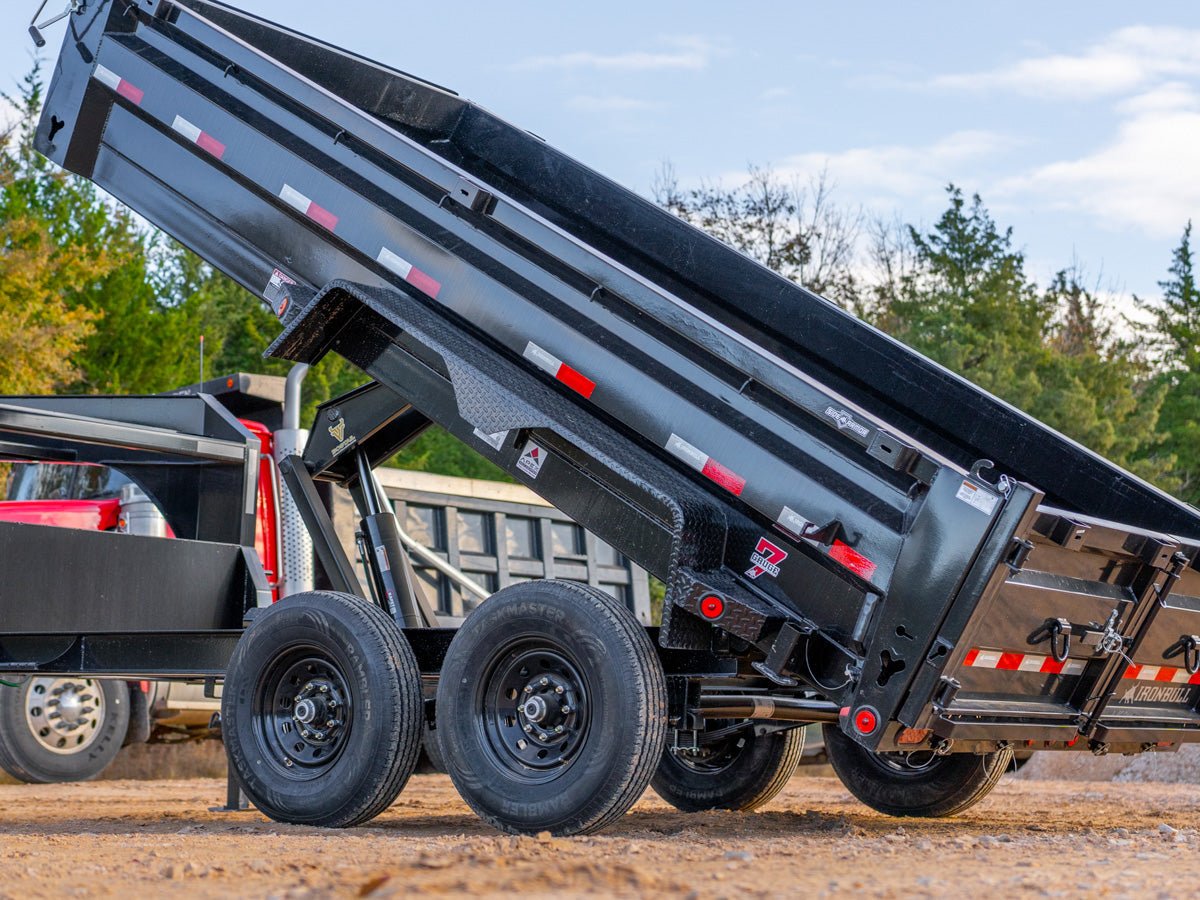

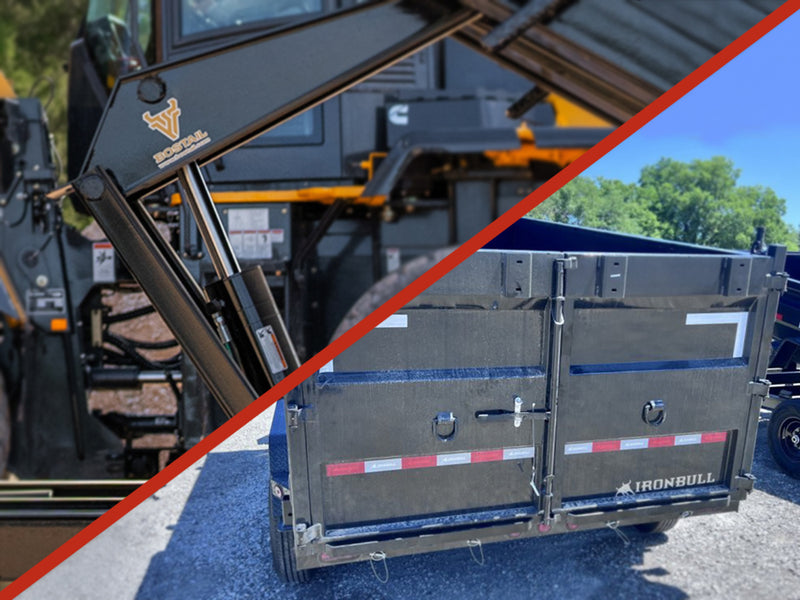

Versatile Spreader Gate & Scissor Hoist
The DTG is built for versatility. It combines a three-way spreader gate with a powerful Scissor Hoist and a 516 cylinder, giving you multiple options for controlled spreading, secure transport, and efficient dumping of various materials.
Lifetime LED Lighting Warranty
All IronBull trailers come with TecNiq branded LED lights, providing superior brightness and reliability. This premium lighting is backed by an industry-leading Lifetime LED warranty for worry-free operation.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 32"
WEIGHT RATINGS
- GVWR:
- 14.9k - 21k
- AXLE OPTIONS:
- 7k, 8k

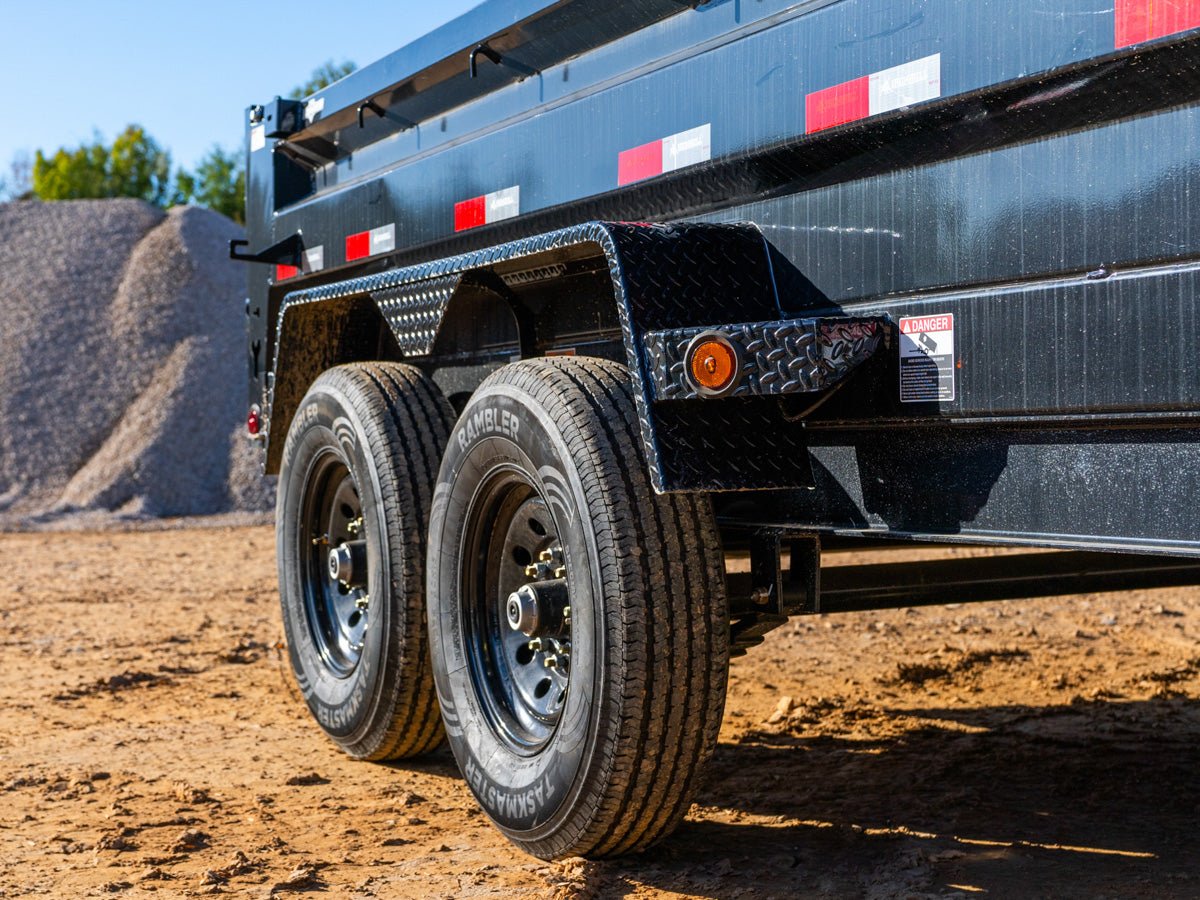

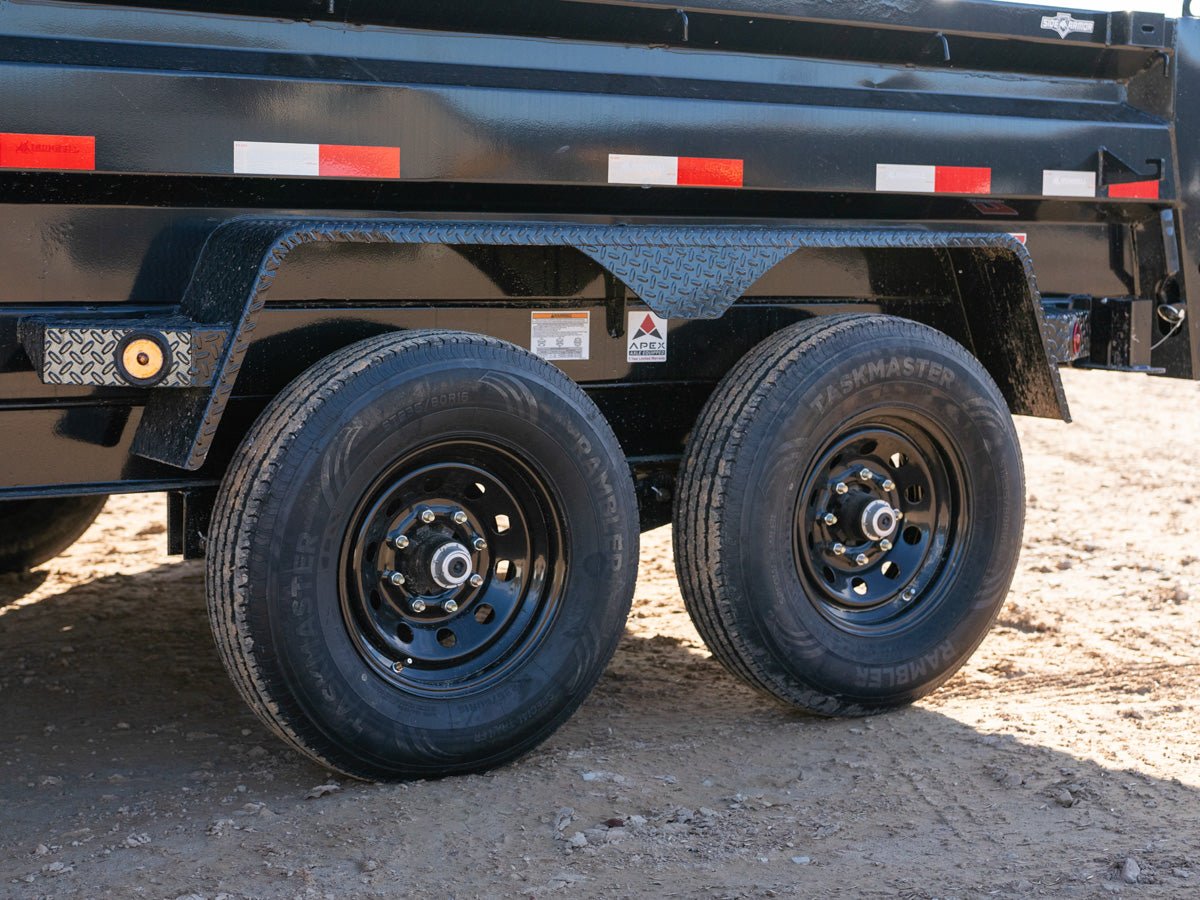

RUNNING GEAR
- TIRES:
- ST235/80R16 Radial Tires
- TIRE PLY:
- 10 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Apex Axles
2 - 8k Lippert Axles
- AXLE COUNT:
- 2
- BRAKES:
- Cambered Brake
- BOLT PATTERN:
- 8 on 6.5"
CARGO BED
- FLOORING:
- 7 Ga. Steel Flooring
- TOP RAIL:
- Reinforced Top Rail (Fully Enclosed)
- D-RINGS:
- 4 Floor Mounted 1/2" D-Rings
- STAKE POCKETS:
- Standard Stake Pockets
- HOOKS:
- J-Hooks Along Sides
- TARP:
- Top Mounted Retractable Tarp Kit
- RAMPS:
- Aluminum Slide In Ramps
- STABILIZERS:
- Rear Stabilizer Stand Brackets

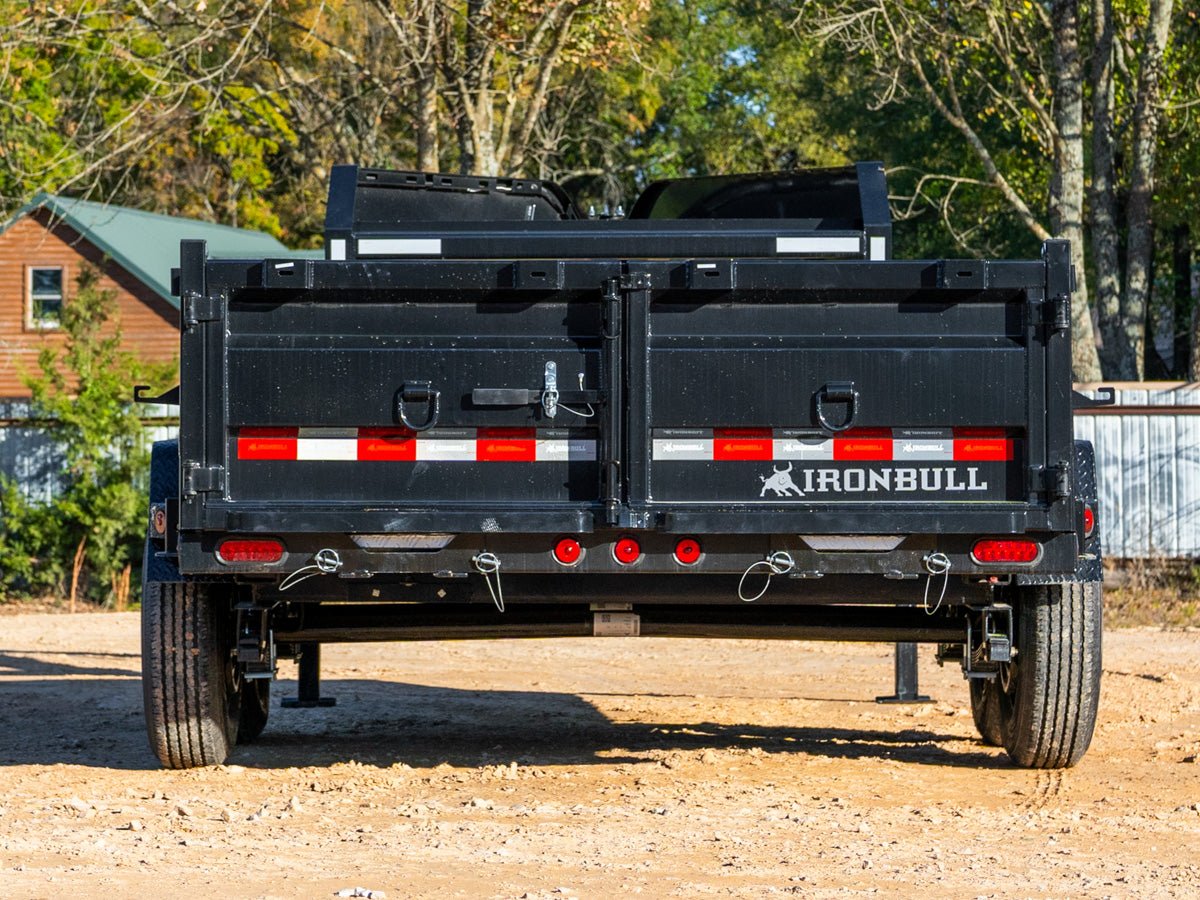

- REAR GATE:
- 3 Way Spreader Gate
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam
- BED FRAME:
- 4" Tubing Bed Frame
- CROSSMEMBERS:
- 3" Channel, 16" Spacing w/ Full Length Bed Runners
- SIDEARMOR SYSTEM:
- One-Piece Side Walls w/ Oversized Brake
- SIDES:
- 10 Ga. Steel
- FENDERS:
- Weld On Diamond Plate Fenders
- SUSPENSION:
- Multi-Leaf Slipper Spring

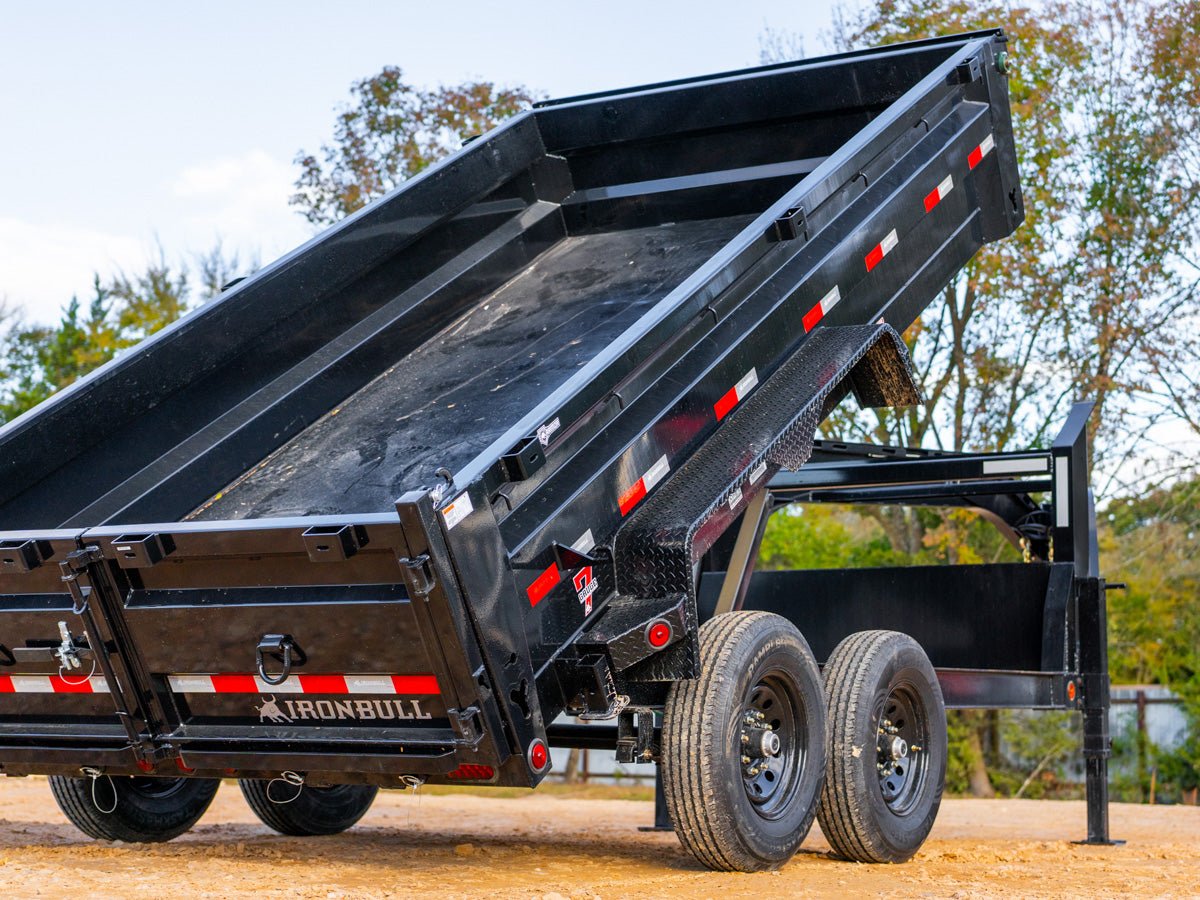

DUMP SYSTEM
- SYSTEM:
- Hydraulic Scissor Hoist
- PUMP:
- Double Acting Pump: Power Up & Gravity Down
- CYLINDER:
- Scissor Hoist w/ 5/16" Cylinder
- CONTROLLER:
- Wired w/ LED Voltage Indicator

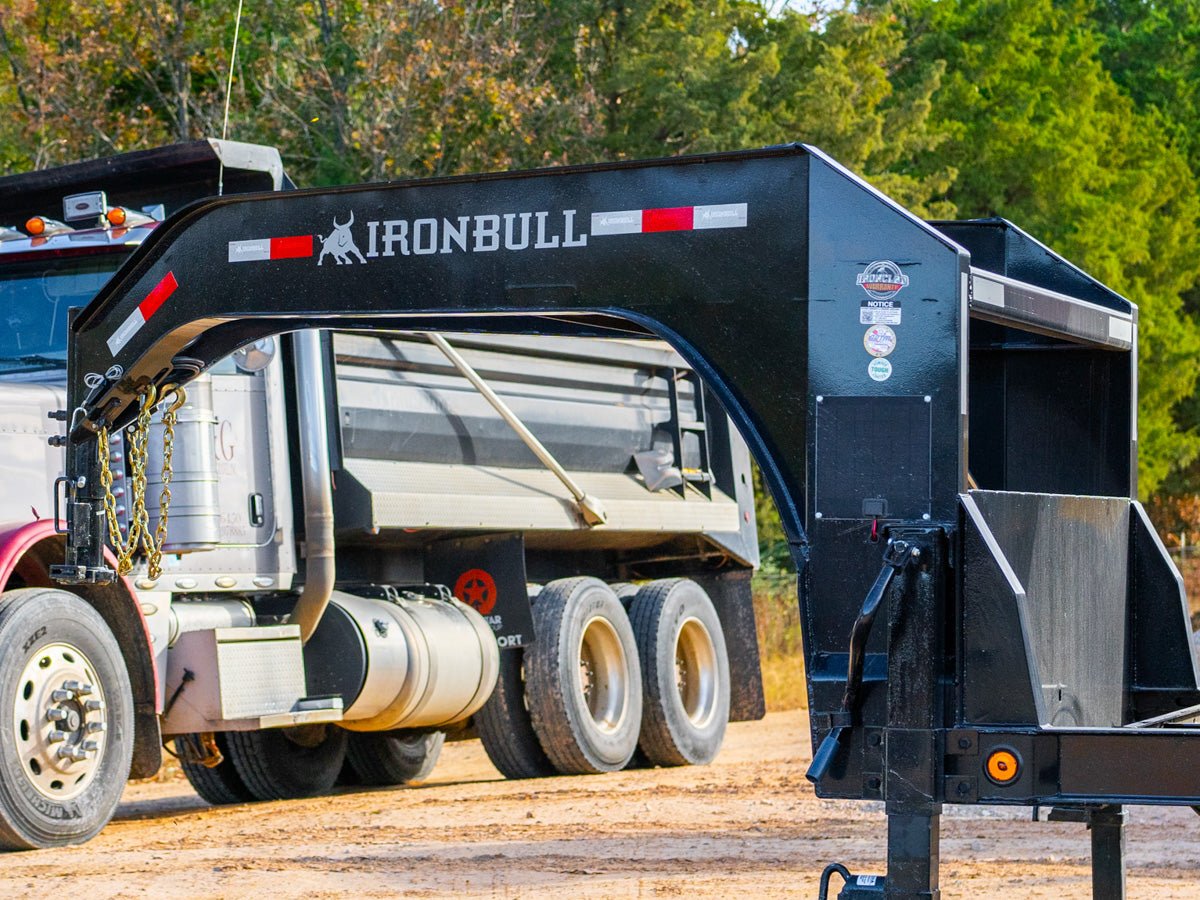

GOOSENECK & COUPLER
- PULL TYPE:
- Gooseneck
- TONGUE:
- 12" I-Beam Neck
- COUPLER:
- Adjustable 2 5/16" Coupler
- JACKS:
- Dual 10k Drop-Leg Jacks
- TOOLBOX:
- Front Locking Toolbox (Pump Box)
ELECTRICAL & SAFETY
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- 110V 5-Amp Trickle Charger (Wall Outlet)
- WIRING HARNESS:
- Molded Sealed Wiring Harness
- REAR LIGHTS:
- TecNiq DOT Approved Lifetime LED Lighting
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
WARRANTY
- TRAILER WARRANTY:
- 3 Year Structural / 2 Year Component
- LIGHT WARRANTY:
- Lifetime LED Warranty
OPTIONS
