At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Gooseneck
Dimensions
- LENGTH:
14' - 20'
Featured Video
Product Features

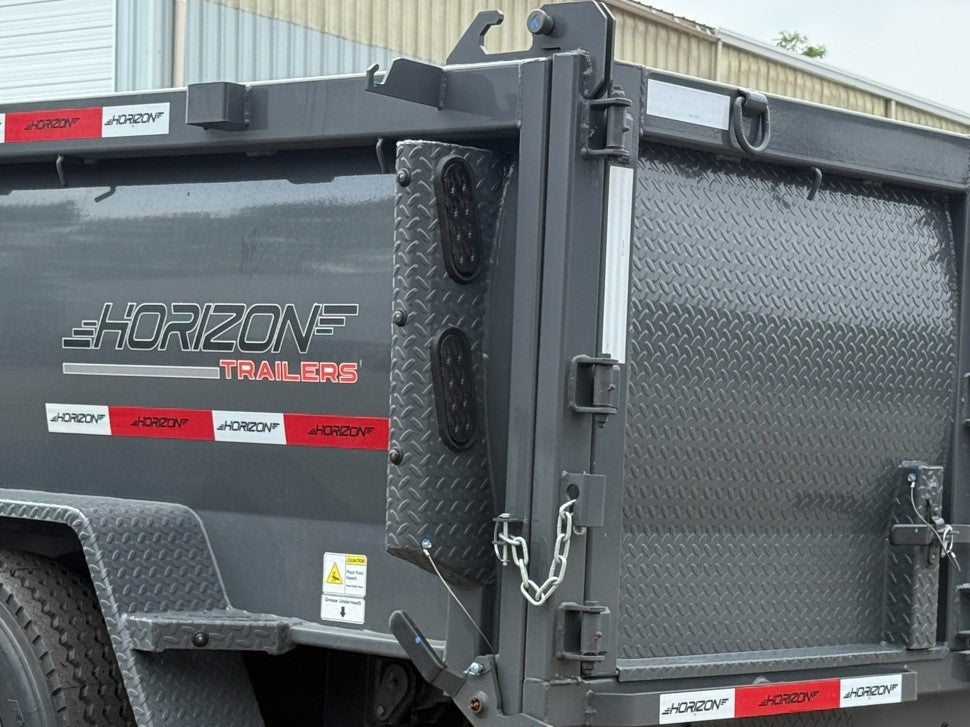

Spreader Gate
The Horizon spreader gate allows for controlled spreading of contents such as gravel, sand, or mulch, providing efficient and precise distribution over a area. By regulating the flow of materials, the spreader gate enhances productivity and ensures uniform coverage.

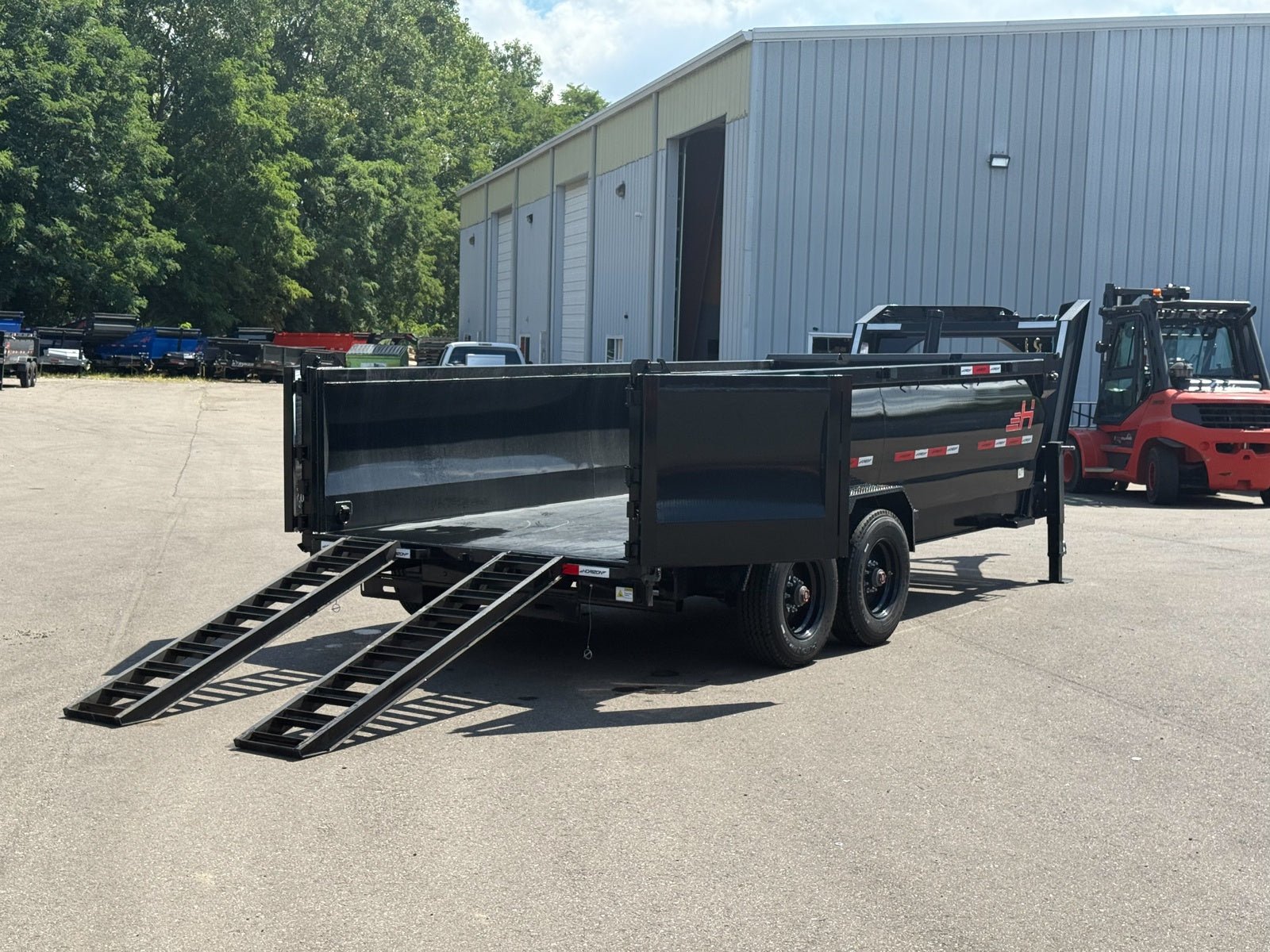

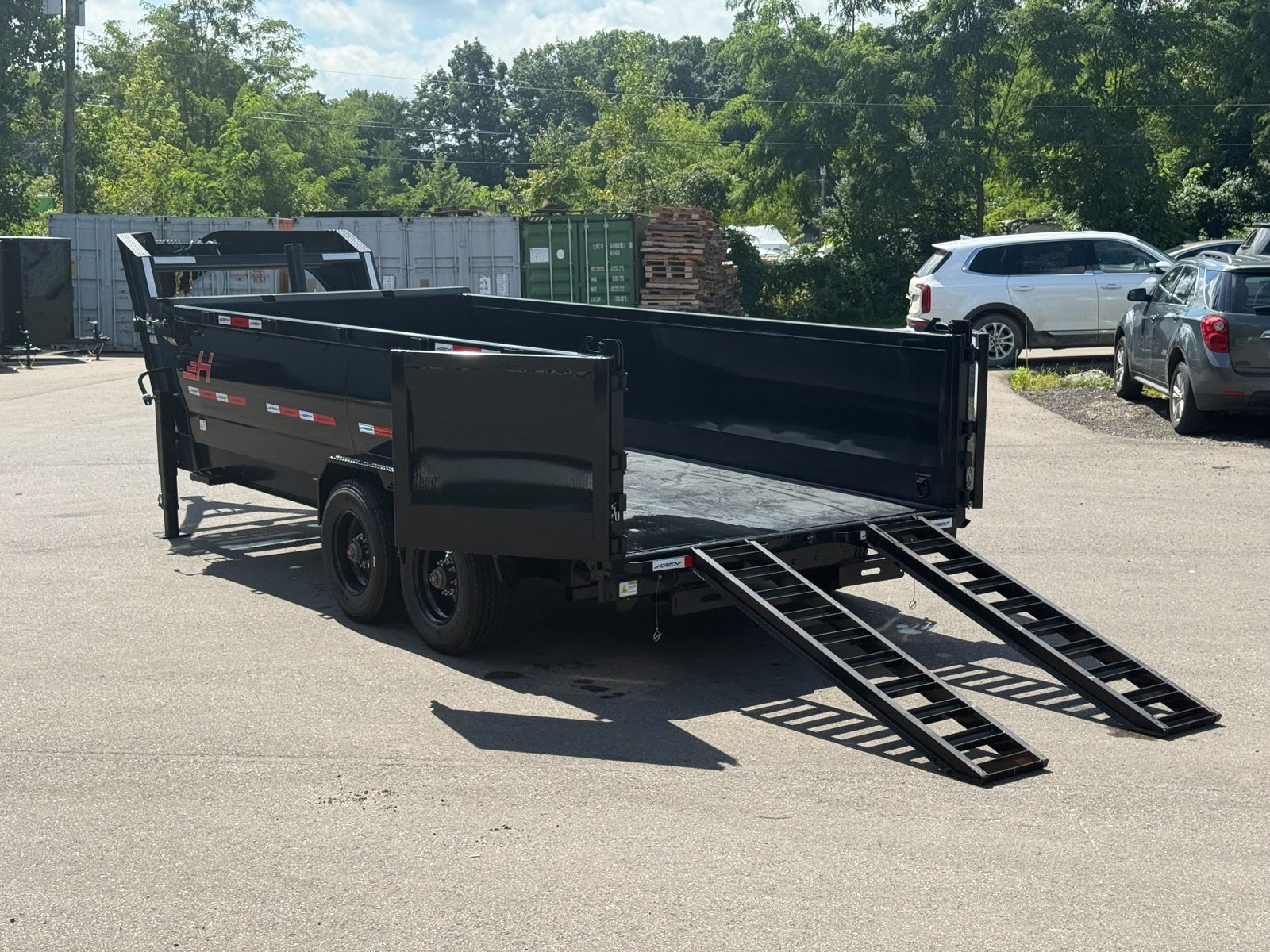

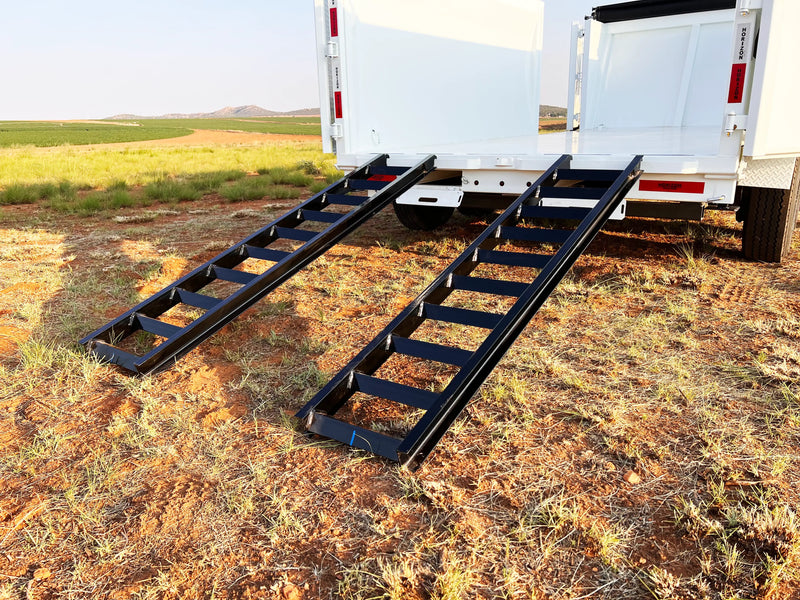

Utility Ramps
Designed to facilitate the loading and unloading of equipment, vehicles, or heavy machinery onto the trailer bed. These ramps provide a convenient and safe means of transition, allowing for efficient loading and unloading processes.
Corner Jack
These jacks provide crucial support and stability during loading and unloading operations, particularly on uneven terrain. By independently adjusting each corner, they ensure a level and secure platform, enhancing safety and efficiency.
DURABLE POWDER COAT FINISH

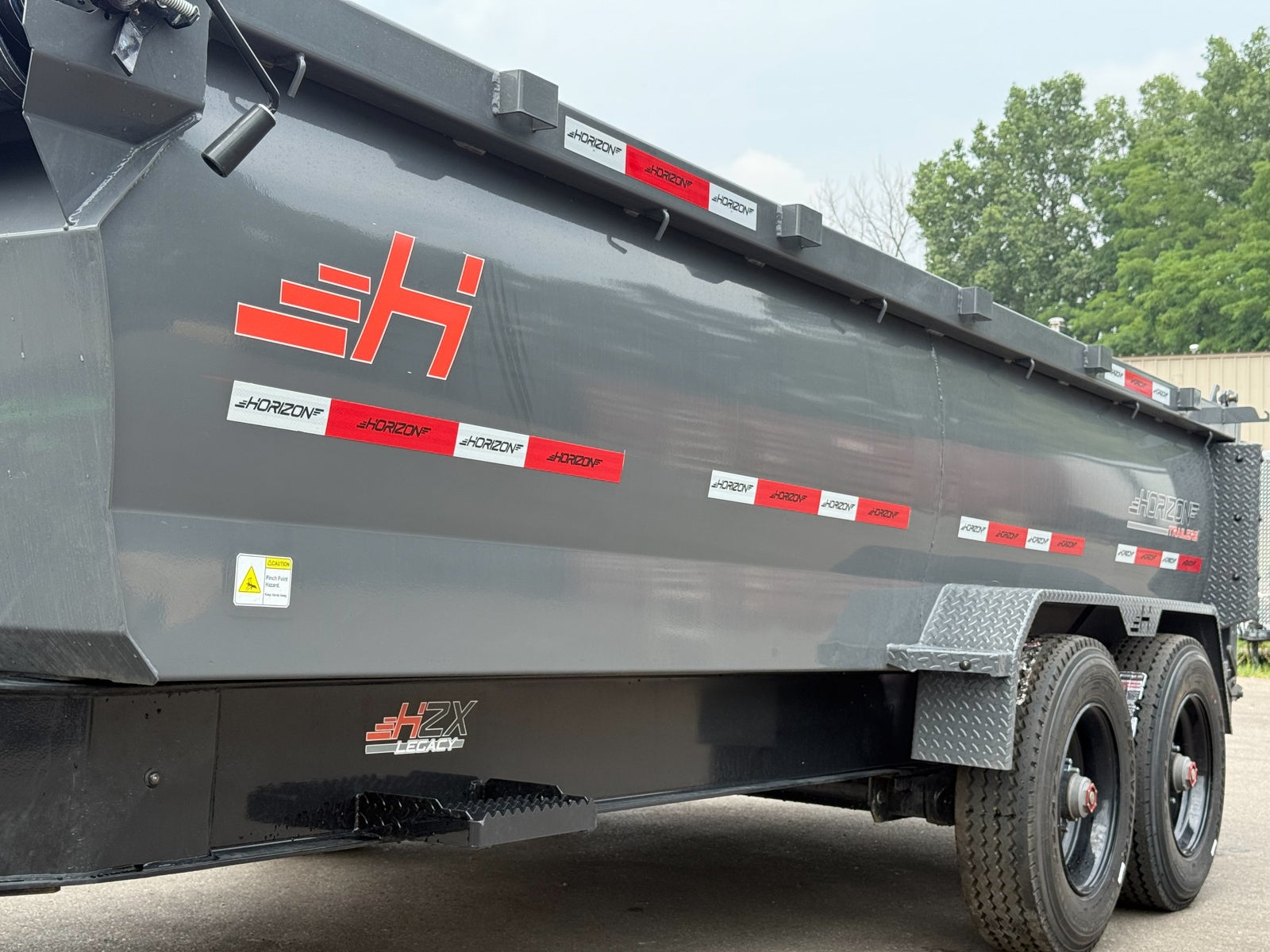

The HZX dump trailer boasts a premium powder-coated finish that provides superior durability and corrosion resistance. Its rugged construction and high-quality finish ensure long-lasting performance and maintain the trailer's structural integrity, even under harsh environmental conditions.

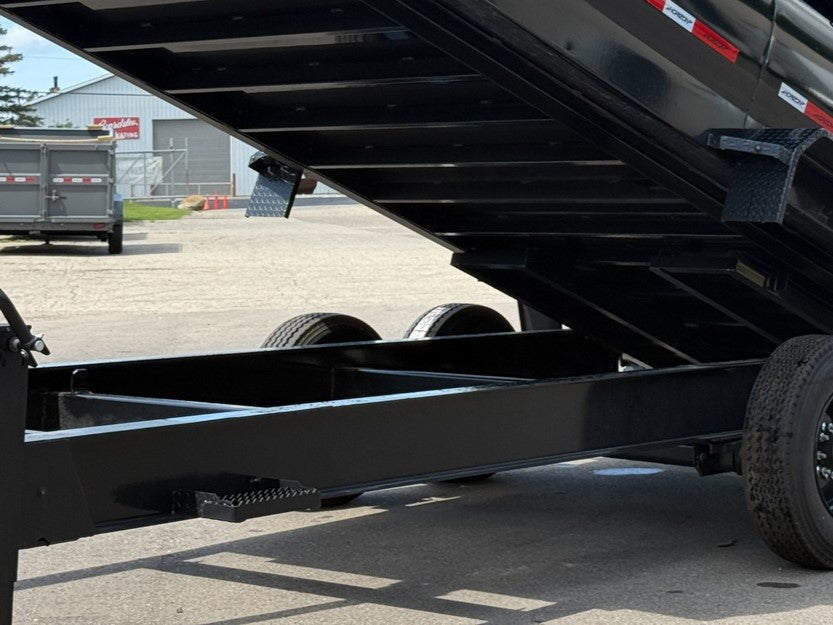

Heavy-Duty Construction
The HZX dump trailer is built with a robust 8-gauge steel frame and reinforced structural components, designed to handle demanding loads of up to 18,000 lbs. Its rugged construction ensures durability and reliability, making it the perfect choice for heavy-duty applications in construction, agriculture, and landscaping.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Horizon HZX Dump Trailer
- TYPE:
- Bumper Pull, Gooseneck
- LENGTHS:
- 14’, 16’, 18’, 20’
- SIDE HEIGHT:
- 2'
- BED WIDTH:
- 83"
- BED HEIGHT:
- 28"
- GAWR:
- 10,000 lbs
- GVWR (BUMPER PULL):
- 21,000 lbs
- GVWR (GOOSENECK):
- 22,400 lbs
FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 10" I-Beam (17 lbs/ft)
- BED FRAME:
- 5" x 5" x 5/16" Angle Iron (10.3 lbs/ft)
- CROSSMEMBERS:
- 3" Channel (3.50 lbs/ft) at 16" Spacing

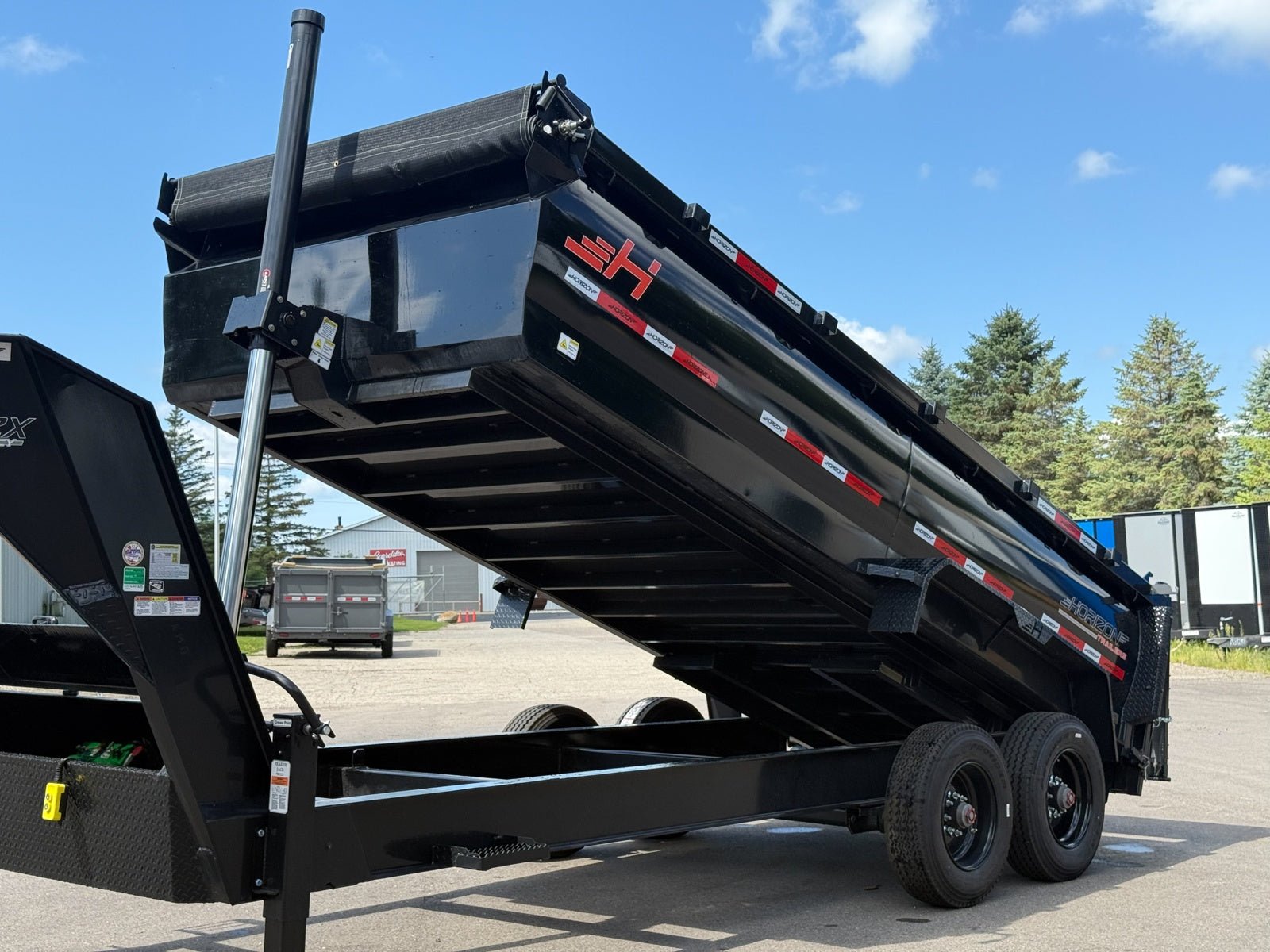

- DUMP ANGLE:
- 44° - 48°
- REAR GATE:
- 3 Way Door - Spreader Gate
- SIDE STEP:
- Side Step on Both Sides
FINISH:
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
- STYLE:
- 2 Tone Colors Available (Chassis / Dump)
RUNNING GEAR & SAFETY
RUNNING GEAR:
- TONGUE (BP):
- 10" I-Beam (17 lbs/ft), 60" Length

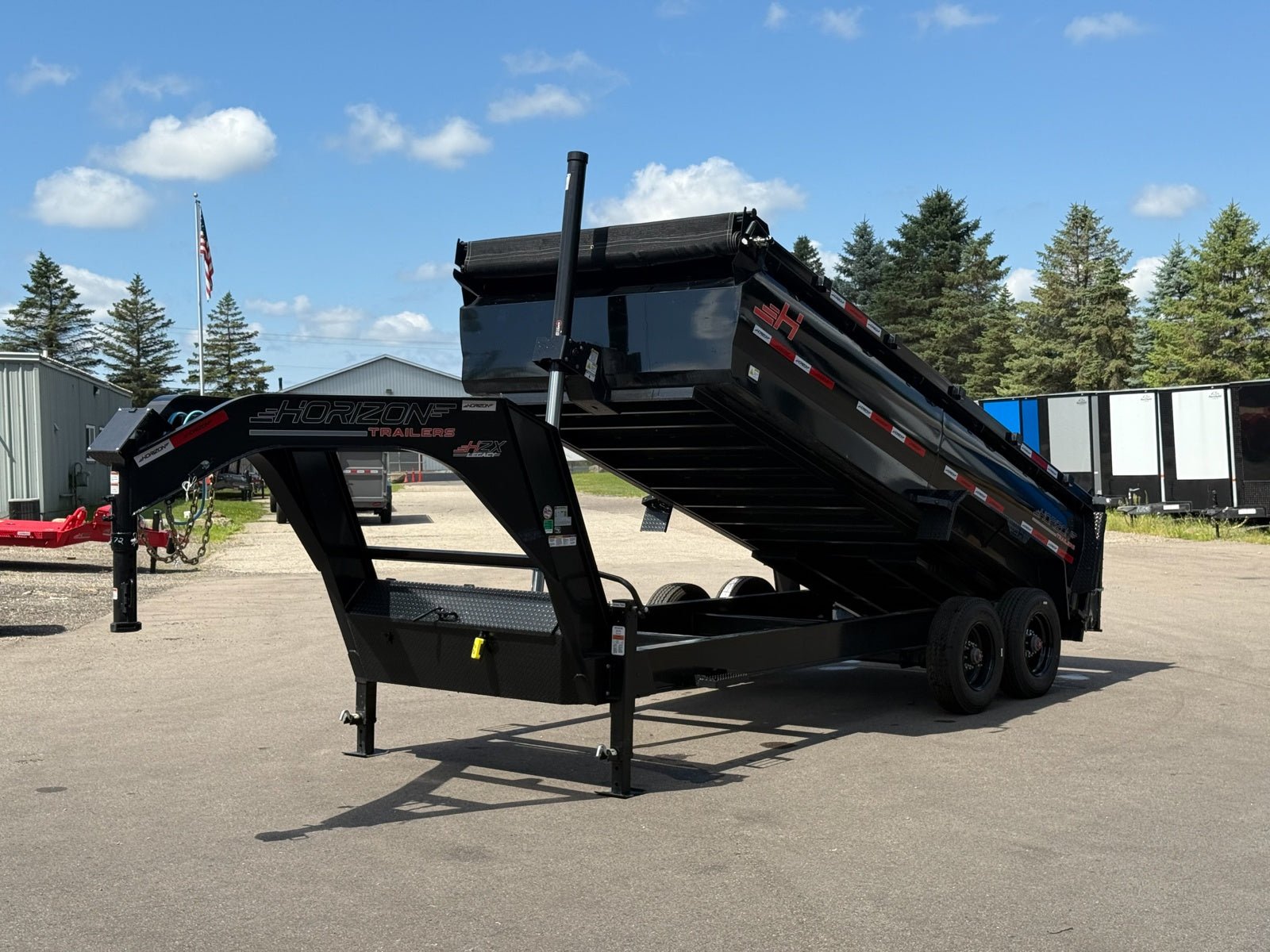

- TONGUE (GN):
- 10" Engineered Steel I-Beam, 98" Length (From Behind Riser), 70" Height (From Underneath Neck)
- SPARE:
- Weld On Spare Tire Mount

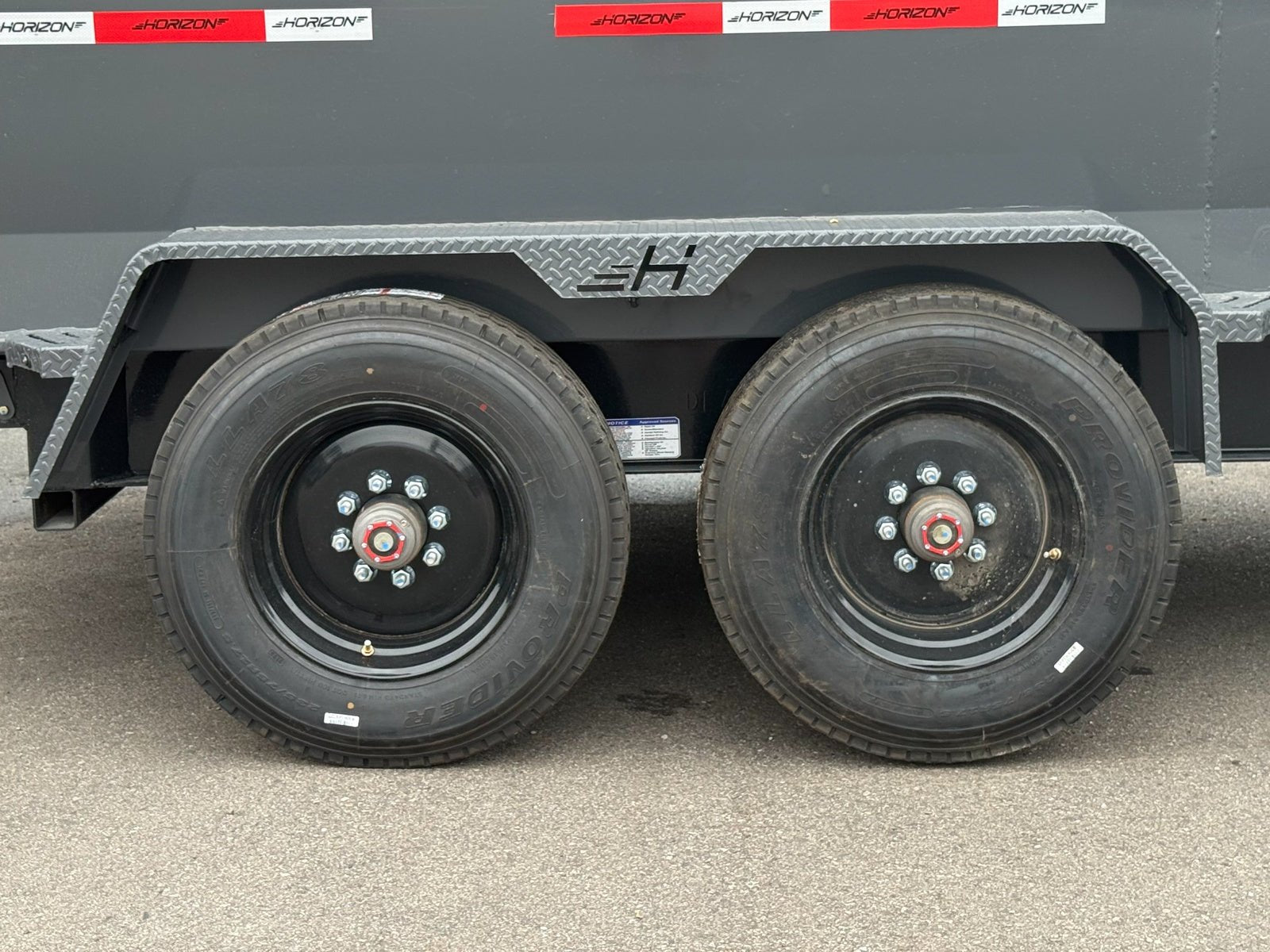

- SPARE TIRE:
- ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
- COUPLER (BP):
- Adjustable Demco EZ Latch 2-5/16"
- COUPLER (GN):
- Adjustable 2-5/16" Coupler (30,000 lbs)
- JACKS (BP):
- 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
- JACKS (GN):
- 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
SAFETY:
- TOOLBOX (BP):

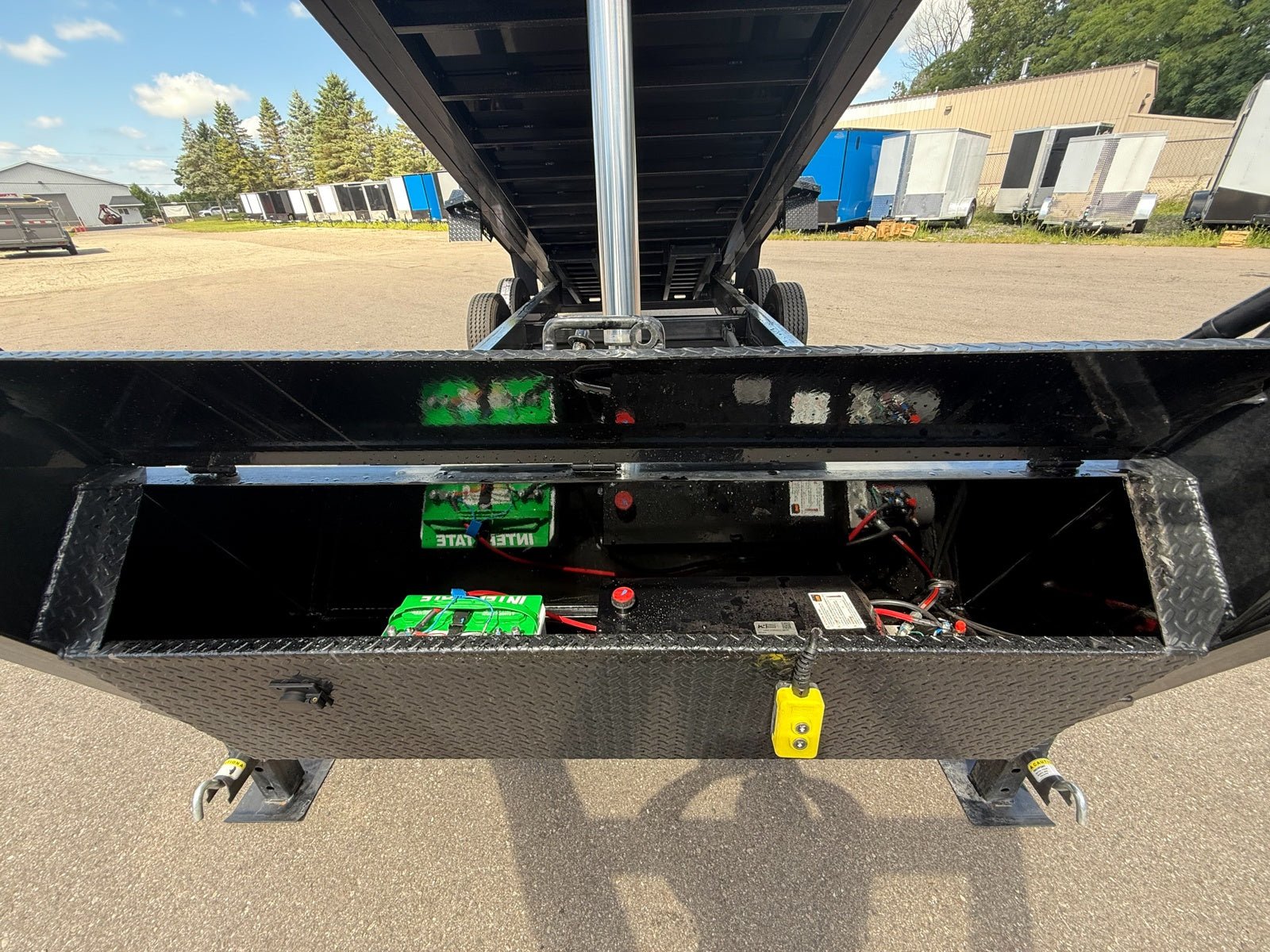

- Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
- TOOLBOX (GN):
- Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 each)
WARRANTY
WARRANTY:
- AXLE WARRANTY:
- 11 Year Lippert Torsion Axle Warranty
- TRAILER WARRANTY:
- Three (3) Year Frame, One (1) Year Parts Warranty
