At a Glance
Product Features

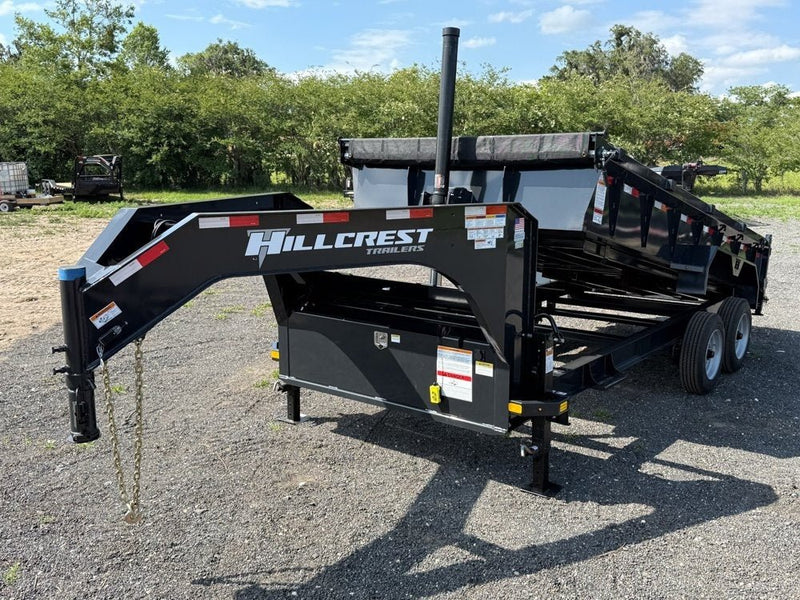

12-Ton 3-Stage Telescopic Gooseneck Lift
Equipped with a powerful 12-ton (24,000 lb) 3-stage telescopic cylinder. This high-capacity system provides reliable lifting power for the gooseneck trailer's up to 17,600 lb GVWR.
Gooseneck with 24" or 40" Side Options
Configure with standard 24-inch sides for dense materials or optional 40-inch sides for maximum volume. The gooseneck design provides superior towing stability for these high-capacity loads.

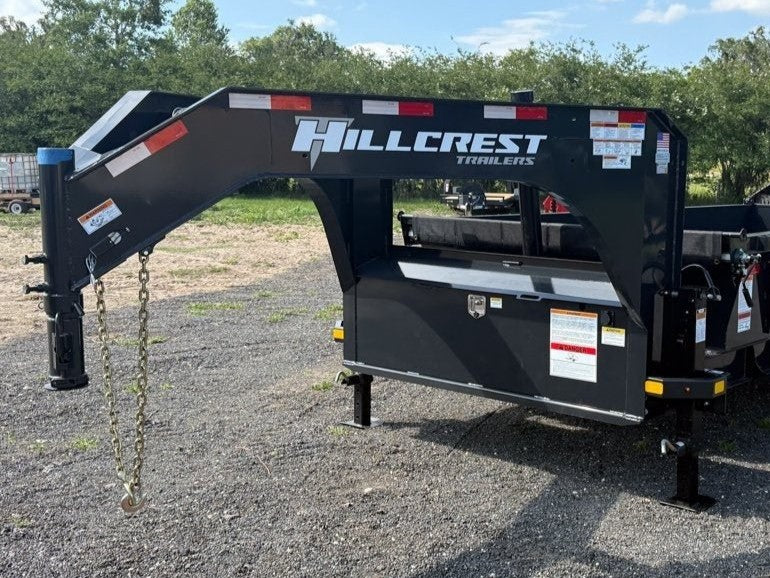

Fabricated I-Beam Gooseneck
Built with a heavy-duty fabricated I-beam gooseneck. This robust connection point provides the strength and stability required for precise control when towing a fully loaded dump trailer.
83-Inch Wide Gooseneck Dump Bed
Features an 83-inch wide dump bed on a gooseneck chassis. The width provides high-volume capacity, and the gooseneck connection offers superior towing stability and control.
7-Gauge Steel Bed Floor
Built with a 7-gauge steel bed floor for maximum durability. The thick material withstands the impact and abrasion of heavy materials like rock, concrete, and demolition debris.
Dual 12k Drop-Leg Jacks
Standard dual 12,000 lb drop-leg jacks provide essential stability when unhooking the loaded gooseneck. This dual setup is critical for safe operation on uneven ground at full capacity.
Product Details
DIMENSIONS
- LENGTH:
- 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 24" or 40"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 15.9k - 17.6k
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Quick Lube Axles
2 - 8k Quick Lube Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 Bolt
- SUSPENSION:
- Spring
GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- Fabricated I-Beam
- JACKS:
- Dual 12k Drop-Leg Jacks
- COUPLER:
- Adjustable 2 5/16"

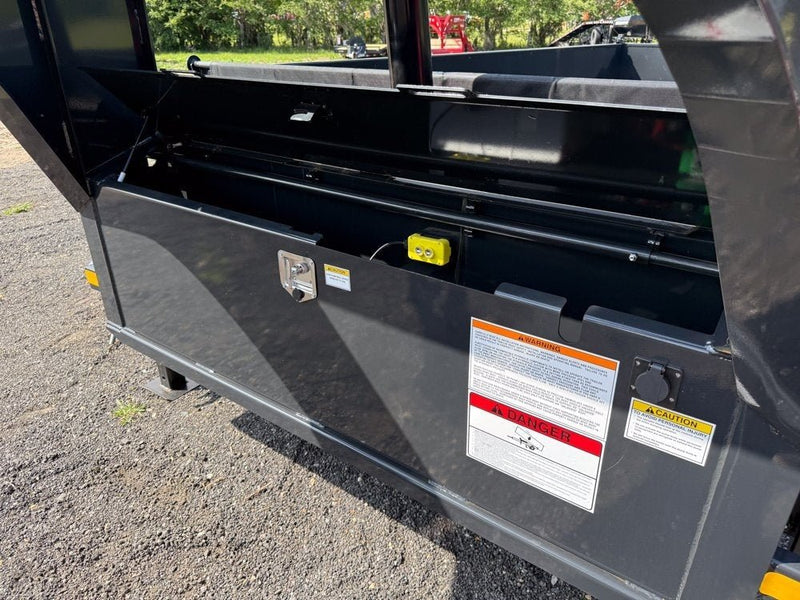

- TOOLBOX:
- Front Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam (13lb/ft)
- BED FRAME:
- 8" I-Beam
- CROSSMEMBERS:
- 3" Channel, 12" Centers
- FLOORING:
- 7ga. Steel Bed
- FENDERS:
- Double Broke Fenders
- STAKE POCKETS:
- Standard Stake Pockets
- D-RINGS:
- 6 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- CYLINDER:
- 12 Ton 3-Stage Telescopic
- STABILIZERS:
- Rear Stabilizer Stands
CARGO & BODY
- GATE:
- 2 Way Spreader Gate
- RAMPS:
- 6.5' HD Slide In Ramps
- TARP:
- Crank Style Roll-Up
- HOOKS:
- J-Hooks Along Sides
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 5 Amp Trickle Charger
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Sandblasted
- COLORS:
- Black, Gray
WARRANTY
- TRAILER WARRANTY:
- 3 Year Limited Warranty
OPTIONS
