At a Glance
- Colors:
-
WhiteGrayDark GrayBlackYellowGreenBlueNavyRed
Featured Video
Product Features
Optimized Weight Structure
Weighing just 12,850lbs, the XLS is engineered for true weight efficiency without compromising durability. With a 68K GVWR, you can maximize your loads while staying within legal limits. Built to perform without excess, this trailer gives you confidence to move more, every haul.
Easy Loading

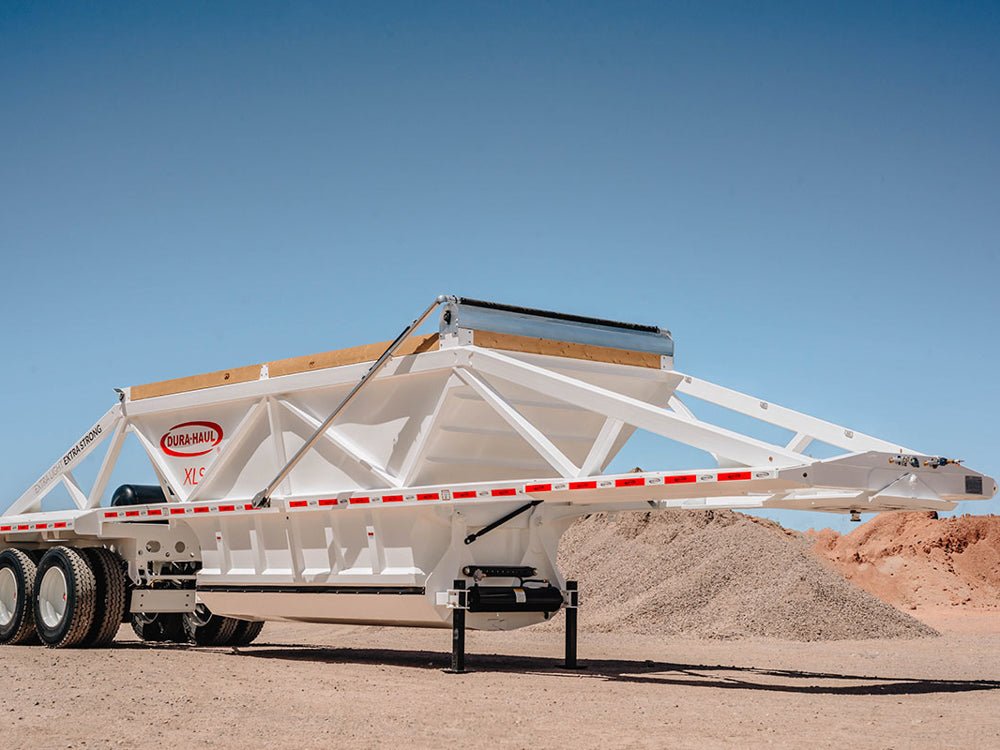

The XLS is truly revolutionary with a low-profile height of only 8’ 11”, significantly reducing risk of damage in any loading situation. It’s optimized design allows smaller equipment like skid steers to dump without touching rub boards! Built to adapt to any loading environment, this trailer ensures you’re ready to handle all opportunities with confidence and ease!
Durable Powder Coat Finish
Engineered to withstand abrasive materials and demanding jobsite conditions, each XLS is steel grit blasted, acid washed, phosphate treated, heated silicone treated, and finished with a durable powder coat. Choose from 10 standard color options for a finish that will represent your trailer with a clean, professional look for years to come!
Options Gallore
Personalize your XLS with a robust line up of options including air ride suspension, lift axles, tarping systems, skid plates, aluminum wheel packages, tire selections, custom colors, pintle hitches and more! Built with versatility in mind, this trailer can adapt to your specific demands and preferences.
Battle Tested Specs
From 3/16 steel gates, to the proven Hutch Spring suspension, the XLS is built with components trusted to perform in the most challenging conditions. Every detail is designed for durability, reliability, and long term performance in the field. With this trailer behind you, you can count on consistent, dependable performance every time you hit the road.

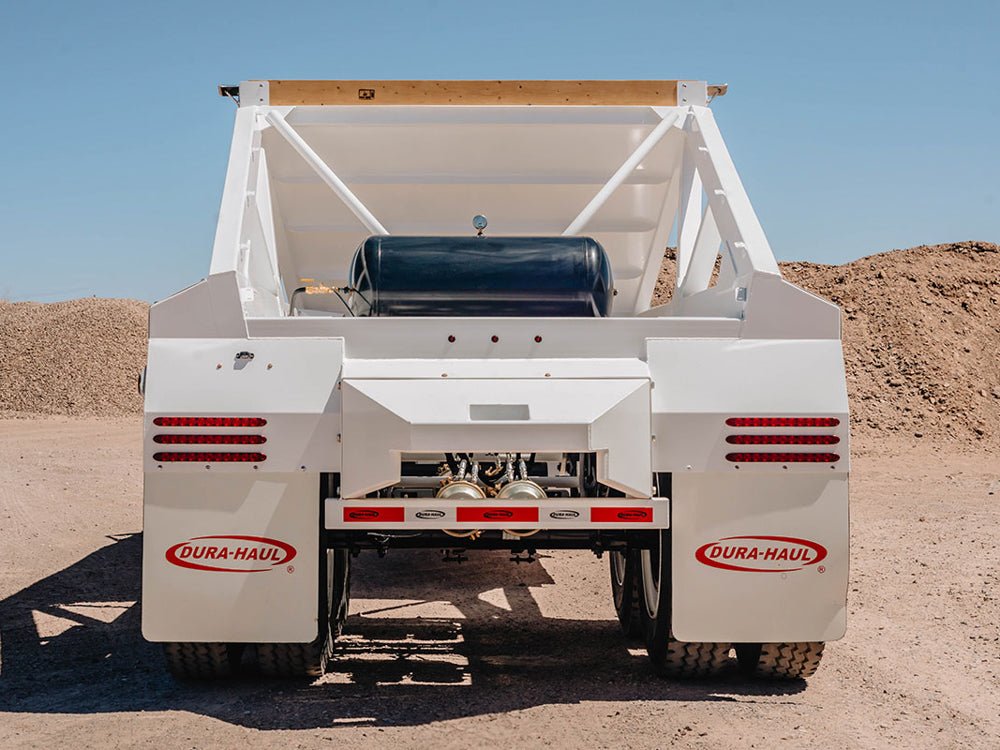

The NEW Dura-Haul

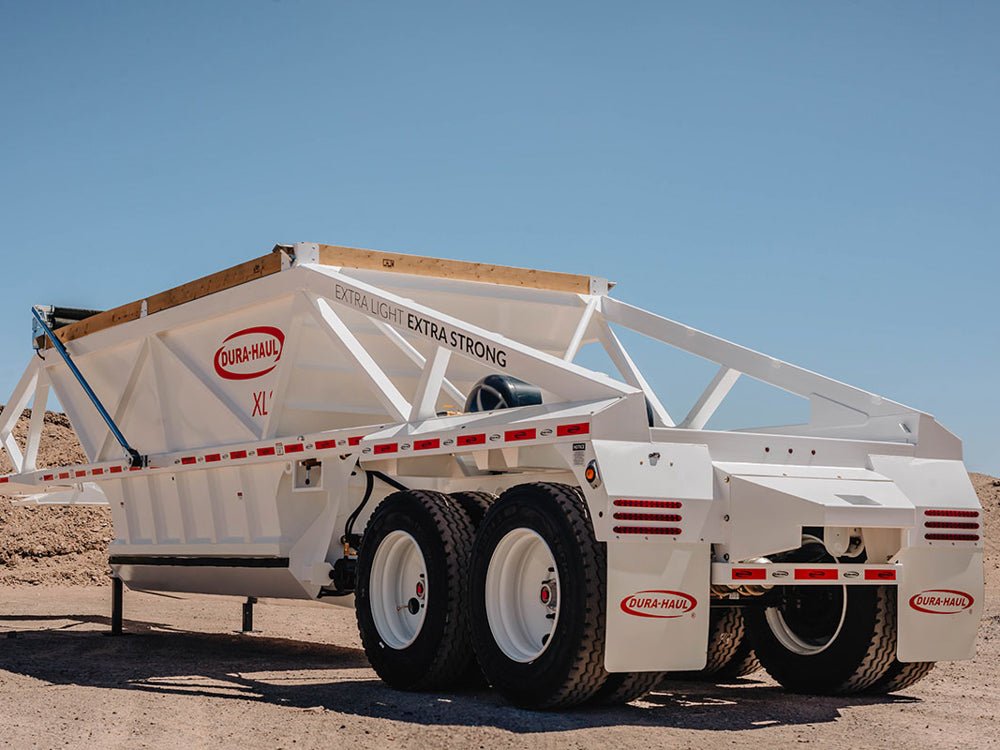

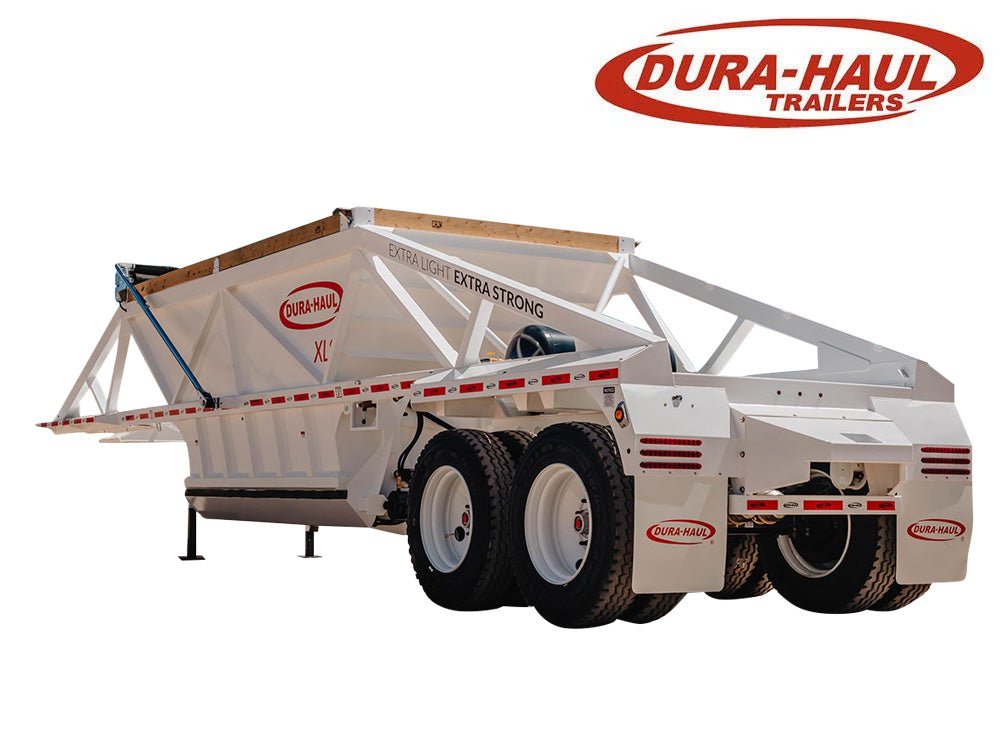

Redesigned from the ground up, the XLS introduces a new standard in bellydump performance. Combining a weight optimized skeleton frame, proven suspension for enhanced stability, a revolutionary 8’ 11” height, and an enhanced gate design to reduce waste and increase spreading efficiency to give operators a trailer capable of tackling any conditions for years after purchase.
Product Details
DIMENSIONS
- LENGTH:
- 40'
- DECK WIDTH:
- 96"
- OVERALL HEIGHT:
- 8'11"
- TRAILER TYPE:
- Belly Dump
- PULL TYPE:
- King Pin (Semi Trailer)
- MODEL:
- Dura-Haul XLS Belly Dump (Skeleton)
WEIGHT RATINGS
- GAWR:
- 25k
- ESTIMATE DRY WEIGHT:
- 12.9k lbs
- AXLE COUNT:
- 2
HOPPER SPECS
- HOPPER CAPACITY:
- 23.5 Cu. Yards (w/ 6" Bang Boards)
- UPPER HOPPER:
- 10ga. Steel Plate
- LOWER HOPPER:
- 3/16" Steel Plate
- SIDES:
- Skeleton Sides
FINISH
- PAINT TYPE:
- Powder Coat
- PREP:
- Steel Grit Blasting / Acid Wash / Phosphate Treatment / Heated Silicone Treatment
- COLORS:
- White (DH-G01)
Gray (DH-G02)
Dark Gray (DH-G03)
Dark Blue (DH-G04)
Black (DH-G04)
Yellow (DH-Y01)
Blue (DH-B01)
Navy (DH-B02)
Red (DH-R01)
GOOSENECK
- FIFTH WHEEL:
- Oscillating Fifth Wheel Plate
- LANDING GEAR:
- Drop Down Adjustable Landing Legs
FRAME & CONSTRUCTION

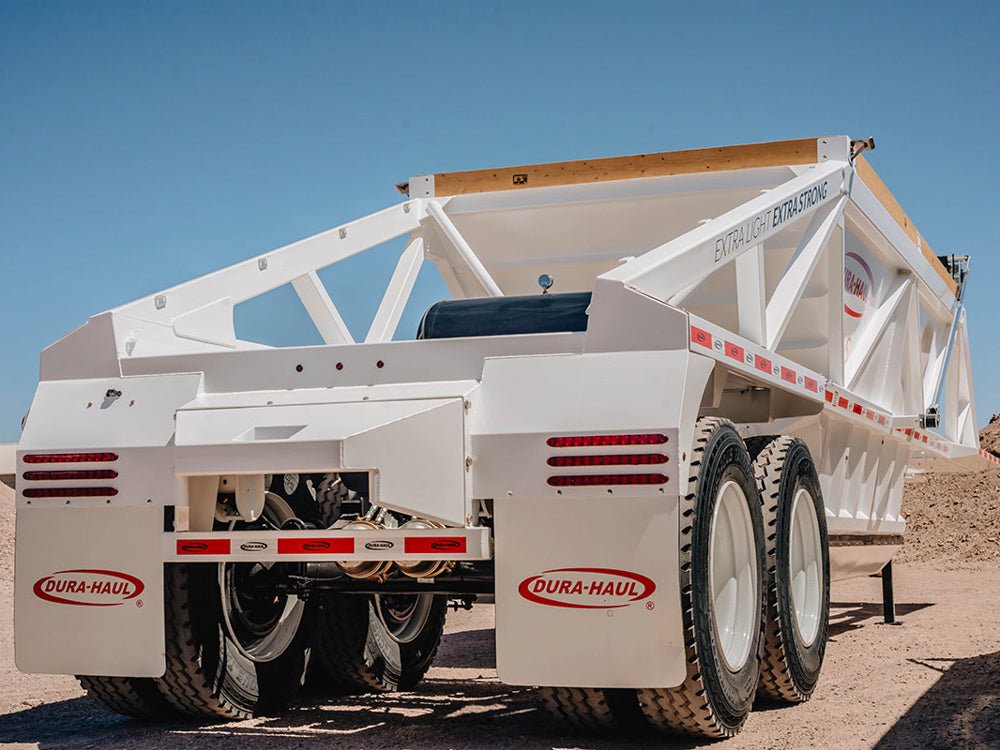

- REAR BUMPER:
- Push Block w/ DOT Approved Under Ride Bumper
GATE SPECS
- GATES:
- 3/16" Steel Gates w/ Bar Stops

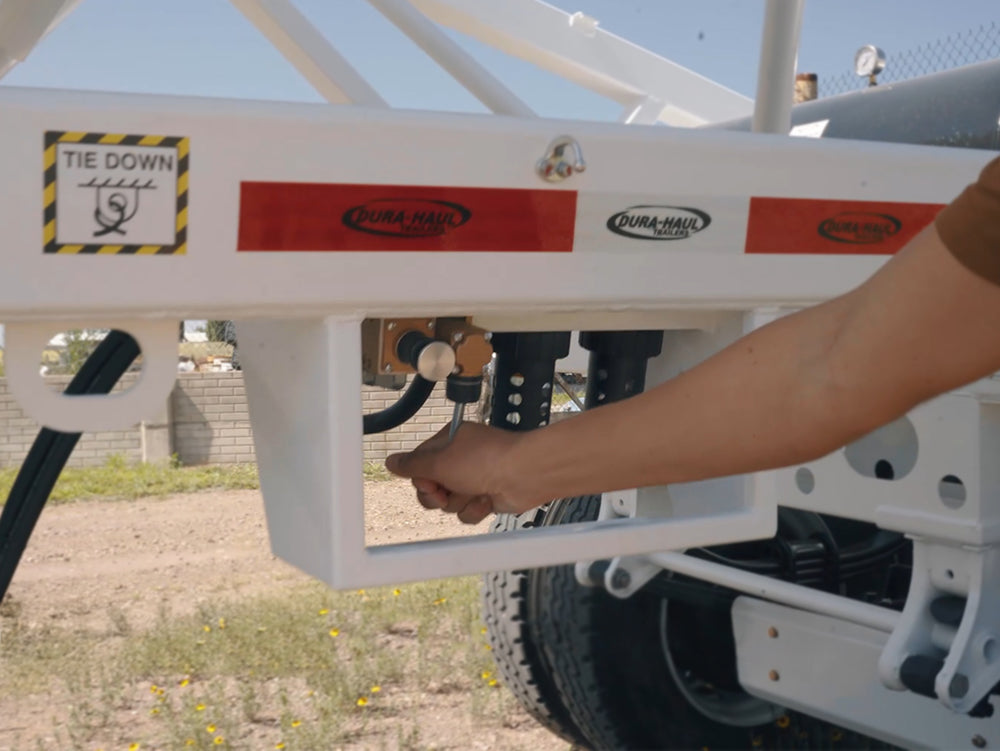

- GATE OPERATION:
- Manual Air Control & Electric Cab Control
- GATE STOP:
- Bar Stops

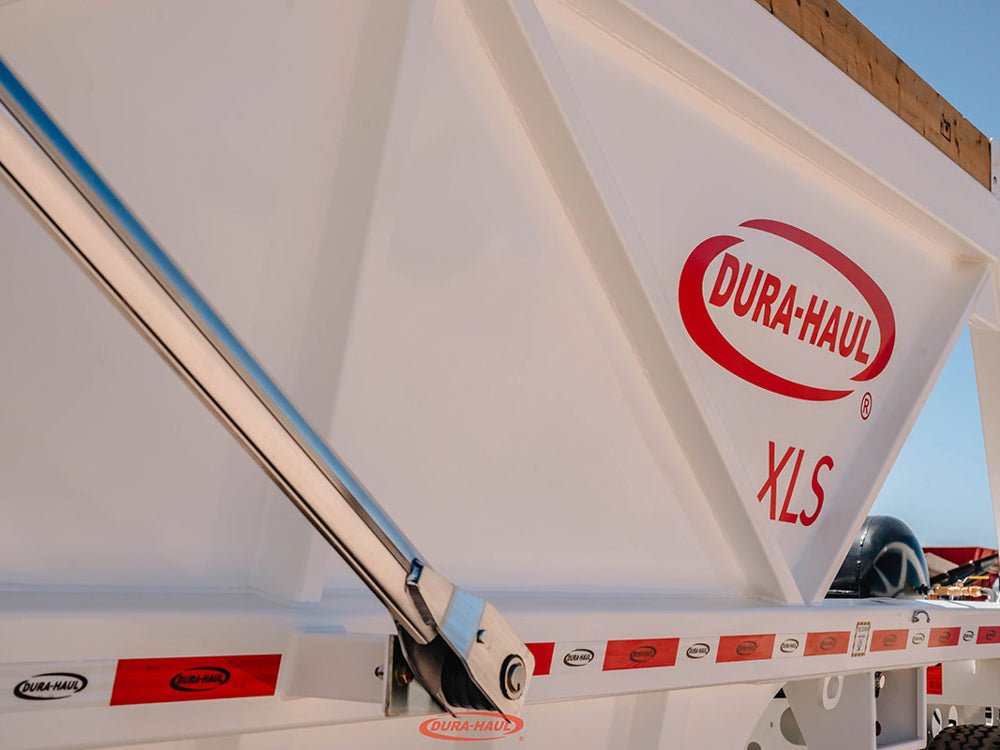

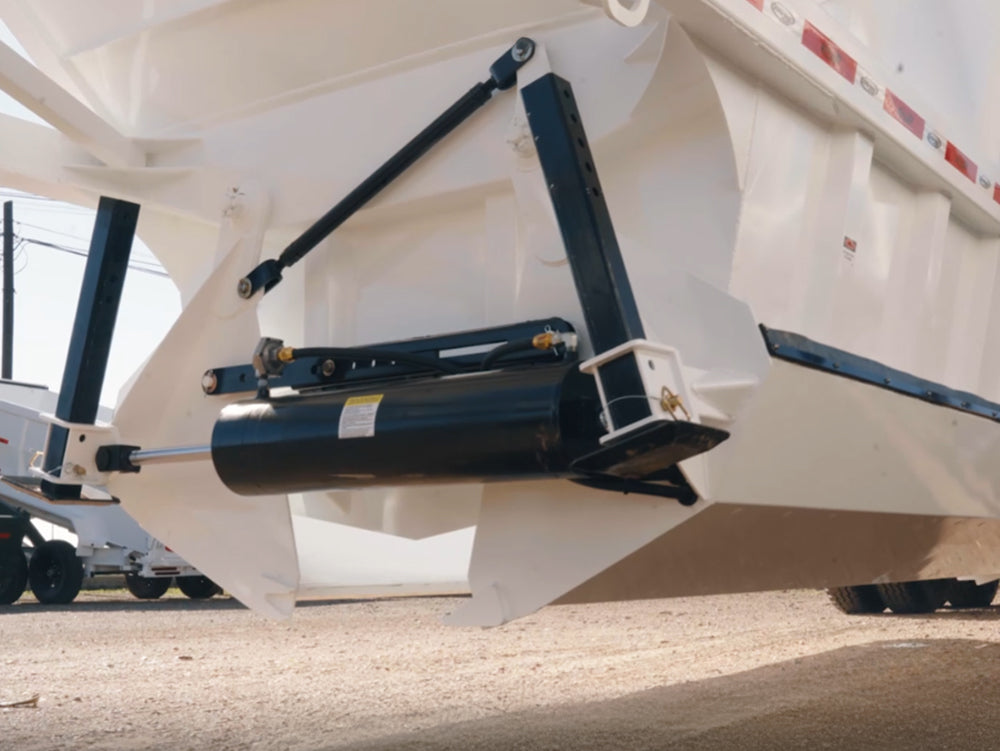

- GATE CYLINDERS:
- 2 - 8" OEM Bore Cylinders
- TARP:
- Numerous Tarp Options Available
ELECTRICAL & LIGHTING
- LIGHTING:
- Full DOT Approved LED Sealed w/ Junction Box
- ABS SYSTEM:
- ABS Sensors on Rear Axle
AIR PLUMBING

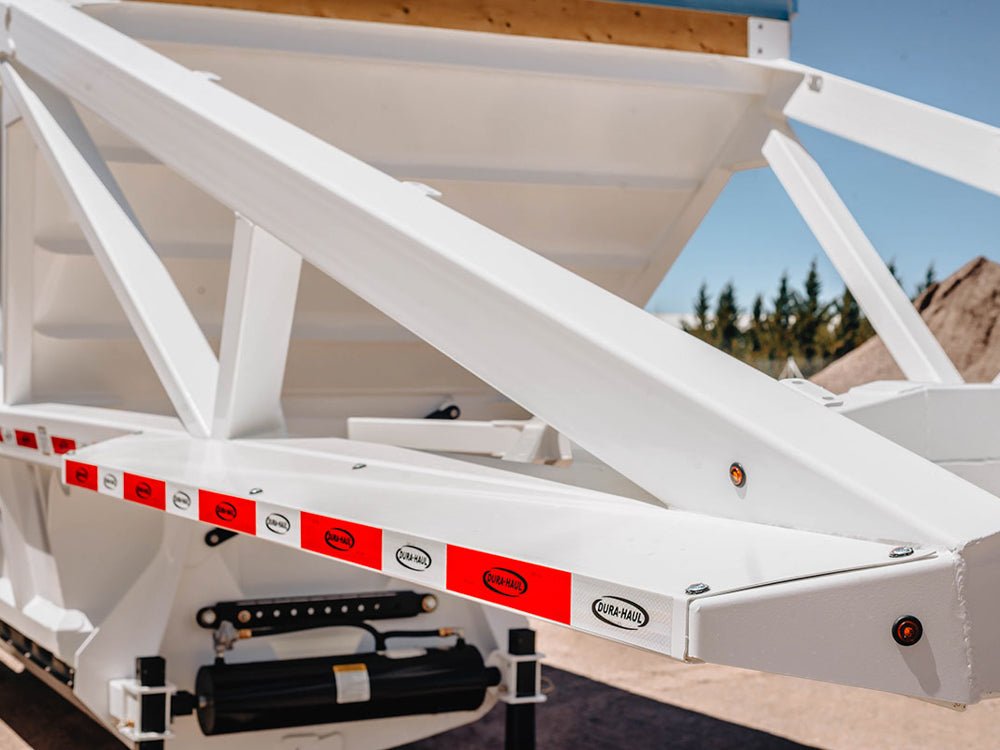

- AIR TANKS:
- 60 Gal. Reservoir
- OIL/WATER FILTERS:
- Included

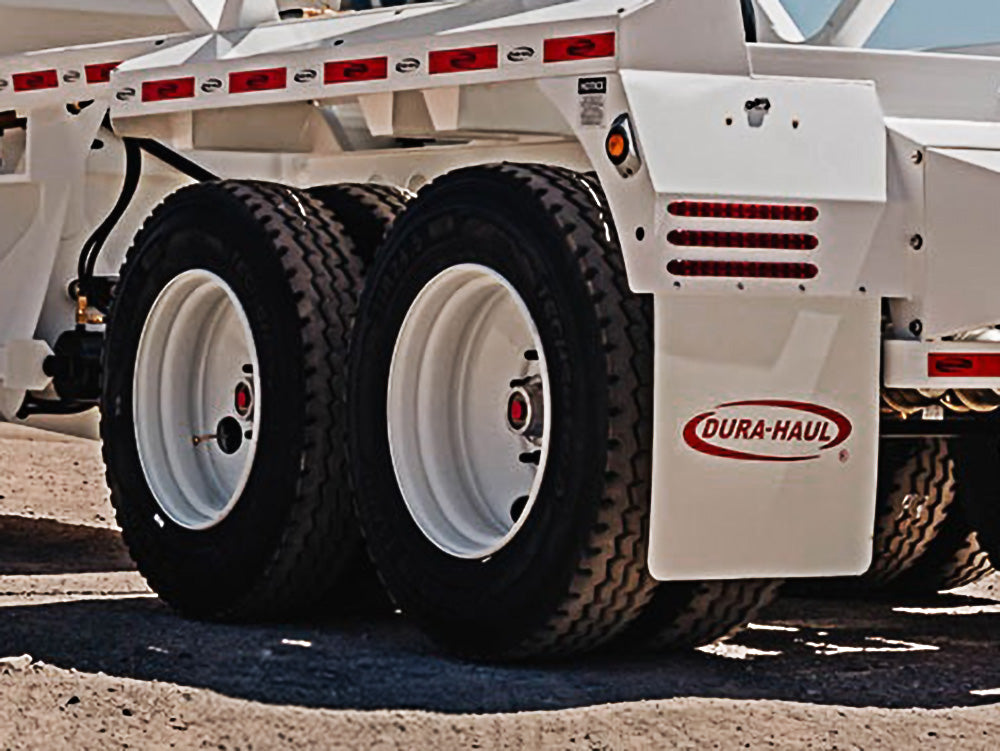

RUNNING GEAR
- AXLE TYPE:
- 2 - 25k lbs Capacity
- TRACK WIDTH:
- 71.5" (77.5" Available)

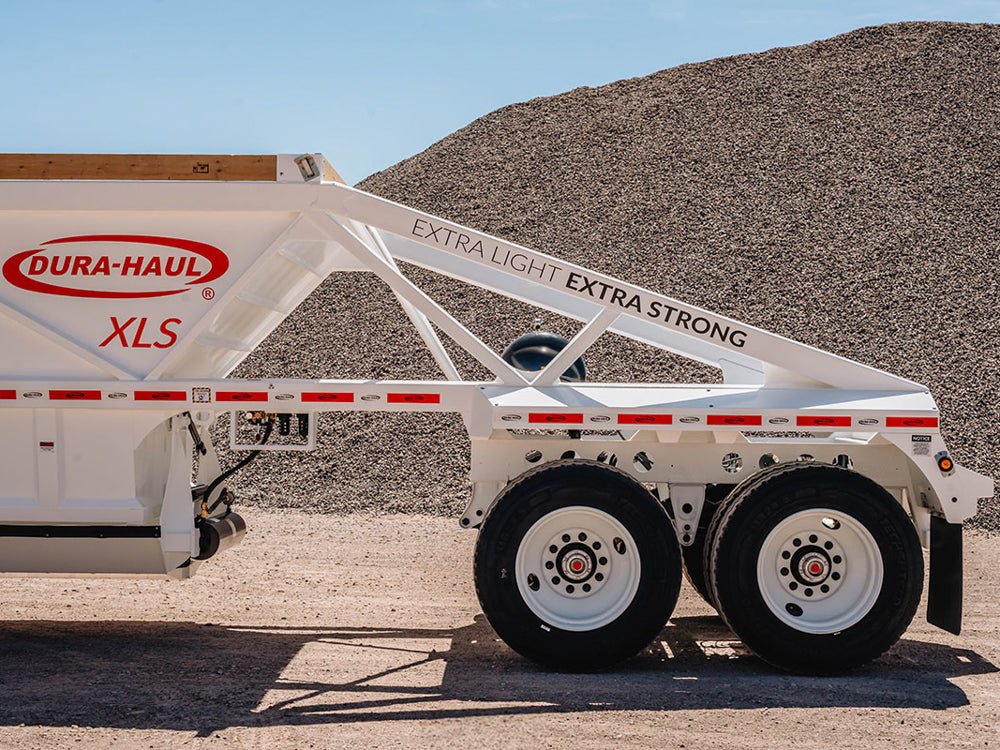

- SUSPENSION TYPE:
- Hutch H-9700 4-Spring 3-Leaf
TIRES & WHEELS
- TIRE SIZE:
- 11R x 24.5
- OUTER WHEELS:
- 8 - 8.25 x 24.5 Steel Wheels
- WHEEL WIDTH:
- 8.25"
BRAKES
- ABS SYSTEM:
- ABS Sensors on Rear Axle
OPTIONS
