At a Glance
TRAILER SPECS:
Specifications
- Brand:
Dura-Haul
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
14'-16'
- SIDE HEIGHT:
4'
Finish

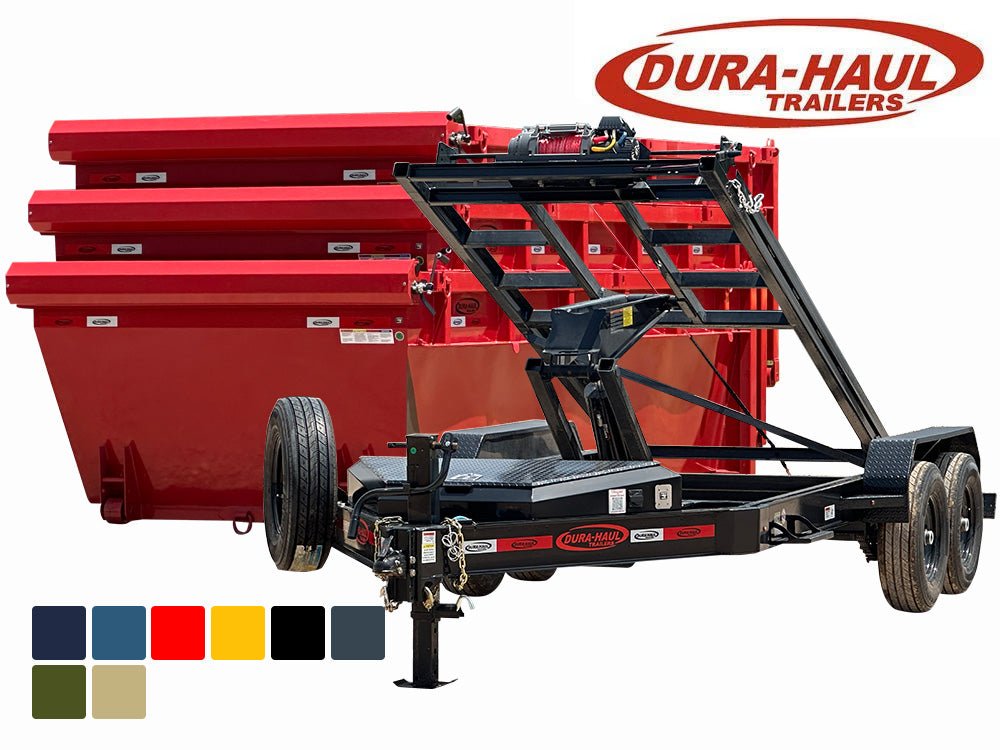

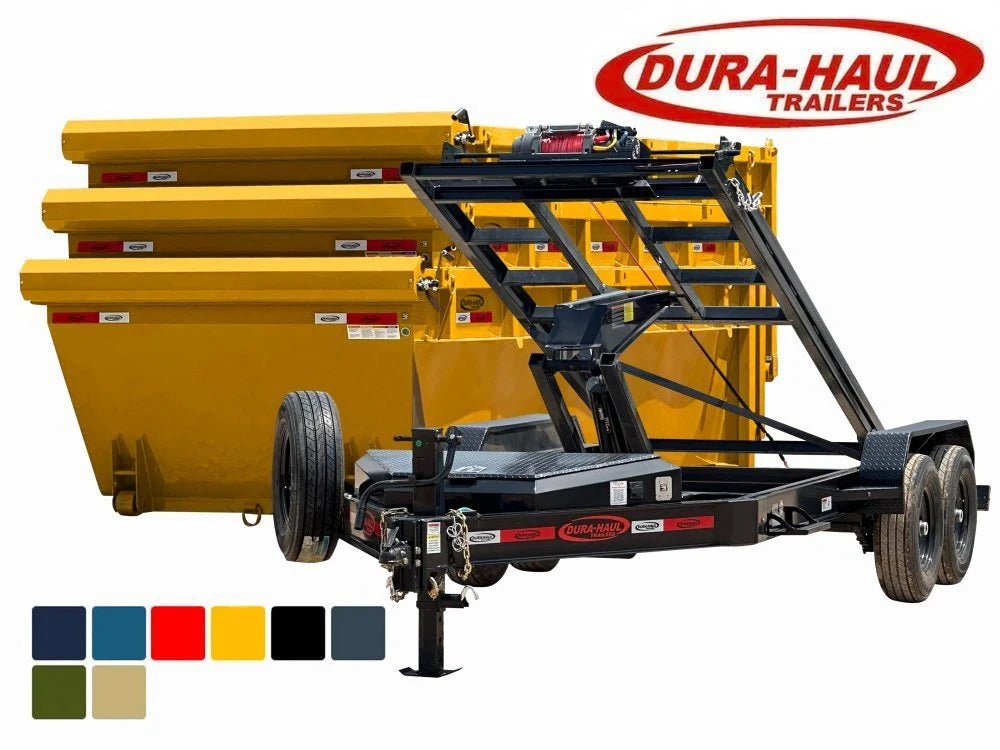

- Colors:
-
Postal BlueVirginia BlueRedCat YellowBlackCharcoalMilitary GreenDesert Tan
Get a Custom Quote
Featured Video
Product Features
48” High Fully Formed Sides
Contain heavy loads with 48” high, fully formed sides topped with a 10 gauge, 2.75” x 4.25” rail.
7 Gauge Smooth Plate Flooring
Built tough with 7 gauge smooth plate flooring, supported by a 3” channel bed with 16” on-center cross members.
Triple Locking Door System
Ensure safety with open door safety locks, an HD clamp lock system, and a Twix door locking system.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Dura-Haul Base BP Roll Off Trailer
- LENGTH:
- 14’, 16’
- GVWR:
- 16,800 lbs (7K axles), 19,200 lbs (8K axles)
- GAWR:
- 7,000 lbs (7K axles), 8,000 lbs (8K axles)
WEIGHT RATING OPTIONS:
- WEIGHT:
- 3,440 lbs (14’), 3,840 lbs (16’)
BIN:
- MODEL:
- Roll Off Bin
- BOX WIDTH:
- 83.75” at the top, 72” at the bottom
- TARP WIDTH:
- 90”
- TOP BOX WIDTH:
- 84”
- HEIGHT:
- 48” (sides)
FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 8” or 10” ultra strong I-beam
- FENDERS:
- Diamond plate fenders

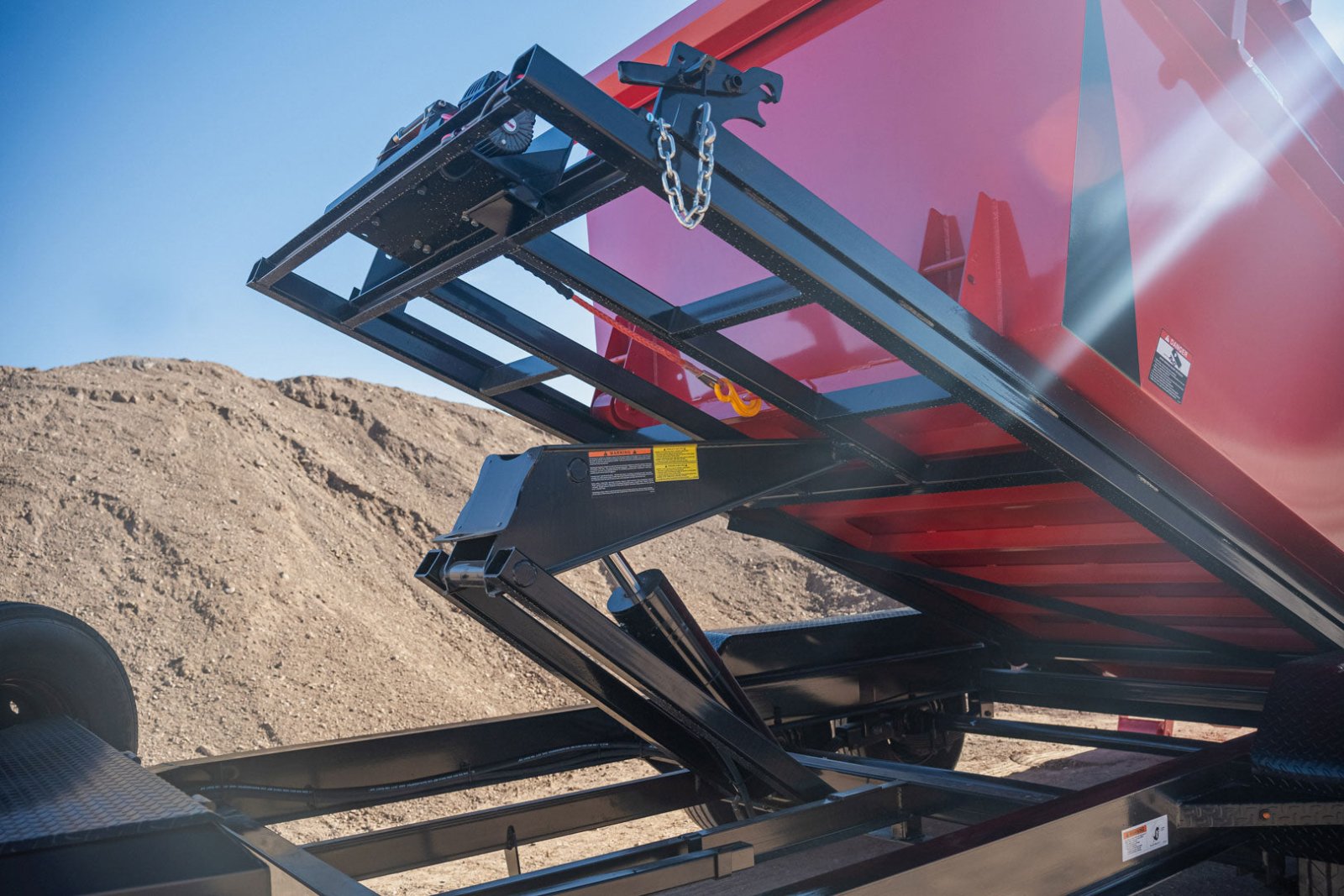

- LIFT SYSTEM:
- Heavy duty hydraulic scissor lift
- FLOOR:
- 7 gauge smooth plate flooring
- FRAME STRUCTURE:
- 3” channel bed with 16” on-center cross members
- ROLLERS:
- Greasable rollers with grease zerk
WALLS & SIDES:
- SIDE WALLS:
- 48” high fully formed sides
- TOP RAIL:
- 10 gauge top rail, 2.75” x 4.25”
- TOP BOX:
- Extra large capacity 84” wide top box
FINISH:
- TYPE:
- Powder coat finish
- PAINTING PROCESS STEP 1:
- Steel grit blasting
- PAINTING PROCESS STEP 2:
- Acid wash
- PAINTING PROCESS STEP 3:
- Phosphate treatment
- PAINTING PROCESS STEP 4:
- Heated silicone treatment
- PAINTING PROCESS STEP 5:
- Powder coat finish
TONGUE & STORAGE
TONGUE:
- COUPLER:
- Adjustable pop-up 2-5/16” coupler with EZ latch for quick release outside truck bed
- JACK:
- 2 x 12,000 lbs spring-loaded adjustable leg crank jacks
STORAGE:

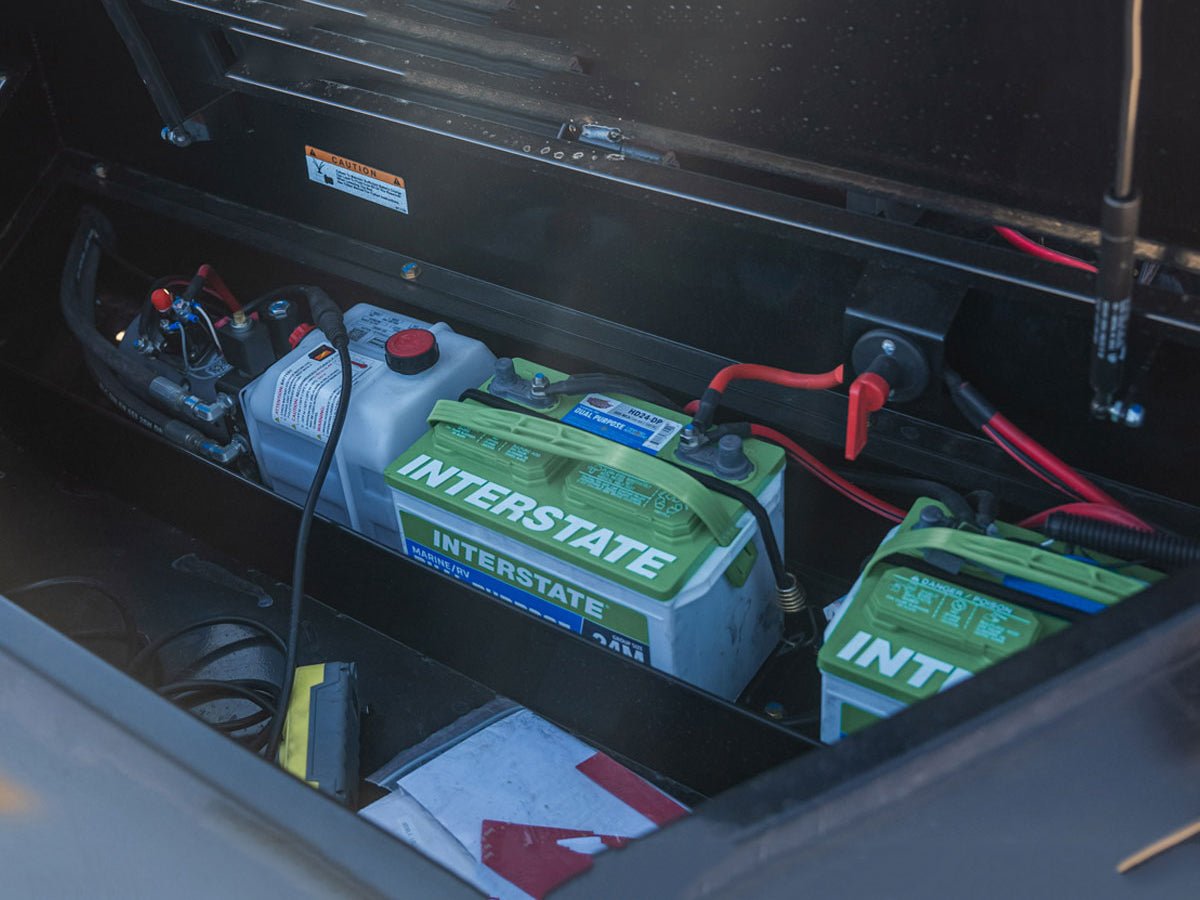

- TOOL BOX:
- Lockable 2.85 cu ft toolbox with charger, pump, dual batteries, and remote control
RUNNING GEAR & SAFETY
RUNNING GEAR:
- AXLES:
- 7K or 8K tandem axles with electric brakes
- RATING:
- 7,000 lbs (7K axles), 8,000 lbs (8K axles)
- BRAKES:
- Electric
- TIRES:
- ST235/80 R16 LRE
- TIRE SIZE:
- ST235/80 R16
- RIMS:
- 16” 8-hole wheels
- SUSPENSION:
- Multi-leaf spring suspension with equalizer
- HUBS:
- Quick lube hubs with dust caps
RUNNING GEAR OPTIONS:
- AXLE OPTIONS:
- Choice of 7K or 8K axles
SAFETY:
- SAFETY CHAINS:
- 2 safety chains
- BREAKAWAY SYSTEM:
- Safe breakaway system with cable
SAFETY & ACCESSIBILITY:
- DOOR LOCKS:
- Open door safety locks
- CLAMP LOCK:
- HD clamp lock system
- TWIX LOCK:
- Twix door locking system
- LIGHTING:
- Fender side rear LED markers, DOT approved
LOADING & ELECTRICAL
LOADING:
- DECK:
- Optional deck
- FLATBED ATTACHMENT:
- Available
- BOX HEIGHT:
- 4’ or 6’ options
ELECTRICAL & LIGHTING:
- FRAME WIRING:
- All-weather wiring harness
CARGO MANAGEMENT & OPTIONS
CARGO:

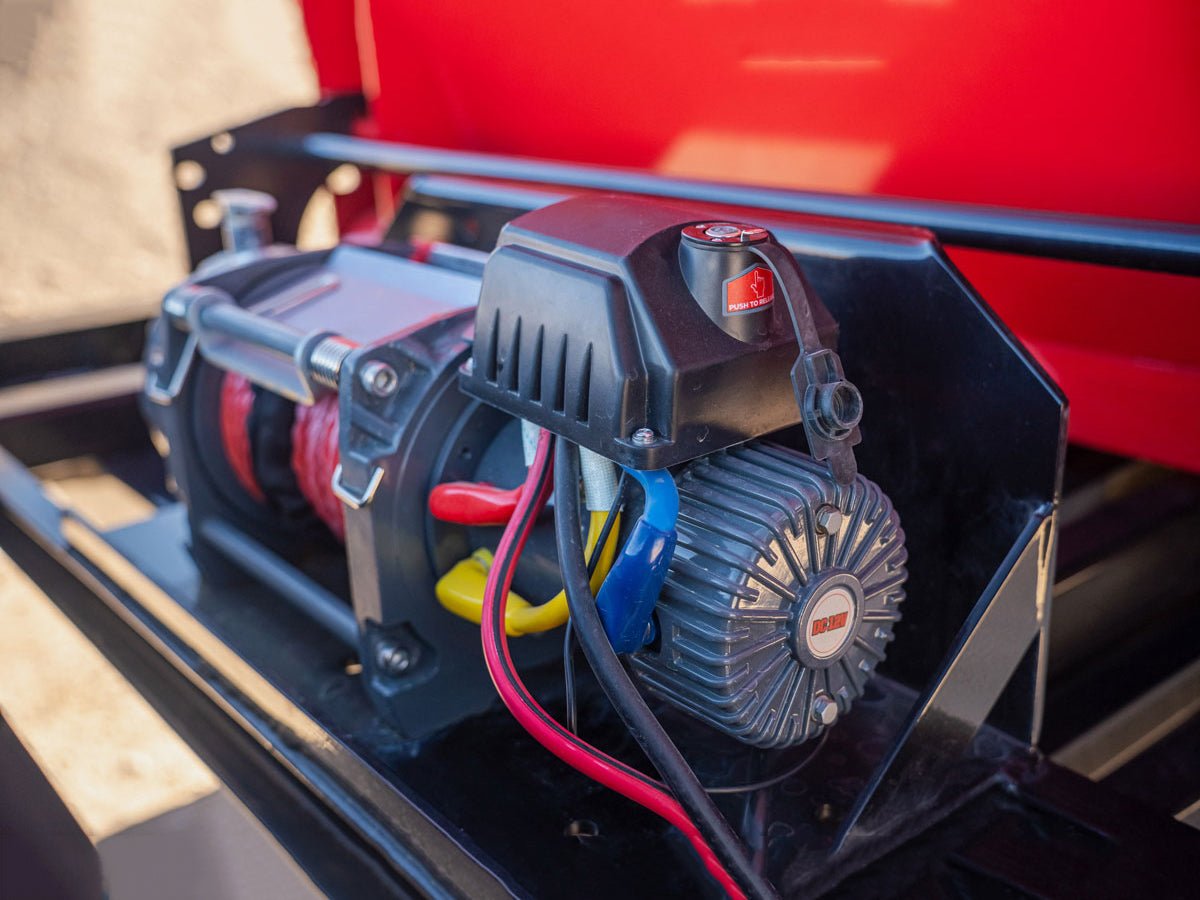

- WINCH:
- 17.5K Warrior wireless winch
- TARP:
- 90” wide tarp with crank roller style
- TARP COVER:
- Included
- TARP HOOKS:
- Rear rod tarp hooks
- D-RINGS:
- (4) 1/2” D-rings inside of bed
- EXTENSION POCKETS:
- 12 extension pockets
- STACK UP POCKETS:
- Included
POPULAR OPTIONS:
- COLOR:
- Custom color options
- TARP:
- Manual or electrical tarp
- SPARE TIRE:
- Available
