At a Glance
- Colors:
-
Onyx BlackMocha MetallicCarbon Metallic GrayDynamic Blue MetallicPlatinum Silver MetallicScarlet RedArctic WhiteCement Gray
Featured Video
Product Features
Premium Powdercoat Finish
The trailer is finished with a durable powdercoat applied through a 5-step preparation process. Available in eight colors, this high-quality finish provides superior protection against rust, scratches, and UV damage for long-term durability.

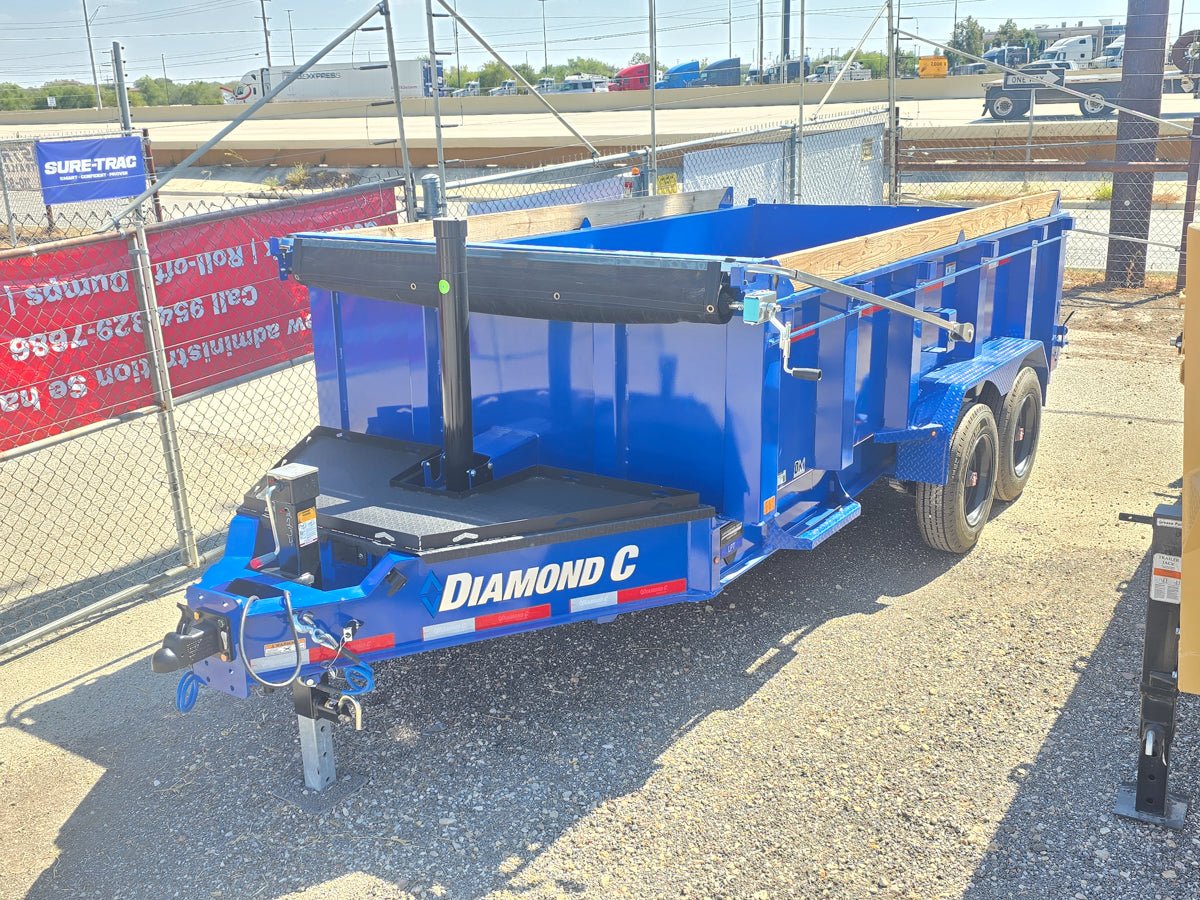

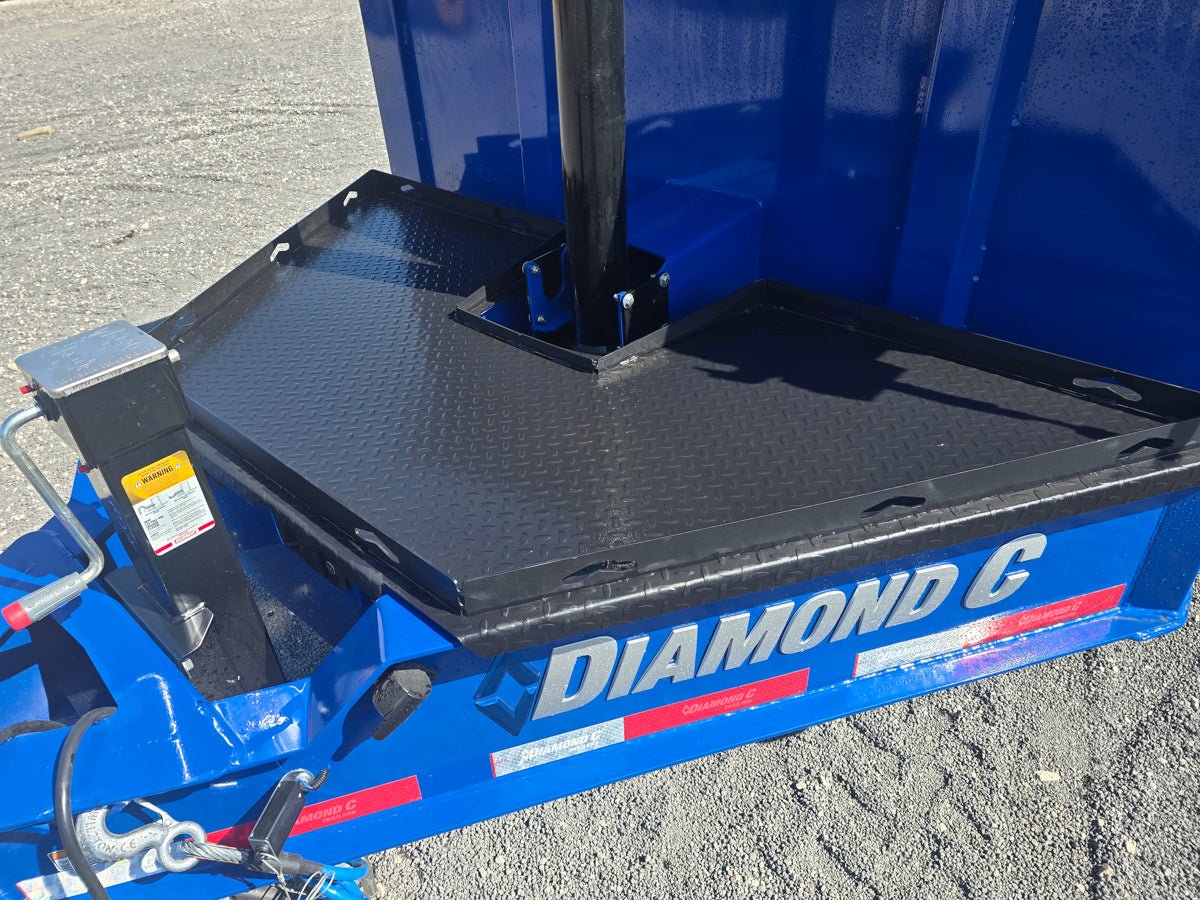

HD V-Tongue Toolbox
Includes a heavy-duty diamond plate V-tongue toolbox. This integrated design provides secure, lockable storage for tools and chains while maximizing the structural integrity of the trailer's front end.

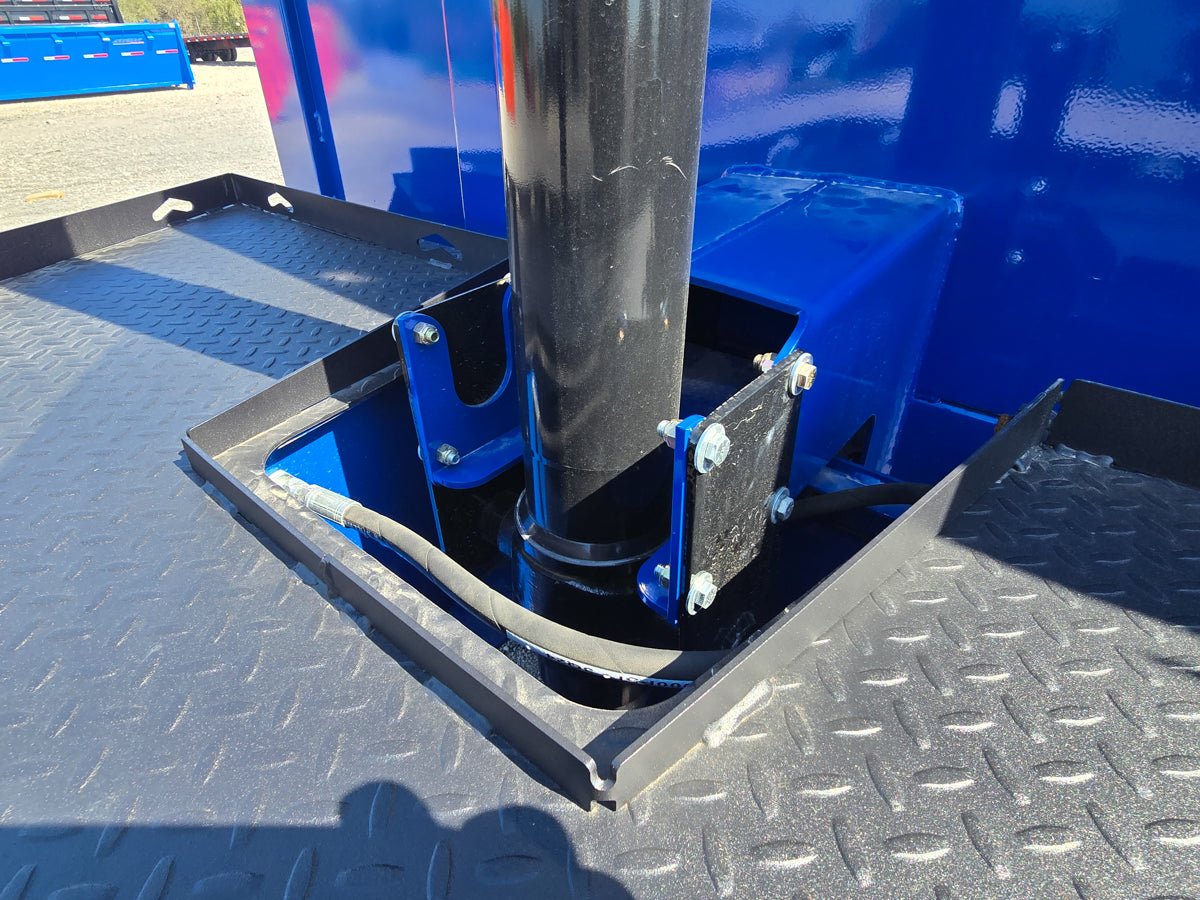

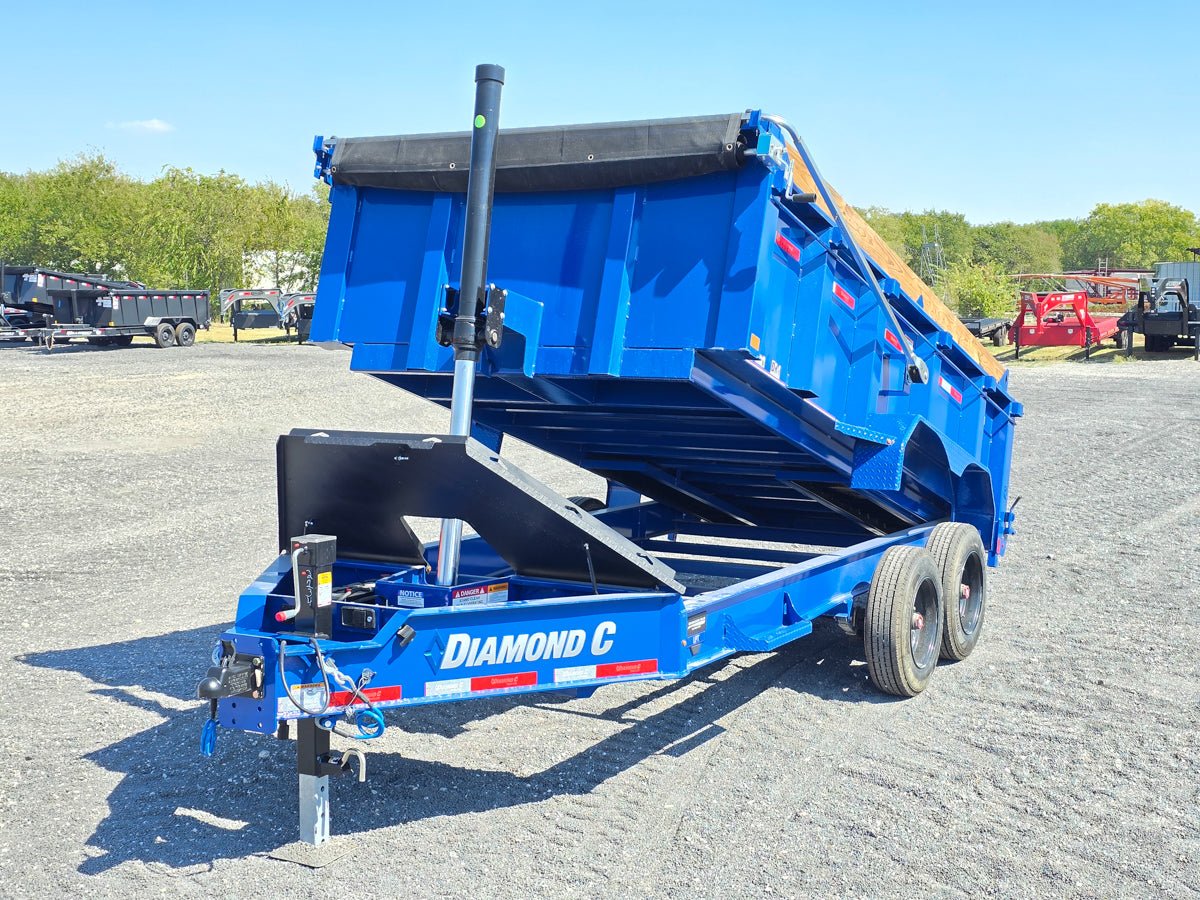

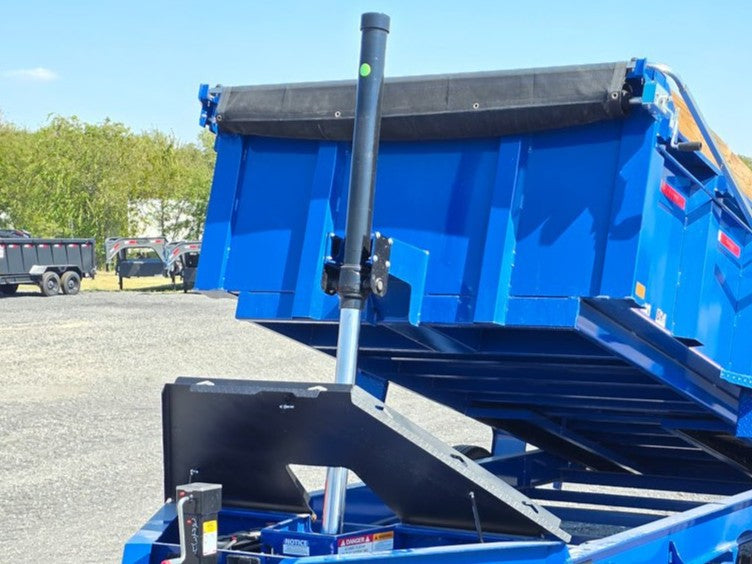

3-Stage Telescopic Lift Cylinder
Equipped with a heavy-duty 3-stage telescopic cylinder. This system provides the maximum possible dump height and lifting power from a compact starting position, ensuring complete material clearance.
8-Inch I-Beam Frame
Constructed with a heavy 8-inch I-beam main frame weighing 15 lbs/ft and 3-inch I-beam crossmembers on 16-inch centers. This provides a rigid platform for the 23,000 lb GVWR capacity.

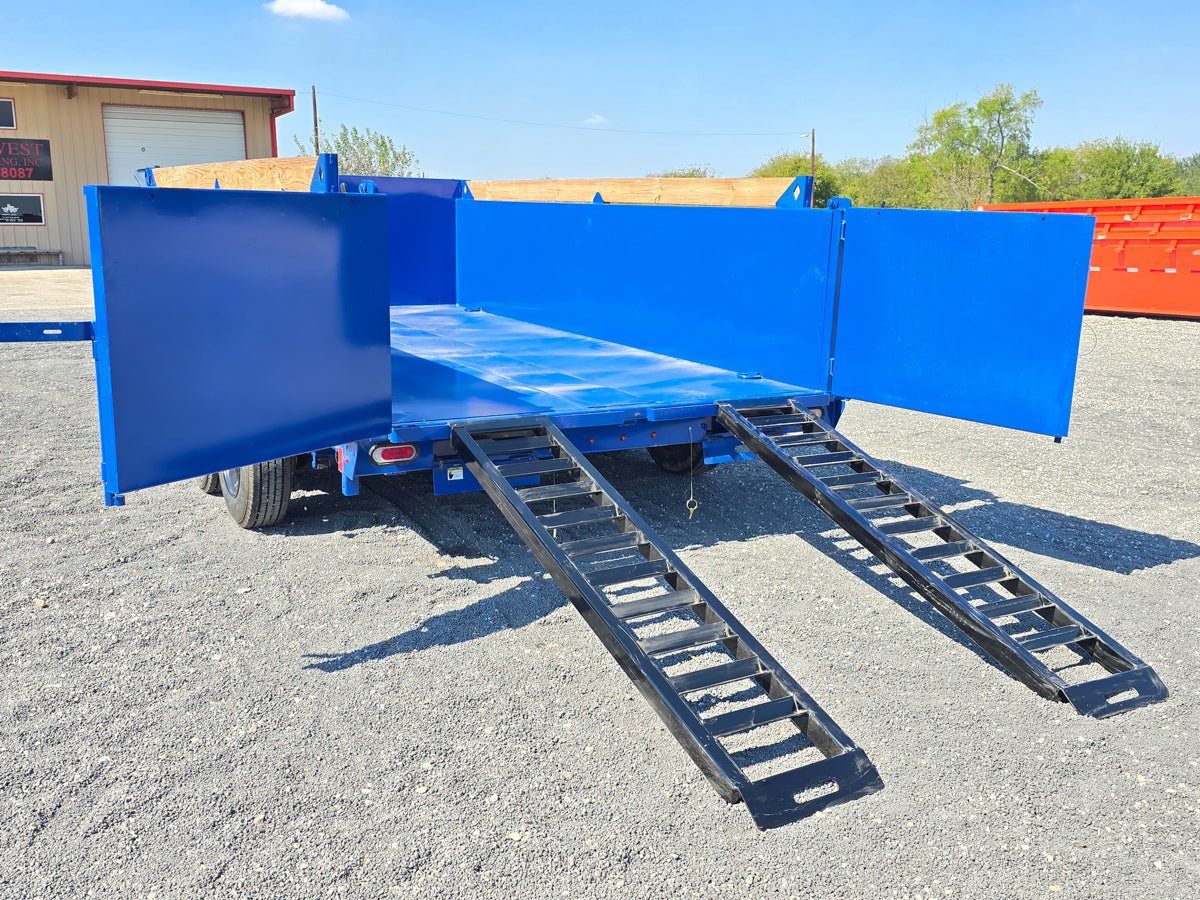

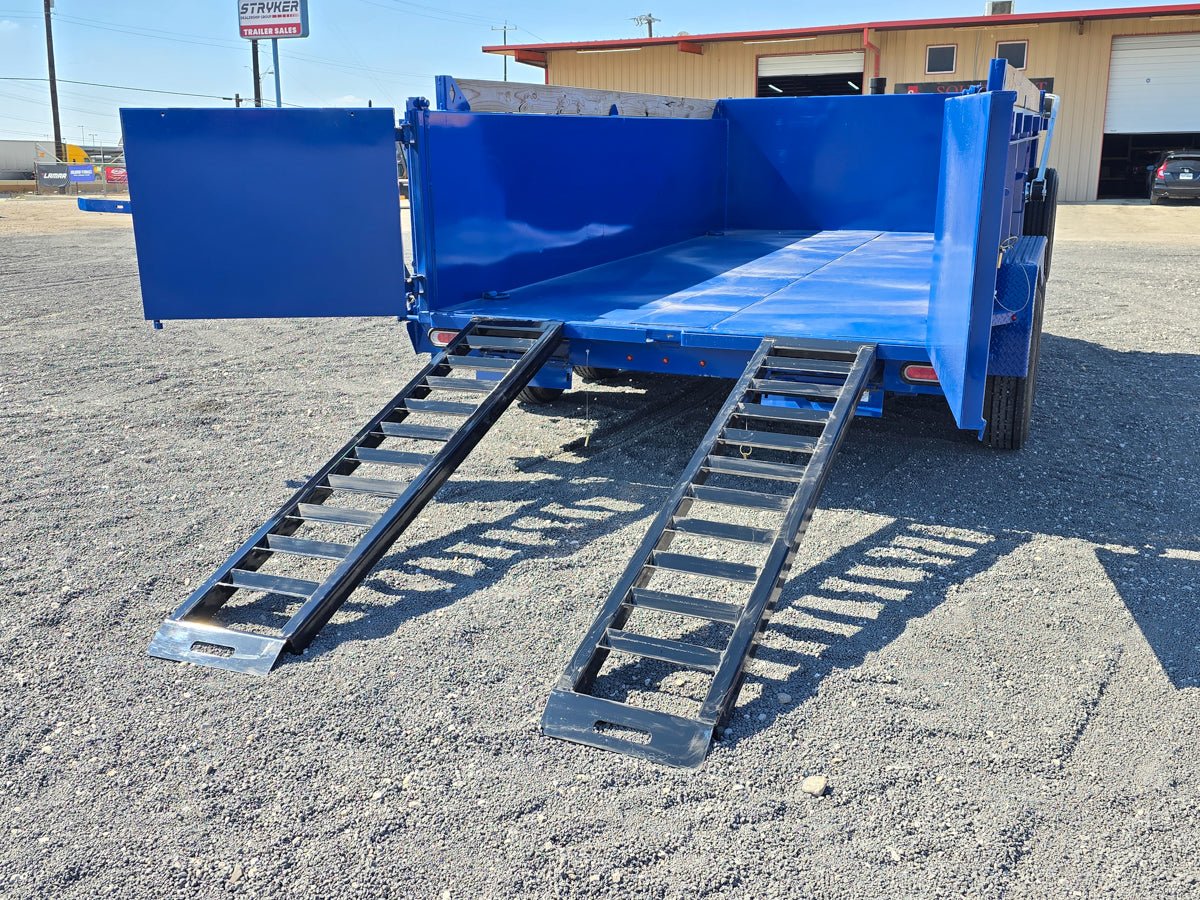

6.5-Foot Slide-In Ramps
Utilizes 78-inch slide-in ramps, providing a longer, more gradual loading surface than standard 5-foot ramps. This extra length is crucial for safely loading equipment like skid steers.
Multi-Capacity Axle Options
Available with 7k Super Lube, 8k Oil-Bath, or 10k Super Single axles. The higher capacity axles feature a torsion suspension for a smoother ride, while all options provide a reliable foundation for the trailer's 23,000 lb GVWR capacity.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- BED WIDTH:
- 81" - 82"
- SIDE HEIGHT:
- 24" - 44"
- DECK HEIGHT:
- 22" - 27"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k, 10k SS
- GVWR:
- 15.5k - 23k
SAFETY & FEATURES
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains

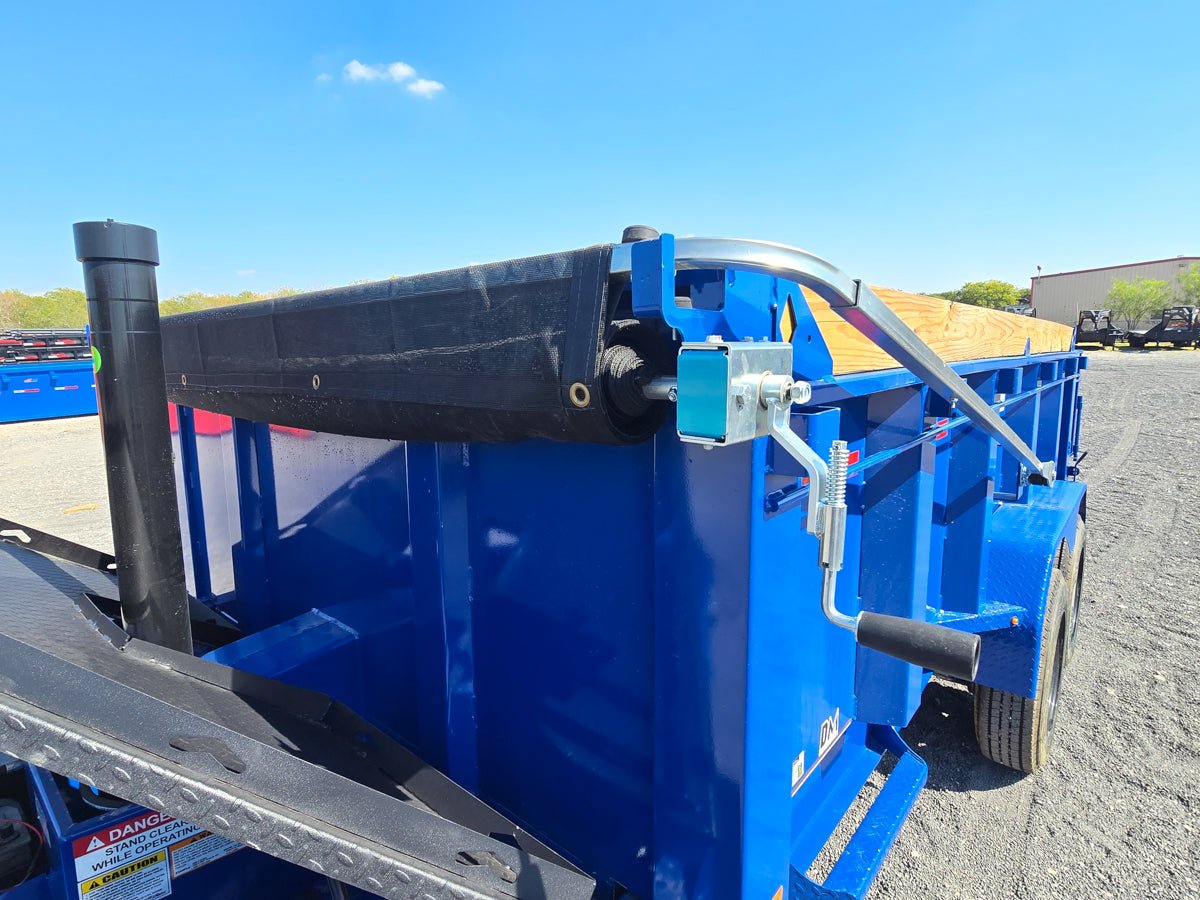

- TARP:
- Crank Style Roll-Up Tarp

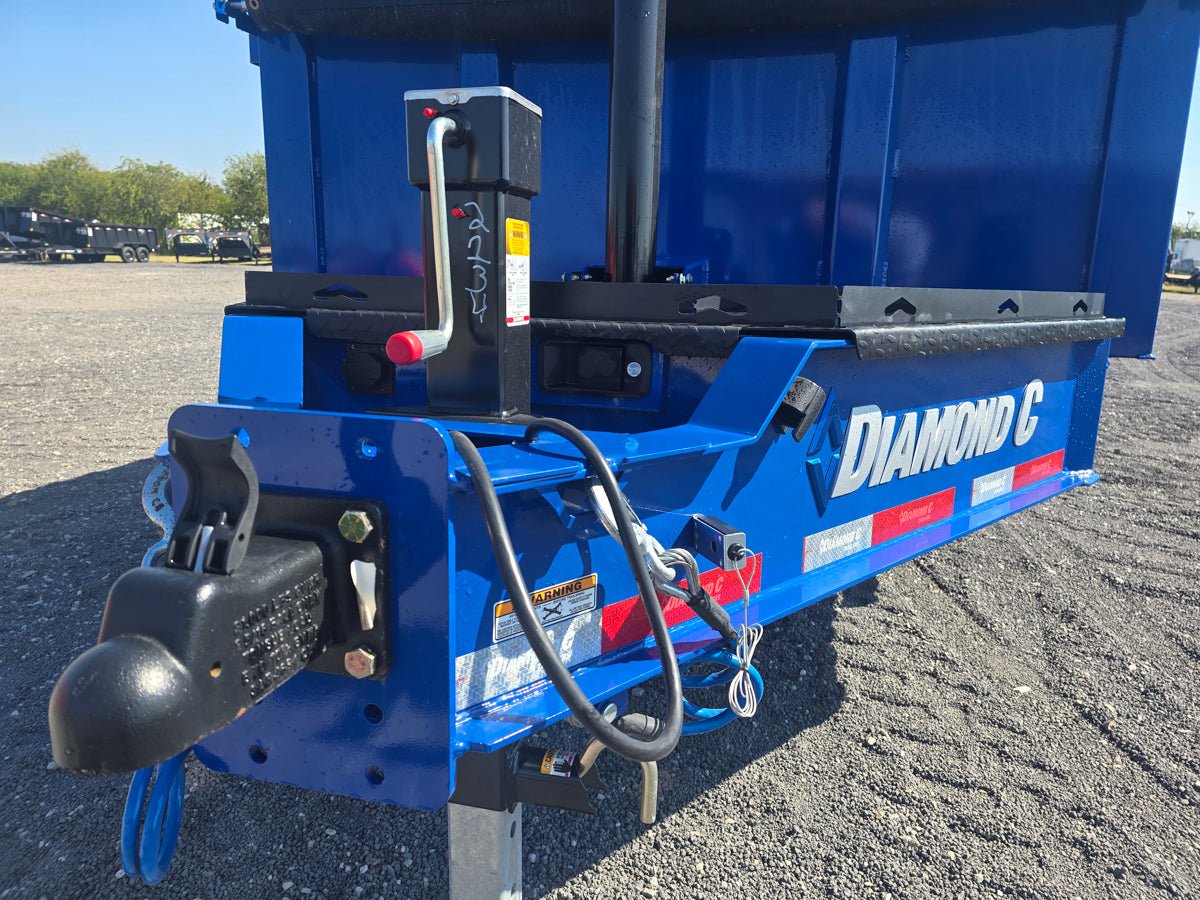

TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- Bumper Pull
- LENGTH:
- 70 1/2"
- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler (21,000 lbs)
- FRONT JACK BP:
- Single 15k 2 Speed Drop-Leg Jack
- TOOLBOX BP:
- HD V-Tongue Toolbox
CARGO AREA
- FLOORING:
- 10ga. Steel Bed

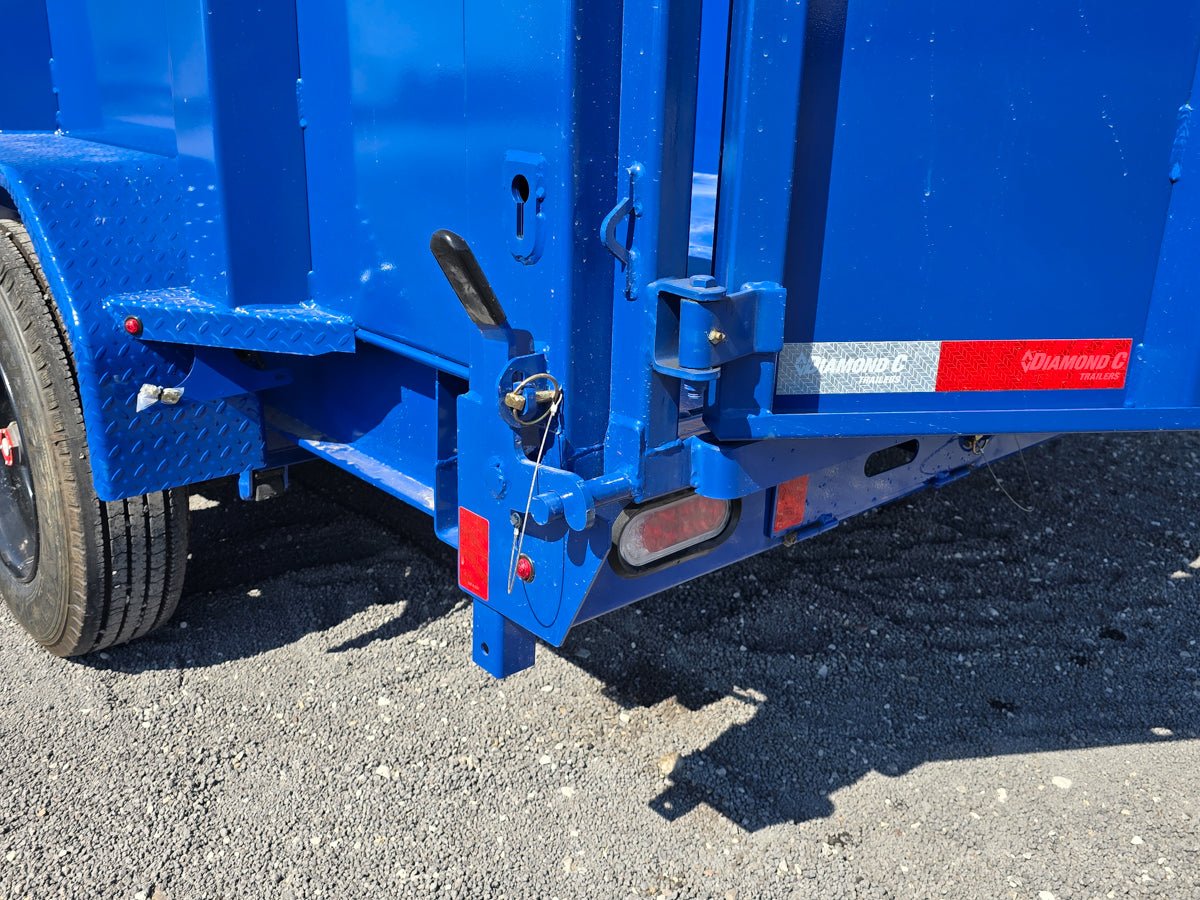

- GATE:
- 3 Way Spreader Gate

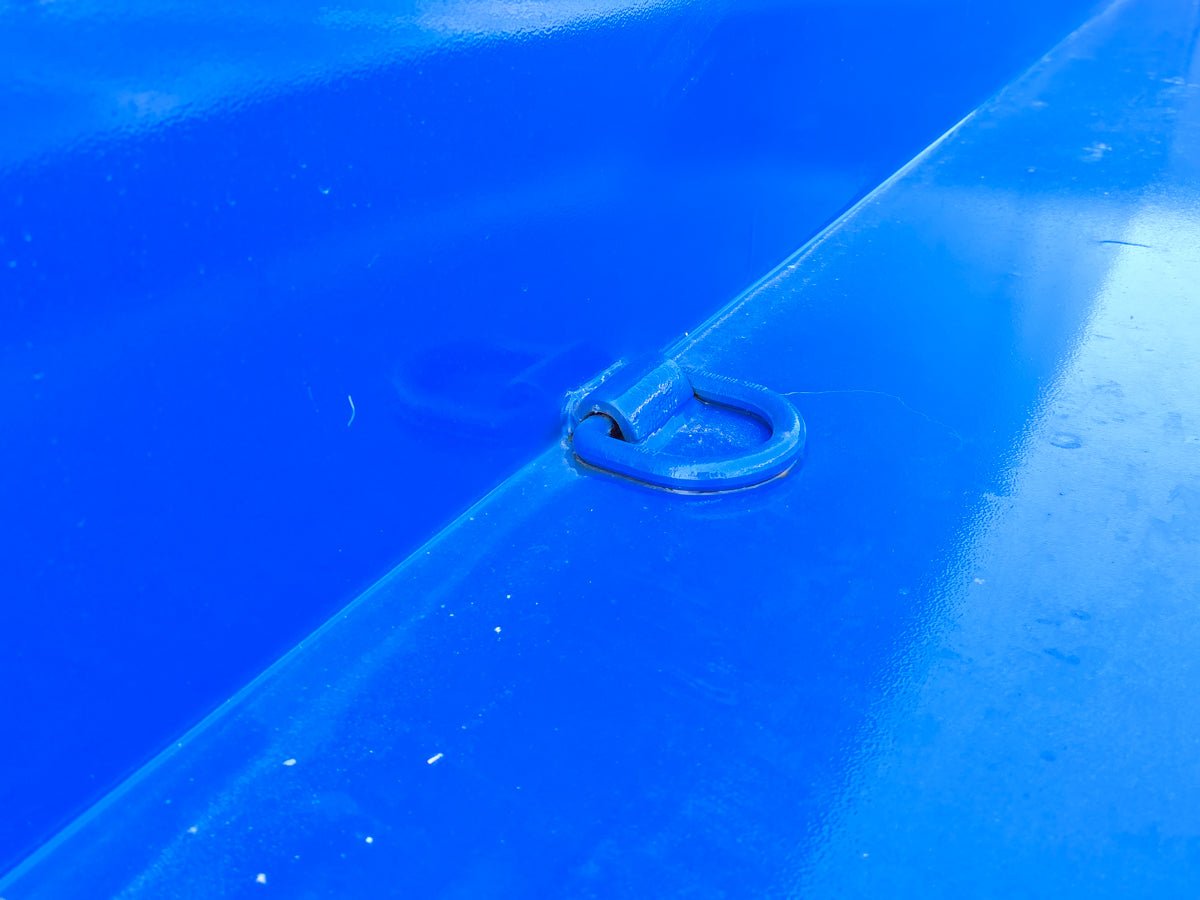

- D-RINGS:
- 4 D-Rings
- STAKE POCKETS:
- On Each Upright
- RAMPS:
- 78" Slide In Ramps
- FENDERS:
- 14 Ga. Diamond Plate
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray

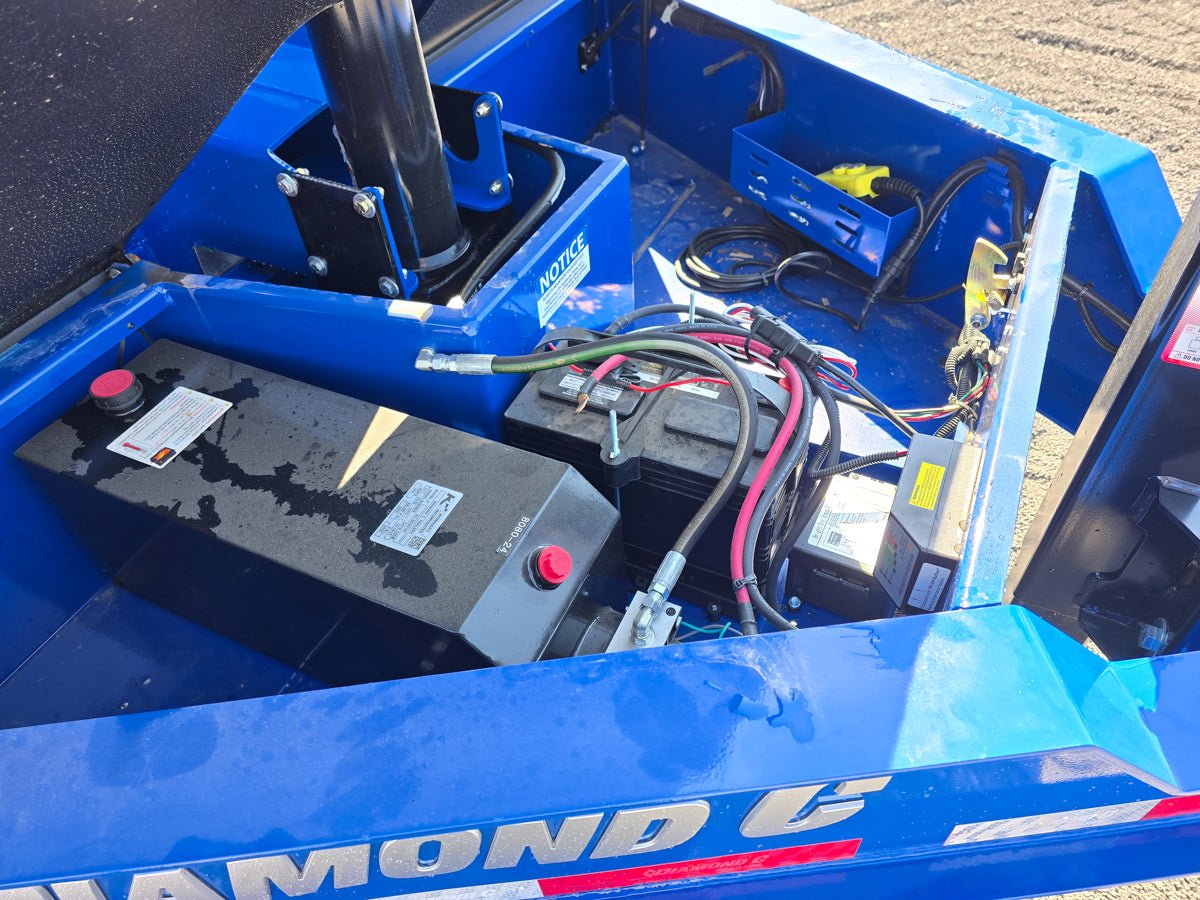

LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CYLINDER:
- 3-Stage Telescopic Cylinder
- CONTROLLER:
- Wired
- DUMP ANGLE:
- 45 Degrees

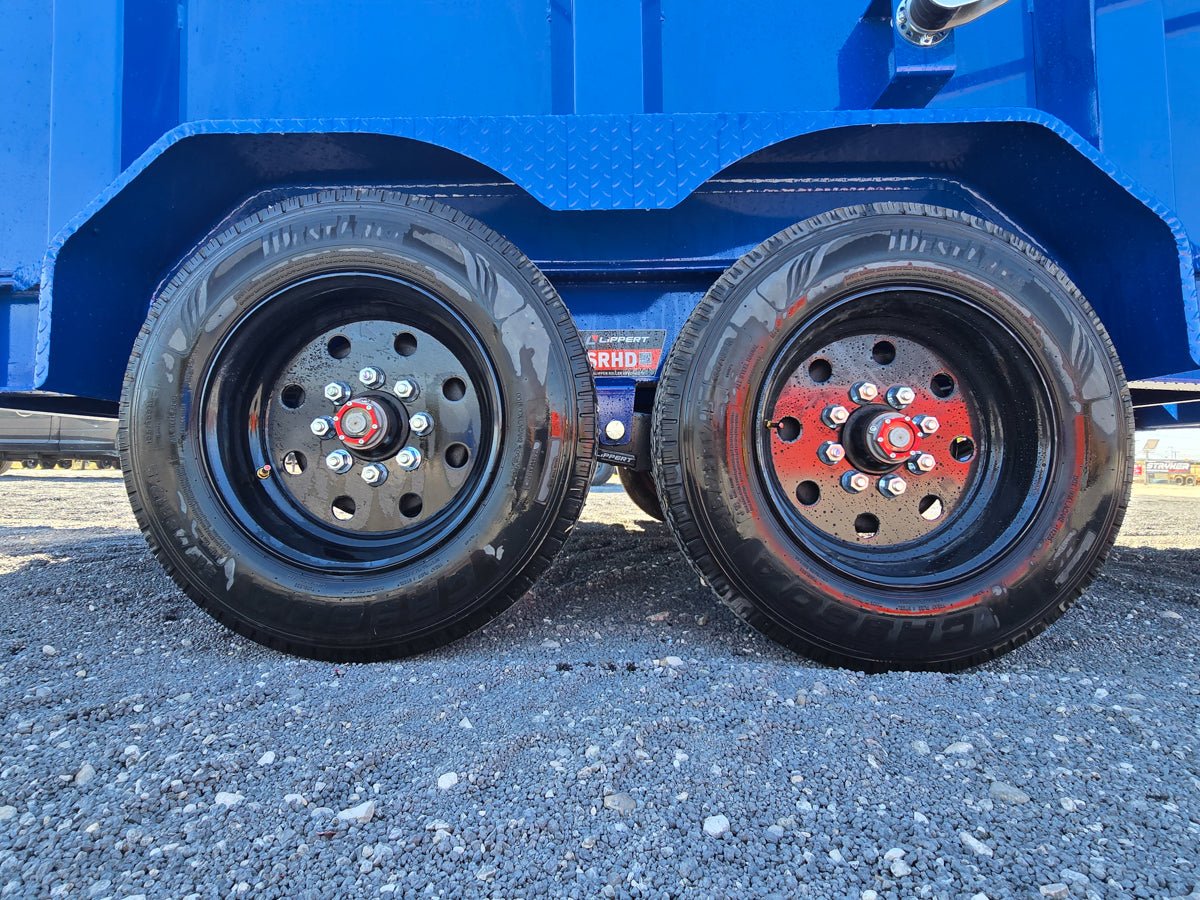

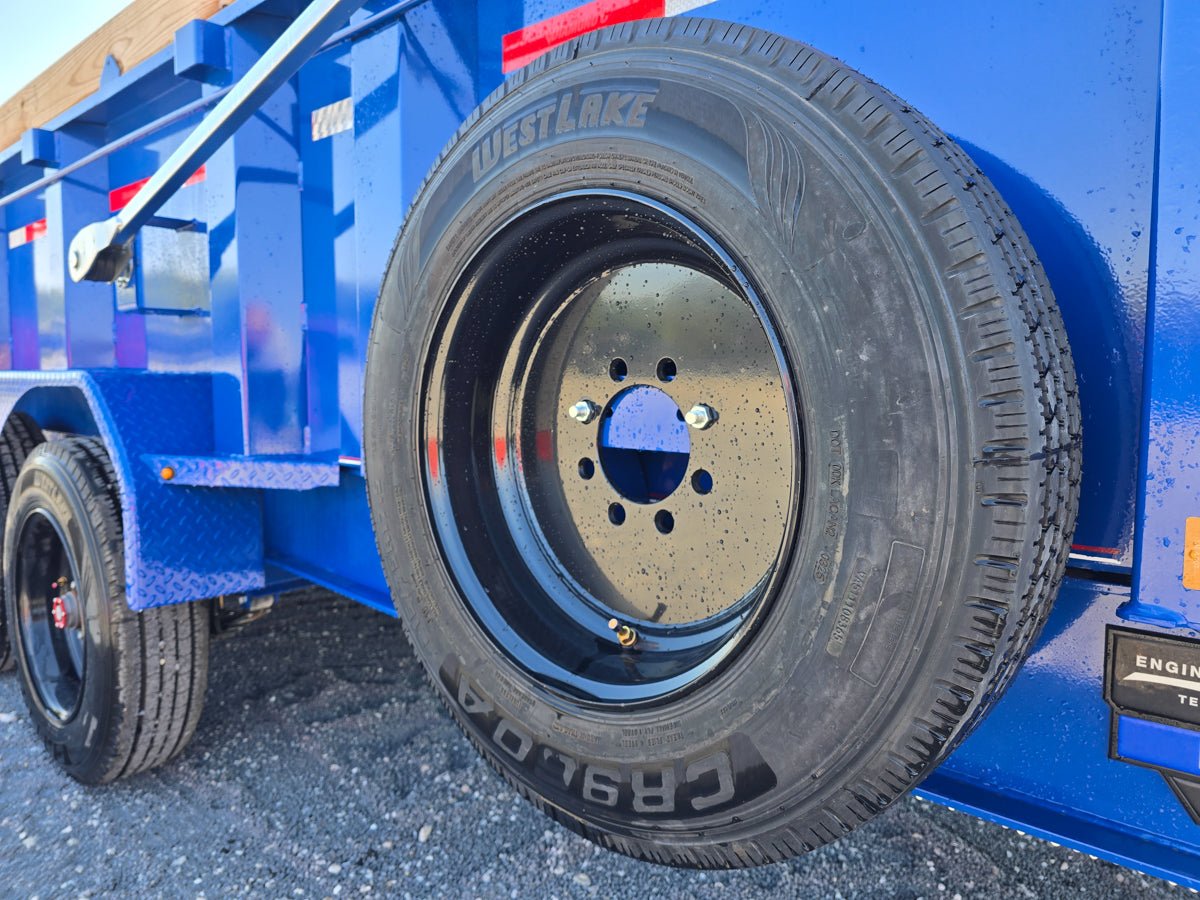

RUNNING GEAR
- TIRES:
- 235/80R16
- TIRE PLY:
- 14 Ply
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Lippert Super Lube Axles
2 - 8k Lippert Oil-Bath Axles
2 - 10k SS Lippert Oil-Bath Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Slipper Roller (Torsion on 10k SS)
ELECTRICAL & LIGHTING
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- Trickle Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lights
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component Warranty
OPTIONS
