At a Glance
- Colors:
-
Onyx BlackMocha MetallicCarbon Metallic GrayDynamic Blue MetallicPlatinum Silver MetallicScarlet RedArctic WhiteCement Gray
Featured Video
Product Features

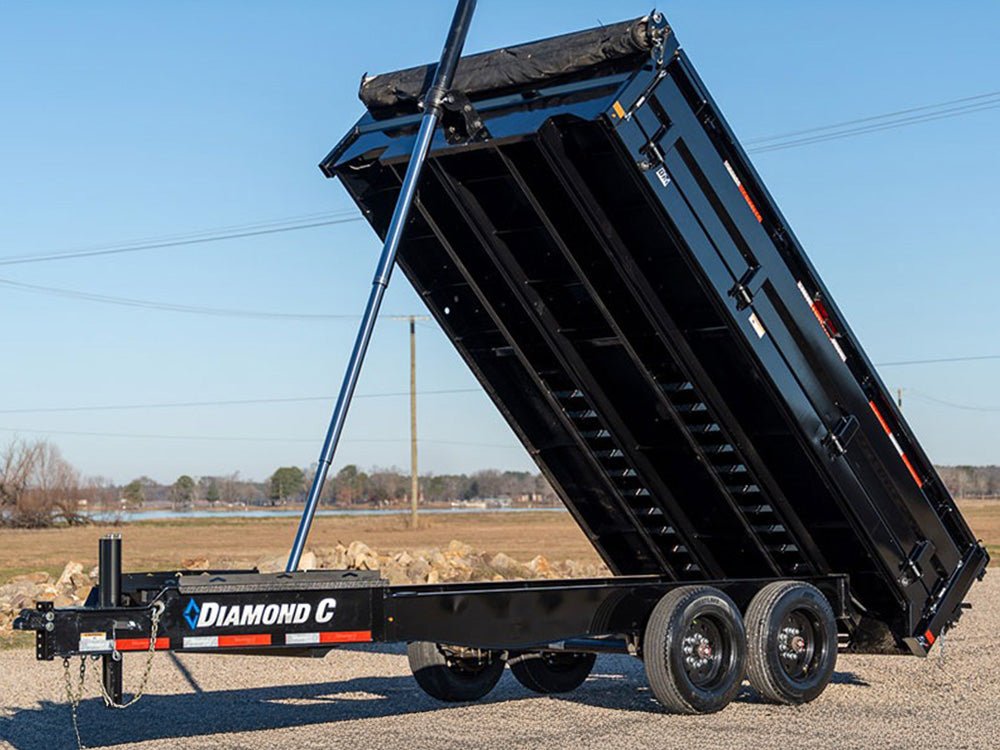

3-Stage Telescopic Lift Cylinder
Equipped with a 3-stage telescopic hydraulic cylinder. This robust system provides the power and extended dump height needed to handle the trailer's maximum payload capacity.
Front-Mounted Lockable Toolbox
Features a lockable toolbox integrated into the front of the trailer. This convenient storage keeps the battery, controller, and small tools secure and protected from the elements.
Axle Options
Available with 7k Super Lube, 8k Oil-Bath, or 10k Super Single Lippert axles. The 10k Super Singles feature a torsion suspension for a smoother ride and are paired with 18-ply tires to fully support the 23,000 lb GVWR.
10-Gauge Steel Bed Floor
Built with a 10-gauge steel bed floor. The thicker material provides superior durability and impact resistance for commercial use with heavy, sharp, or abrasive materials.

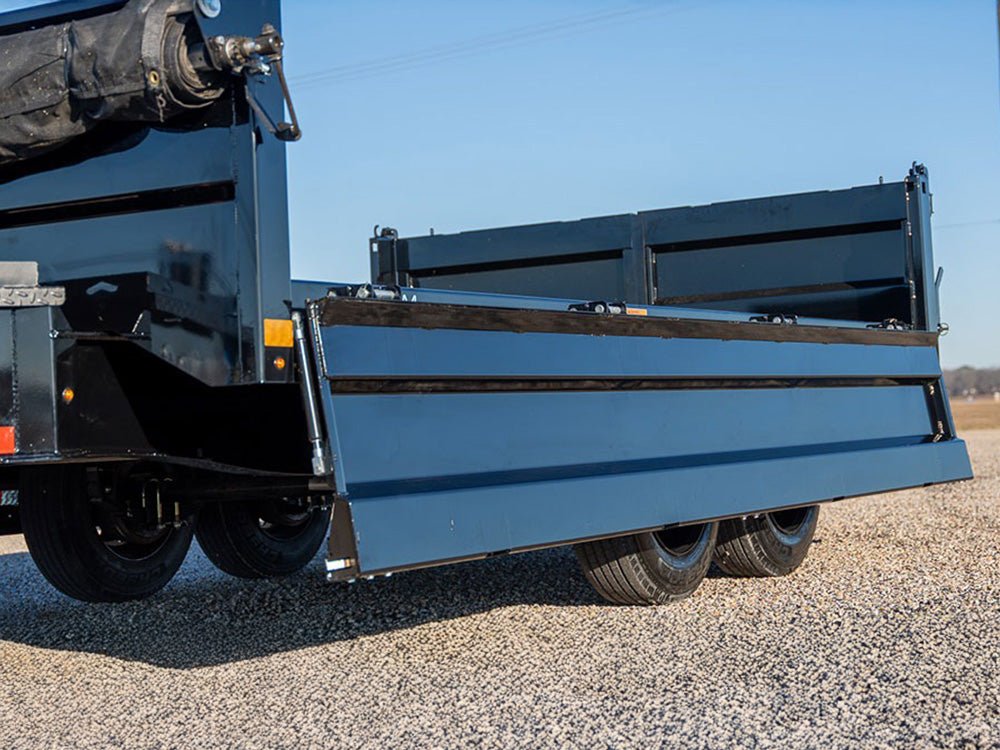

Fold-Down 22-Inch Sides
Equipped with 10-gauge steel sides that fold down. This feature converts the trailer into a flatbed for oversized loads or equipment, adding significant versatility beyond standard dumping.

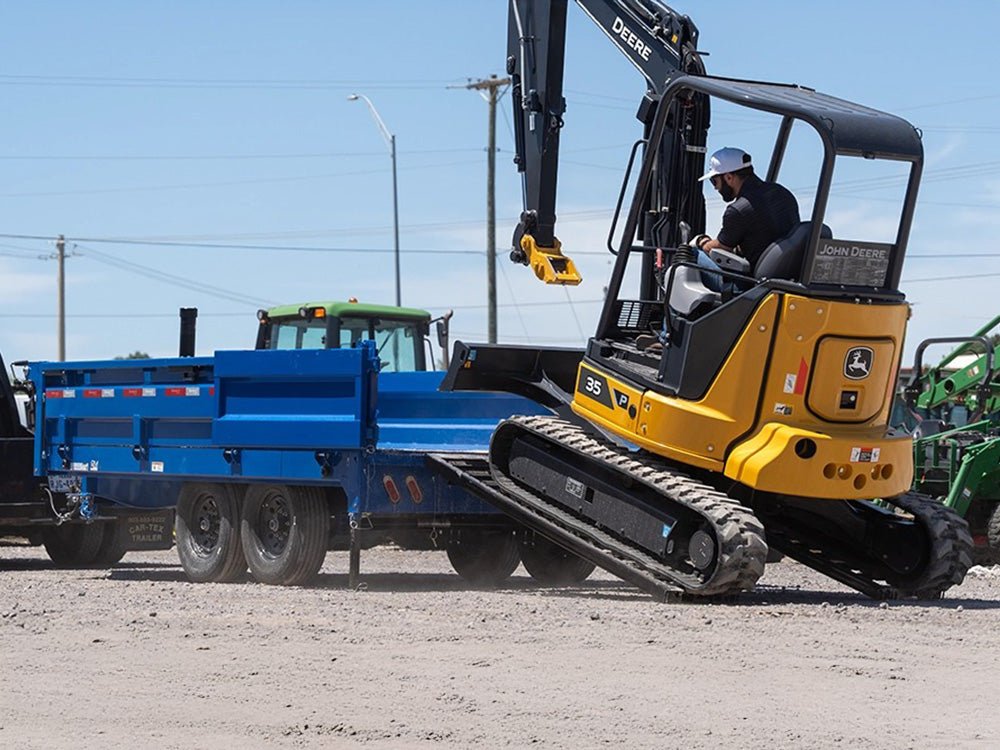

8-Foot Heavy-Duty Slide-In Ramps
Utilizes 8-foot heavy-duty slide-in ramps. The extra length provides a gradual, stable incline for safely loading large skid steers and compact excavators onto the 32-inch deck height.
Product Details
DIMENSIONS
- LENGTH:
- 14' - 16'
- BED WIDTH:
- 96"
- SIDE HEIGHT:
- 22"
- DECK HEIGHT:
- 32"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k, 10k SS
- GVWR:
- 15.5k - 23k
SAFETY & FEATURES
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
- TARP:
- Crank Style Roll-Up Tarp

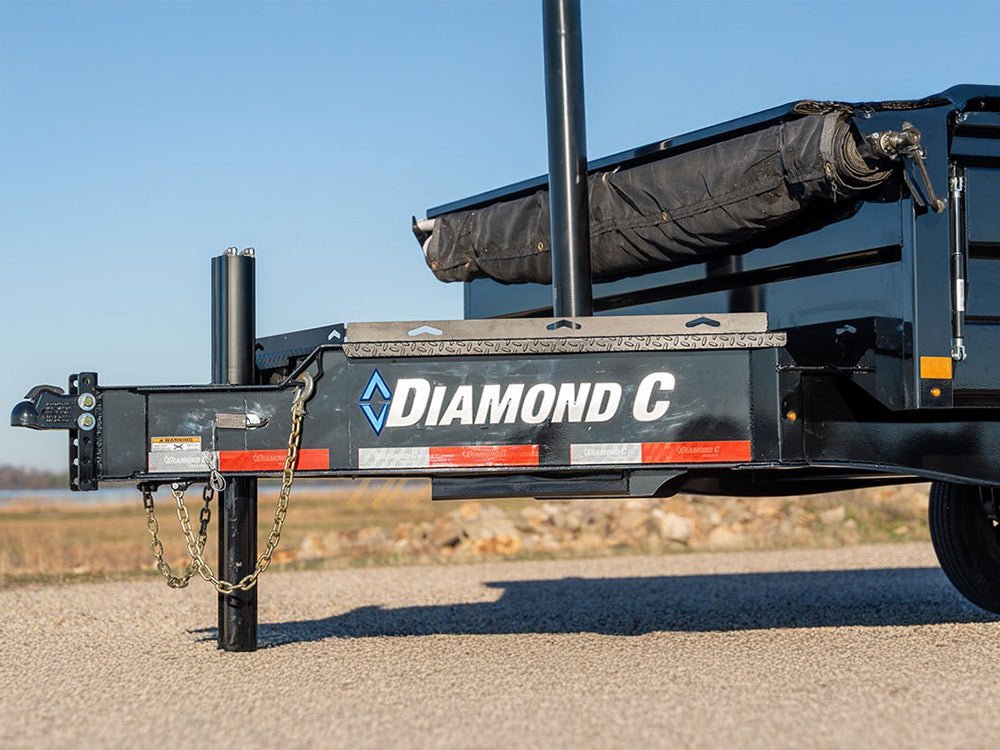

TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- Bumper Pull
- LENGTH:
- 75"
- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler (21,000 lbs)
- FRONT JACK BP:
- Single 15k 2 Speed Drop-Leg Jack
- TOOLBOX BP:
- HD V-Tongue Toolbox
CARGO AREA
- FLOORING:
- 10ga. Steel Bed
- GATE:
- 3 Way Spreader Gate
- D-RINGS:
- 4 D-Rings
- STAKE POCKETS:
- On Each Upright
- RAMPS:
- 8' Slide In Ramps
- SIDES:
- 22" Fold-Down Sides
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CYLINDER:
- 3-Stage Telescopic Cylinder
- CONTROLLER:
- Wired
- DUMP ANGLE:
- 45 Degrees
RUNNING GEAR
- TIRES:
- 235/80R16 / 235/75R17.5 (10k SS)
- TIRE PLY:
- 14 Ply / 18 Ply (10k SS)
- RIMS:
- 16" Black Mod Wheels / 17.5" Black Mod Wheels (10k SS)
- AXLE TYPE:
- 2 - 7k Lippert Super Lube Axles
2 - 8k Lippert Oil-Bath Axles
2 - 10k SS Lippert Oil-Bath Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- SUSPENSION TYPE:
- Slipper Roller (Torsion on 10k SS)
ELECTRICAL & LIGHTING
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- Trickle Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lights
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component Warranty
OPTIONS
