Product Details

DIMENSIONS

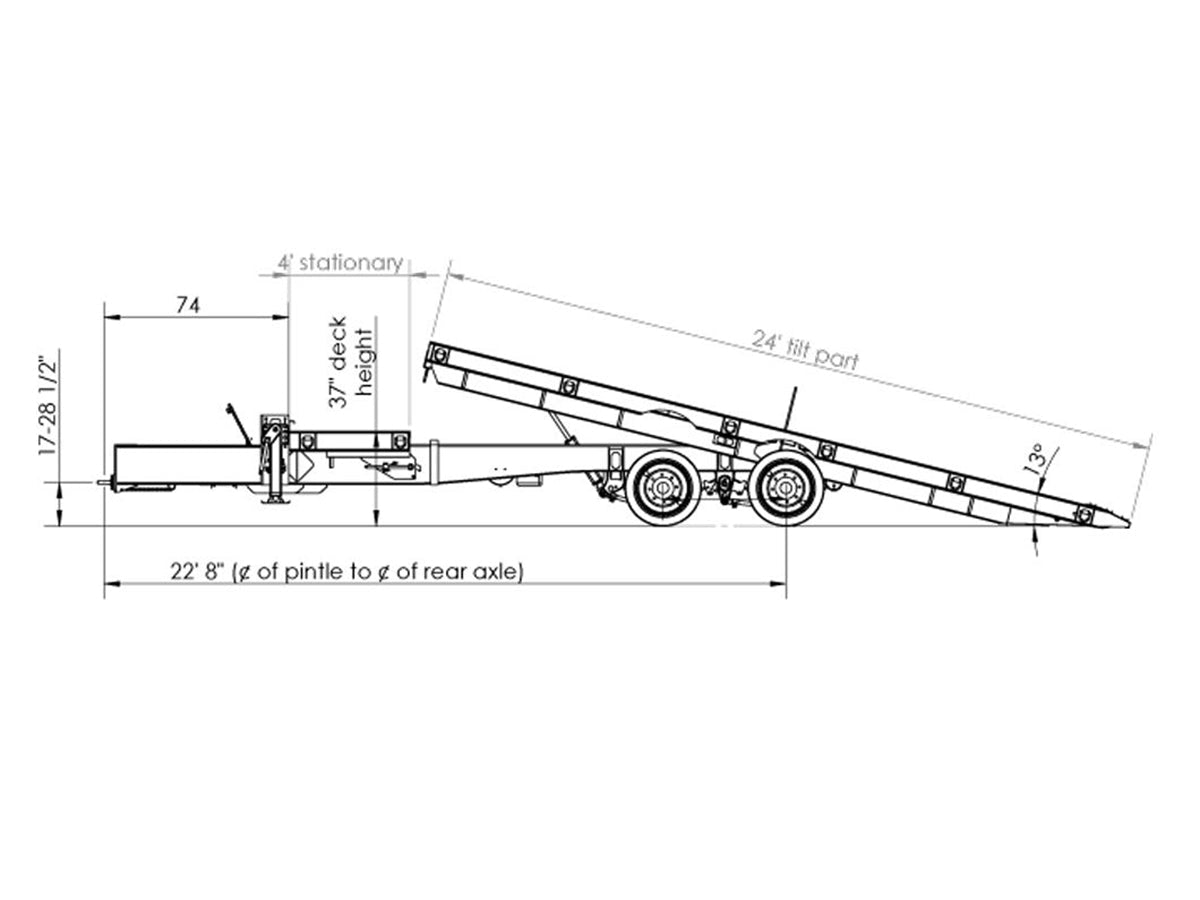

LENGTH:

4' stationary + 24' tilt deck

WIDTH:

102"

OVERALL HEIGHT:

37" (unloaded deck height)

TRAILER TYPE:

Flatbed Tilt

PULL TYPE:

Tag / Pintle Hitch

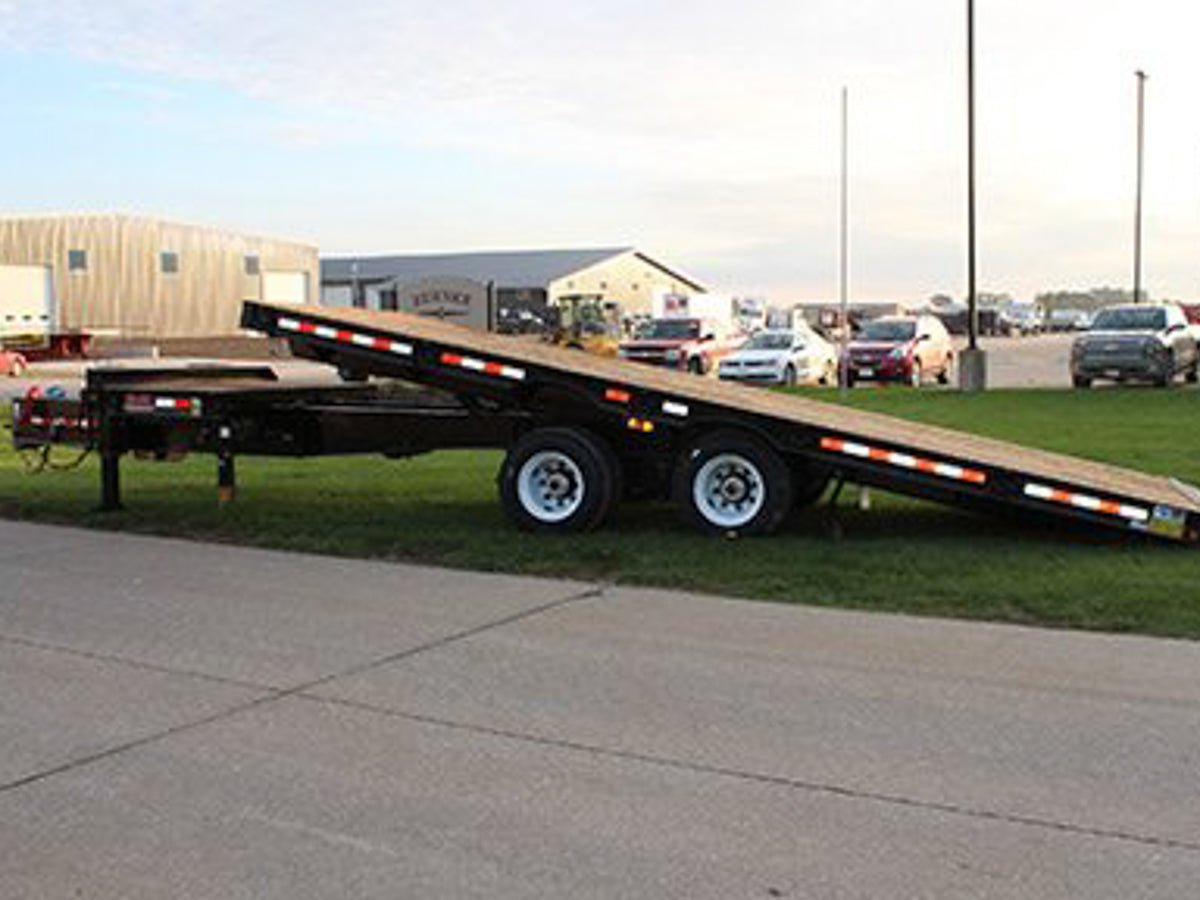

TILT ANGLE:

13°

WEIGHT RATINGS

GVWR:

40,000 or 50,000 lbs

GAWR:

25,000 lbs (per axle)

ESTIMATE DRY WEIGHT:

10,050 lbs (40L) / 12,100 lbs (50L)

ESTIMATED PAYLOAD:

29,950 lbs + tongue wt (40L) / 37,900 lbs + tongue wt (50L)

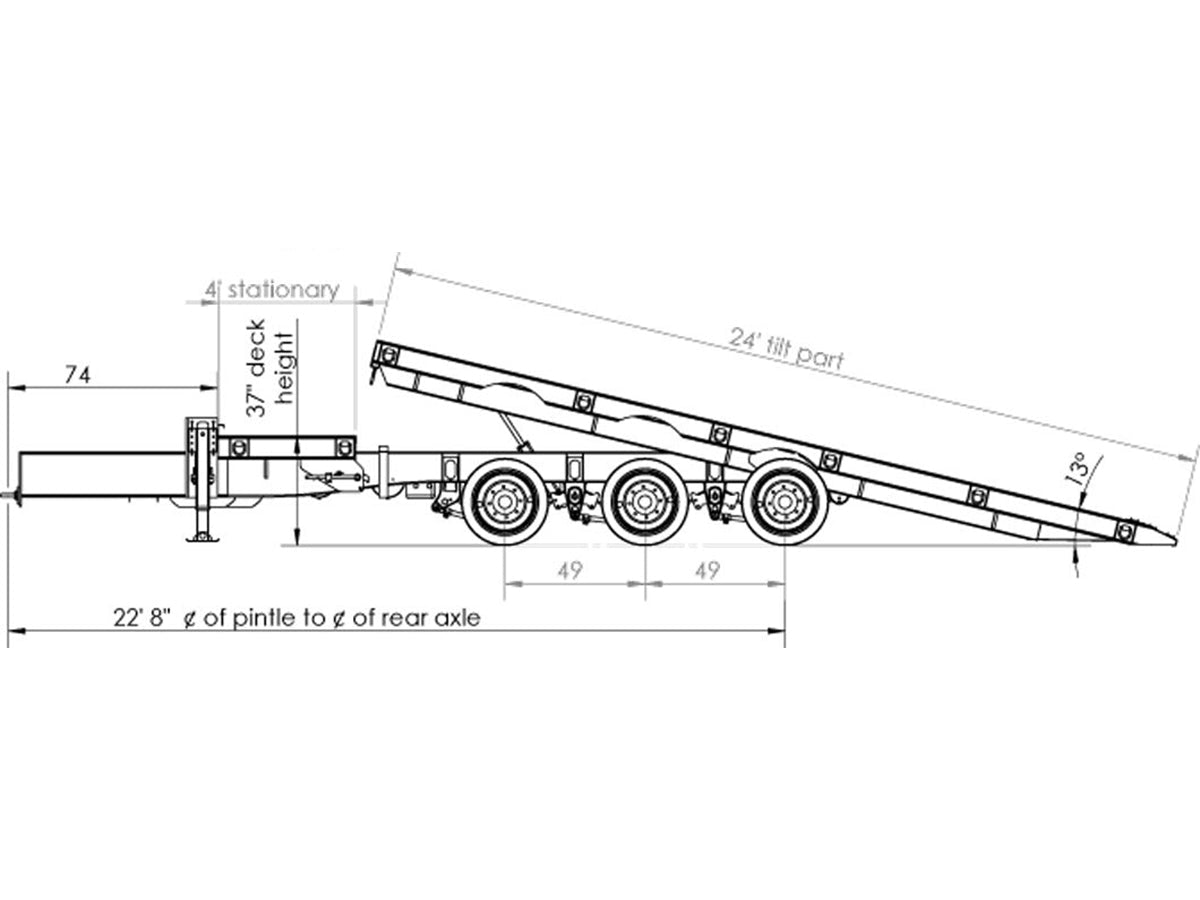

AXLE COUNT:

2 (40L) / 3 (50L tri-axle)

FINISH

PAINT TYPE:

Powder Coated

PREP:

Bead Blasted, Acid Washed, Zinc Rich Primed

UNDERCOAT:

Zinc Rich Primer

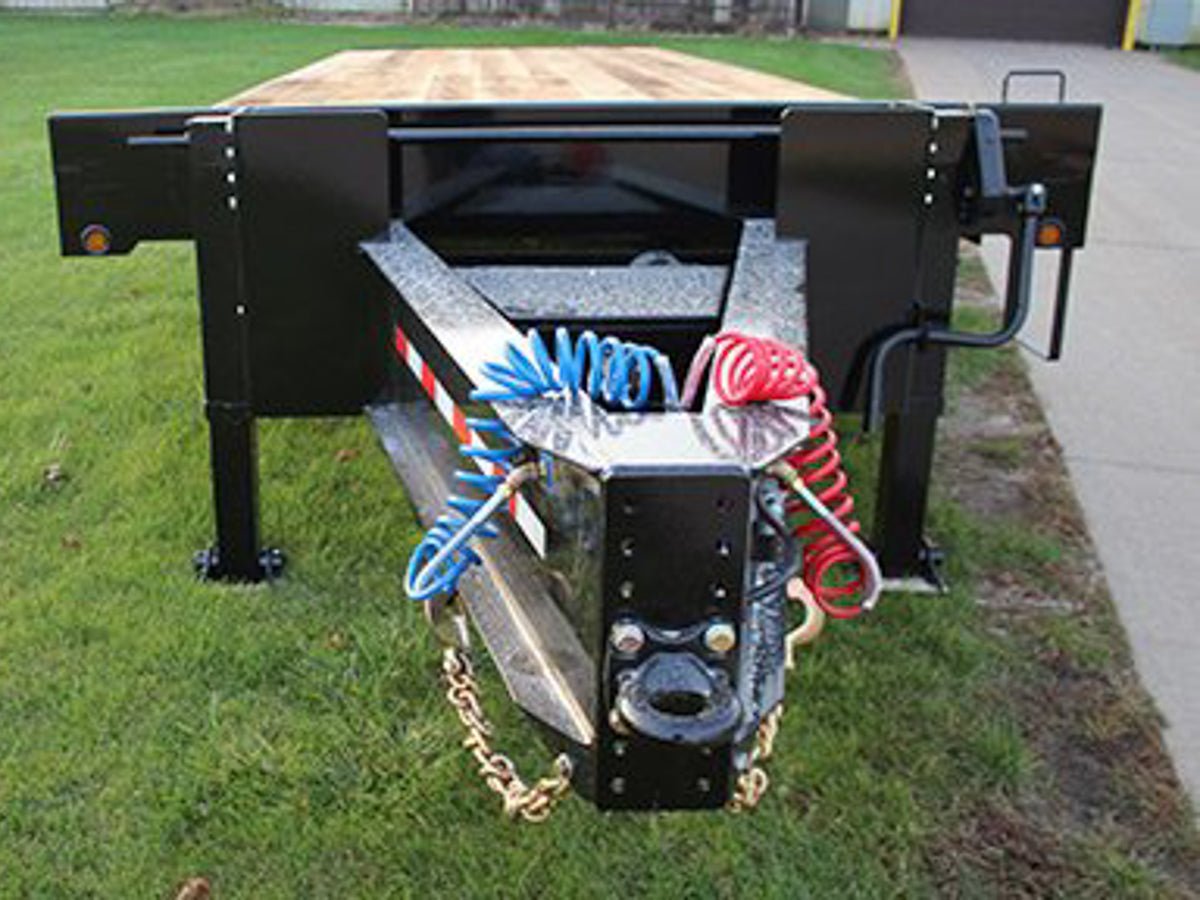

PINTLE HITCH

TYPE:

3" Pintle Eye — 90,000 lb Rated

ADJUSTABLE HEIGHT:

17" - 28.5"

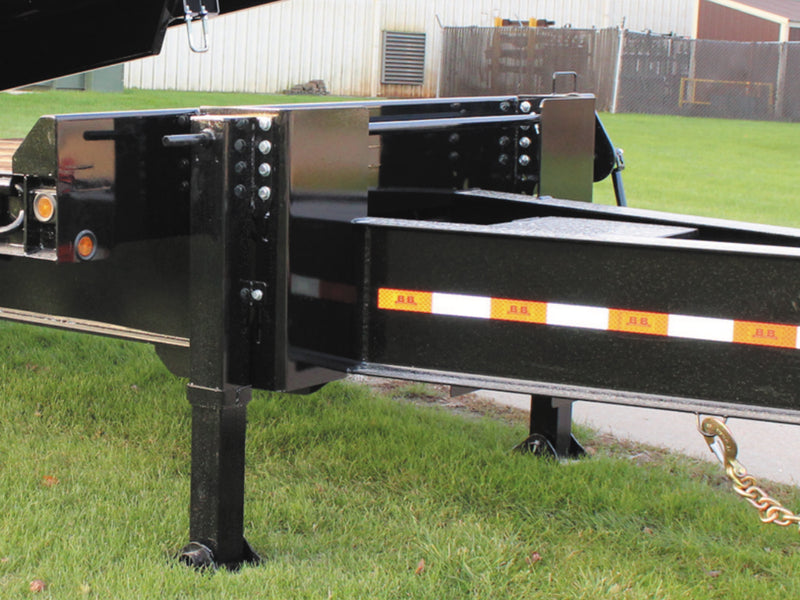

LANDING GEAR:

(2) Dual Speed Semi-Style Landing Gear — 50,000 lb Capacity

SAFETY CHAINS:

(2) 1/2" Gr. 70 Transporter Safety Chain

TOOLBOX:

Lockable Toolbox in V-Part of Tongue

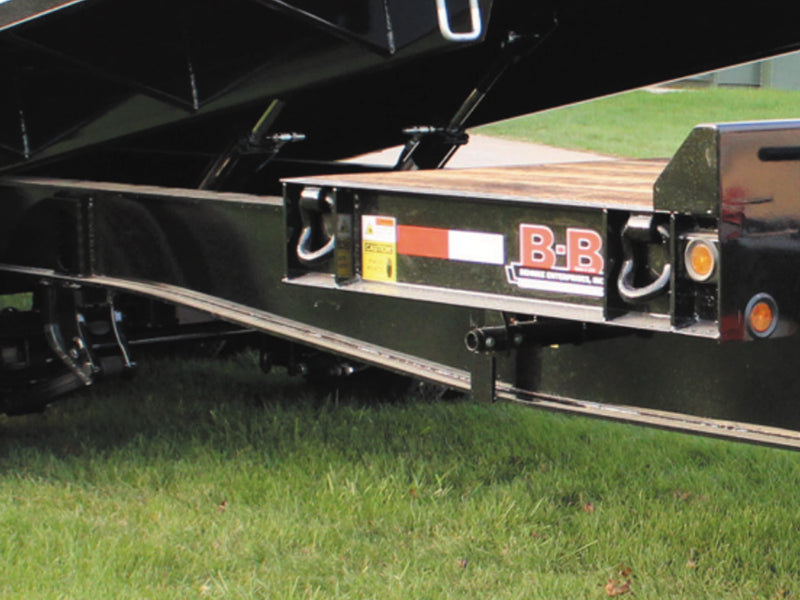

FRAME & CONSTRUCTION

BOTTOM FRAME:

1-Piece Mfg. I-Beam (80K web + T1 flanges); 8" Channel Side Rail

TOP FRAME:

10" x 2" x 1/4" Tube w/ 8" Channel Side Rail

CROSSMEMBERS:

4" Jr. I-Beams on 16" Centers

KNEE BRACES:

Formed 3/16" Gr. 50 Knee Braces Throughout Frame

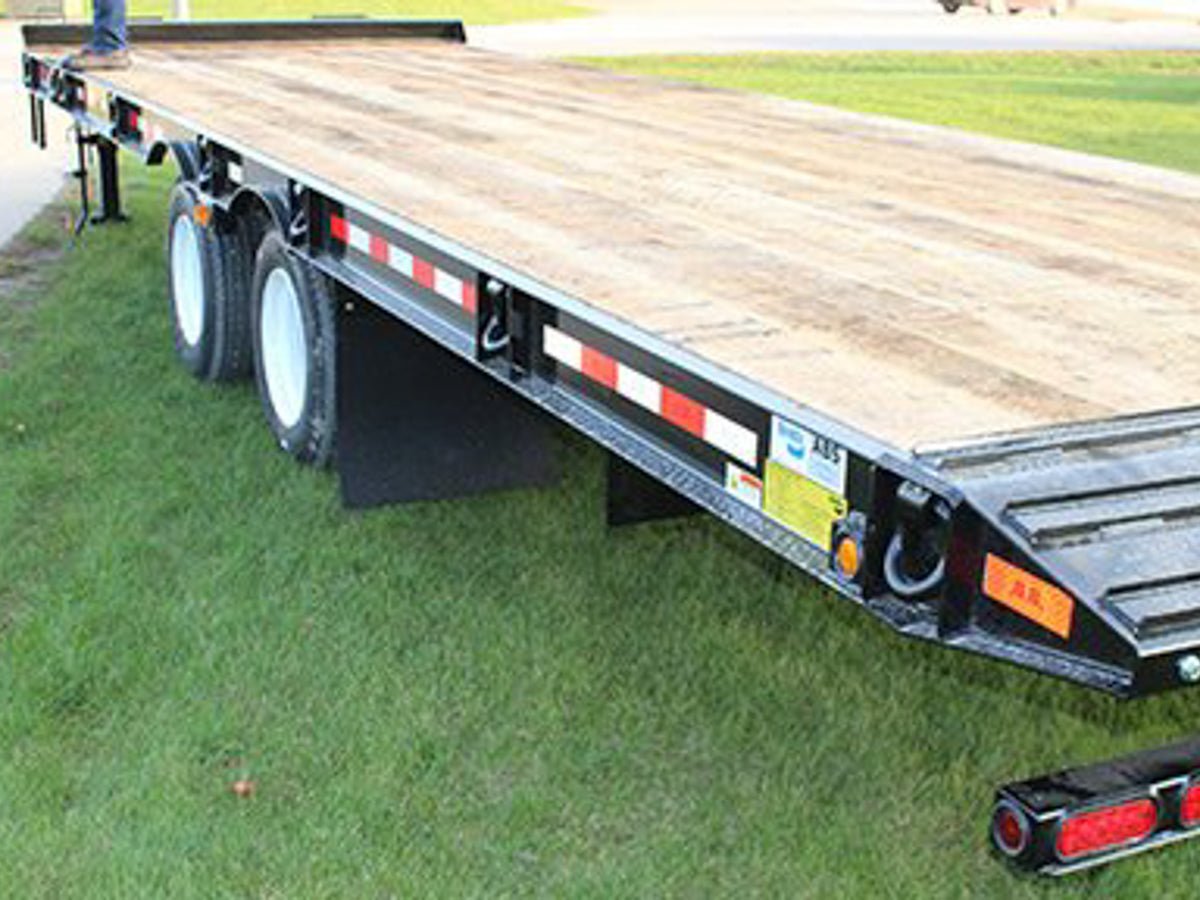

FLOORING:

1-1/2" Rough Oak

SIDE RAILS:

8" Channel

HEADBOARD:

4" Above Deck

FRONT SKIRT:

1' Sloped w/ 1" Lip and Traction Bars

FENDERS:

1/4" Sheet

RUNNING GEAR

AXLE TYPE:

25,000 lb Dexter — (1) ABS + (1) Non-ABS (40L) / (2) ABS + (1) Non-ABS (50L)

SUSPENSION:

Dexter HDSS / Hutch H9700

BRAKE SIZE:

12-1/4" x 7-1/2"

BRAKE CAPACITY:

22,500 lbs / axle

ABS SYSTEM:

Bendix ABS

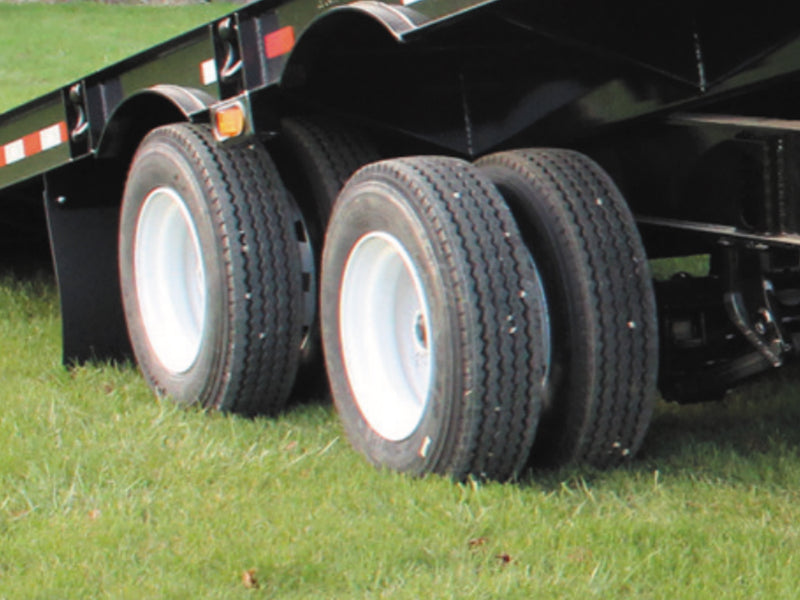

TIRES & WHEELS

TIRE TYPE:

Dual

TIRE SIZE:

235/75R/17.5

RIMS:

8-Bolt 17.5 x 6.75 Rim

ELECTRICAL & LIGHTING

7-WAY RECEPTACLE:

Semi Plug

LIGHTING:

DOT Approved — All Sealed Rubber-Mounted LED (Air & Electric Done After Paint)

CARGO & TIE-DOWN

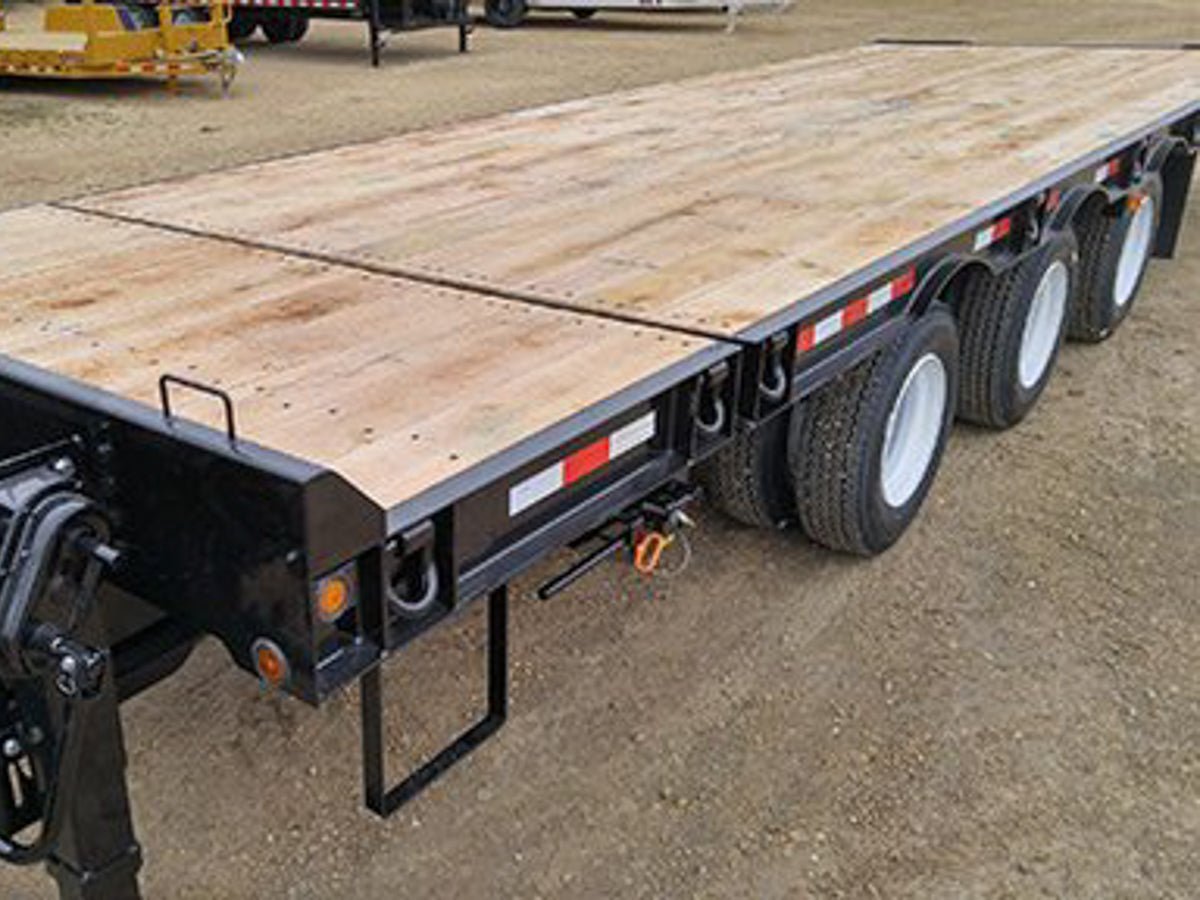

D-RINGS:

(16) 1" Bent D-Rings — 8 Each Side

GATE OPERATION:

Heavy Duty Pipe Latch Locking System w/ Safety Pin

OPTIONS

DECK CONFIGURATION

STATIONARY DECK LENGTH:

4' to 10' Stationary Deck Options

TILT DECK:

24' Tilt Deck Standard

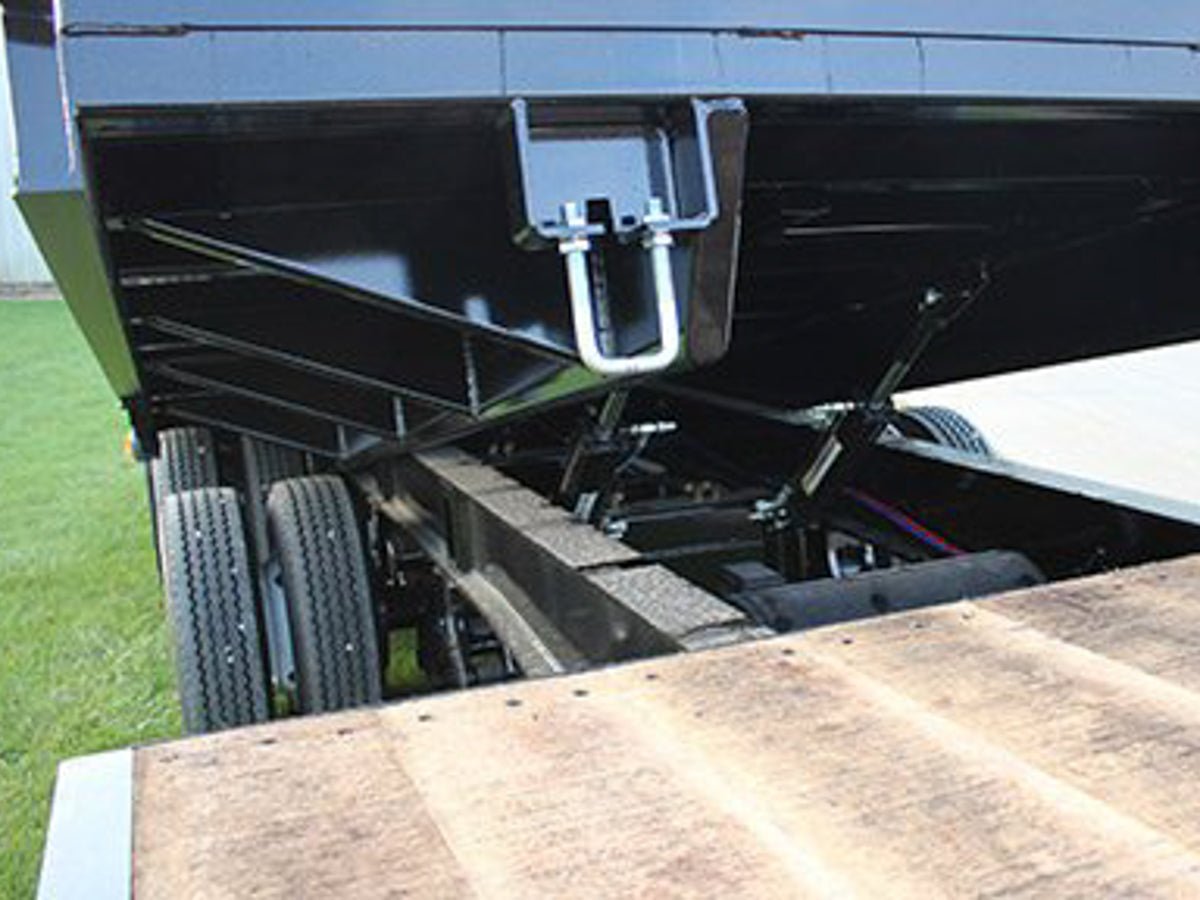

TILT SYSTEM:

Gravity Tilt w/ Dual Cushioned Cylinders

AXLE CONFIGURATIONS

LIFT AXLE:

Available (Tri-Axle on 50L)

AXLE UPGRADE:

Tri-Axle Configurations Available (50L)

TRACTION OPTIONS

TRACTION:

Various Traction Options Available for Wet and Muddy Conditions
