At a Glance
TRAILER SPECS:
Specifications
- Brand:
Lamar
- Pull Type:
Gooseneck
Dimensions
- LENGTH:
25-40'
Get a Custom Quote
Product Features
Frame and Crossmembers

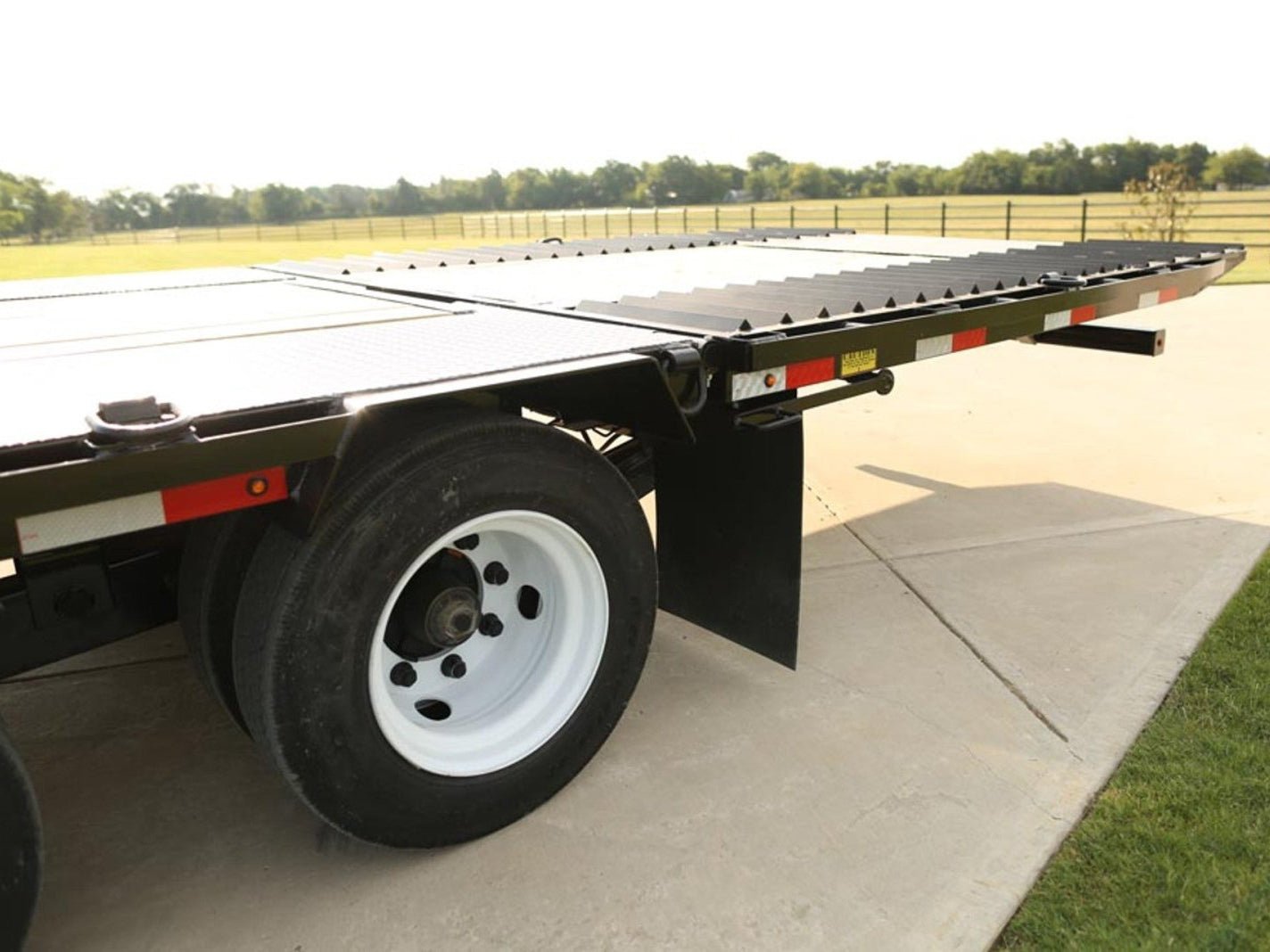

The trailer is built with a robust 12" 22 lb. I-beam frame, offering exceptional strength and durability. Standard features include 16" spaced crossmembers and a treated yellow pine floor, ensuring a solid and reliable platform. Additional options include a 5' or 9' hydraulic dovetail, low-profile pierced-beam frame, and 12" spaced crossmembers for added flexibility and customization.
Jacks
Equipped with dual 10,000 lb. drop-leg jacks as standard, the Lamar FG Trailer ensures stable and easy leveling. For added convenience and strength, you can upgrade to dual 10,000 lb. 2-speed jacks, dual 10,000 lb. hydraulic jacks, or even dual 25,000 lb. 2-speed Jost jacks, depending on your specific needs.
Cargo Loading and Storage

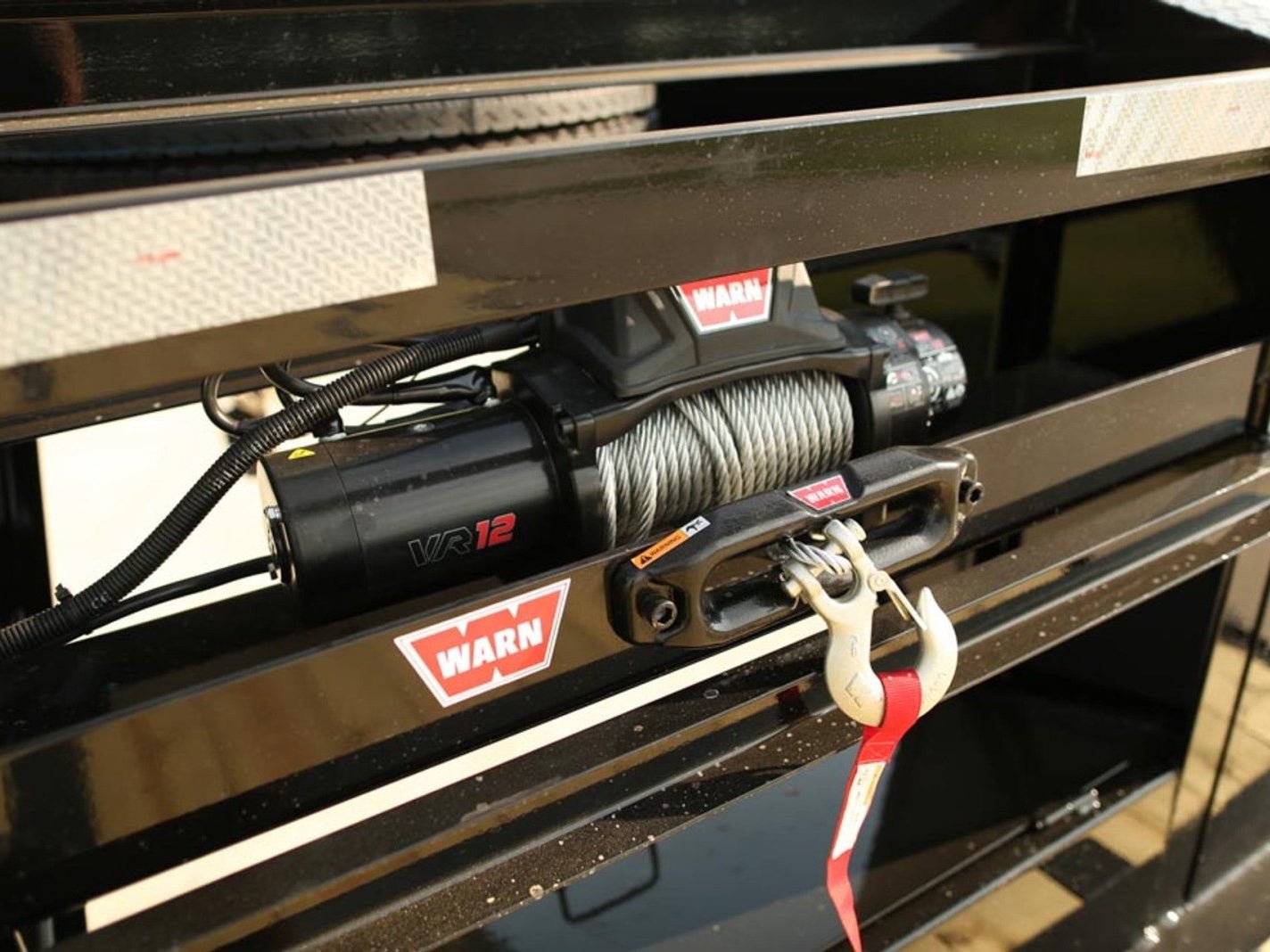

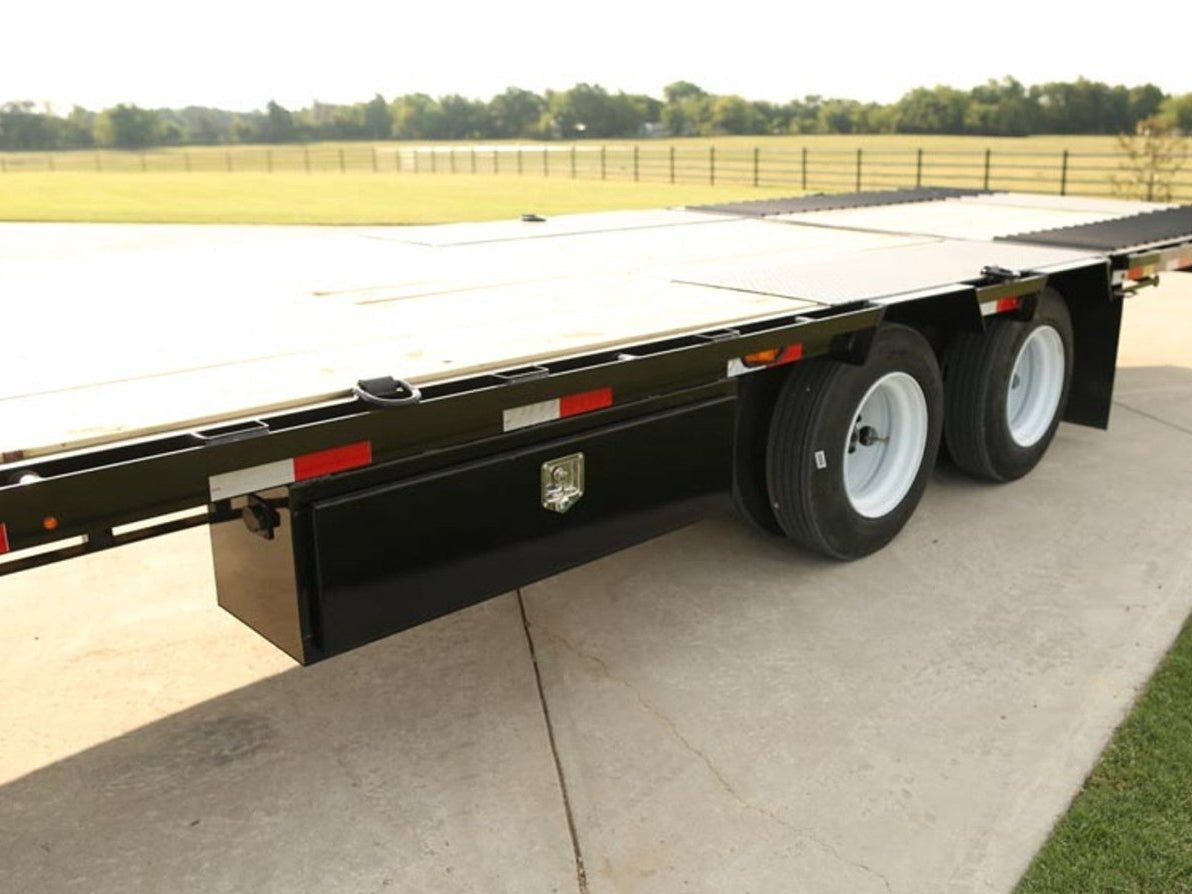

For cargo loading, the Lamar FG Trailer comes with standard stake pockets, a rub rail, and a pair of slide-in ramps. You can enhance its functionality with a 4' side mount toolbox, weld-on D-rings, strap winches, and a lockable chain rack. Other options include a winch plate with a 12,500 lb. Warrior winch and a receiver hitch with plug for additional versatility and secure cargo handling.
Axles and Brakes
The Lamar FG Trailer comes with 10,000 lb. electric brake spring axles as standard, ensuring reliable stopping power and durability. For enhanced performance, you can opt for 15,000 lb. electric brake spring axles. The trailer also offers several suspension options, including electric brake hutch suspension axles and electric hydraulic disc brake axles, providing versatility for different load requirements.
Powder Coat Finish
Featuring a high-quality powder coat finish in Lamar Charcoal Gray, the Lamar FG Trailer offers superior durability and protection against the elements. This finish involves grit blasting the surface to ensure maximum adhesion and longevity. Resistant to corrosion, chipping, and fading, the powder coat helps maintain the trailer's appearance and structural integrity even under harsh conditions.
Warranty
This Lamar trailer offers a 3-year structural warranty and a 1-year paint warranty, protecting against manufacturing defects and maintaining appearance. This comprehensive coverage reflects Lamar's commitment to quality and customer satisfaction, ensuring peace of mind for owners.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

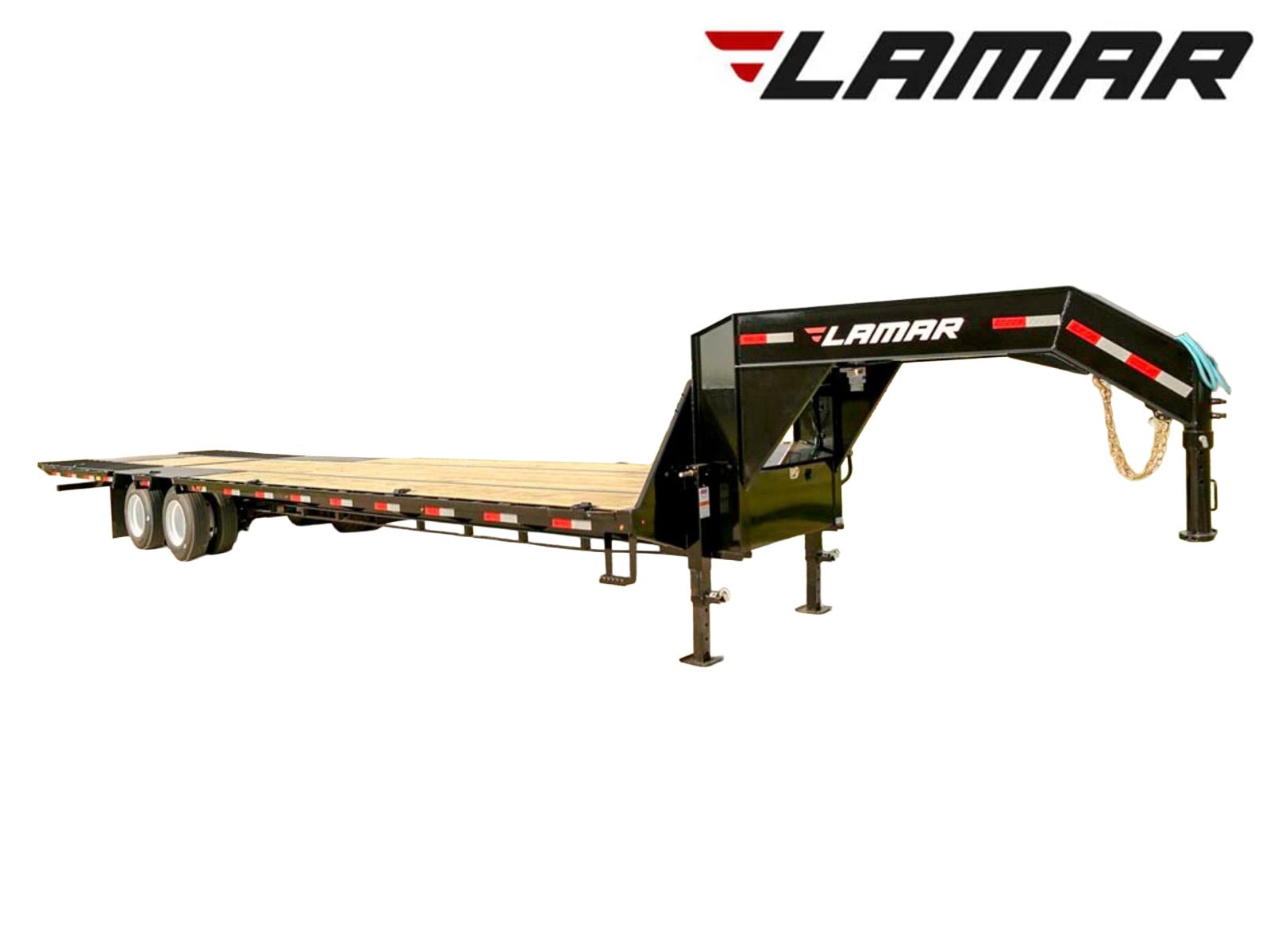

- Lamar FG Deckover Gooseneck Trailer - Hydraulic Dovetail
- 30K TANDEM SIZES:
- 102” x 25’, 102” x 32’, 102” x 36’, 102” x 40’
- 30K TANDEM WEIGHT:
- 8,890 lbs (25’), 9,735 lbs (32’), 10,300 lbs (36’), 10,840 lbs (40’)
- 30K TANDEM PAYLOAD:
- 21,110 lbs (25’), 20,265 lbs (32’), 19,700 lbs (36’), 19,160 lbs (40’)
- 30K TRIPLE AXLE SIZES:
- 102” x 32’, 102” x 36’, 102” x 40’
- 30K TRIPLE AXLE WEIGHT:
- 9,735 lbs (32’), 10,300 lbs (36’), 11,300 lbs (40’)
- 30K TRIPLE AXLE PAYLOAD:
- 20,265 lbs (32’), 19,700 lbs (36’), 18,700 lbs (40’)

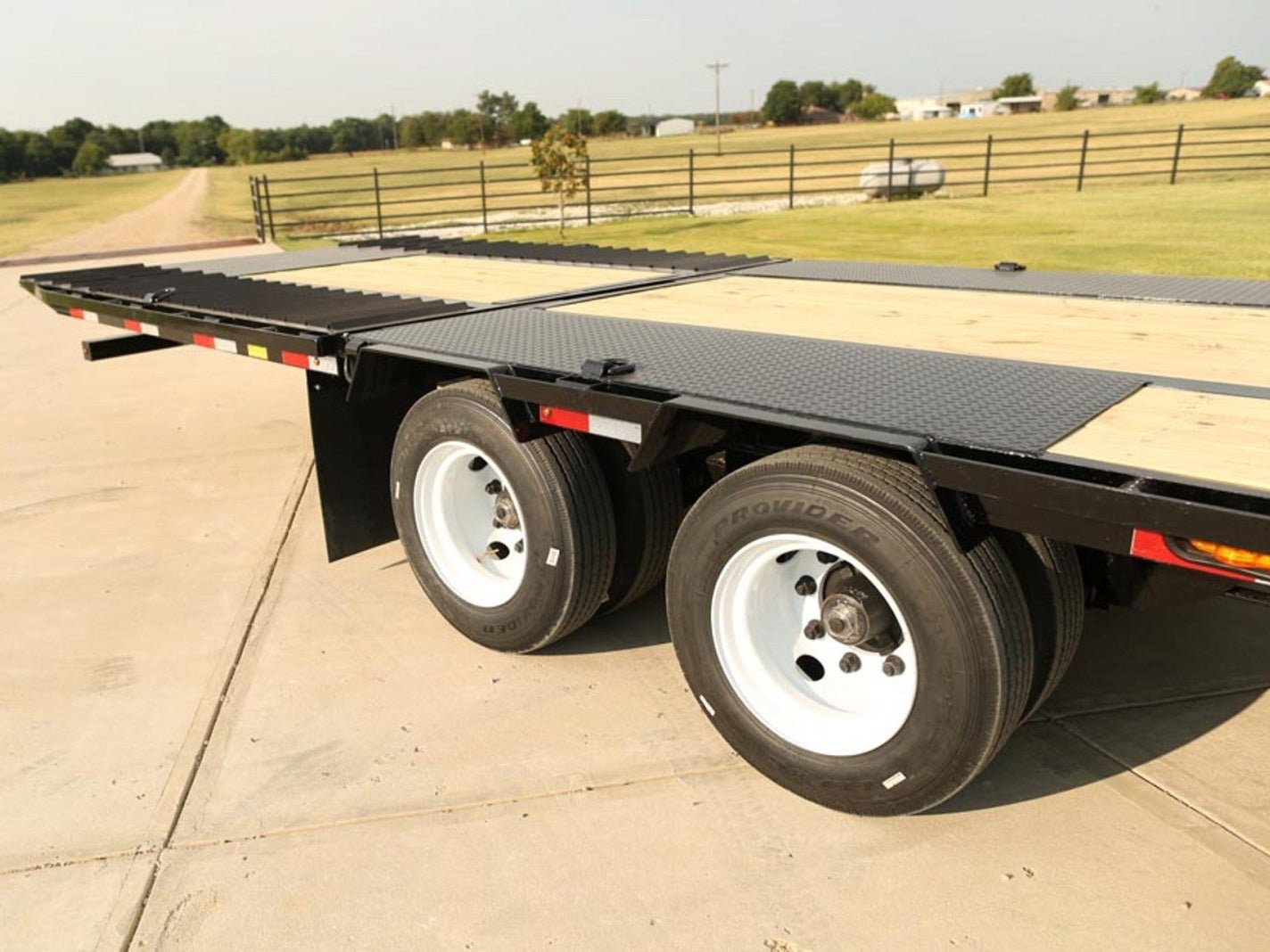

- AXLES:
- 10K electric brake spring axles (varies by GVWR)
FRAME & CONSTRUCTION
FRAME:
- FRAME:
- 12” 22 lb I-beam frame
- CROSSMEMBERS:
- 16” spaced crossmembers
- FLOOR:
- Treated yellow pine floor
- TORQUE TUBE:
- Standard on 36’+
- UNDER-FRAME BRIDGE:
- Standard on 30’+
- DECK:

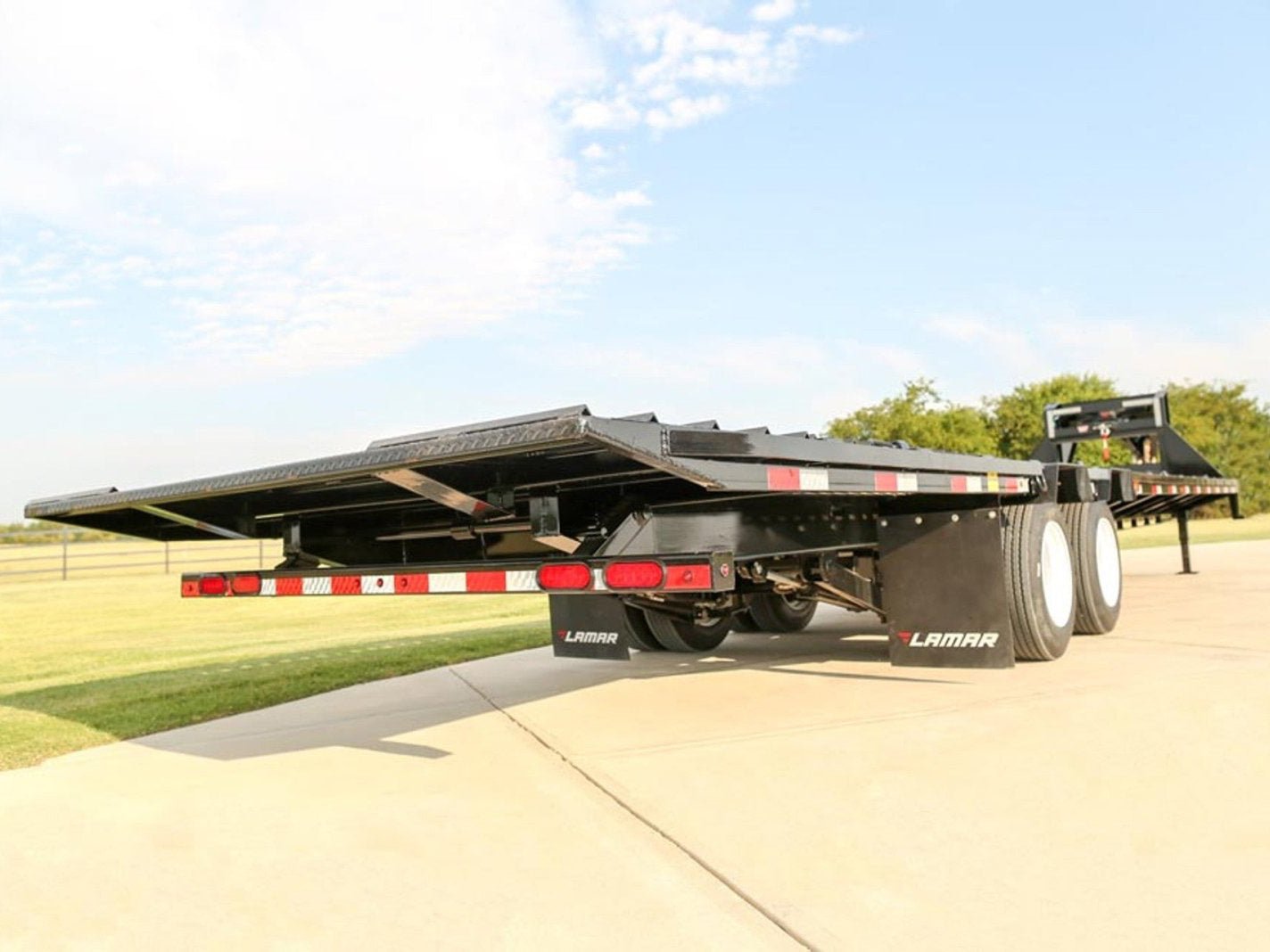

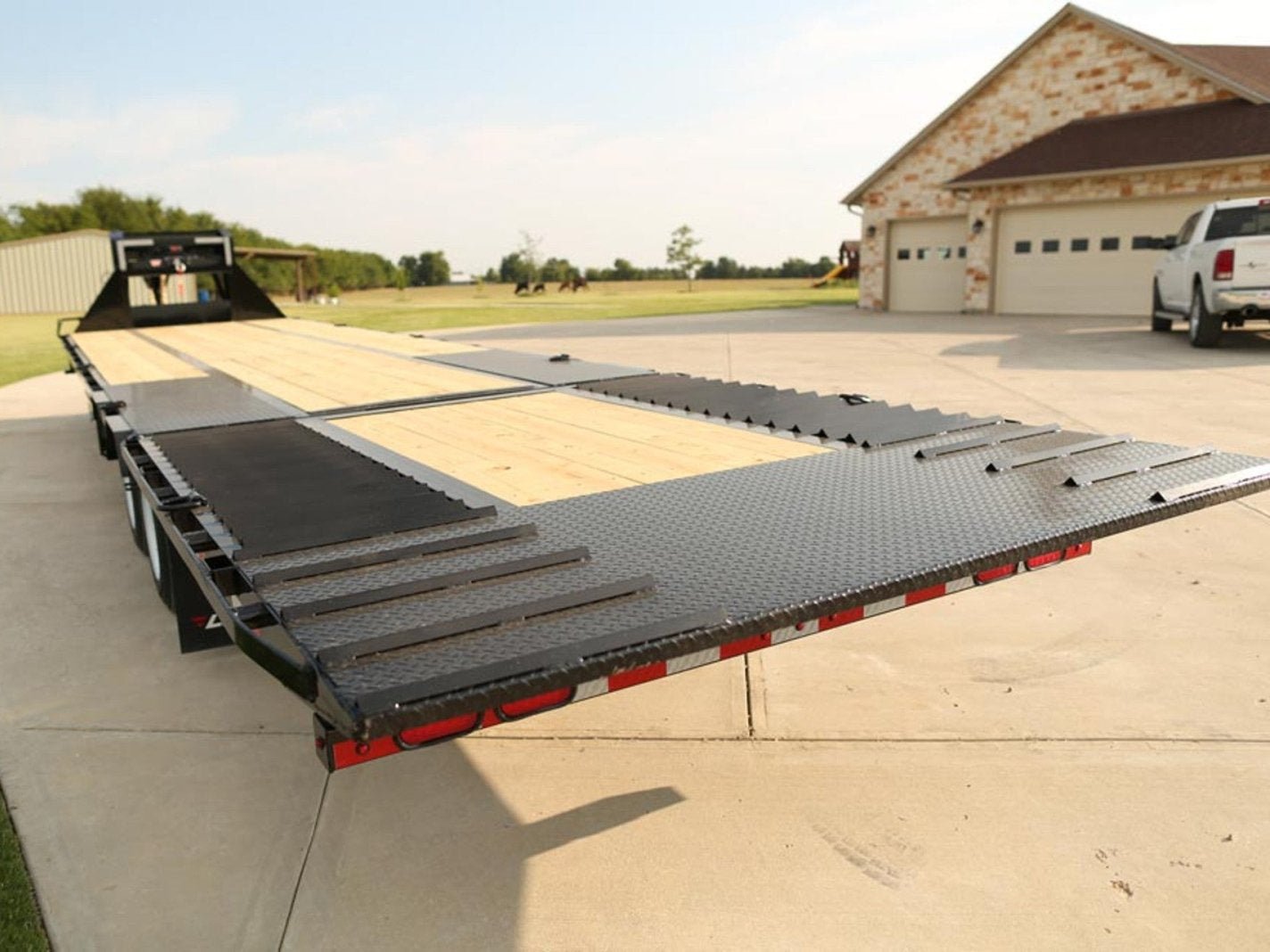

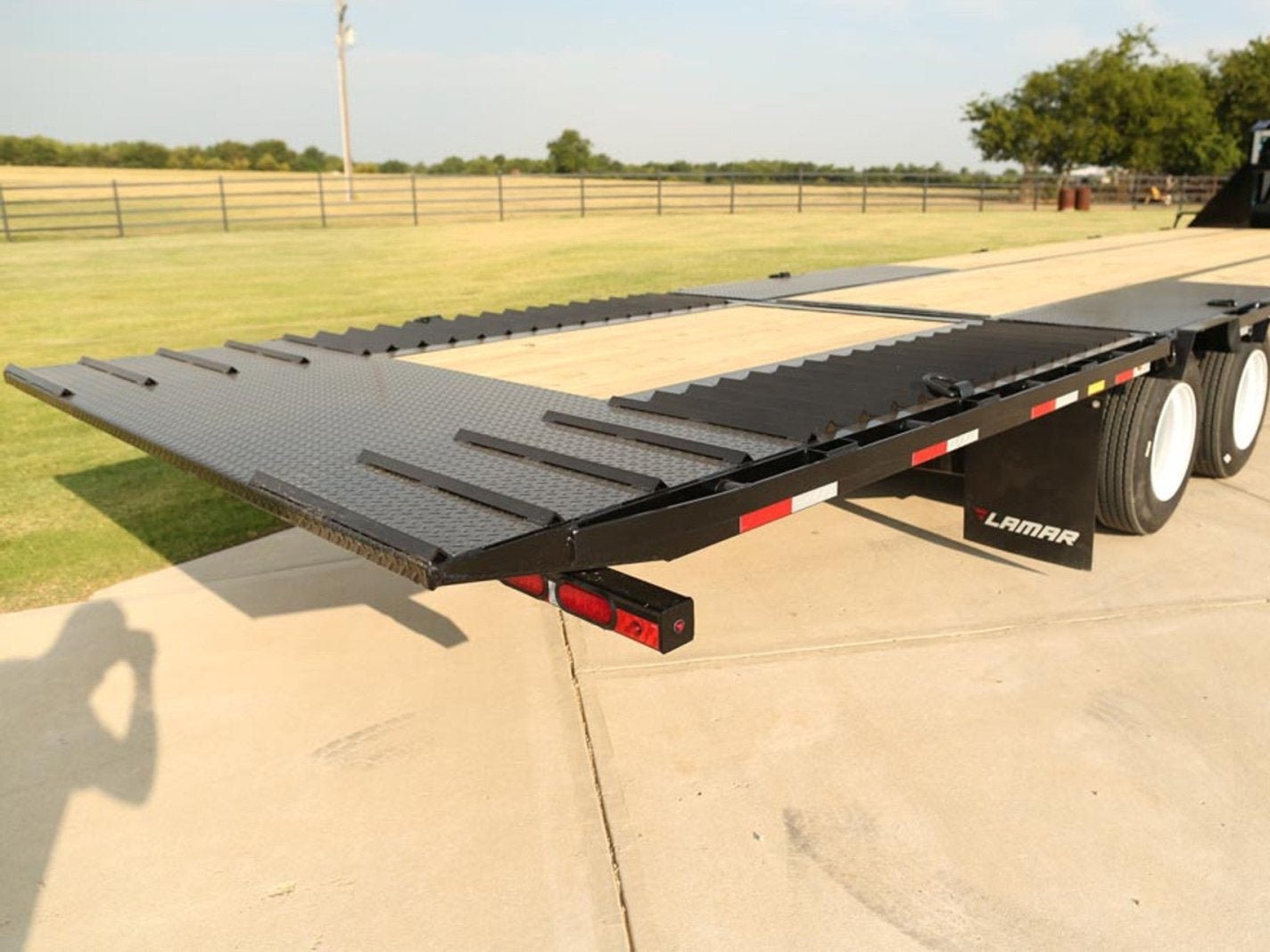

- 9' Hydraulic Dovetail
- HYDRAULIC SYSTEM:
- 12V DC hydraulic pump with remote control
- COLOR:
- Lamar charcoal gray powder coat
RUNNING GEAR & SAFETY
RUNNING GEAR:
- COUPLER:
- 2-5/16” 30K gooseneck coupler
- COUPLER HEIGHT:
- Ground to coupler height 25” - 33”

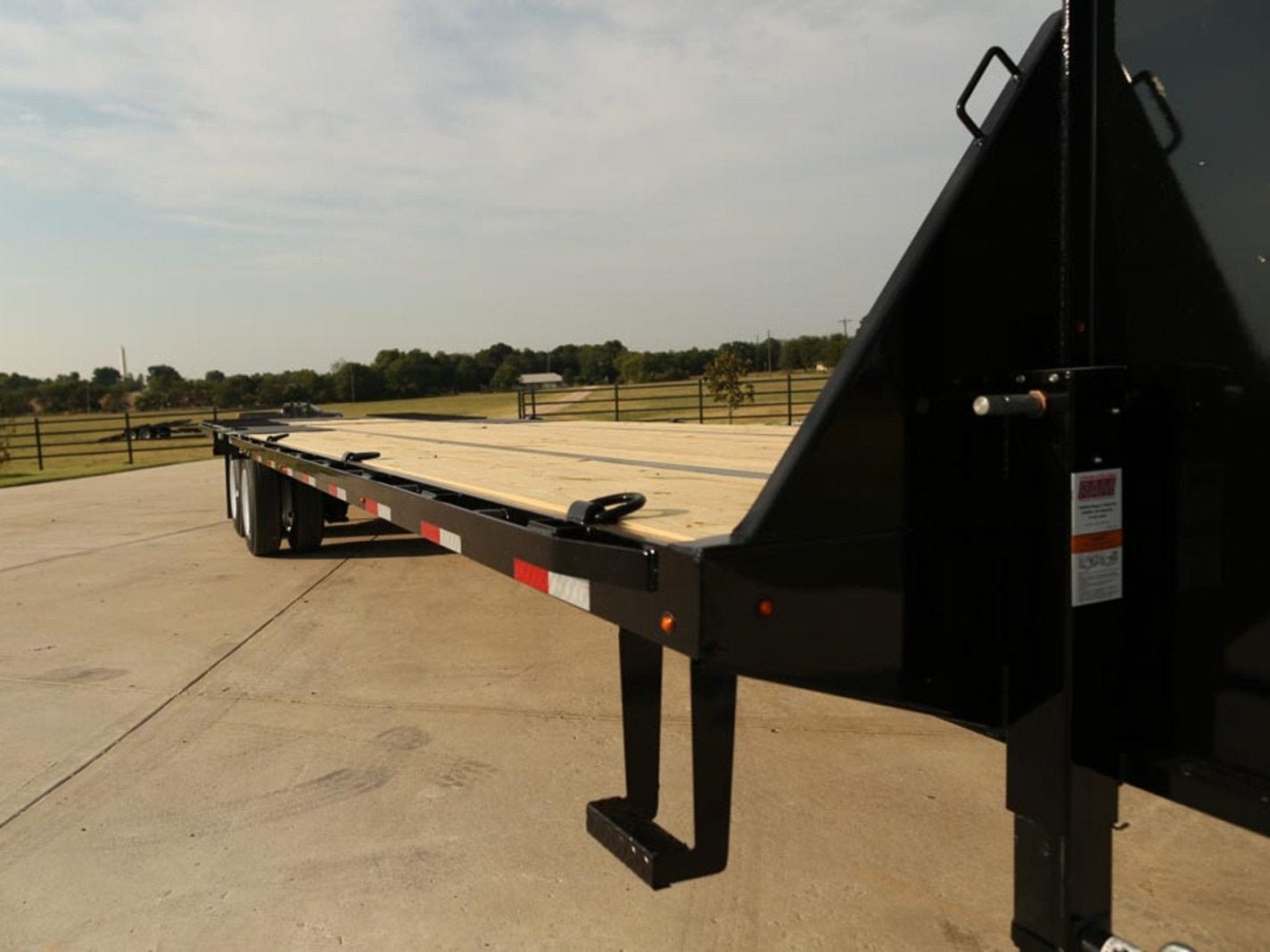

- JACKS:
- Dual 10K drop-leg jacks
- TIRES:
- 215/75 R17.5 (H) 16 ply tire black dual wheel (varies by GVWR)
- SPARE:
- Spare mount
SAFETY:
- LIGHTING:
- LED lights
- SIDE TURN FLASHERS:
- Pair of side turn flashers (standard on 30’+)
- WIRING:
- Weather resistant harness (-65°F)
- SAFETY CHAINS:
- Included with hydraulic dovetail
- SAFETY LATCH:
- Automatic safety latch system
CARGO MANAGEMENT
CARGO:
- TOOLBOX:
- Front toolbox
- RUB RAIL:
- Included
- STAKE POCKETS:
- Standard stake pockets
LOADING:

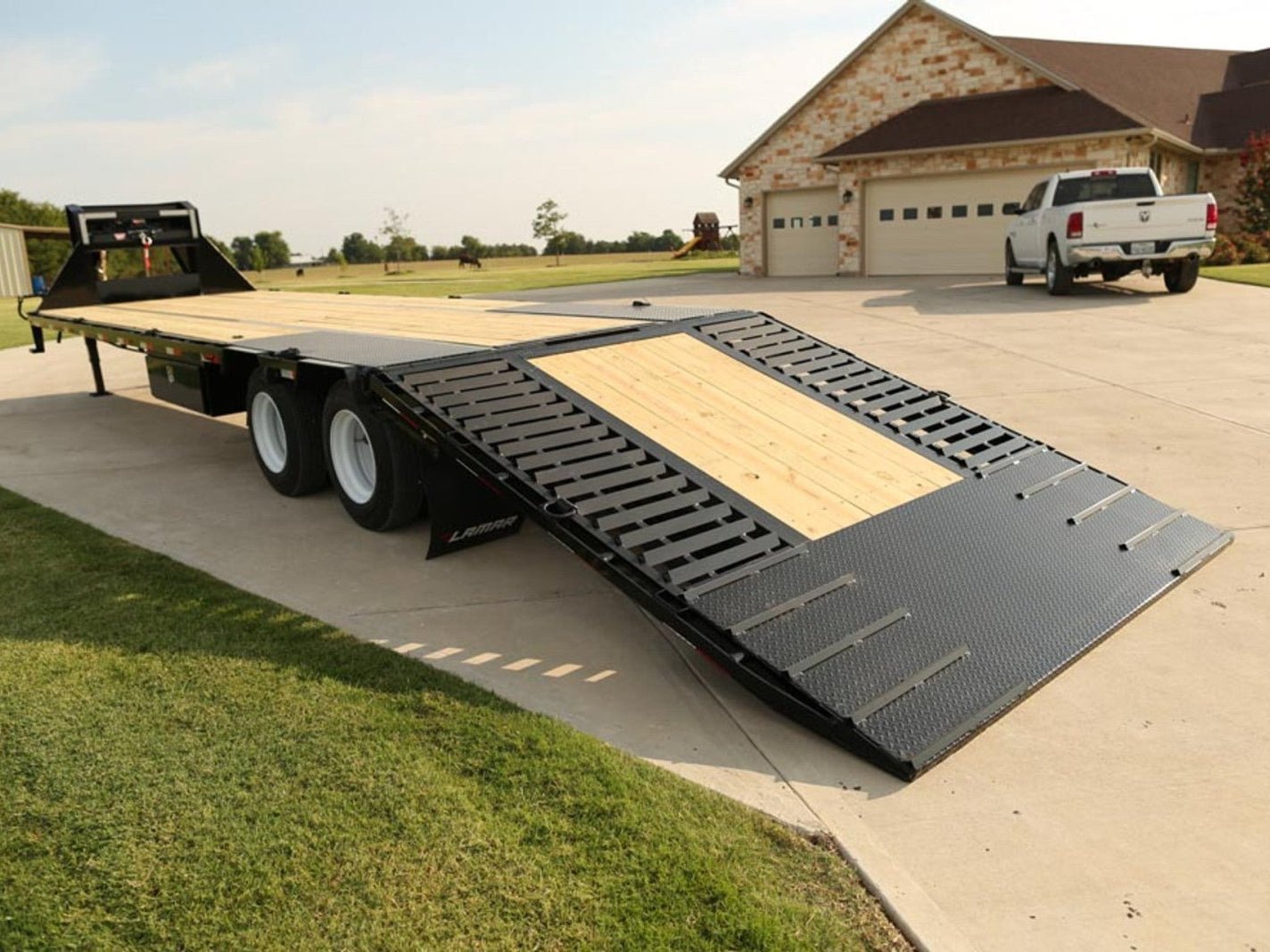

- LOADING ANGLE:
- 9' hydraulic dovetail - 20°
- HYDRAULIC OPERATION:
- Remote-controlled hydraulic operation
- MAX LIFT CAPACITY:
- 10,000 lbs
- CYCLE TIME:
- Approximately 45 seconds full cycle
- BATTERY REQUIREMENT:
- 12V vehicle battery or onboard battery system
STANDARD FEATURES:
- D-RINGS:
- Flush mount D-rings (6 minimum)
- RAMP STORAGE:
- Integrated ramp storage
- SAFETY CHAINS:
- Included with hydraulic system
