At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features

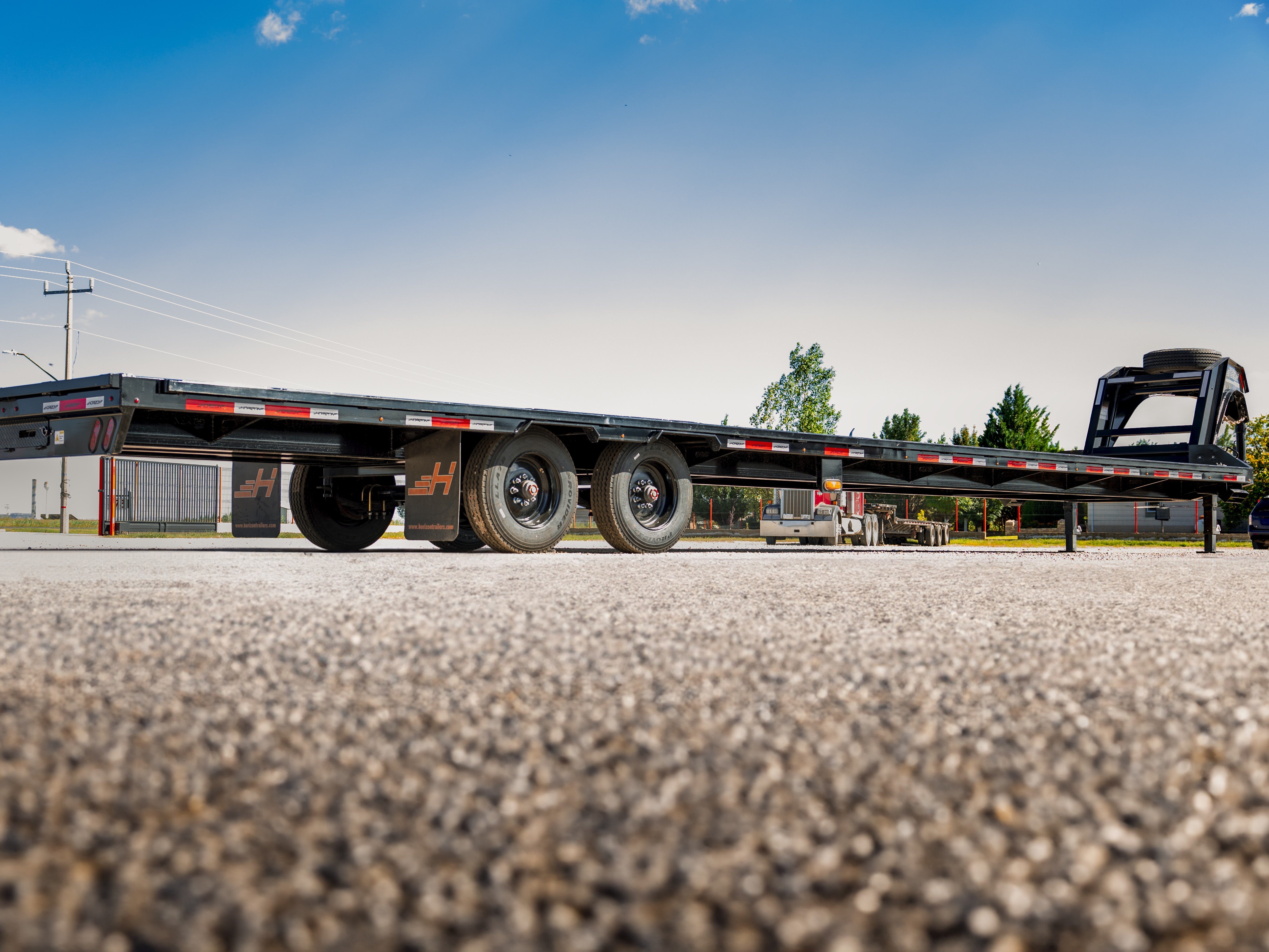

Heavy-Duty Frame & Construction
Built on a 12" I-beam main frame (19 lbs/ft) with 3" channel crossmembers on 16" spacing, this trailer is designed to handle extreme loads while maintaining long-term rigidity and reliability.

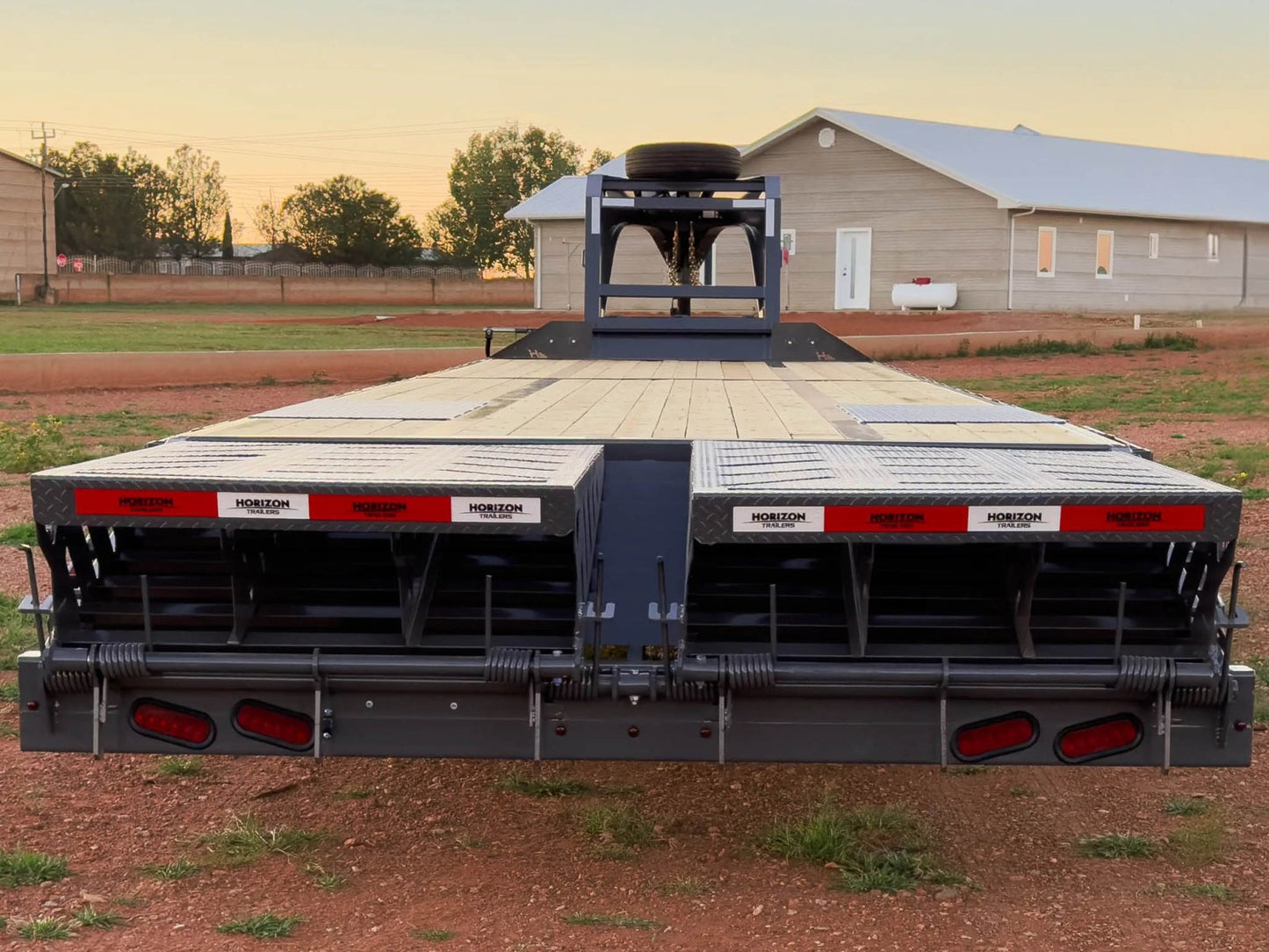

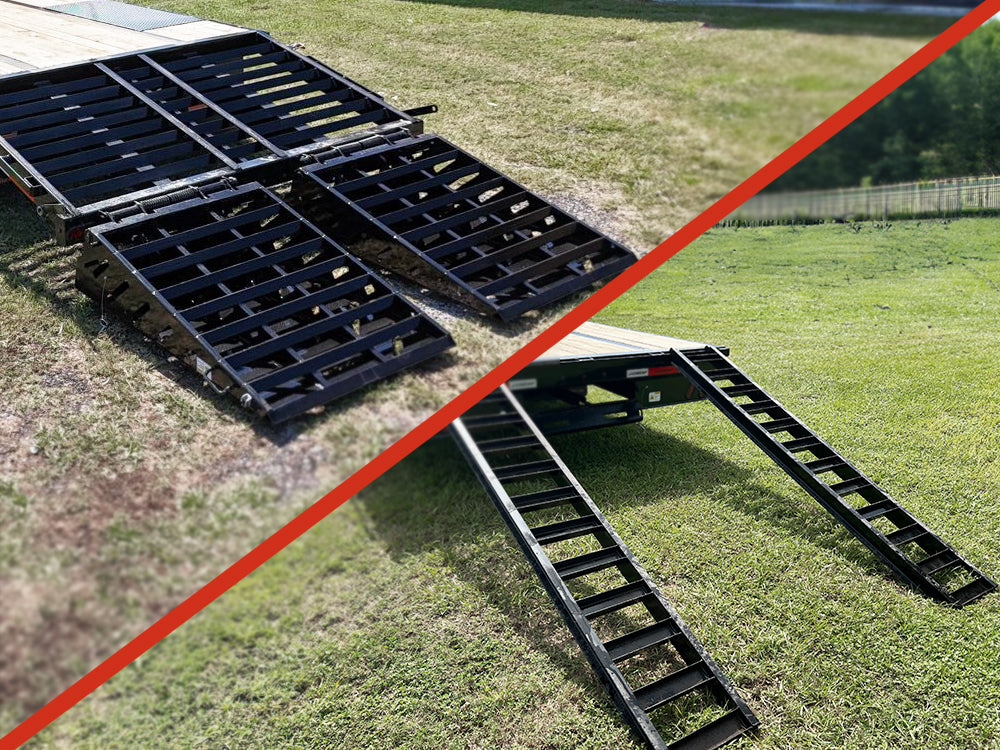

Versatile Deck & Ramps

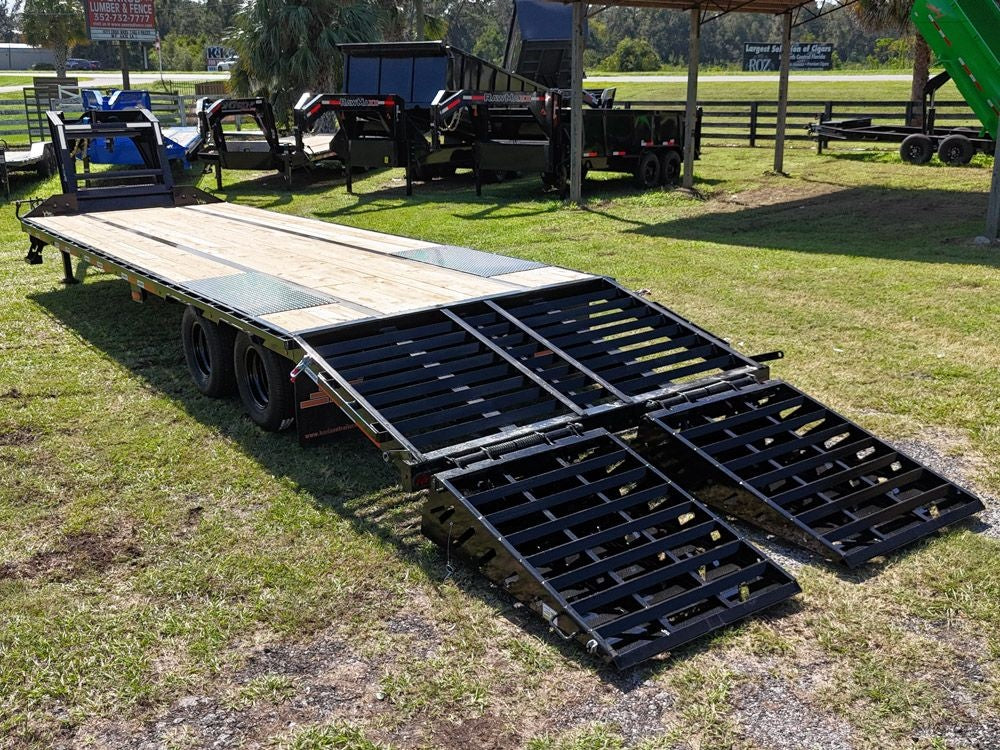

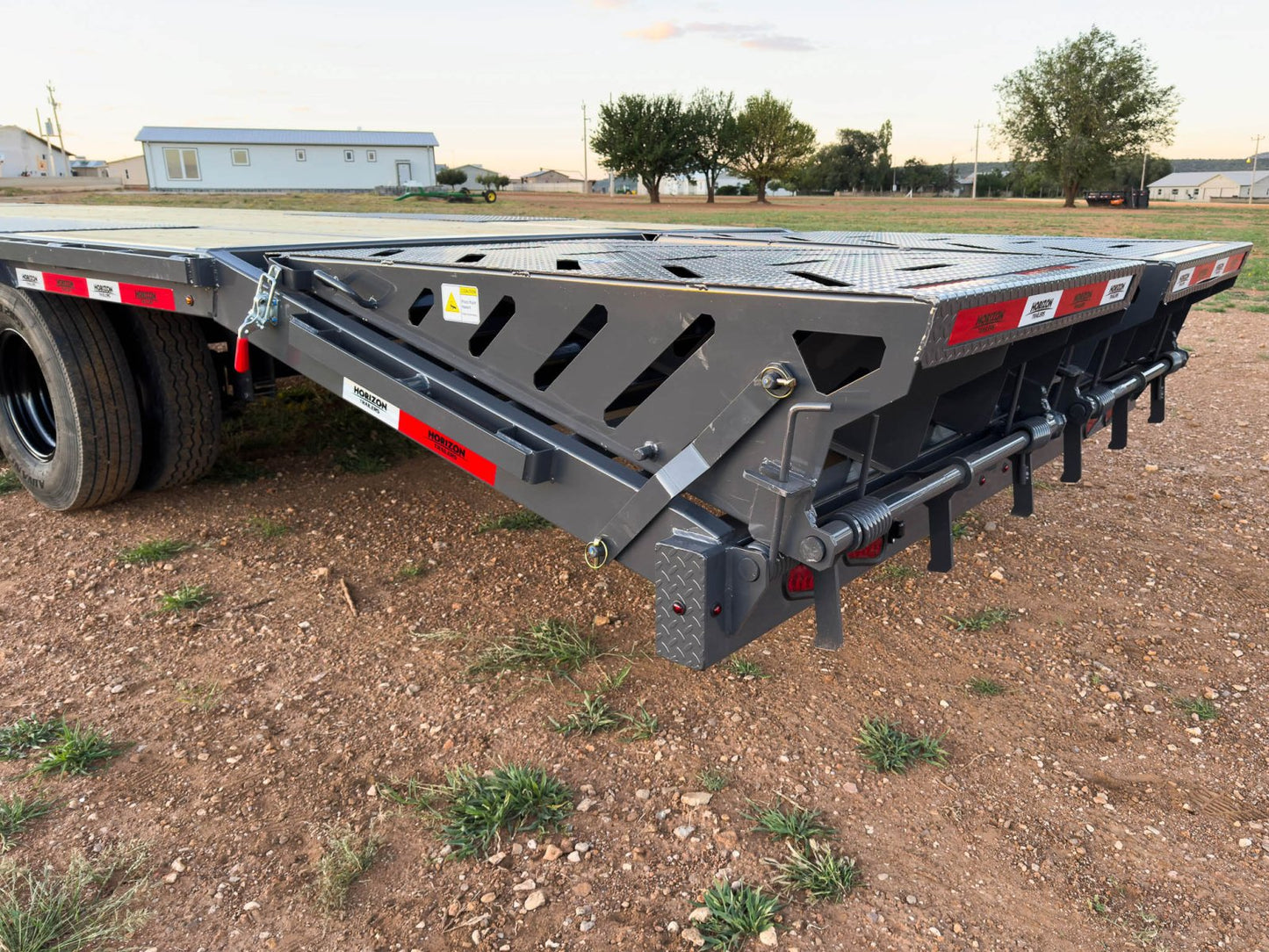

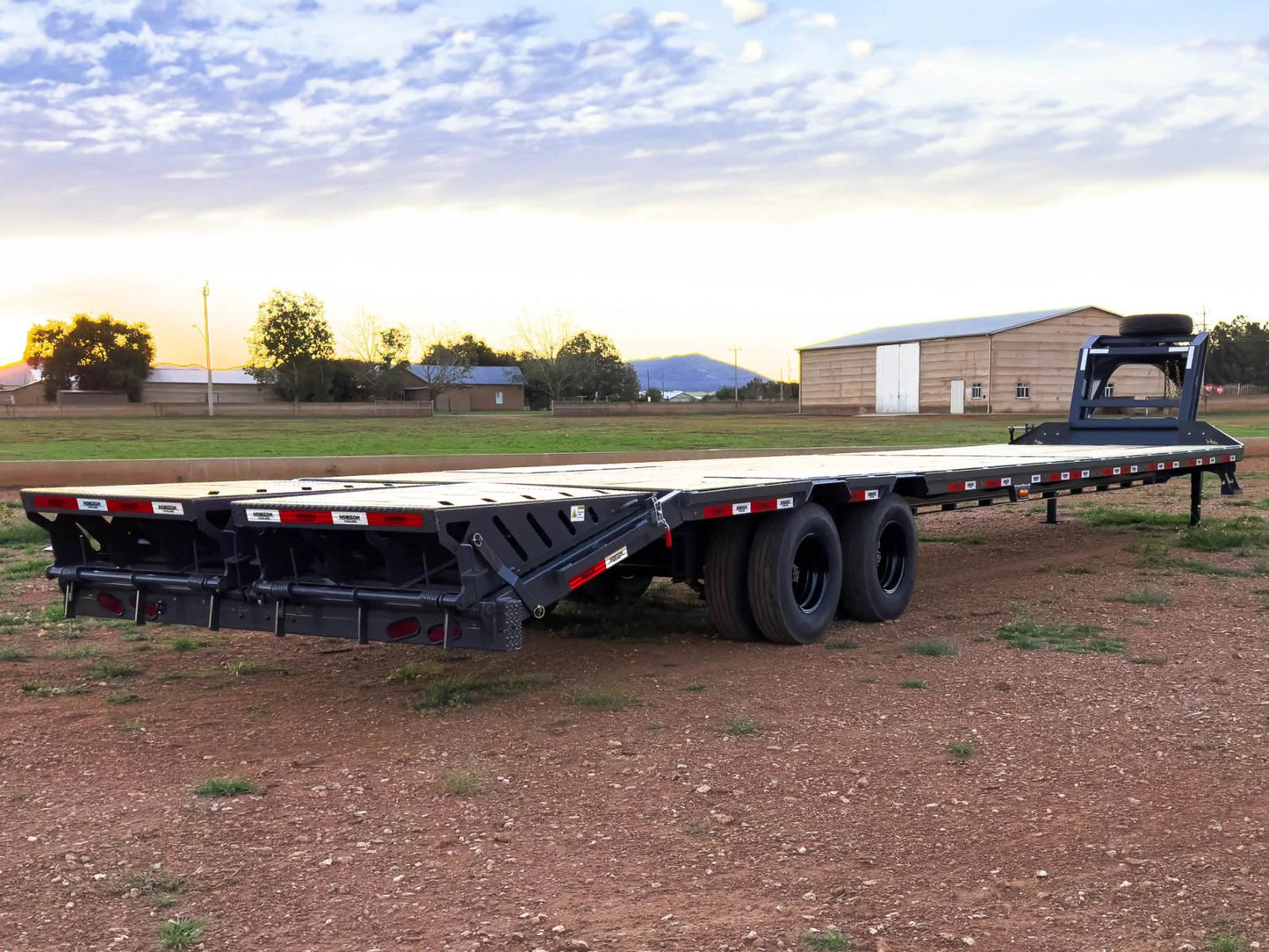

Wood deck with standard 8' slide-in ramps provides easy equipment loading. Optional 5' dovetail with 2 Mega Ramps delivers added convenience and capacity for heavier machinery.

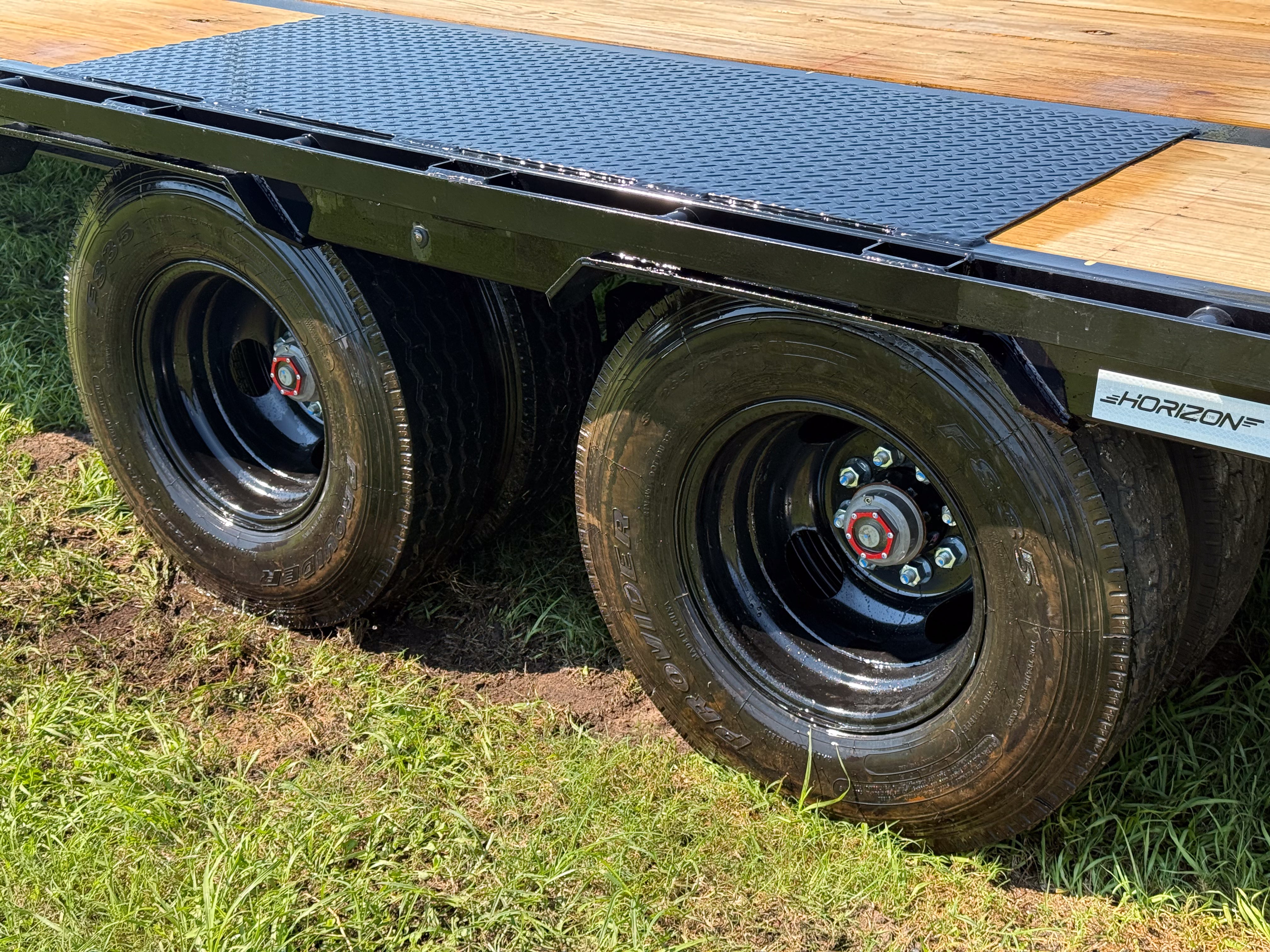

Heavy-Duty Axles & Suspension
Dual 10k electric brake, dual oil bath axles with spring suspension offer smooth towing and superior load support. Axle options include 10k, 12k, or 16k ratings, with optional 14-ply tires for additional load capacity.

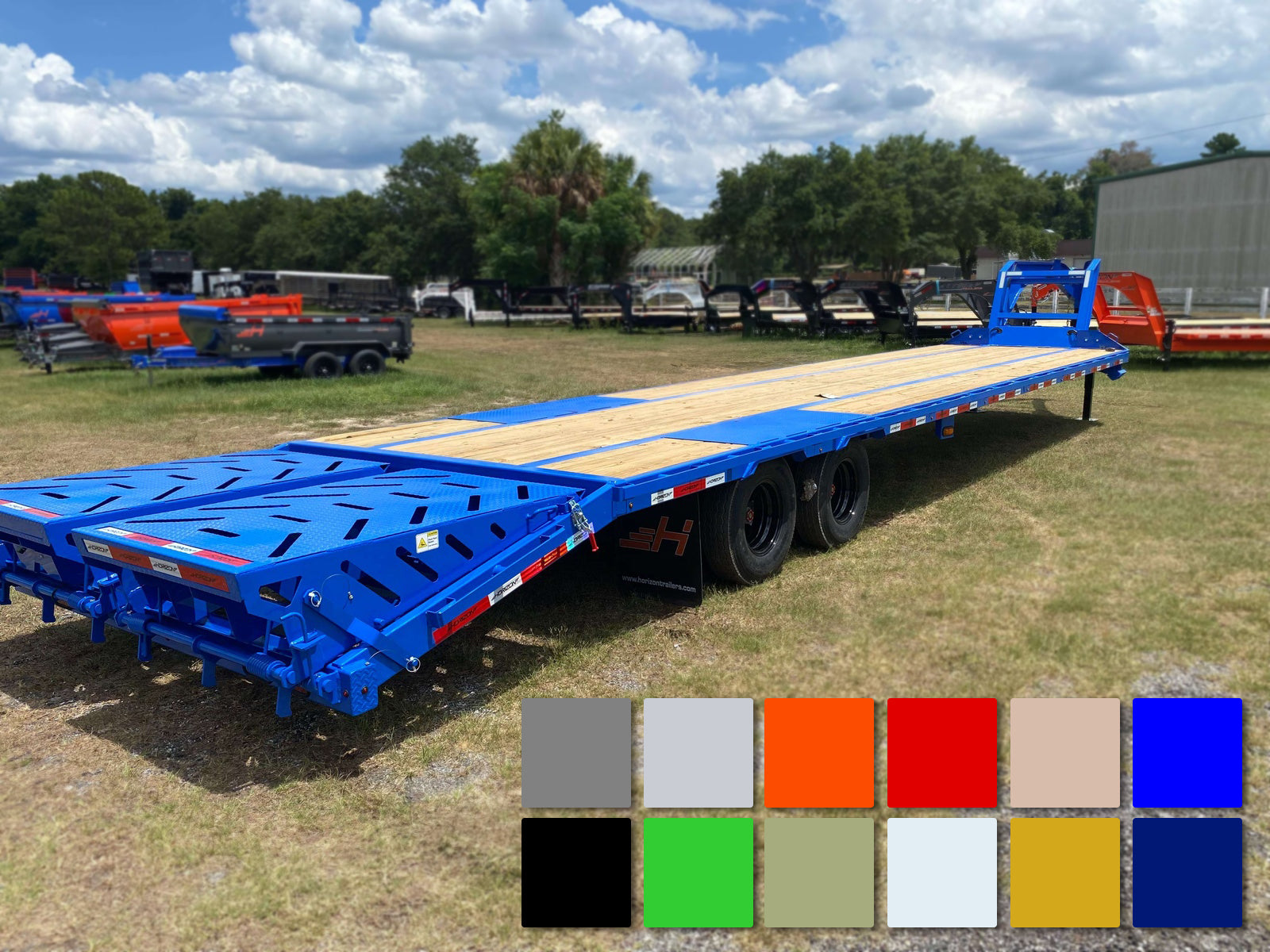

Durable Powder-Coated Finish
Steel grit blasting and powder coating, with optional zinc primer undercoat, protect the trailer from corrosion, wear, and environmental damage. Multiple color options allow fleet or personal customization.

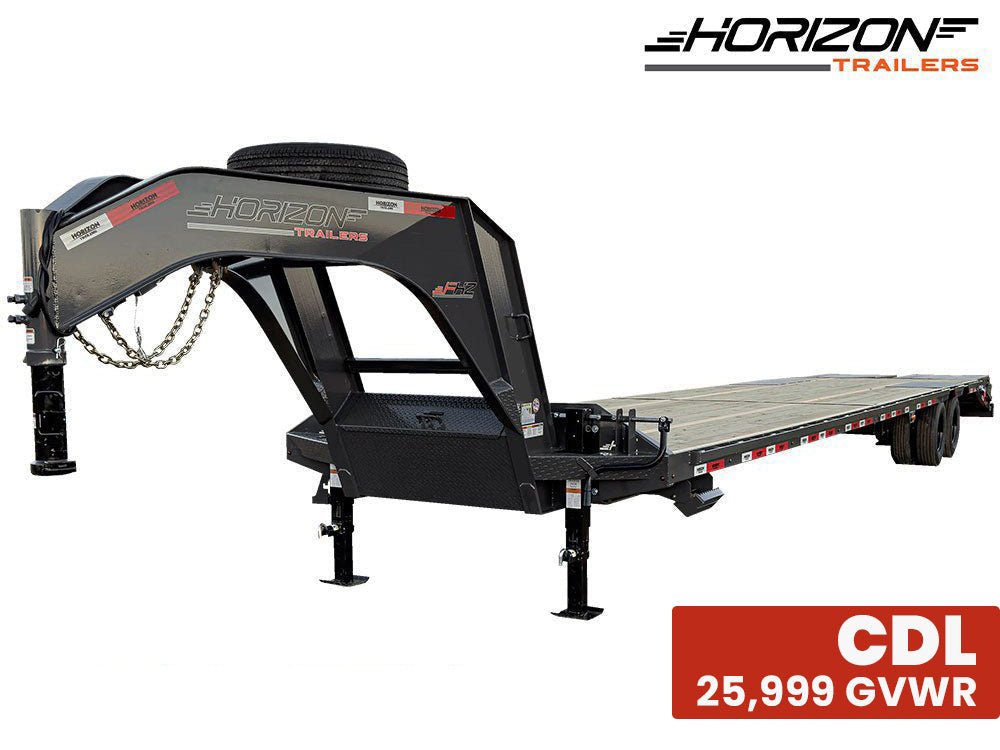

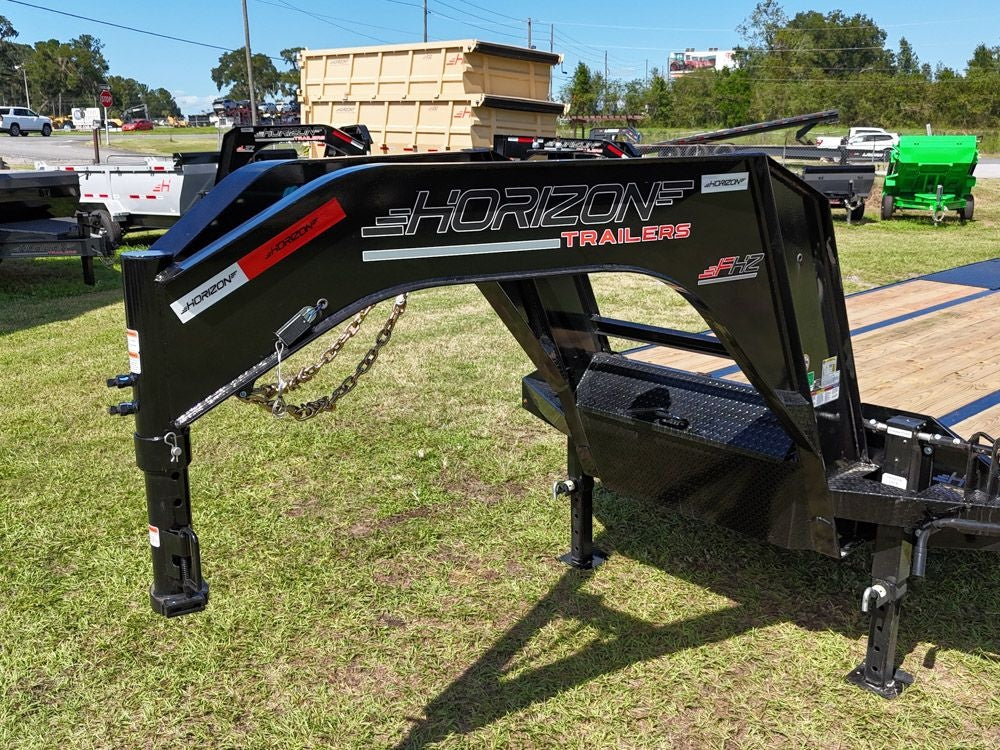

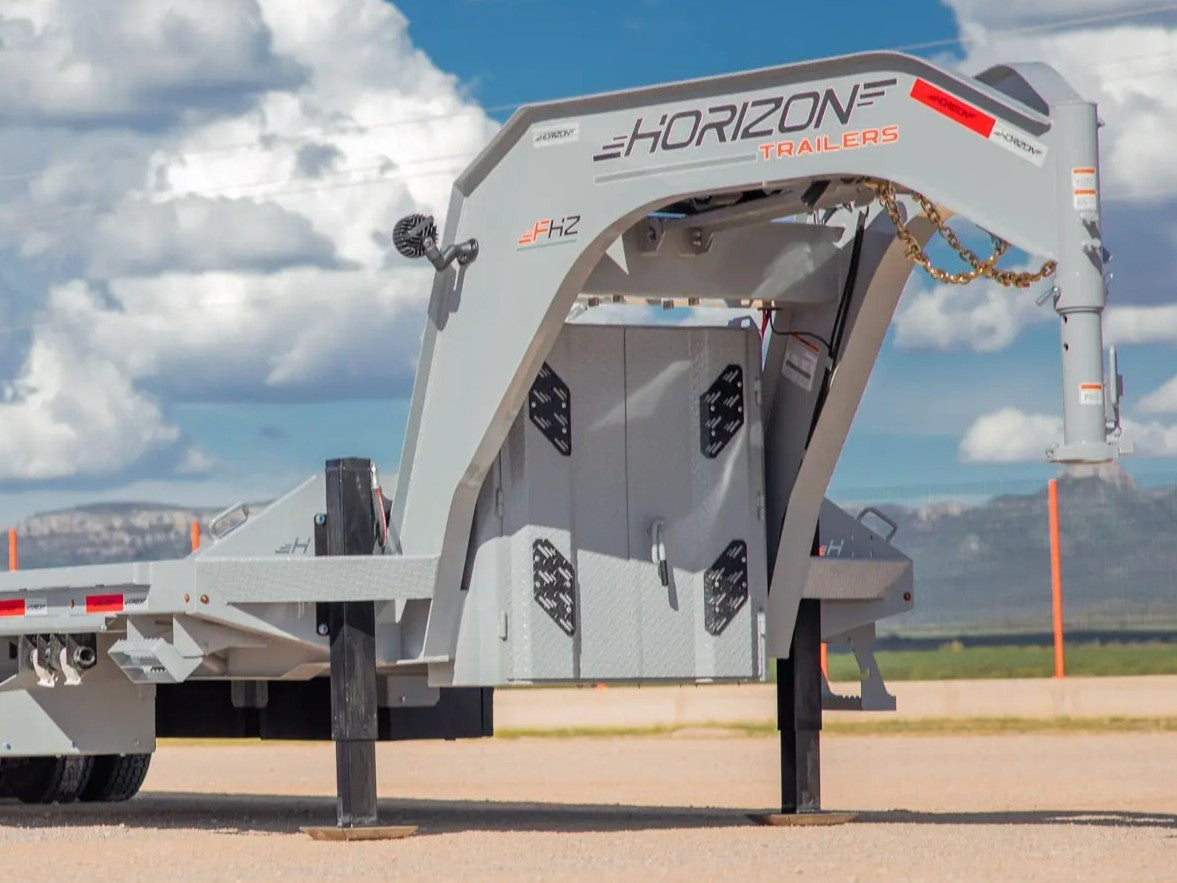

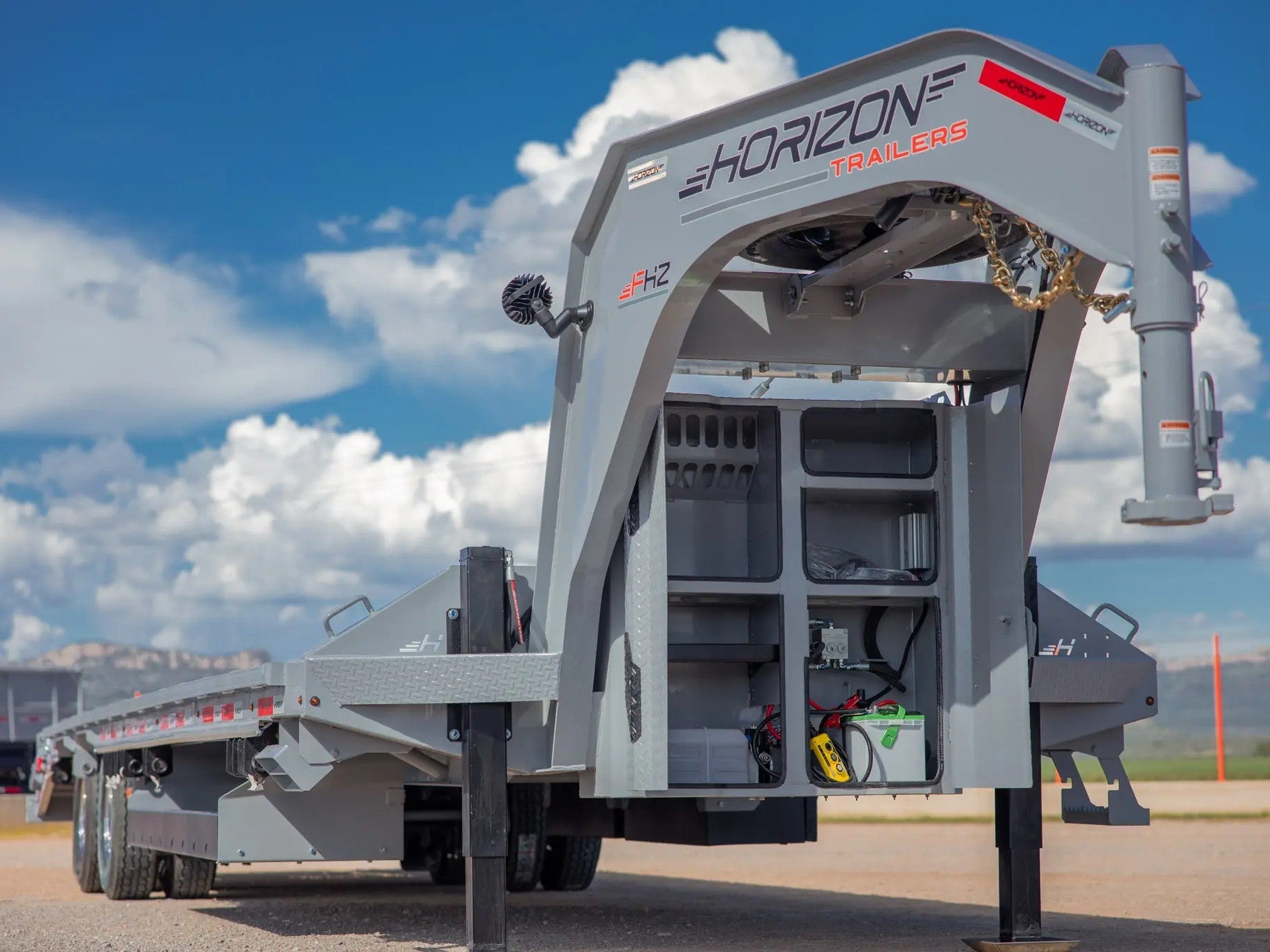

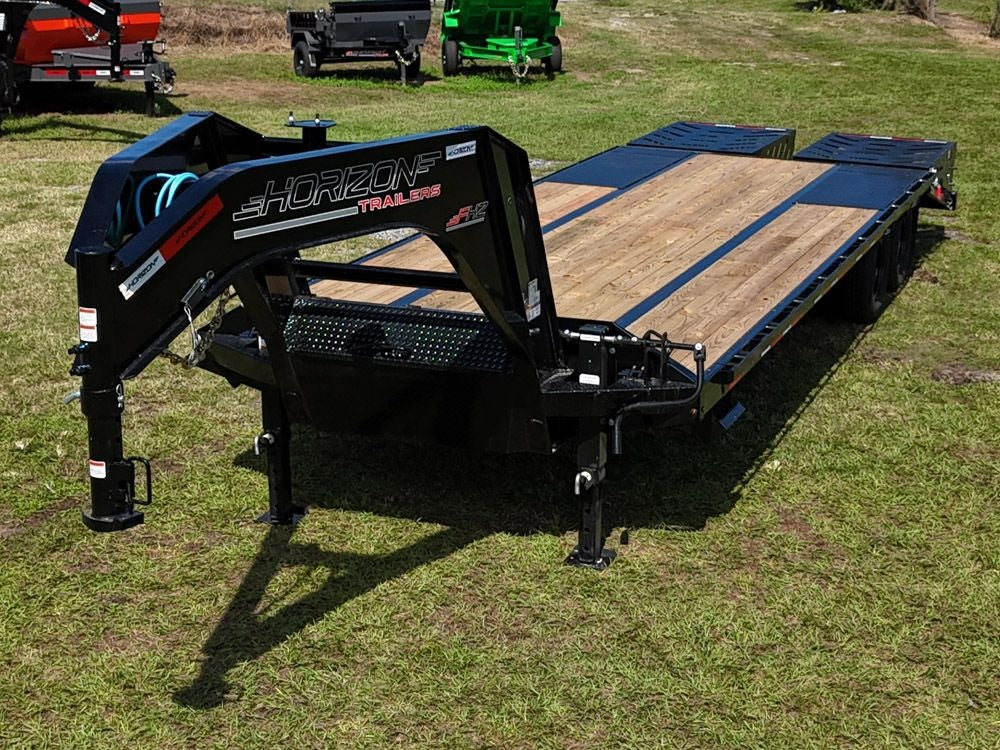

Engineered Gooseneck Design

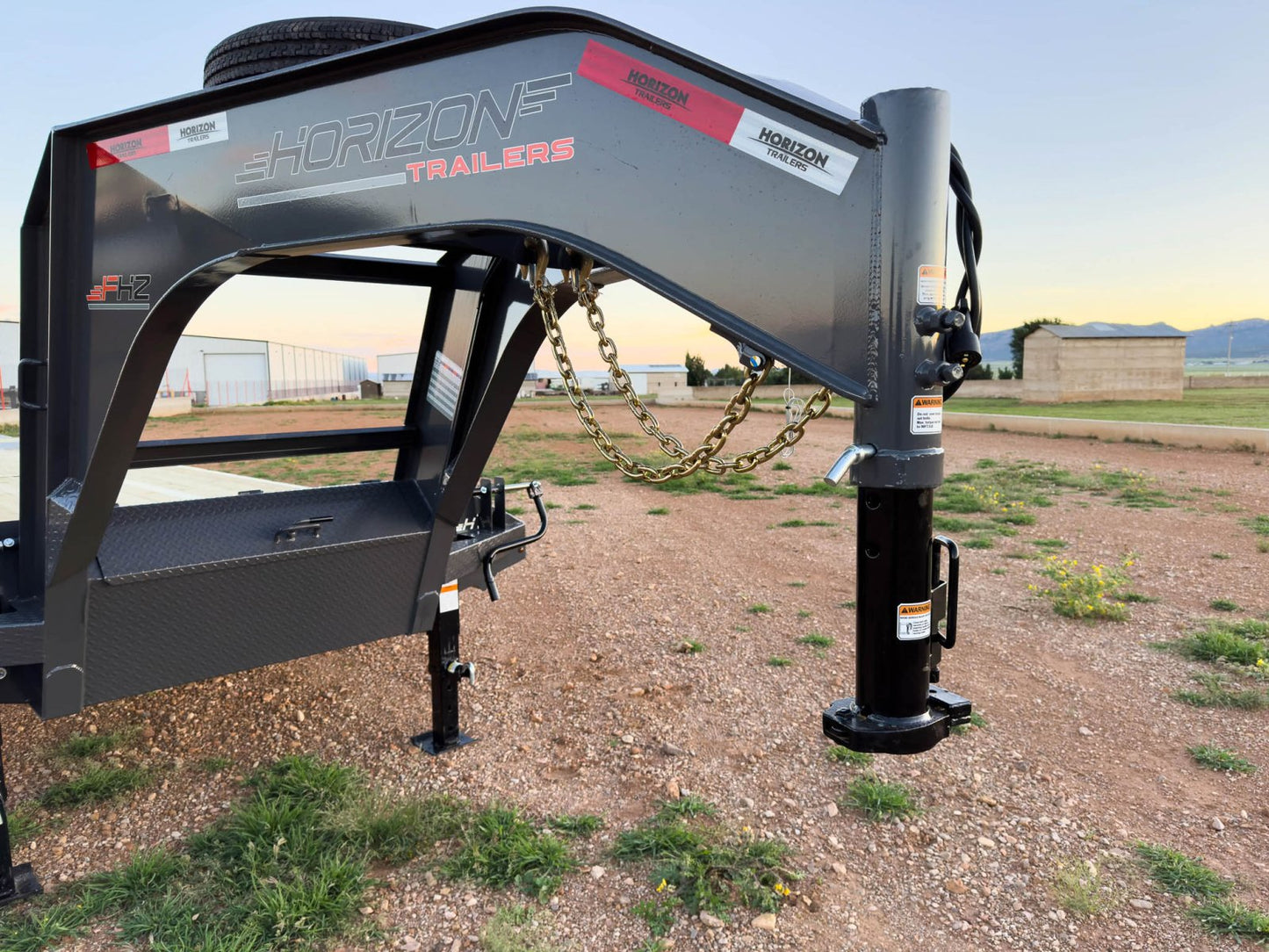

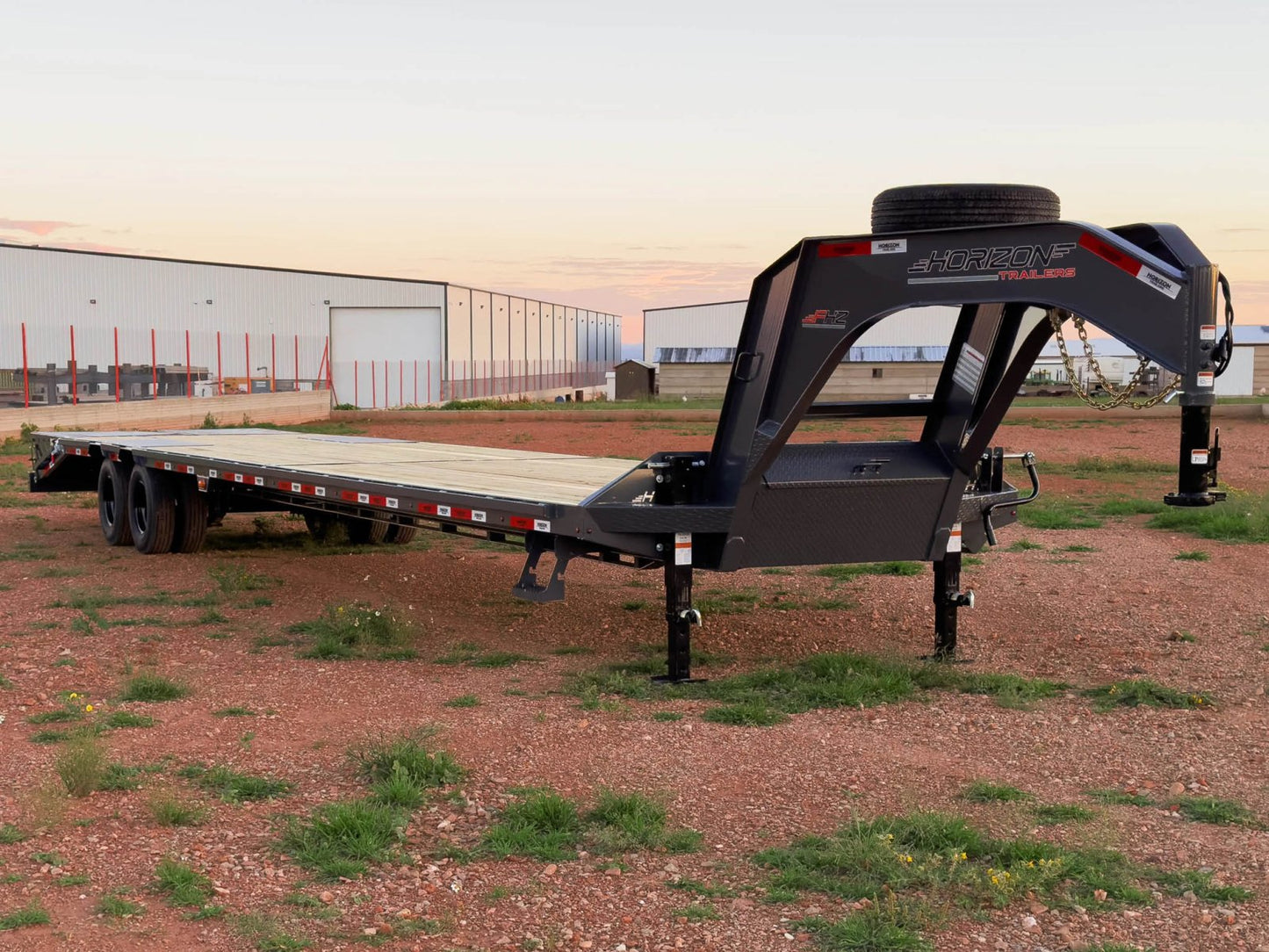

The 98" long engineered I-beam gooseneck provides unmatched strength and towing stability for GVWRs up to 30,000 lbs. Adjustable 2-5/16" coupler and dual 12,000 lb side wind drop jacks ensure secure and balanced connection to your truck.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20', 22', 24', 26', 28', 30', 32', 34', 36', 38', 40', 42', 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 34"
WEIGHT RATINGS
- GAWR:
- 10k, 12k, 16k
- GVWR:
- 25k - 30k lbs
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 98" Long
- HEIGHT:
- 70" (From Underneath Neck)
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)

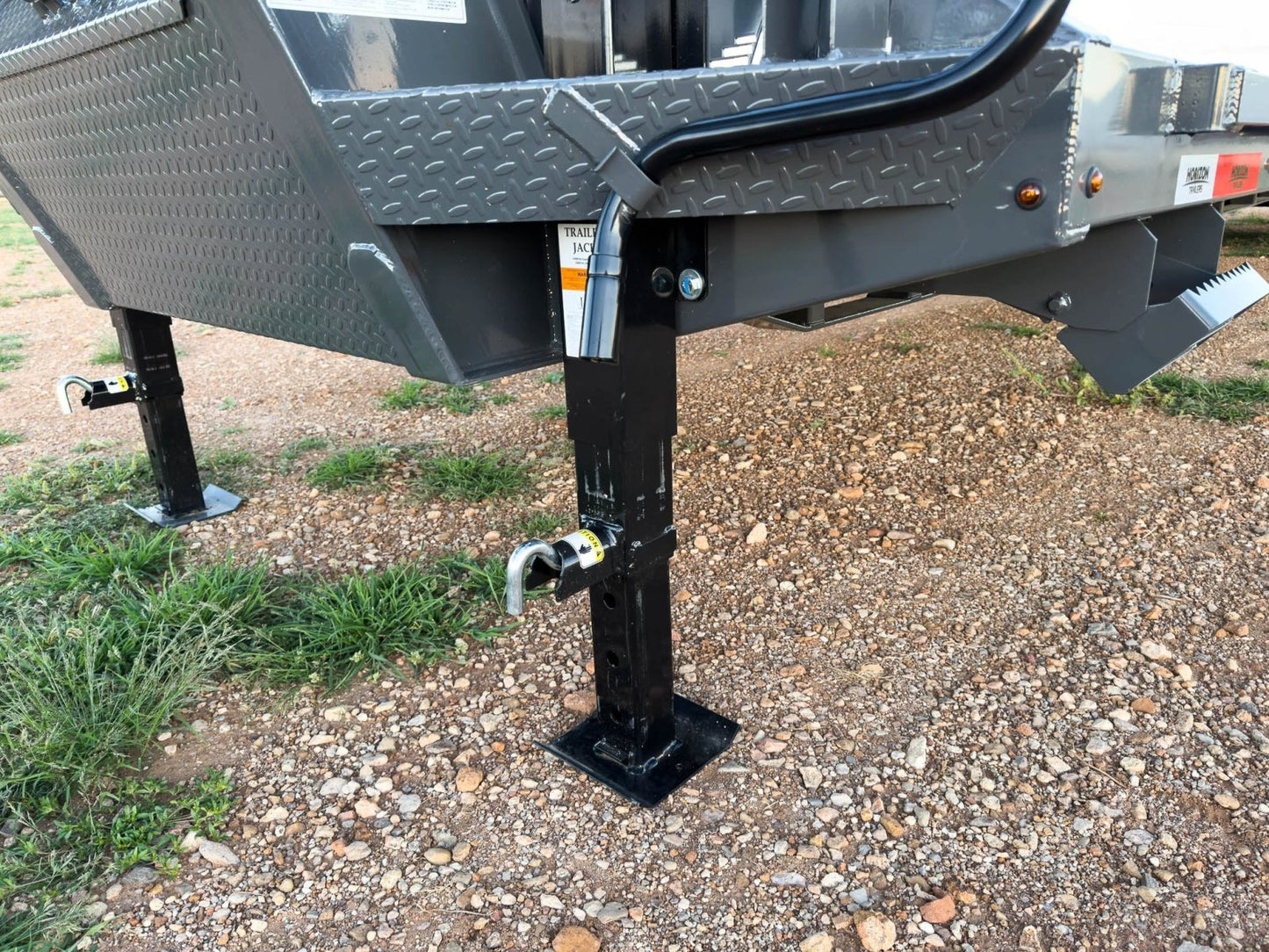

- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs)
STORAGE
- TOOLBOX:
- Mega Lockable Toolbox
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
DECK & LOADING
- DECK TYPE:
- Wood
- RAMPS:
- 8' Slide In Ramps
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR
- TIRES:
- Radial Tires, ST235/80R16, 10 Ply, 3,080 lbs Rating
- RIMS:
- 16" Black Mod Wheels
- AXLES:
- 2 - 10k Electric Brake Dual Oil Bath Axles
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19 lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
OPTIONS
- JACK UPGRADE:
- 12k Hydraulic Jacks
- TOOLBOX UPGRADE:
- Locker Style Toolbox
- COUPLER UPGRADE:
- Shocker Hitch Coupler
- SOLAR OPTION:
- 10 Watt Solar Panel
- LIGHTING OPTION:
- Cargo Lights on Riser
- TOOLBOX MOUNT:
- Side Mount Toolbox
- TIRE UPGRADE:
- 14 Ply Tires
- SPARE TIRE:
- Spare Tire
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- WELD ON RATCHETS:
- 6, 8, 10, 12 Weld On Ratchets
- SLIDE RATCHETS:
- 6, 8, 10, 12 Sliding Ratchets
- D-RINGS:
- 4, 6, 8, Additional D-Rings
- UNDERCOAT:
- Zinc Primer Undercoat
- RAMP UPGRADE:
- 5' Dovetail w/ 2 Mega Ramps
