At a Glance
TRAILER SPECS:
Specifications
- Brand:
Dura-Haul
Dimensions
- LENGTH:
40'
Inquire About This Trailer
Featured Video
Product Features

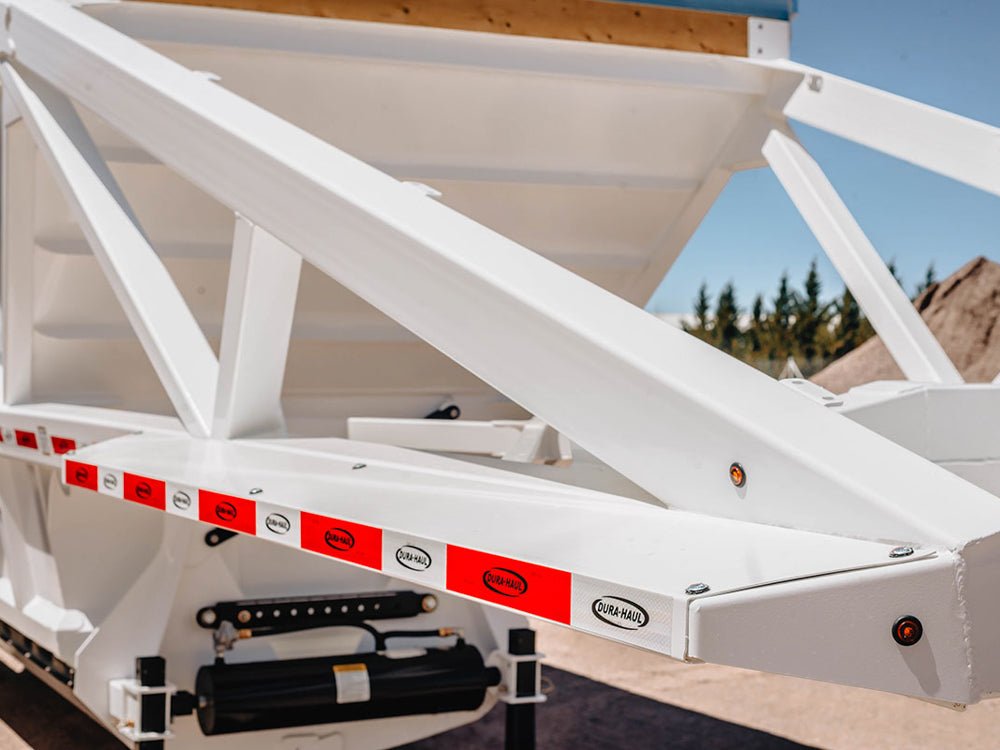

Lightweight Skeleton Frame
The XLS Belly Dump Trailer features a lightweight skeleton frame design, weighing only 12,850 lbs, optimizing payload efficiency. This durable construction supports a 23.5 cubic yard capacity, ideal for demanding construction and roadwork tasks.

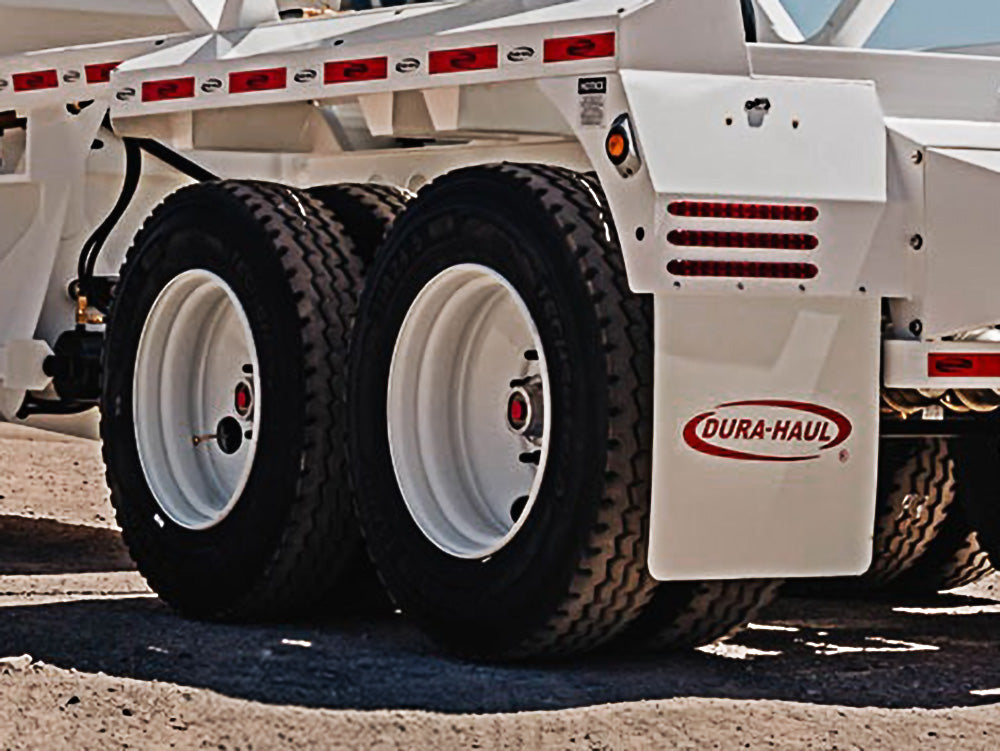

Heavy-Duty Running Gear
Equipped with two 25,000 lbs 71.5” track axles and Hutch H-9700 series 4-spring 3 leaf suspension, the XLS delivers superior stability. Optional air ride or single-point suspension and 77.5” track width enhance performance on tough terrains.
Durable Powder-Coated Finish
A 5-step finishing process—steel grit blasting, acid wash, phosphate treatment, heated silicone treatment, and powder coating—ensures a corrosion-resistant, long-lasting finish. This meticulous process enhances durability and maintains a professional appearance.

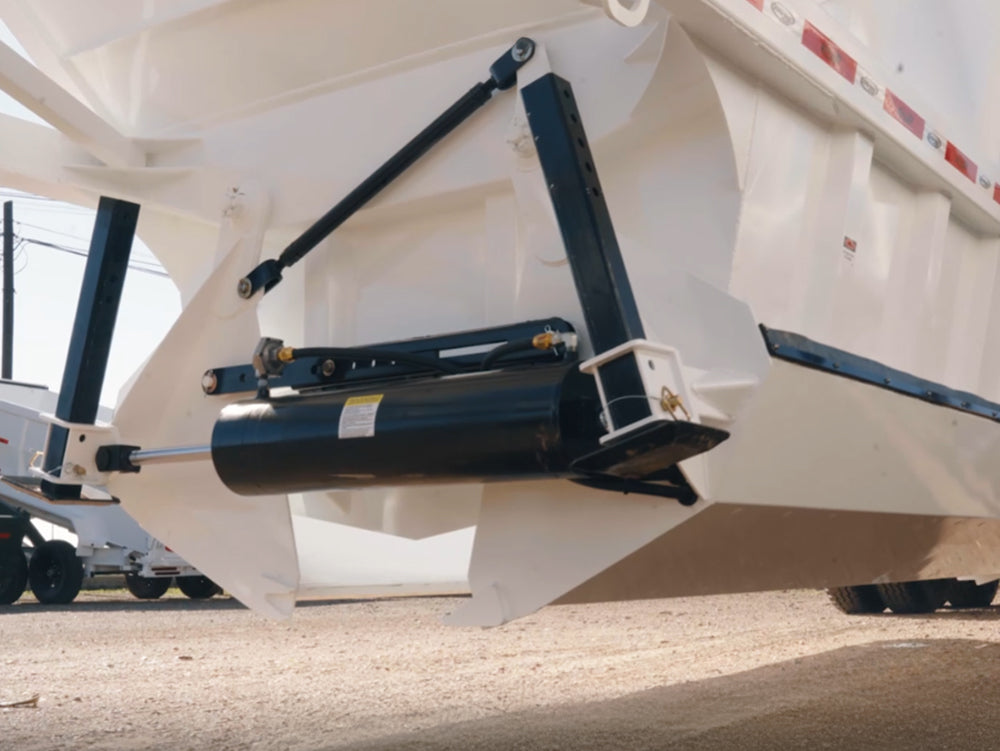

Efficient Belly Dump Feature
Constructed with a 10-gauge steel upper hopper and 3/16” steel lower hopper, the belly dump design ensures precise and rapid unloading of materials like gravel or asphalt. The 3/16” steel gates with bar stops provide reliable control for efficient spreading on job sites.

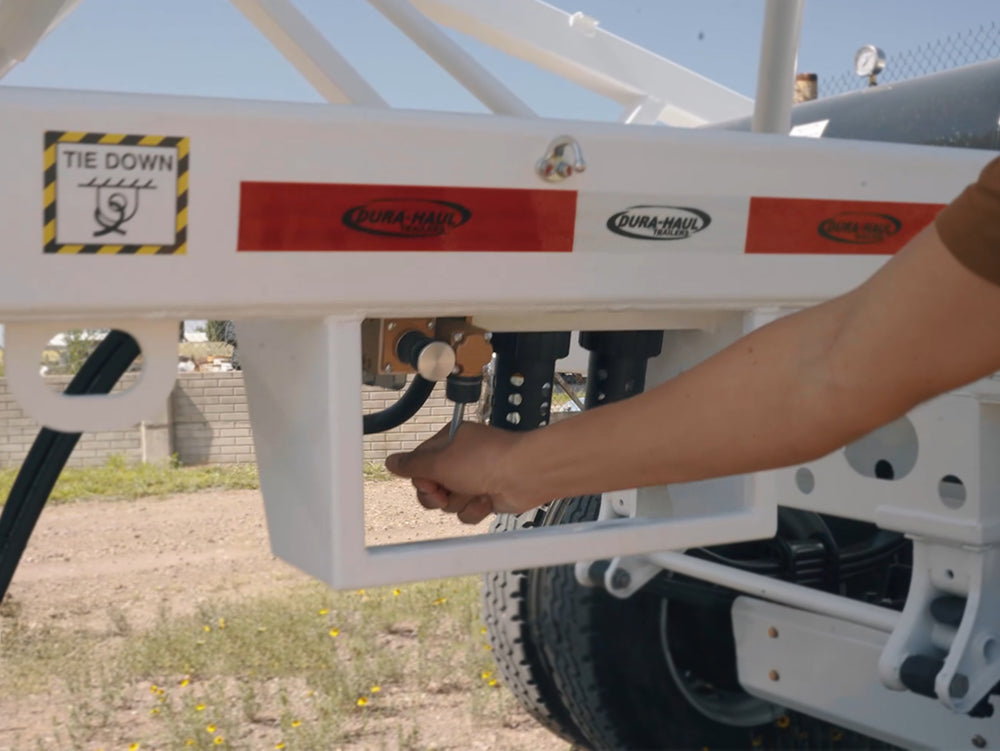

Advanced Air-Controlled Gates
The trailer’s 3/16” steel gates are manually air-controlled and electrically operated from the truck cab for precise material release. Paired with a Vorta Valve and lubricator filter, the system ensures user-friendly and efficient unloading.
DOT-Compliant Safety Features
The XLS includes full DOT-approved LED sealed lights in a fully enclosed conduit with a junction box for enhanced visibility. ABS sensors on the rear axle and a DOT-approved under-ride push block bumper ensure safety and compliance.
Product Details
OVERVIEW
TRAILER:
- MODEL:
- XLS Belly Dump - Skeleton
- BRAND:
- DURA-HAUL
DIMENSIONS & CAPACITY
DIMENSIONS:
- LENGTH:
- 40’
- WIDTH:
- 96”
- HEIGHT:
- 8’ 11”
- WEIGHT:
- 12,850 lbs
- CAPACITY:
- 23.5 cubic yards with 6” bang boards
FRAME & CONSTRUCTION
FRAME:
- SIDES:
- Skeleton sides
- UPPER HOPPER:
- Constructed with 10 gauge steel plate
- LOWER HOPPER:
- Constructed with 3/16” steel plate
- GATES:
- 3/16” steel gates, bar stops, manually air controlled and electric controlled from cab of truck
RUNNING GEAR
AXLES:
- TYPE:
- 2 - 25,000 lbs 71 1/2” track axles
- OPTIONAL TRACK WIDTH:
- 77 1/2”
- SUSPENSION:
- Hutch H-9700 series 4 spring 3 leaf suspension
- OPTIONAL SUSPENSIONS:
- Air ride suspensions, Hutch H-9003 spring single point suspension
- WHEELS:
- 8 - 8.25 x 24.5 steel wheels
- TIRES:
- 8 - 11R x 24.5 tires
FIFTH WHEEL & AIR SYSTEM
FIFTH WHEEL:
- TYPE:
- Oscillating fifth wheel plate
- OPTIONS:
- Air pintle hitch
AIR SYSTEM:
- DESCRIPTION:
- 2 - 8” OEM bore cylinders with 60 gallon reservoir, comes with oil and water filters, Vorta Valve & lubricator filter
SAFETY & ELECTRICAL
SAFETY:
- ABS:
- ABS sensors on rear axle
- REAR BUMPER:
- Push block with DOT approved under ride bumper
- OPTIONS:
- Front and rear shed plate
ELECTRICAL:
- LIGHTS:
- Full DOT approved LED sealed lights, fully enclosed conduit with junction box
FINISH
FINISH:
- PAINT PROCESS:
- 5-step process: Steel grit blasting, Acid wash, Phosphate treatment, Heated silicone treatment, Powder coat finish
